  1. Ocular Trauma Sandra M. Brown, MD1 and Yair Morad, MD2 1 Ophthalmology and Visual Sciences Texas Tech University Health Sciences Center Lubbock, Texas USA 2 Pediatric Ophthalmology Service, Assaf Harofeh Medical Center, Zrifin, Israel

  2. Nature of Injury • Blunt • Lacerating • Chemical

  3. Blunt Trauma • Mild – moderate • “Bruise” ocular tissues • Eye wall intact • Moderate – severe • Rupture eye wall • Very severe consequences

  4. Lacerating Trauma • “Cut” eye wall • Outcome depends on extent and location

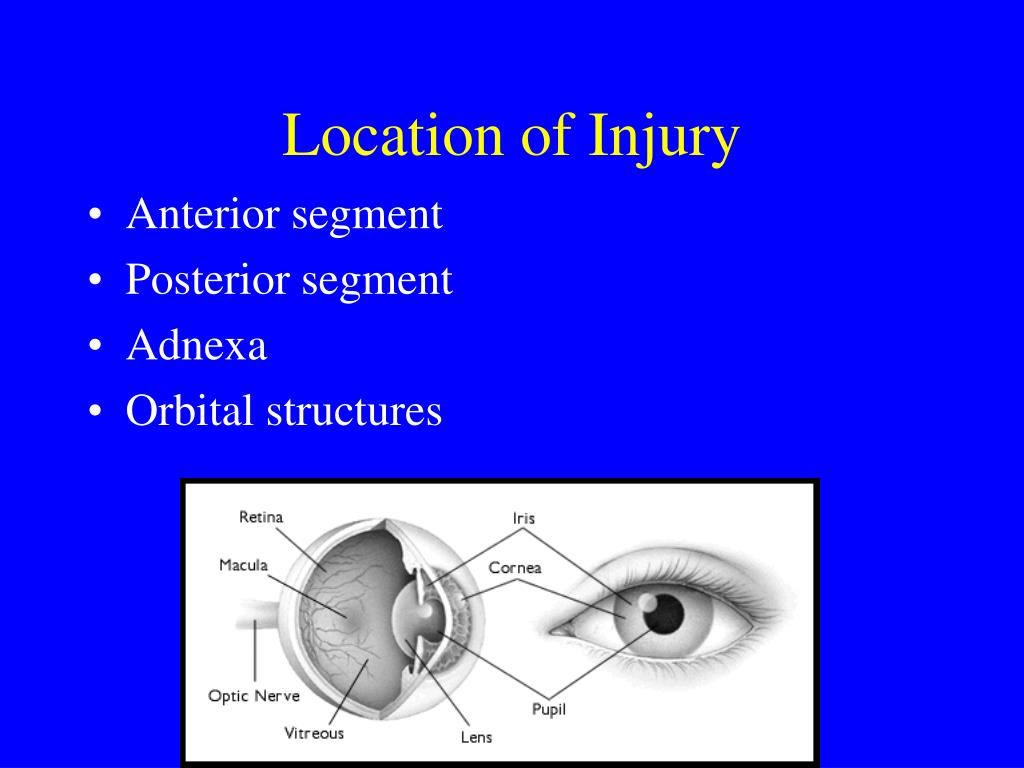

  5. Location of Injury • Anterior segment • Posterior segment • Adnexa • Orbital structures

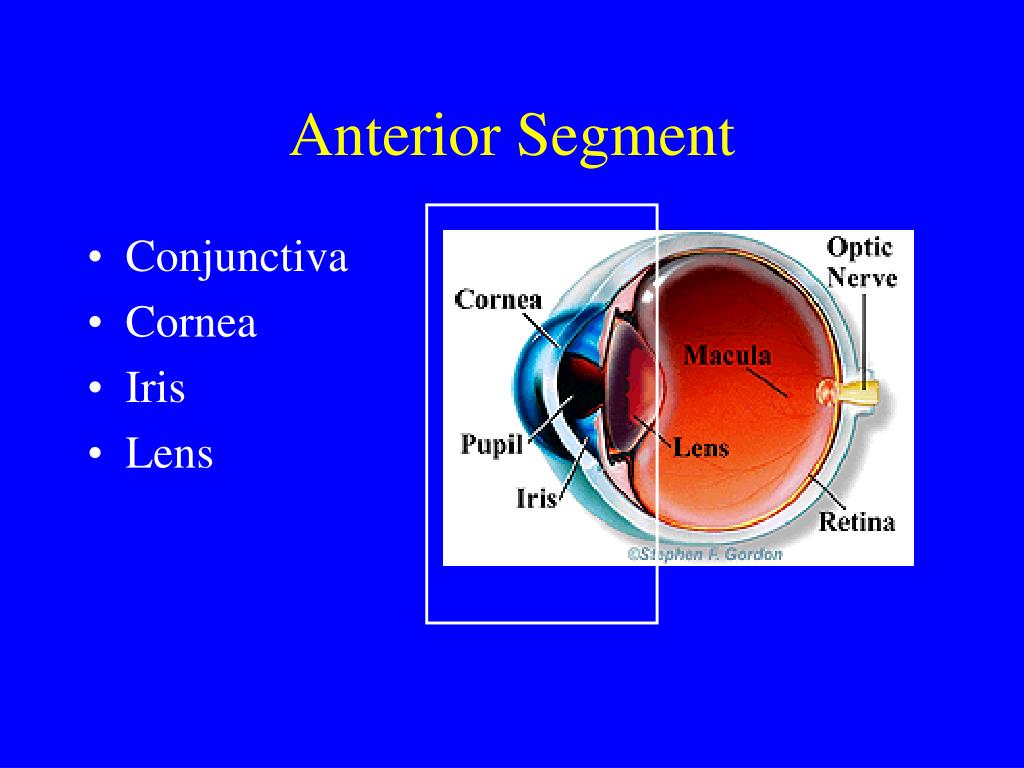

  6. Anterior Segment • Conjunctiva • Cornea • Iris • Lens

  7. Posterior Segment • Vitreous • Retina • Optic nerve

  8. Adnexa • Eyelids • Lacrimal Structures

  9. Orbital Structures • Extraocular muscles • Bony walls

  10. Disgusting Photographs • Front to back…

  11. Racoon Eye • Self limiting if no other injury exists • No treatment needed • Be sure to open lids apart to examine the eye structure and motility

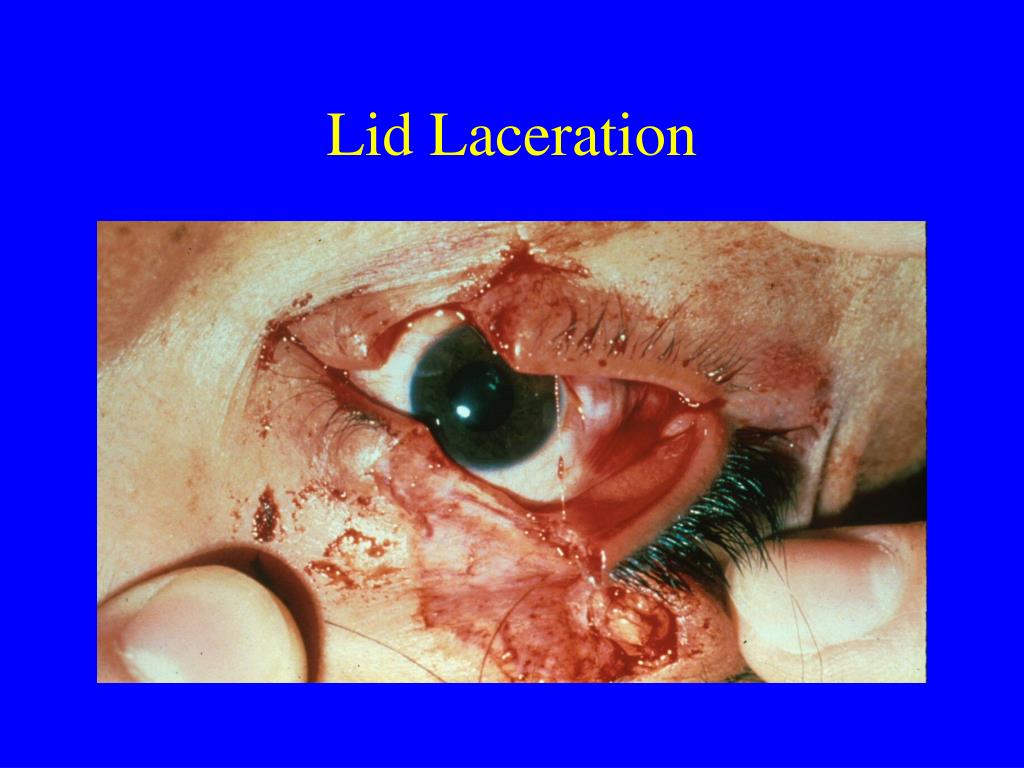

  12. Lid Laceration

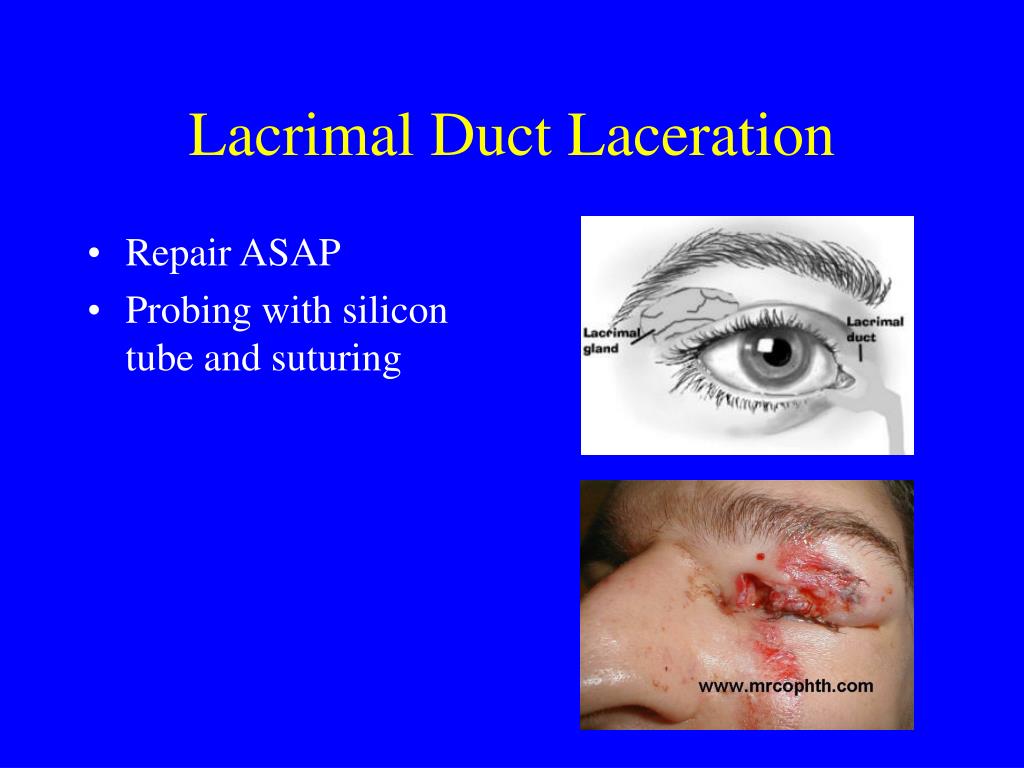

  13. Lacrimal Duct Laceration • Repair ASAP • Probing with silicon tube and suturing

  14. Conjunctival Trauma • Sub conjunctival hemorrhage • Self limiting • No treatment needed • Conjunctival laceration • Make sure the sclera is intact • Antibiotic ointment for 1-3 days

  15. Subconjunctival Hemorrhage

  16. External Foreign Body • Can be in conjunctiva or cornea • Red painful and watery eye • Removal under slit lamp • Patching with antb

  17. Corneal Foreign Body

  18. Corneal Abrasion • Severe pain and photophobia • Blurry vision • Erosion stains with fluresceine • Patching with antibiotic oint to prevent infection and help re- epithelization • Healing 1-4 days

  19. Corneal Abrasion

  20. Chemical Burn • Usually fat-cleaning materials • Pain, photophobia • Treatment: irrigation, irrigation, irrigation

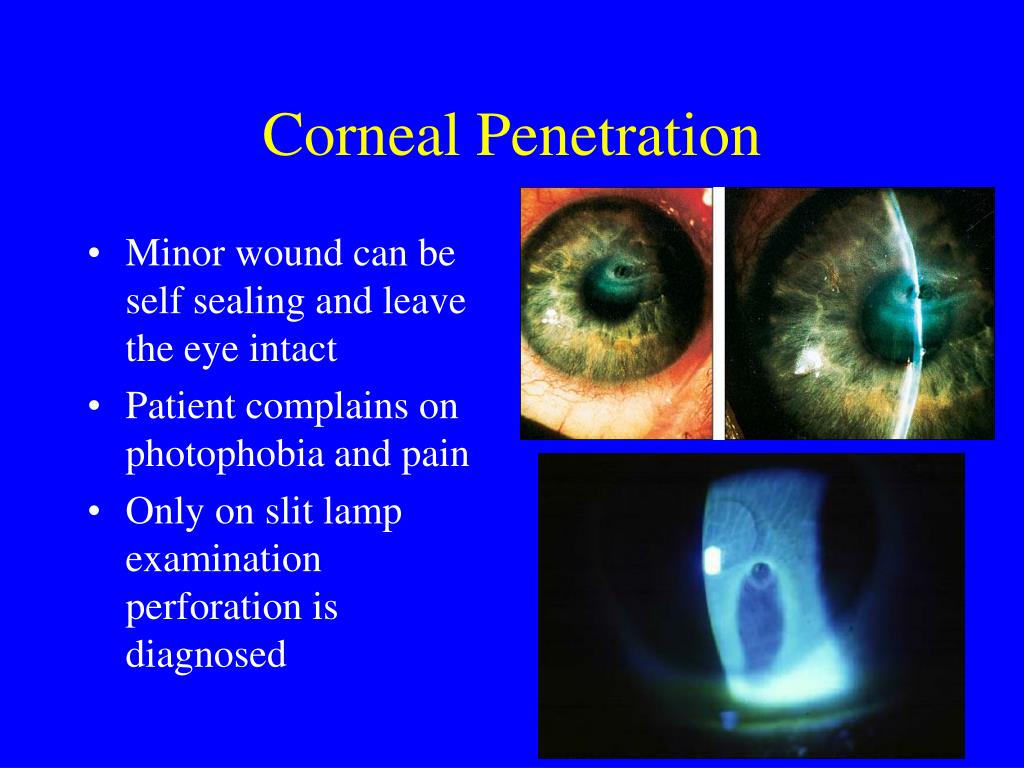

  21. Corneal Penetration • Minor wound can be self sealing and leave the eye intact • Patient complains on photophobia and pain • Only on slit lamp examination perforation is diagnosed

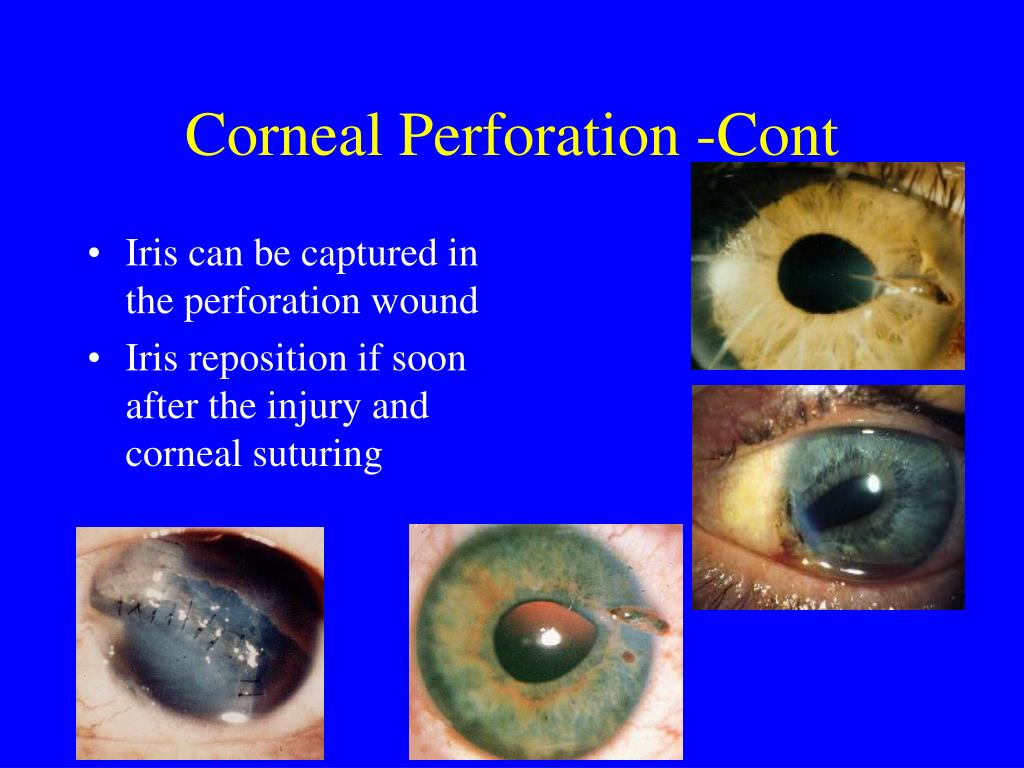

  22. Corneal Perforation -Cont • Iris can be captured in the perforation wound • Iris reposition if soon after the injury and corneal suturing

  23. Hyphema • Blood in anterior chamber • Sometimes hard to diagnose • Blurry vision and pain • Self limiting • Complications: elevation of intra-ocular pressure and re-bleeding

  24. Traumatic Cataract • Usually repaired in a secondary operation • If possible a plastic intra-ocular lens is inserted instead of the damaged lens • Treatment of amblyopia crucial

  25. Traumatic Cataract

  26. Vitreous Hemorrhage • Blood in vitreous cavity • Usually self limiting • Can be cleared with vitrectomy is rare occasions

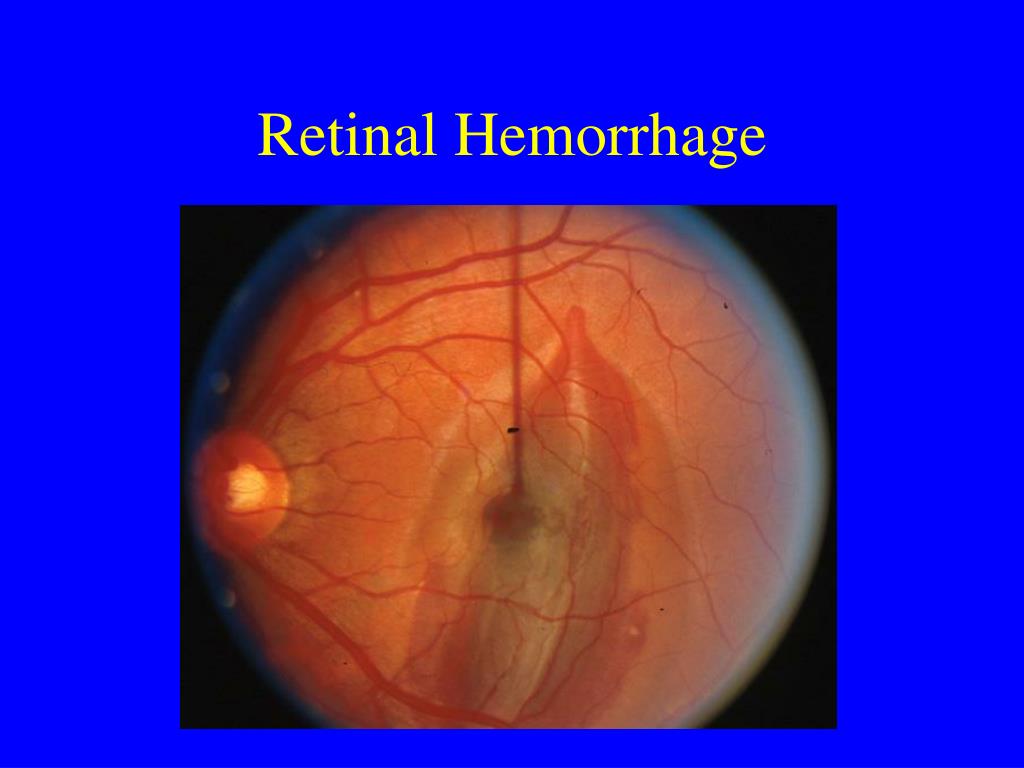

  27. Retinal Hemorrhage

  28. Optic Disc Hemorrhage

  29. Intra-ocular Foreign Body • Ocular emergency • Removal in vitrectomy • Retained FB can cause infection or retinal degeneration

  30. Orbital Wall Fracture • Problematic only if: • Limitation of eye ductions • Disfiguring enophthalmos

  31. Traumatic Optic Neuropathy • Optic nerve injured in optic canal • Usually vision loss • No good treatment • Mega-dose steroids?

  32. Common Minor Eye Injuries • Corneal abrasion • Corneal foreign body • Chemical splash • Traumatic iritis

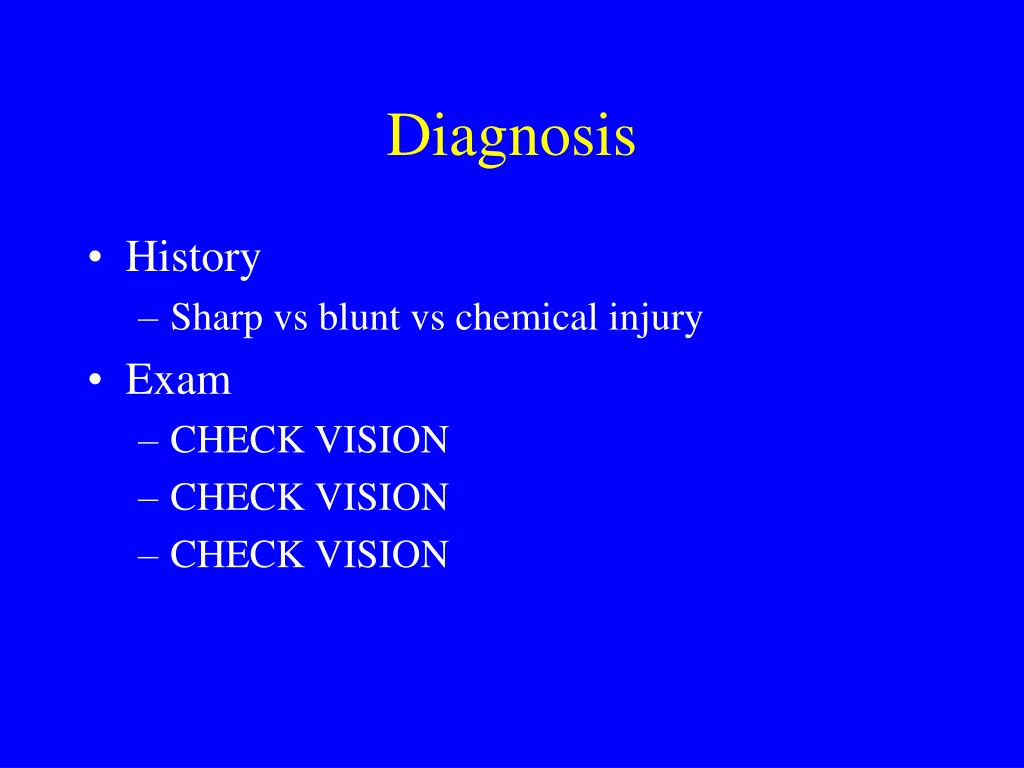

  33. Diagnosis • History • Sharp vs blunt vs chemical injury • Exam • CHECK VISION • CHECK VISION • CHECK VISION

  34. Diagnosis cont. • Exam – open lids apart! • Cornea clear? • Pupil round? • Pupil black? • Blood clotted behind cornea?

  35. Diagnosis cont. • Exam • Red reflex? • Eyes move symmetrically?

  36. Fluorescein Test • Topical “eye dye” • COBALT light

  37. Corneal Abrasion

  38. Abrasion Treatment • Antibiotic ointment • +/- patch • 1-2 day follow-up with eye doc

  39. Corneal Foreign Body

  40. Foreign Body Treatment • Anesthetize eye • Remove FB • Cotton swab (don’t worsen abrasion!) • Kimura spatula • +/- needle tip • Antibiotic oint +/- patch • 1-2 day follow-up with eye doc

  41. Chemical Treatment • IRRIGATE with large amounts of water • Check PH • Minor • Antibiotic ointment • 1 day follow-up eye doc • Major • Same day evaluation by eye doc

  42. Traumatic Iritis • Moderate blunt injury • Photophobia • Lid bruising/edema • Subconjunctival hemorrhage or injection • Pupil sluggish • Evaluation by eye doc

  43. Please Do Not Confuse • Subconjunctival hemorrhage • Hyphema
