  1. Architectural design Nicolas Teirlinckx Made for Software Engineering Groep 1 (2009 – 2010)

  2. Software Architecture • Highest level design. • Structure of the system. • Reuse of patterns. • Comprise software components and relationship between them. • Strategic design. • Architectural layer. Build application layer by layer. • Qualities (extensible, flexible, reusable,…)

  3. SDD Sections about architecture in Software Design Document.

  4. 1. System structuring • Principal subsystems and their communications • Block-diagram with overview system structure.

  5. 2. Control Modeling • General model of control relationships between the subsystems. • UML, other tools (Rational Rose, Together).

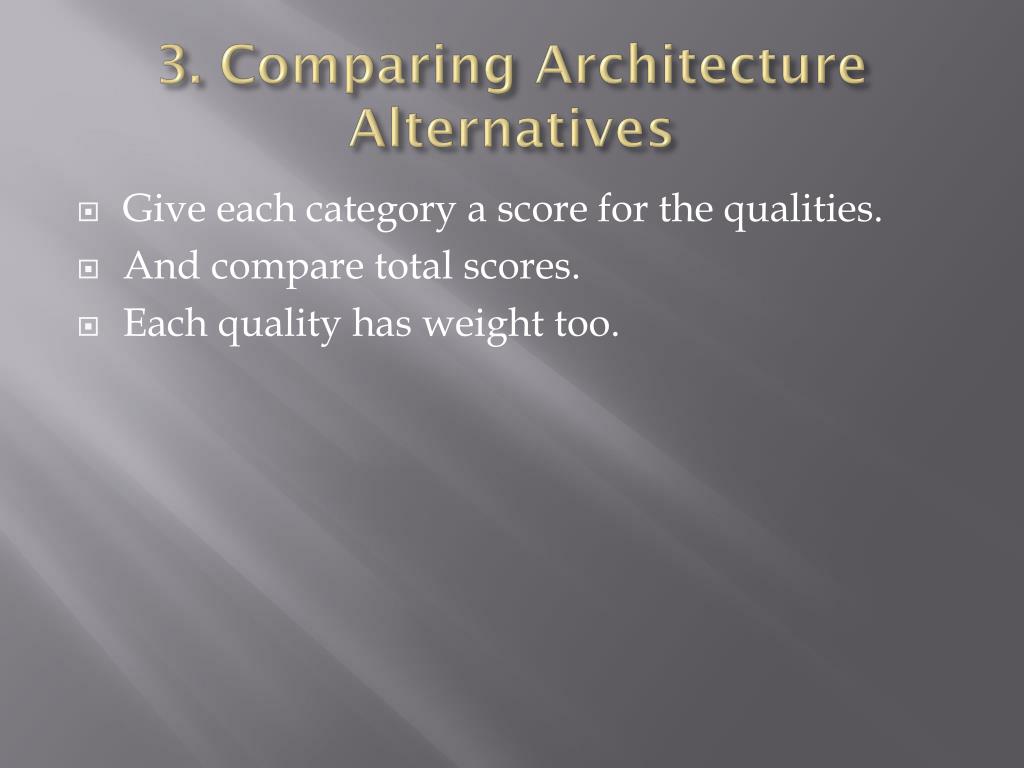

  6. 3. Comparing Architecture Alternatives • Give each category a score for the qualities. • And compare total scores. • Each quality has weight too.

  7. 4. Architecture inspection • Use cases to check against requirements. • Can domain model be mapped to components? • All components necessary? • Defect detection.

  8. Categorization of Architectures Choosing an architecture for our auction website.

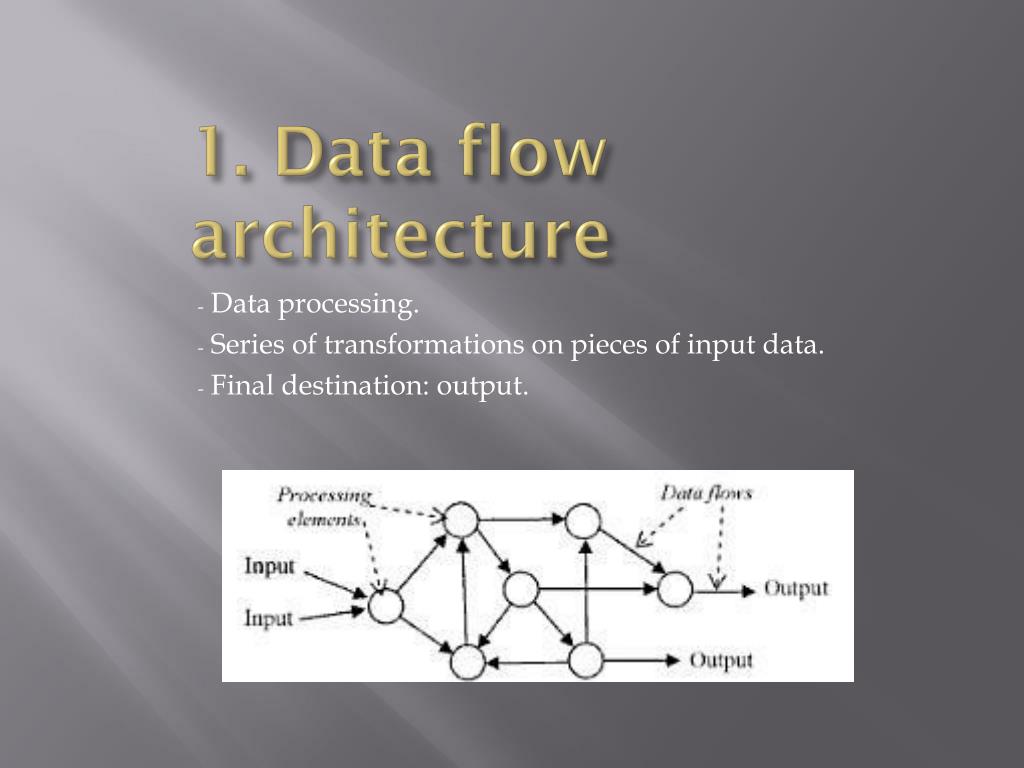

  9. 1. Data flow architecture Data processing. Series of transformations on pieces of input data. Final destination: output.

  10. 1.1 Pipeline architecture • Chain of processing elements. • No cycle of dataflow. • Output each element is input next.

  11. 1.2 Batch sequential dataflow • Finite number of steps linearly connected. • Components are independent programs. • One complement runs completely before other starts.

  12. For auction website… • There will be dataflow… • To limited to be used as architecture. • Can’t be used as highest level design.

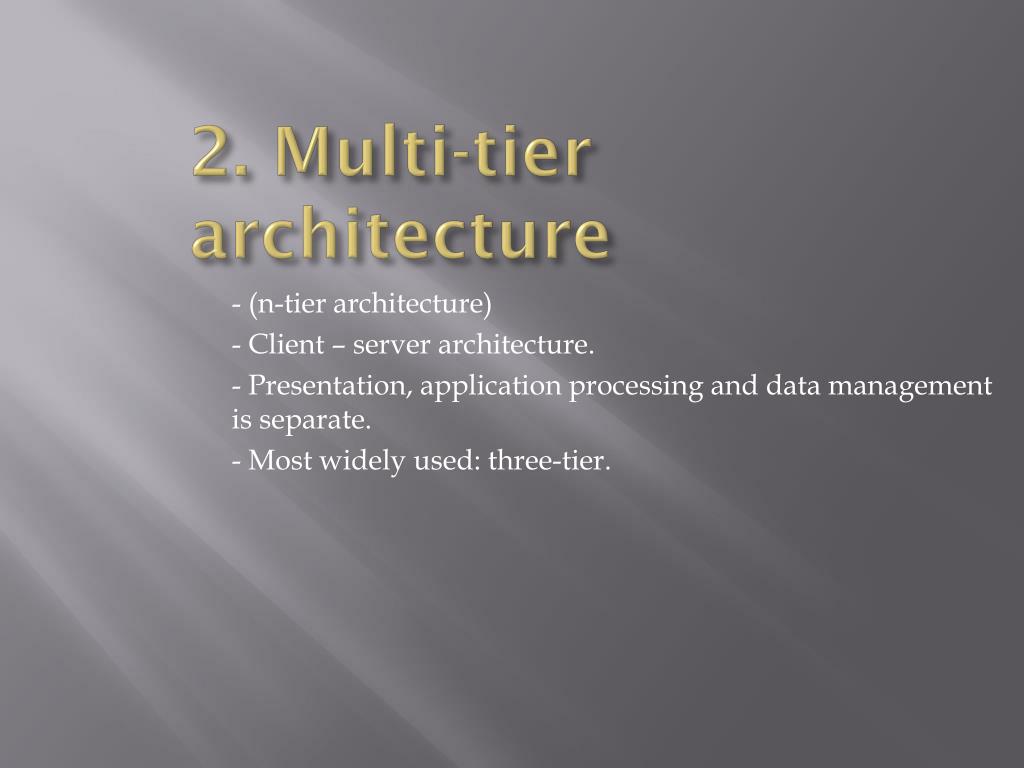

  13. 2. Multi-tier architecture - (n-tier architecture) - Client – server architecture. - Presentation, application processing and data management is separate. - Most widely used: three-tier.

  14. 2.1 Client – Server Partitions tasks between service providers and requesters. Providers = servers, requesters = client. Clients: web browser, email clients, … Providers: web servers, ftp servers, database servers, … Independent components: strong reuse. Interesting for auction site!

  15. 2.1.1 Three- tier architecture • A good alternative for our project. • Software architecture and design pattern. • Middle tier can be multi tiered. • Three tiers can be upgraded independently.

  16. Three-tier architecture • Presentation tier: Website interface. • Logic tier: Give me all the items with layer “Lamp”. • Data tier: Item database.

  17. 2.2 Model View Controller • MVC architecture. • Often seen in web applications.

  18. 3. Others Virtual machines (interpreters, …) Repository architecture. Event-driven architecture. Real architecture are mix. …

  19. Choosing MVC vs. Three-tier • Topologically different. • Three-tier: client never communicates with data. • MVC is triangular. • Three-tier: concept emerged 1990’s. • MVC: late 70’s.

  20. dISCUSS Choose alternative between MVC and Three-tier for auction website!
