  1. RAM Sticks 2 Review KaHS PCTS 1

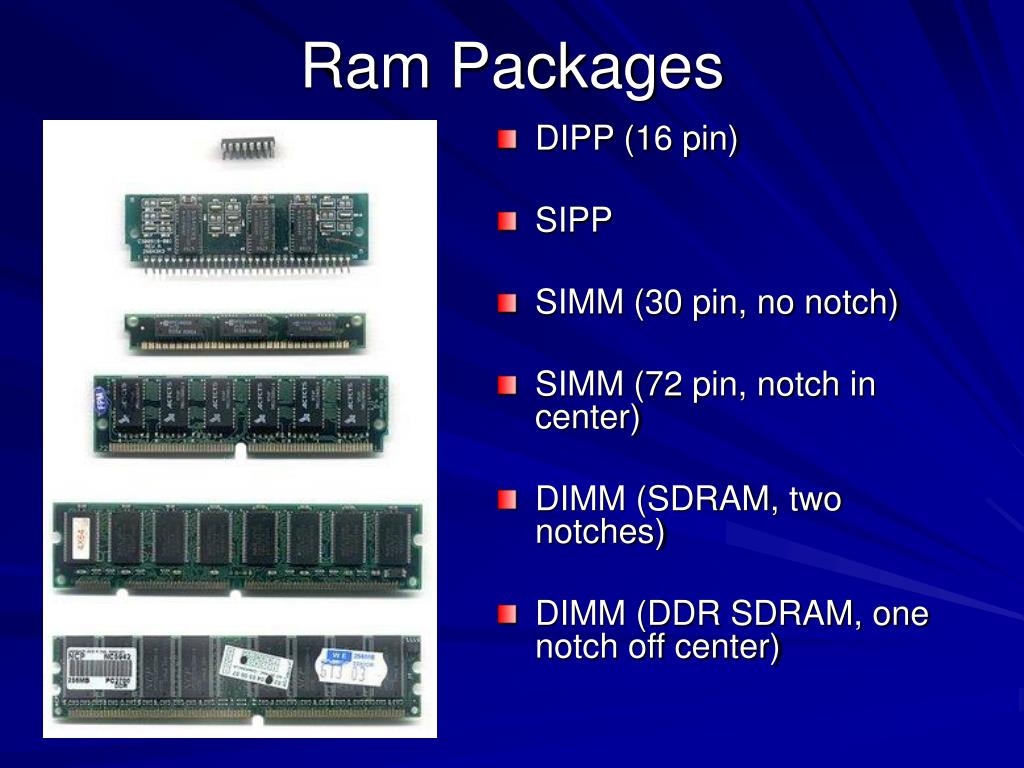

  2. Ram Packages • DIPP (16 pin) • SIPP • SIMM (30 pin, no notch) • SIMM (72 pin, notch in center) • DIMM (SDRAM, two notches) • DIMM (DDR SDRAM, one notch off center)

  3. RAM Review • Newest to oldest • FPM • EDO • SDRAM • RDRAM • DDR-SDRAM • DDR2

  4. RAM Review • Definitions • Synchronous: Related to time or the system clock • Asynchronous: Transmission of data without the use of an external clock signal .

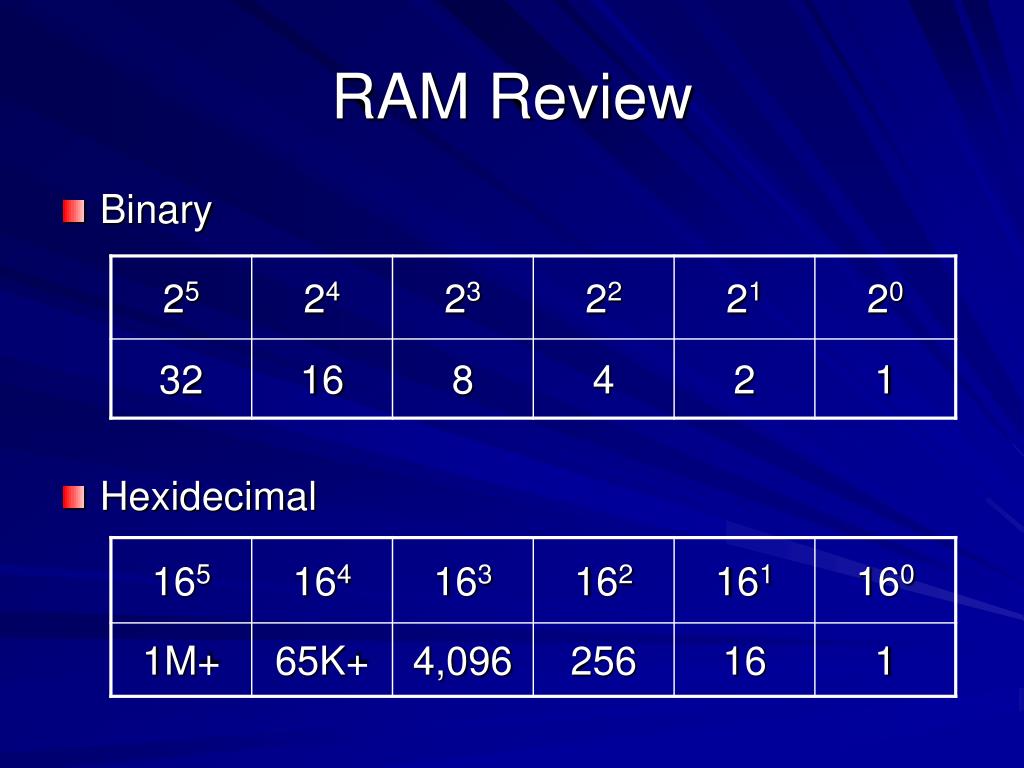

  5. RAM Review • Binary • Hexidecimal
