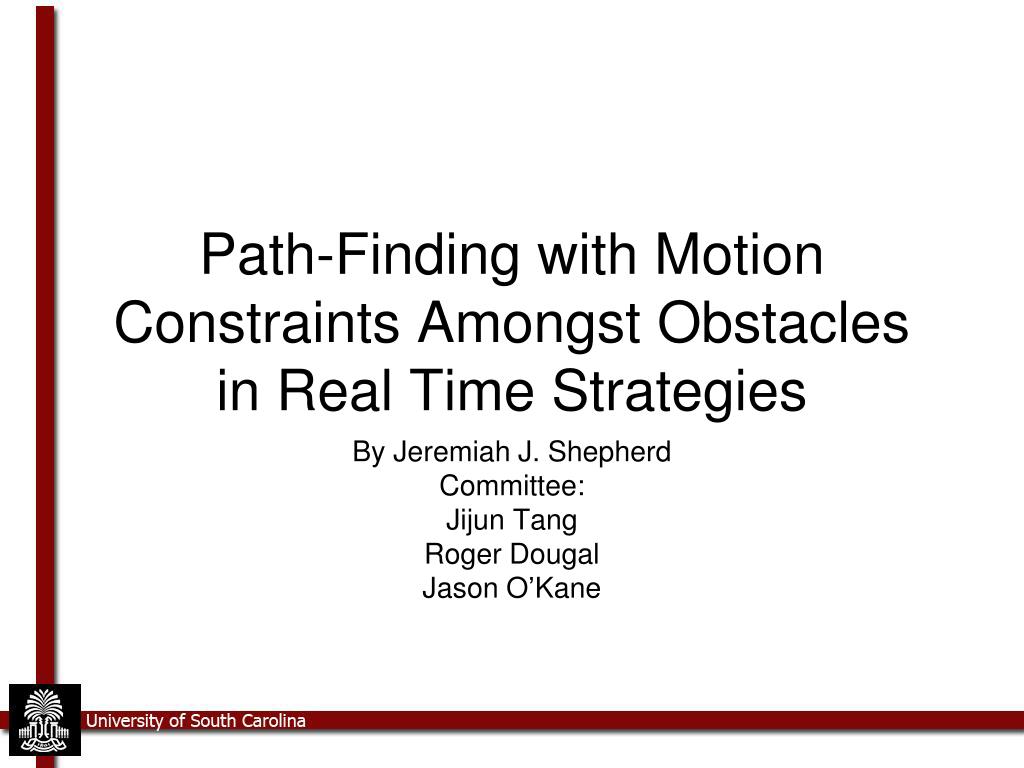

Path-Finding with Motion Constraints Amongst Obstacles in Real Time Strategies By Jeremiah J. Shepherd Committee: Jijun Tang Roger Dougal Jason O’Kane

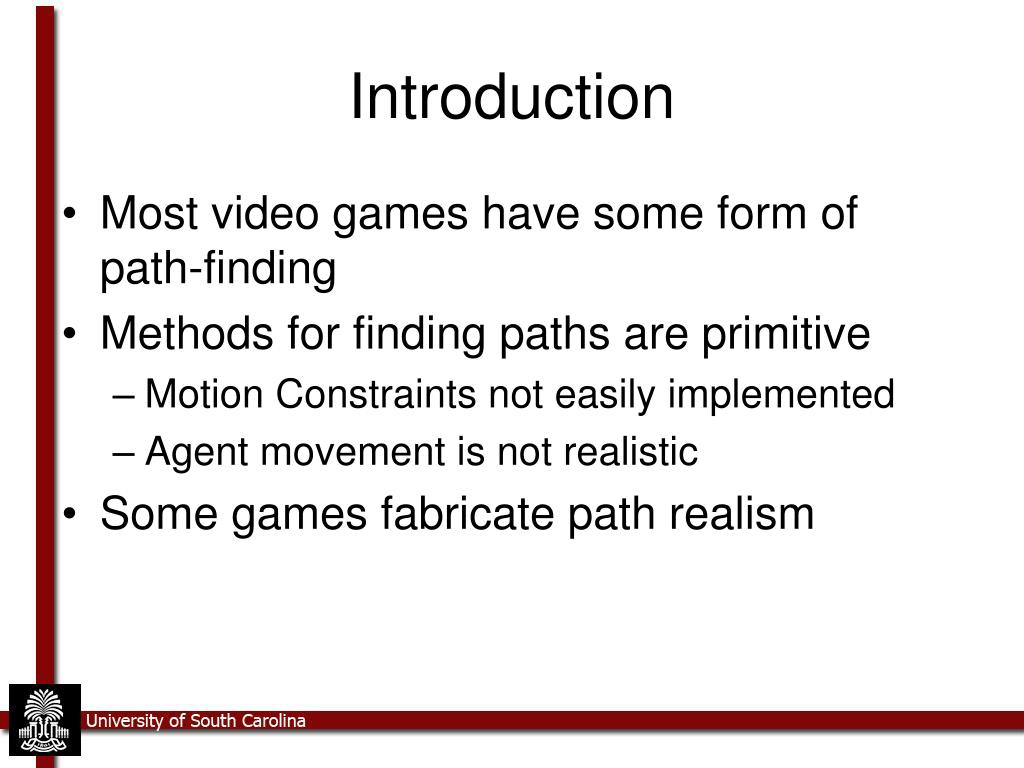

Introduction • Most video games have some form of path-finding • Methods for finding paths are primitive • Motion Constraints not easily implemented • Agent movement is not realistic • Some games fabricate path realism

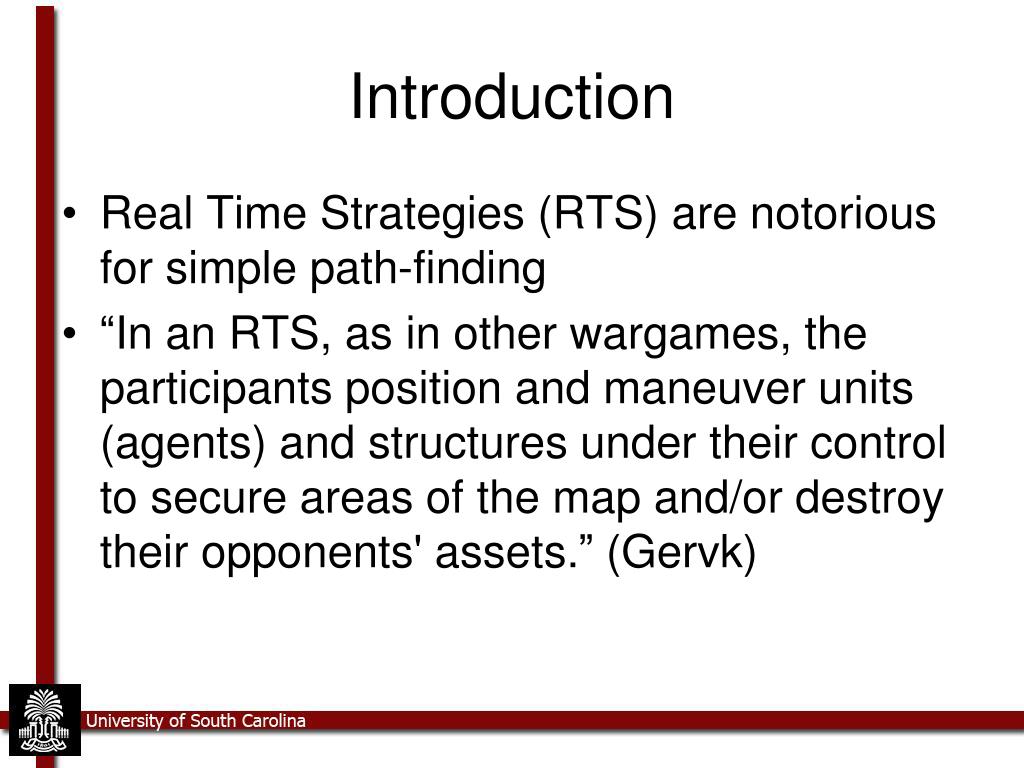

Introduction • Real Time Strategies (RTS) are notorious for simple path-finding • “In an RTS, as in other wargames, the participants position and maneuver units (agents) and structures under their control to secure areas of the map and/or destroy their opponents' assets.” (Gervk)

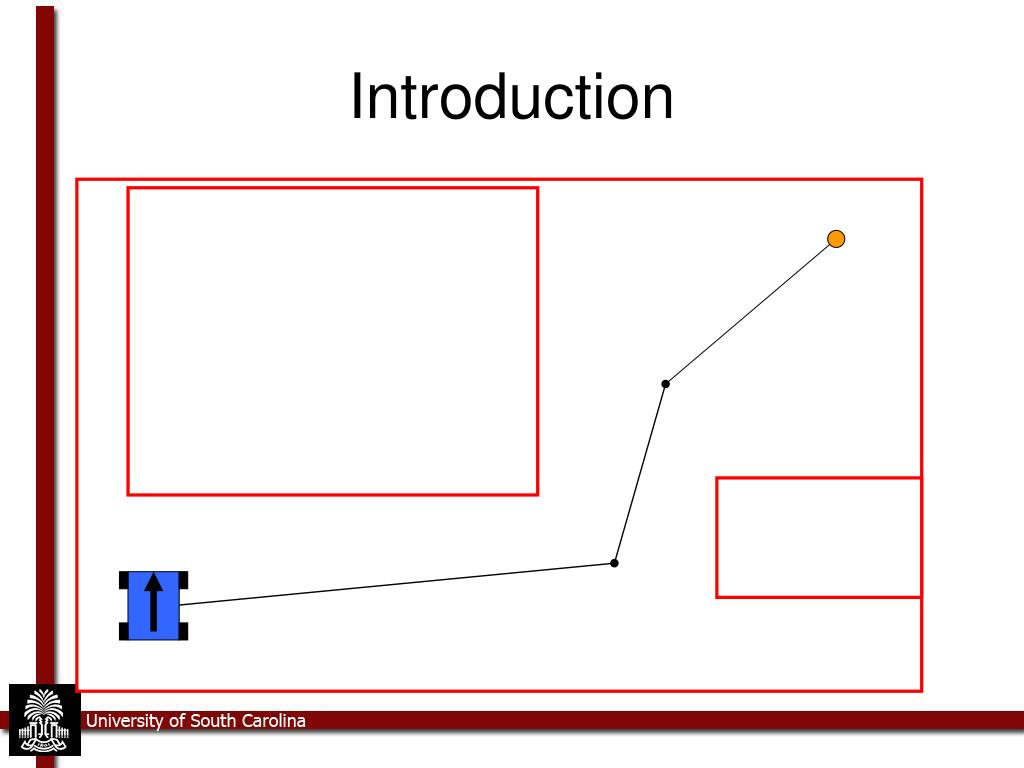

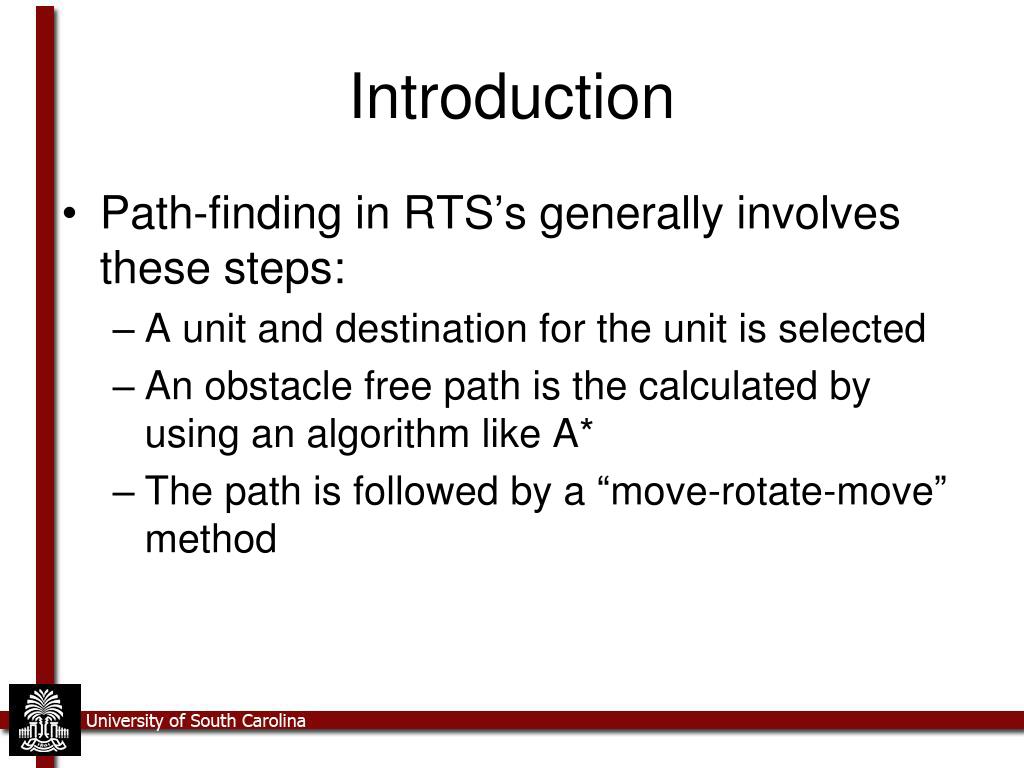

Introduction • Path-finding in RTS’s generally involves these steps: • A unit and destination for the unit is selected • An obstacle free path is the calculated by using an algorithm like A* • The path is followed by a “move-rotate-move” method

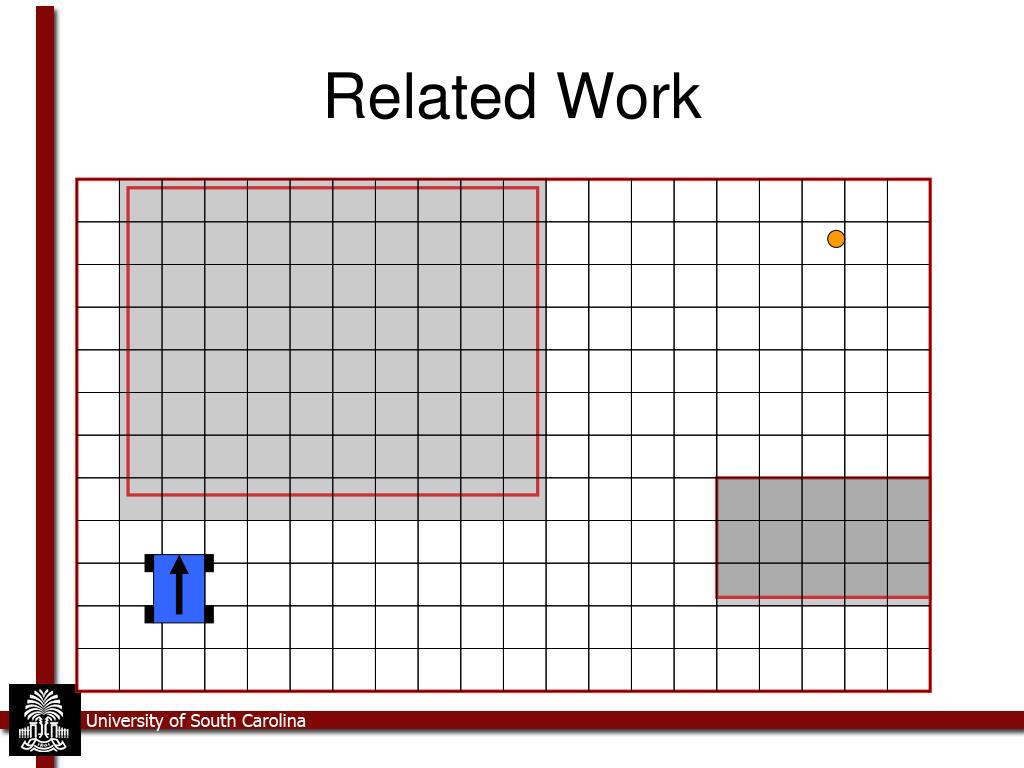

Introduction • These paths can be created in this fashion because of the structure of the environment • The environment is generally a grid • The size an number of cells are known • Obstacles exist in the environment and are known • Each grid cell has an occupancy flag
Old Game Path-finding Example • Command and Conquer
New game path-finding example • Halo Wars

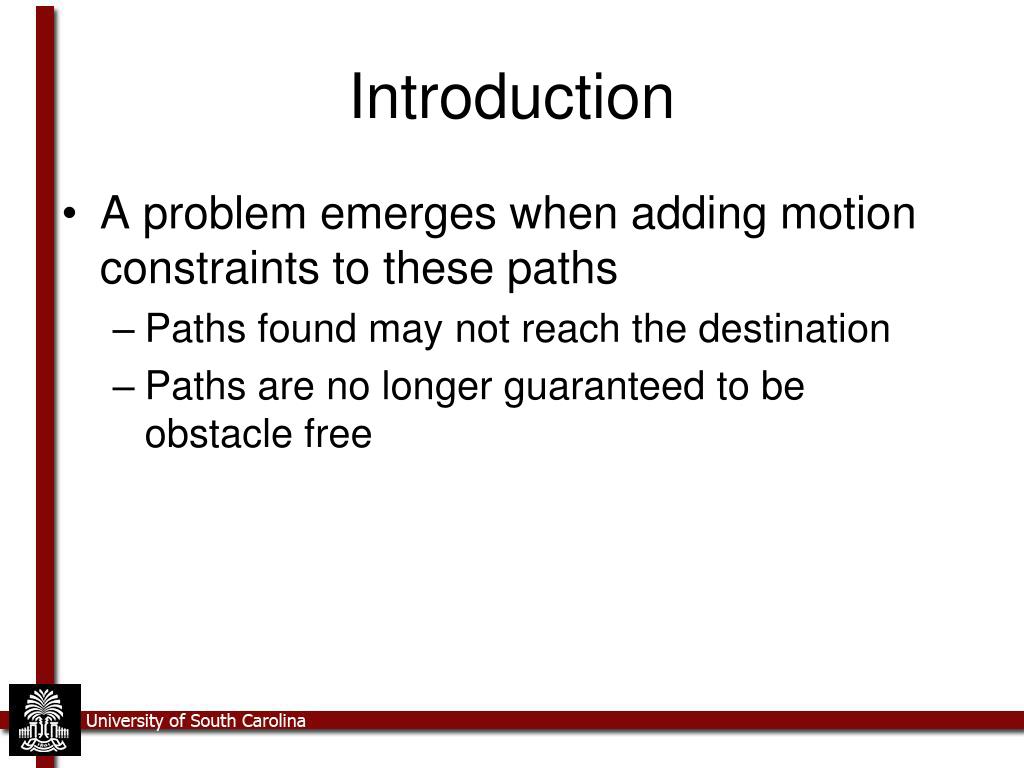

Introduction • A problem emerges when adding motion constraints to these paths • Paths found may not reach the destination • Paths are no longer guaranteed to be obstacle free

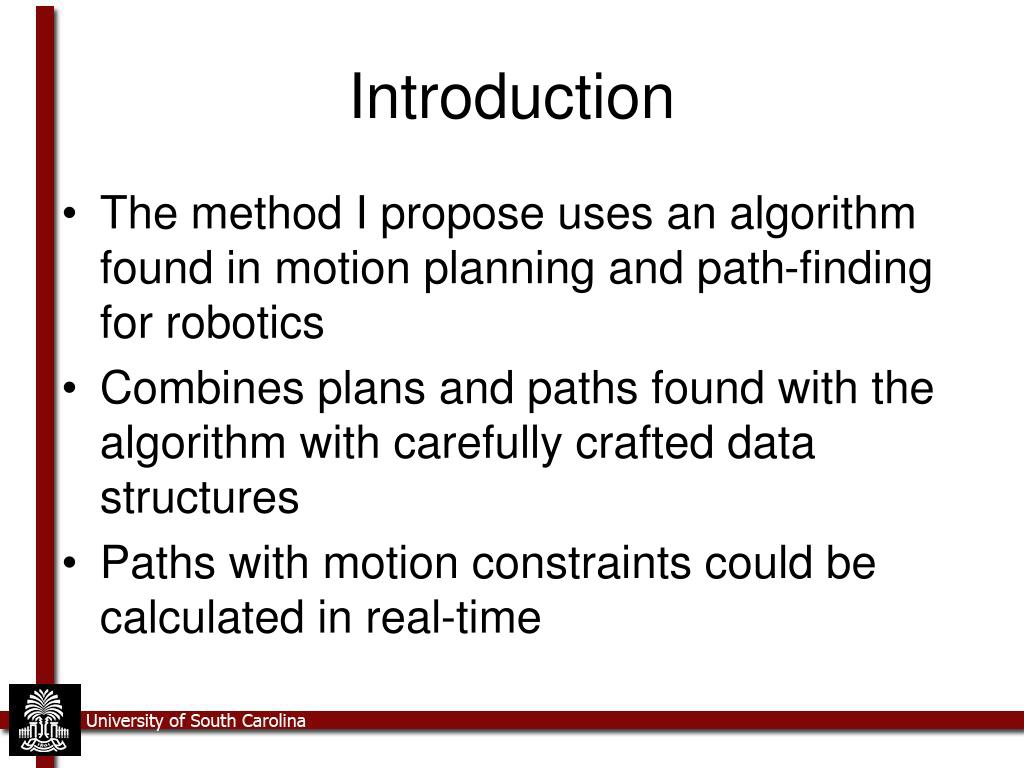

Introduction • The method I propose uses an algorithm found in motion planning and path-finding for robotics • Combines plans and paths found with the algorithm with carefully crafted data structures • Paths with motion constraints could be calculated in real-time
Rapidly Exploring Random Trees (RRT) is an algorithm that can find a path and a motion plan that adheres to motion constraints Related Work

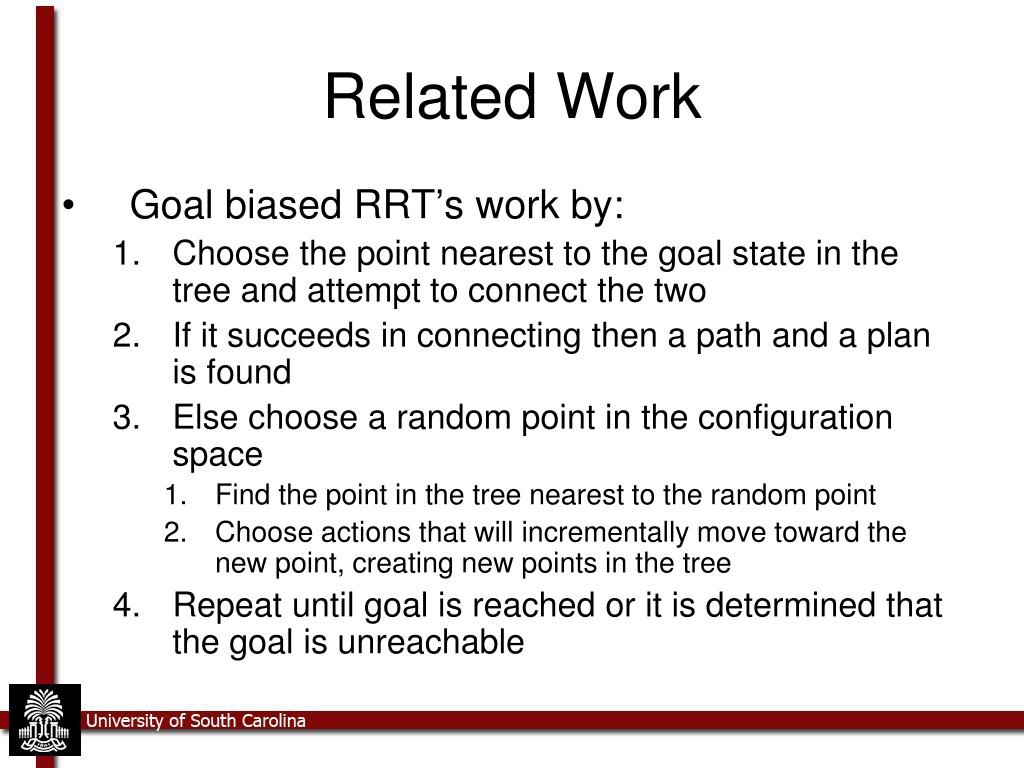

Related Work • Goal biased RRT’s work by: • Choose the point nearest to the goal state in the tree and attempt to connect the two • If it succeeds in connecting then a path and a plan is found • Else choose a random point in the configuration space • Find the point in the tree nearest to the random point • Choose actions that will incrementally move toward the new point, creating new points in the tree • Repeat until goal is reached or it is determined that the goal is unreachable

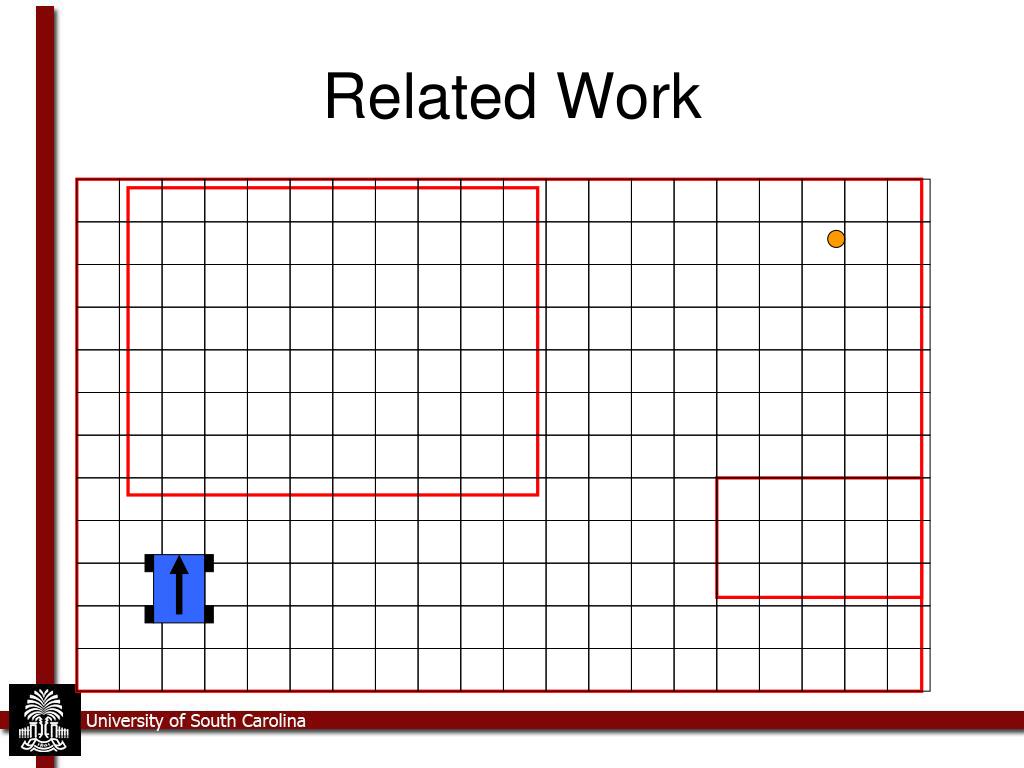

Related Work SUCCESS
Related Work • Why not use RRT’s? • They are inconsistent in regards to speed • In previous tests, the range of time it took to find a path and motion plan was from six seconds to two minutes
Related Work • Previous Attempts (Trail of Tears) • Tube Guided RRT • Preprocessing with Motion Planning Matrix and Environment Matrix (MPM&EM)

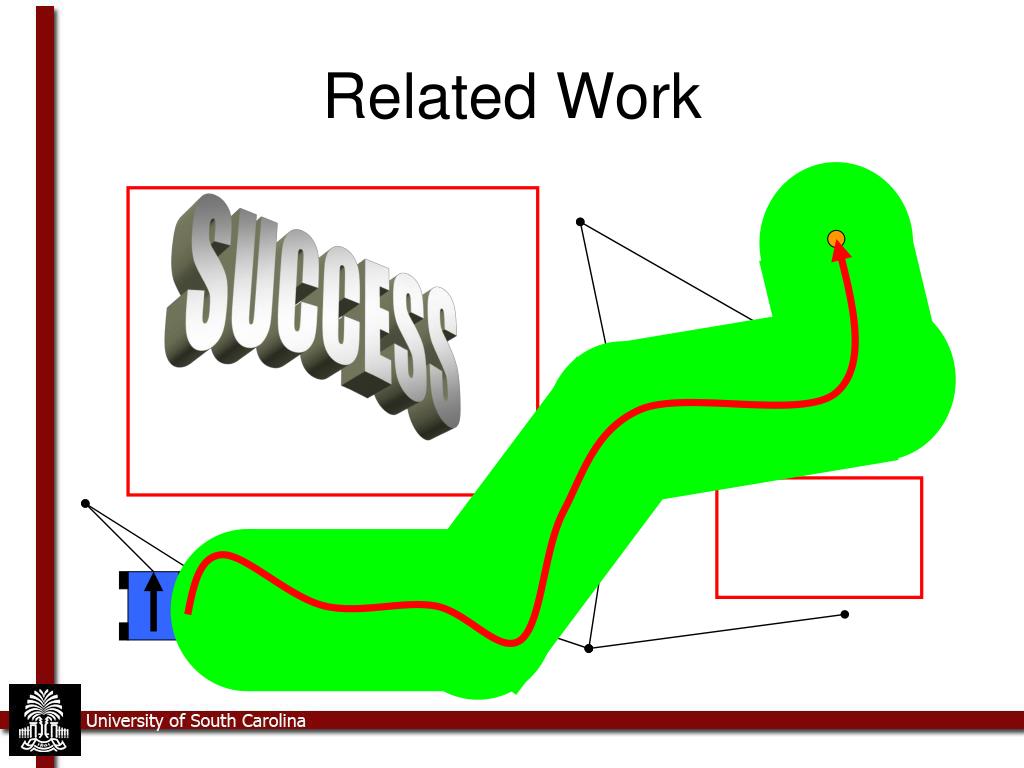

Related Work • Tube Guided RRT • Use a tube to constrict sampling • The less samples the faster it will find a path • Algorithm • Draw a Probablistic Road Map (PRM) • Find the shortest path on the PRM • Construct a tube with the width the size of the turning radius around the path • Run the RRT, only sampling points in the tube

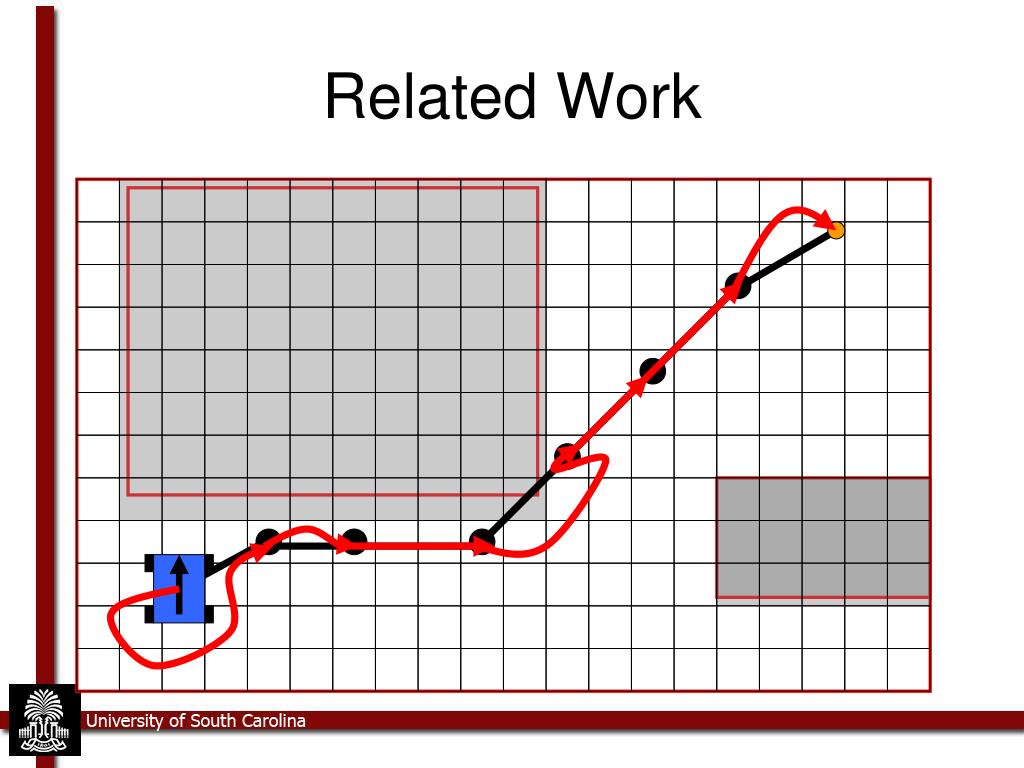

Related Work SUCCESS
Related Work • Tube Guided RRT Problems • It ran on par with a regular RRT • Some cases it took much longer than a regular RRT • More inconsistent than a regular RRT

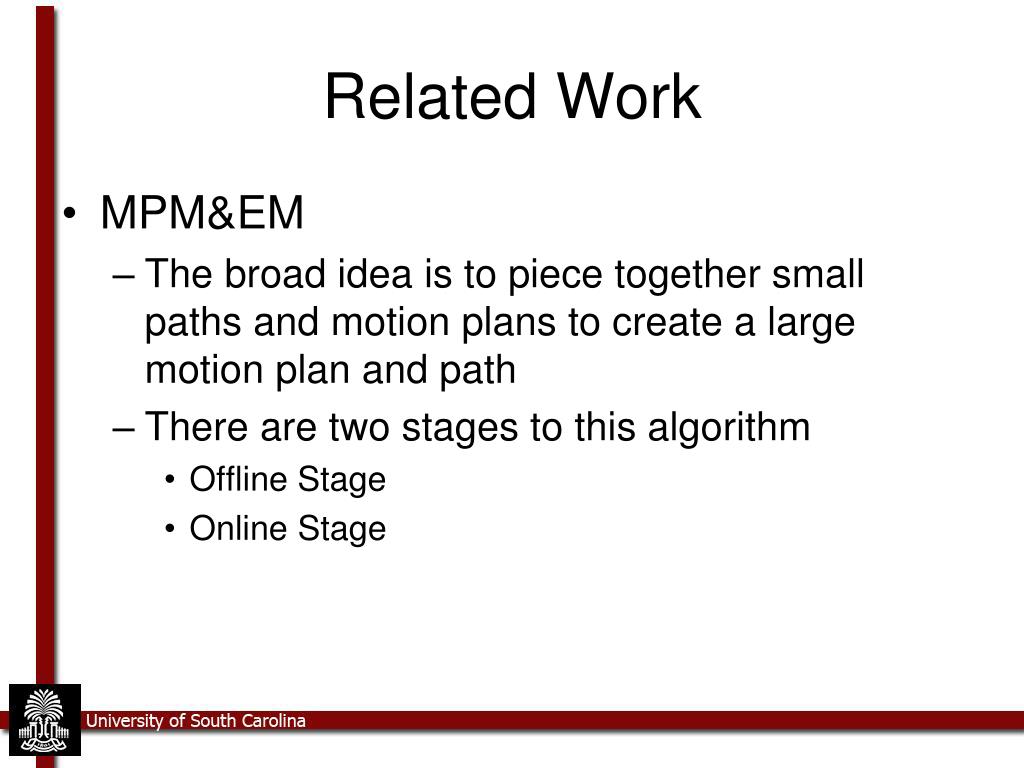

Related Work • MPM&EM • The broad idea is to piece together small paths and motion plans to create a large motion plan and path • There are two stages to this algorithm • Offline Stage • Online Stage

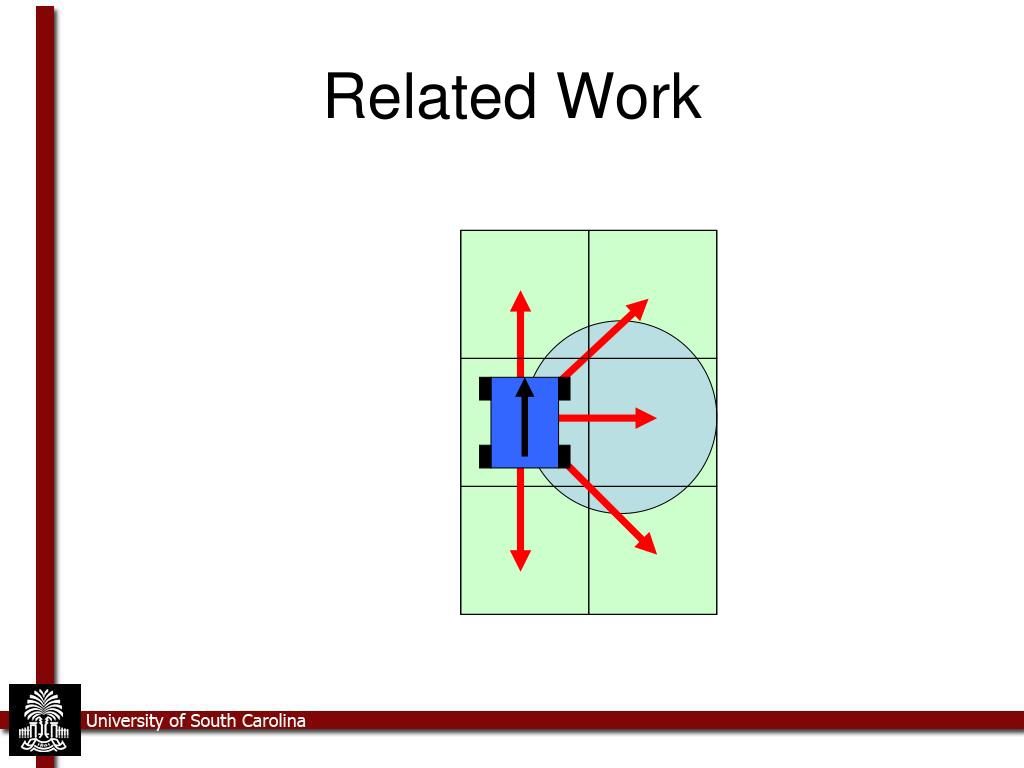

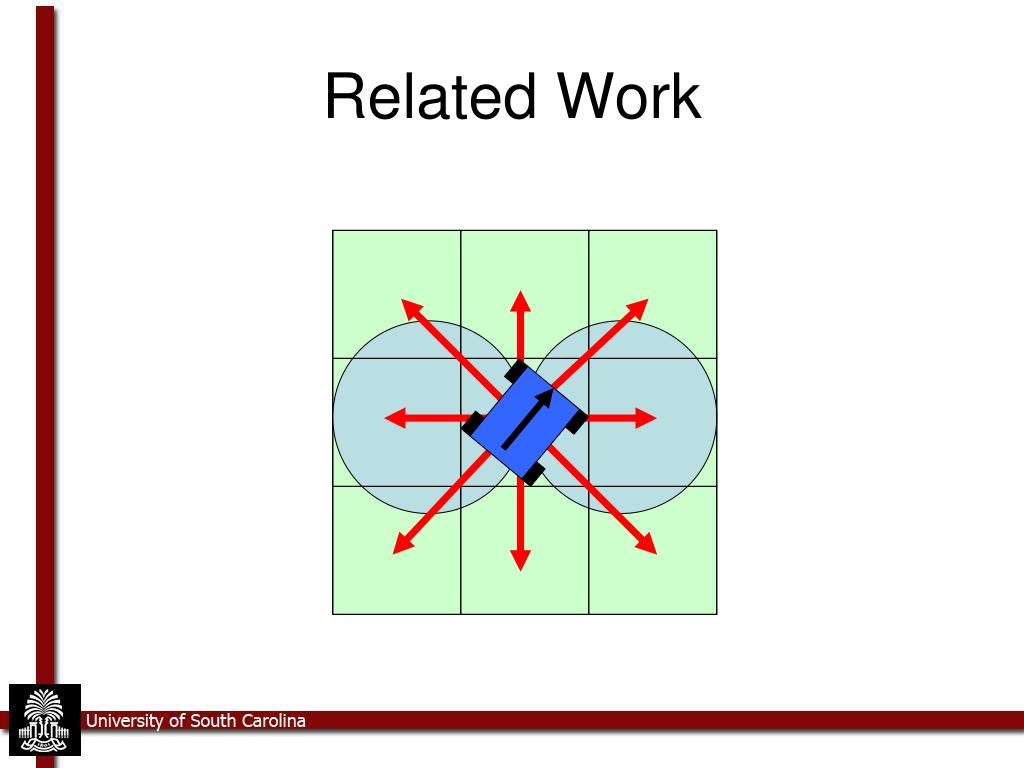

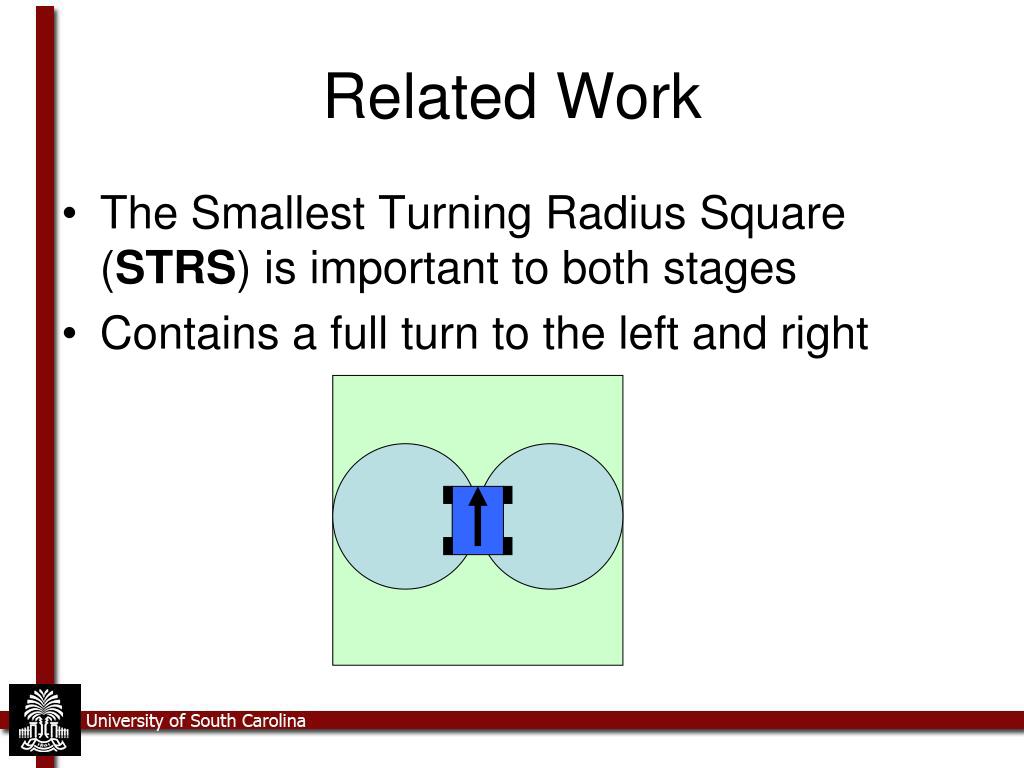

Related Work • The Smallest Turning Radius Square (STRS) is important to both stages • Contains a full turn to the left and right
Related Work • Offline Stage • Create the environment matrix (EM) • Create an initial motion plan matrix (MPM) • Add references in the environment matrix (EM) and the calculate the final (MPM) • Online Stage • Traverse the EM from the starting state to the goal state • Follow the motion plans stored in the MPM as referenced by the information in the EM cells

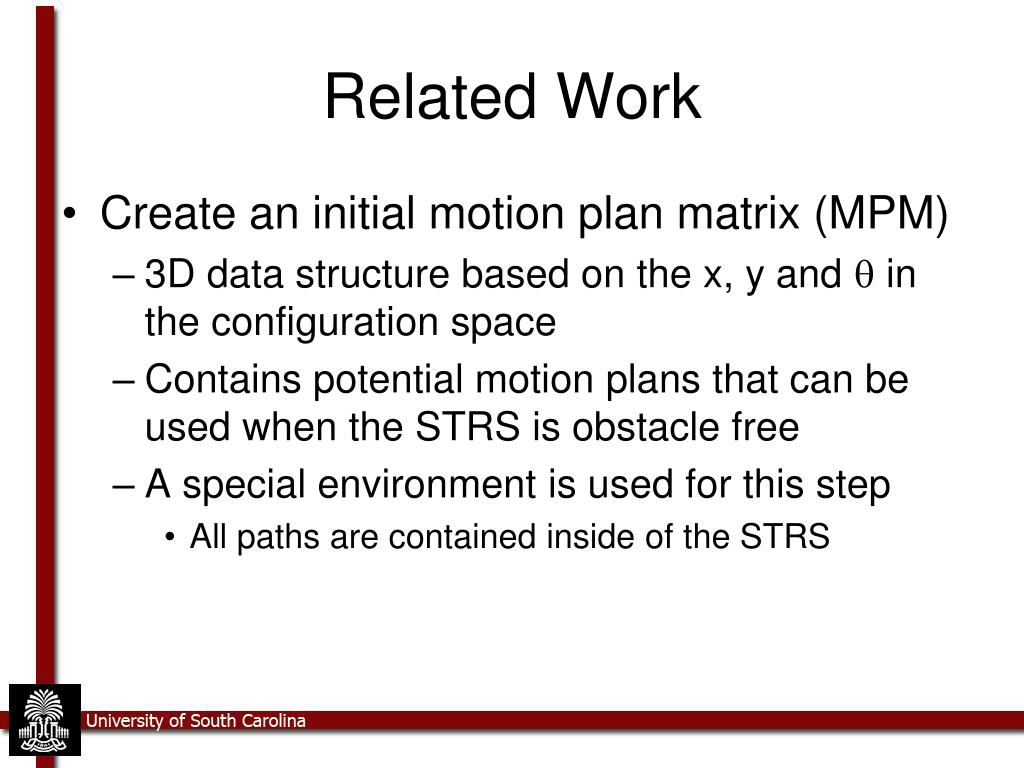

Related Work • Create an initial motion plan matrix (MPM) • 3D data structure based on the x, y and q in the configuration space • Contains potential motion plans that can be used when the STRS is obstacle free • A special environment is used for this step • All paths are contained inside of the STRS

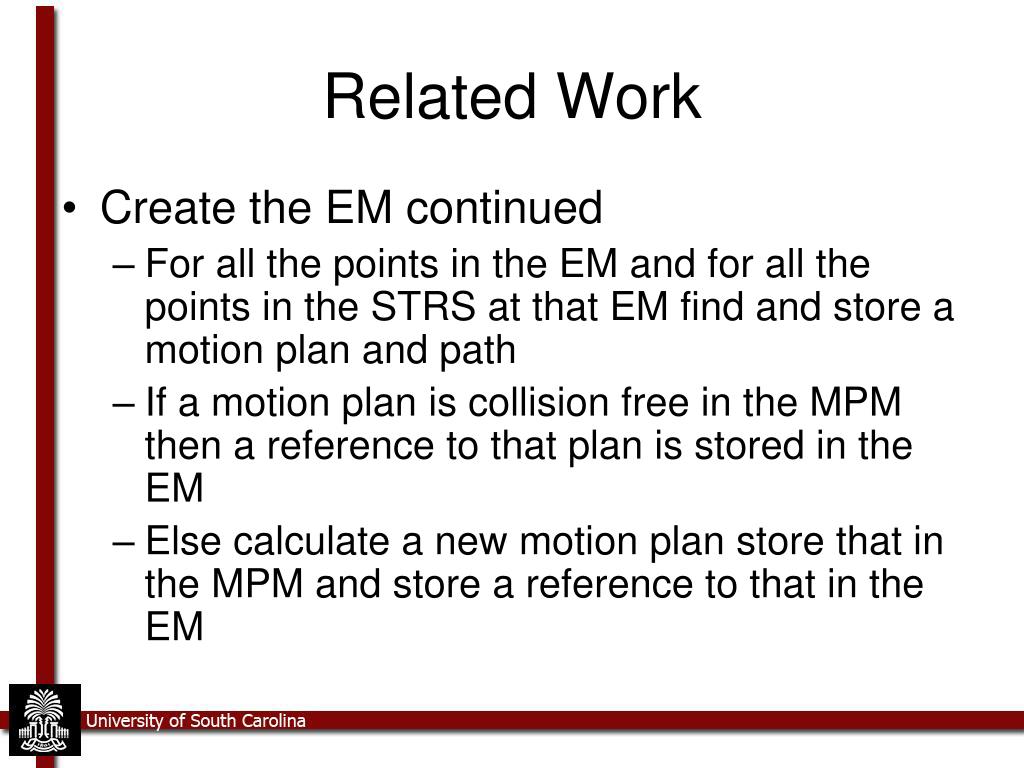

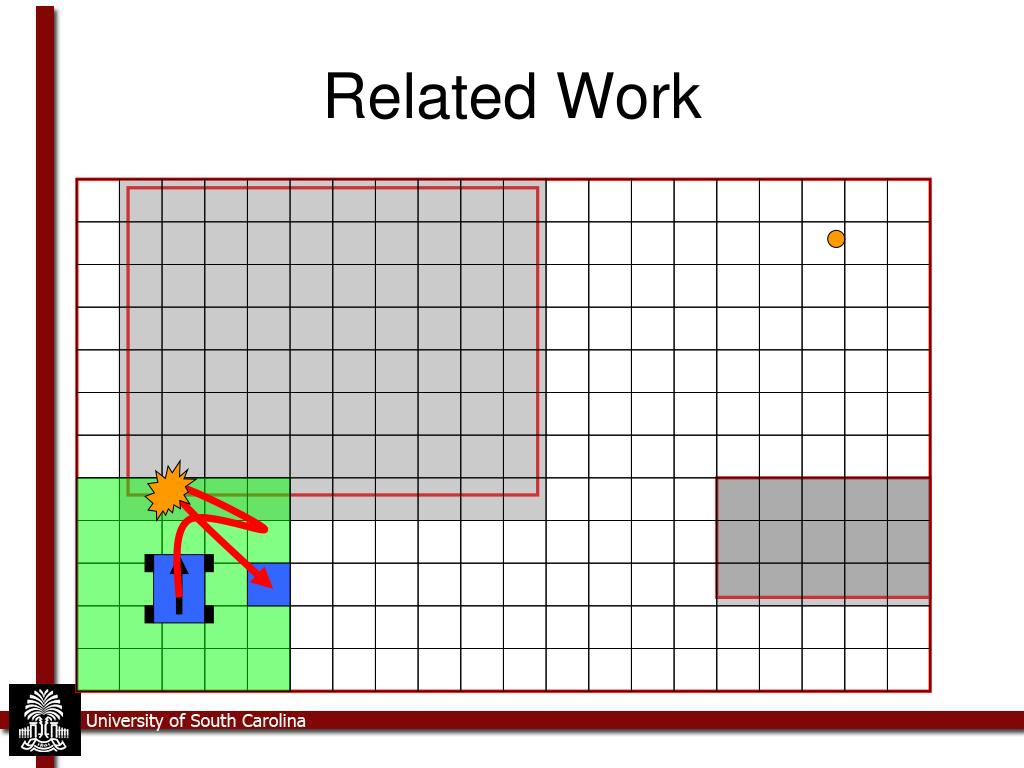

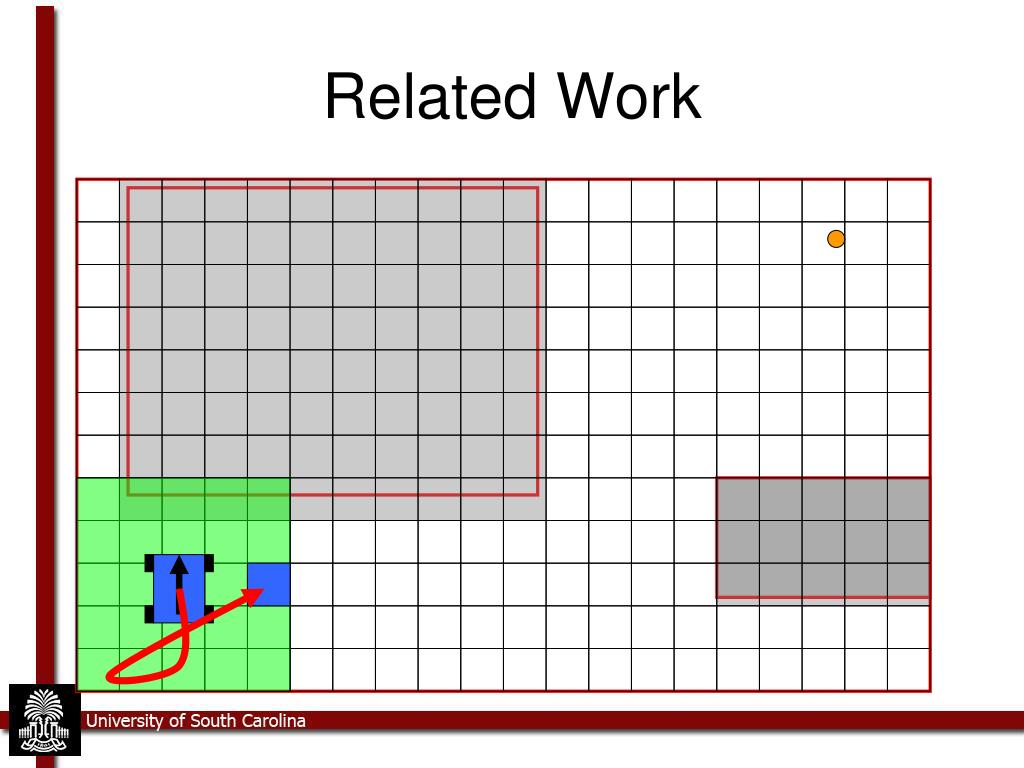

Related Work Create the EM continued For all the points in the EM and for all the points in the STRS at that EM find and store a motion plan and path If a motion plan is collision free in the MPM then a reference to that plan is stored in the EM Else calculate a new motion plan store that in the MPM and store a reference to that in the EM

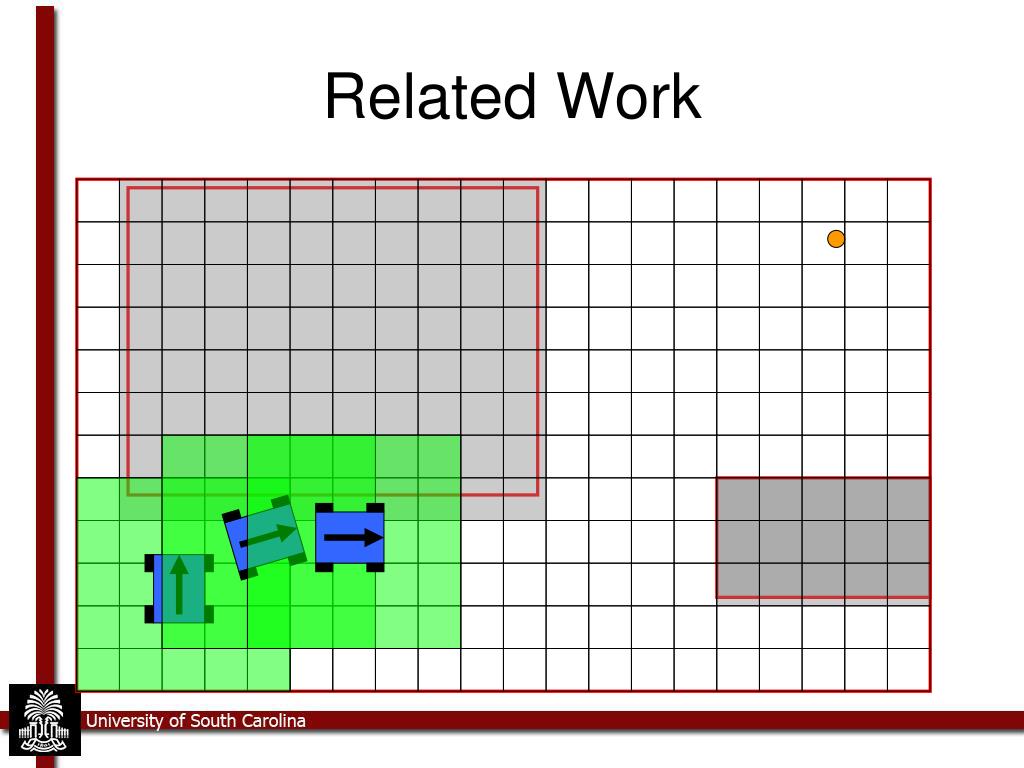

Related Work From the starting point calculate a path using A* The points that lay on the outer edge of the STRS are given higher priority Traverse the EM using the path Create a full motion plan with the references in the EM to the MPM

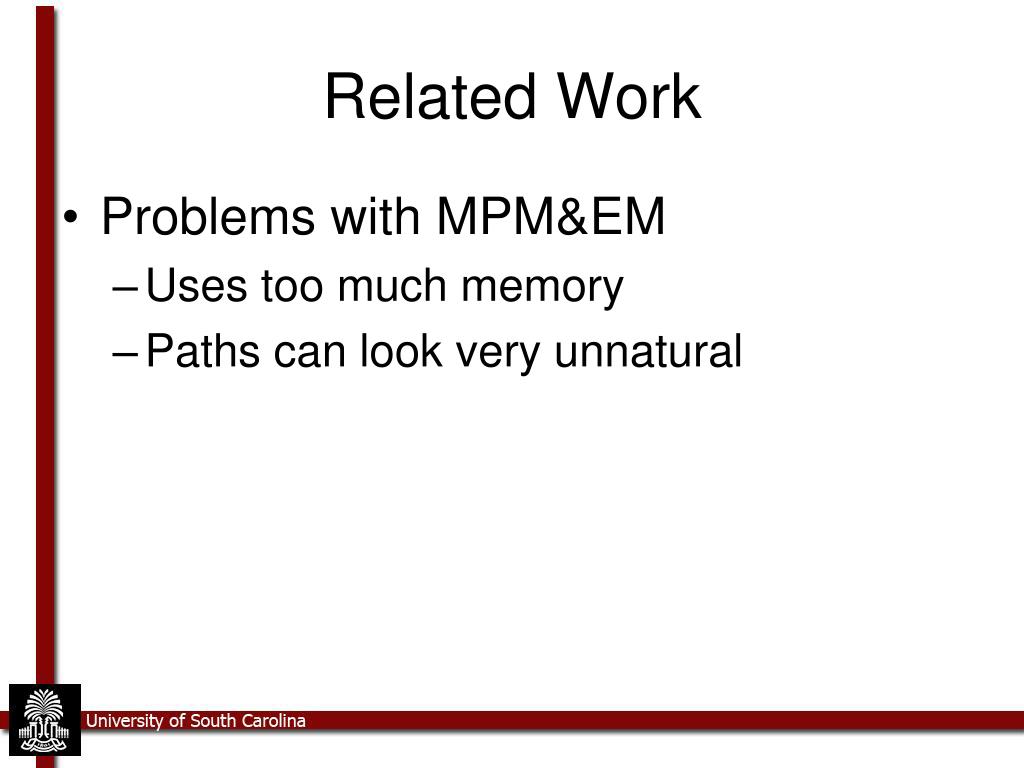

Related Work Problems with MPM&EM Uses too much memory Paths can look very unnatural
New Algorithm Principles Similar idea of piecing together smaller paths FORGET RRT’s! Use Dubin’s curves to find paths

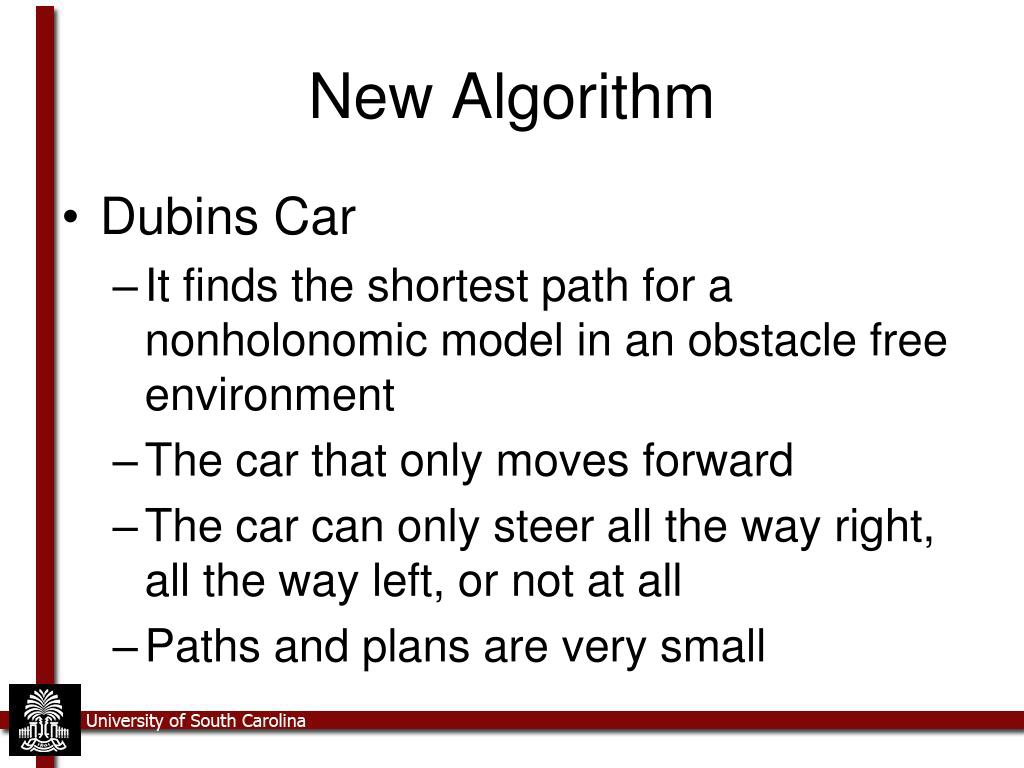

New Algorithm Dubins Car It finds the shortest path for a nonholonomic model in an obstacle free environment The car that only moves forward The car can only steer all the way right, all the way left, or not at all Paths and plans are very small

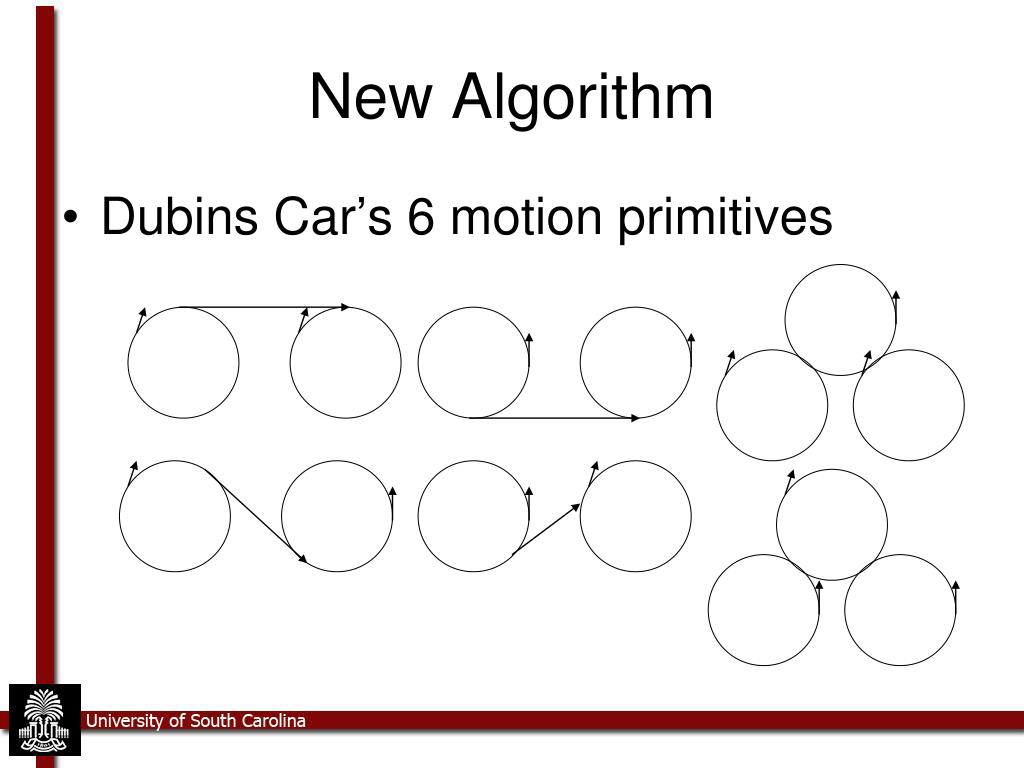

New Algorithm Dubins Car’s 6 motion primitives

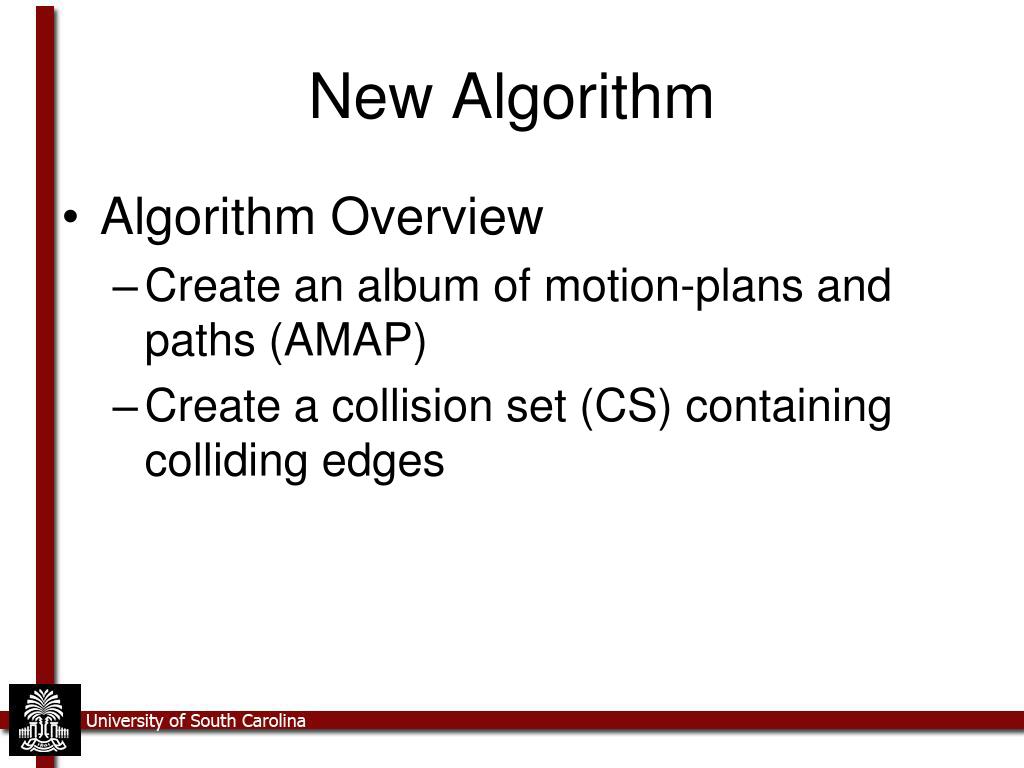

New Algorithm Algorithm Overview Create an album of motion-plans and paths (AMAP) Create a collision set (CS) containing colliding edges

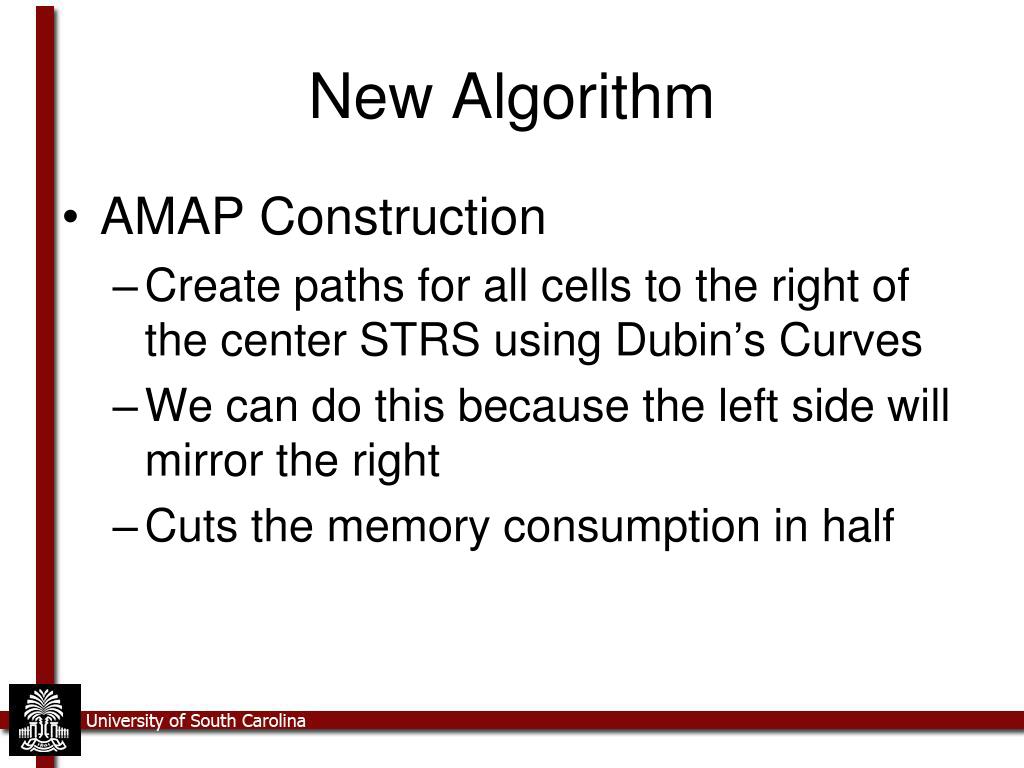

New Algorithm AMAP Construction Create paths for all cells to the right of the center STRS using Dubin’s Curves We can do this because the left side will mirror the right Cuts the memory consumption in half

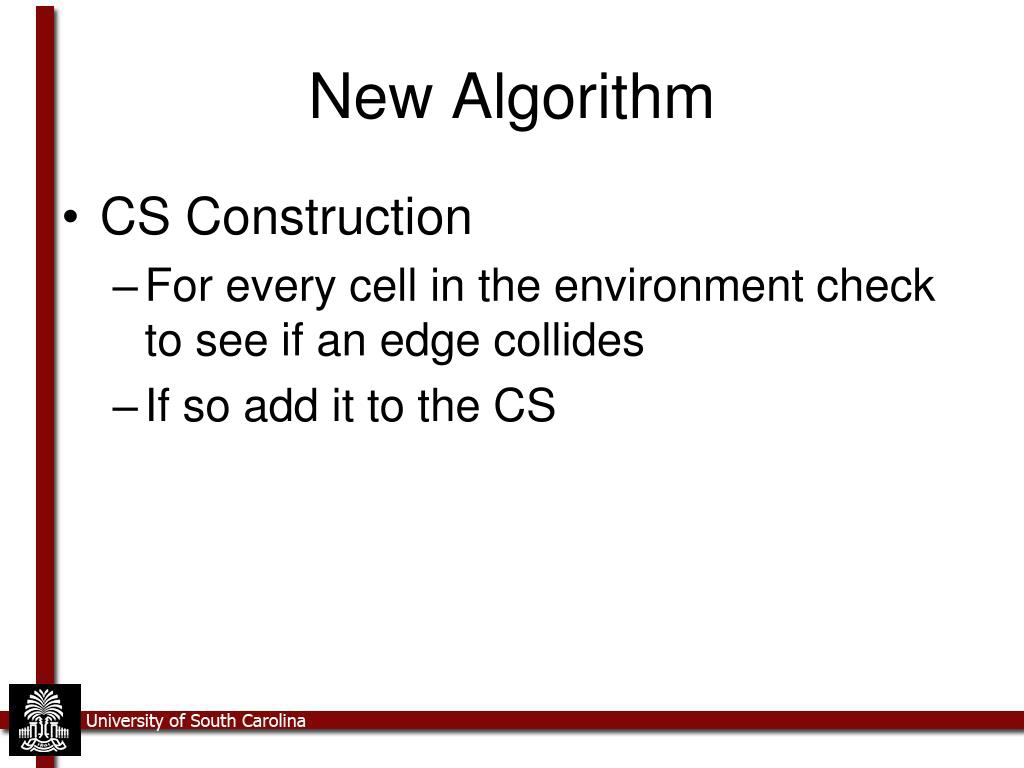

New Algorithm CS Construction For every cell in the environment check to see if an edge collides If so add it to the CS

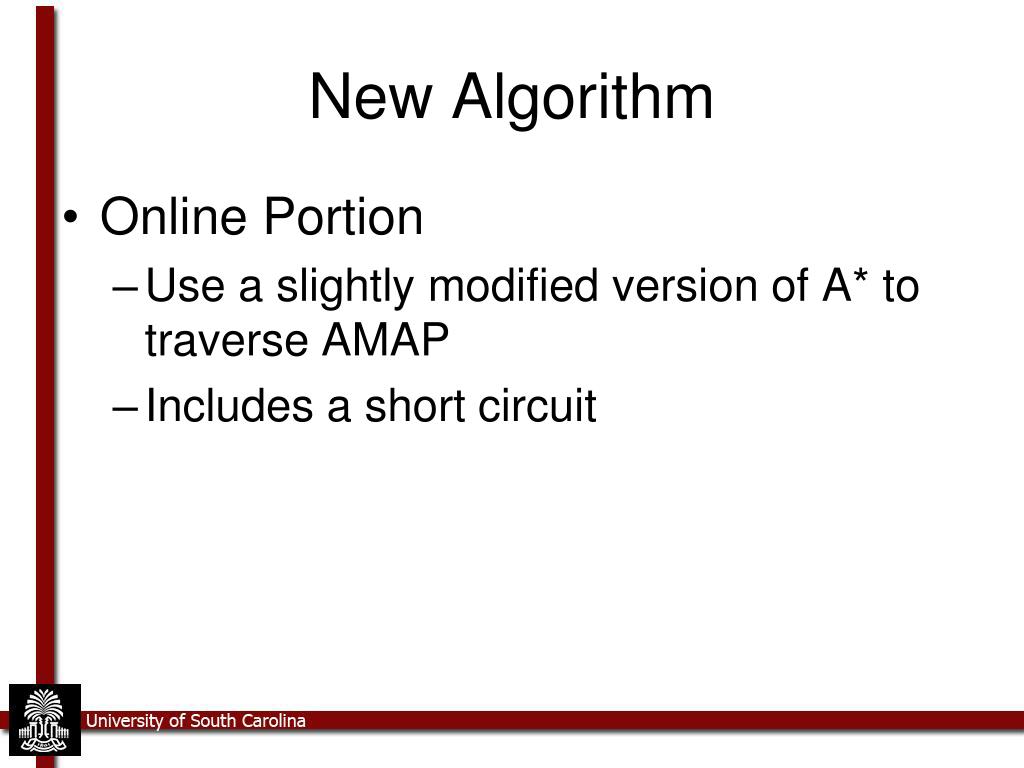

New Algorithm Online Portion Use a slightly modified version of A* to traverse AMAP Includes a short circuit

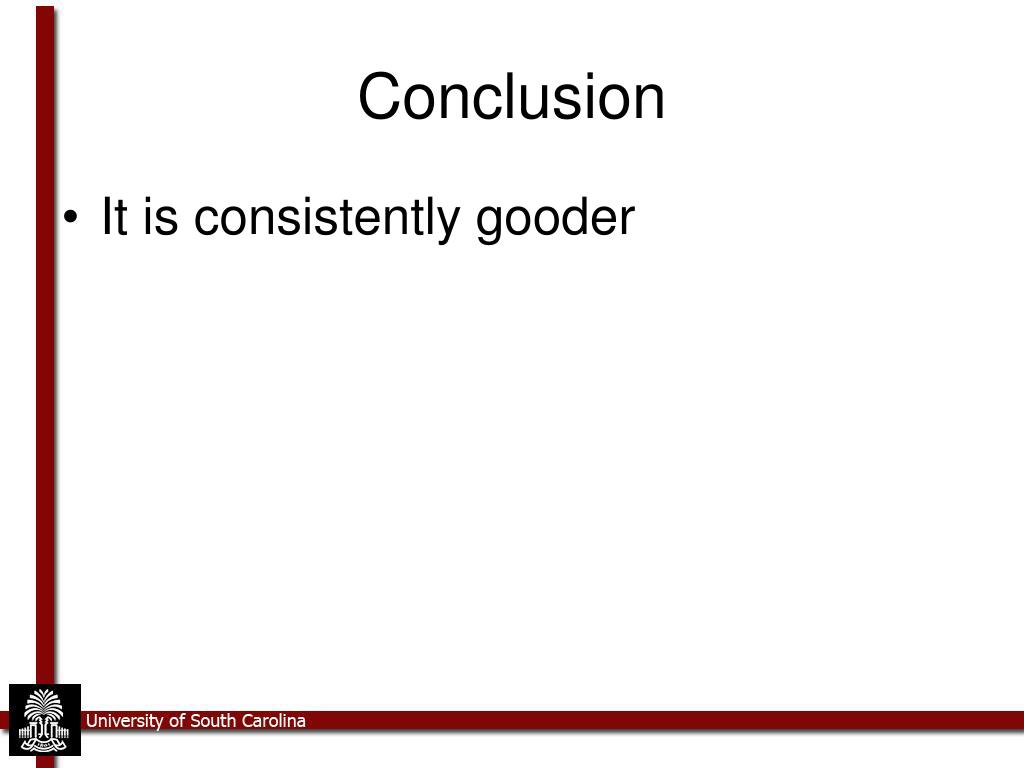

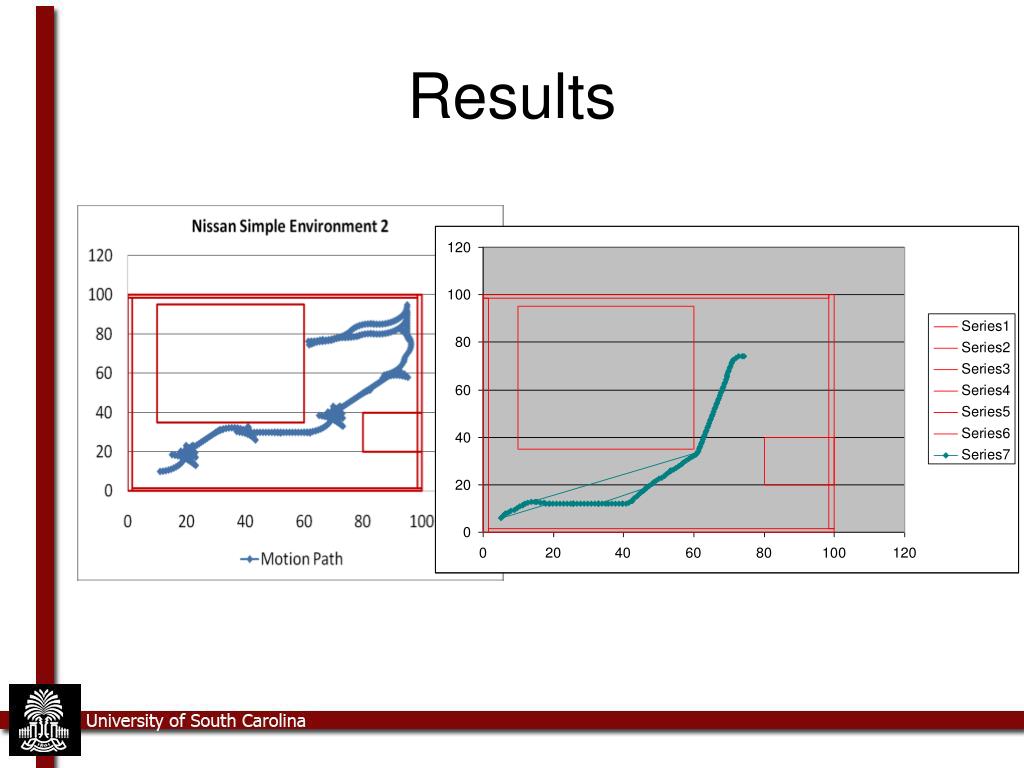

Conclusion It is consistently gooder
