DEFINITE CLAUSE GRAMMARS

1. DEFINITE CLAUSE GRAMMARS Ivan Bratko University of Ljubljana Faculty of Computer and Information Sc.

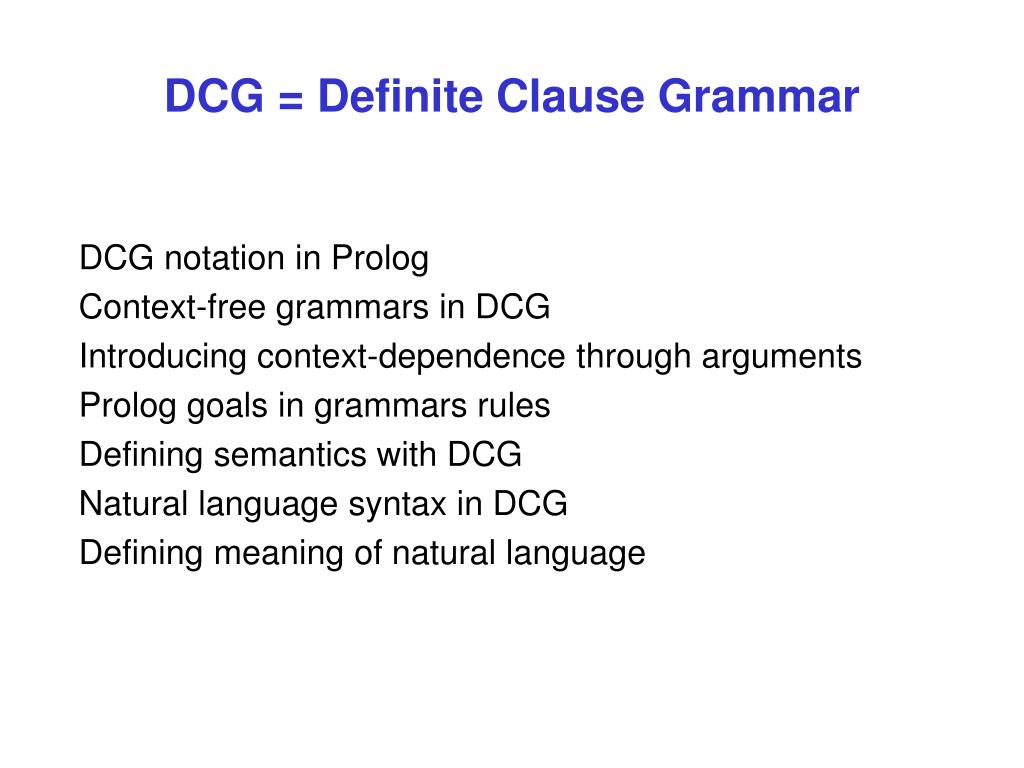

2. DCG = Definite Clause Grammar • DCG notation in Prolog • Context-free grammars in DCG • Introducing context-dependence through arguments • Prolog goals in grammars rules • Defining semantics with DCG • Natural language syntax in DCG • Defining meaning of natural language

3. A BNF grammar • <s> ::= a b | a <s> b • Grammar generates / recognises • s • a s b • Generation Recognition • a s b • a b • Sentence = a a a b b b

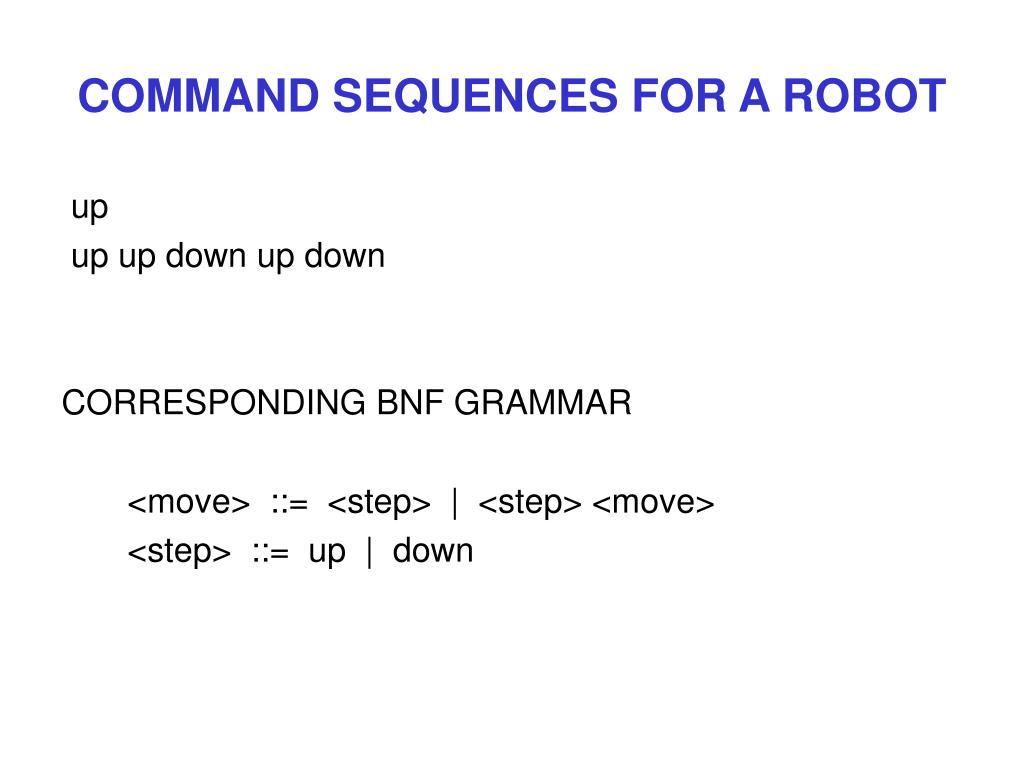

4. COMMAND SEQUENCES FOR A ROBOT • up • up up down up down • CORRESPONDING BNF GRAMMAR • <move> ::= <step> | <step> <move> • <step> ::= up | down

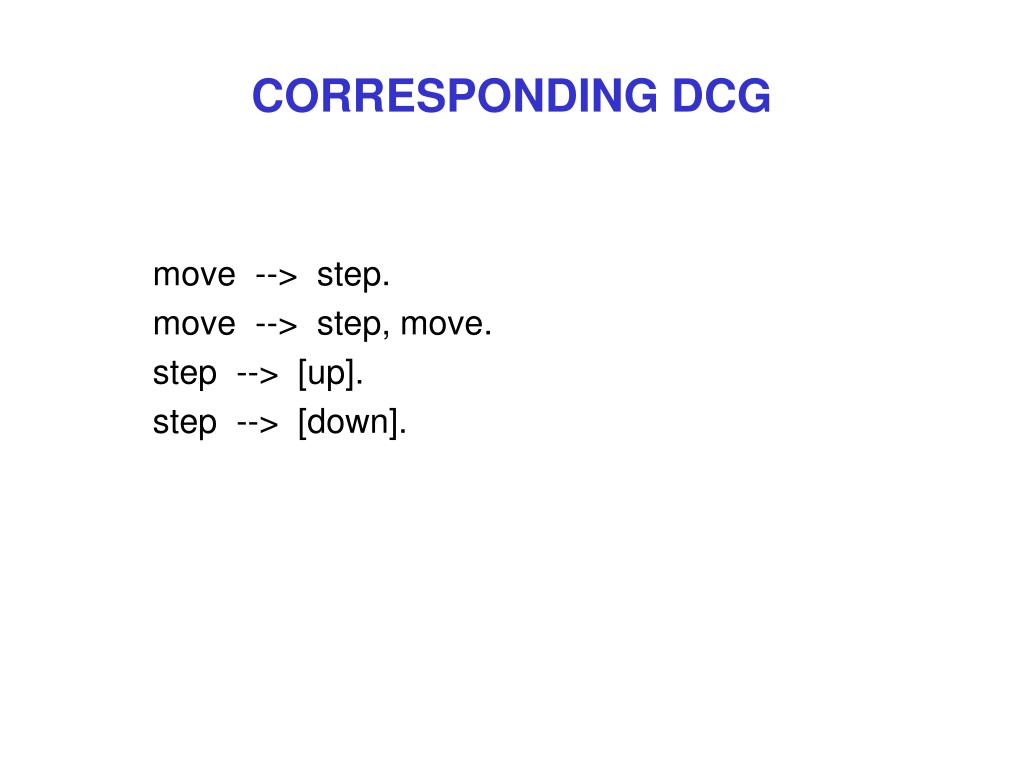

5. CORRESPONDING DCG • move --> step. • move --> step, move. • step --> [up]. • step --> [down].

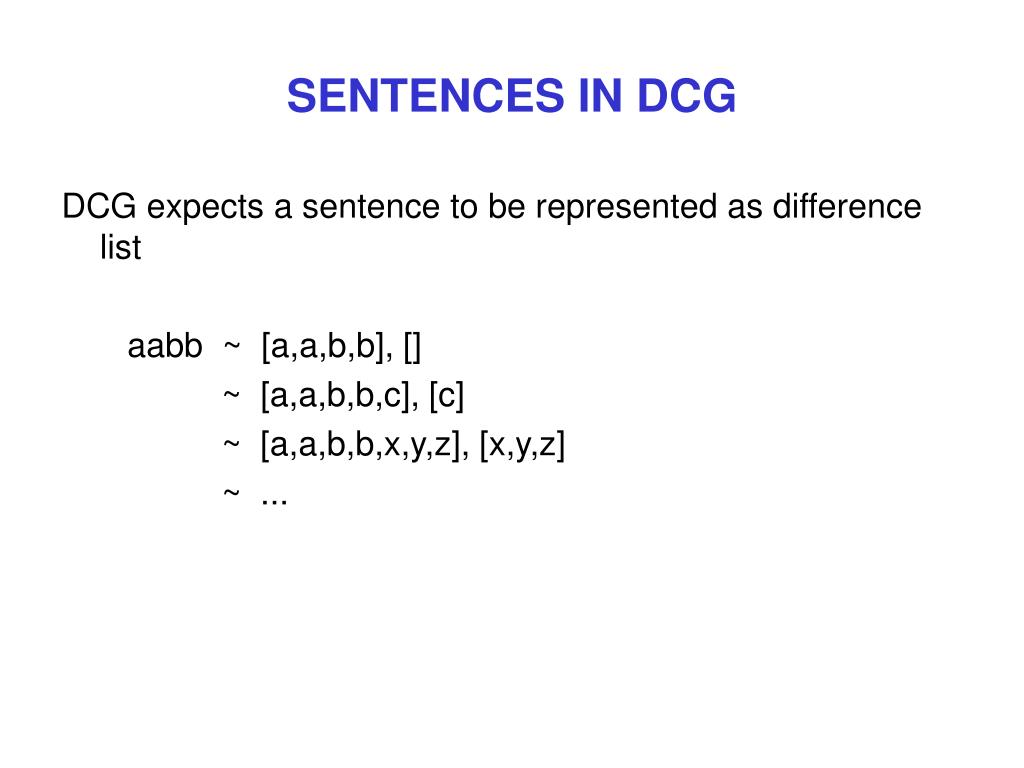

6. SENTENCES IN DCG • DCG expects a sentence to be represented as difference list • aabb ~ [a,a,b,b], [] • ~ [a,a,b,b,c], [c] • ~ [a,a,b,b,x,y,z], [x,y,z] • ~ ...

7. QUESTIONS TO DCG • ?- move( [up,down,up], []). • yes • ?- move( [up, X, up], []). • X = up; • X = down; • no • ?- move( [ up, down, up, a, b, c], [ a, b, c]). • yes

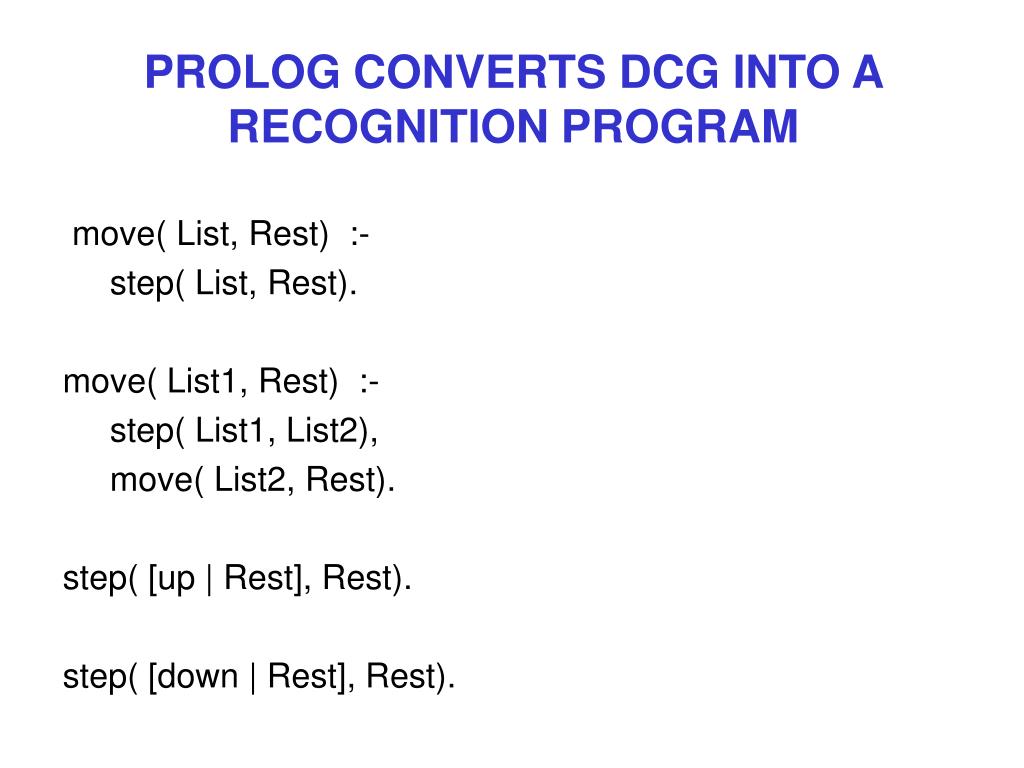

8. PROLOG CONVERTS DCG INTO A RECOGNITION PROGRAM • move( List, Rest) :- • step( List, Rest). • move( List1, Rest) :- • step( List1, List2), • move( List2, Rest). • step( [up | Rest], Rest). • step( [down | Rest], Rest).

9. FROM DCG TO STANDARD PROLOG • DCG rule: • move --> step, move. • Corresponding Prolog rule: • move( List1, Rest) :- • step( List1, List2), • move( List2, Rest).

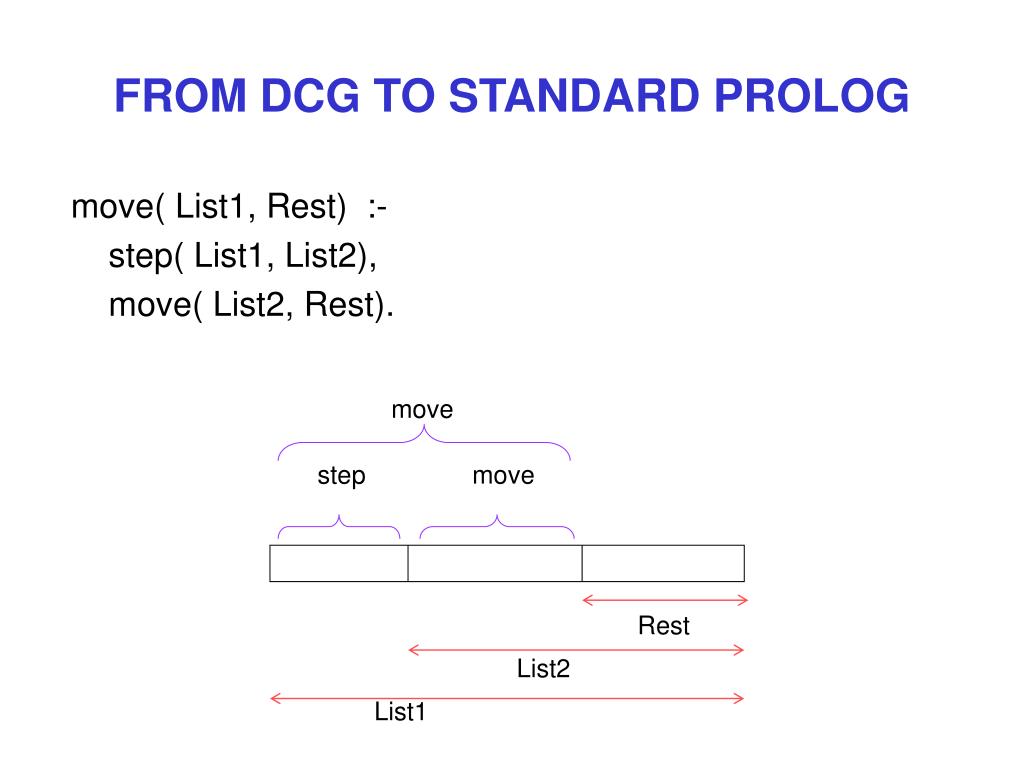

10. FROM DCG TO STANDARD PROLOG • move( List1, Rest) :- • step( List1, List2), • move( List2, Rest). • move • step move • Rest • List2 • List1

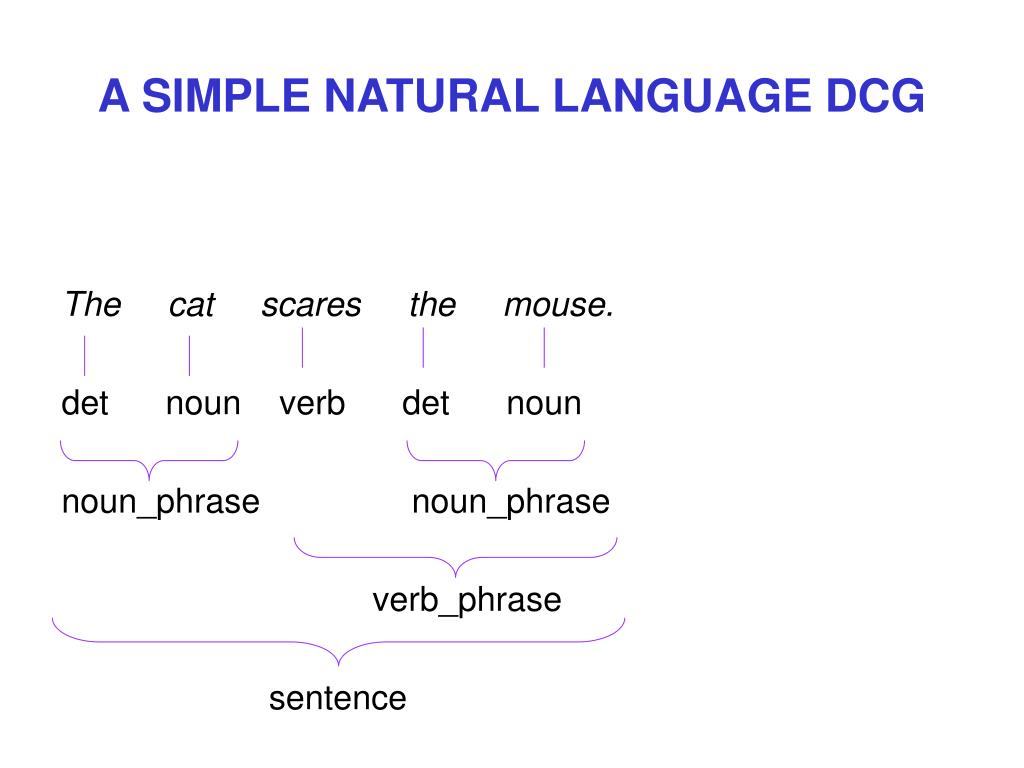

11. A SIMPLE NATURAL LANGUAGE DCG • The cat scares the mouse. • det noun verb det noun • noun_phrase noun_phrase • verb_phrase • sentence

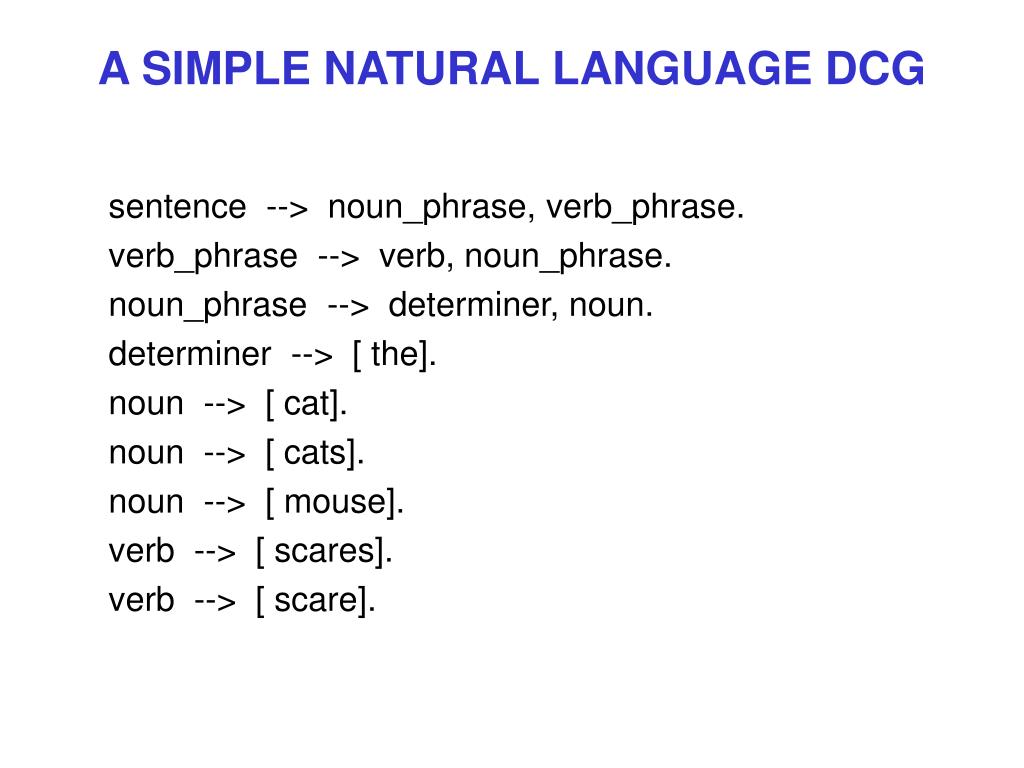

12. A SIMPLE NATURAL LANGUAGE DCG • sentence --> noun_phrase, verb_phrase. • verb_phrase --> verb, noun_phrase. • noun_phrase --> determiner, noun. • determiner --> [ the]. • noun --> [ cat]. • noun --> [ cats]. • noun --> [ mouse]. • verb --> [ scares]. • verb --> [ scare].

13. THIS GRAMMAR GENERATES • [ the, cat, scares, the, mouse] • [ the, mouse, scares, the, mouse] • [ the, cats, scare, the, mouse] • [ the, cats, scares, the, mouse] • CONTEXT DEPENDENT!

14. NUMBER AGREEMENT CAN BE FORCEDBY ARGUMENTS • sentence( Number) --> • noun_phrase( Number), verb_phrase( Number). • verb_phrase( Number) --> • verb( Number), noun_phrase( Number1). • noun_phrase( Number) --> • determiner( Number), noun( Number). • noun( singular) --> [ mouse]. • noun( plural) --> [ mice]. • verb( singular) --> [scares]. • verb( plural) --> [scare].

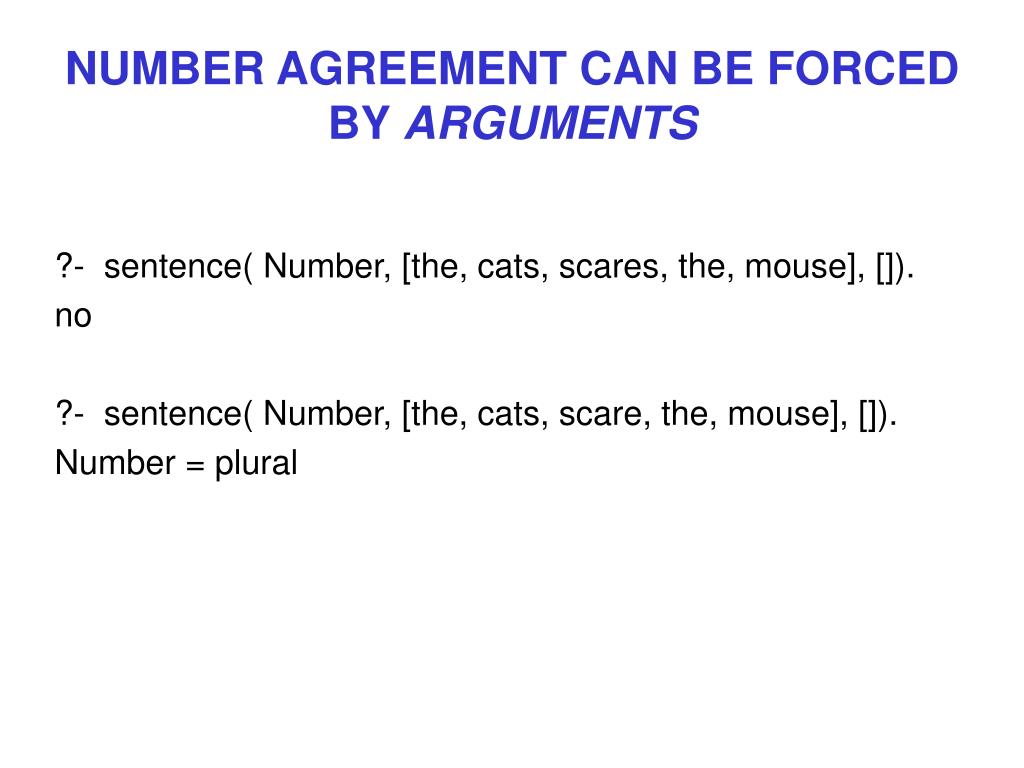

15. NUMBER AGREEMENT CAN BE FORCEDBY ARGUMENTS • ?- sentence( Number, [the, cats, scares, the, mouse], []). • no • ?- sentence( Number, [the, cats, scare, the, mouse], []). • Number = plural

16. CONSTRUCTING PARSE TREES • [ up, down, up] • move • step move • up step move • down step • up

17. DCG TO CONSTRUCT PARSE TREES • Tree = move( step(up), move( step(down), ...)) • move( move( Step)) --> step( Step). • move( move( Step, Move)) --> • step( Step), move( Move). • step( step( up)) --> [up]. • step( step( down)) --> [down].

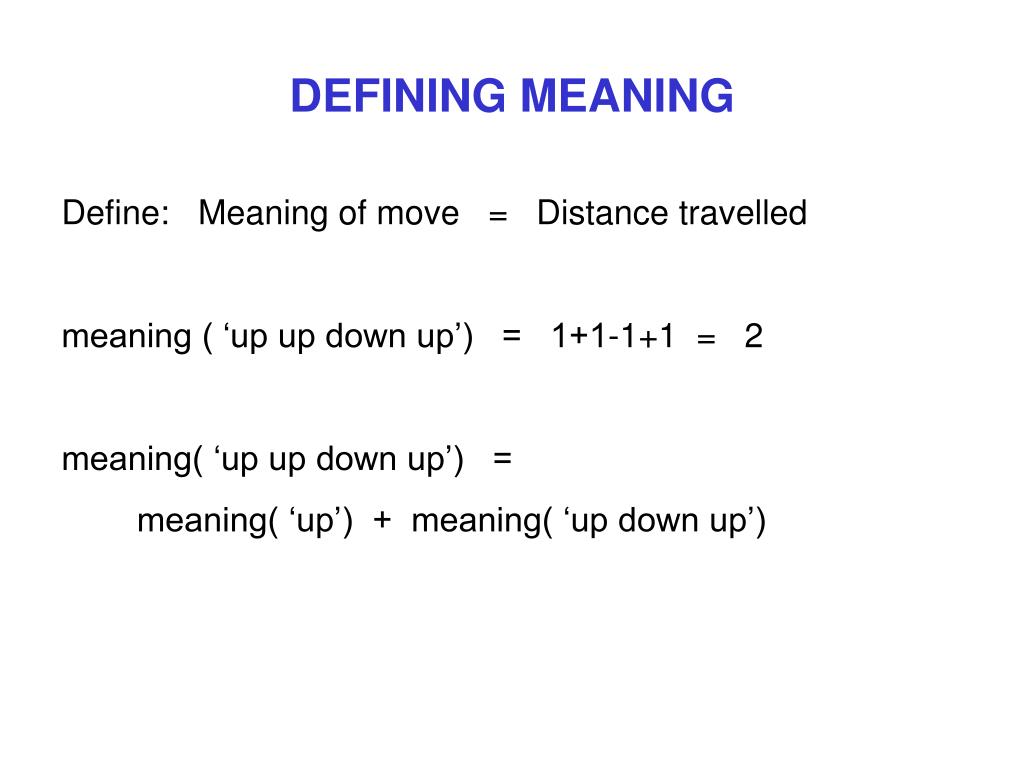

18. DEFINING MEANING • Define: Meaning of move = Distance travelled • meaning ( ‘up up down up’) = 1+1-1+1 = 2 • meaning( ‘up up down up’) = • meaning( ‘up’) + meaning( ‘up down up’)

19. FROM PARSE TREE TO MEANING • To find meaning of sentence: • (1) Construct parse tree • (2) Process parse tree

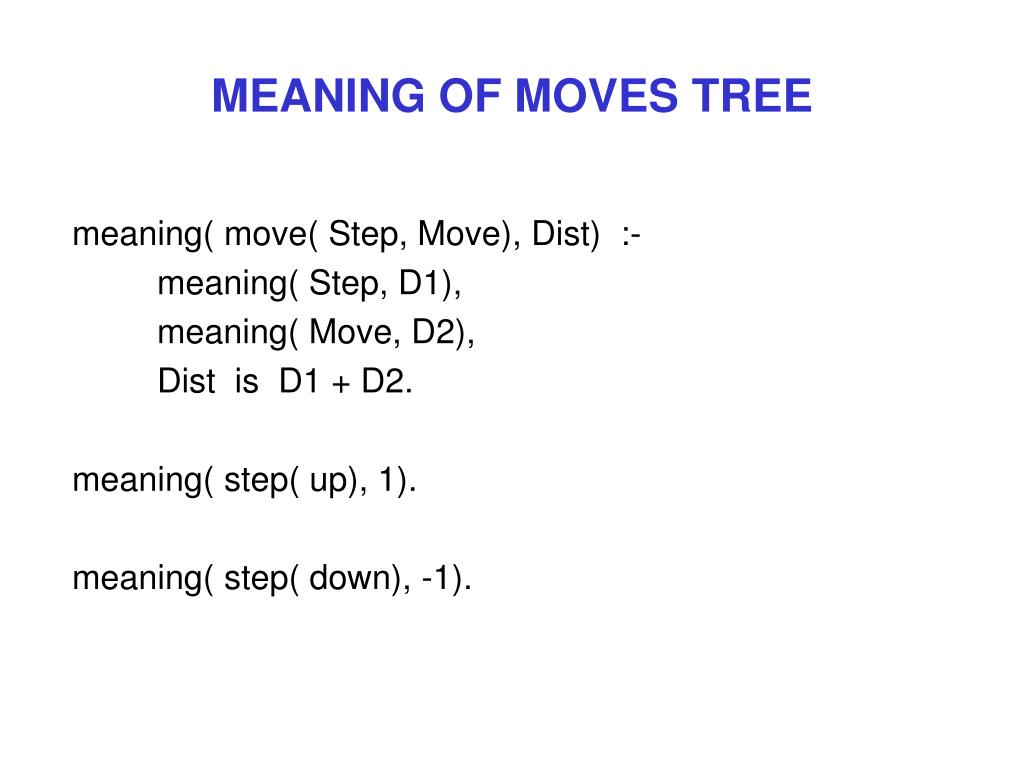

20. MEANING OF MOVES TREE • meaning( move( Step, Move), Dist) :- • meaning( Step, D1), • meaning( Move, D2), • Dist is D1 + D2. • meaning( step( up), 1). • meaning( step( down), -1).

21. INTERLEAVING SYNTAX AND MEANING • sentence parse tree meaning • Avoid parse tree, encode meaning directly in DCG

22. PROLOG goals in DCG: {Goal} • move( Dist) --> step( Dist). • move( Dist) --> • step( D1), move( D2), {Dist is D1 + D2}. • step( 1) --> [ up]. • step( -1) --> [ down]. • ?- move( D, [ up, up, down, up], [ ] ). • D = 2

23. MEANING OF NATURAL LANGUAGE • Representation of meaning = ? • Depends on use of meaning, • e.g. natural language querying • Logic is a good candidate for representing meaning

24. SOME MEANINGS IN LOGIC • Sentence Formalised meaning • ``John paints’’ paints( john) • ``John likes Annie’’ likes( john, annie)

25. SOME MEANINGS IN LOGIC • Sentence • ``A man paints’’ • Formalised meaning • exists( X, man(X) and paints(X)) • Note: ``paints’’ is intransitive verb, ``likes’’ is trans. verb

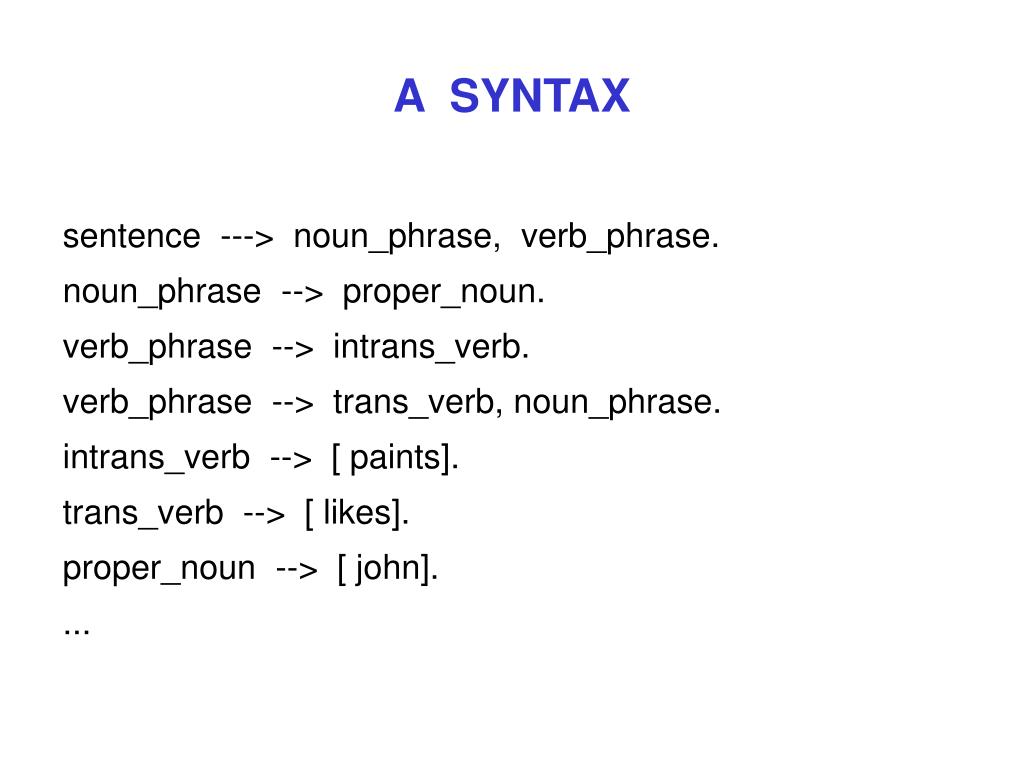

26. A SYNTAX • sentence ---> noun_phrase, verb_phrase. • noun_phrase --> proper_noun. • verb_phrase --> intrans_verb. • verb_phrase --> trans_verb, noun_phrase. • intrans_verb --> [ paints]. • trans_verb --> [ likes]. • proper_noun --> [ john]. • ...

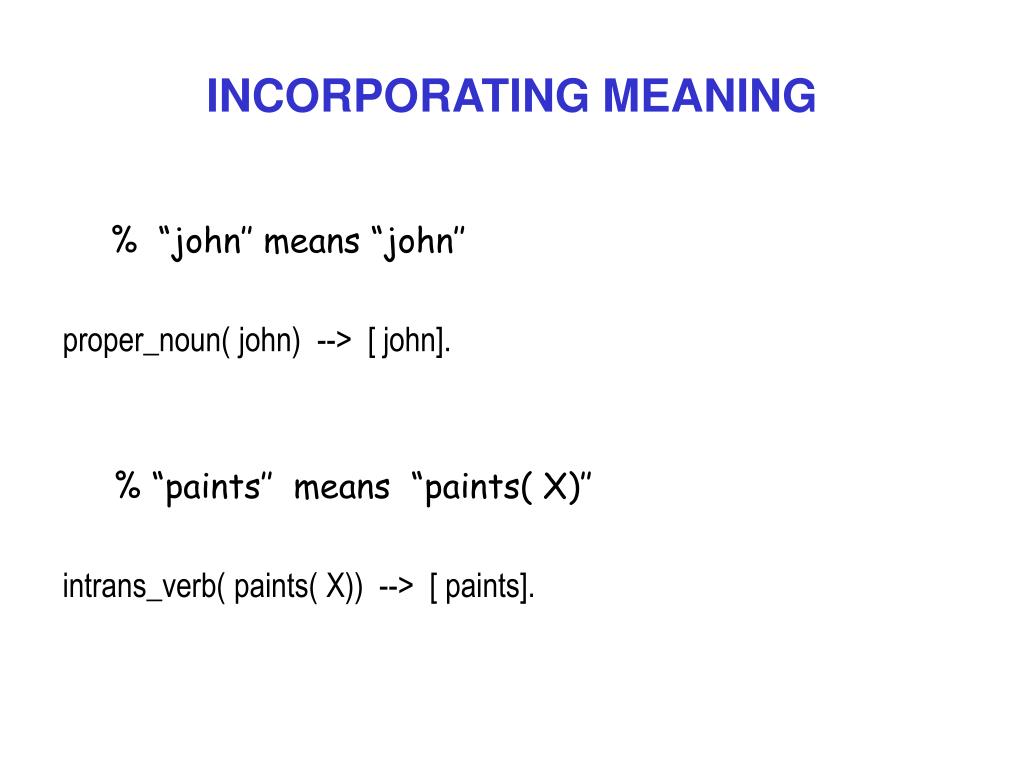

27. INCORPORATING MEANING • % “john’’ means “john’’ • proper_noun( john) --> [ john]. • % “paints’’ means “paints( X)’’ • intrans_verb( paints( X)) --> [ paints].

28. COMBINING MEANING OF NOUN PHRASE AND VERB PHRASE • “John paints” • sentence • noun_phrase verb_phrase • proper_noun intrans_verb • john paints

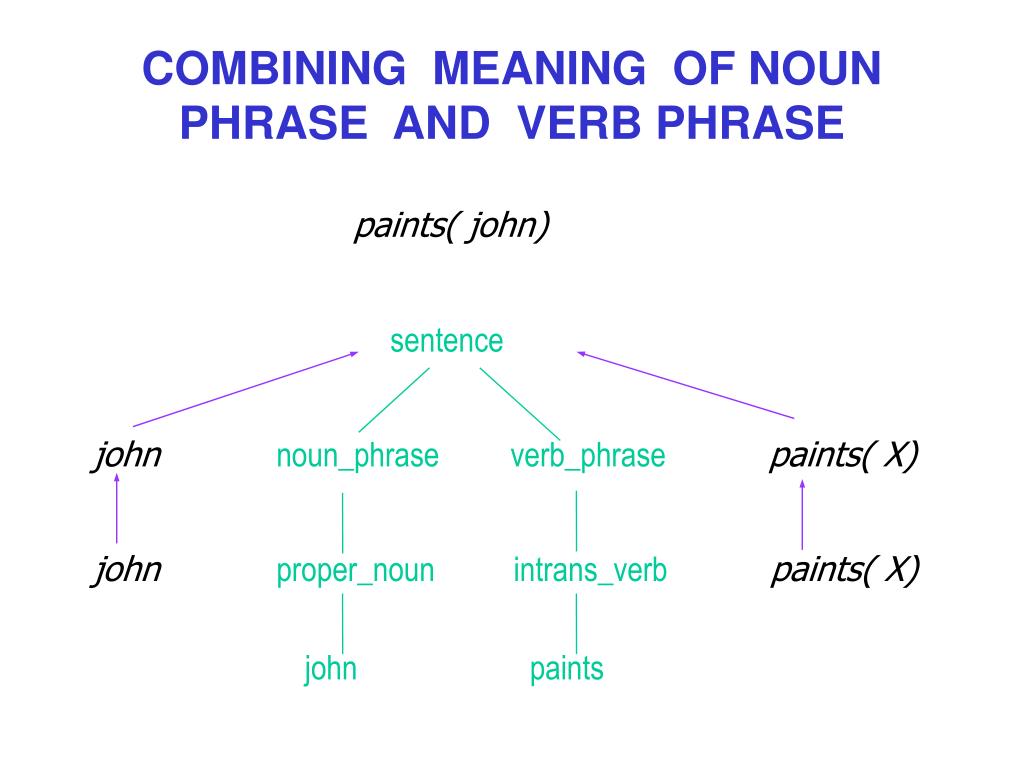

29. COMBINING MEANING OF NOUN PHRASE AND VERB PHRASE • paints( john) • sentence • johnnoun_phrase verb_phrasepaints( X) • john proper_noun intrans_verbpaints( X) • john paints

30. COMBINING MEANING OF NOUN PHRASE AND VERB PHRASE • john + paints( X) = paints( john) • Meaning of NP Meaning of sentence • Meaning of VP

31. COMBINING OF MEANING OF VERB PHRASE AND NOUN PHRASE • noun_phrase( NP) --> proper_noun( NP). • verb_phrase( VP) --> intrans_verb( VP). • sentence( S) ---> • noun_phrase( NP), verb_phrase( VP), • { compose( NP, VP, S) } .

32. COMPOSING NP AND VP MEANINGS • actor( paints( X), X). • compose( NP, VP, VP) :- % Meaning of sentence is VP • actor( VP, NP). % Where actor in VP is NP • ?- compose( john, paints( X), S). • S = paints( john)

33. MORE ELEGANT • DEFINE MEANING OF TRANSITIVE VERB • SO THAT ACTOR BECOMES EXTRA ARGUMENT • intrans_verb( Actor, paints( Actor)) --> [ paints]. • verb_phrase( Actor, VP) --> intrans_verb( Actor, VP). • sentence( VP) ---> • noun_phrase( Actor), verb_phrase( Actor, VP).

34. This makes “slots” in meaning “visible” • paints( Actor) • Slot to be filled by context

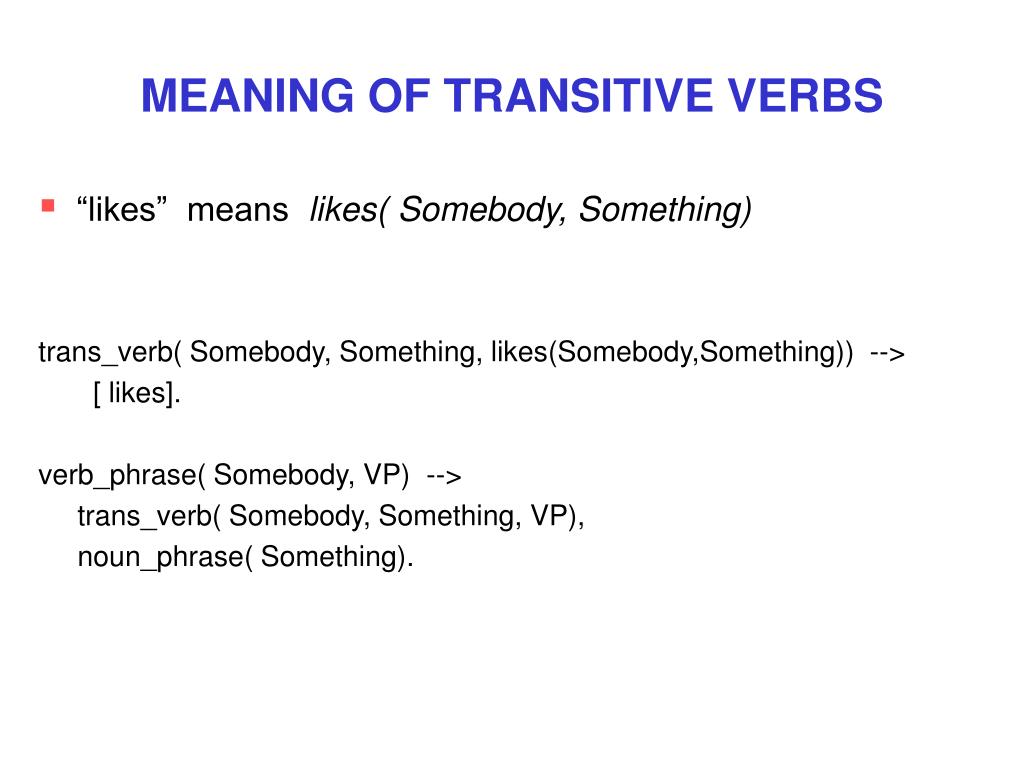

35. MEANING OF TRANSITIVE VERBS • “likes” means likes( Somebody, Something) • trans_verb( Somebody, Something, likes(Somebody,Something)) --> • [ likes]. • verb_phrase( Somebody, VP) --> • trans_verb( Somebody, Something, VP), • noun_phrase( Something).

36. MEANING OF DETERMINERS “A” AND “EVERY” • “A man paints” means: • exists( X, man( X) and paints( X) ) • Determiner “a” dictates the meaning of whole sentence! • “a man” means: • exists( X, man( X) and Assertion) • Statement about X

37. MEANING OF “A” • “a” means: • There is some X such that: • X has some property and • some assertion holds about X. • exists( X, Property and Assertion) • Make X, Property and Assertion visible: • determiner( X, Property, Assn, exists( X, Property and Assn)) --> • [ a].

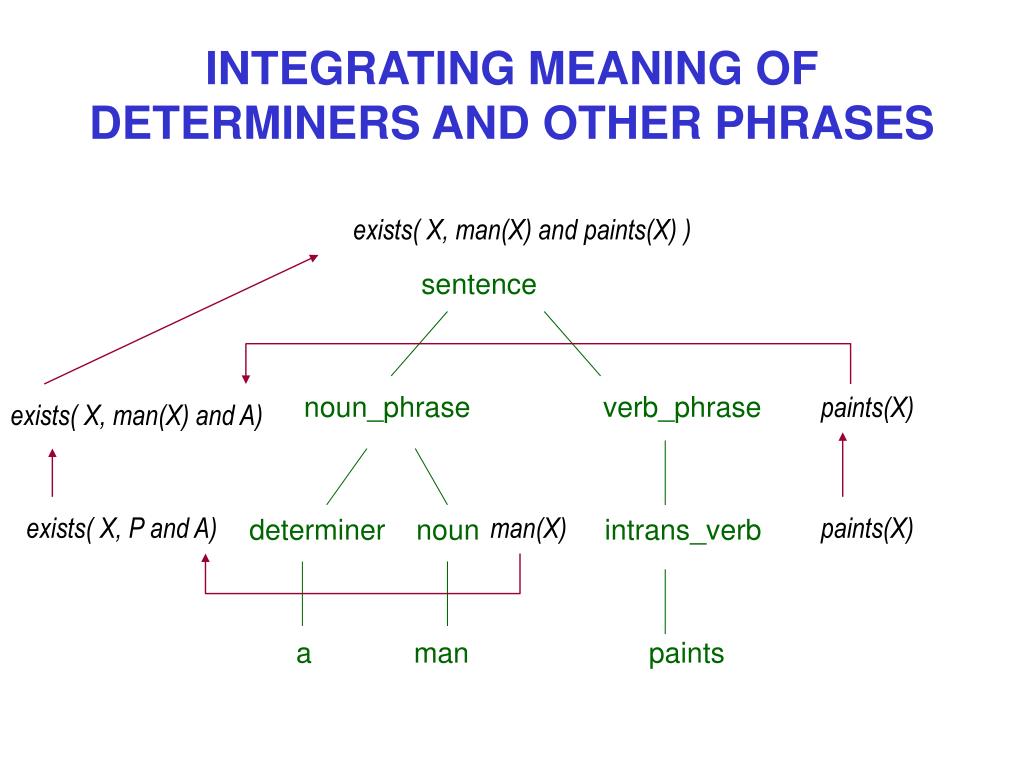

38. INTEGRATING MEANING OF DETERMINERS AND OTHER PHRASES • sentence • noun_phrase verb_phrase • determiner noun intrans_verb • a man paints exists( X, man(X) and paints(X) ) paints(X) exists( X, man(X) and A) exists( X, P and A) man(X) paints(X)

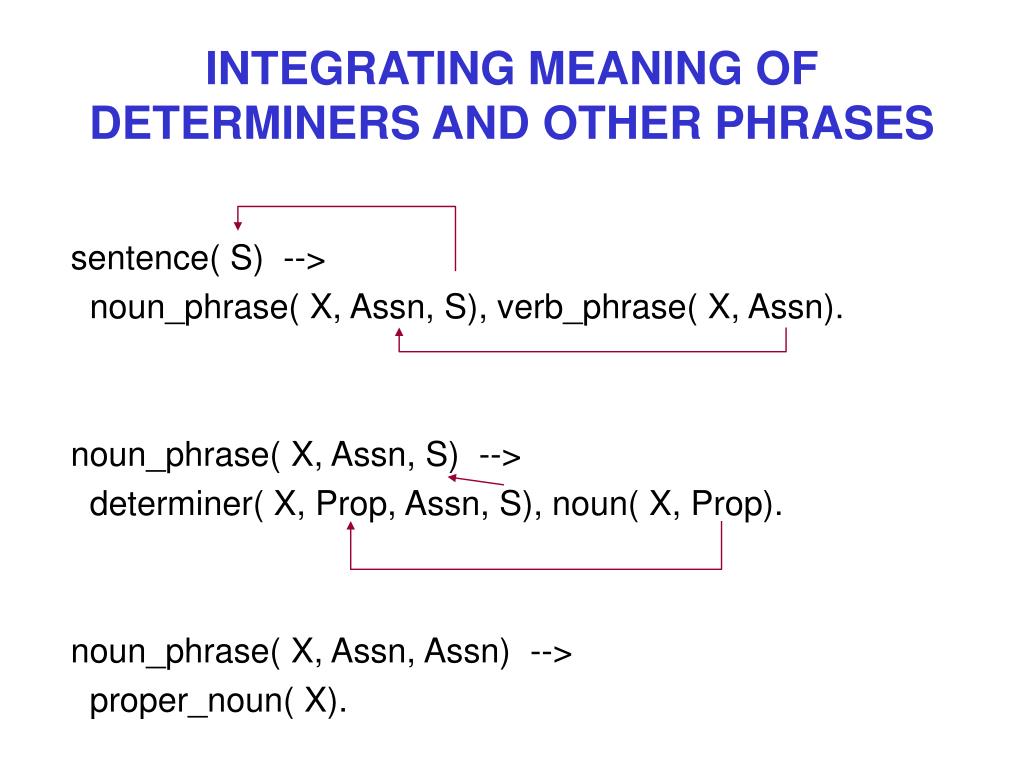

39. INTEGRATING MEANING OF DETERMINERS AND OTHER PHRASES • sentence( S) --> • noun_phrase( X, Assn, S), verb_phrase( X, Assn). • noun_phrase( X, Assn, S) --> • determiner( X, Prop, Assn, S), noun( X, Prop). • noun_phrase( X, Assn, Assn) --> • proper_noun( X).

40. INTEGRATING MEANING OF DETERMINERS AND OTHER PHRASES • verb_phrase( X, Assn) --> • intrans_verb( X, Assn). • determiner( X, Prop, Assn, exists( X, Prop and Assn)) --> [a]. • noun( X, man( X)) --> [ man]. • intrans_verb( X, paints(X)) --> [paints].

41. DETERMINER “EVERY” • “Every woman dances” means: • all( X, woman( X) ==> dances( X) ) • determiner( X, Prop, Assn, all( X, Prop ==> Assn ) ) • --> [ every].

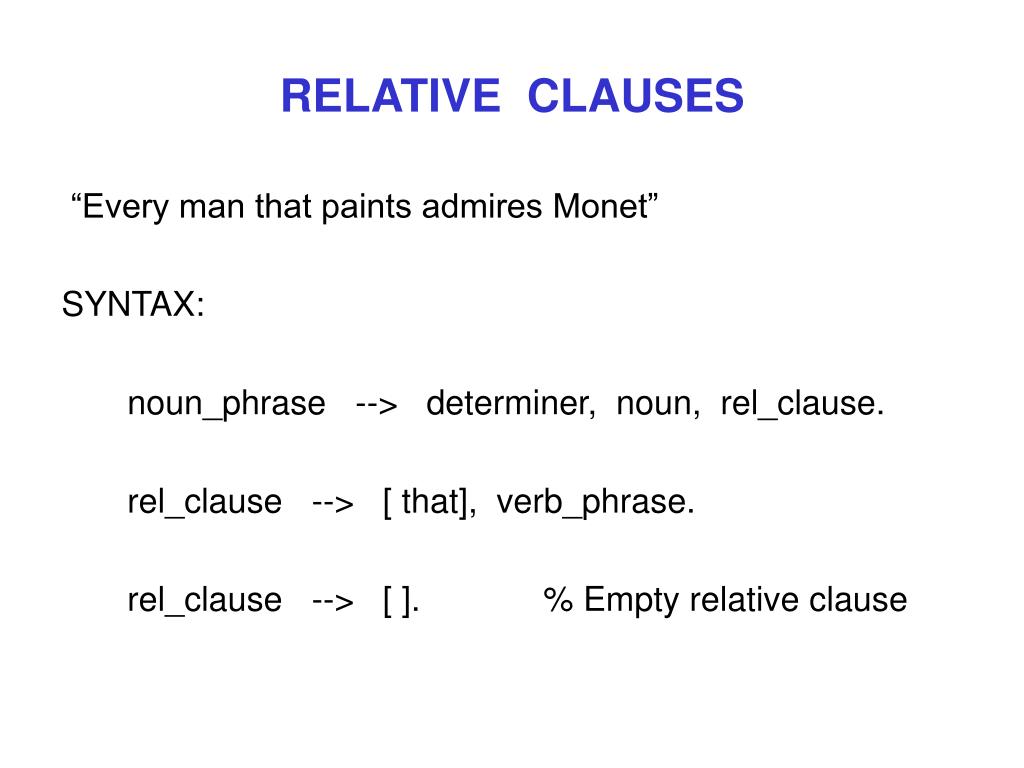

42. RELATIVE CLAUSES • “Every man that paints admires Monet” • SYNTAX: • noun_phrase --> determiner, noun, rel_clause. • rel_clause --> [ that], verb_phrase. • rel_clause --> [ ]. % Empty relative clause

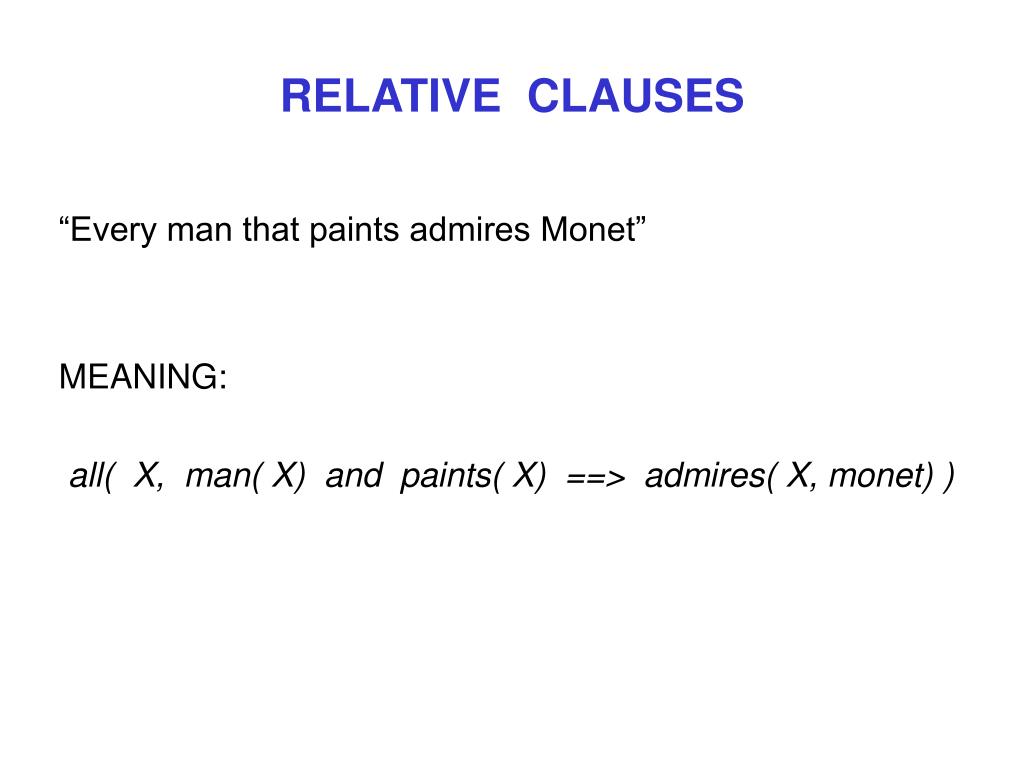

43. RELATIVE CLAUSES • “Every man that paints admires Monet” • MEANING: • all( X, man( X) and paints( X) ==> admires( X, monet) )

44. RELATIVE CLAUSES • MEANING, GENERAL FORM • all( X, Prop1 and Prop2 ==> Assertion ) • noun verb phrase verb phrase • of rel. clause of sentence

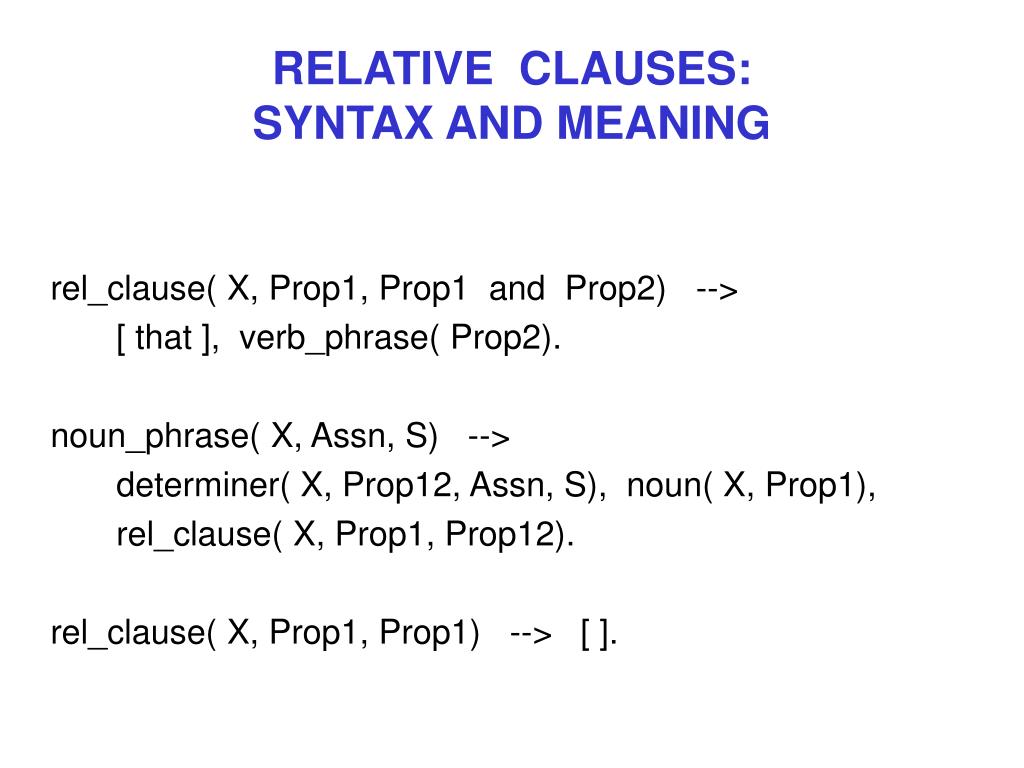

45. RELATIVE CLAUSES: SYNTAX AND MEANING • rel_clause( X, Prop1, Prop1 and Prop2) --> • [ that ], verb_phrase( Prop2). • noun_phrase( X, Assn, S) --> • determiner( X, Prop12, Assn, S), noun( X, Prop1), • rel_clause( X, Prop1, Prop12). • rel_clause( X, Prop1, Prop1) --> [ ].

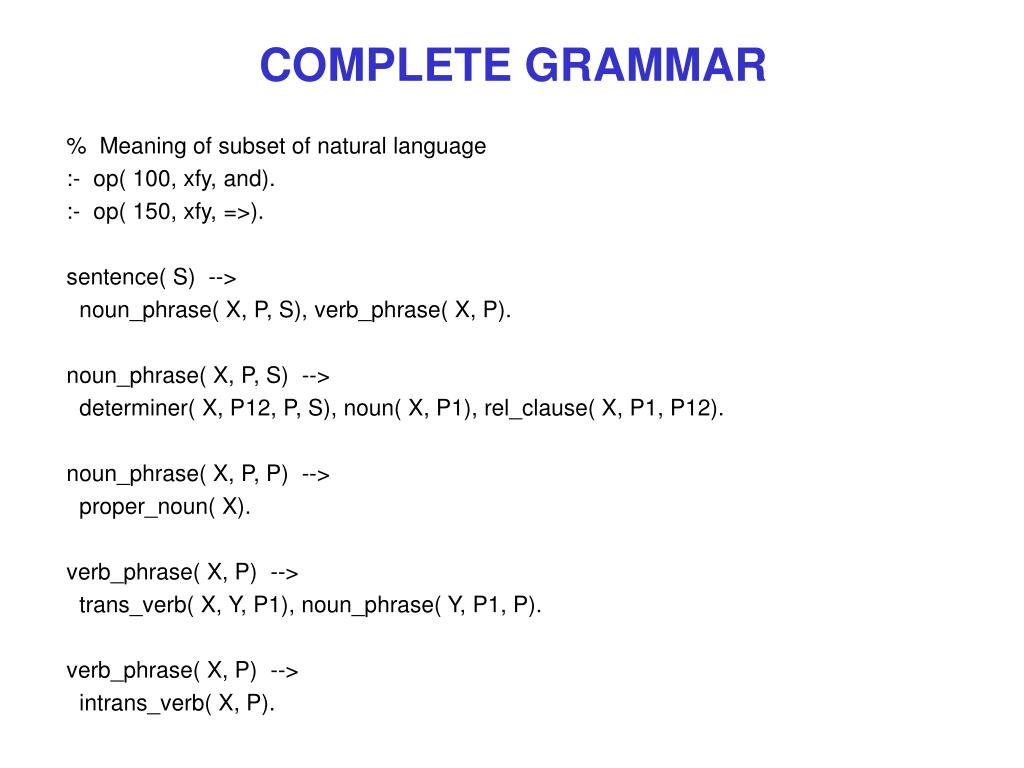

46. COMPLETE GRAMMAR • % Meaning of subset of natural language • :- op( 100, xfy, and). • :- op( 150, xfy, =>). • sentence( S) --> • noun_phrase( X, P, S), verb_phrase( X, P). • noun_phrase( X, P, S) --> • determiner( X, P12, P, S), noun( X, P1), rel_clause( X, P1, P12). • noun_phrase( X, P, P) --> • proper_noun( X). • verb_phrase( X, P) --> • trans_verb( X, Y, P1), noun_phrase( Y, P1, P). • verb_phrase( X, P) --> • intrans_verb( X, P).

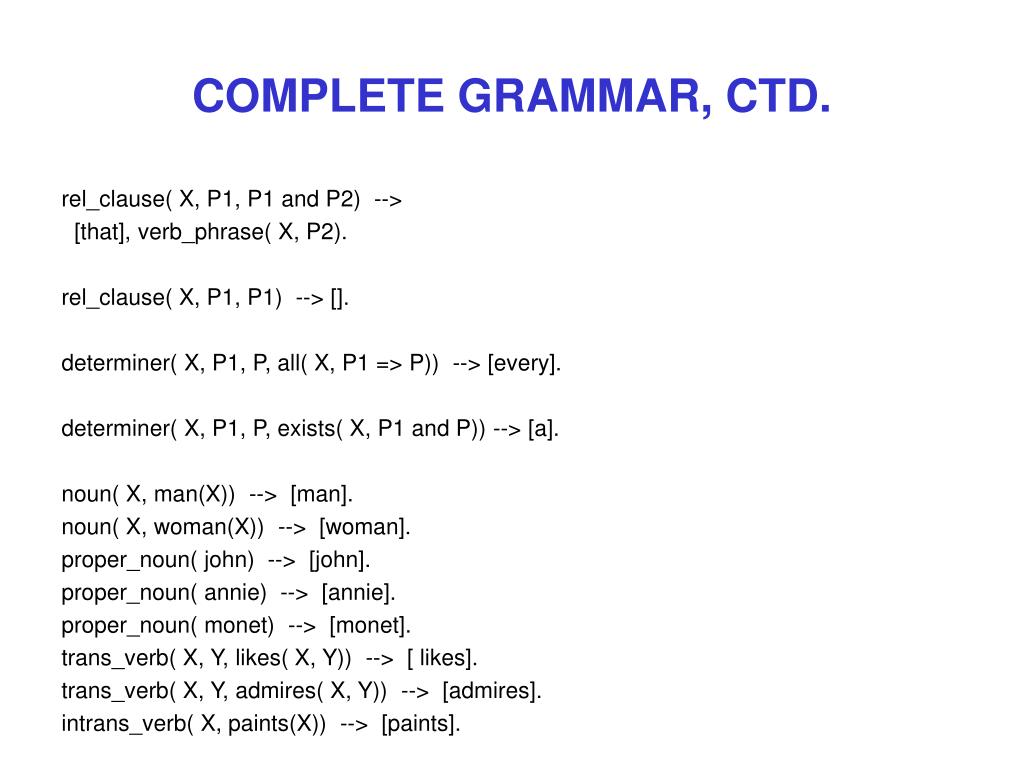

47. COMPLETE GRAMMAR, CTD. • rel_clause( X, P1, P1 and P2) --> • [that], verb_phrase( X, P2). • rel_clause( X, P1, P1) --> []. • determiner( X, P1, P, all( X, P1 => P)) --> [every]. • determiner( X, P1, P, exists( X, P1 and P)) --> [a]. • noun( X, man(X)) --> [man]. • noun( X, woman(X)) --> [woman]. • proper_noun( john) --> [john]. • proper_noun( annie) --> [annie]. • proper_noun( monet) --> [monet]. • trans_verb( X, Y, likes( X, Y)) --> [ likes]. • trans_verb( X, Y, admires( X, Y)) --> [admires]. • intrans_verb( X, paints(X)) --> [paints].

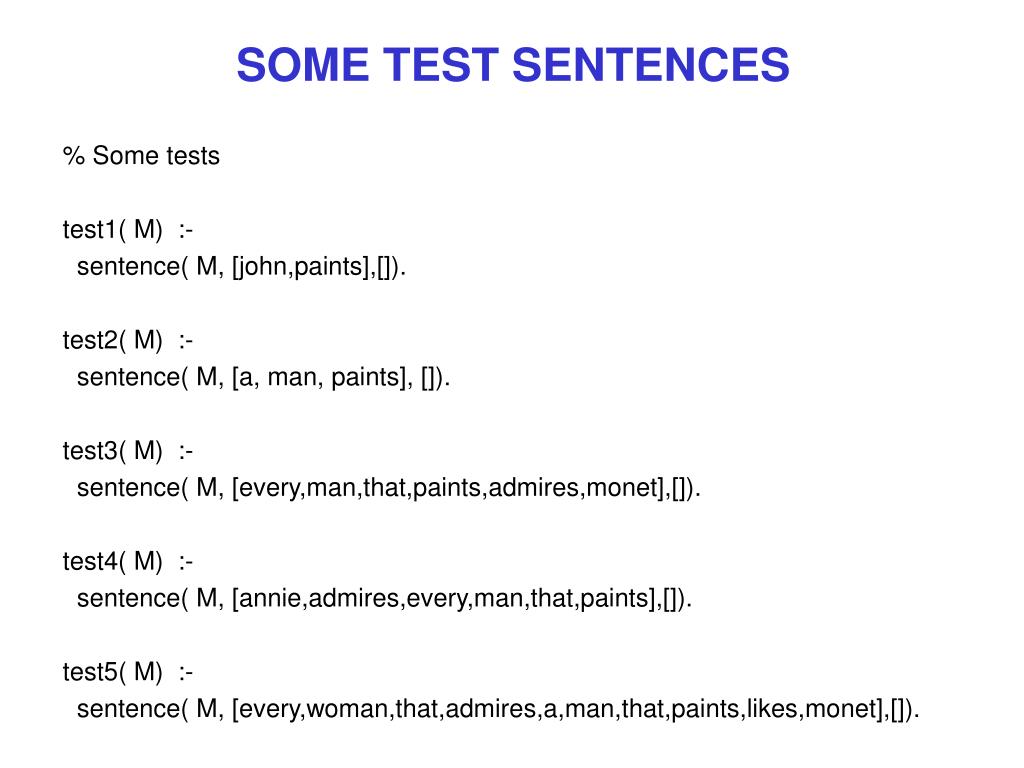

48. SOME TEST SENTENCES • % Some tests • test1( M) :- • sentence( M, [john,paints],[]). • test2( M) :- • sentence( M, [a, man, paints], []). • test3( M) :- • sentence( M, [every,man,that,paints,admires,monet],[]). • test4( M) :- • sentence( M, [annie,admires,every,man,that,paints],[]). • test5( M) :- • sentence( M, [every,woman,that,admires,a,man,that,paints,likes,monet],[]).

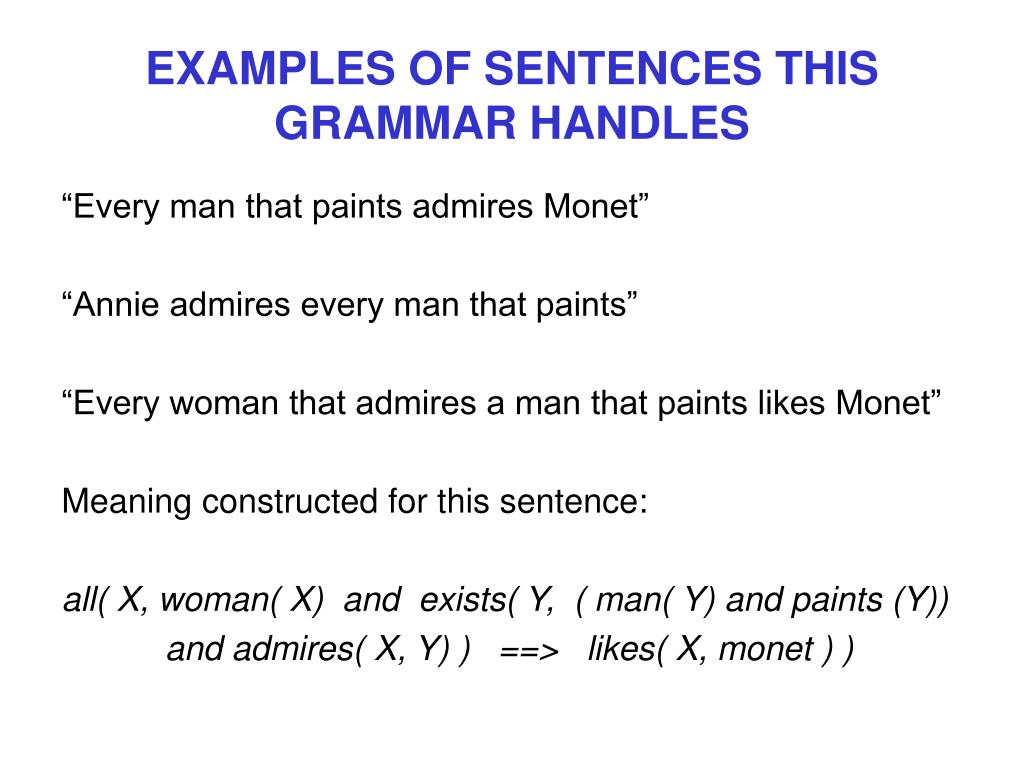

49. EXAMPLES OF SENTENCES THIS GRAMMAR HANDLES • “Every man that paints admires Monet” • “Annie admires every man that paints” • “Every woman that admires a man that paints likes Monet” • Meaning constructed for this sentence: • all( X, woman( X) and exists( Y, ( man( Y) and paints (Y)) • and admires( X, Y) ) ==> likes( X, monet ) )

50. USE IN QUESTION ANSWERING • Meanings in logic can be translated into Prolog: • admires( X, monet) :- • man( X), paints( X). • admires( annie, X) :- • man( X), paints( X). • likes( X, monet) :- • woman( X), man( Y), paints( Y), admires( X, Y). • “Does Annie admire anybody who admires Monet?” • ?- admires( annie, X), admires( X, monet).
