1. Climate Change Adaptation Planning Rochelle Owen, Director Office of Sustainability Dalhousie University

2. Dalhousie University Campuses 100+ buildings/houses on 79-acres in downtown Halifax, Nova Scotia Canada. 50+ buildings AC campus Includes 5.8 million gross square feet of building space. A campus population of approximately 26,500 (19,000 students, 7500 faculty and staff). Four Campus: Studley, Carleton, Sexton – Downtown Halifax, AC – Truro Bible Hill Two District Heating Systems

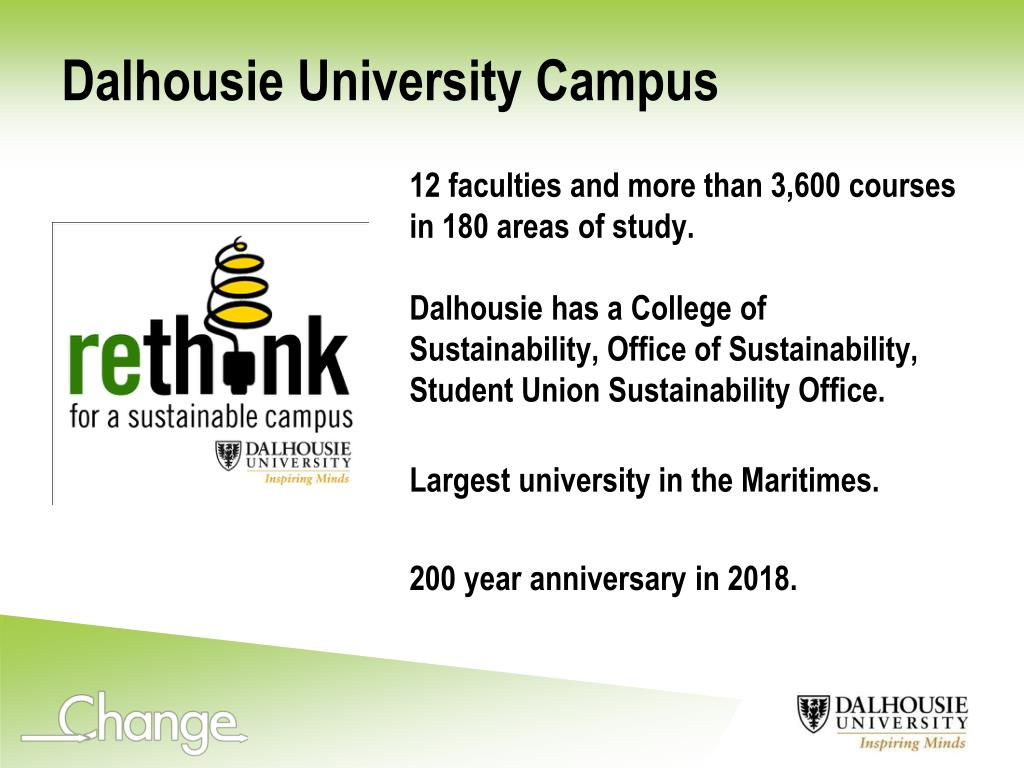

3. Dalhousie University Campus 12 faculties and more than 3,600 courses in 180 areas of study. Dalhousie has a College of Sustainability, Office of Sustainability, Student Union Sustainability Office. Largest university in the Maritimes. 200 year anniversary in 2018.

4. Purpose of the Session • Demonstrate planning steps for implementing a climate change adaptation process at a university/college

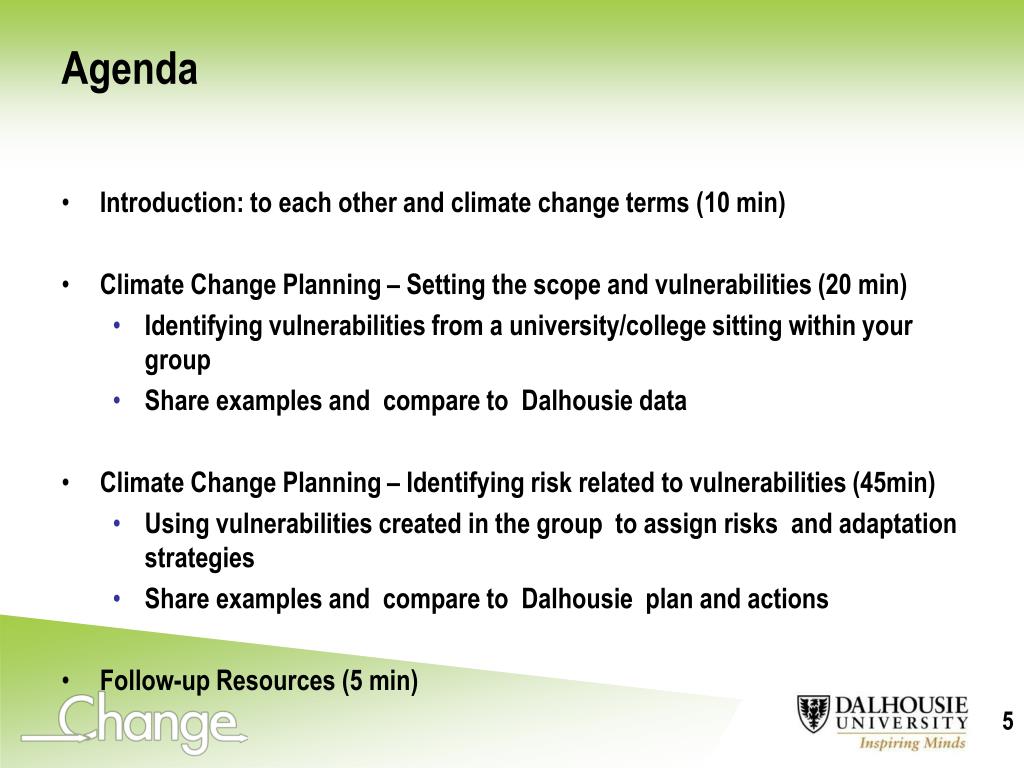

5. Agenda • Introduction: to each other and climate change terms (10 min) • Climate Change Planning – Setting the scope and vulnerabilities (20 min) • Identifying vulnerabilities from a university/college sitting within your group • Share examples and compare to Dalhousie data • Climate Change Planning – Identifying risk related to vulnerabilities (45min) • Using vulnerabilities created in the group to assign risks and adaptation strategies • Share examples and compare to Dalhousie plan and actions • Follow-up Resources (5 min)

6. Climate Change • MITIGATION • Reduce GHG emissions and carbon footprint • Energy and water efficiency • Conserve energy • Fuel switching and renewable energy • Bike/walk/bus to campus • Carbon sinks • ADAPTATION • Planning for inevitable climate changes • How will XXX university/college be affected?

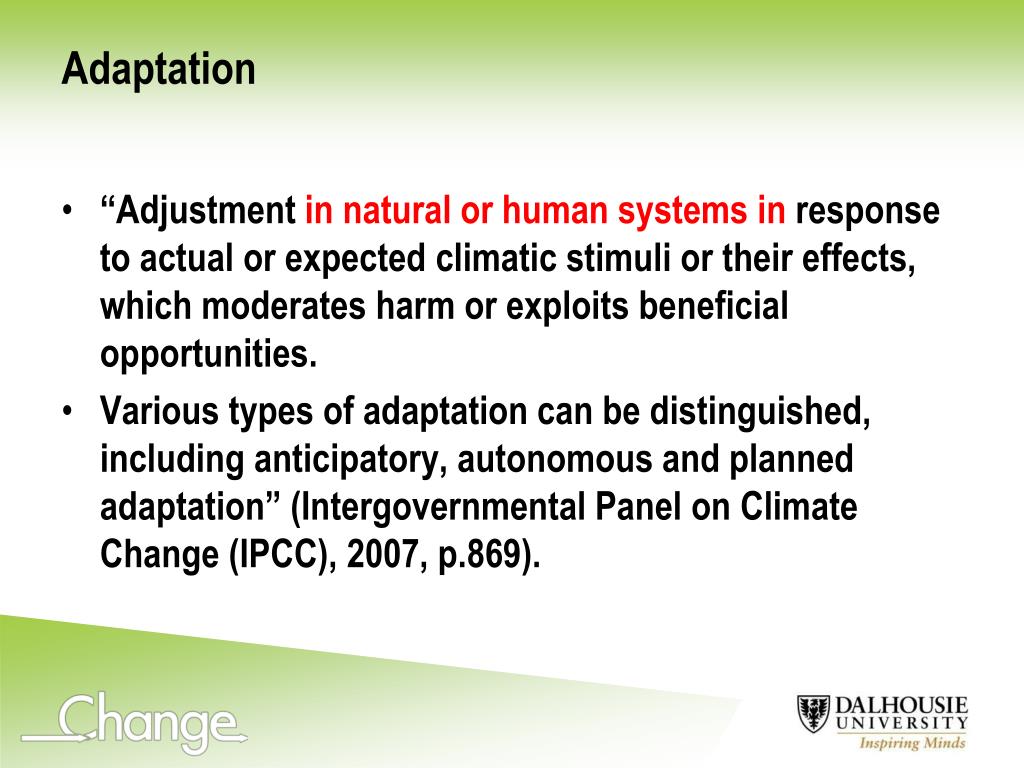

7. Adaptation • “Adjustment in natural or human systems in response to actual or expected climatic stimuli or their effects, which moderates harm or exploits beneficial opportunities. • Various types of adaptation can be distinguished, including anticipatory, autonomous and planned adaptation” (Intergovernmental Panel on Climate Change (IPCC), 2007, p.869).

9. Annual Average Temperature Nova Scotia, 1895-1998 1895-1998 Average 6.3ºC Trend +0.5ºC/century Temperature (ºC) Average of Yarmouth and Sydney Year Slide from EC

10. Atlantic Canada Impacts

11. Adaptation Plan Development Process Data -Vulnerabilities, Risks, Strategies

12. Group work • In your group, pick a university/ college at your table and explain the location – geography, weather impacts – 5 min • Identify vulnerabilities for this university/college as a group using the sheet provided or electronic version available for a lap top (examples of vulnerabilities will be provided from Dal from our surveys and workshops as an example. – 15 min • Share a few vulnerabilities from the groups

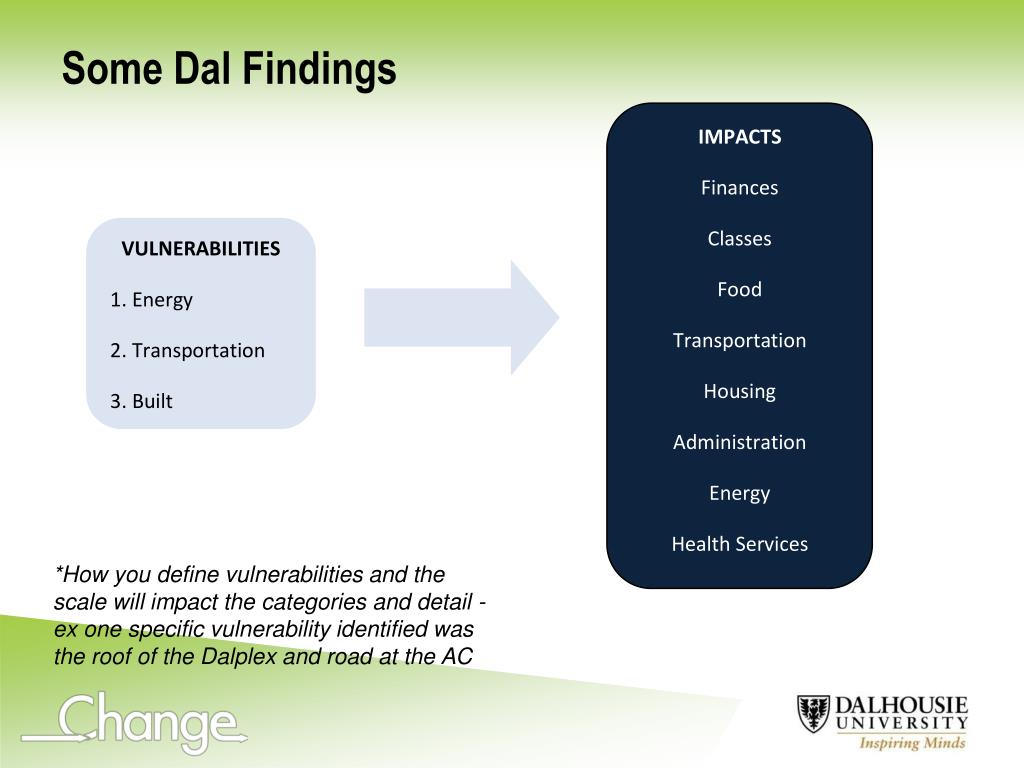

13. Some Dal Findings *How you define vulnerabilities and the scale will impact the categories and detail - ex one specific vulnerability identified was the roof of the Dalplex and road at the AC

14. Scenario Development • Creating future scenarios can help the process of identifying risks associated with vulnerabilities and potential strategies • Some organizations express risk qualitatively and/or quantitatively (probability and impact) to rank scenarios and measures • The scale of the analysis can be at the person, building (detailed study of building systems, occupant comfort, operations), campus, community, regional levels.

15. Partners • Environment Canada and Dept of Environment • Provided climate change adaptation science presentation and information to the committee • Helped select climate models and ran local weather data through climate models to give projections for 2030, 2050, 2080 • Participated in the workshop • Models saying: hotter, wettier, more extreme weather, impacts on water

16. The first row are values from downscaling output from the Canadian Coupled Global Climate Model version 2 (CGCM2) and the second row are values based on the Hadley (UK) Climate Model version 3 (HadCM3).” (Lines et al., 2009)

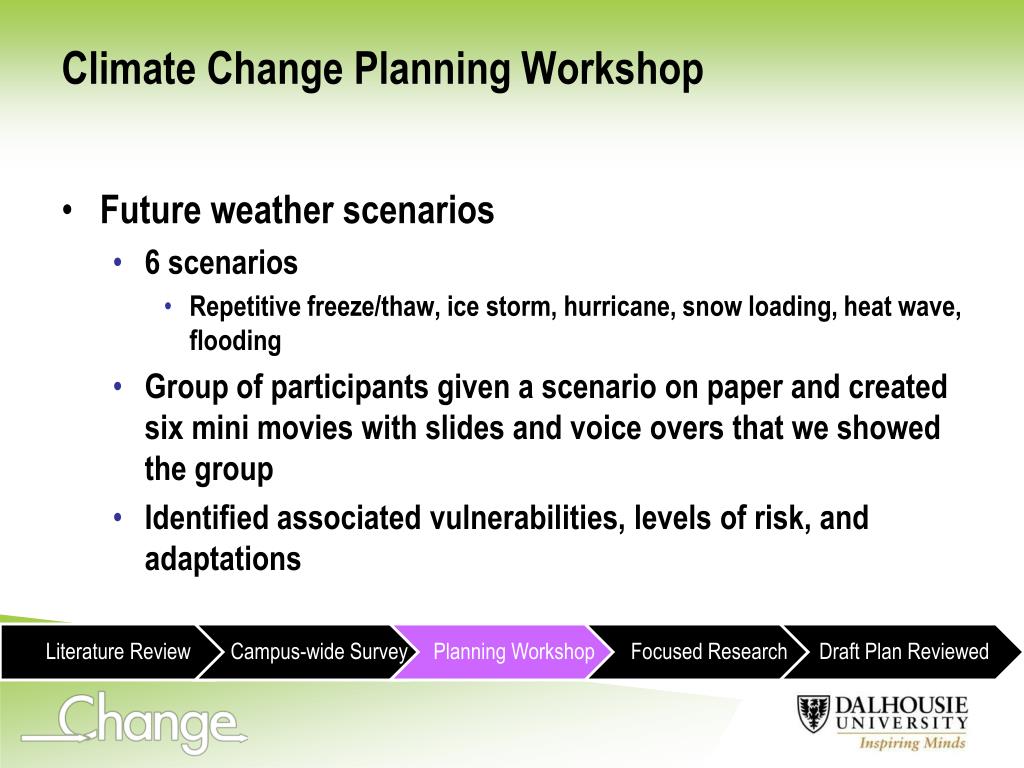

17. Climate Change Planning Workshop • Future weather scenarios • 6 scenarios • Repetitive freeze/thaw, ice storm, hurricane, snow loading, heat wave, flooding • Group of participants given a scenario on paper and created six mini movies with slides and voice overs that we showed the group • Identified associated vulnerabilities, levels of risk, and adaptations

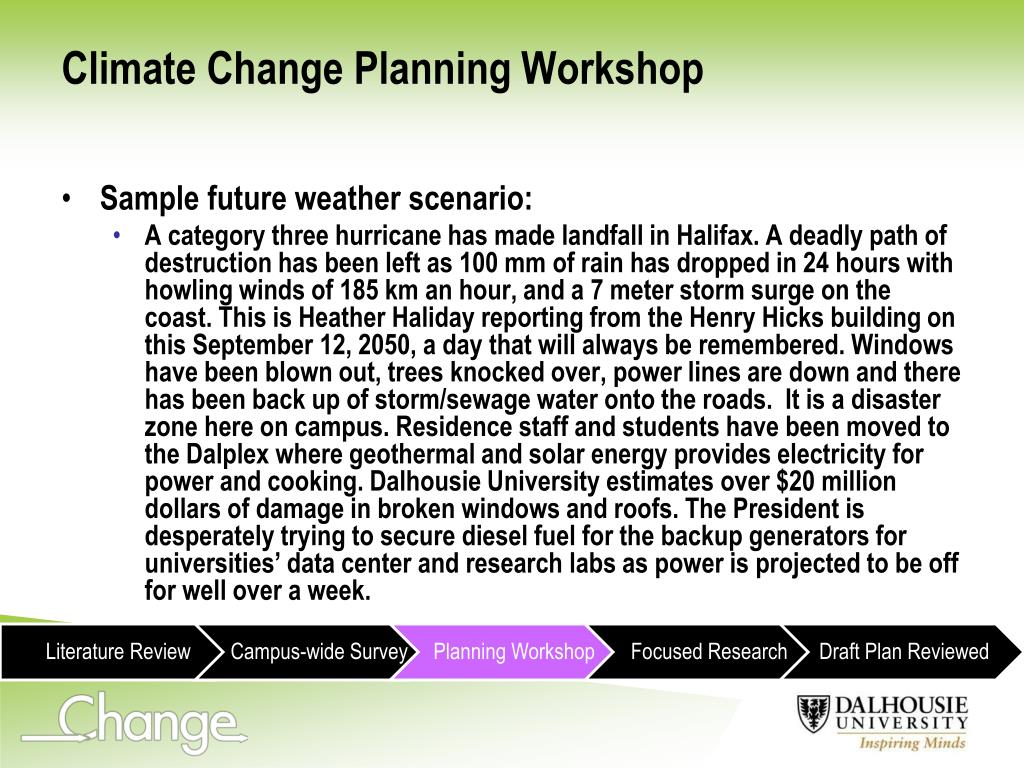

18. Climate Change Planning Workshop • Sample future weather scenario: • A category three hurricane has made landfall in Halifax. A deadly path of destruction has been left as 100 mm of rain has dropped in 24 hours with howling winds of 185 km an hour, and a 7 meter storm surge on the coast. This is Heather Haliday reporting from the Henry Hicks building on this September 12, 2050, a day that will always be remembered. Windows have been blown out, trees knocked over, power lines are down and there has been back up of storm/sewage water onto the roads. It is a disaster zone here on campus. Residence staff and students have been moved to the Dalplex where geothermal and solar energy provides electricity for power and cooking. Dalhousie University estimates over $20 million dollars of damage in broken windows and roofs. The President is desperately trying to secure diesel fuel for the backup generators for universities’ data center and research labs as power is projected to be off for well over a week.

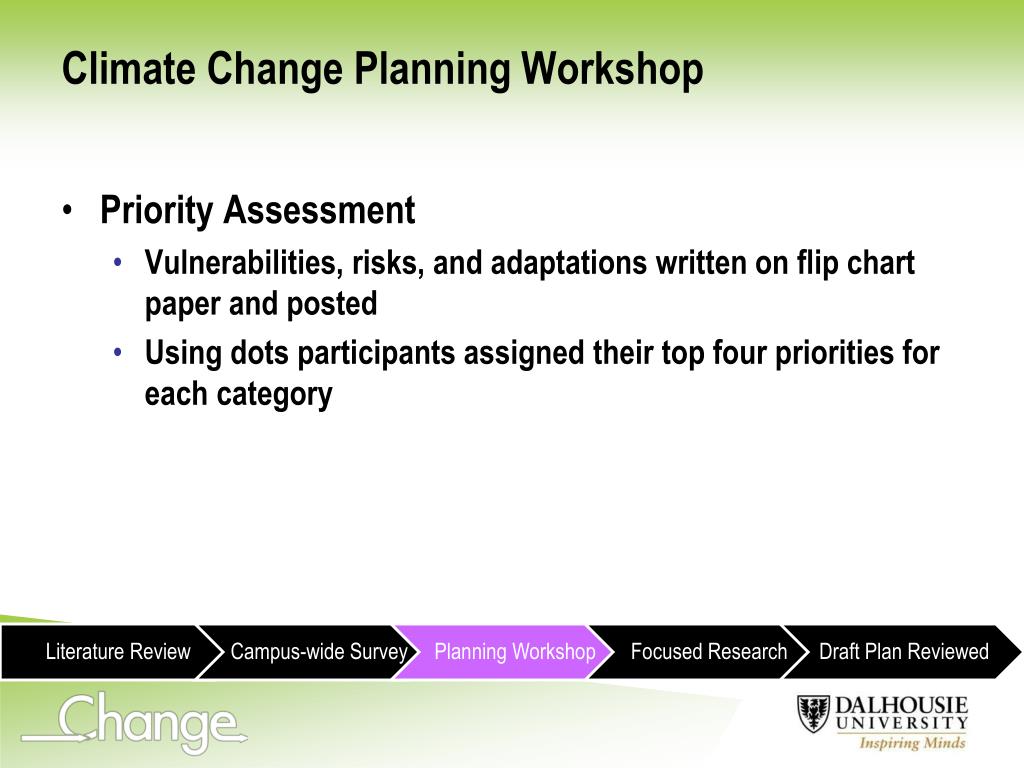

19. Climate Change Planning Workshop • Priority Assessment • Vulnerabilities, risks, and adaptations written on flip chart paper and posted • Using dots participants assigned their top four priorities for each category

20. Group work • In your groups discuss potential future climate scenarios (5 min) • Then fill out the risk columns associated with each vulnerability (as many as you can do) for probability and impact (high, medium, low) and then a blended risk impact – you could use numbers (20 min) • Take you top vulnerabilities and brainstorm some potential adaptation strategies (ex from Dal provided) (10 min) • Share with larger group

21. Some Dal Findings • EMO Plan and communications – more detailed (pantry plans), community considerations • Campus retrofit priorities – Dalplex roof, Data center, Bury power lines • Energy security – tri-generation • New design guidelines for buildings/grounds– bigger storm water intake, cistern, green roof, swales, more natural areas and less solid surfaces (asphalt), windows and skins • TDM – more infrastructure for active modes/teleworking • Further study – storm water and natural environment mapping

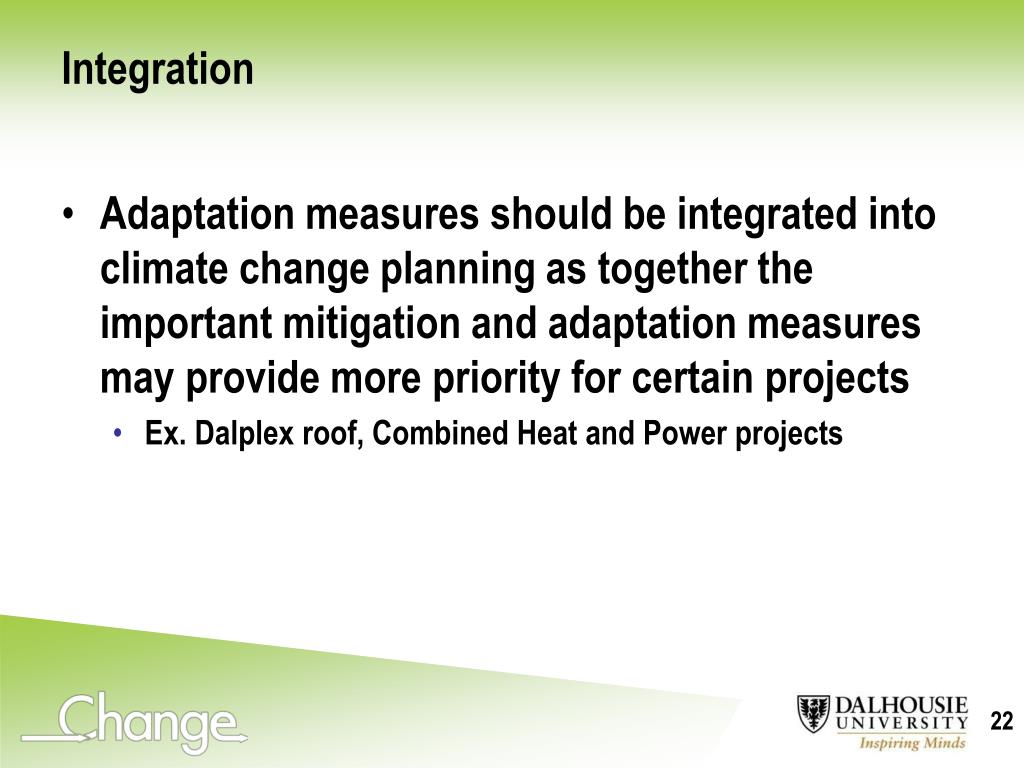

22. Integration • Adaptation measures should be integrated into climate change planning as together the important mitigation and adaptation measures may provide more priority for certain projects • Ex. Dalplex roof, Combined Heat and Power projects

23. Resources • Dalhousie Office of Sustainability - our site – Climate Change Adaptation Literature Review, Climate Change Plan (more resources this year with addition of AC campus planning), article published in IJSHE March 2013 • Governments –flood risk maps (state/prov/mun); climate models and potential human support (EPA, EC, NOAA, Nrcan, Health Canada); research and plans – all levels, funding –potentially • PIEVC - http://www.pievc.ca/e/index_.cfm - Engineering protocol
