Speculative instruction validation for performance-reliability trade-off

Sumeet Kumar

SUNY Binghamton

Binghamton, NY 13902

skumar1@binghamton.edu

Aneesh Aggarwal

SUNY Binghamton

Binghamton, NY 13902

aneesh@binghamton.edu

caps.cs.binghamton.edu

what are soft errors

Cosmic/Alpha Radiation

CLK

Latch

Latch

Logic

Soft Error

What are Soft Errors?

0001

0000

0000

caps.cs.binghamton.edu

micro architectural techniques to detect soft errors
Micro-architectural Techniques to Detect Soft Errors
  • Execute multiple copies of a program
    • Redundant Multi Threading (RMT)
  • Probabilistic fault detection techniques
    • Errors are flagged if the program behavior is out of the ordinary (i.e. Unpredictable)
  • Probabilistic techniques may have high false alarms, e.g. when instructions do not have predictable behavior

caps.cs.binghamton.edu

simultaneous and redundantly threaded srt
Simultaneous and Redundantly Threaded (SRT)
  • SRT is an implementation of RMT in SMT environment
  • Two copies of a program run simultaneously on a single core
  • Slack is provided between the two copies for better performance.
  • Thread running ahead is known as the Main thread, one running behind is known as the Redundant thread
  • Provides complete fault coverage
  • Has considerable performance impact (our experiments show 25% performance impact)

caps.cs.binghamton.edu

schematic diagram of srt
Schematic Diagram of SRT

ROB

Arch Register Files

Register

File

M

Map

Table

Fetch

Buffer

Issue Queue

M

R

M

M

M

Fetch

Decode

Rename

Writeback

Compare

Commit

FU

R

R

R

M

M

R

Map

Table

LVQ

SVQ

R

Data

Cache

M - Main Thread

M

LSQ

R – Redundant Thread

LVQ – Load Value Queue

R

R

SVQ – Store Value Queue

ECC Protected

performance reliability trade off in rmt
Performance-Reliability Trade-off in RMT
  • Reducing redundancy by reacting to processor state
    • Avoiding redundant in high IPC phase (PER-IRTR)
    • RMT toggling
  • Reducing redundancy by exploiting instruction properties
    • Instruction Reuse concept (DIE-IRB)
    • Removing backward slices of silent stores, dead values (SS-mod) or predictable stores (SlicK)

caps.cs.binghamton.edu

basic idea

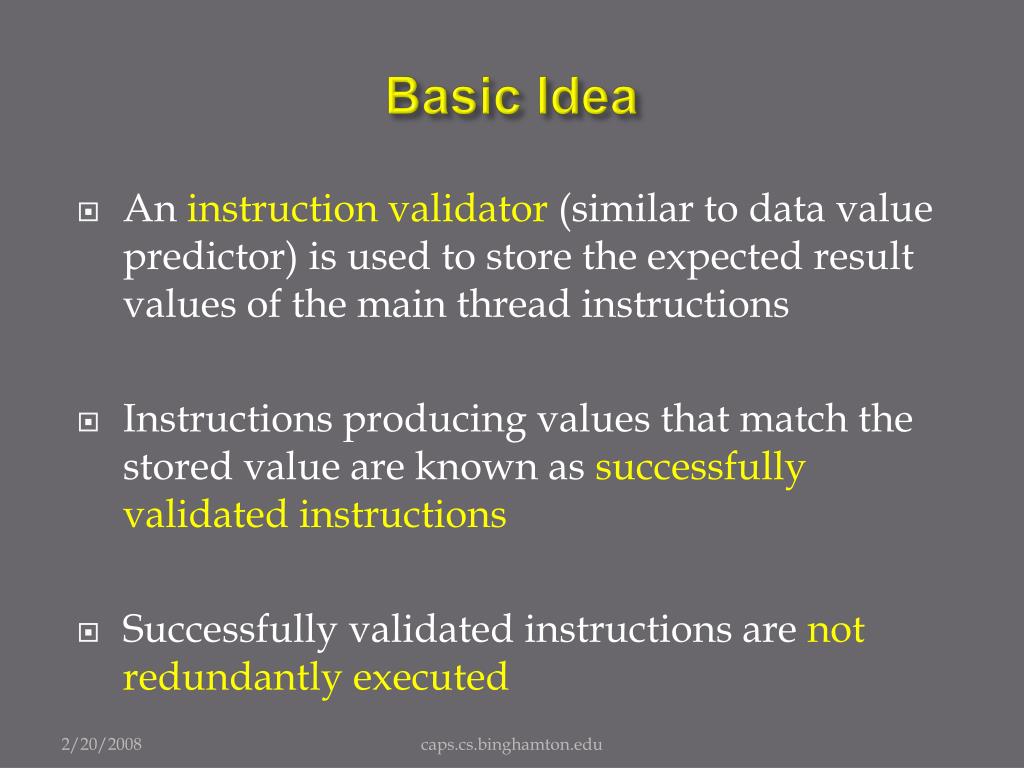

Basic Idea
  • An instruction validator(similar to data value predictor) is used to store the expected result values of the main thread instructions
  • Instructions producing values that match the stored value are known as successfully validated instructions
  • Successfully validated instructions are not redundantly executed

caps.cs.binghamton.edu

schematic diagram for speciv
Schematic Diagram for SpecIV

Physical Register File

Arch Register Files

OFB – Operand Forward Buffer

CVQ – Commit Value Queue

Dependent on Non executing redundant Instruction

Dependent on Executing redundant Instruction

Redundant Instruction dropped

Fetch

Buffer

Issue Queue

M

R

M

M

M

Fetch

Decode

Rename

Compare

Commit

R

R

R

M

M

M

M

R

R

LVQ

SVQ

CVQ

Instruction

Validator

OFB

OFB

OFB

R

R

R

R

M

Re-execute bit-vector

0

1

0

undetected errors in speciv

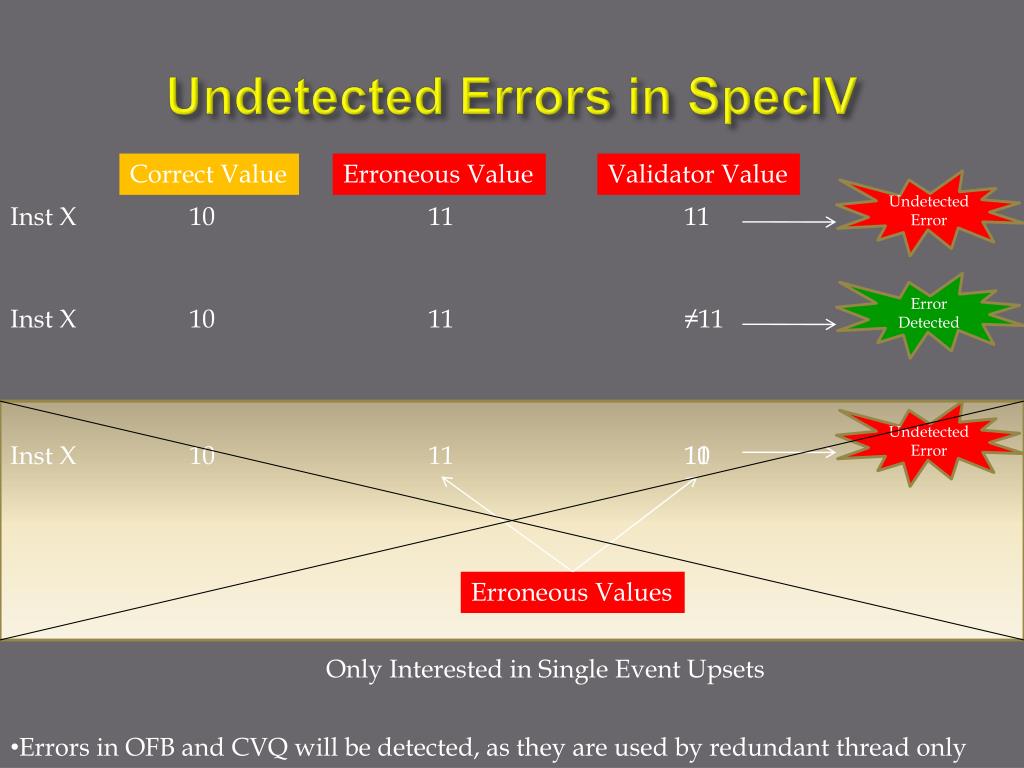

Undetected Errors in SpecIV

Correct Value

Erroneous Value

Validator Value

Undetected Error

Inst X

10

11

11

Error Detected

Inst X

10

11

≠11

Undetected Error

Inst X

10

11

10

11

Erroneous Values

Only Interested in Single Event Upsets

  • Errors in OFB and CVQ will be detected, as they are used by redundant thread only
fault injection to measure vulnerability
Fault Injection to Measure Vulnerability

Source Architectural Register

Arch. Register

File

Register

File

Source Physical Register

ROB

Operand Value

Map

Table

Result Value

Arch.

Register

File

Decoder

Register

File

Decoder

Rename

Table

Decoder

Issue Queue

Fetch

Decode

Rename

Writeback

Commit

FU

LSQ

caps.cs.binghamton.edu

hardware setup for experimental results

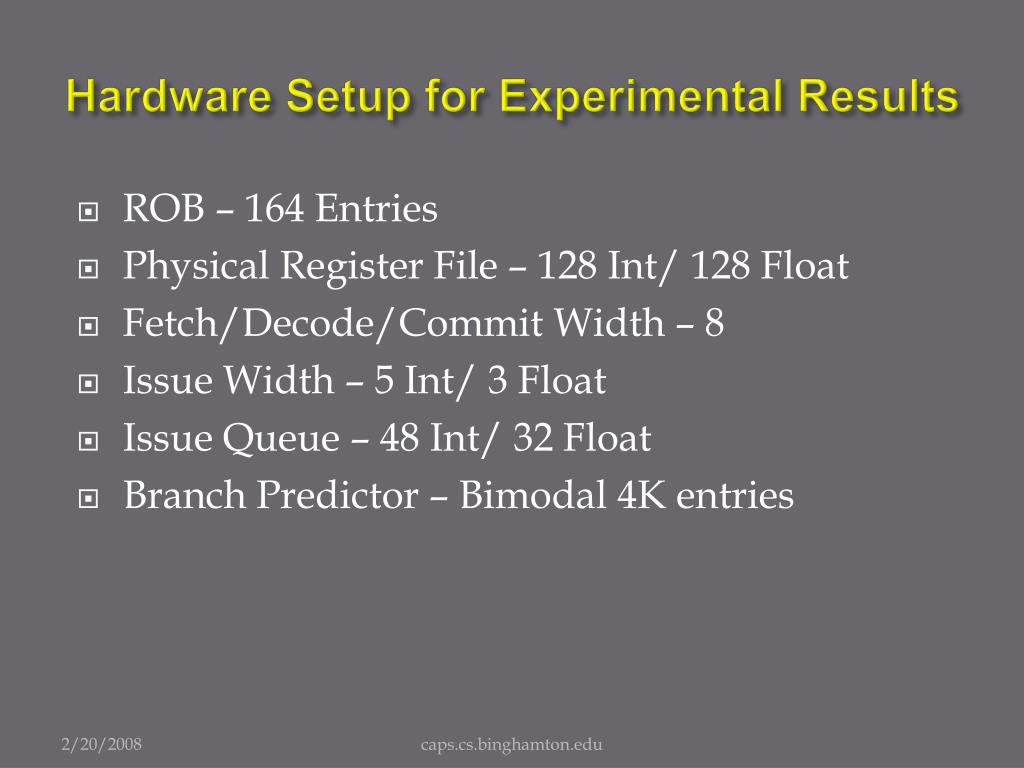

Hardware Setup for Experimental Results
  • ROB – 164 Entries
  • Physical Register File – 128 Int/ 128 Float
  • Fetch/Decode/Commit Width – 8
  • Issue Width – 5 Int/ 3 Float
  • Issue Queue – 48 Int/ 32 Float
  • Branch Predictor – Bimodal 4K entries

caps.cs.binghamton.edu

performance results for speciv

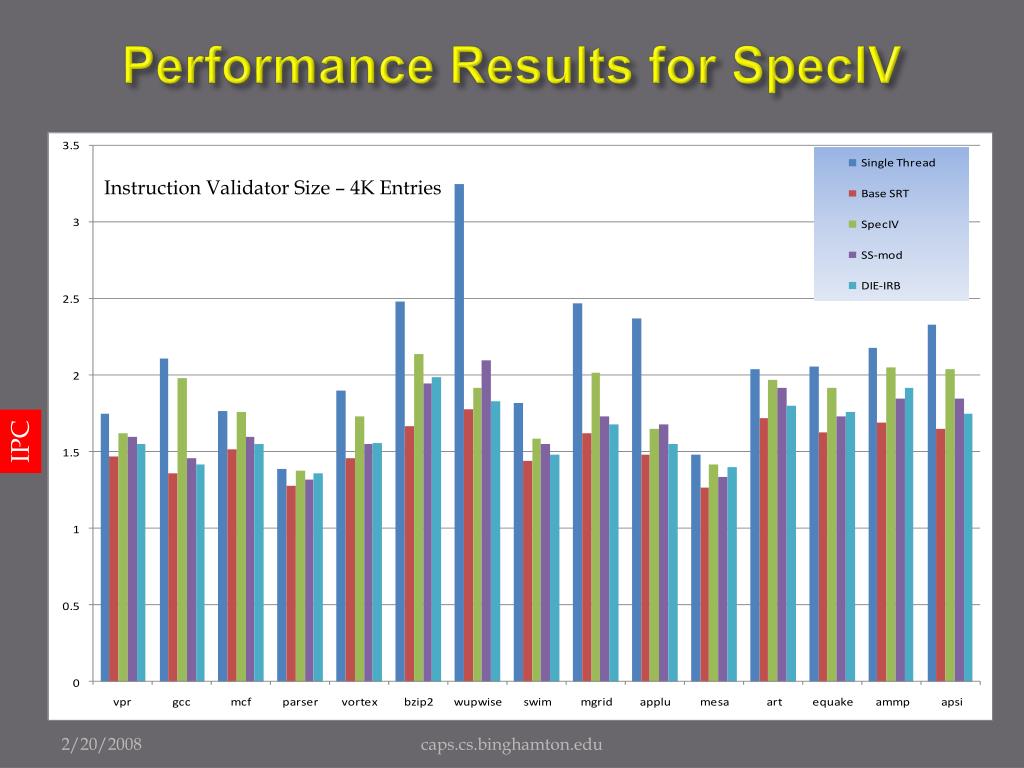

Performance Results for SpecIV

Instruction Validator Size – 4K Entries

IPC

caps.cs.binghamton.edu

slide14

Instruction Redundancy Reduction

Average

Reliability Results for SpecIV

Average

caps.cs.binghamton.edu

sensitivity to validator size

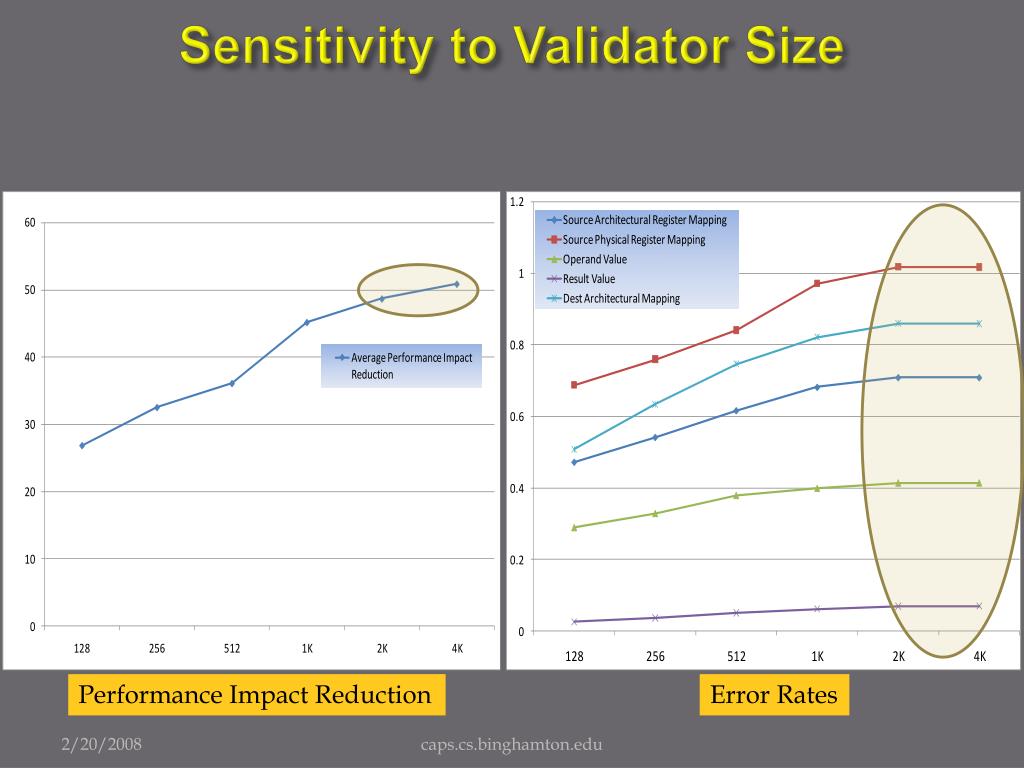

Sensitivity to Validator Size

Performance Impact Reduction

Error Rates

caps.cs.binghamton.edu

performance reliability trade off exploration with speciv

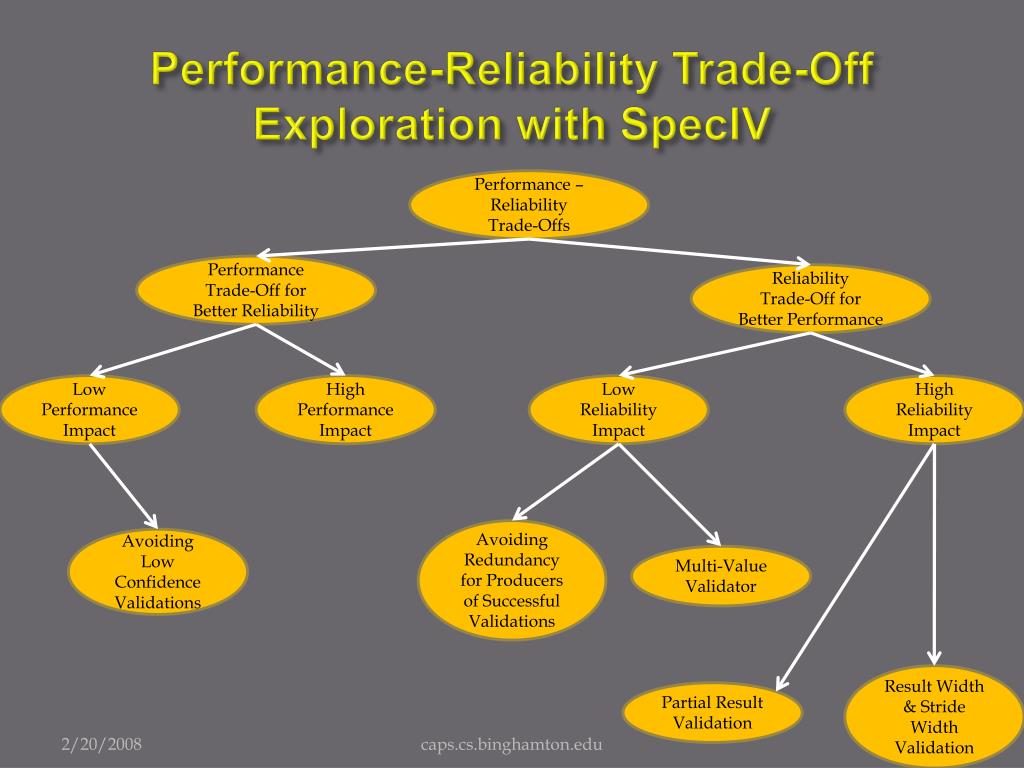

Performance-Reliability Trade-Off Exploration with SpecIV

Performance – Reliability

Trade-Offs

Performance Trade-Off for Better Reliability

Reliability

Trade-Off for Better Performance

Low Performance Impact

High Performance Impact

Low Reliability Impact

High Reliability Impact

Avoiding Redundancy for Producers of Successful Validations

Avoiding Low Confidence Validations

Multi-Value Validator

Result Width & Stride Width Validation

Partial Result Validation

caps.cs.binghamton.edu

avoiding low confidence validations low performance impact
Avoiding Low Confidence Validations(Low Performance Impact)
  • By stopping validations for entries with no stride the total error rate reduces from 0.45% to 0.23% with negligible performance impact
  • No additional hardware required to implement this technique

Non-Control Instructions

Average

caps.cs.binghamton.edu

avoiding redundancy for producers of successfully validated instructions low reliability impact
Avoiding Redundancy for Producers of Successfully Validated Instructions(Low Reliability Impact)

RBIT

0

Validation Unsuccessful

Inst A, R3 op IMM

R1

2

1

Validation Successful

Inst B, R1 op IMM

R30

30

31

Redundant execution reduced by 69%

Performance Impact Reduction Increases to 58%

Undetected error rate increases to 0.5%

Re-execute Bit Vector

1

0

0

caps.cs.binghamton.edu

conclusion
Conclusion
  • We propose SpecIV as an effective scheme to achieve performance-reliability trade-off
  • SpecIV achieves significant reduction in redundant execution, which leads to impressive performance improvement of SRT technique
  • SpecIV has very small undetected error rate
  • We also explore the performance-reliability trade-off design space with schemes based on SpecIV, obtaining further performance as well as reliability gains

caps.cs.binghamton.edu

thank you
Thank You

Sumeet Kumar

skumar1@binghamton.edu

Aneesh Aggarwal

aneesh@binghamton.edu
