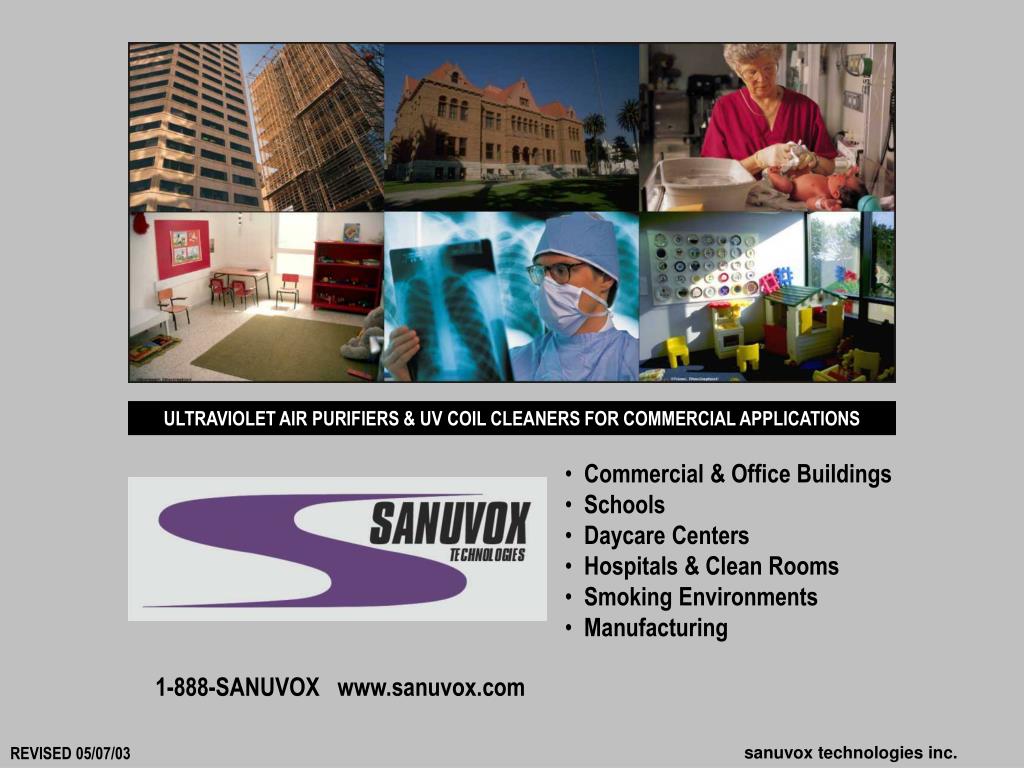

  1. ULTRAVIOLET AIR PURIFIERS & UV COIL CLEANERS FOR COMMERCIAL APPLICATIONS • Commercial & Office Buildings • Schools • Daycare Centers • Hospitals & Clean Rooms • Smoking Environments • Manufacturing 1-888-SANUVOX www.sanuvox.com sanuvox technologies inc. REVISED 05/07/03

  2. P800GX PORTABLE • Portable UV air purifier ideal for home or office • Eradicates bacteria, viruses, mold also destroys chemical and • biological odors • Perfect for spot purification • High Efficiency UVC/V Air Purifier / 8,540 microwatts per/cm² of • UV intensity • Purify up to 800 square feet • Plugs in to 120V. outlet and draws only 85 watts • Only 13 lbs. • CSA/NRTL Certified • Model #P800GX sanuvox technologies inc.

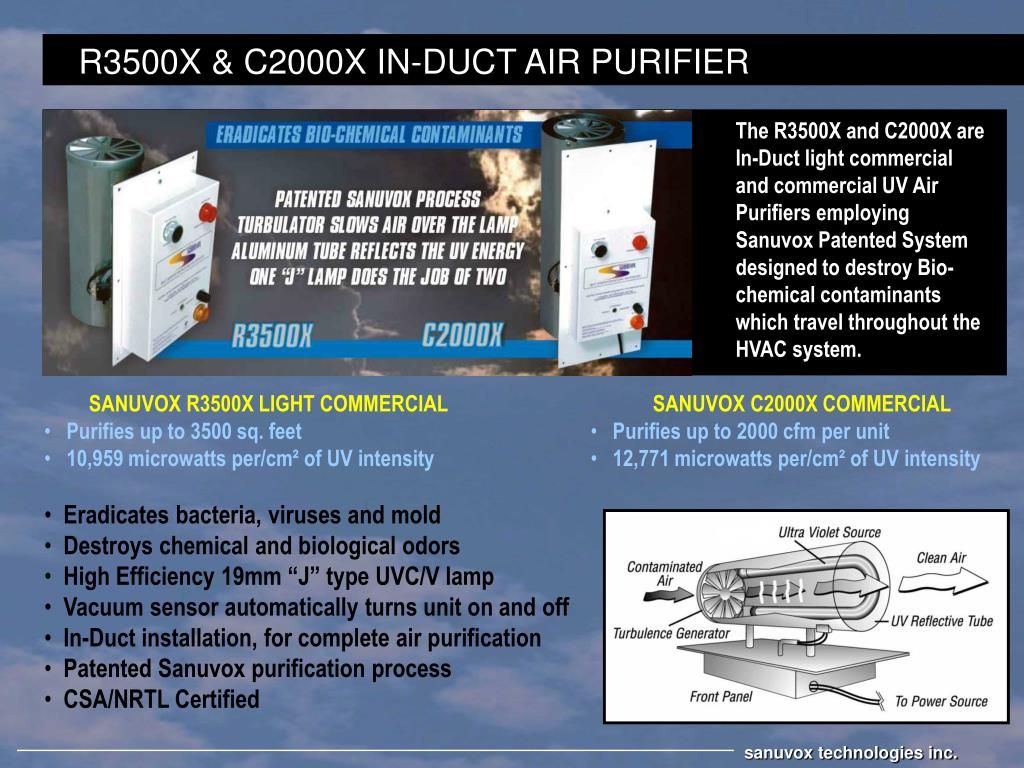

  3. R3500X & C2000X IN-DUCT AIR PURIFIER The R3500X and C2000X are In-Duct light commercial and commercial UV Air Purifiers employing Sanuvox Patented System designed to destroy Bio-chemical contaminants which travel throughout the HVAC system. • SANUVOX R3500X LIGHT COMMERCIAL • Purifies up to 3500 sq. feet • 10,959 microwatts per/cm² of UV intensity • SANUVOX C2000X COMMERCIAL • Purifies up to 2000 cfm per unit • 12,771 microwatts per/cm² of UV intensity • Eradicates bacteria, viruses and mold • Destroys chemical and biological odors • High Efficiency 19mm “J” type UVC/V lamp • Vacuum sensor automatically turns unit on and off • In-Duct installation, for complete air purification • Patented Sanuvox purification process • CSA/NRTL Certified sanuvox technologies inc.

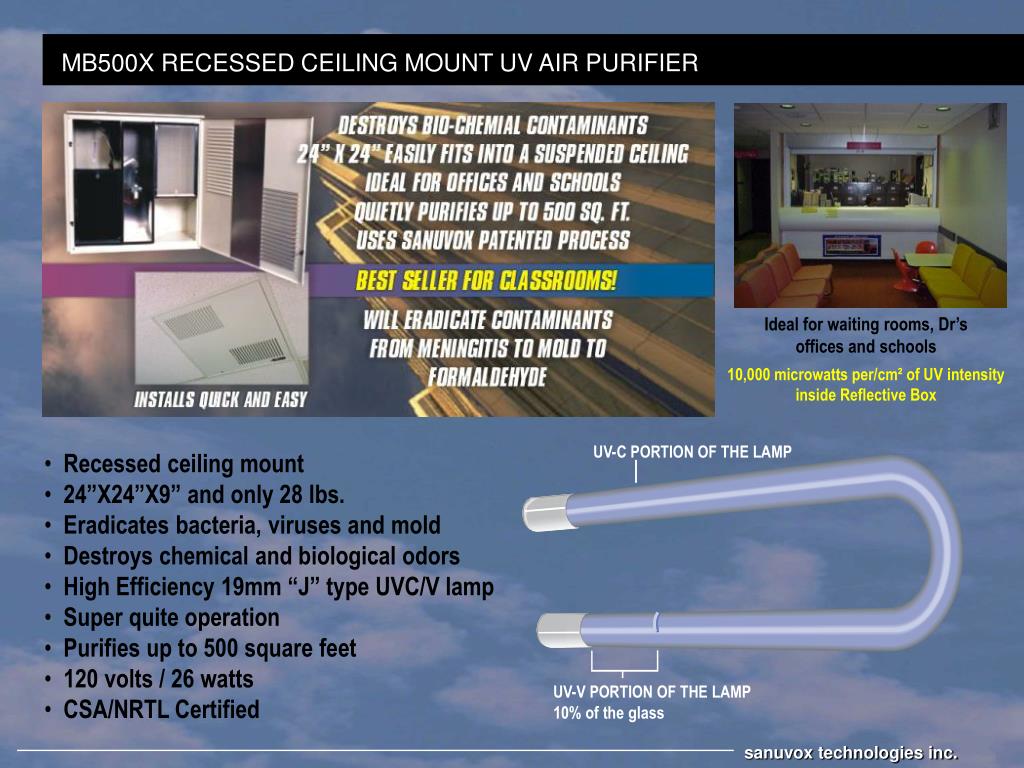

  4. MB500X RECESSED CEILING MOUNT UV AIR PURIFIER Ideal for waiting rooms, Dr’s offices and schools 10,000 microwatts per/cm² of UV intensity inside Reflective Box • Recessed ceiling mount • 24”X24”X9” and only 28 lbs. • Eradicates bacteria, viruses and mold • Destroys chemical and biological odors • High Efficiency 19mm “J” type UVC/V lamp • Super quite operation • Purifies up to 500 square feet • 120 volts / 26 watts • CSA/NRTL Certified sanuvox technologies inc.

  5. S1000FX UV/FILTER AIR PURIFIER • Designed for Smoking applications and Hospital Clean Rooms (Clean Room Option) • Eradicates bacteria, viruses, mold, also destroys chemical and biological odors • UV combined with 3 stage filtration (optional HEPA available) • High Efficiency 30” long 19mm “J” type UVC/V lamp • 1750 cfm blower • Installs to existing system or stands alone • CSA/NRTL Certified S1000FX Clean Room option is equipped with two 30 inch UV “J” Lamps (one germicidal UV-C lamp and one oxidizing / germicidal UV-V / UV-C lamp) and a true HEPA filter for complete biological and chemical protection. 8,740 microwatts per/cm² of UV intensity inside Aluminum Reflecting Cone sanuvox technologies inc.

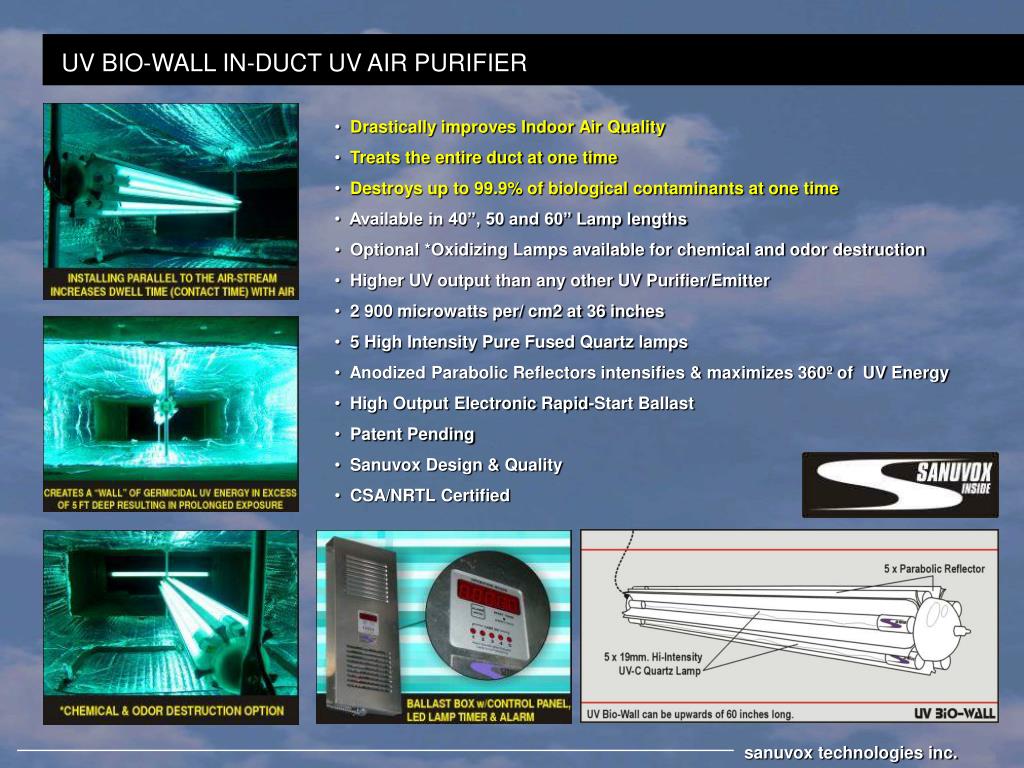

  6. UV BIO-WALL IN-DUCT UV AIR PURIFIER • Drastically improves Indoor Air Quality • Treats the entire duct at one time • Destroys up to 99.9% of biological contaminants at one time • Available in 40”, 50 and 60” Lamp lengths • Optional *Oxidizing Lamps available for chemical and odor destruction • Higher UV output than any other UV Purifier/Emitter • 2 900 microwatts per/ cm2 at 36 inches • 5 High Intensity Pure Fused Quartz lamps • Anodized Parabolic Reflectors intensifies & maximizes 360º of UV Energy • High Output Electronic Rapid-Start Ballast • Patent Pending • Sanuvox Design & Quality • CSA/NRTL Certified sanuvox technologies inc.

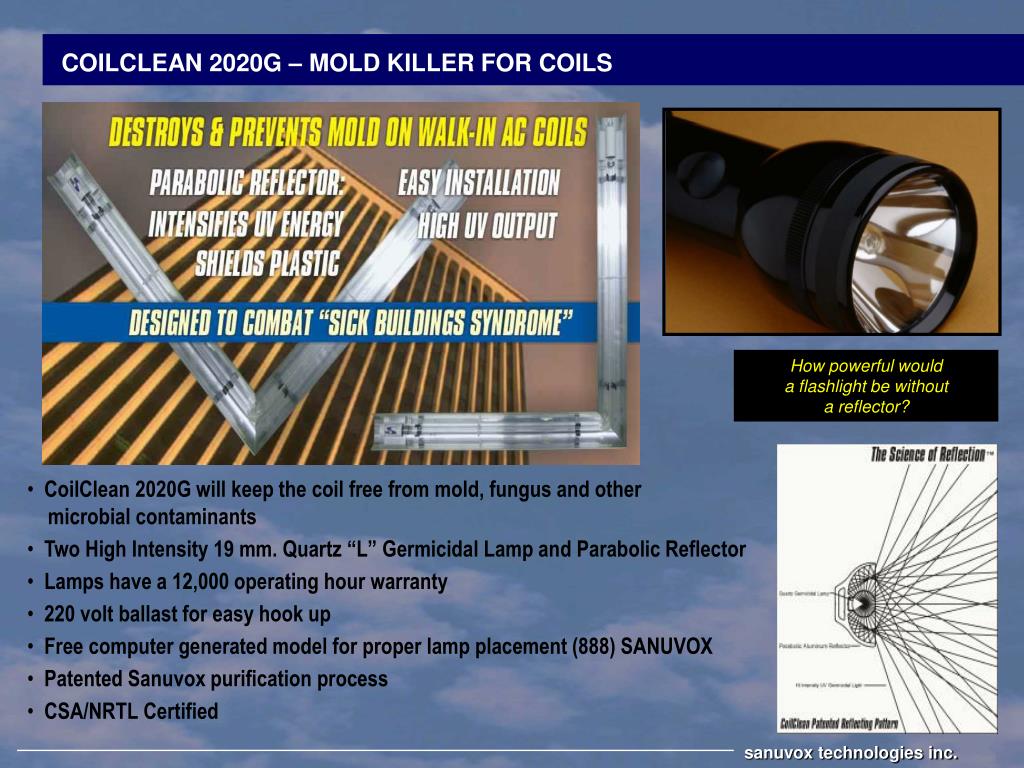

  7. COILCLEAN 2020G – MOLD KILLER FOR COILS How powerful would a flashlight be without a reflector? • CoilClean 2020G will keep the coil free from mold, fungus and other • microbial contaminants • Two High Intensity 19 mm. Quartz “L” Germicidal Lamp and Parabolic Reflector • Lamps have a 12,000 operating hour warranty • 220 volt ballast for easy hook up • Free computer generated model for proper lamp placement (888) SANUVOX • Patented Sanuvox purification process • CSA/NRTL Certified sanuvox technologies inc.

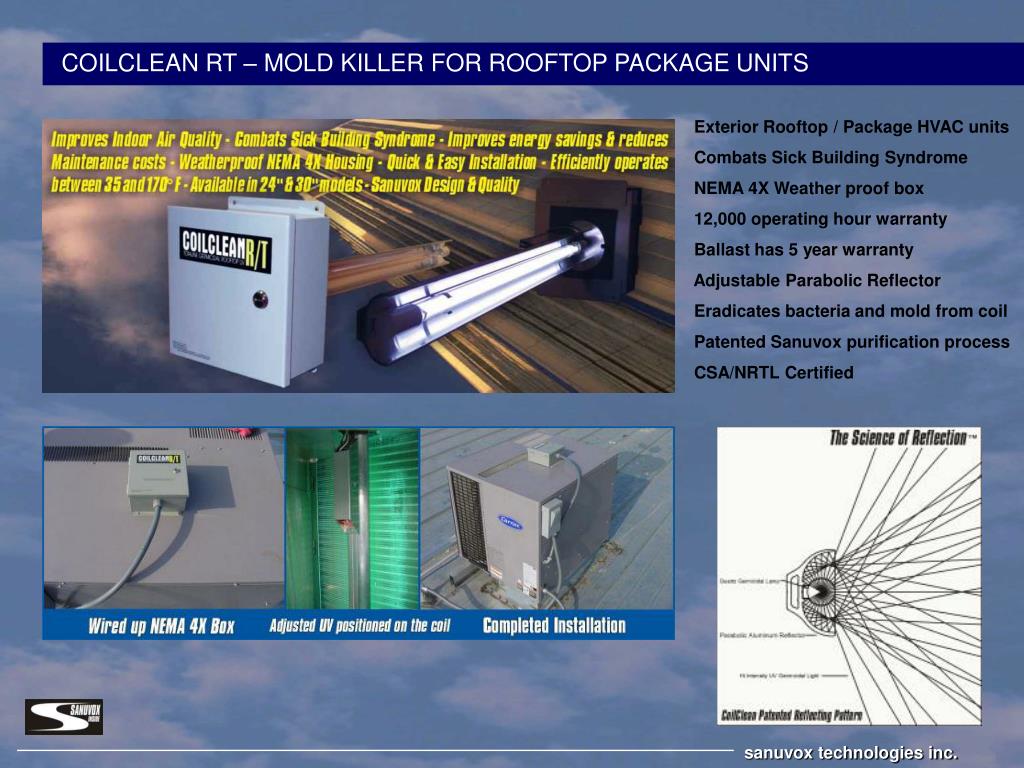

  8. COILCLEAN RT – MOLD KILLER FOR ROOFTOP PACKAGE UNITS Exterior Rooftop / Package HVAC units Combats Sick Building Syndrome NEMA 4X Weather proof box 12,000 operating hour warranty Ballast has 5 year warranty Adjustable Parabolic Reflector Eradicates bacteria and mold from coil Patented Sanuvox purification process CSA/NRTL Certified sanuvox technologies inc.

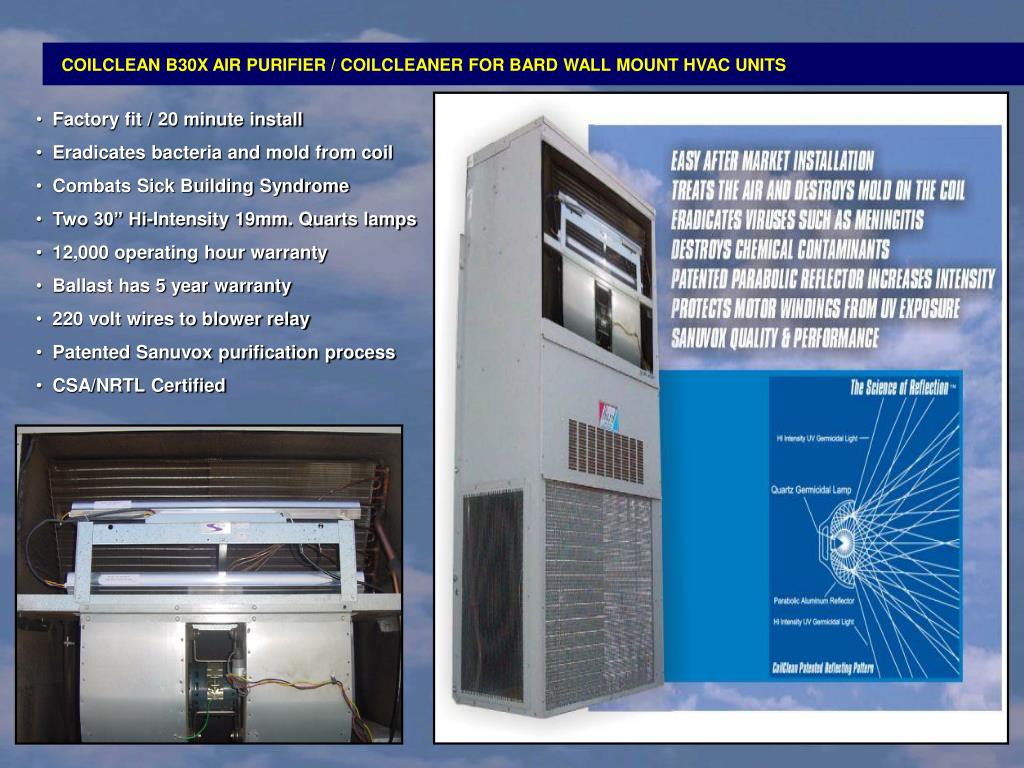

  9. COILCLEAN B30X AIR PURIFIER / COILCLEANER FOR BARD WALL MOUNT HVAC UNITS • Factory fit / 20 minute install • Eradicates bacteria and mold from coil • Combats Sick Building Syndrome • Two 30” Hi-Intensity 19mm. Quarts lamps • 12,000 operating hour warranty • Ballast has 5 year warranty • 220 volt wires to blower relay • Patented Sanuvox purification process • CSA/NRTL Certified

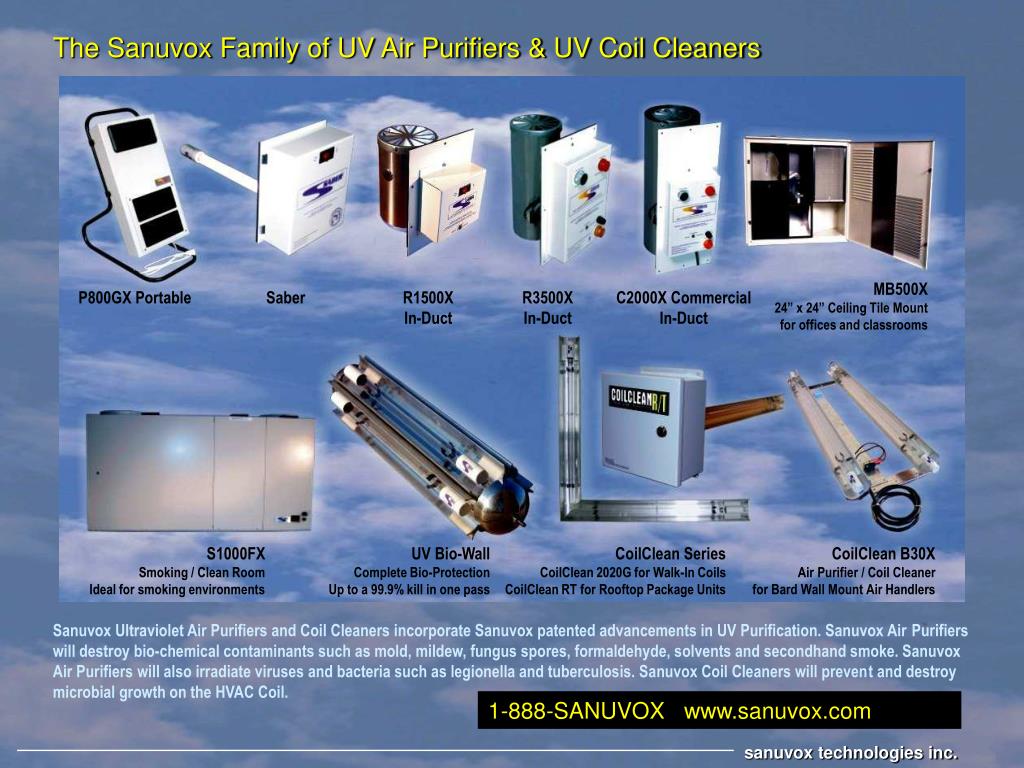

  10. The Sanuvox Family of UV Air Purifiers & UV Coil Cleaners MB500X 24” x 24” Ceiling Tile Mount for offices and classrooms P800GX Portable Saber R1500X In-Duct R3500X In-Duct C2000X Commercial In-Duct S1000FX Smoking / Clean Room Ideal for smoking environments UV Bio-Wall Complete Bio-Protection Up to a 99.9% kill in one pass CoilClean Series CoilClean 2020G for Walk-In Coils CoilClean RT for Rooftop Package Units CoilClean B30X Air Purifier / Coil Cleaner for Bard Wall Mount Air Handlers Sanuvox Ultraviolet Air Purifiers and Coil Cleaners incorporate Sanuvox patented advancements in UV Purification. Sanuvox Air Purifiers will destroy bio-chemical contaminants such as mold, mildew, fungus spores, formaldehyde, solvents and secondhand smoke. Sanuvox Air Purifiers will also irradiate viruses and bacteria such as legionella and tuberculosis. Sanuvox Coil Cleaners will prevent and destroy microbial growth on the HVAC Coil. 1-888-SANUVOX www.sanuvox.com sanuvox technologies inc.
