Presentation Transcript
Slide1 l.jpg

Introduction to Interferometric Synthetic Aperture Radar - InSAR

There are several applications to InSAR. We shall focus on the mapping of surface deformation.

  • Principals of InSAR (based largely on: epsilon.nought.de/tutorials/insar_tmr/img0.htm)

  • Case studies and applications


Slide2 l.jpg

First Acquisition (Master) InSAR

Second Acquisition (Slave)

5.56 mm

Master

Slave

Df

r1

r2

Dr

Change in LOS


Slide3 l.jpg

If: InSAR

Earth was flat.

The satellite orbit was fixed.

No atmosphere.

Then:

Things were simple, and the calculation of ground deformation would have been indeed an easy task.

In practice, however, in order to obtain the deformation field, it is necessary to perform quite a few corrections.


Slide4 l.jpg

Viewing Position InSAR

Spherical Earth

Topography

Deformation

Atmosphere


Slide5 l.jpg

SAR is an active sensor InSAR

Unlike passive sensors, the SAR transmits a signal and measures the reflected wave. So the SAR can “see” day-and-night.

The signal wave length was selected such that its absorption by atmospheric molecules is minimal.

ERS


Slide6 l.jpg

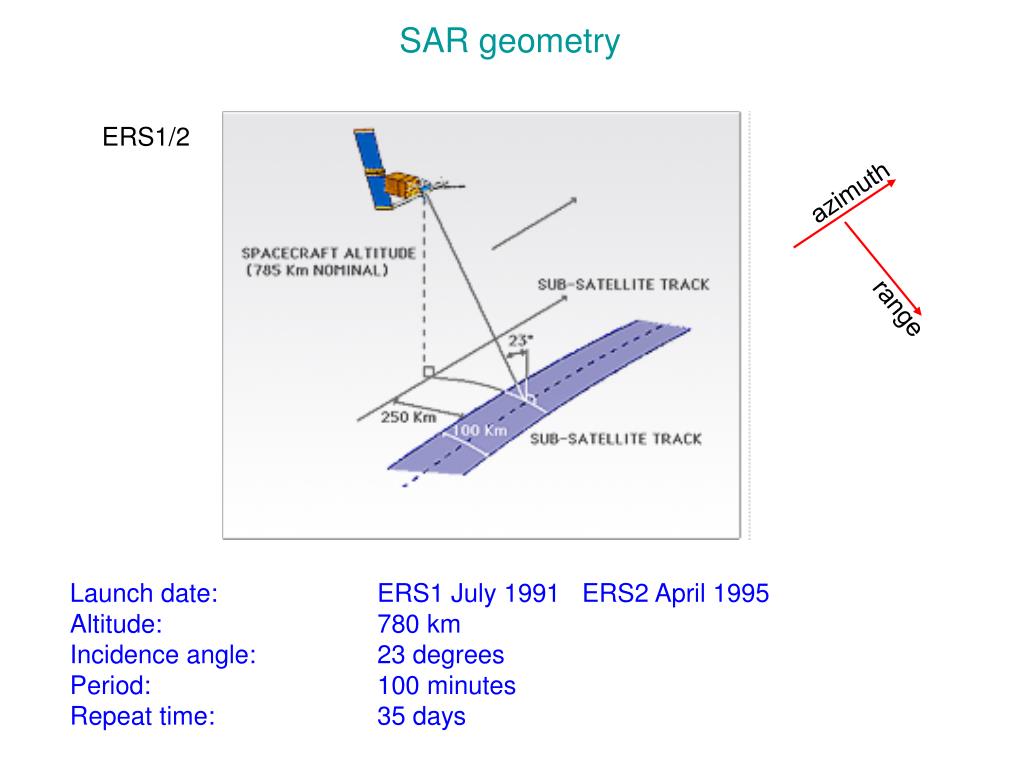

SAR geometry InSAR

ERS1/2

azimuth

range

Launch date: ERS1 July 1991 ERS2 April 1995

Altitude: 780 km

Incidence angle: 23 degrees

Period: 100 minutes

Repeat time: 35 days


Slide7 l.jpg

Orbit geometry InSAR

Polar (almost) orbit

Ascending and descending

Ground tracks

Ascending

track

Descending

track


Slide8 l.jpg

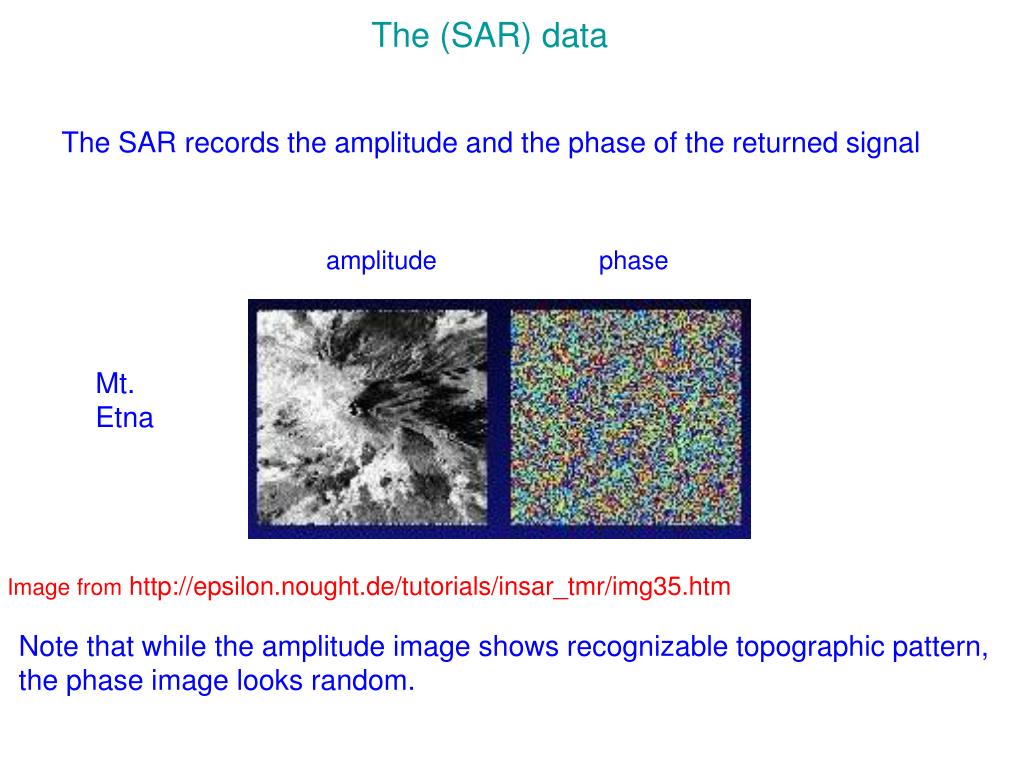

The (SAR) data InSAR

The SAR records the amplitude and the phase of the returned signal

amplitude

phase

Mt. Etna

Image from http://epsilon.nought.de/tutorials/insar_tmr/img35.htm

Note that while the amplitude image shows recognizable topographic pattern, the phase image looks random.


Slide9 l.jpg

The phase InSAR

The phase is mostly due to the propagation delay, but also due to coherent sum of contributions from scatters within the resolution element.

Figure from Rosen et al., 2000


Slide10 l.jpg

The phase InSAR

The phase is proportional to the two-way travel distance divided by the transmitted wavelength.


Slide11 l.jpg

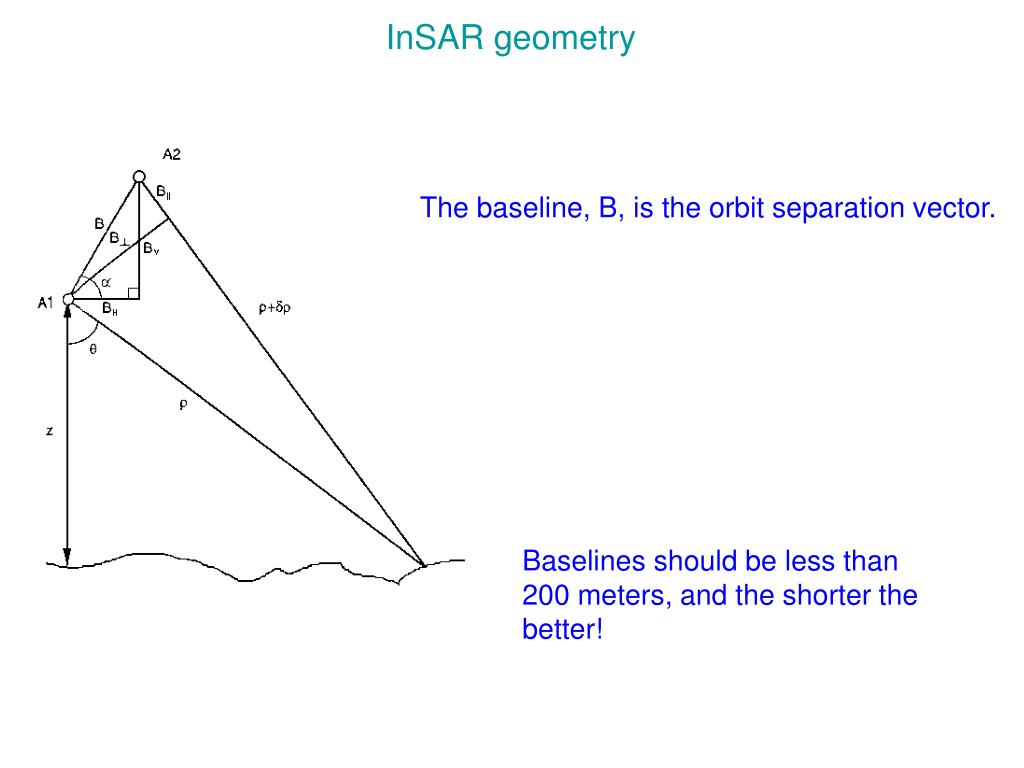

InSAR geometry InSAR

The baseline, B, is the orbit separation vector.

Baselines should be less than 200 meters, and the shorter the better!


Slide12 l.jpg

InSAR processing: InSAR

amplitude coregistration

The two images, i.e. the “slave” and the “master”, do not overlap. So we need to figure out which group of pixels in the “slave” corresponds to which group of pixels in the “master”. This is done through cross-correlating sub-areas in the two images.

This step requires a huge number of operations, and is by far the most time consuming step in the process.

Image from http://epsilon.nought.de/tutorials/insar_tmr/img38.htm


Slide13 l.jpg

InSAR processing: InSAR

phase interferogram

Calculate phase interferogram, i.e. subtract the phase of of the “slave” from that of the “master”.

phase “master”

phase interferogram

phase “slave”

-

=

Note that while both the master and slave appear random, the interferogram does not.


Slide14 l.jpg

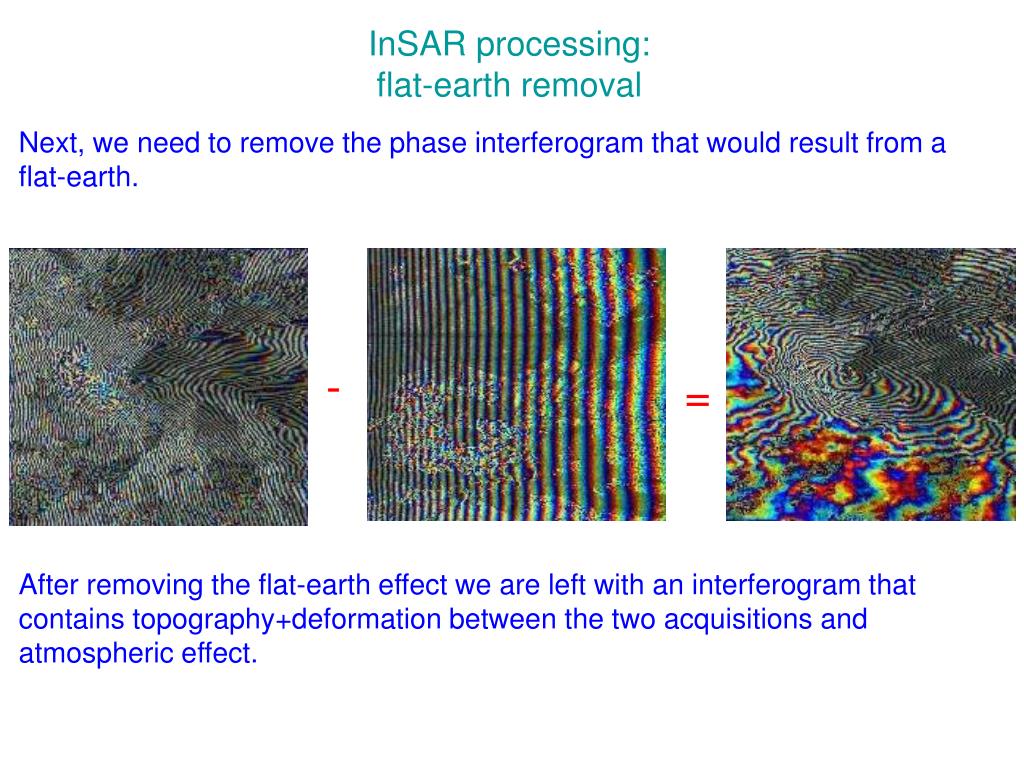

InSAR processing: InSAR

flat-earth removal

Next, we need to remove the phase interferogram that would result from a flat-earth.

-

=

After removing the flat-earth effect we are left with an interferogram that contains topography+deformation between the two acquisitions and atmospheric effect.


Slide15 l.jpg

InSAR processing: InSAR

Remove topographic phase

Height of ambiguity: the amount of height change that leads to a 2 change in interferometric change:


Slide16 l.jpg

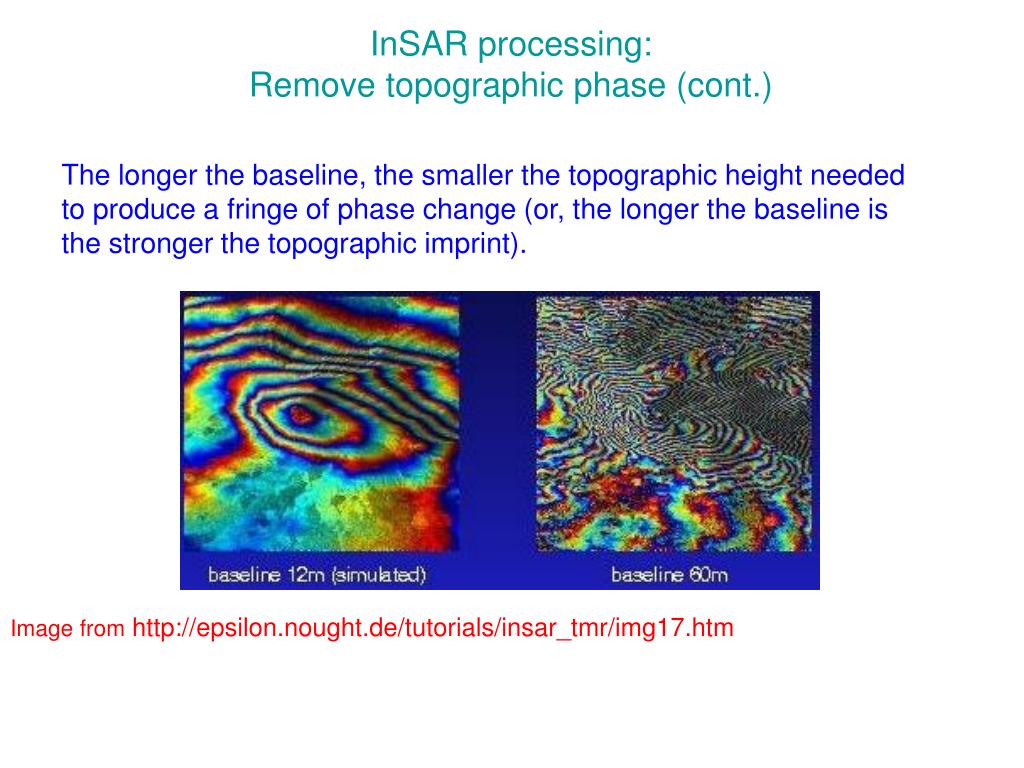

InSAR processing: InSAR

Remove topographic phase (cont.)

The longer the baseline, the smaller the topographic height needed to produce a fringe of phase change (or, the longer the baseline is the stronger the topographic imprint).

Image from http://epsilon.nought.de/tutorials/insar_tmr/img17.htm


Slide17 l.jpg

InSAR processing: InSAR

unwrapping

The interferogram is a map of an ambiguous phase offset between - and +. In order to recover the absolute unambiguous phase offset, one needs to unwrap the data.

Phase unwrapping is a tricky business, here’s one algorithm:

Image from http://epsilon.nought.de/tutorials/insar_tmr/img27.htm


Slide18 l.jpg

While the wrapped phase looks like this: InSAR

The unwrapped phase looks like this:

* Note that in this specific example the topographic effect has not been removed, thus the unwrapped phase map correspond mainly to topographic height.


Slide19 l.jpg

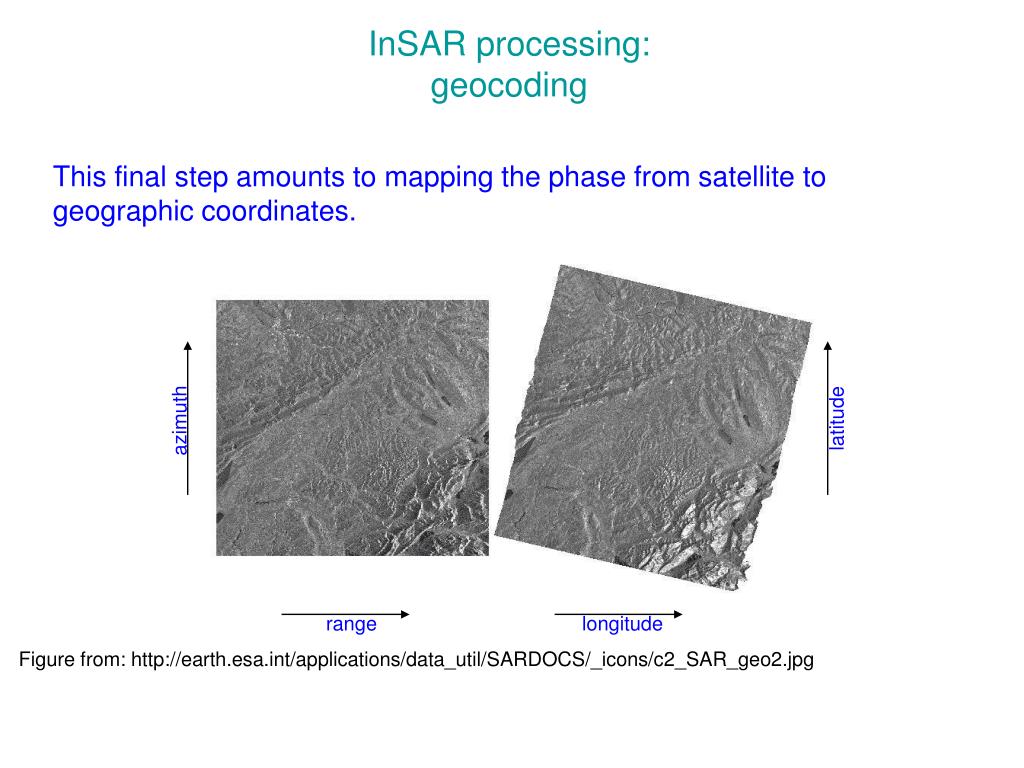

InSAR processing: InSAR

geocoding

This final step amounts to mapping the phase from satellite to geographic coordinates.

latitude

azimuth

range

longitude

Figure from: http://earth.esa.int/applications/data_util/SARDOCS/_icons/c2_SAR_geo2.jpg


Slide20 l.jpg

The seismic cycle: InSAR

Figure from: Wright, 2002.


Slide21 l.jpg

Seismic displacement: InSAR

The utilization of SAR data to map surface deformation started with the ground-breaking study of the 1992 Landers earthquake in California [Massonnet et al., 1993].

Massonnet, D., M. Rossi, C. Carmona, F. Adragna, G. Peltzer, K. Feigl, and T. Rabaute, The displacement field of the Landers earthquake mapped by radar interferometry, Nature, 364, 138-142, 1993.


Slide22 l.jpg

Seismic displacement (cont.): InSAR

It is hard to unwrap the interferogram, if the deformation is discontinuous. In such cases, it is convenient to present the results in wrapped form.

Yellow-red-blue : target moved a way from the satellite.

Red-yellow-blue : target moved towards the satelite.

Figure from: http://www.eorc.jaxa.jp/ALOS/gallery/images/5-disaster/obs-geometry5.gif


Slide23 l.jpg

Seismic displacement (cont.): InSAR

It turned out that the crust is an elastic half-space!

4 Dec. 1992, Magnitude 5.1, near Landers - CA


Slide24 l.jpg

Seismic displacement (cont.): InSAR

Magnitude 5.6 from Western Iran. Processed and calculated by Maytal Sade


Slide25 l.jpg

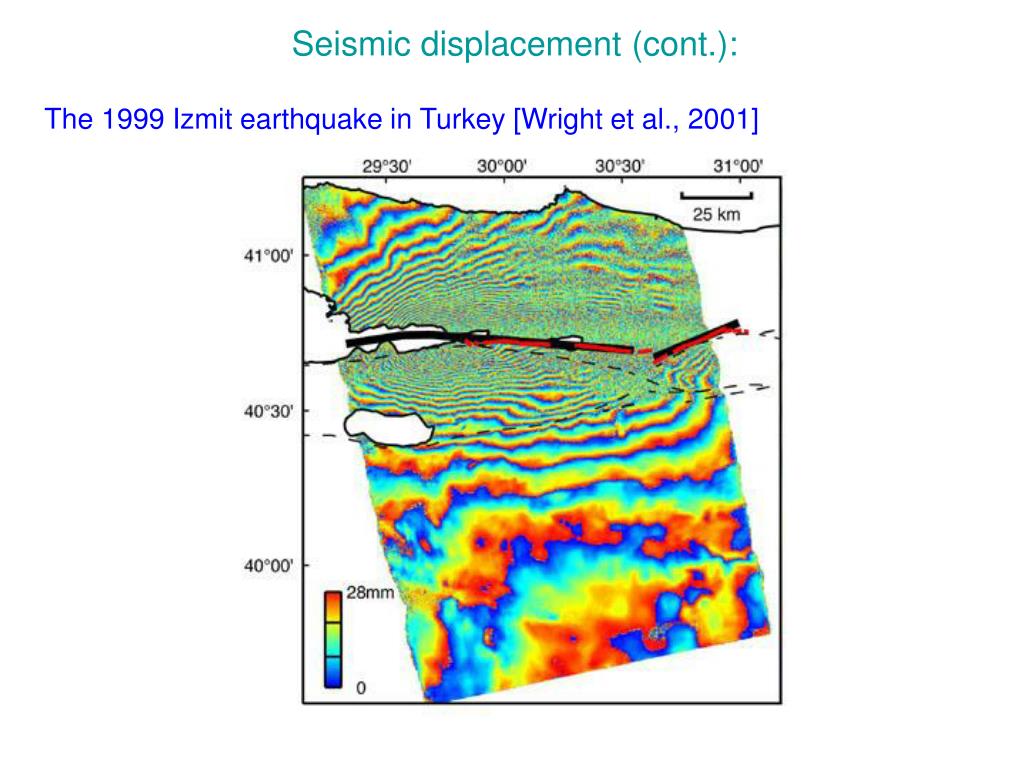

Seismic displacement (cont.): InSAR

The 1999 Izmit earthquake in Turkey [Wright et al., 2001]


Slide26 l.jpg

Seismic displacement (cont.): InSAR

The 1999 Izmit earthquake in Turkey [Wright et al., 2001]

Modeling the data helps to:

Constrain the rupture geometry and co-seismic slip distribution.

Identify triggered slip.


Slide27 l.jpg

Seismic displacement (cont.): InSAR

The 1999 Izmit earthquake in Turkey [Wright et al., 2001]


Slide28 l.jpg

Seismic displacement (cont.): InSAR

The displacement field projected onto a map view may be obtained by using both the ascending and the descending tracks. In order to go beyond the 2D displacement field, an additional information should be incorporated -the azimuth offset.

The 3-D displacement field in the area of 1999 Hector Mine in California (Fialko et al., 2001):

The 3 equations:

The 3 unknowns:


Slide29 l.jpg

Inter-seismic displacement: InSAR

Obviously, resolving co-seismic (large) deformation is easier than resolving inter-seismic (small) deformation. The signal to noise ratio may be amplified by stacking multiple interferograms (the more the better).

Application of the stacking approach to NAF (Wright et al., 2001):

Because inter-seismic strain accumulates steadily with time, the contribution of each pair is scaled proportionally to the interval between acquisitions.


Slide30 l.jpg

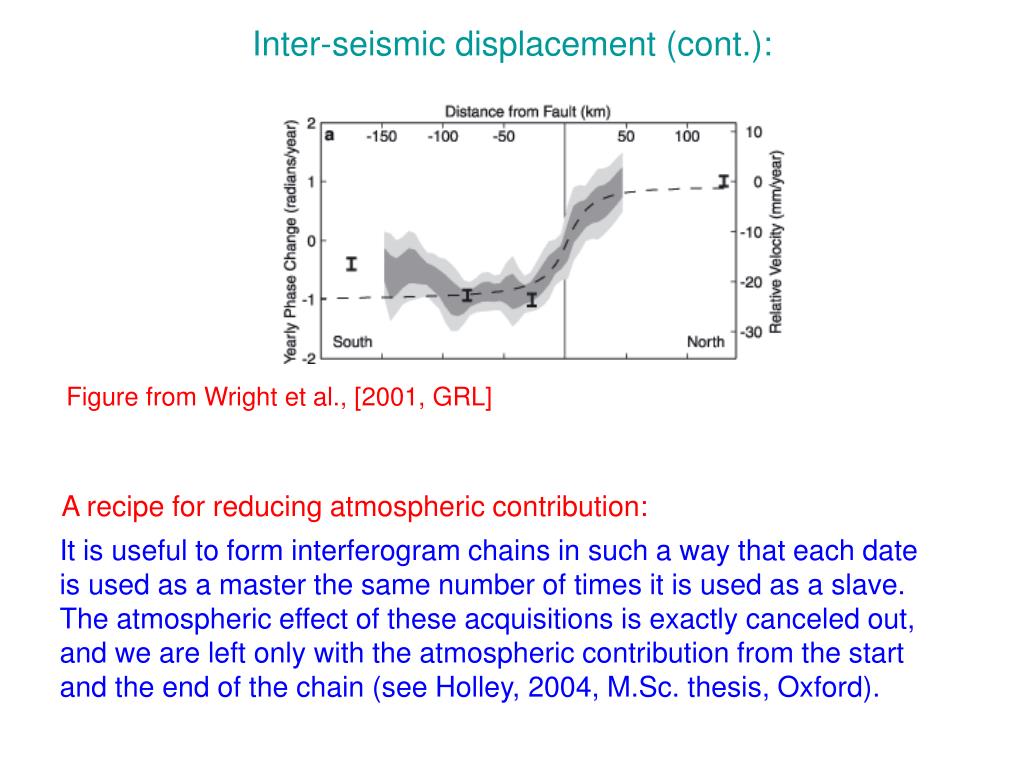

Inter-seismic displacement (cont.): InSAR

Figure from Wright et al., [2001, GRL]

A recipe for reducing atmospheric contribution:

It is useful to form interferogram chains in such a way that each date is used as a master the same number of times it is used as a slave. The atmospheric effect of these acquisitions is exactly canceled out, and we are left only with the atmospheric contribution from the start and the end of the chain (see Holley, 2004, M.Sc. thesis, Oxford).


Slide31 l.jpg

Earthquake location: InSAR

Locating small-moderate quakes in southern Iran (Lohman and Simons, 2005):

Figure from Pritchard, 2006, Physics Today
