windows crash dump analysis

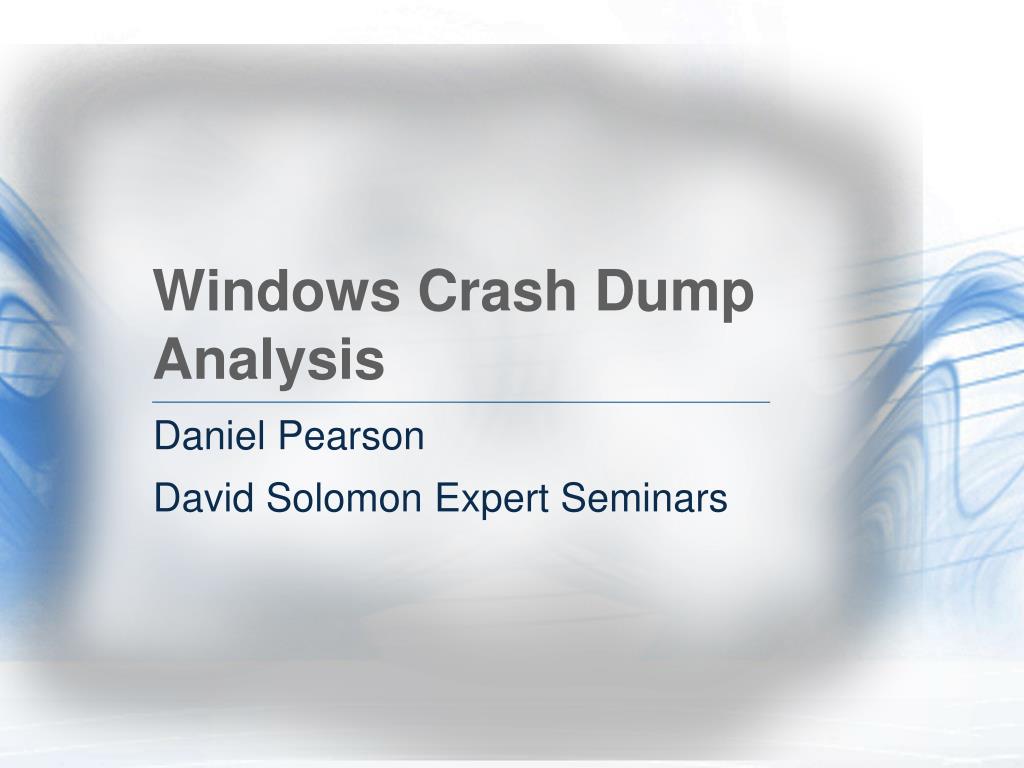

Windows Crash Dump Analysis

Daniel Pearson

David Solomon Expert Seminars

daniel pearson

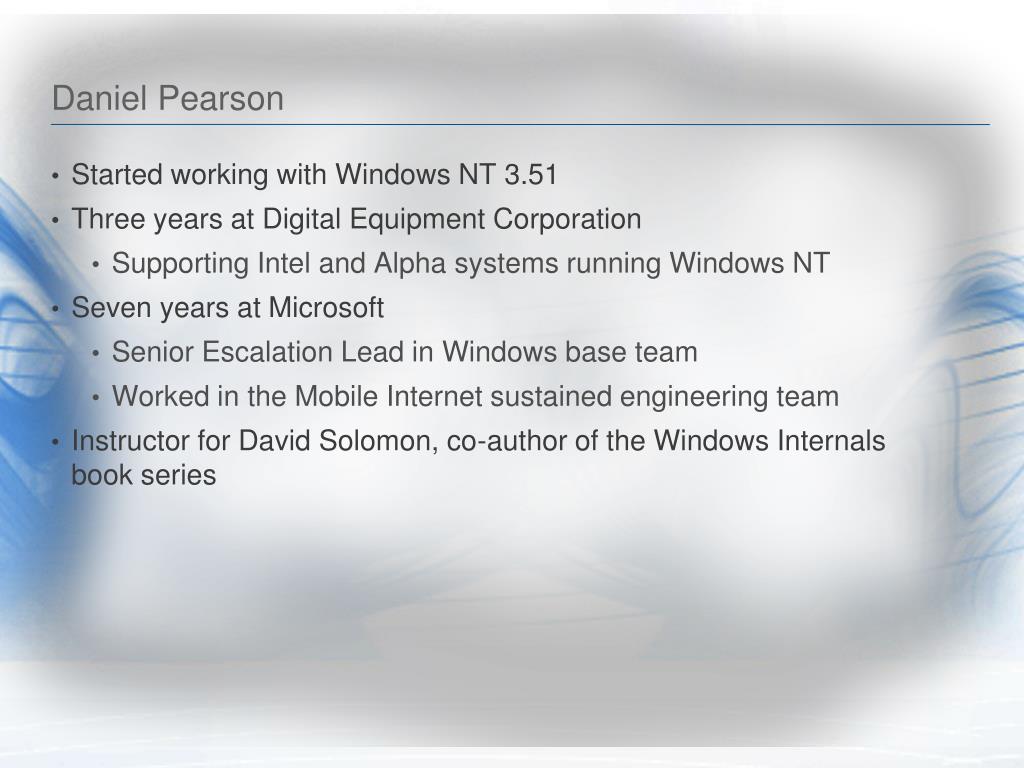

Daniel Pearson
  • Started working with Windows NT 3.51
  • Three years at Digital Equipment Corporation
    • Supporting Intel and Alpha systems running Windows NT
  • Seven years at Microsoft
    • Senior Escalation Lead in Windows base team
    • Worked in the Mobile Internet sustained engineering team
  • Instructor for David Solomon, co-author of the Windows Internalsbook series

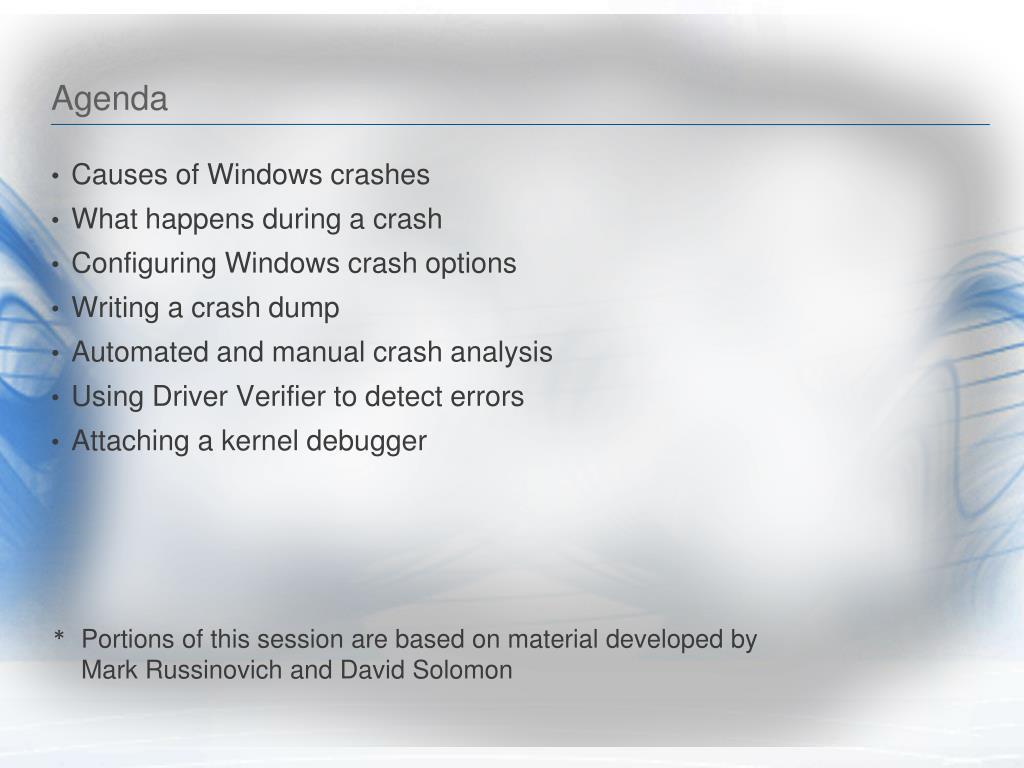

  • Causes of Windows crashes
  • What happens during a crash

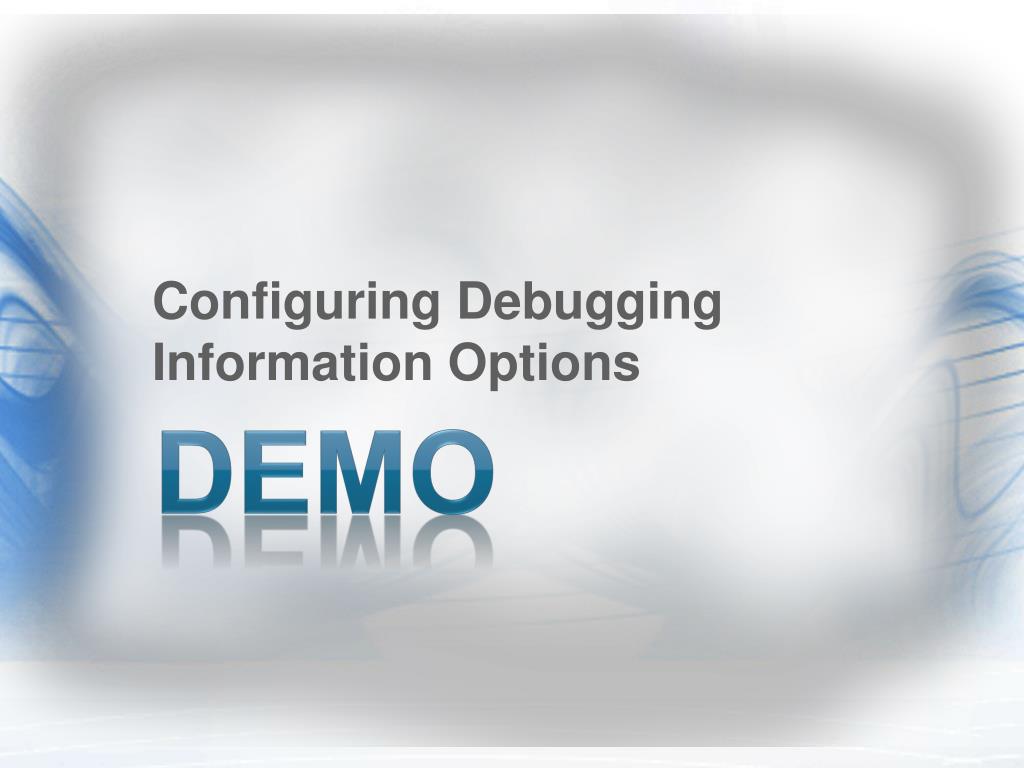

  • Configuring Windows crash options
  • Writing a crash dump
  • Automated and manual crash analysis

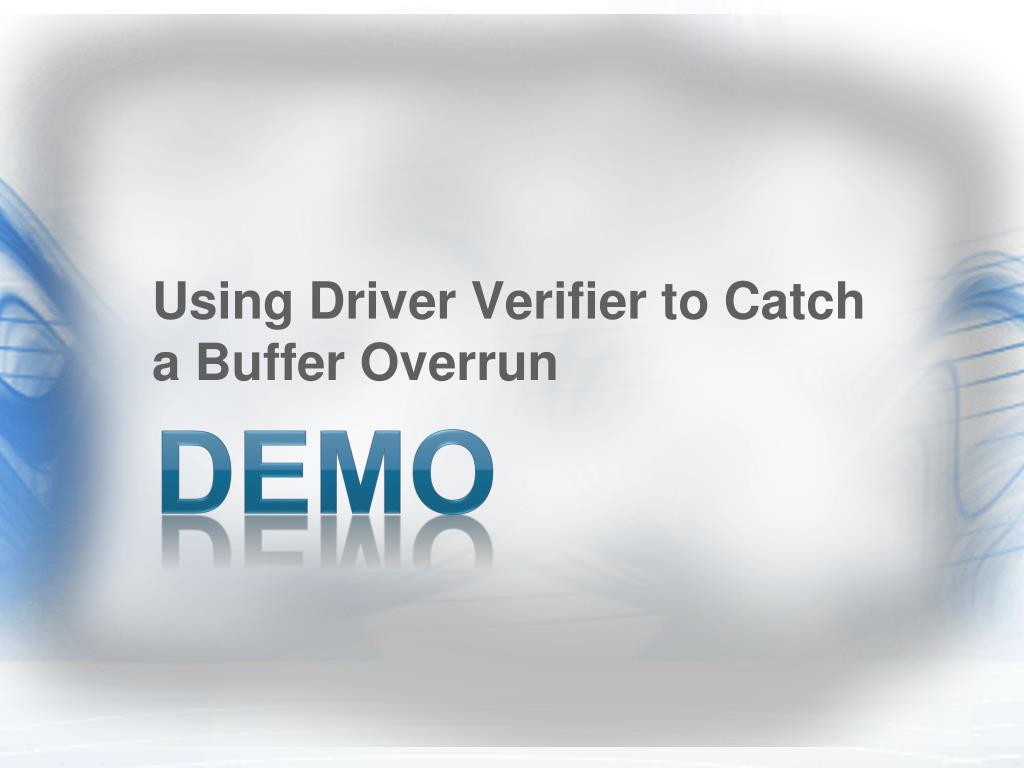

  • Using Driver Verifier to detect errors
  • Attaching a kernel debugger
  • Portions of this session are based on material developed byMark Russinovich and David Solomon
why analyze a crash

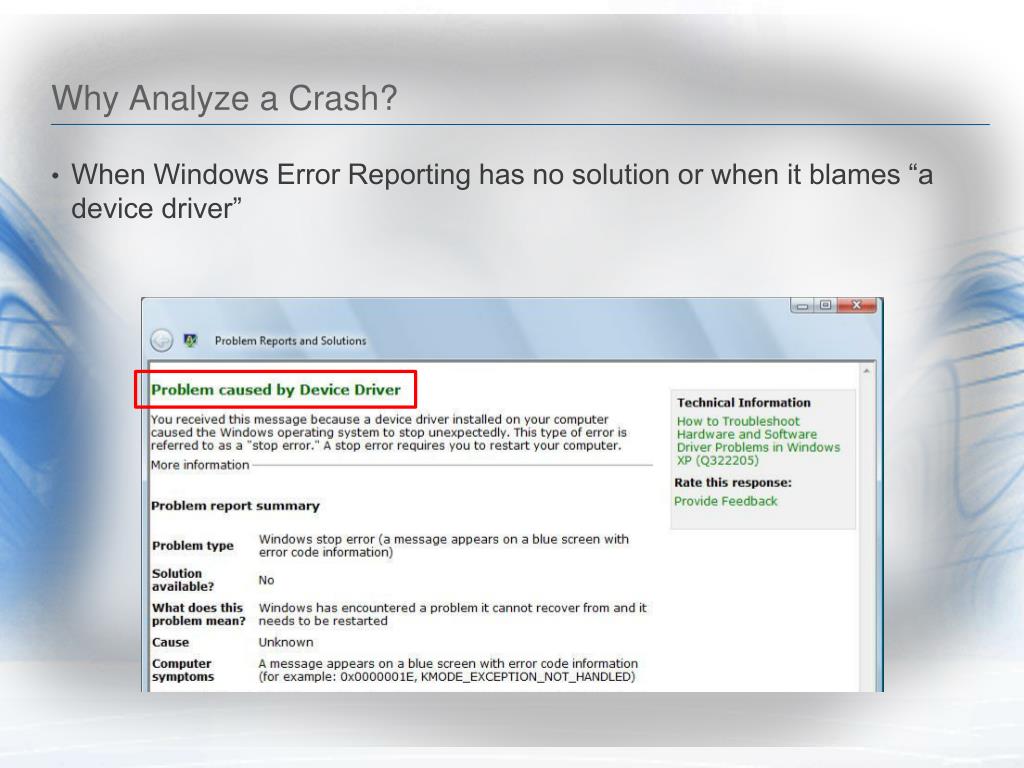

Why Analyze a Crash?
  • When Windows Error Reporting has no solution or when it blames “a device driver”
why does windows crash

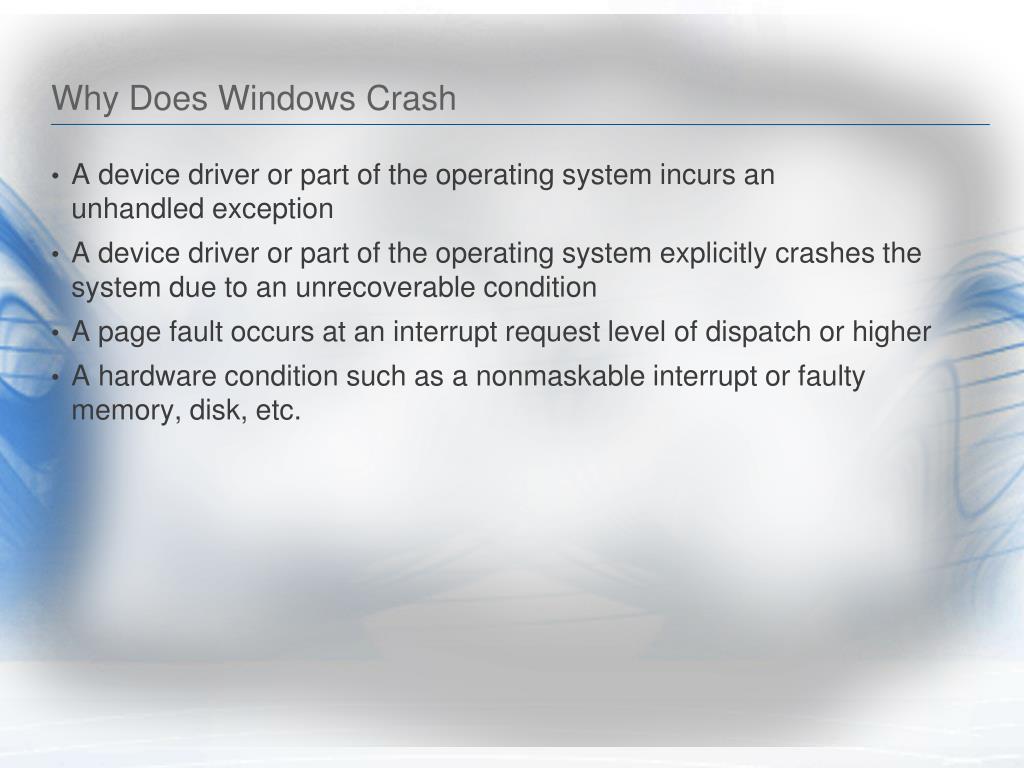

Why Does Windows Crash
  • A device driver or part of the operating system incurs anunhandled exception
  • A device driver or part of the operating system explicitly crashes the system due to an unrecoverable condition
  • A page fault occurs at an interrupt request level of dispatch or higher
  • A hardware condition such as a nonmaskable interrupt or faulty memory, disk, etc.
causes of windows crashes

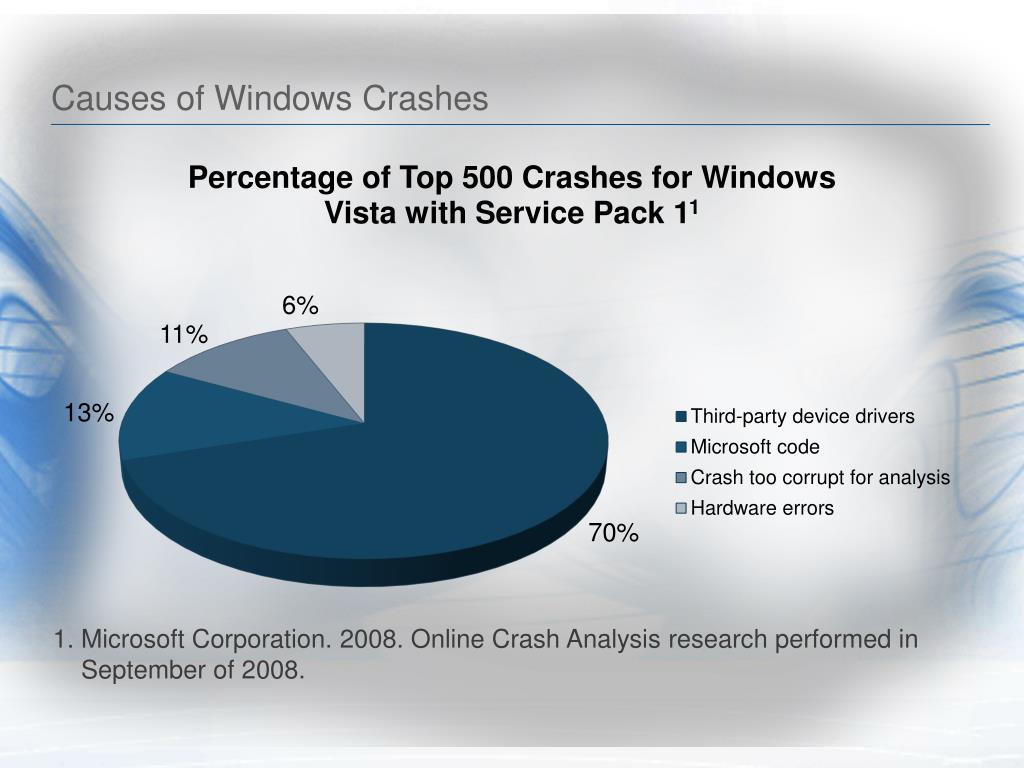

Causes of Windows Crashes

Microsoft Corporation. 2008. Online Crash Analysis research performed inSeptember of 2008.

what happens during a crash

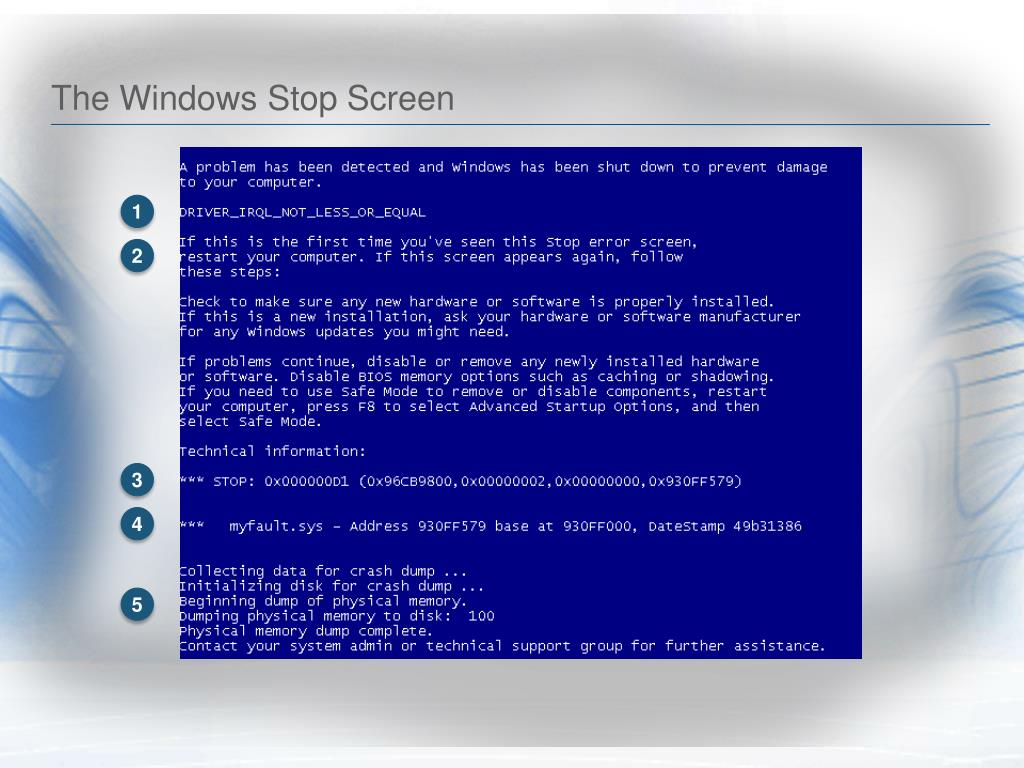

What Happens During a Crash
  • When a condition is detected that requires a crash, the kernel API KeBugCheckEx is called
  • KeBugCheckEx accepts a bugcheck code that indicates the reason for the crash and four parameters that supply additional information

KeBugCheckEx(    IN ULONG  BugCheckCode,    IN ULONG_PTR  BugCheckParameter1,    IN ULONG_PTR  BugCheckParameter2,    IN ULONG_PTR  BugCheckParameter3,    IN ULONG_PTR  BugCheckParameter4    );

inside of kebugcheckex

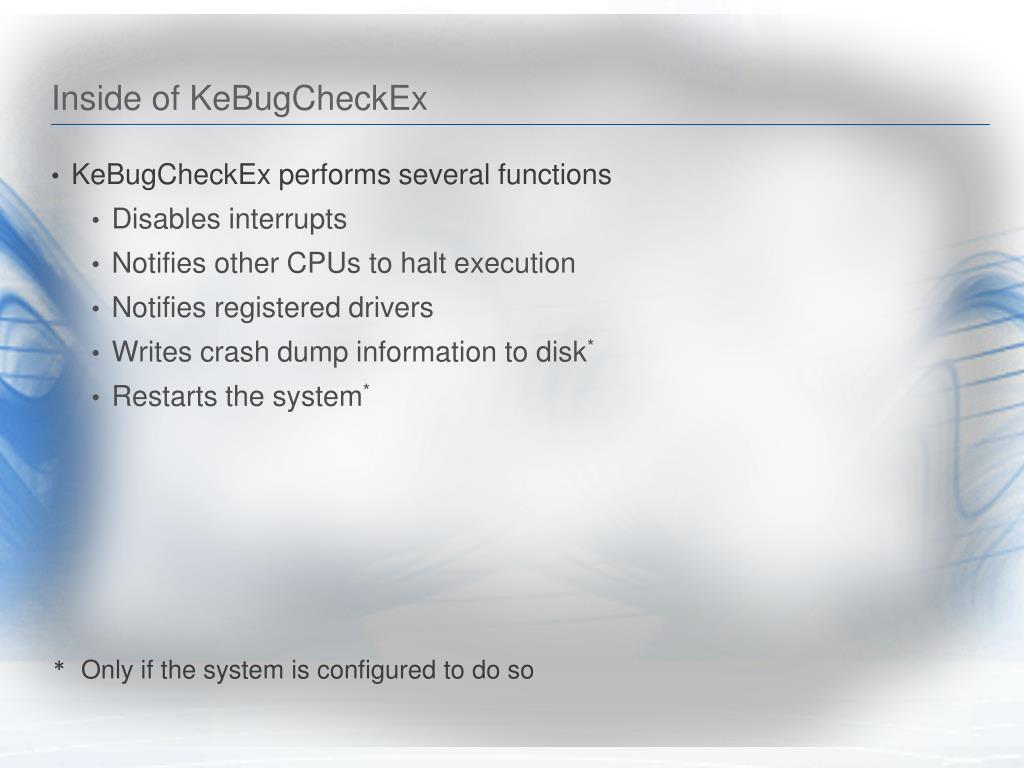

Inside of KeBugCheckEx
  • KeBugCheckEx performs several functions
    • Disables interrupts
    • Notifies other CPUs to halt execution
    • Notifies registered drivers
    • Writes crash dump information to disk*
    • Restarts the system*
  • Only if the system is configured to do so
bugcheck codes

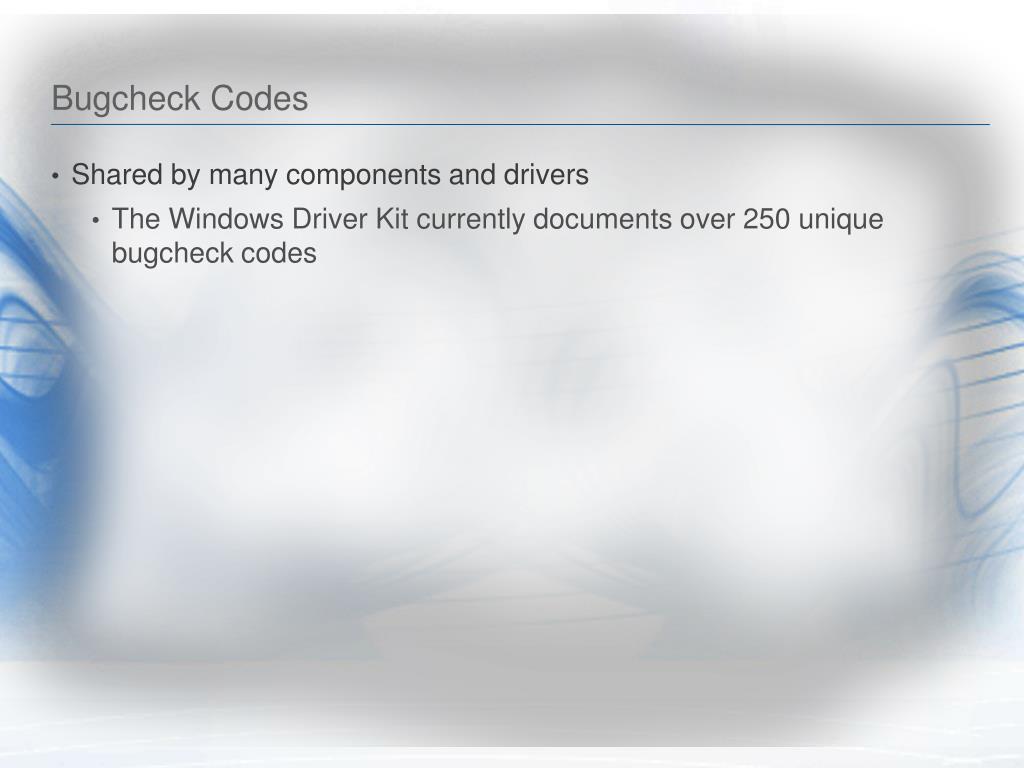

Bugcheck Codes
  • Shared by many components and drivers
    • The Windows Driver Kit currently documents over 250 unique bugcheckcodes
memory dump types

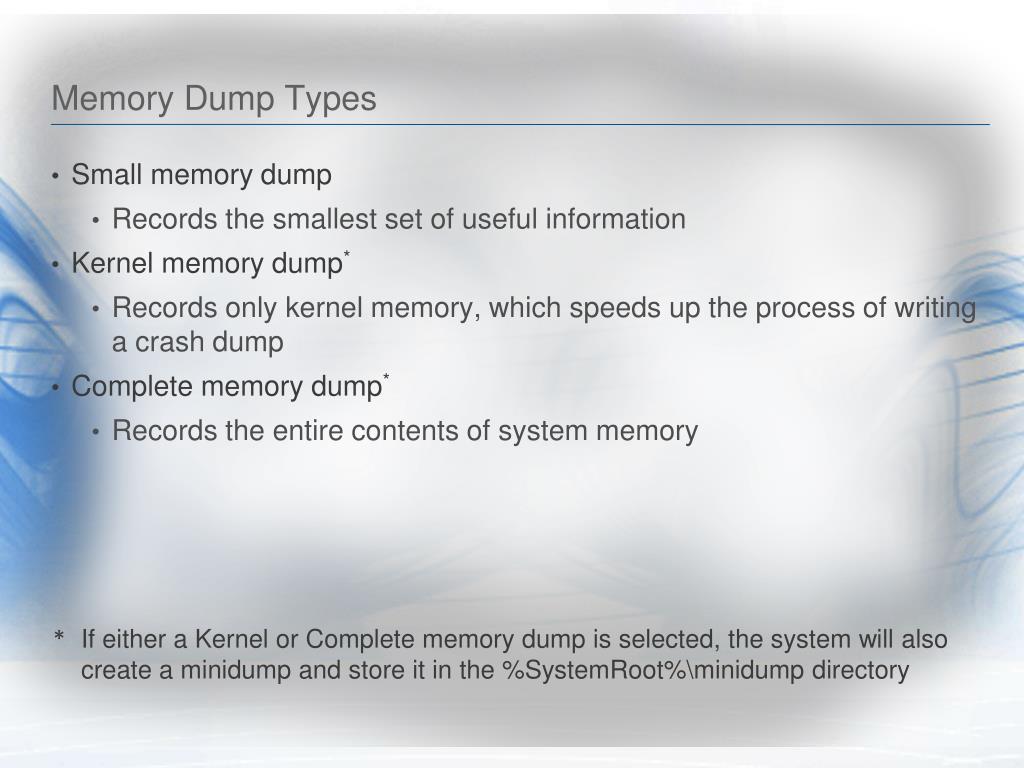

Memory Dump Types
  • Small memory dump
    • Records the smallest set of useful information
  • Kernel memory dump*
    • Records only kernel memory, which speeds up the process of writing a crash dump
  • Complete memory dump*
    • Records the entire contents of system memory
  • If either a Kernel or Complete memory dump is selected, the system will also create a minidump and store it in the %SystemRoot%\minidump directory
writing a crash dump

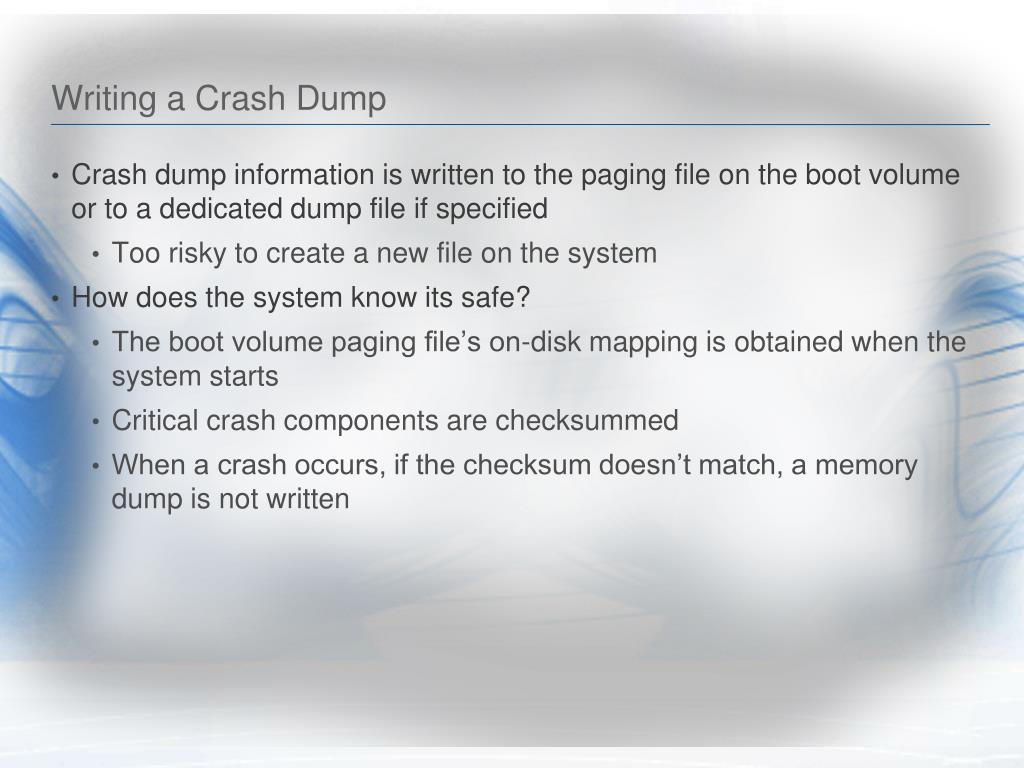

Writing a Crash Dump
  • Crash dump information is written to the paging file on the boot volume or to a dedicated dump file if specified
    • Too risky to create a new file on the system
  • How does the system know its safe?
    • The boot volume paging file’s on-disk mapping is obtained when the system starts
    • Critical crash components are checksummed
    • When a crash occurs, if the checksum doesn’t match, a memory dump is not written
why would you not get a dump

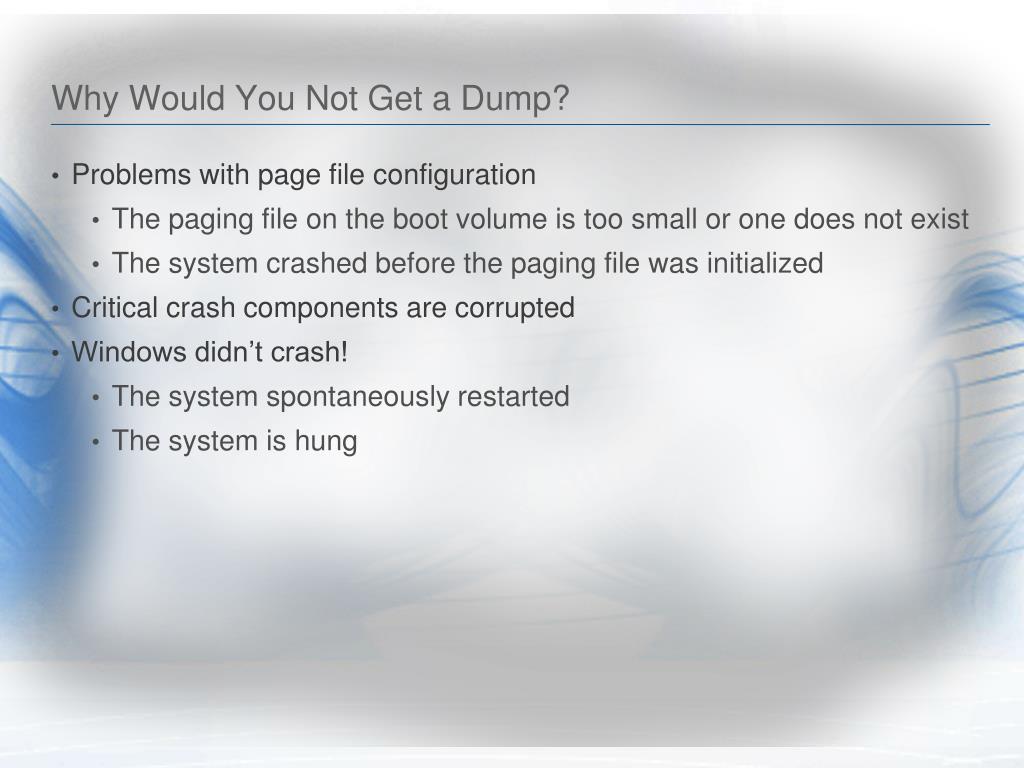

Why Would You Not Get a Dump?
  • Problems with page file configuration
    • The paging file on the boot volume is too small or one does not exist
    • The system crashed before the paging file was initialized
  • Critical crash components are corrupted
  • Windows didn’t crash!
    • The system spontaneously restarted
    • The system is hung
analyzing a crash dump

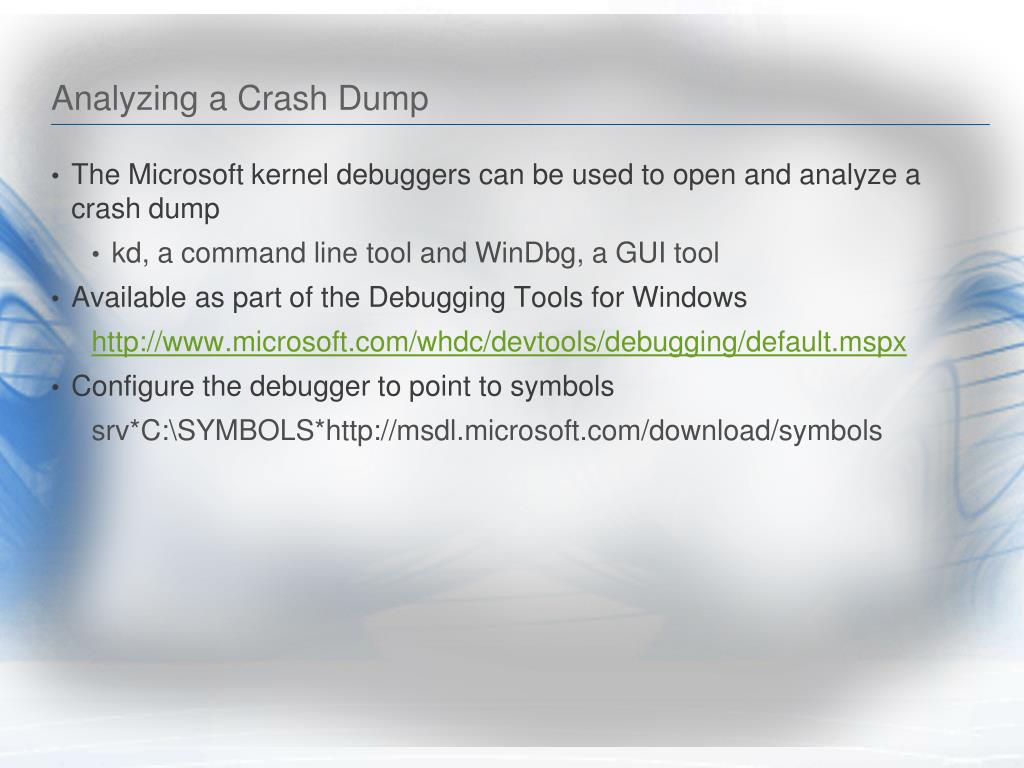

Analyzing a Crash Dump
  • The Microsoft kernel debuggers can be used to open and analyze a crash dump
    • kd, a command line tool and WinDbg, a GUI tool
  • Available as part of the Debugging Tools for Windows

  • Configure the debugger to point to symbols


automated analysis

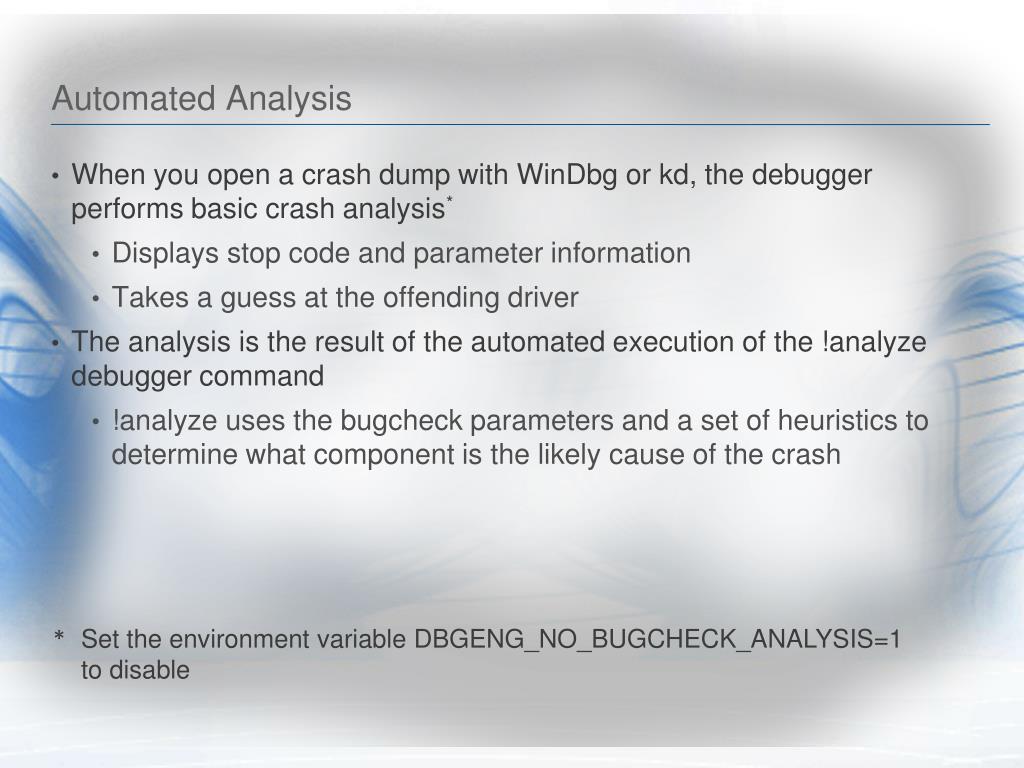

Automated Analysis
  • When you open a crash dump with WinDbg or kd, the debugger performs basic crash analysis*
    • Displays stop code and parameter information
    • Takes a guess at the offending driver
  • The analysis is the result of the automated execution of the !analyze debugger command
    • !analyze uses the bugcheck parameters and a set of heuristics to determine what component is the likely cause of the crash
  • Set the environment variable DBGENG_NO_BUGCHECK_ANALYSIS=1to disable
memory corruption
Memory Corruption
  • Occurs when a driver goes past the end, called an overrun, or the beginning, an underrun, of it’s memory allocation
  • Usually detected when overwritten data is referenced by the kernel or another driver
  • It’s possible there’s a long delay between corruption and detection
crash transformation

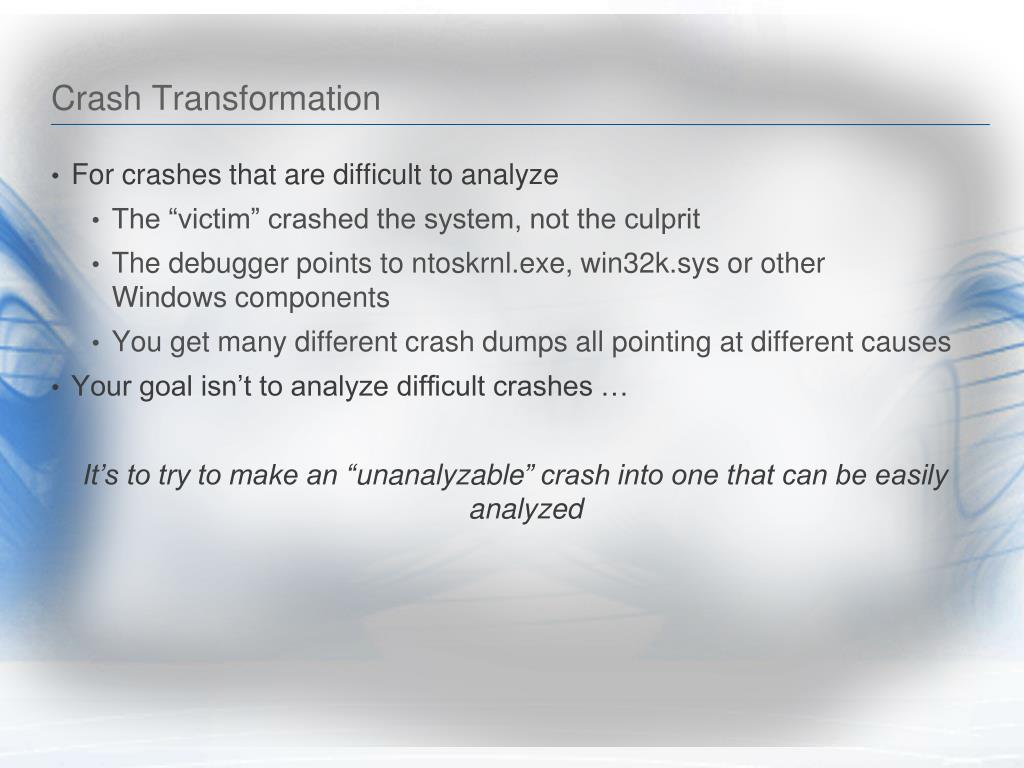

Crash Transformation
  • For crashes that are difficult to analyze
    • The “victim” crashed the system, not the culprit
    • The debugger points to ntoskrnl.exe, win32k.sys or otherWindows components
    • You get many different crash dumps all pointing at different causes
  • Your goal isn’t to analyze difficult crashes …

It’s to try to make an “unanalyzable” crash into one that can be easily analyzed

driver verifier

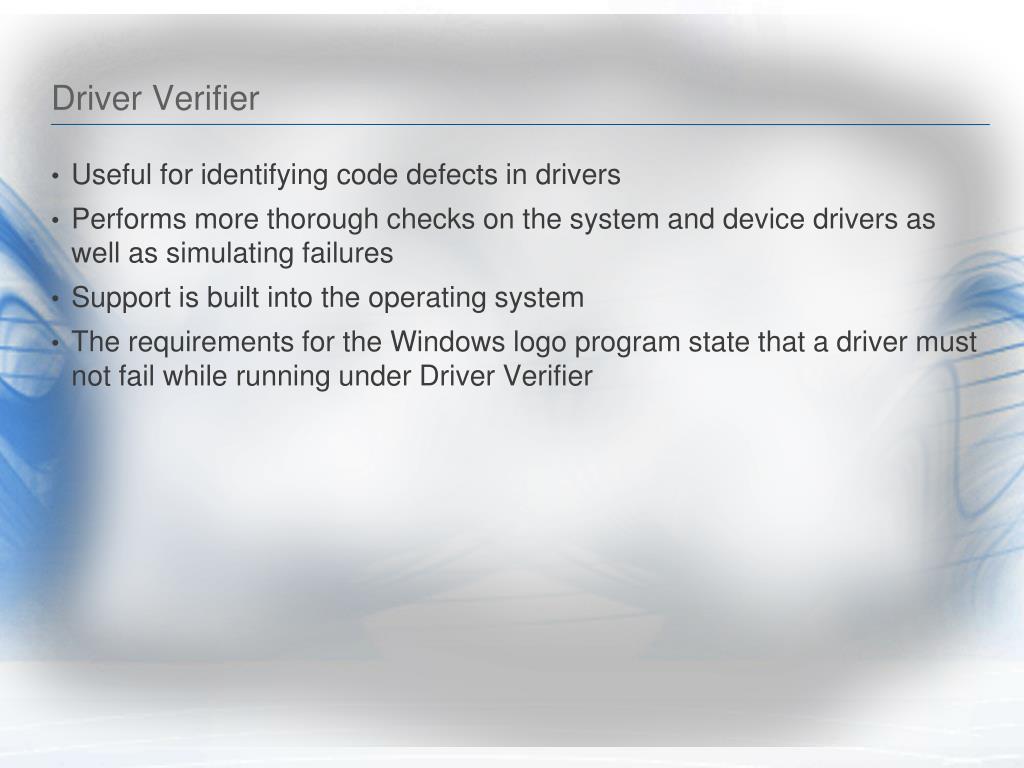

Driver Verifier
  • Useful for identifying code defects in drivers
  • Performs more thorough checks on the system and device drivers as well as simulating failures
  • Support is built into the operating system
  • The requirements for the Windows logo program state that a driver must not fail while running under Driver Verifier
manual analysis

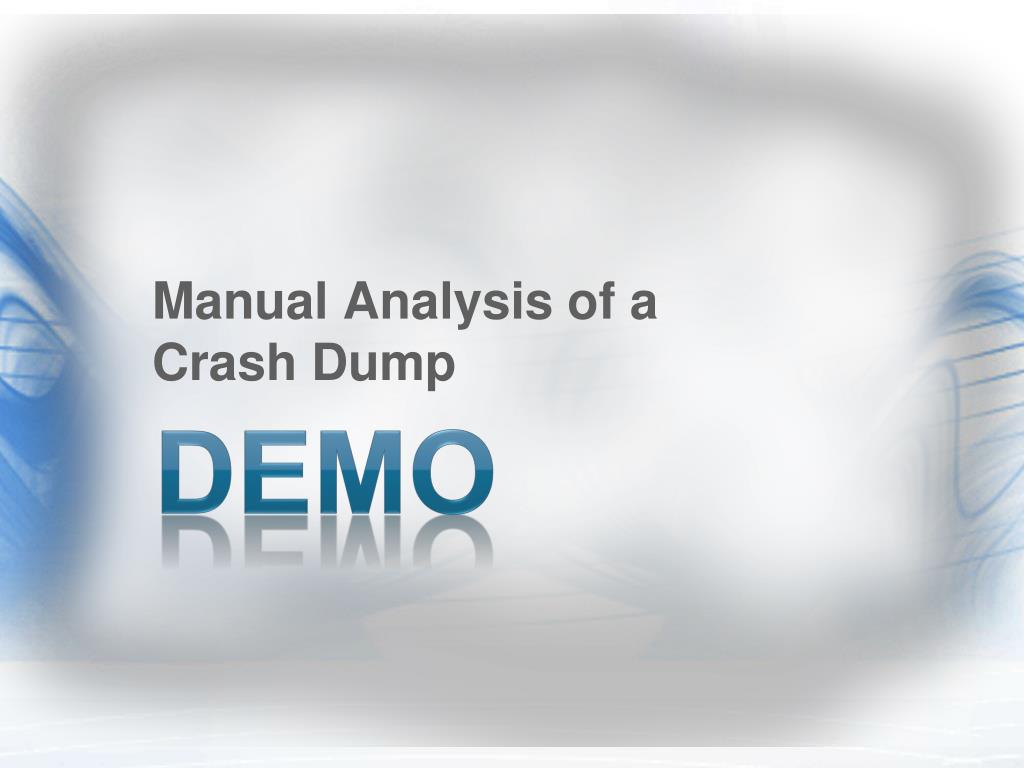

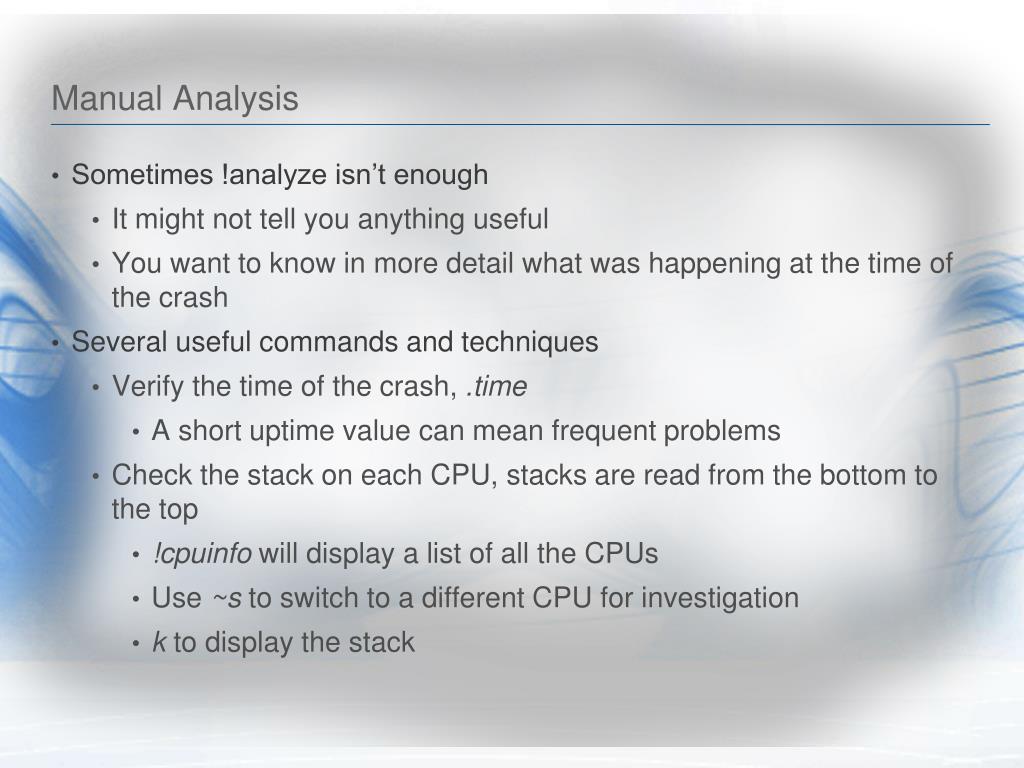

Manual Analysis
  • Sometimes !analyze isn’t enough
    • It might not tell you anything useful
    • You want to know in more detail what was happening at the time of the crash
  • Several useful commands and techniques
    • Verify the time of the crash, .time
      • A short uptime value can mean frequent problems
    • Check the stack on each CPU, stacks are read from the bottom to the top
      • !cpuinfo will display a list of all the CPUs
      • Use ~s to switch to a different CPU for investigation
      • k to display the stack
manual analysis1

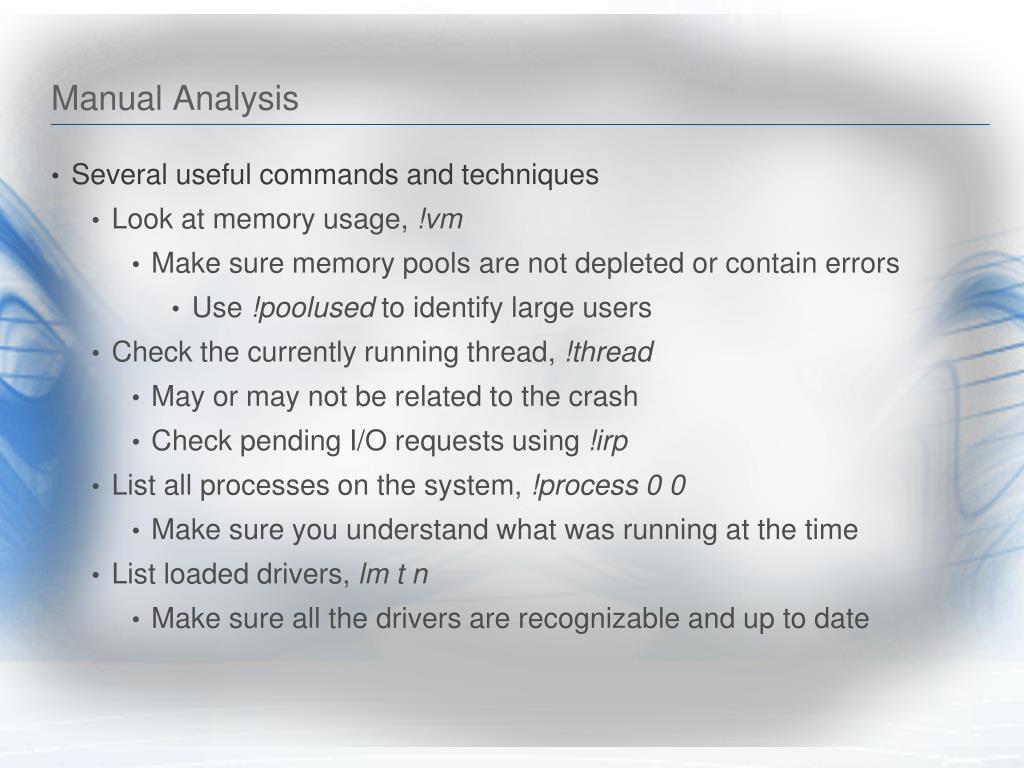

Manual Analysis
  • Several useful commands and techniques
    • Look at memory usage, !vm
      • Make sure memory pools are not depleted or contain errors
        • Use !poolused to identify large users
    • Check the currently running thread, !thread
      • May or may not be related to the crash
      • Check pending I/O requests using !irp
    • List all processes on the system, !process 0 0
      • Make sure you understand what was running at the time
    • List loaded drivers, lm t n
      • Make sure all the drivers are recognizable and up to date
attaching a kernel debugger
Attaching a Kernel Debugger
  • Required for debugging initialization failures and crashes where no dump file is created
  • Requires that the system be started with the debugger enabled to work
  • Support for using a null-modem, IEEE 1394 and USB 2.0 cable as well as virtual machines and over the network in Windows 7
  • Limited support for local kernel debugging
hung systems

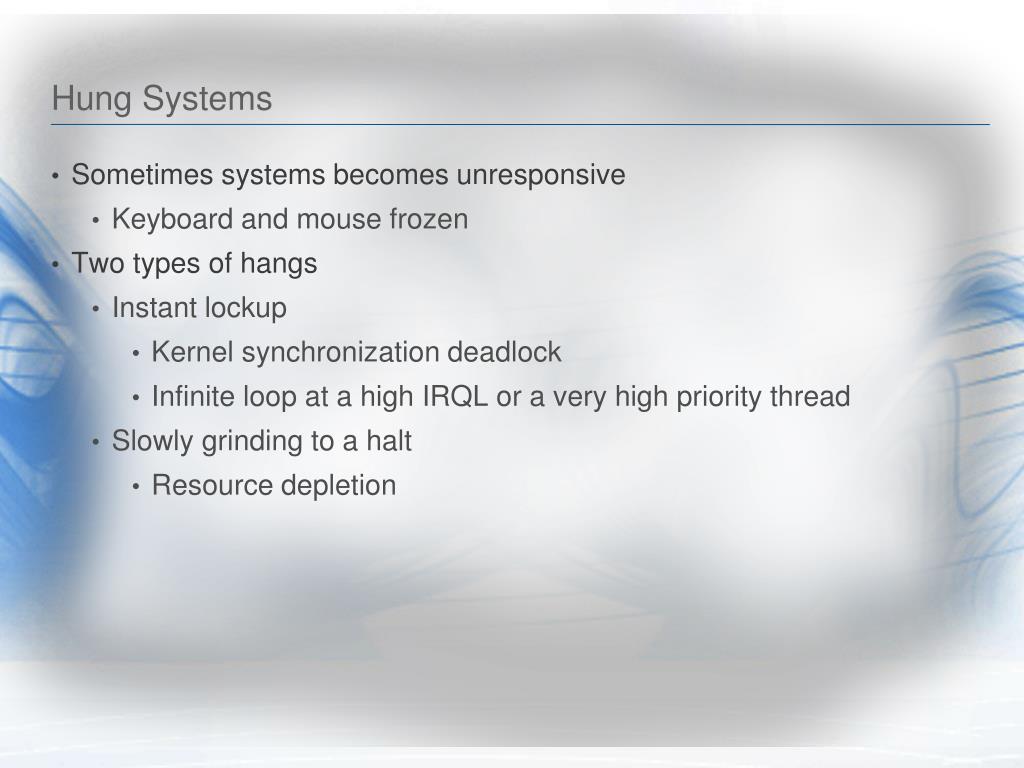

Hung Systems
  • Sometimes systems becomes unresponsive
    • Keyboard and mouse frozen
  • Two types of hangs
    • Instant lockup
      • Kernel synchronization deadlock
      • Infinite loop at a high IRQL or a very high priority thread
    • Slowly grinding to a halt
      • Resource depletion
initiating a manual crash

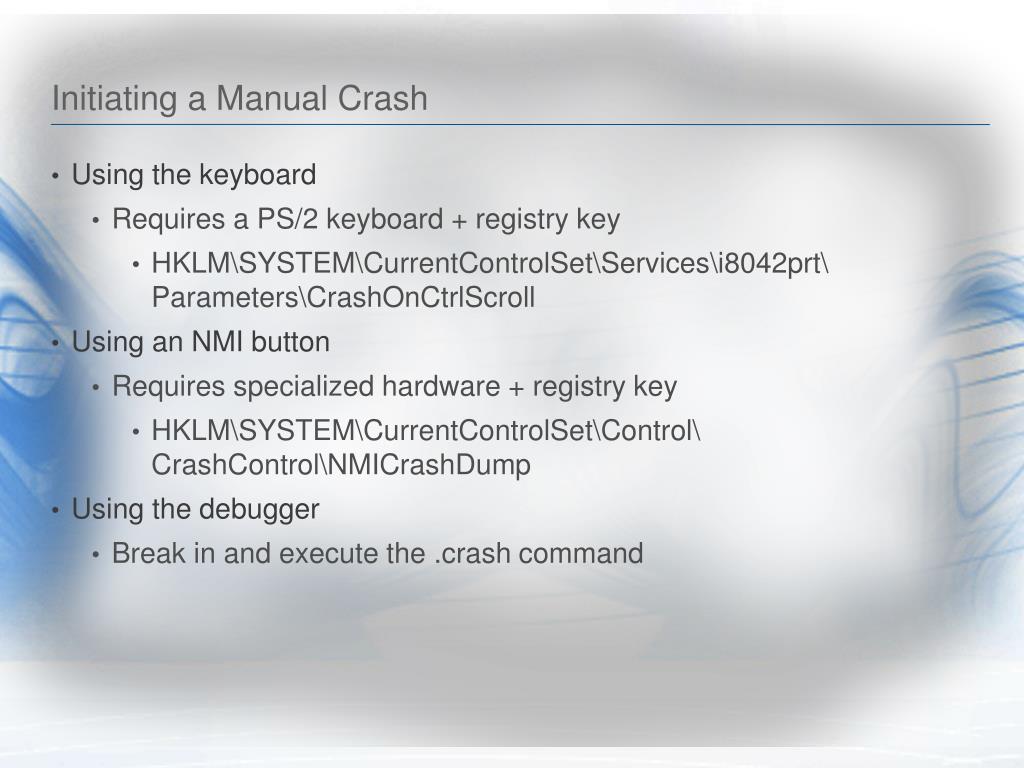

Initiating a Manual Crash
  • Using the keyboard
    • Requires a PS/2 keyboard + registry key
      • HKLM\SYSTEM\CurrentControlSet\Services\i8042prt\Parameters\CrashOnCtrlScroll
  • Using an NMI button
    • Requires specialized hardware + registry key
      • HKLM\SYSTEM\CurrentControlSet\Control\CrashControl\NMICrashDump
  • Using the debugger
    • Break in and execute the .crash command
additional information

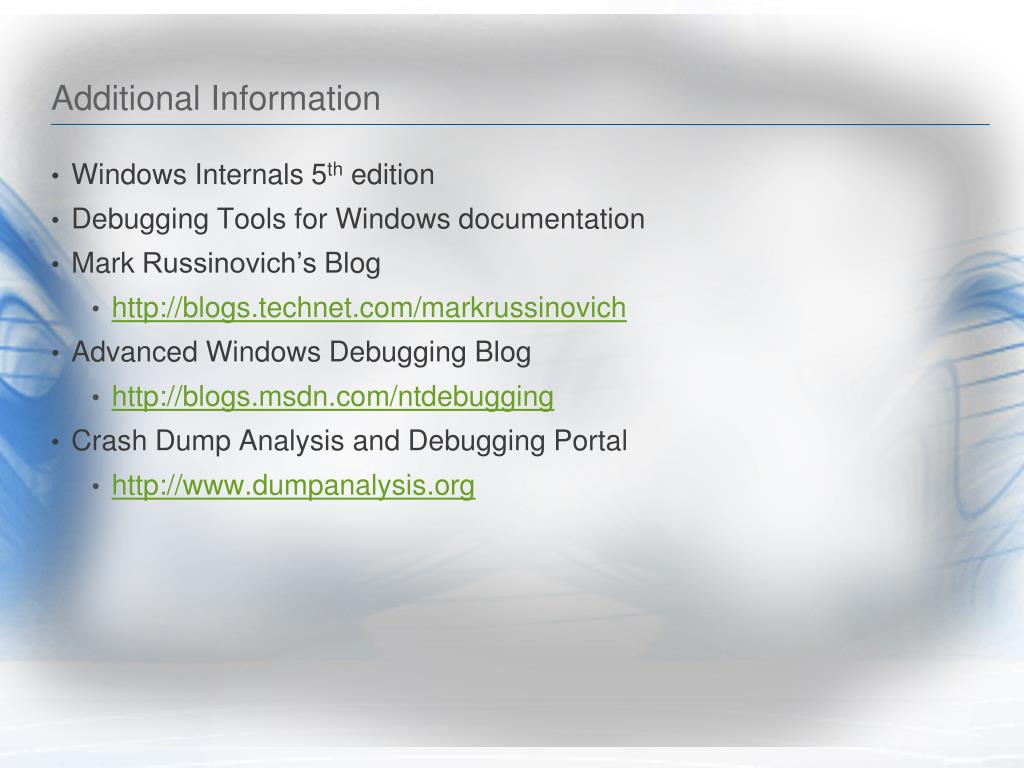

Additional Information
  • Windows Internals 5th edition
  • Debugging Tools for Windows documentation
  • Mark Russinovich’s Blog
  • Advanced Windows Debugging Blog
  • Crash Dump Analysis and Debugging Portal
additional information1

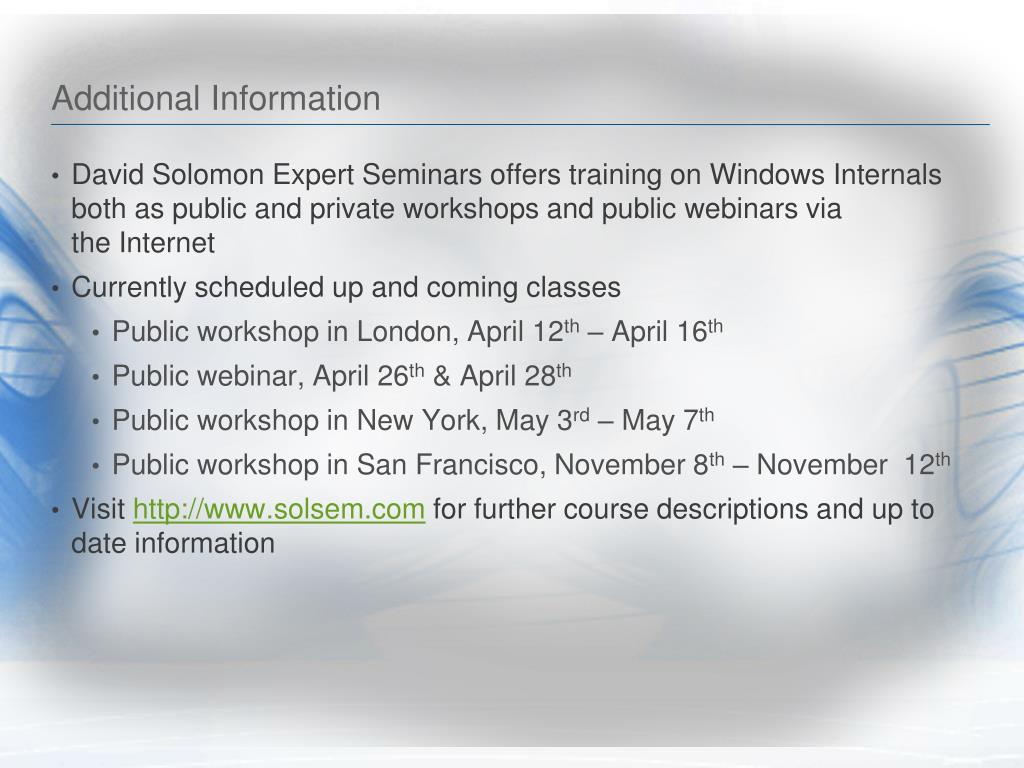

Additional Information
  • David Solomon Expert Seminars offers training on Windows Internals both as public and private workshops and public webinars viathe Internet
  • Currently scheduled up and coming classes
    • Public workshop in London, April 12th – April 16th
    • Public webinar, April 26th & April 28th
    • Public workshop in New York, May 3rd – May 7th
    • Public workshop in San Francisco, November 8th – November 12th
  • Visit for further course descriptions and up to date information
