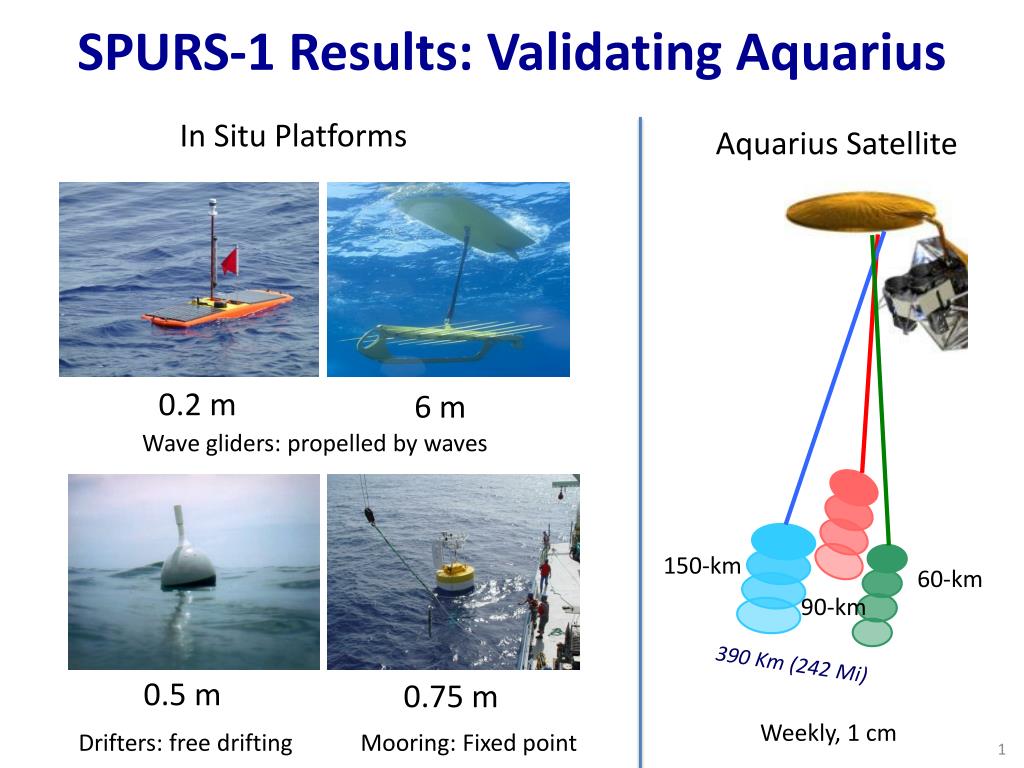

  1. SPURS-1 Results: Validating Aquarius In Situ Platforms Aquarius Satellite 0.2 m 6 m Wave gliders: propelled by waves 150-km 60-km 90-km 390 Km (242 Mi) 0.5 m 0.75 m Weekly, 1 cm Drifters: free drifting Mooring: Fixed point

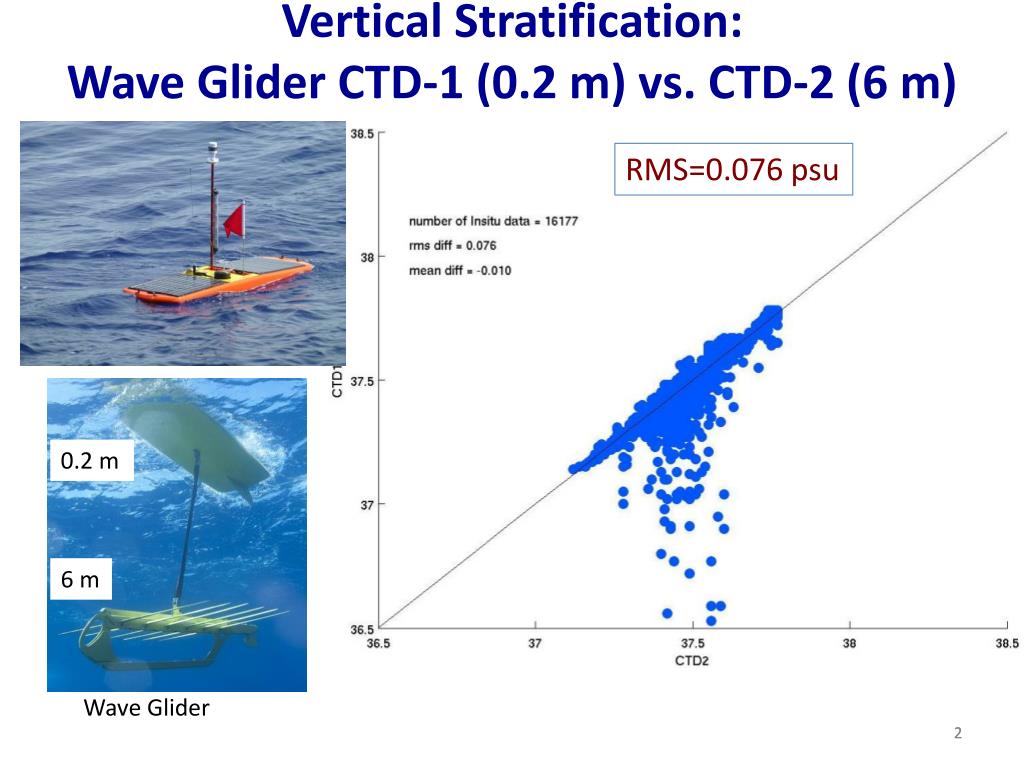

  2. Vertical Stratification:Wave GliderCTD-1 (0.2 m) vs. CTD-2 (6 m) RMS=0.076 psu 0.2 m 6 m Wave Glider 2

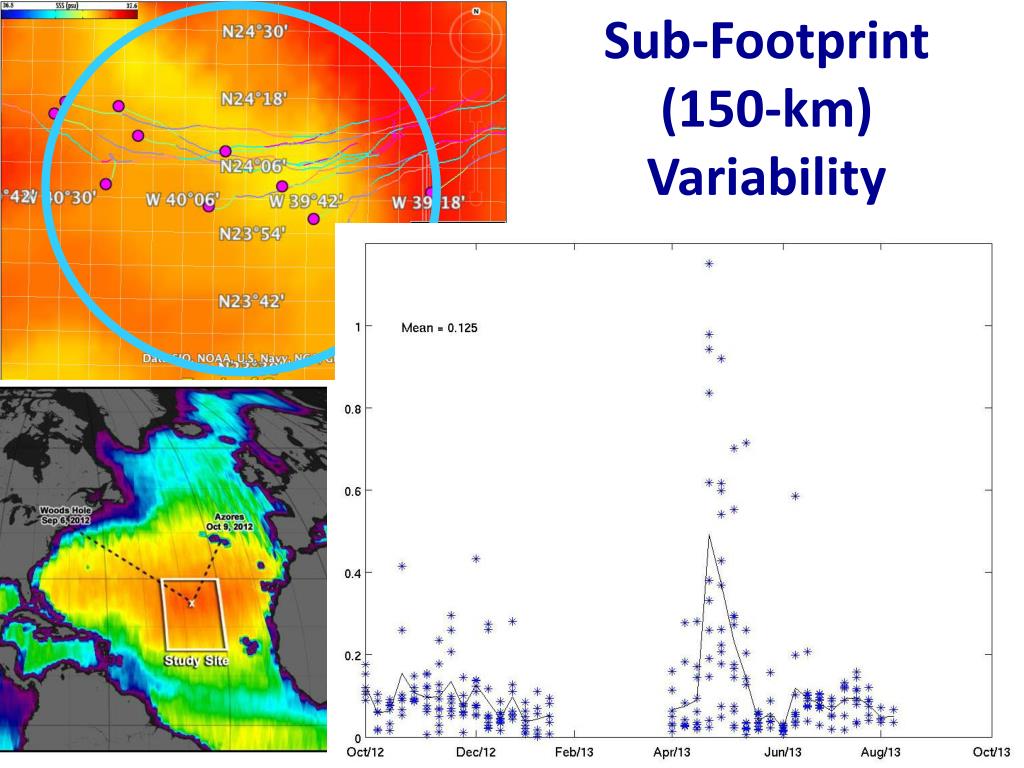

  3. Sub-Footprint (150-km) Variability

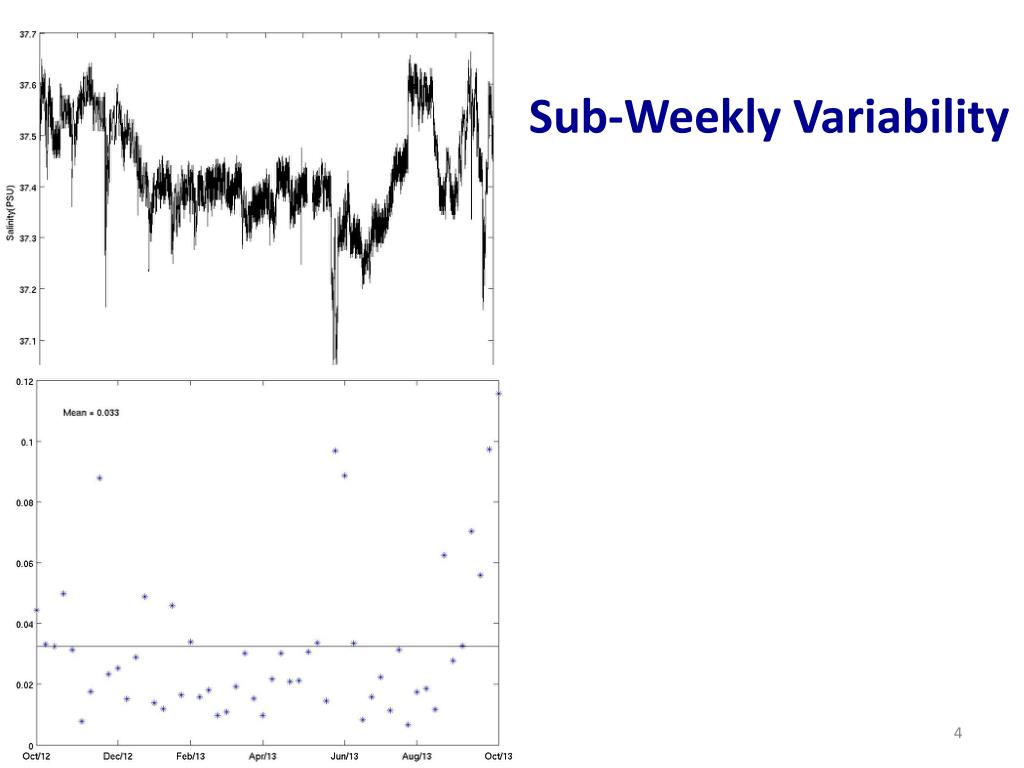

  4. Sub-Weekly Variability

  5. 150-km Weekly SSS: Aquarius vs. SPURS
