  1. Using the Same Docker Container for Development and in the Cloud Johan Janssen, Info Support

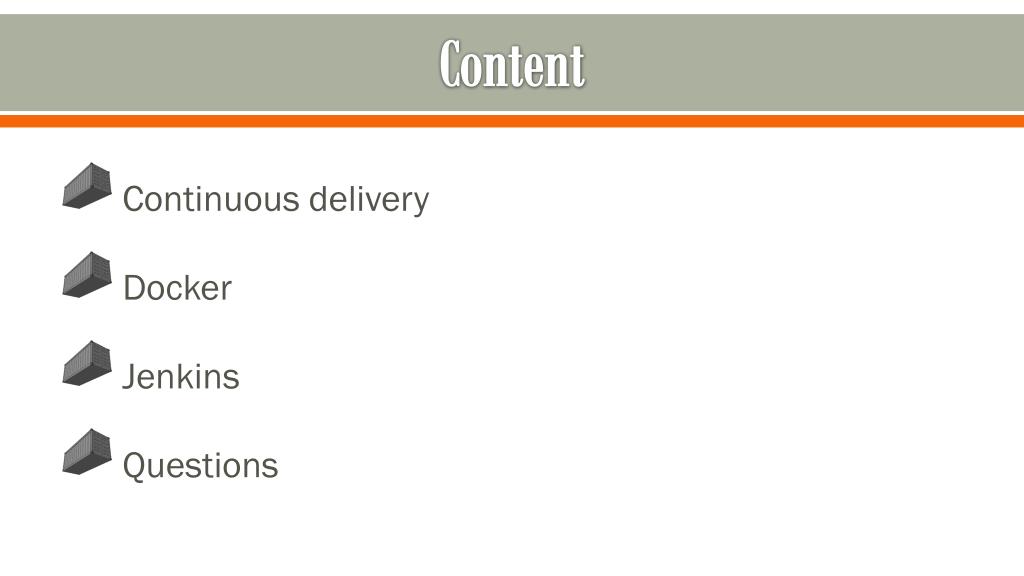

  2. Content • Continuous delivery • Docker • Jenkins • Questions

  3. Continuous Delivery • Automate everything • Software quality • Continuous improvement • Regular deployments • Anyone can deploy

  4. Deployment pipeline Setup environment Quality checks Version control Compile Testing Deployments Etcetera DevOps End users

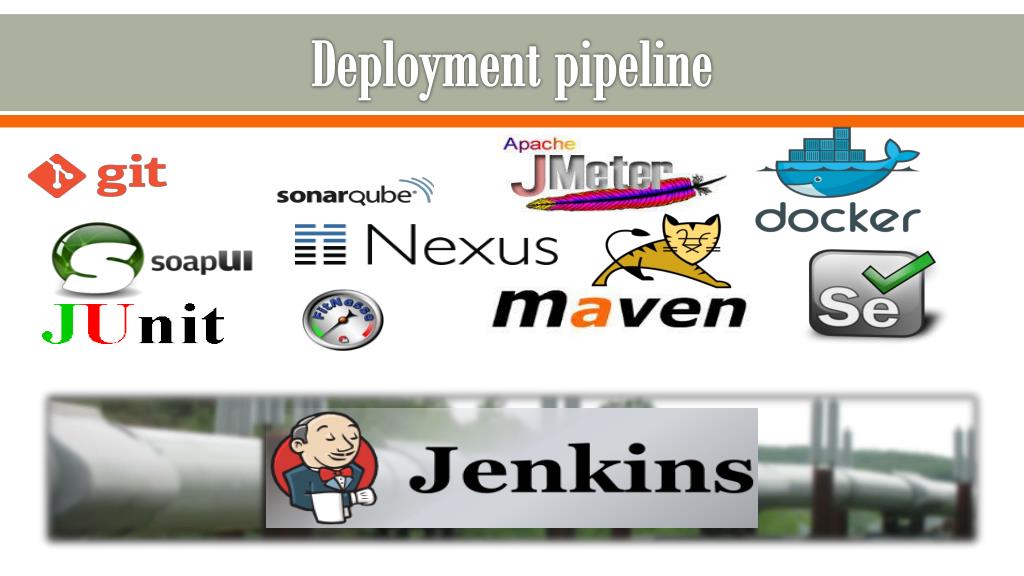

  5. Deployment pipeline

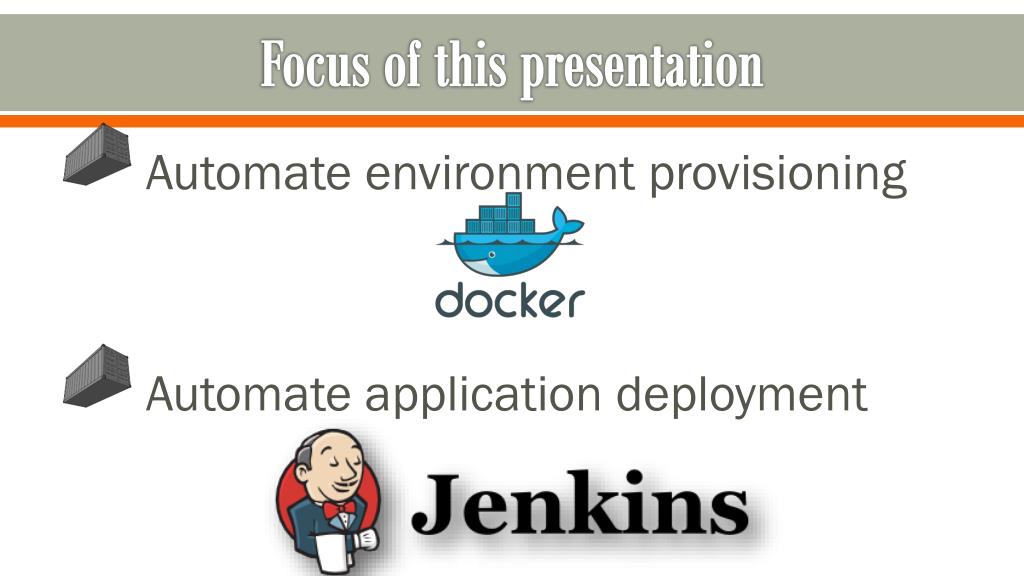

  6. Focus of this presentation • Automate environment provisioning • Automate application deployment

  7. What to deliver?

  8. Docker

  9. Transportation issue

  10. Transportation solution

  11. Software issue

  12. Software solution

  13. Docker compatibility

  14. Demo

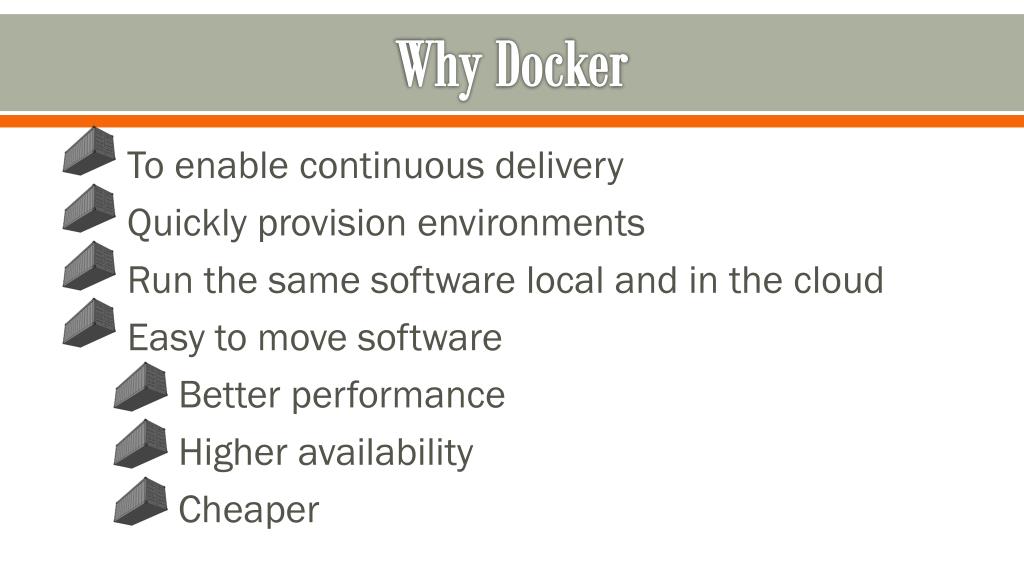

  15. Why Docker • To enable continuous delivery • Quickly provision environments • Run the same software local and in the cloud • Easy to move software • Better performance • Higher availability • Cheaper

  16. Docker vs Virtual Machines • Disk space efficiency • Memory efficiency • Speed • Compatibility (run anywhere) • Isolation • Versioning • Internet of Things (Raspberry Pi etc.)

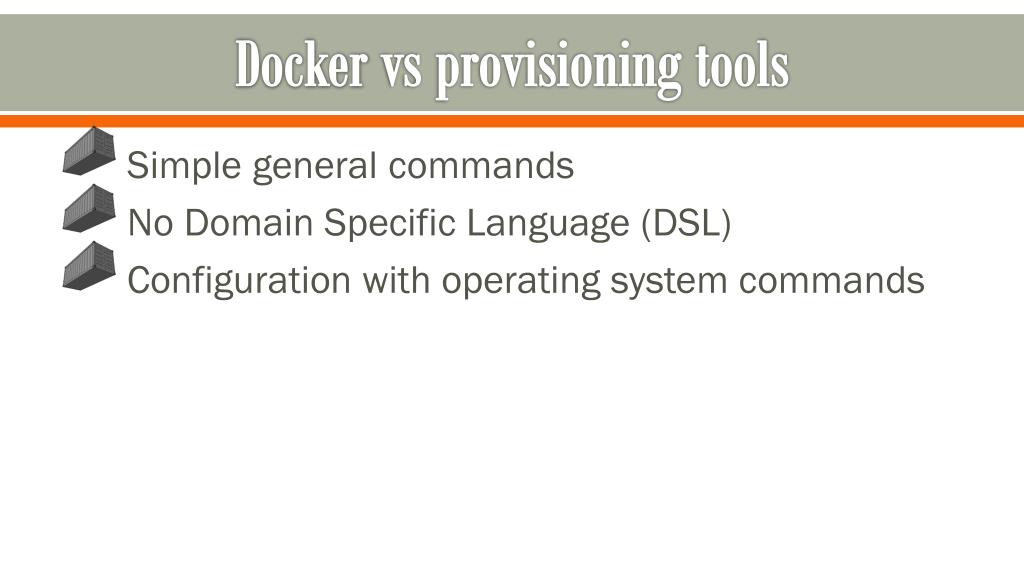

  17. Docker vs provisioning tools • Simple general commands • No Domain Specific Language (DSL) • Configuration with operating system commands

  18. Docker activity • Since March 2013 • 8741 commits in 15 months • More than 460 570 contributors • Downloaded 2.75 13 million times • More than 14000 30000 Dockerized apps • >6500 Docker related projects on GitHub • More than 90 user groups • DockerCon (Europe) • Support from Google, VMWare, RackSpace, Red Hat, IBM, Microsoft etcetera

  19. Docker on CIO TODAY

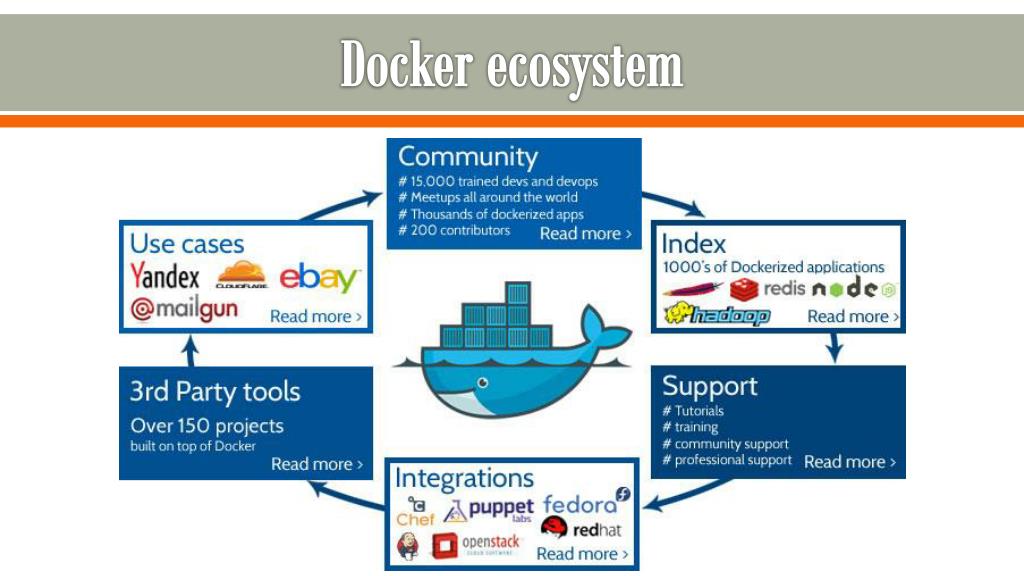

  20. Docker ecosystem

  21. My first Docker container • Docker on Ubuntu 14.04 apt-get install docker.io docker.io run -i -t ubuntu:saucy /bin/bash

  22. Docker technology

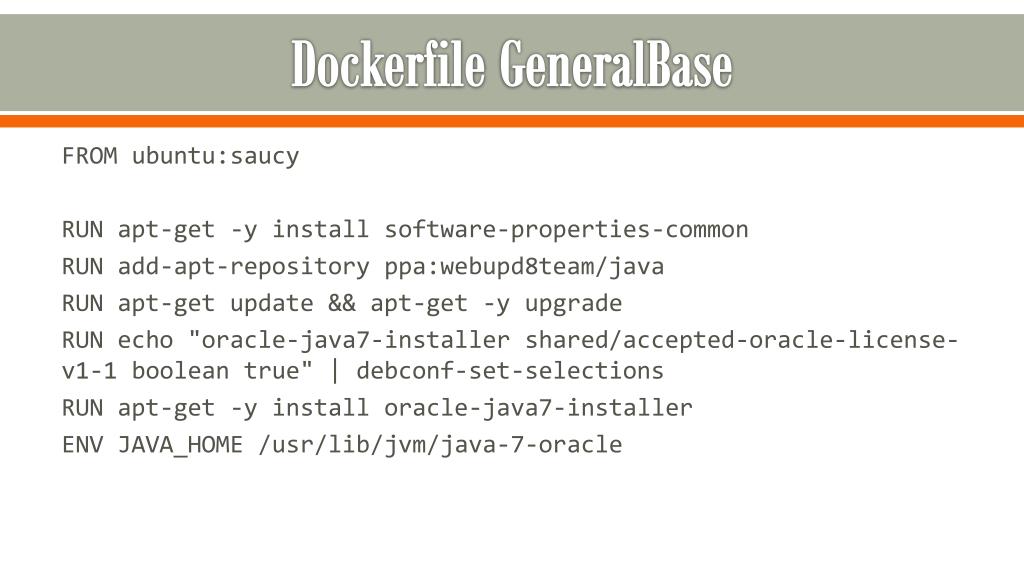

  23. DockerfileGeneralBase FROM ubuntu:saucy RUN apt-get -y install software-properties-common RUN add-apt-repository ppa:webupd8team/java RUN apt-get update && apt-get -y upgrade RUN echo "oracle-java7-installer shared/accepted-oracle-license-v1-1 boolean true" | debconf-set-selections RUN apt-get -y install oracle-java7-installer ENV JAVA_HOME /usr/lib/jvm/java-7-oracle

  24. Dockerfile Sonar FROM GeneralBase RUN apt-get install -y wgetunzip RUN wget http://dist.sonar.codehaus.org/sonarqube-4.2.zip RUN unzip sonarqube-4.2.zip -d /opt RUN rm sonarqube-4.2.zip EXPOSE 9000 EXPOSE 9092 CMD ["/opt/sonarqube-4.2/bin/linux-x86-64/sonar.sh", "console", "/bin/bash"]

  25. Directory structure • Main directory • BuildAndRunScript.sh • GeneralBase • Dockerfile • Sonar • Dockerfile

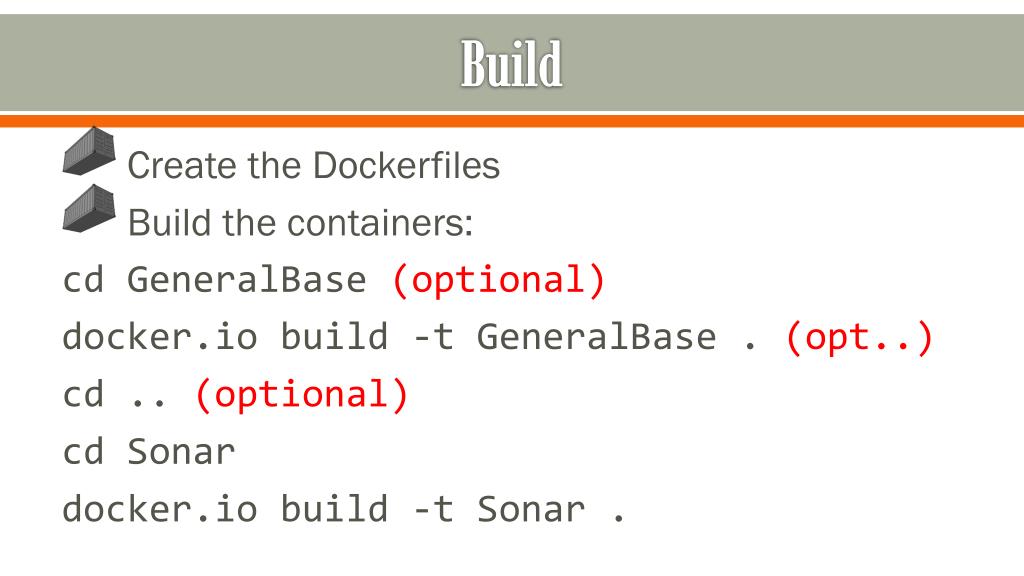

  26. Build • Create the Dockerfiles • Build the containers: cd GeneralBase(optional) docker.io build -t GeneralBase. (opt..) cd .. (optional) cd Sonar docker.io build -t Sonar .

  27. Run • Start the container docker.io run -p 9000:9000 –p 9092:9092 -d Sonar

  28. List all in(active) containers # docker.io ps–a CONTAINER ID: ecbecf77461b CREATED: 32 minutes ago STATUS: Up 32 minutes PORTS: 0.0.0.0:9000->9000/tcp, 0.0.0.0:9092->9092/tcp

  29. Controlling containers • Start / stop / restart docker [start/stop/restart] containerid • Follow SystemOut and SystemErr docker logs -f containerid

  30. Controlling containers • Show (running) containers dockerps –a • Show processes running in container dockerdiff containerid • Show changes in the container dockertop containerid

  31. Controlling containers • Stop all containers docker.io stop $(docker.io ps -a -q) • Remove all containers docker.io rm $(docker.io ps -a -q) • Remove all images docker.io rmi $(docker.io images -q)

  32. We need lots of Docker containers

  33. Data volumes • Dockerfile ENV JENKINS_HOME /var/JenkinsData • Docker commands docker.io run -v /var/JenkinsData–name JenkinsDataContainerubuntu:saucy true docker.io run -p 8080:8080 --volumes-from JenkinsDataContainer -d Jenkins

  34. Diskspace # docker.io images --tree └─ 179.9 MB Tags: ubuntu:saucy └─253.6 MB └─741.8 MB Tags: GeneralBase:latest └─763.6 MB Tags: AppServerBase:latest ├─763.6 MB Tags: EnvironmentP:latest └─865.6 MB Tags: Nexus:latest └─808.3 MB Tags: Gitblit:latest └─901.5 MB Tags: Sonar:latest └─805.4 MB Tags: Jenkins:latest

  35. Execution time real 4m11.729s user 0m3.329s sys 0m10.054s

  36. Moving

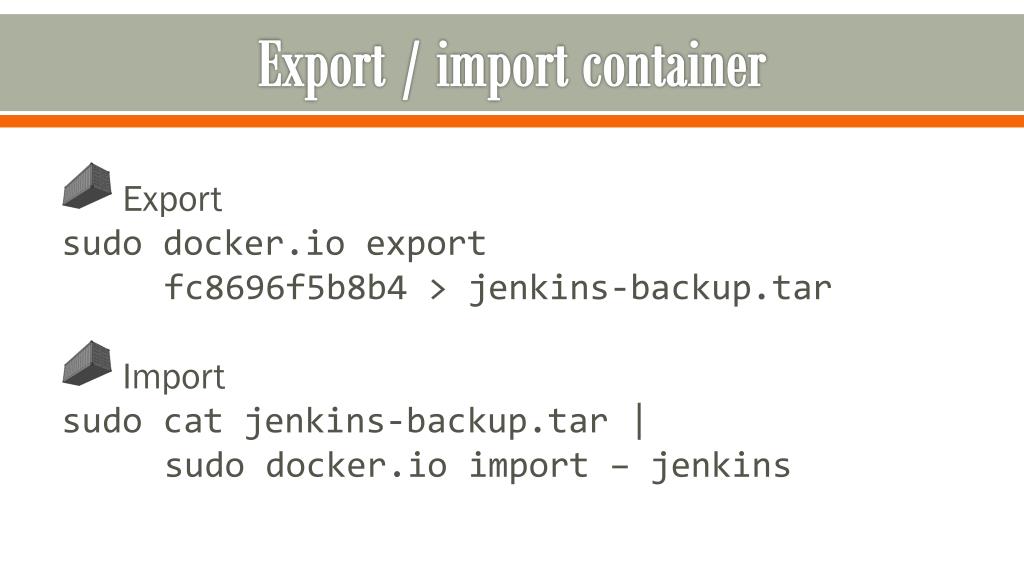

  37. Export / import container • Export sudodocker.io export fc8696f5b8b4 > jenkins-backup.tar • Import sudocat jenkins-backup.tar | sudodocker.io import – jenkins

  38. Backup data container sudodocker.io run -rm --volumes-from JenkinsDataContainer -v $(pwd):/backup busybox tar cvf backup.tar /var/JenkinsData

  39. Restore data container sudodocker.io run -v /var/JenkinsData --name JenkinsDataContainer ubuntu:saucytrue sudo docker.io run -rm --volumes-from JenkinsDataContainer -v $(pwd):/backup busybox tar xvf /backup/backup.tar –C /

  40. Run restored containers • Run container sudo docker.io run -e JENKINS_HOME=/var/JenkinsData -p 80:8080 --name Jenkins --volumes-from JenkinsDataContainer -d 1478be52bb java -jar /usr/local/bin/jenkins.war

  41. Docker overview

  42. One ring to rule them all

  43. Docker registry • Creating the Docker registry docker run -p 5000:5000 registry

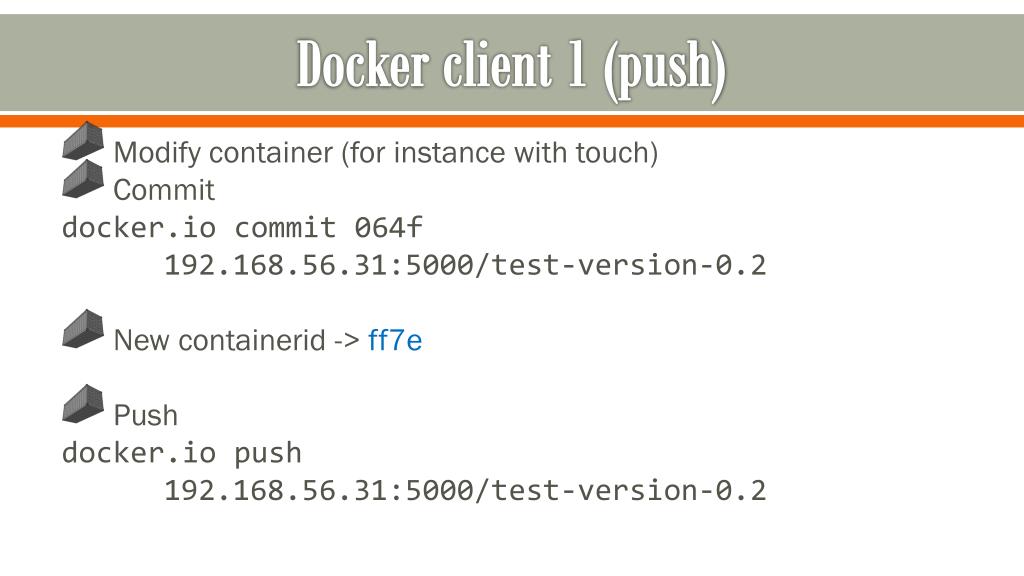

  44. Docker client 1 (push) • Modify container (for instance with touch) • Commit docker.io commit 064f 192.168.56.31:5000/test-version-0.2 • New containerid -> ff7e • Push docker.io push 192.168.56.31:5000/test-version-0.2

  45. Docker client 2 (pull) • Pull docker.io pull 192.168.56.31:5000/test-version-0.2 • Run docker.io run -i -t ff7e /bin/bash • View the changed container

  46. Updating containers

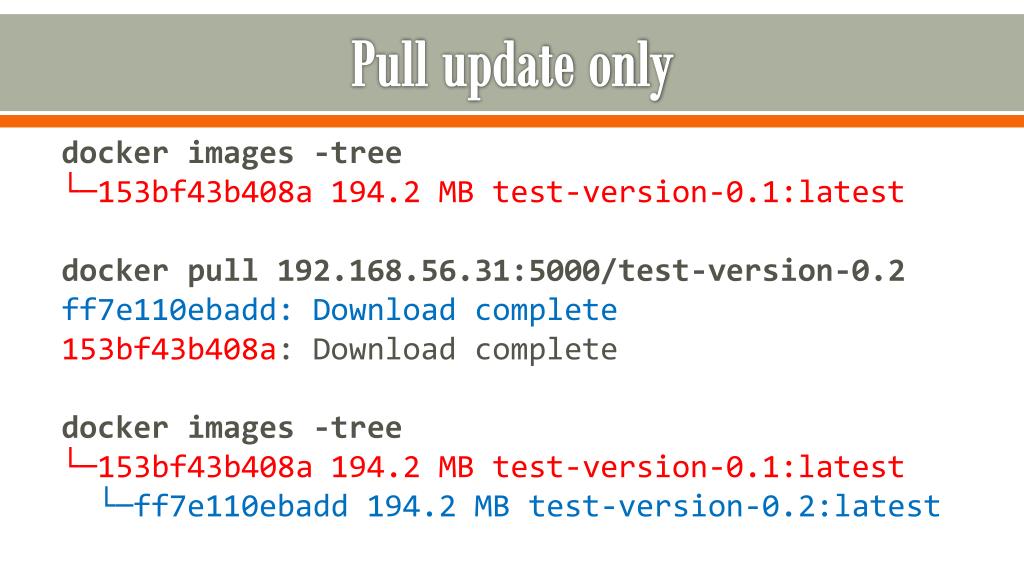

  47. Pull update only dockerimages -tree └─153bf43b408a 194.2 MB test-version-0.1:latest dockerpull 192.168.56.31:5000/test-version-0.2 ff7e110ebadd: Download complete 153bf43b408a: Download complete dockerimages -tree └─153bf43b408a 194.2 MB test-version-0.1:latest └─ff7e110ebadd 194.2 MB test-version-0.2:latest

  48. Use registry instead exports • Commands are easier • Faster and easier migration

  49. Use registry instead of multiple builds • Requires less extra resources • Containers are the same, for instance when using apt-get update • Not the latest security patches

  50. Docker vs Virtual Machines
