diathermy

DIATHERMY

PT 156: Physical Agents 1

AilaNica J. Bandong, PTRP

Instructor

Department of Physical Therapy

UP-College of Allied Medical Professions

objectives

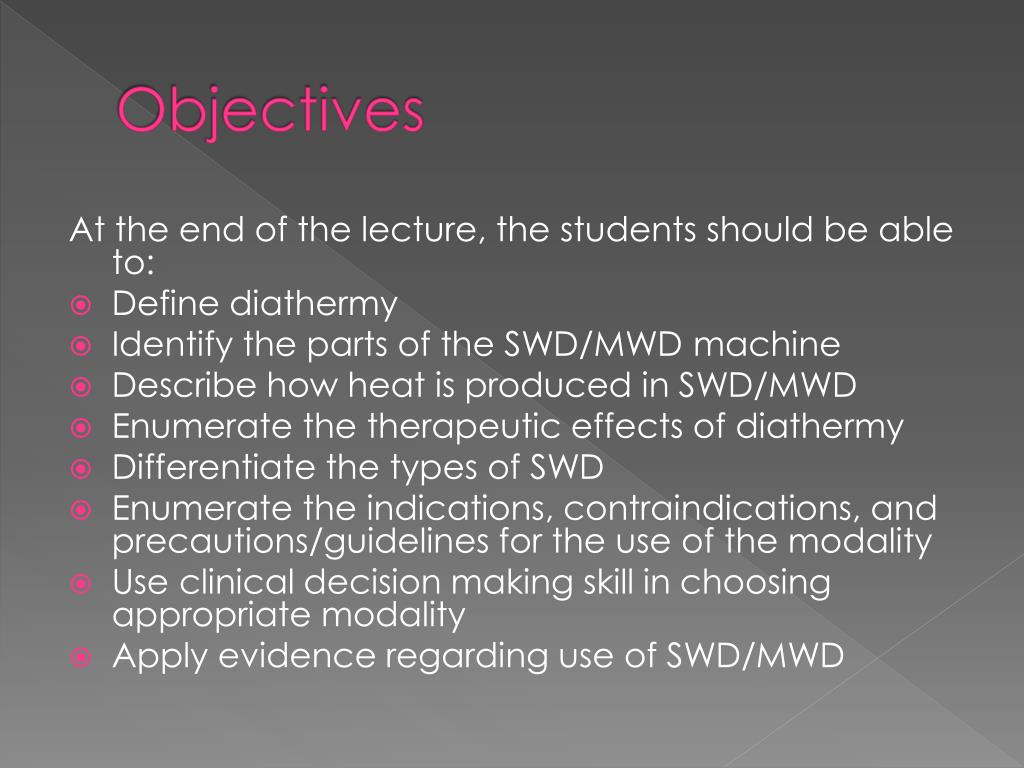

Objectives

At the end of the lecture, the students should be able to:

  • Define diathermy
  • Identify the parts of the SWD/MWD machine
  • Describe how heat is produced in SWD/MWD
  • Enumerate the therapeutic effects of diathermy
  • Differentiate the types of SWD
  • Enumerate the indications, contraindications, and precautions/guidelines for the use of the modality
  • Use clinical decision making skill in choosing appropriate modality
  • Apply evidence regarding use of SWD/MWD
what is diathermy
What is DIATHERMY?
  • The use of non-ionizing electromagnetic energy from the radio-frequency spectrum as therapeutic agent
types of diathermy
Types of Diathermy
  • Long wave

- longest wavelength 300 – 30 m

- most penetrating

- no longer utilized due to high potential of causing burns and interference with radio transmissions

  • Shortwave
  • Microwave
slide6

Superficial and deep heating modality

  • Frequency

- 27.12 MHz

  • Wavelength

- 11 m

  • Method of HeatTransfer

- Conversion

  • Manner of Delivery

- continuous

- pulsed

pulsed swd

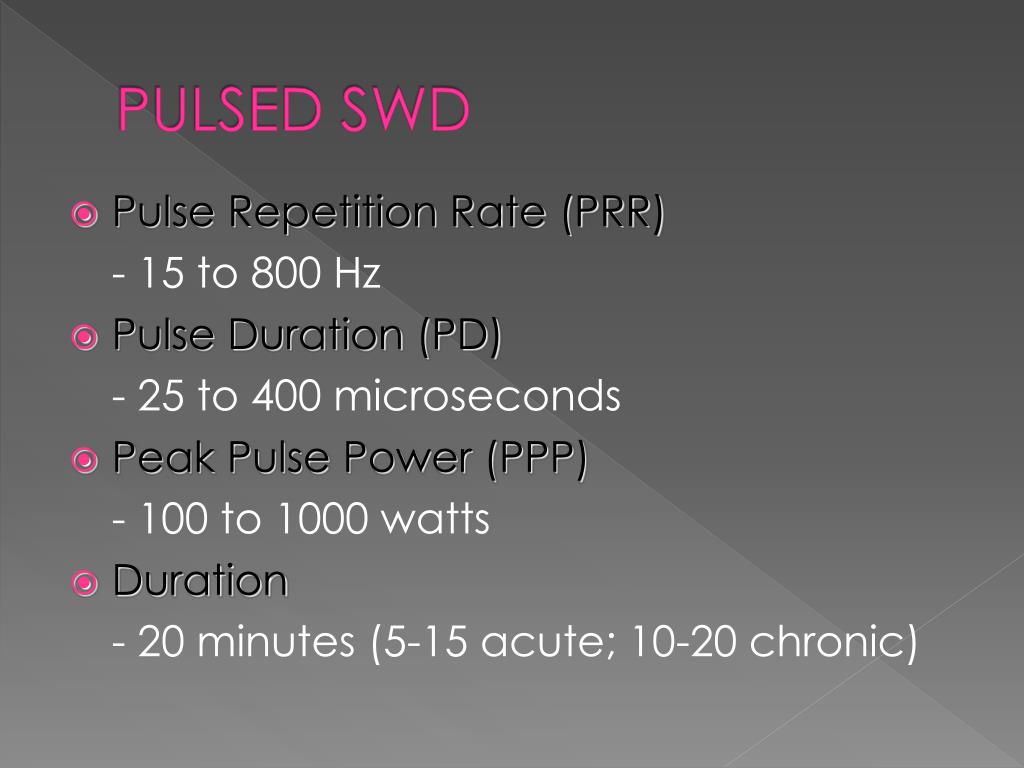

PULSED SWD
  • Pulse Repetition Rate (PRR)

- 15 to 800 Hz

  • Pulse Duration (PD)

- 25 to 400 microseconds

  • Peak Pulse Power (PPP)

- 100 to 1000 watts

  • Duration

- 20 minutes (5-15 acute; 10-20 chronic)

calculating mean power in pswd
Calculating Mean Power in PSWD

Cycle Duration = 1000 / PRR

% cycle SWD delivered =

(PD x 100) / Cycle Duration

Mean Power delivered =

PPP x % cycle SWD

heat production
HEAT PRODUCTION
  • Dependent on:

SPECIFIC ABSORPTION RATE

Tissue conductivity

charged molecules

dipolar molecules

non-polar molecules

Electrical field magnitude

charged molecules
Charged Molecules
  • Ions and certain proteins
  • Molecules are accelerated along lines of electric force
  • Most efficient way of heat production

+

-

-

+

+

-

+

-

dipolar molecules

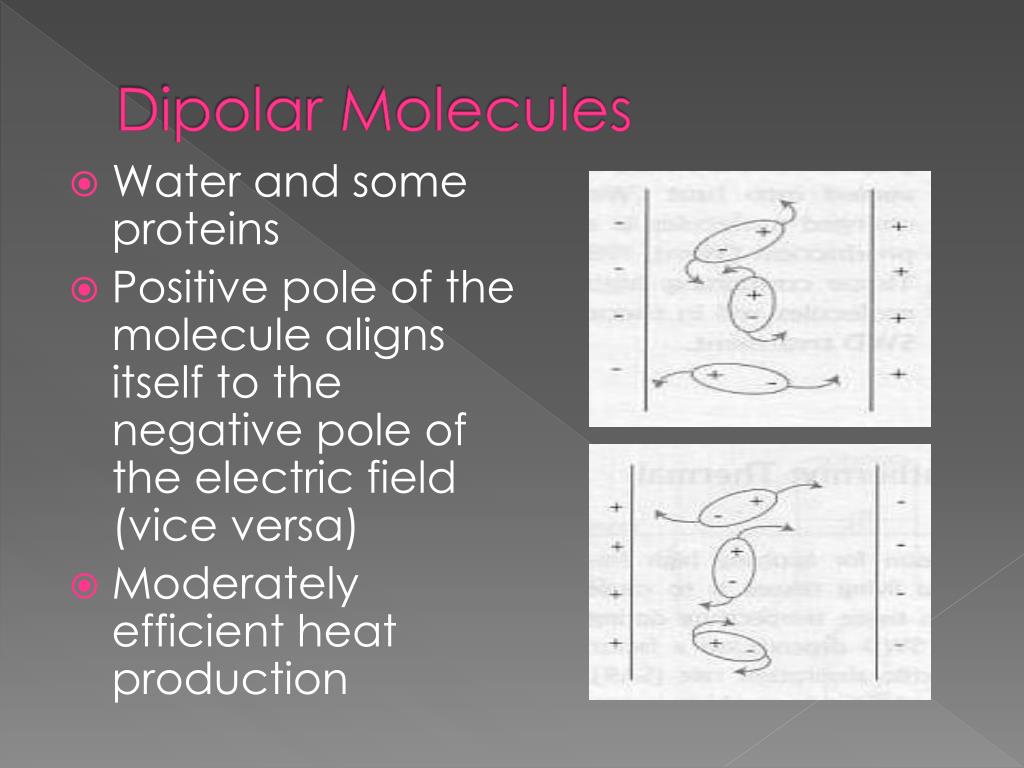

Dipolar Molecules
  • Water and some proteins
  • Positive pole of the molecule aligns itself to the negative pole of the electric field (vice versa)
  • Moderately efficient heat production
non polar molecules
Non-Polar Molecules
  • Fat cells
  • Electron cloud is distorted but negligible heat is produced
  • Least efficient heat production
clinical implication

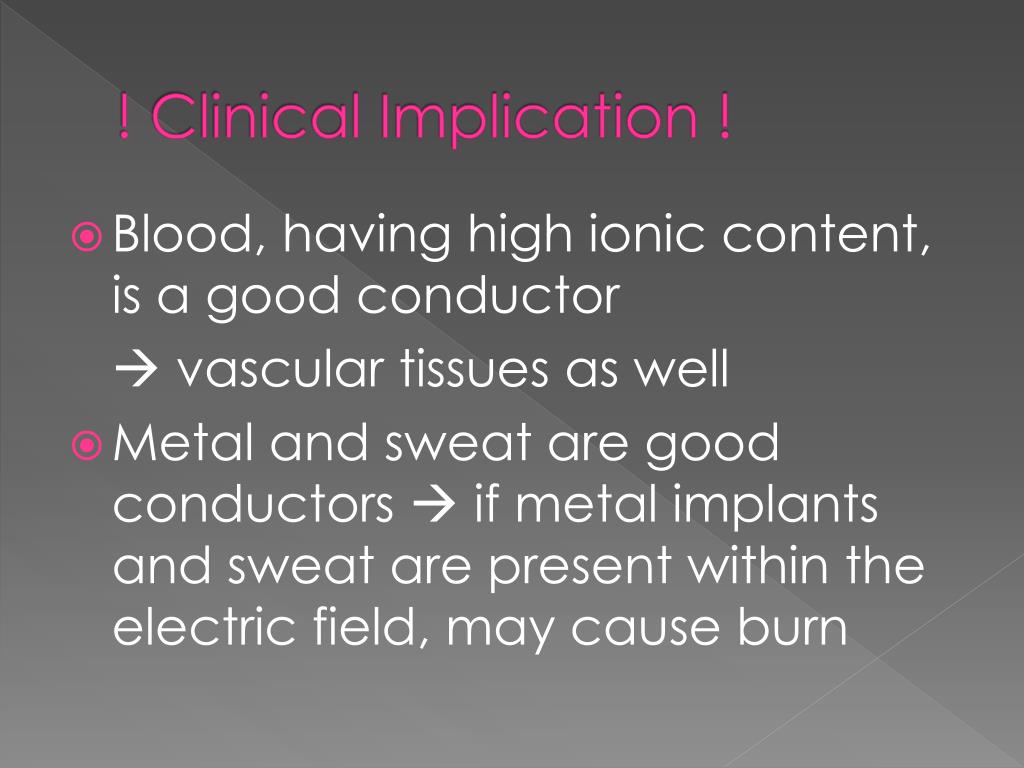

! Clinical Implication !
  • Blood, having high ionic content, is a good conductor

 vascular tissues as well

  • Metal and sweat are good conductors  if metal implants and sweat are present within the electric field, may cause burn
condenser field

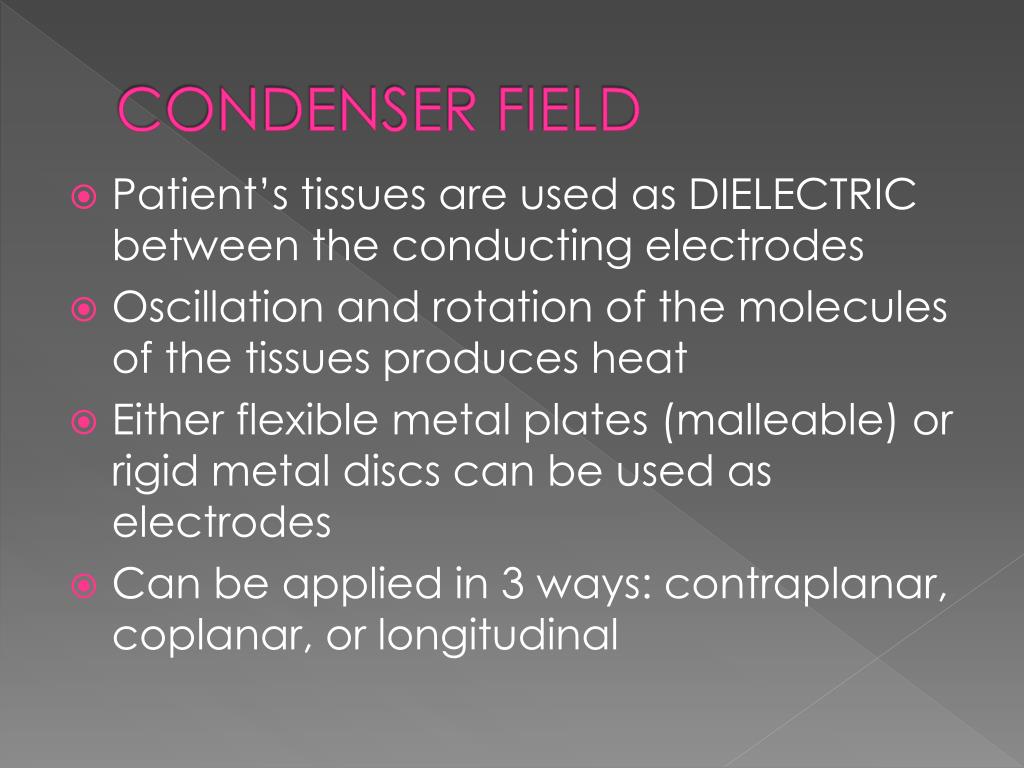

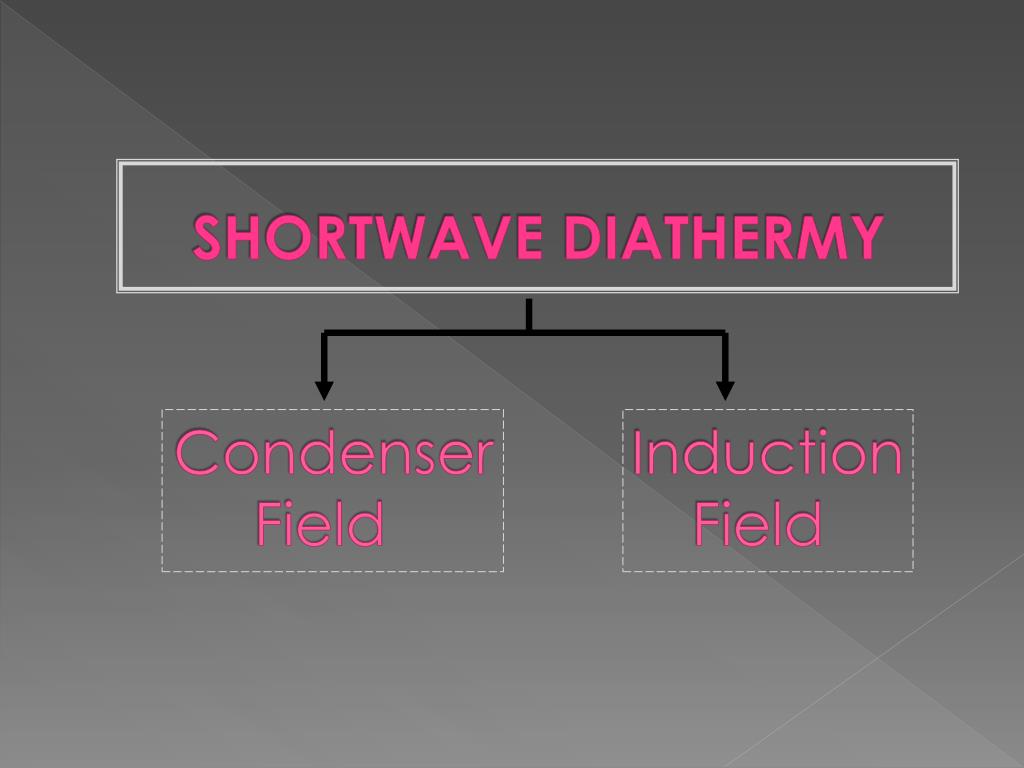

CONDENSER FIELD
  • Patient’s tissues are used as DIELECTRIC between the conducting electrodes
  • Oscillation and rotation of the molecules of the tissues produces heat
  • Either flexible metal plates (malleable) or rigid metal discs can be used as electrodes
  • Can be applied in 3 ways: contraplanar, coplanar, or longitudinal
ways of application
Ways of Application
  • Contraplanar

- aka Transverse positioning

- plates are on either side of the limb

ways of application1

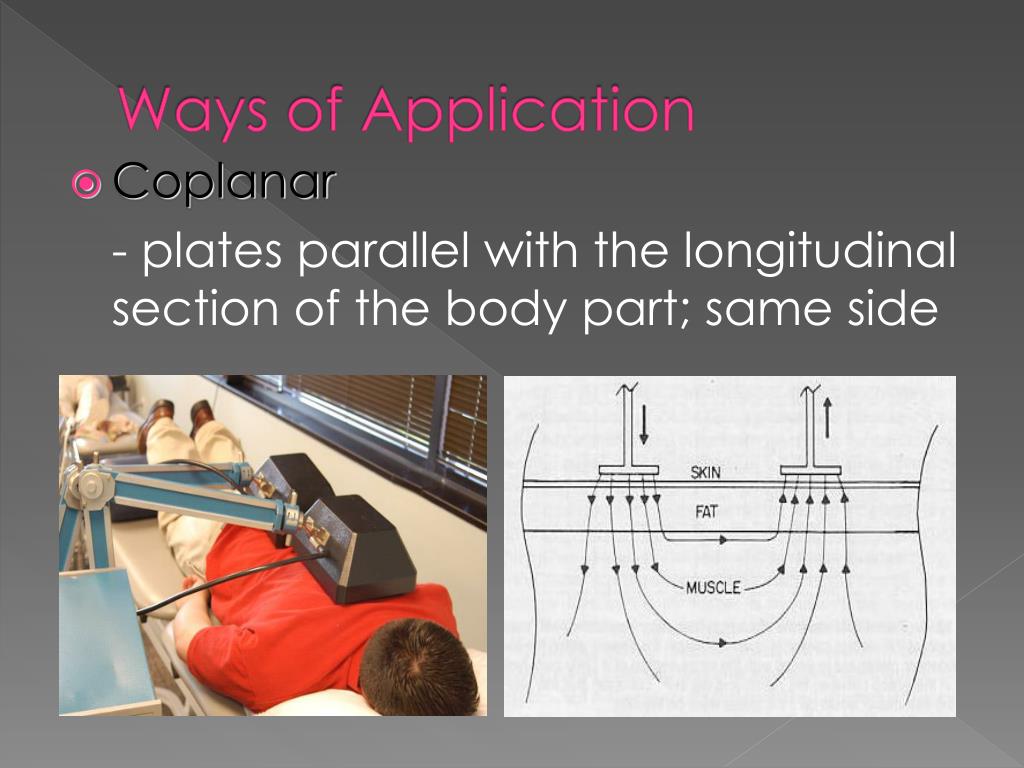

Ways of Application
  • Coplanar

- plates parallel with the longitudinal section of the body part; same side

ways of application2
Ways of Application
  • Longitudinal

- plates are placed at each end of the limb

in what way should swd be applied

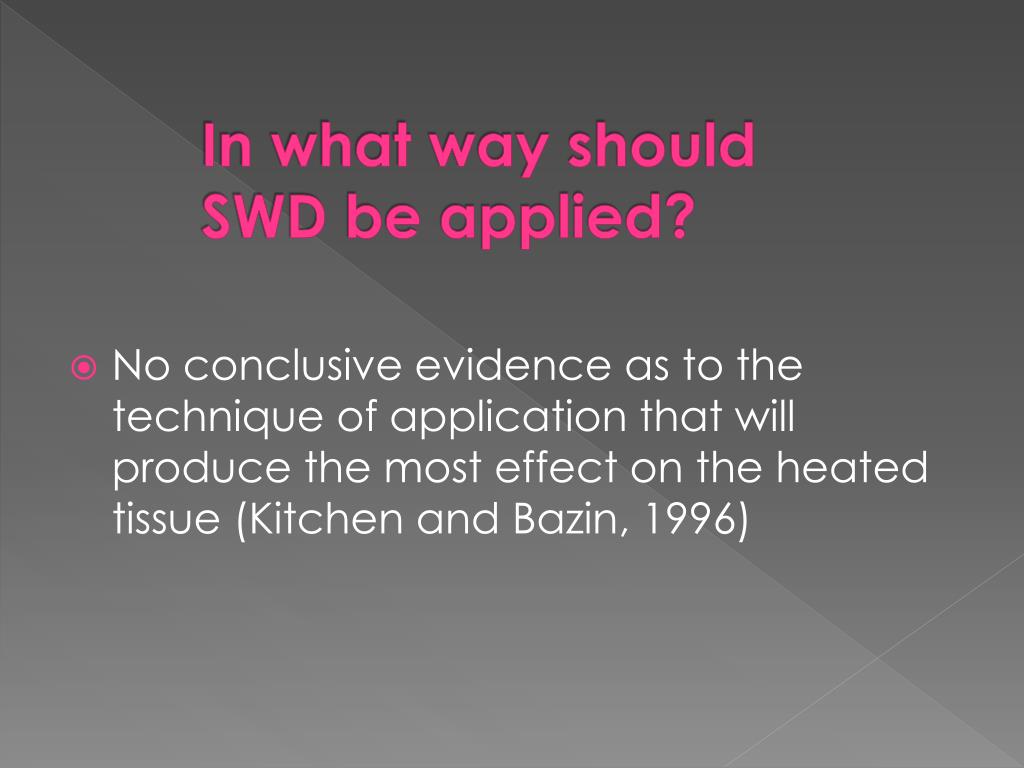

In what way should SWD be applied?
  • No conclusive evidence as to the technique of application that will produce the most effect on the heated tissue (Kitchen and Bazin, 1996)
guidelines

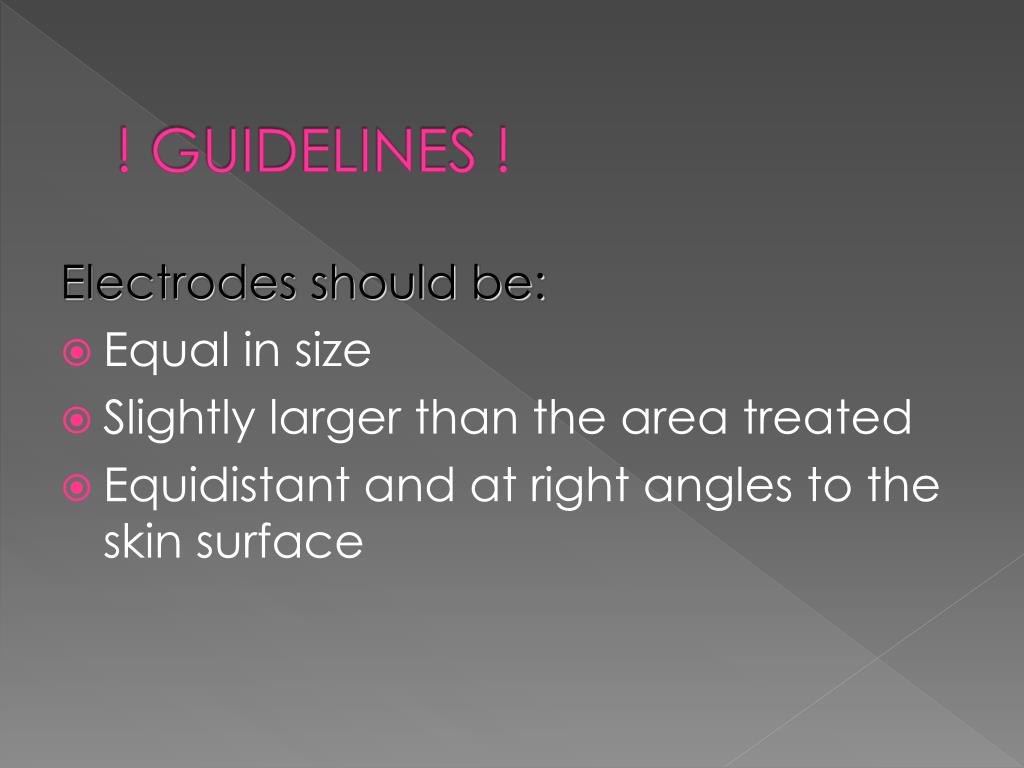

! GUIDELINES !

Electrodes should be:

  • Equal in size
  • Slightly larger than the area treated
  • Equidistant and at right angles to the skin surface
induction field
INDUCTION FIELD
  • Patient is in the electromagnetic field or the electric circuit  produce strong magnetic field  induce electrical currents within the body (EDDY currents)
  • Utilizes either an insulated cable or an inductive coil applicator
arrangement of inductive coil

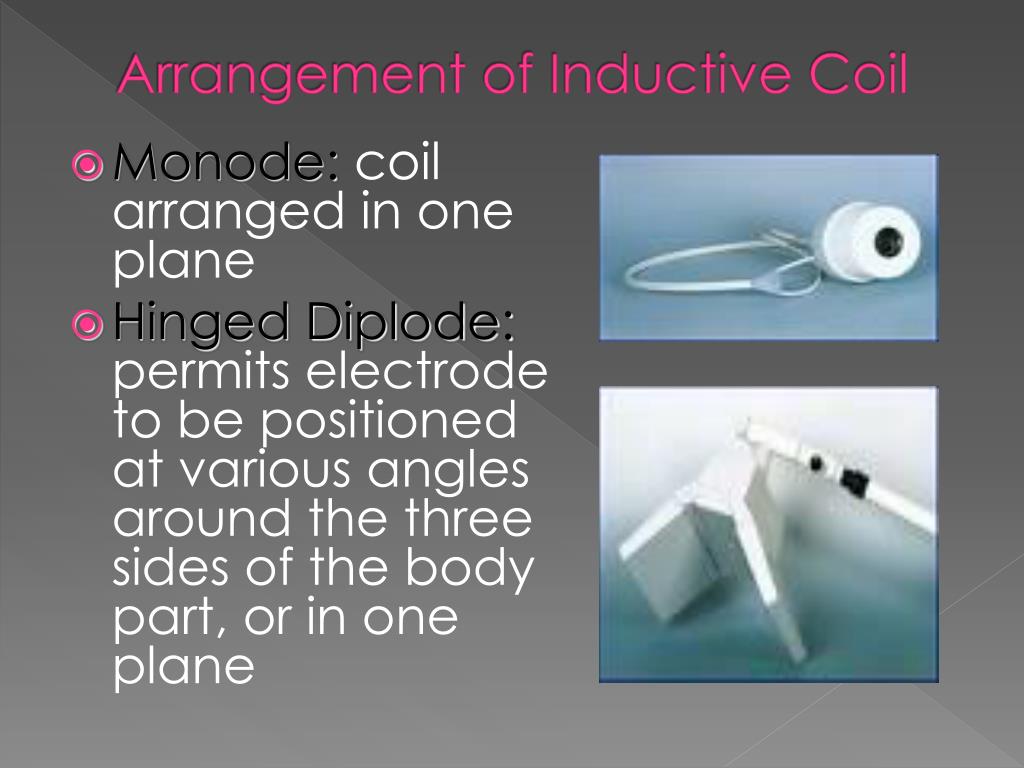

Arrangement of Inductive Coil
  • Monode: coil arranged in one plane
  • Hinged Diplode: permits electrode to be positioned at various angles around the three sides of the body part, or in one plane
which is more effective condenser or induction field
Which is more effective: condenser or induction field?
  • Some studies argue that inductive diathermy produces greater increase in temperature of deeper tissues compared to condenser/capacitive technique
  • Any deep effects following capacitive technique requires considerable increase in superficial tissue temperature
therapeutic effects continuous and pulsed
THERAPEUTIC EFFECTS(continuous and pulsed)
  • Increase blood flow
  • Assist in resolution of inflammation
  • Increase extensibility of deep collagen tissue
  • Decrease joint stiffness
  • Relieve deep muscle pain and spasm
indications

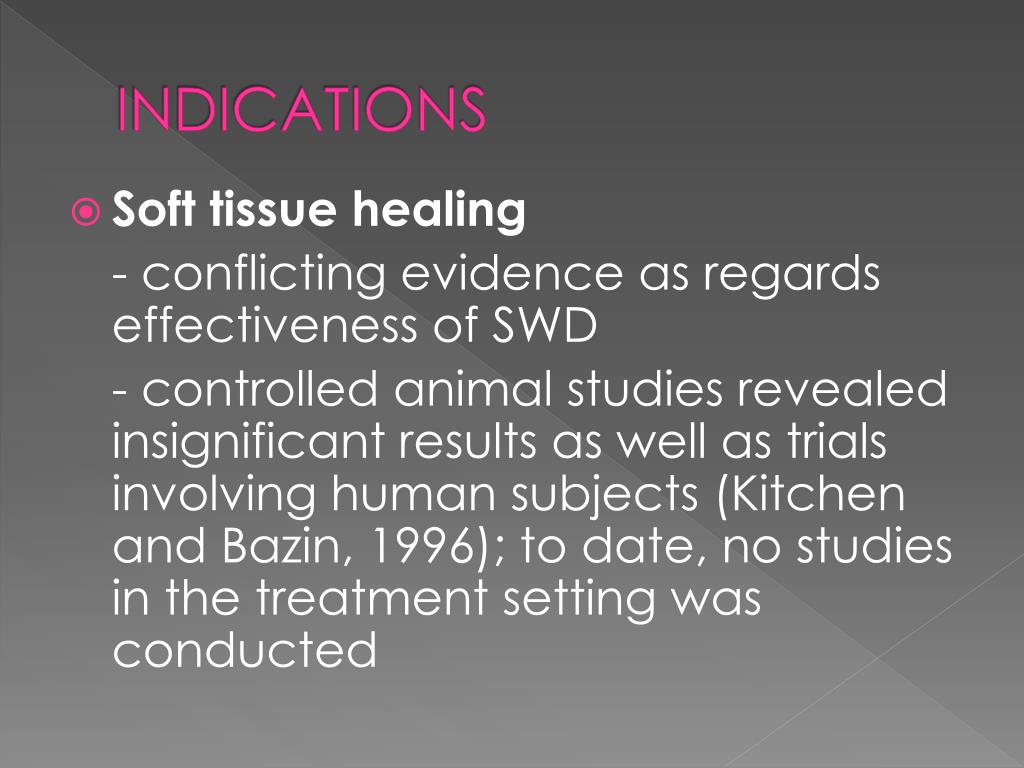

INDICATIONS
  • Soft tissue healing

- conflicting evidence as regards effectiveness of SWD

- controlled animal studies revealed insignificant results as well as trials involving human subjects (Kitchen and Bazin, 1996); to date, no studies in the treatment setting was conducted

indications1
INDICATIONS
  • Recent ankle injuries

- inconclusive results following three double-blind protocols (Kitchen and Bazin)

indications2

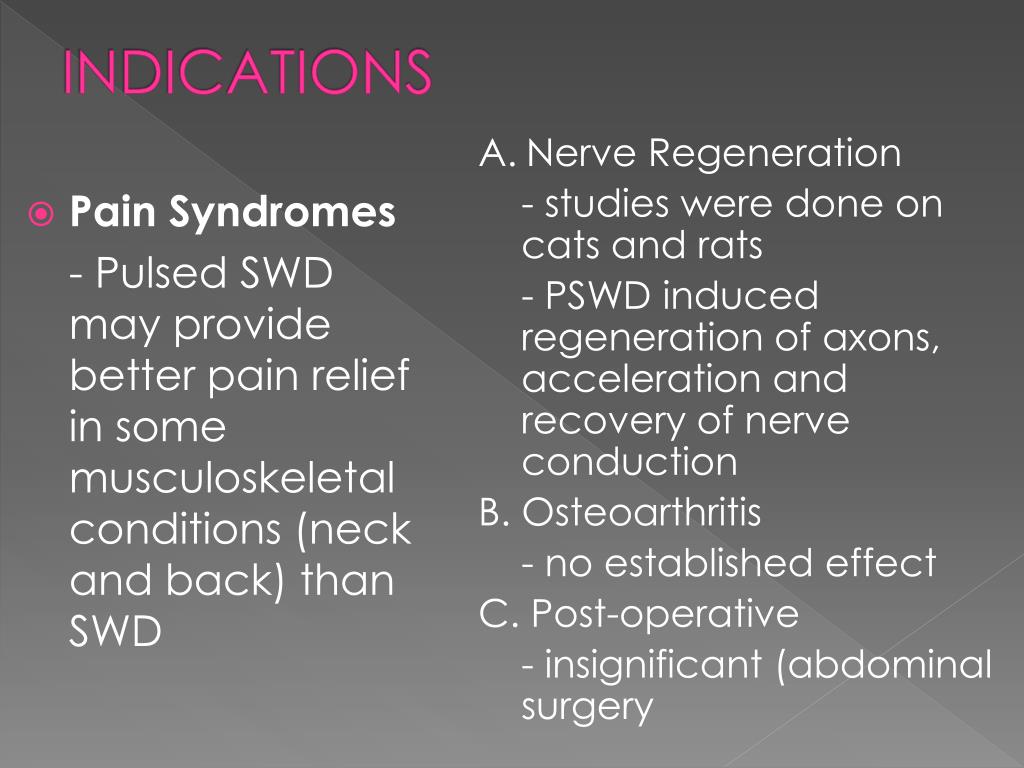

INDICATIONS
  • Pain Syndromes

- Pulsed SWD may provide better pain relief in some musculoskeletal conditions (neck and back) than SWD

A.Nerve Regeneration

- studies were done on cats and rats

- PSWD induced regeneration of axons, acceleration and recovery of nerve conduction

B. Osteoarthritis

- no established effect

C. Post-operative

- insignificant (abdominal surgery

slide31

Superficial and deep heating

  • Frequency: 300 MHz to 300 GHz
  • Wavelength: 1m to 1mm
  • Therapeutic Parameters:

A. 122.5 mm – 2456 MHz

B. 327 mm – 915 MHz

C. 690 mm – 433.9 MHz

  • Dosage: acute 5 to 15 minutes

chronic 10 to 20 minutes

how is microwave produced
How is microwave produced?
  • Direct current (DC) is shunted to the cathode in the magnetron valve
  • Release of electrons from the cathode to the multi-cavity anode valve
  • Electrons oscillate at predetermined frequency
  • High frequency alternating current is transmitted along a coaxial cable
  • Coaxial cable transmits energy to a director
fate of microwave
Fate of Microwave
  • Absorbed

- energy is taken up by the material

  • Transmitted

- pass through the material without being absorbed

  • Refracted

- direction of propagation is altered

  • Reflected

- turned back from the surface

therapeutic effects

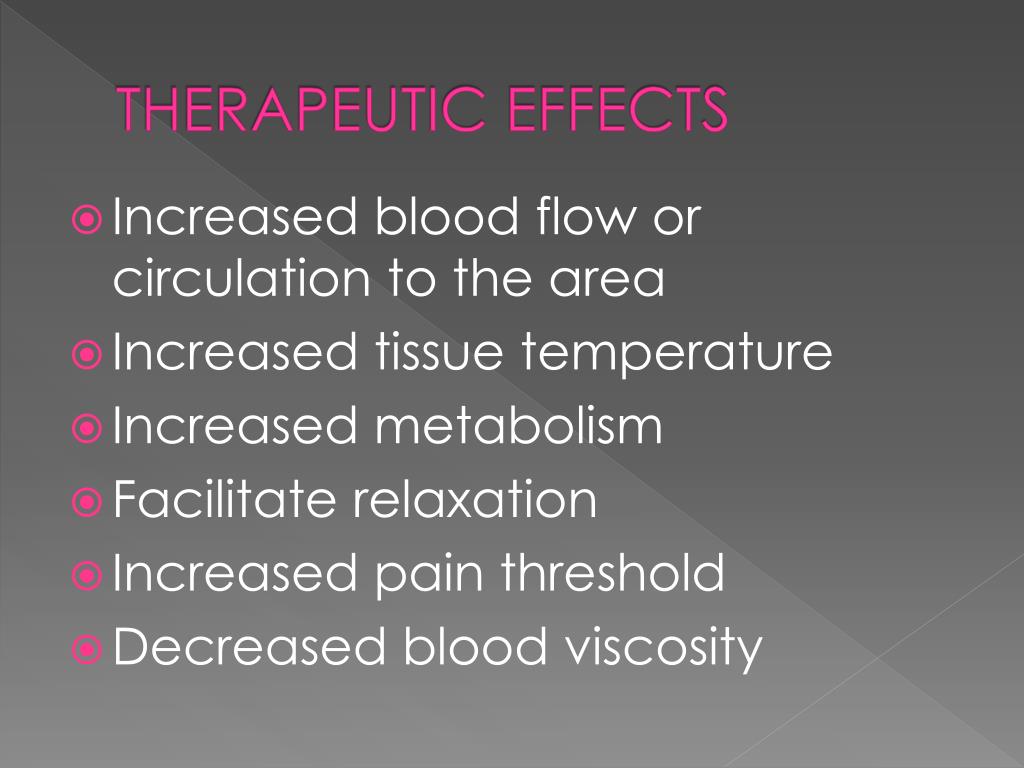

THERAPEUTIC EFFECTS
  • Increased blood flow or circulation to the area
  • Increased tissue temperature
  • Increased metabolism
  • Facilitate relaxation
  • Increased pain threshold
  • Decreased blood viscosity
indications3
INDICATIONS
  • Soft tissue injury
  • Mobilization
  • Pain relief
contraindications

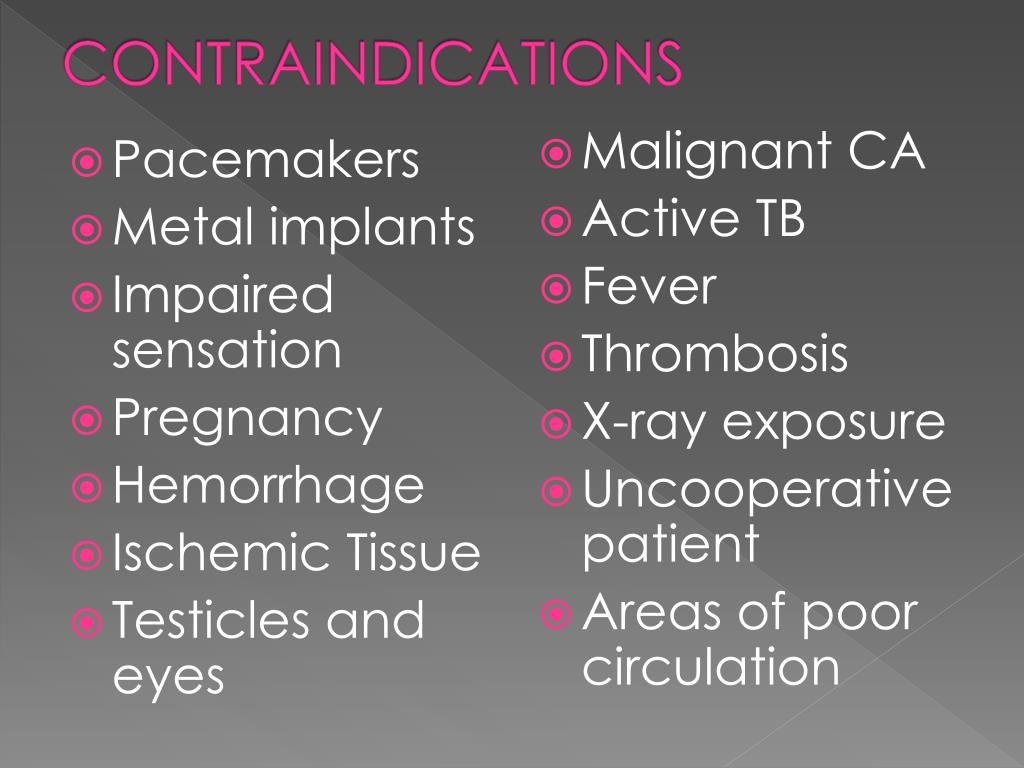

CONTRAINDICATIONS
  • Pacemakers
  • Metal implants
  • Impaired sensation
  • Pregnancy
  • Hemorrhage
  • Ischemic Tissue
  • Testicles and eyes
  • Malignant CA
  • Active TB
  • Fever
  • Thrombosis
  • X-ray exposure
  • Uncooperative patient
  • Areas of poor circulation
precautions
PRECAUTIONS
  • Operator should observe caution when handling the machine: same contraindications apply
references

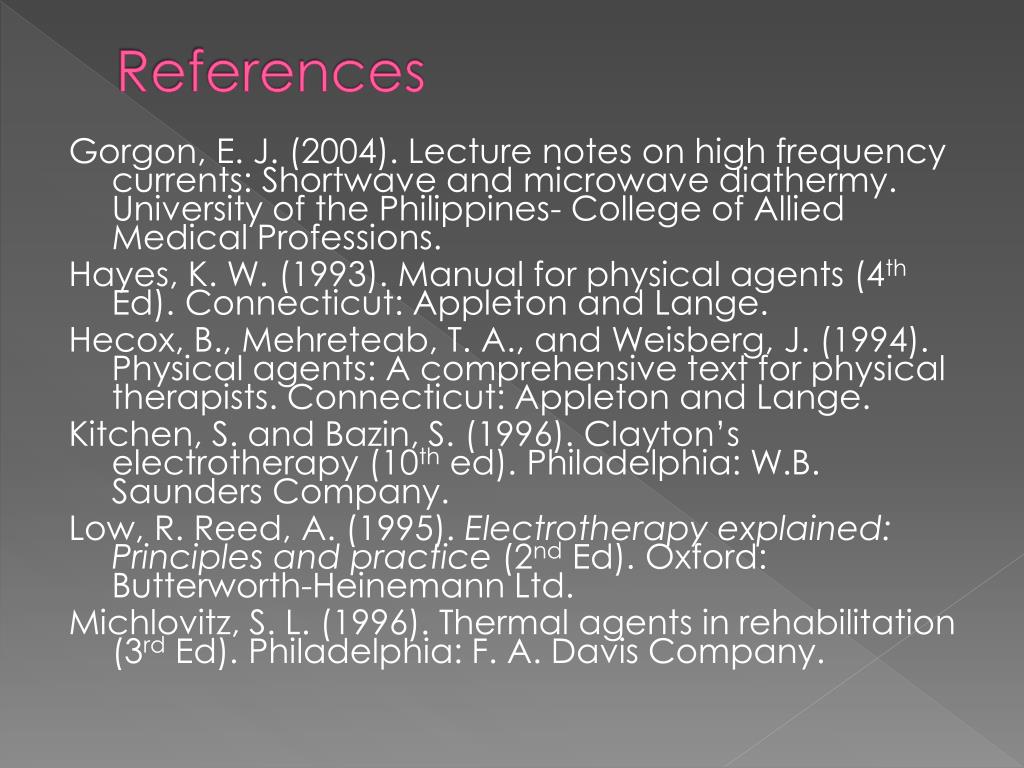

References

Gorgon, E. J. (2004). Lecture notes on high frequency currents: Shortwave and microwave diathermy. University of the Philippines- College of Allied Medical Professions.

Hayes, K. W. (1993). Manual for physical agents (4th Ed). Connecticut: Appleton and Lange.

Hecox, B., Mehreteab, T. A., and Weisberg, J. (1994). Physical agents: A comprehensive text for physical therapists. Connecticut: Appleton and Lange.

Kitchen, S. and Bazin, S. (1996). Clayton’s electrotherapy (10th ed). Philadelphia: W.B. Saunders Company.

Low, R. Reed, A. (1995). Electrotherapy explained: Principles and practice (2nd Ed). Oxford: Butterworth-Heinemann Ltd.

Michlovitz, S. L. (1996). Thermal agents in rehabilitation (3rd Ed). Philadelphia: F. A. Davis Company.
