  1. CSE 555Protocol Engineering Dr. Mohammed H. Sqalli Computer Engineering Department King Fahd University of Petroleum & Minerals Credits: Dr. Abdul Waheed (KFUPM) Spring 2004 (Term 032)

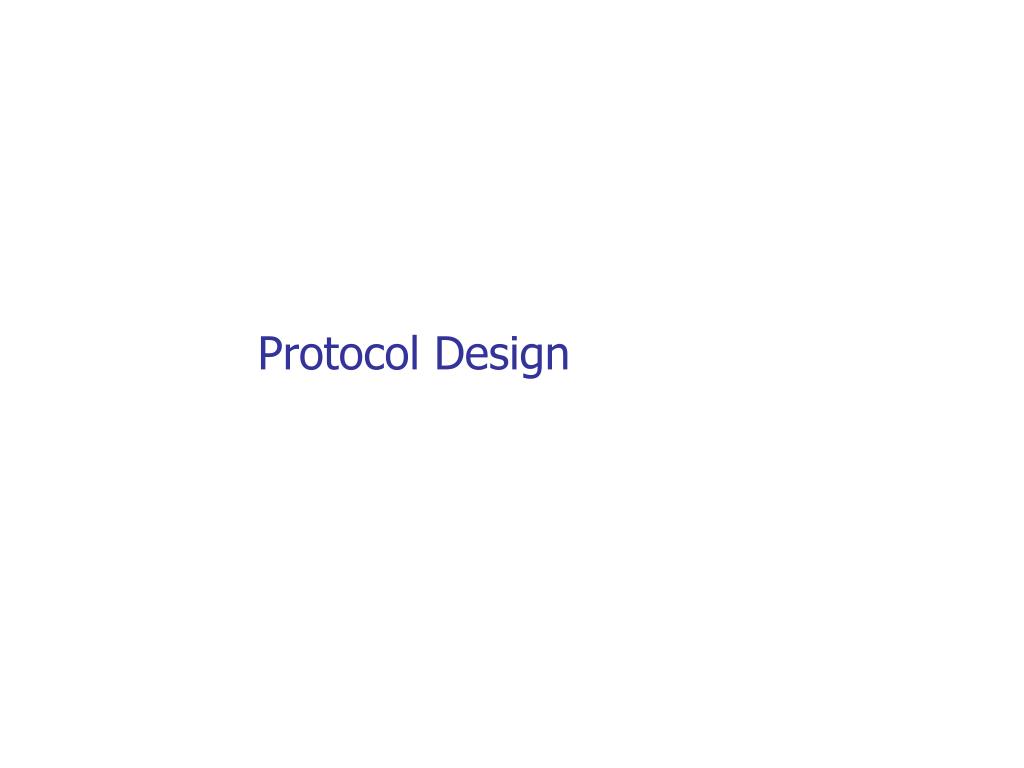

  2. Protocol Design

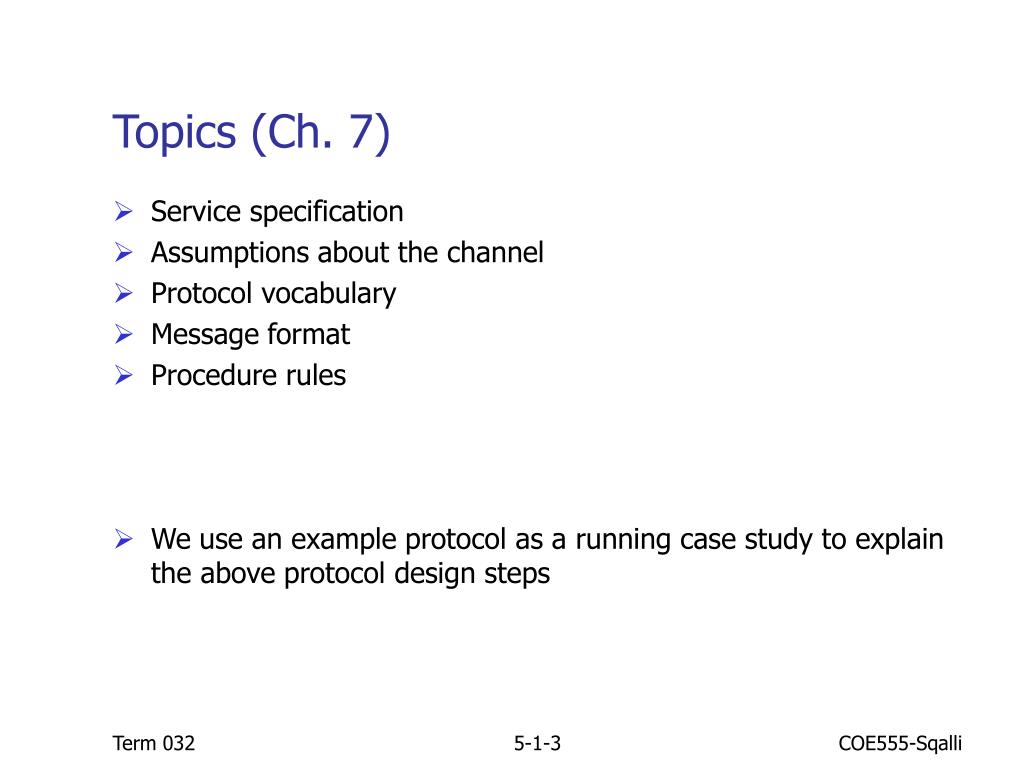

  3. Topics (Ch. 7) • Service specification • Assumptions about the channel • Protocol vocabulary • Message format • Procedure rules • We use an example protocol as a running case study to explain the above protocol design steps 5-1-3

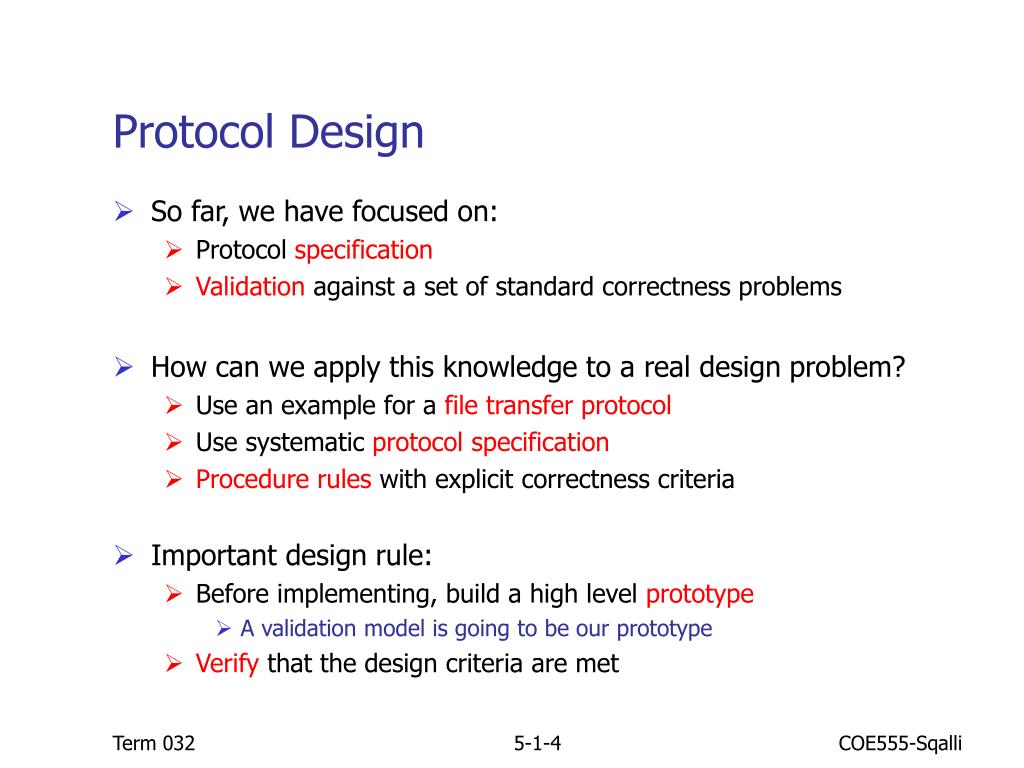

  4. Protocol Design • So far, we have focused on: • Protocol specification • Validation against a set of standard correctness problems • How can we apply this knowledge to a real design problem? • Use an example for a file transfer protocol • Use systematic protocol specification • Procedure rules with explicit correctness criteria • Important design rule: • Before implementing, build a high level prototype • A validation model is going to be our prototype • Verify that the design criteria are met 5-1-4

  5. Main Focus • We make two crucial assumptions about the design process • Protocol design is an iterative process • Each time a design phase is completed, we, the designers, will be convinced that it is error-free • Our concern is design and correctness • Important to keep in mind that we are building a validation model, not an implementation • The model is an abstraction, and as such it is a design tool in itself 5-1-5

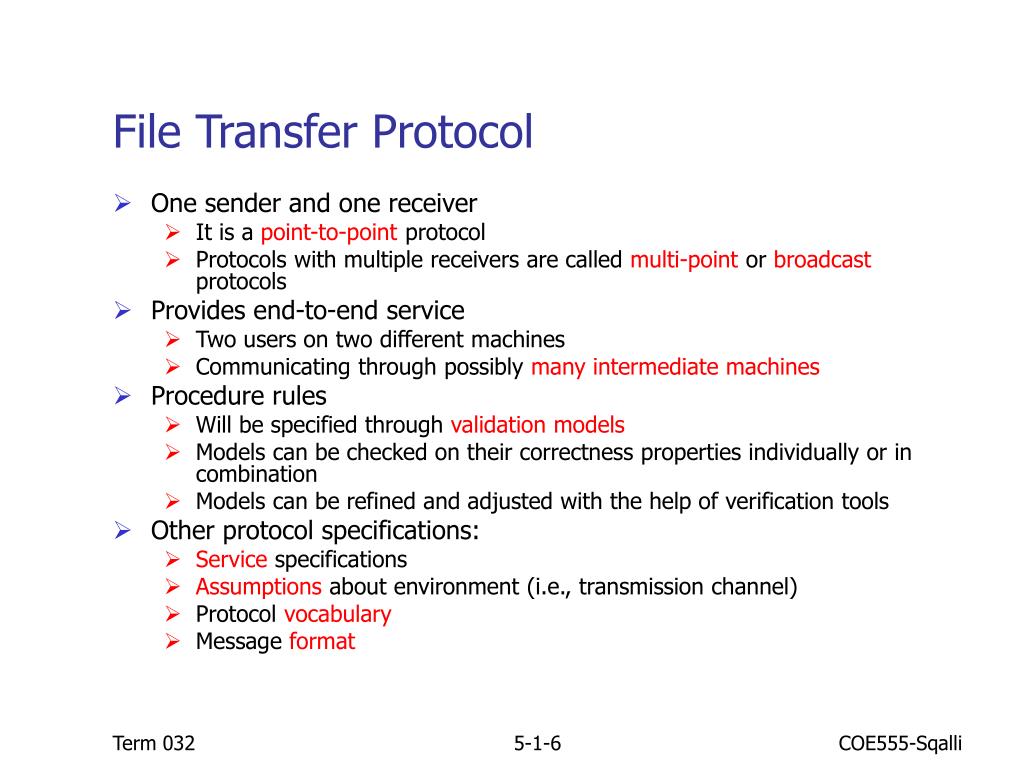

  6. File Transfer Protocol • One sender and one receiver • It is a point-to-point protocol • Protocols with multiple receivers are called multi-point or broadcast protocols • Provides end-to-end service • Two users on two different machines • Communicating through possibly many intermediate machines • Procedure rules • Will be specified through validation models • Models can be checked on their correctness properties individually or in combination • Models can be refined and adjusted with the help of verification tools • Other protocol specifications: • Service specifications • Assumptions about environment (i.e., transmission channel) • Protocol vocabulary • Message format 5-1-6

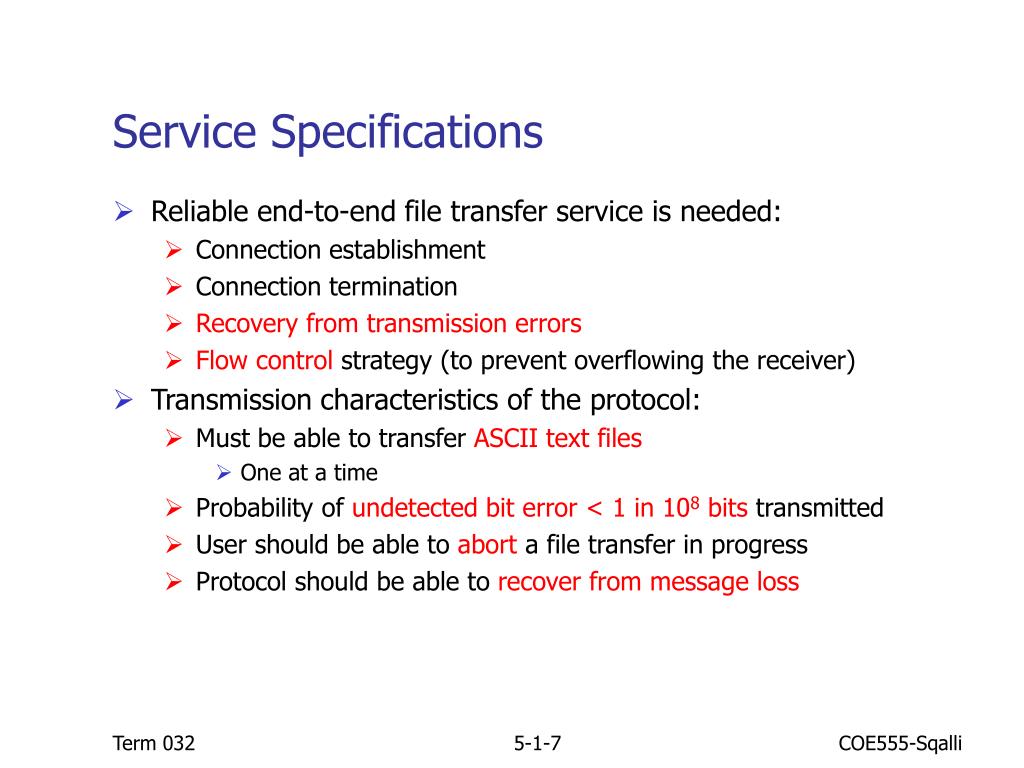

  7. Service Specifications • Reliable end-to-end file transfer service is needed: • Connection establishment • Connection termination • Recovery from transmission errors • Flow control strategy (to prevent overflowing the receiver) • Transmission characteristics of the protocol: • Must be able to transfer ASCII text files • One at a time • Probability of undetected bit error < 1 in 108 bits transmitted • User should be able to abort a file transfer in progress • Protocol should be able to recover from message loss 5-1-7

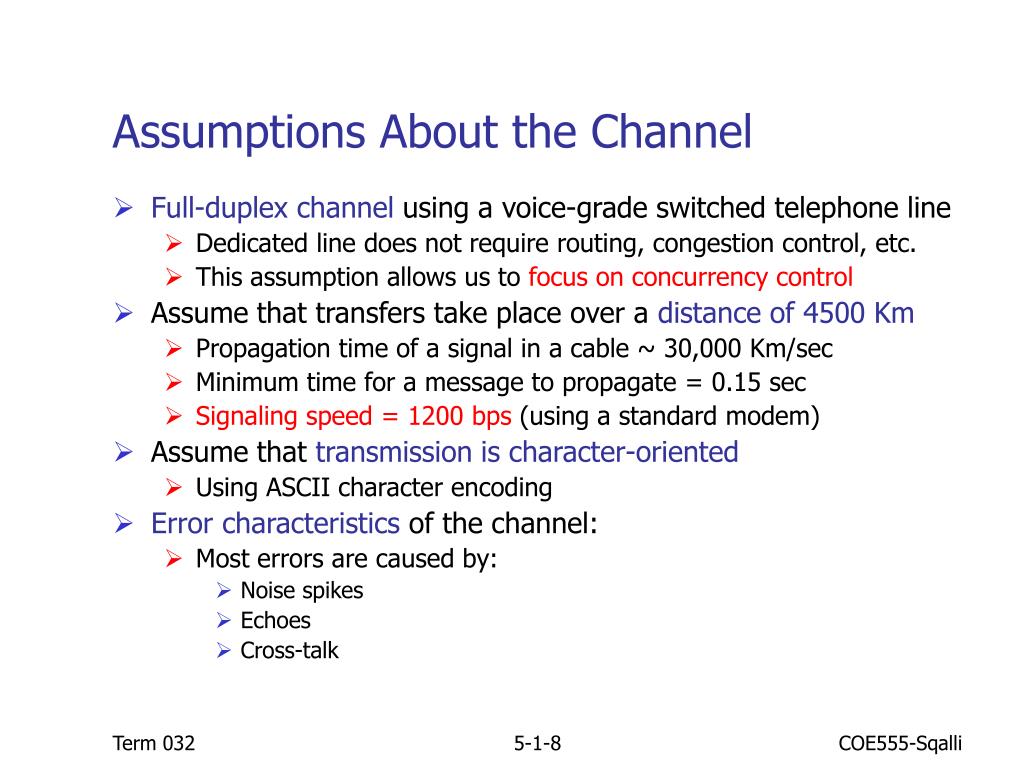

  8. Assumptions About the Channel • Full-duplex channel using a voice-grade switched telephone line • Dedicated line does not require routing, congestion control, etc. • This assumption allows us to focus on concurrency control • Assume that transfers take place over a distance of 4500 Km • Propagation time of a signal in a cable ~ 30,000 Km/sec • Minimum time for a message to propagate = 0.15 sec • Signaling speed = 1200 bps (using a standard modem) • Assume that transmission is character-oriented • Using ASCII character encoding • Error characteristics of the channel: • Most errors are caused by: • Noise spikes • Echoes • Cross-talk 5-1-8

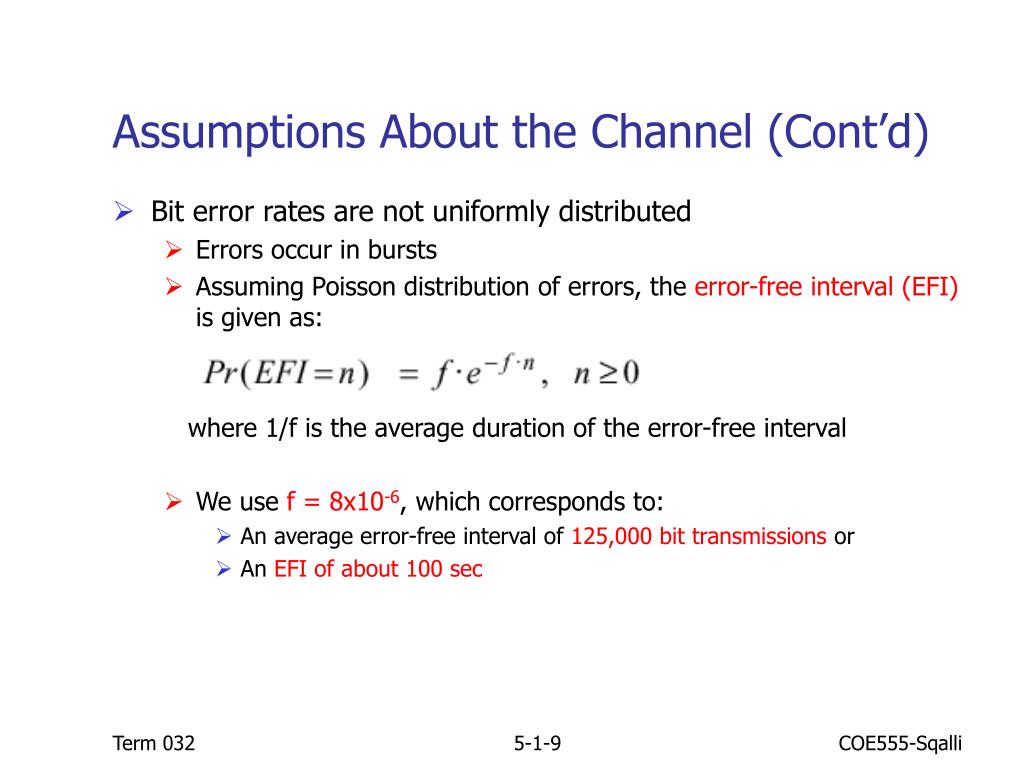

  9. Assumptions About the Channel (Cont’d) • Bit error rates are not uniformly distributed • Errors occur in bursts • Assuming Poisson distribution of errors, the error-free interval (EFI) is given as: where 1/f is the average duration of the error-free interval • We use f = 8x10-6, which corresponds to: • An average error-free interval of 125,000 bit transmissions or • An EFI of about 100 sec 5-1-9

  10. Assumptions About the Channel (Cont’d) • Error bursts: • We need to predict the probability that a given burst lasts at least n bit transmissions • Using Mandelbrot’s function: where a and g are parameters • Precise values of these parameters should be derived from measurements on the telephone channel used • Values determine the type of error control method to be used • We assume a = 0.9 and g = 0.009 5-1-10

  11. Assumptions About the Channel (Cont’d) • Average duration of burst error: • 12 bit transmission time • About 10 msec • At error rate of no more than 1 in 108 transmitted bits, at 1200 bps: • Expected EFI = 23 hours Probability of a burst Depends on its length 5-1-11

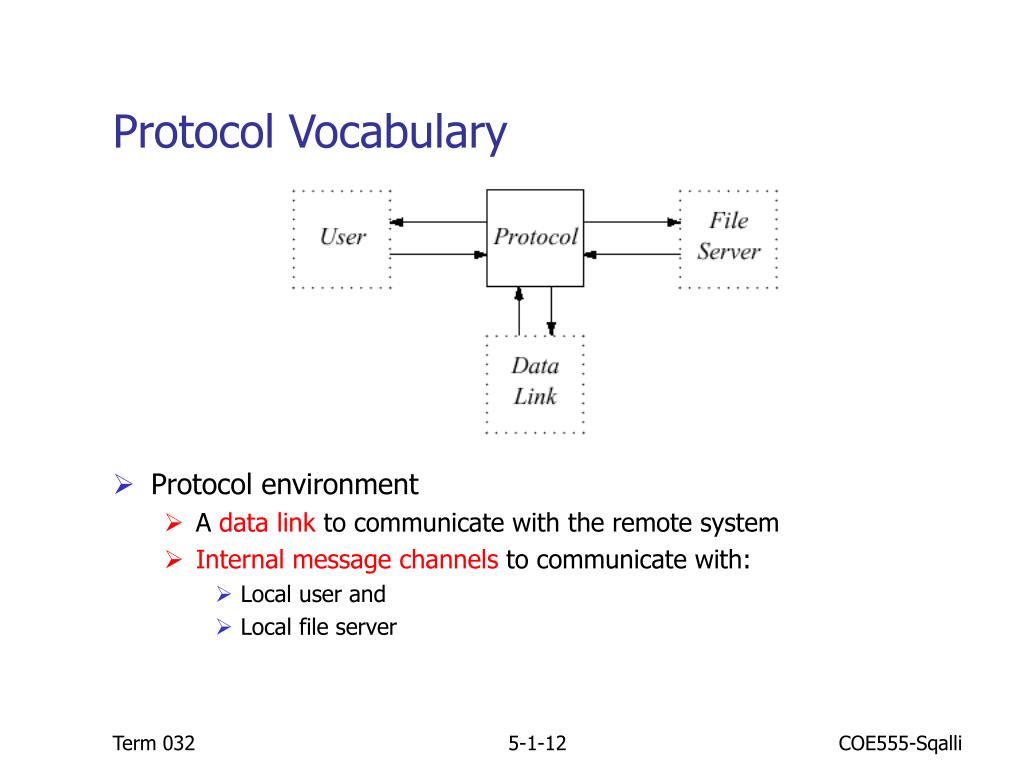

  12. Protocol Vocabulary • Protocol environment • A data link to communicate with the remote system • Internal message channels to communicate with: • Local user and • Local file server 5-1-12

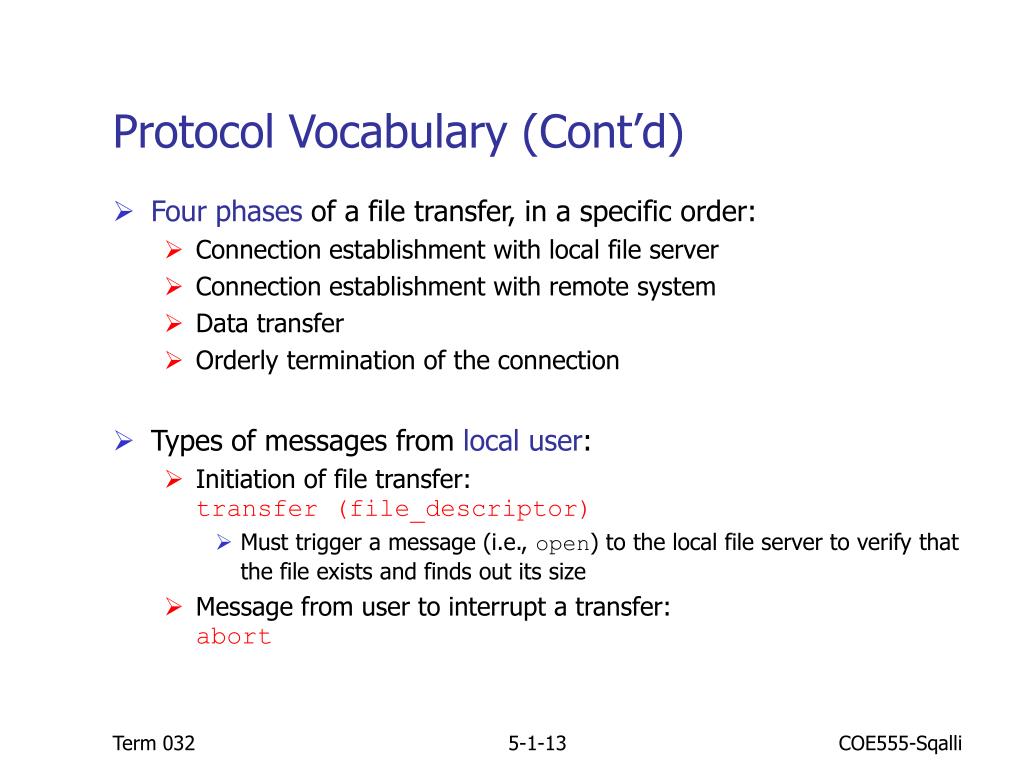

  13. Protocol Vocabulary (Cont’d) • Four phases of a file transfer, in a specific order: • Connection establishment with local file server • Connection establishment with remote system • Data transfer • Orderly termination of the connection • Types of messages from local user: • Initiation of file transfer: transfer (file_descriptor) • Must trigger a message (i.e., open) to the local file server to verify that the file exists and finds out its size • Message from user to interrupt a transfer: abort 5-1-13

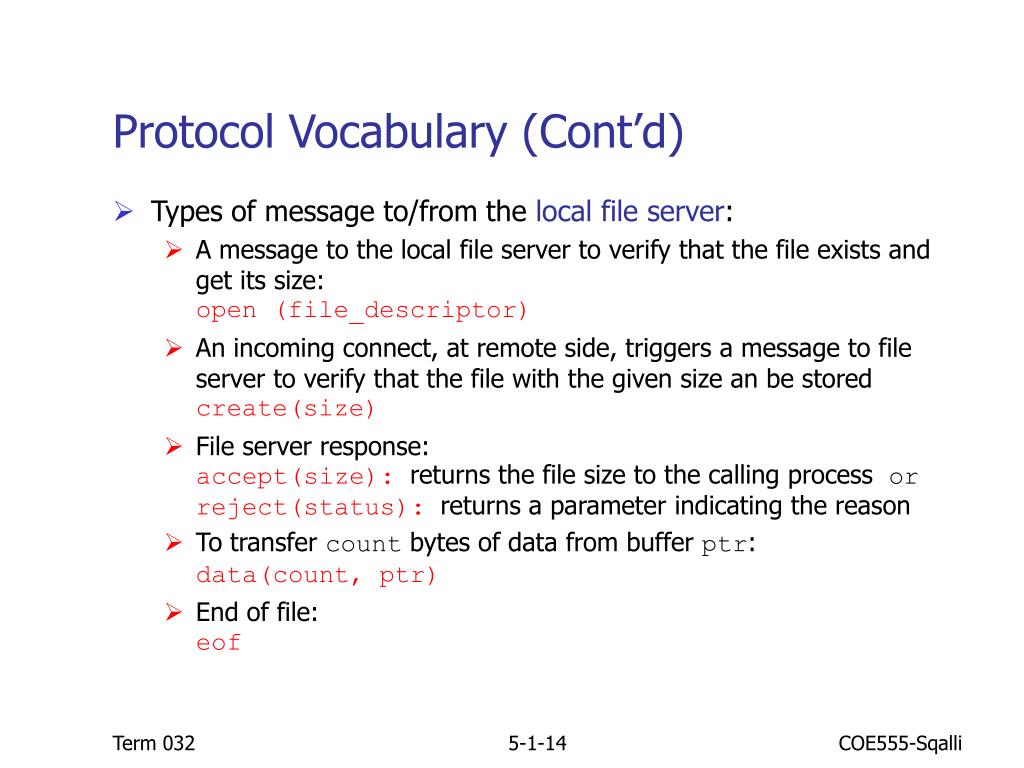

  14. Protocol Vocabulary (Cont’d) • Types of message to/from the local file server: • A message to the local file server to verify that the file exists and get its size: open (file_descriptor) • An incoming connect, at remote side, triggers a message to file server to verify that the file with the given size an be storedcreate(size) • File server response: accept(size): returns the file size to the calling process or reject(status): returns a parameter indicating the reason • To transfer count bytes of data from buffer ptr: data(count, ptr) • End of file: eof 5-1-14

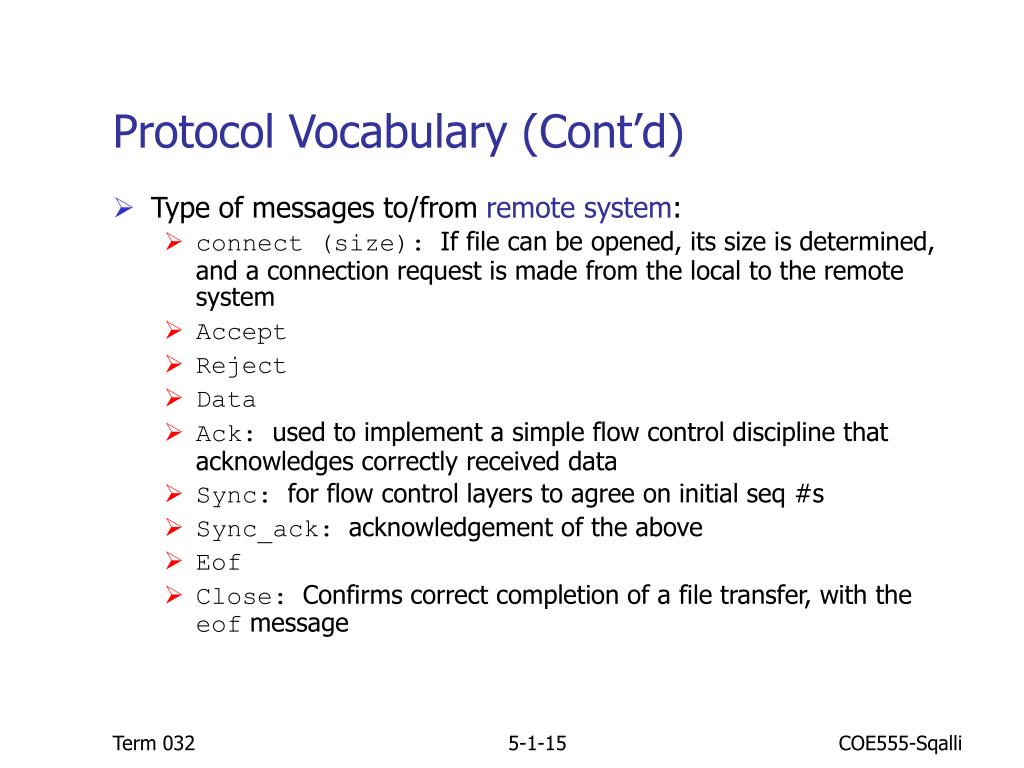

  15. Protocol Vocabulary (Cont’d) • Type of messages to/from remote system: • connect (size): If file can be opened, its size is determined, and a connection request is made from the local to the remote system • Accept • Reject • Data • Ack: used to implement a simple flow control discipline that acknowledges correctly received data • Sync: for flow control layers to agree on initial seq #s • Sync_ack: acknowledgement of the above • Eof • Close: Confirms correct completion of a file transfer, with the eof message 5-1-15

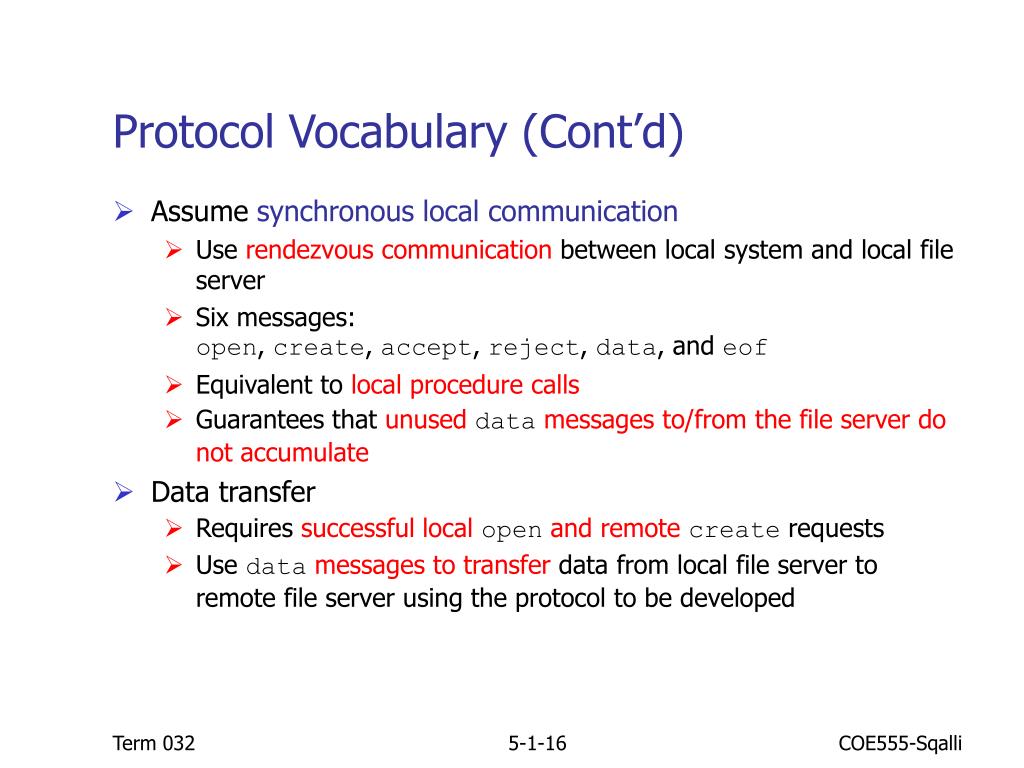

  16. Protocol Vocabulary (Cont’d) • Assume synchronous local communication • Use rendezvous communication between local system and local file server • Six messages: open, create, accept, reject, data, and eof • Equivalent to local procedure calls • Guarantees that unused data messages to/from the file server do not accumulate • Data transfer • Requires successful local open and remote create requests • Use data messages to transfer data from local file server to remote file server using the protocol to be developed 5-1-16

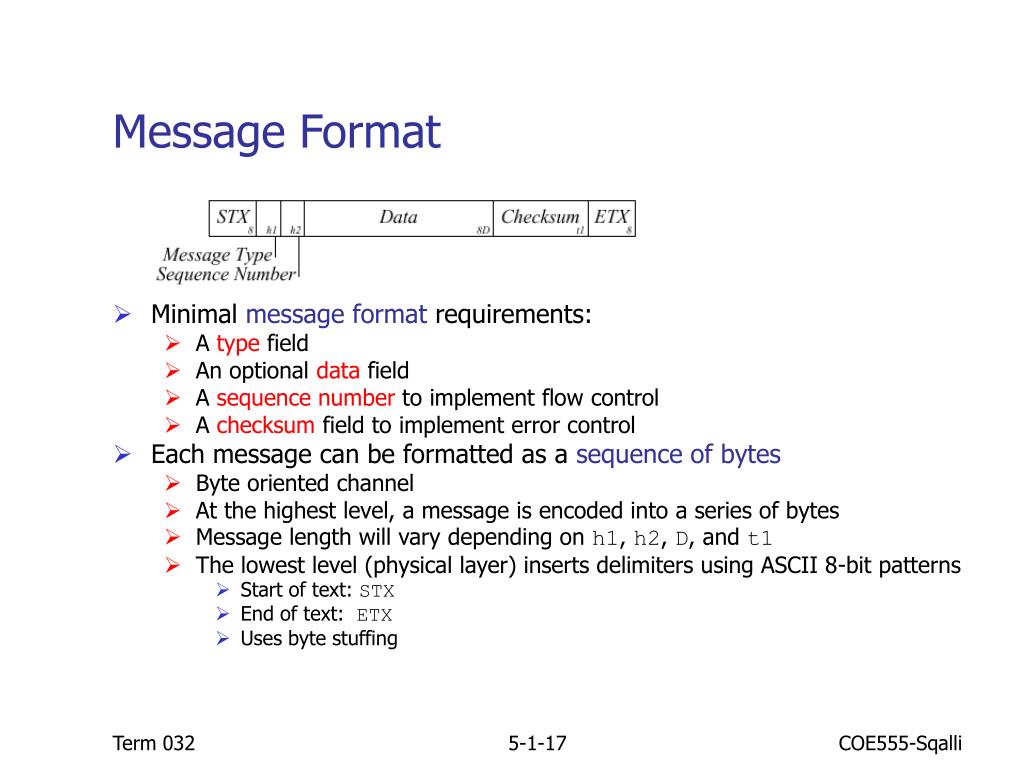

  17. Message Format • Minimal message format requirements: • A type field • An optional data field • A sequence number to implement flow control • A checksum field to implement error control • Each message can be formatted as a sequence of bytes • Byte oriented channel • At the highest level, a message is encoded into a series of bytes • Message length will vary depending on h1, h2, D, and t1 • The lowest level (physical layer) inserts delimiters using ASCII 8-bit patterns • Start of text: STX • End of text: ETX • Uses byte stuffing 5-1-17

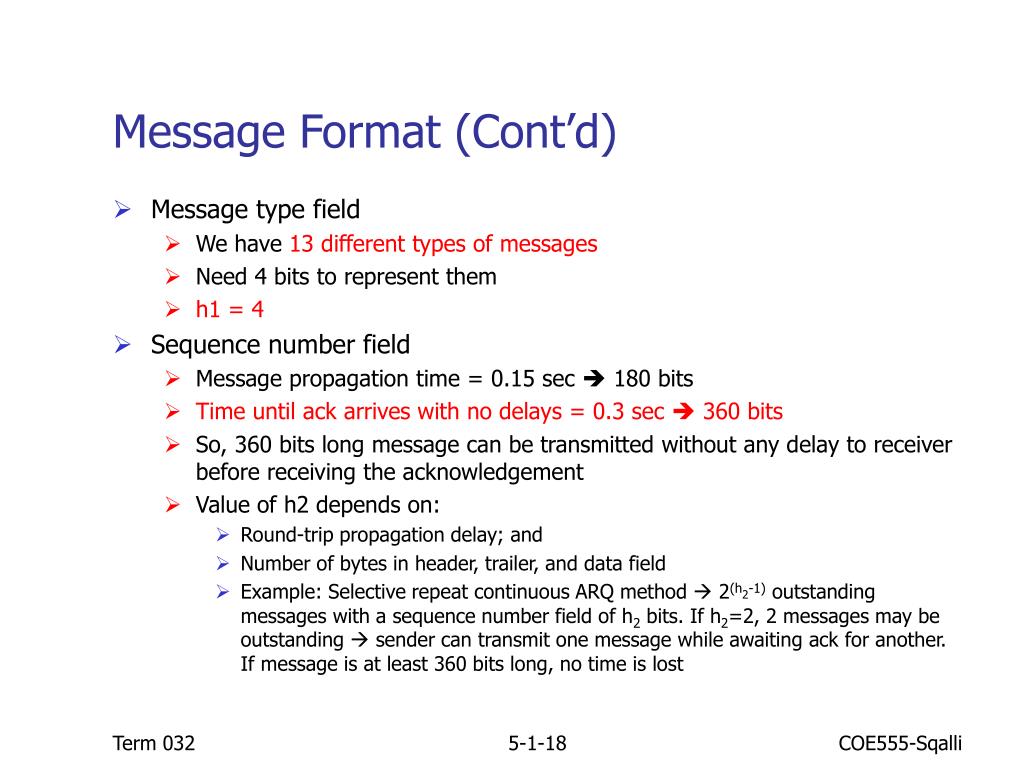

  18. Message Format (Cont’d) • Message type field • We have 13 different types of messages • Need 4 bits to represent them • h1 = 4 • Sequence number field • Message propagation time = 0.15 sec  180 bits • Time until ack arrives with no delays = 0.3 sec  360 bits • So, 360 bits long message can be transmitted without any delay to receiver before receiving the acknowledgement • Value of h2 depends on: • Round-trip propagation delay; and • Number of bytes in header, trailer, and data field • Example: Selective repeat continuous ARQ method  2(h2-1) outstanding messages with a sequence number field of h2 bits. If h2=2, 2 messages may be outstanding  sender can transmit one message while awaiting ack for another. If message is at least 360 bits long, no time is lost 5-1-18

  19. Message Format (Cont’d) • The data field: • It can have variable length • Too long data field  probability of errors increases with bits • Average EFI was estimated at 125,000 bits • Too small data field  overhead due to header and trailer is large • Minimum size of message that is transmitted without any delay: 360 bits • Optimal data length: 45 < D < 15625  Doptimal = 376 bytes • Checksum field • Error rate is low  no need for an error correcting code • For message length well below 125Kbits, most messages get through without transmission errors • Needs to catch burst errors. • Depends on the length of the burst (in this case: 12bits) and target residual bit-error rate (in this case: 10-8) • Choosing 16-bit checksum  t1 = 16 • Summary: struct { unsigned type : 4; unsigned seqno : 2; unsigned char data[376]; unsigned char checksum[2]; } message; 5-1-19

  20. Procedure Rules • Need complete and consistent rules • To be verified before implementation • We can use PROMELA model to design and debug rules • PROMELA was designed for this purpose • Issues: • How to abstract messages • Protocol layering and global structure • Refine all the layers to combine into final design 5-1-20

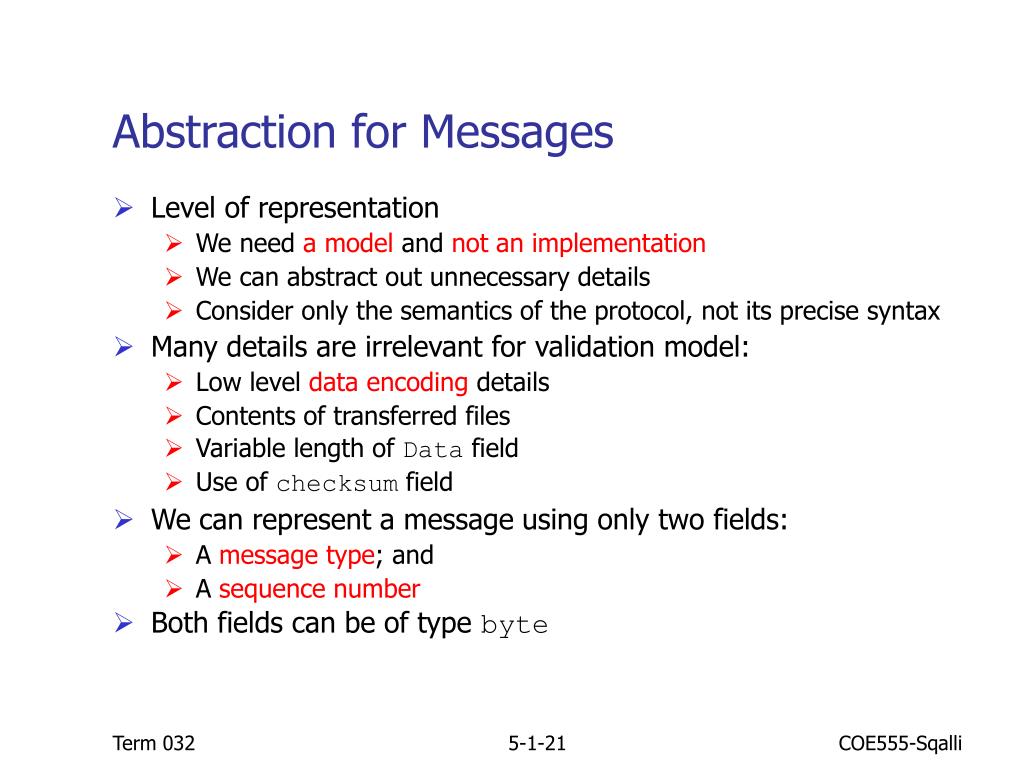

  21. Abstraction for Messages • Level of representation • We need a model and not an implementation • We can abstract out unnecessary details • Consider only the semantics of the protocol, not its precise syntax • Many details are irrelevant for validation model: • Low level data encoding details • Contents of transferred files • Variable length of Data field • Use of checksum field • We can represent a message using only two fields: • A message type; and • A sequence number • Both fields can be of type byte 5-1-21

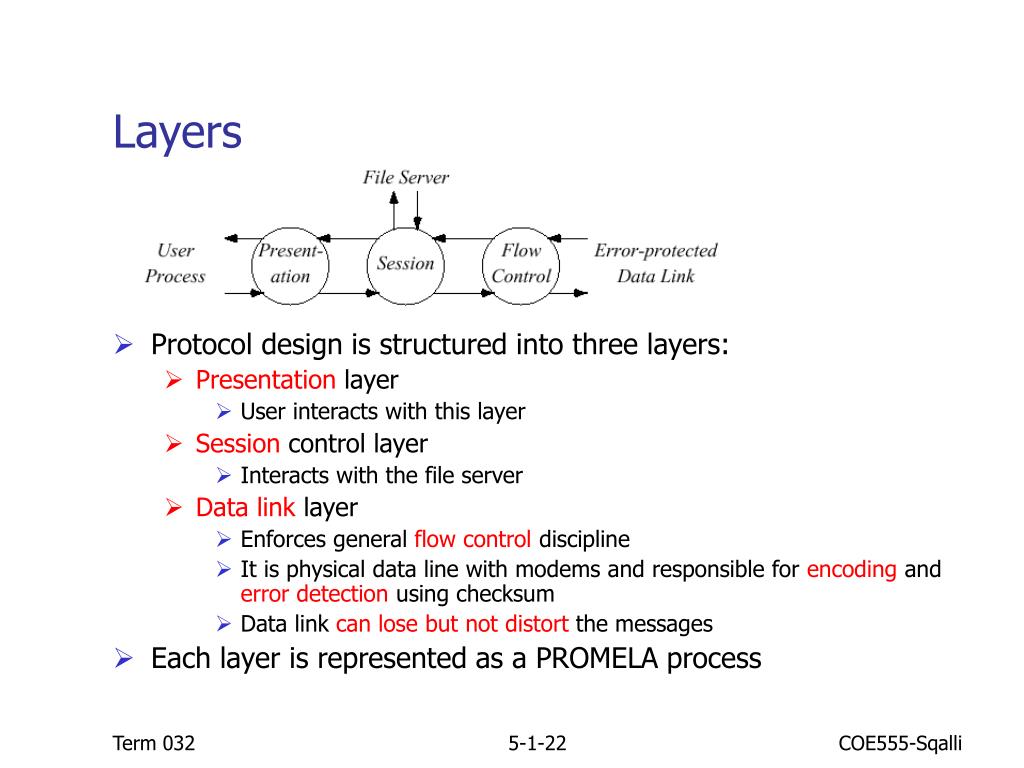

  22. Layers • Protocol design is structured into three layers: • Presentation layer • User interacts with this layer • Session control layer • Interacts with the file server • Data link layer • Enforces general flow control discipline • It is physical data line with modems and responsible for encoding and error detection using checksum • Data link can lose but not distort the messages • Each layer is represented as a PROMELA process 5-1-22

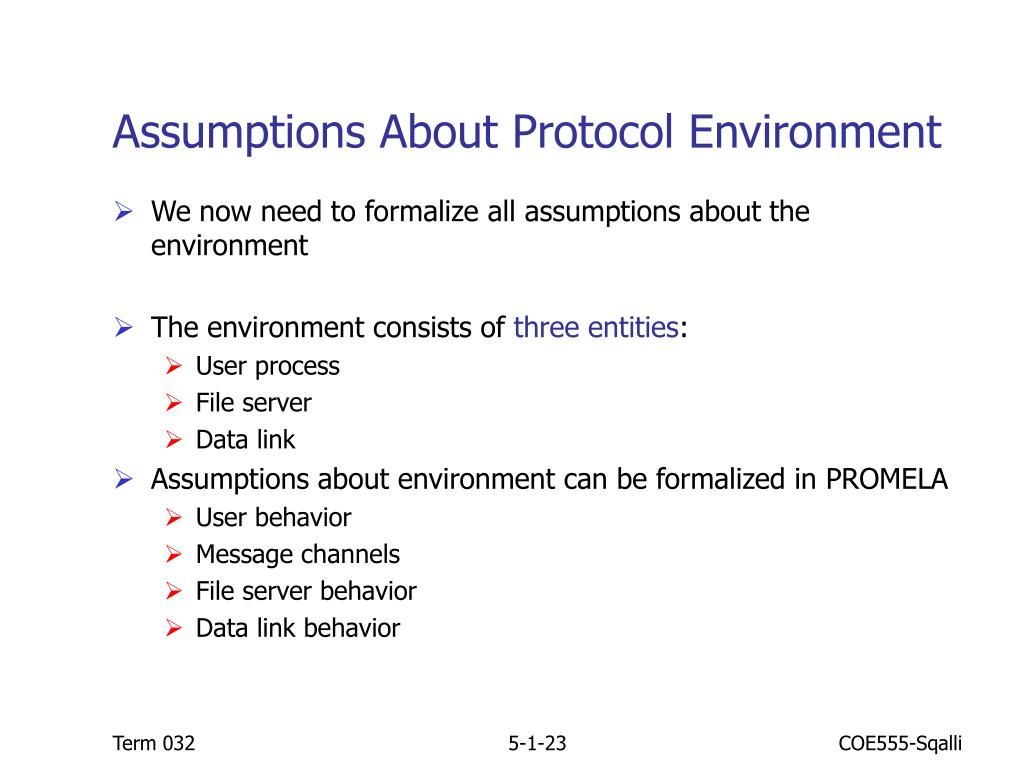

  23. Assumptions About Protocol Environment • We now need to formalize all assumptions about the environment • The environment consists of three entities: • User process • File server • Data link • Assumptions about environment can be formalized in PROMELA • User behavior • Message channels • File server behavior • Data link behavior 5-1-23

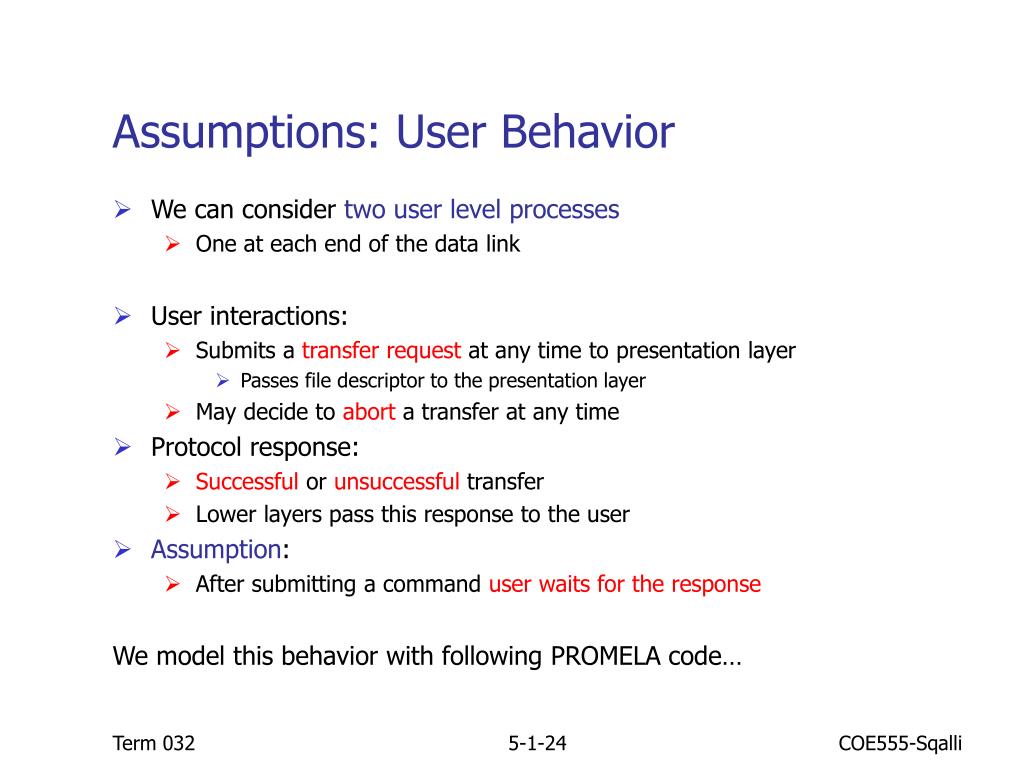

  24. Assumptions: User Behavior • We can consider two user level processes • One at each end of the data link • User interactions: • Submits a transfer request at any time to presentation layer • Passes file descriptor to the presentation layer • May decide to abort a transfer at any time • Protocol response: • Successful or unsuccessful transfer • Lower layers pass this response to the user • Assumption: • After submitting a command user waits for the response We model this behavior with following PROMELA code… 5-1-24

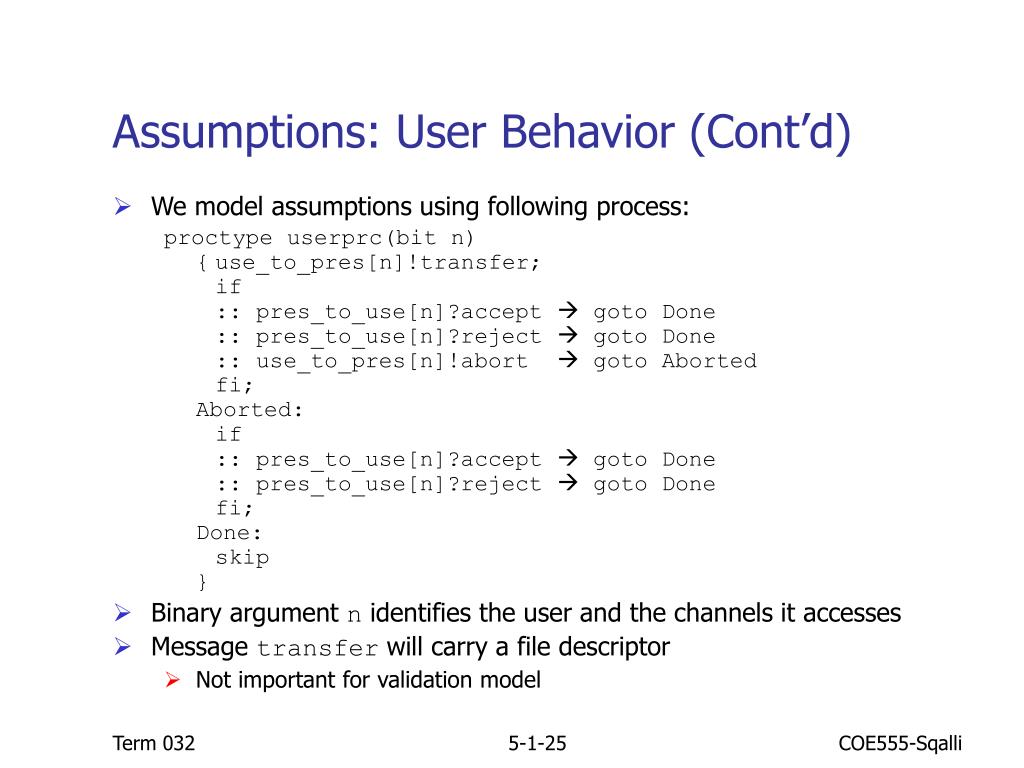

  25. Assumptions: User Behavior (Cont’d) • We model assumptions using following process: proctype userprc(bit n){ use_to_pres[n]!transfer; if :: pres_to_use[n]?accept  goto Done :: pres_to_use[n]?reject  goto Done :: use_to_pres[n]!abort  goto Aborted fi;Aborted: if :: pres_to_use[n]?accept  goto Done :: pres_to_use[n]?reject  goto Done fi;Done: skip} • Binary argument n identifies the user and the channels it accesses • Message transfer will carry a file descriptor • Not important for validation model 5-1-25

  26. Assumptions: Message Channels • Channels are defined globally, and represent communication between layers chan use_to_pres[2] = [QSZ] of { byte };chan pres_to_use[2] = [QSZ] of { byte };chan pres_to_ses[2] = [QSZ] of { byte };chan ses_to_pres[2] = [QSZ] of { byte, byte };chan ses_to_flow[2] = [QSZ] of { byte, byte };chan flow_to_ses[2] = [QSZ] of { byte, byte };chan dll_to_flow[2] = [QSZ] of { byte, byte };chan flow_to_dll[2] = [QSZ] of { byte, byte }; • Channels for synchronous communication between session layer and file server chan ses_to_fsrv[2] = [0] of { byte };chan fsrv_to_ses[2] = [0] of { byte }; 5-1-26

  27. Assumptions: File Server Behavior • We can eliminate unnecessary details • Parameters, such as fd, size, cnt, and ptr do not contribute to validation process • Specify how these two modules interact (file server and session layer) • Important to specify when data is passed rather than which data is passed 5-1-27

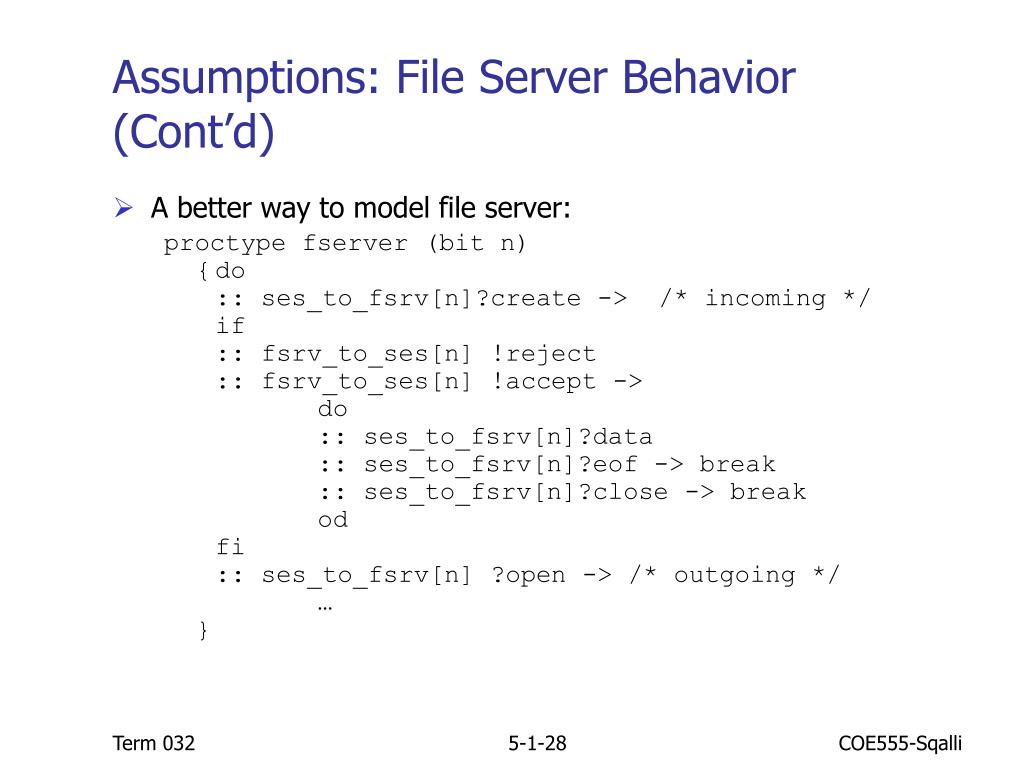

  28. Assumptions: File Server Behavior (Cont’d) • A better way to model file server: proctype fserver (bit n){ do :: ses_to_fsrv[n]?create -> /* incoming */ if :: fsrv_to_ses[n] !reject :: fsrv_to_ses[n] !accept -> do :: ses_to_fsrv[n]?data :: ses_to_fsrv[n]?eof -> break :: ses_to_fsrv[n]?close -> break od fi :: ses_to_fsrv[n] ?open -> /* outgoing */ …} 5-1-28

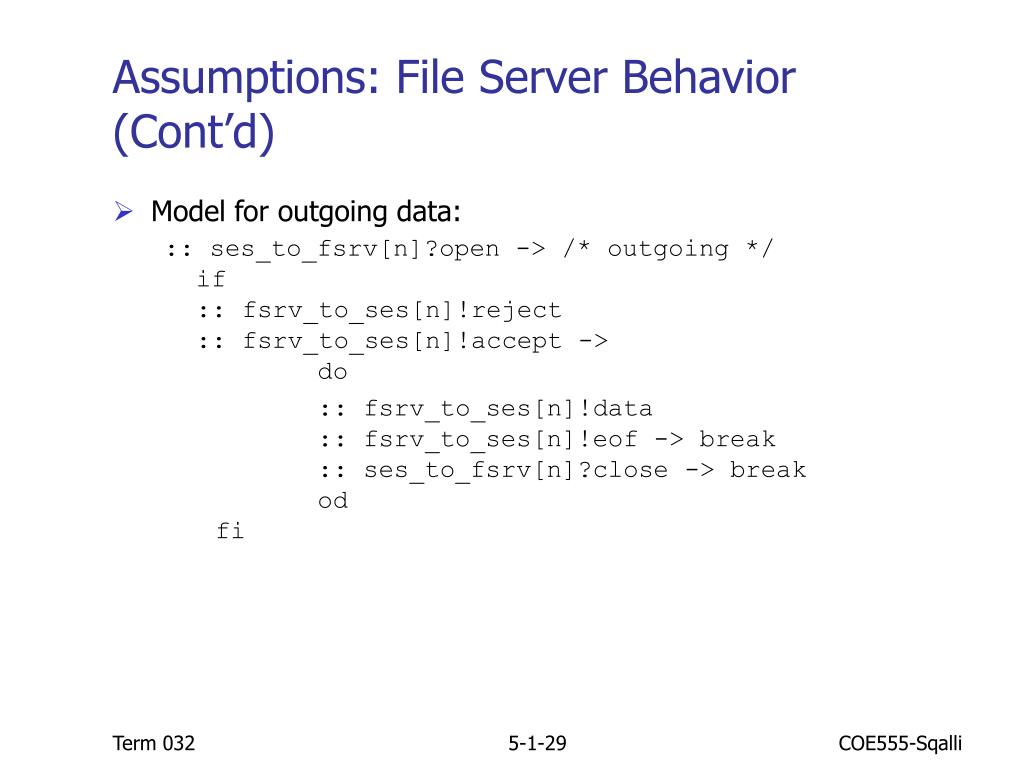

  29. Assumptions: File Server Behavior (Cont’d) • Model for outgoing data: :: ses_to_fsrv[n]?open -> /* outgoing */if:: fsrv_to_ses[n]!reject:: fsrv_to_ses[n]!accept -> do :: fsrv_to_ses[n]!data :: fsrv_to_ses[n]!eof -> break :: ses_to_fsrv[n]?close -> break od fi 5-1-29

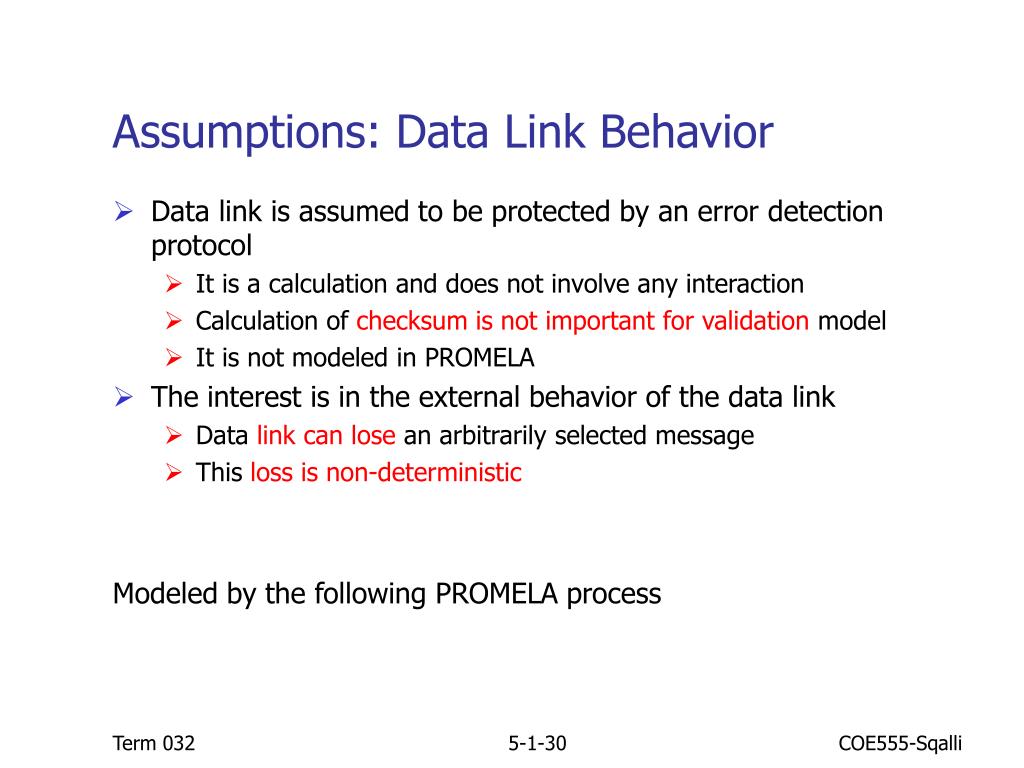

  30. Assumptions: Data Link Behavior • Data link is assumed to be protected by an error detection protocol • It is a calculation and does not involve any interaction • Calculation of checksum is not important for validation model • It is not modeled in PROMELA • The interest is in the external behavior of the data link • Data link can lose an arbitrarily selected message • This loss is non-deterministic Modeled by the following PROMELA process 5-1-30

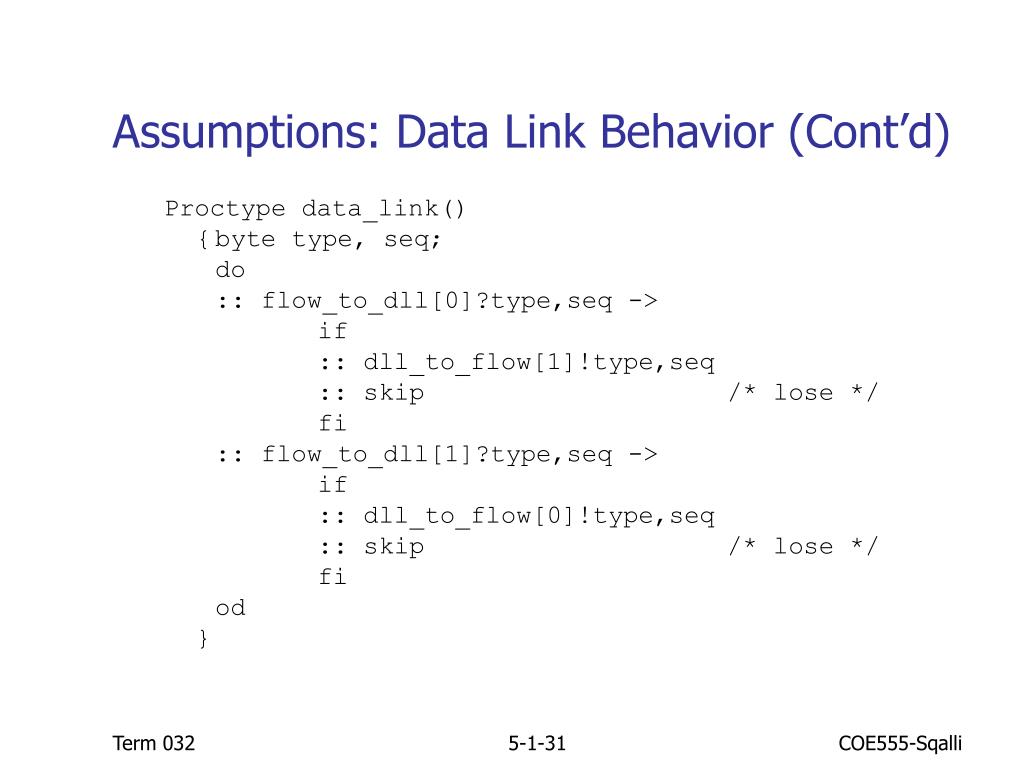

  31. Assumptions: Data Link Behavior (Cont’d) Proctype data_link(){ byte type, seq; do :: flow_to_dll[0]?type,seq -> if :: dll_to_flow[1]!type,seq :: skip /* lose */ fi :: flow_to_dll[1]?type,seq -> if :: dll_to_flow[0]!type,seq :: skip /* lose */ fi od} 5-1-31
