  1. Performance Regions CK Cheng CSE Dept. UCSD

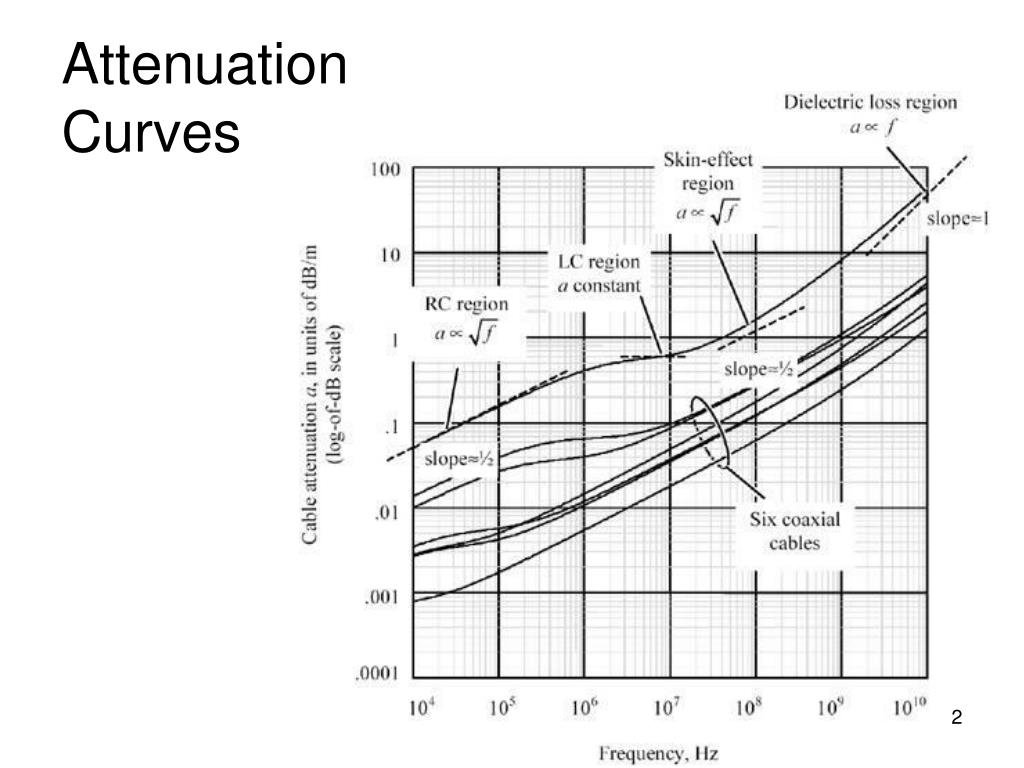

  2. Attenuation Curves

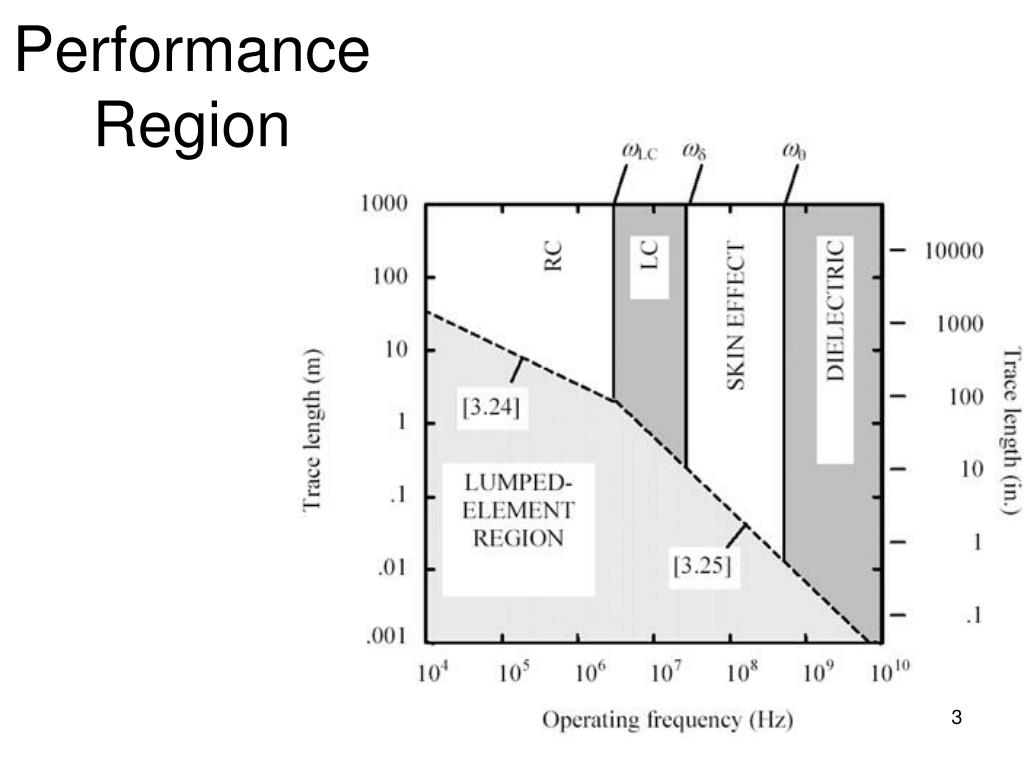

  3. Performance Region

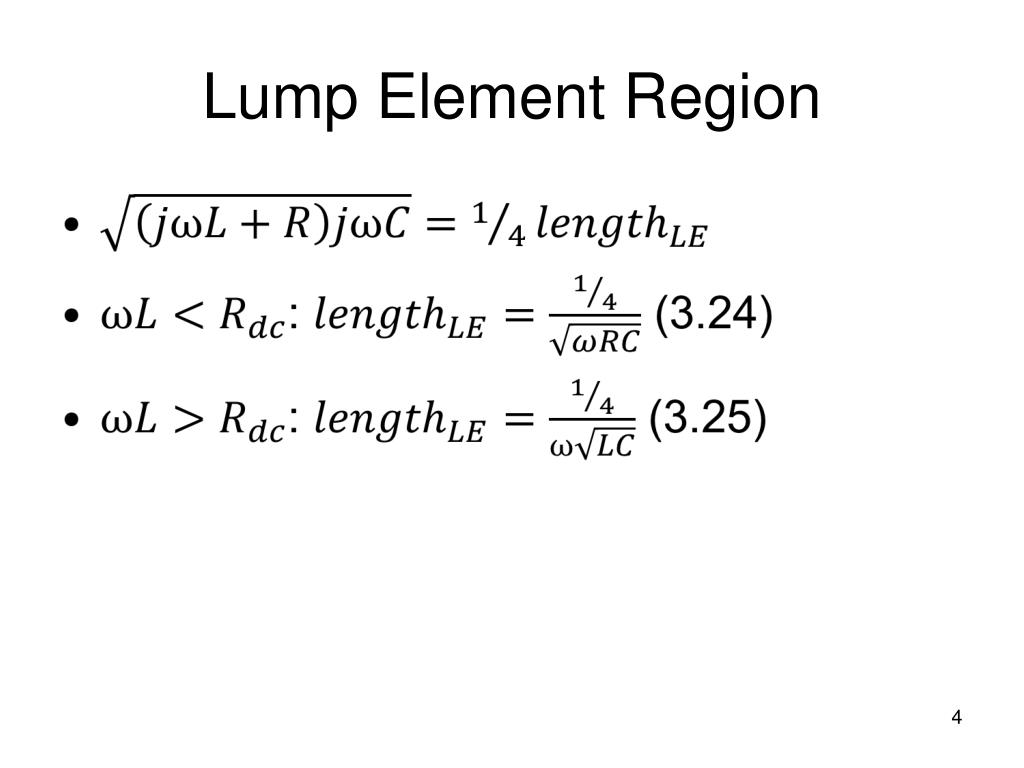

  4. Lump Element Region

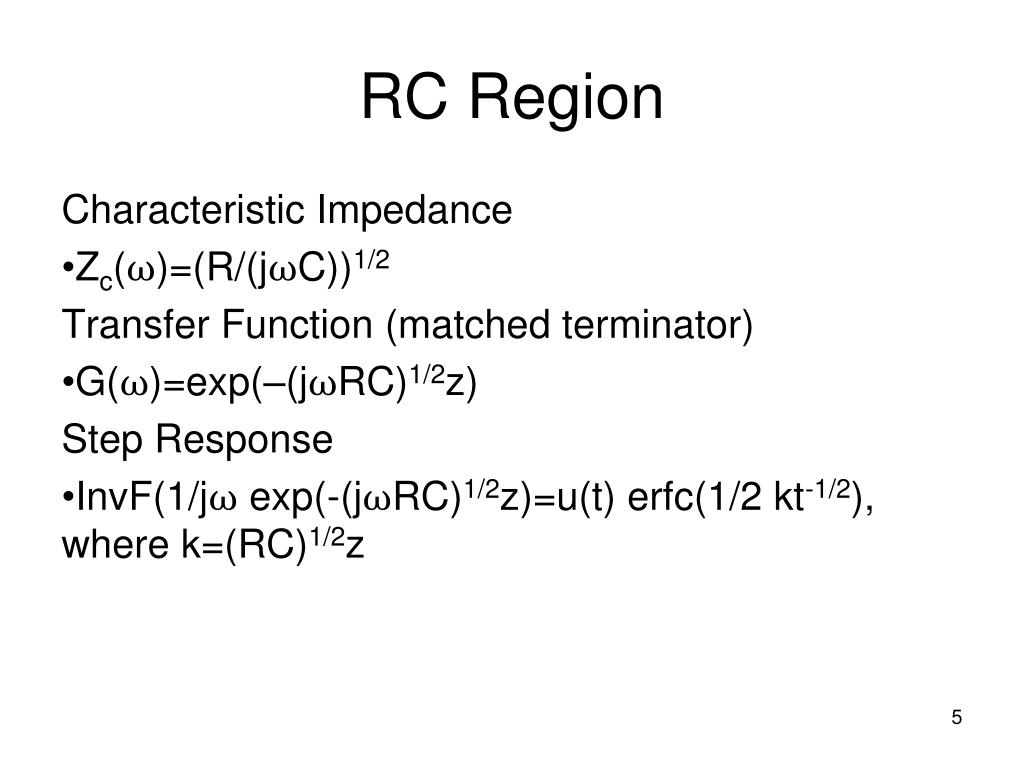

  5. RC Region Characteristic Impedance • Zc(⍵)=(R/(j⍵C))1/2 Transfer Function (matched terminator) • G(⍵)=exp(–(j⍵RC)1/2z) Step Response • InvF(1/j⍵ exp(-(j⍵RC)1/2z)=u(t) erfc(1/2 kt-1/2), where k=(RC)1/2z

  6. RC Line Termination

  7. RC Line Termination

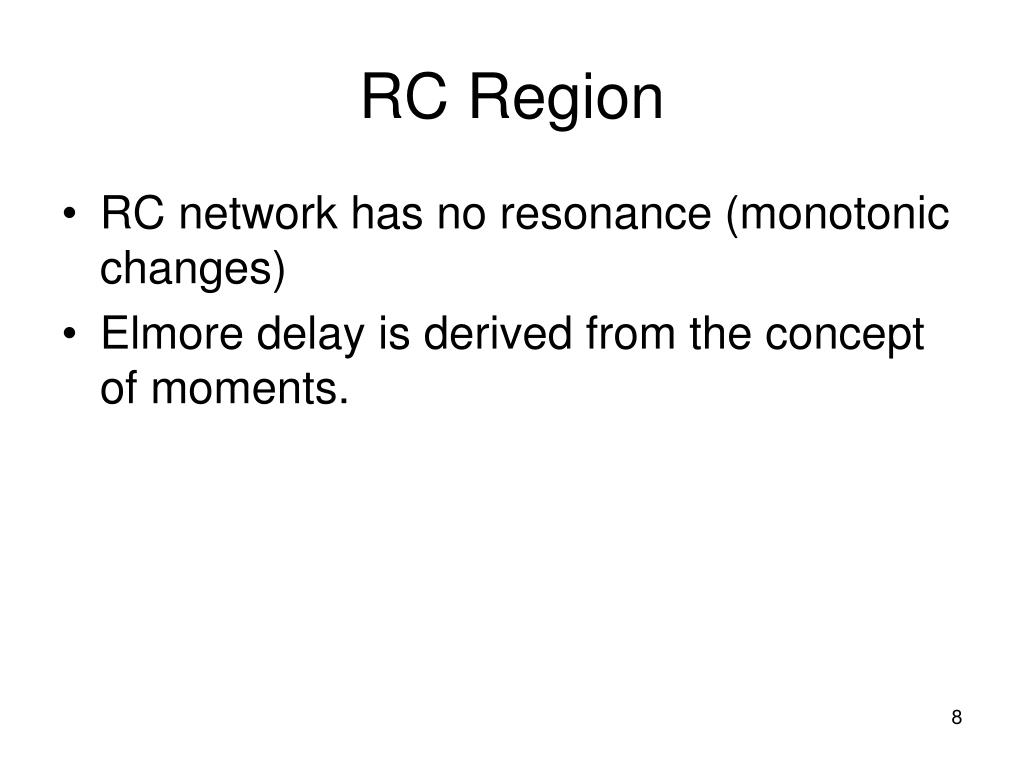

  8. RC Region • RC network has no resonance (monotonic changes) • Elmore delay is derived from the concept of moments.

  9. LC Region (R < ⍵L) • Watch out the wave phenomenon • There are reflection and resonance • Add terminators to dissipate the oscillation

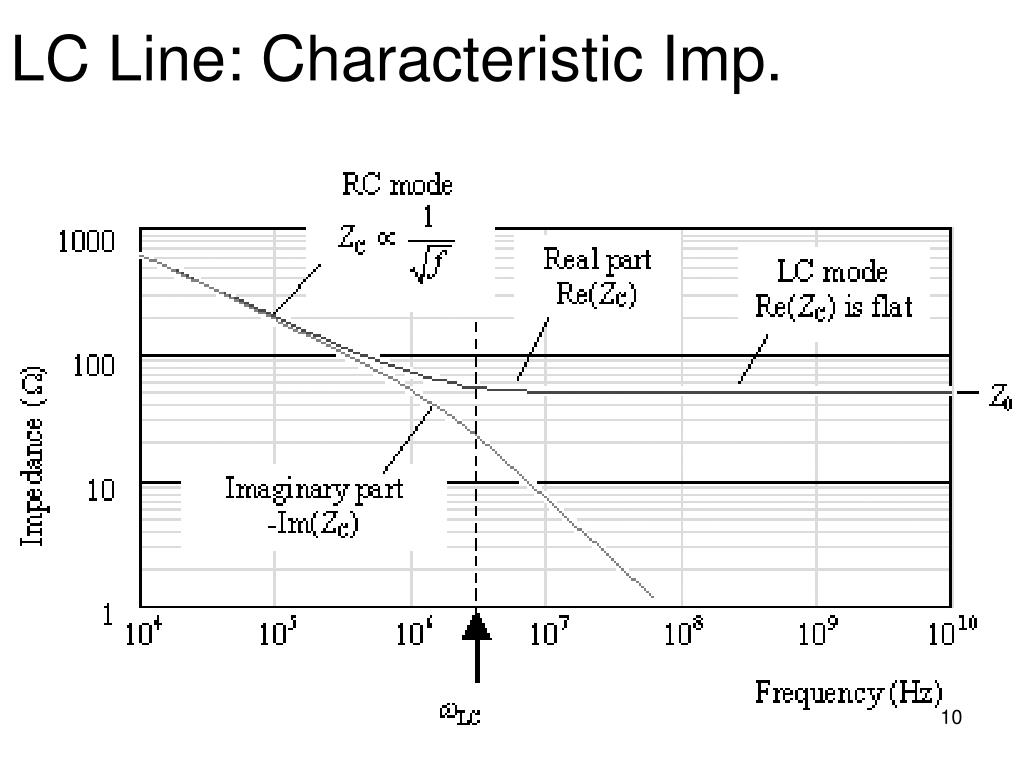

  10. LC Line: Characteristic Imp.

  11. LC Line: Characteristic Imp.

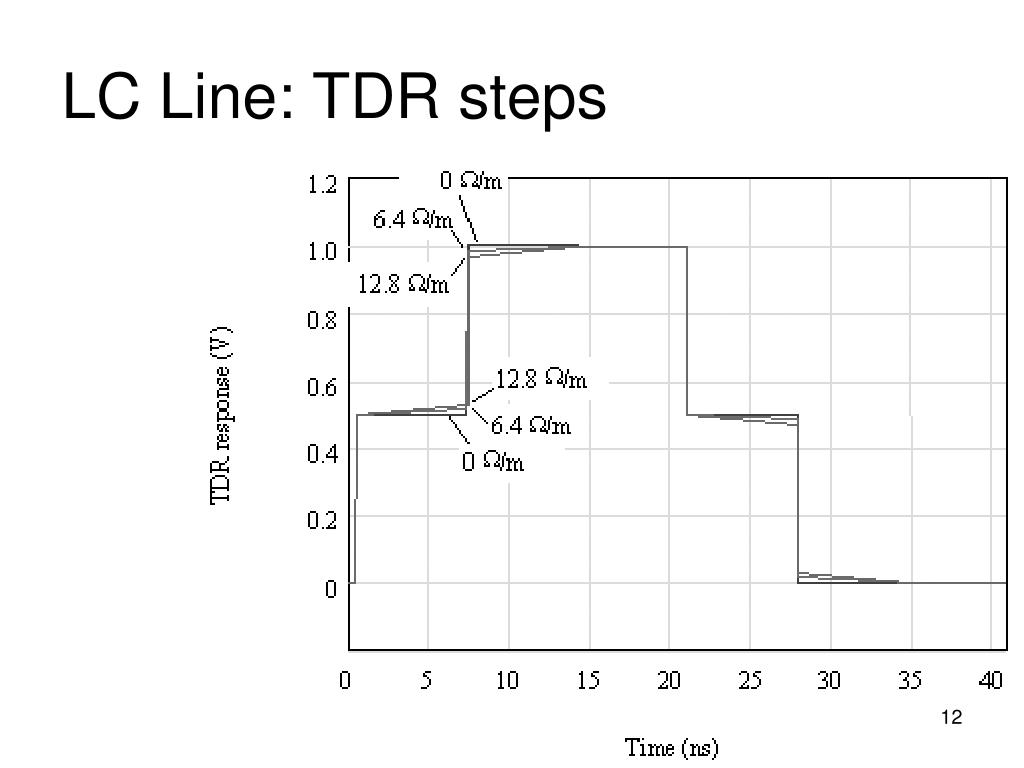

  12. LC Line: TDR steps

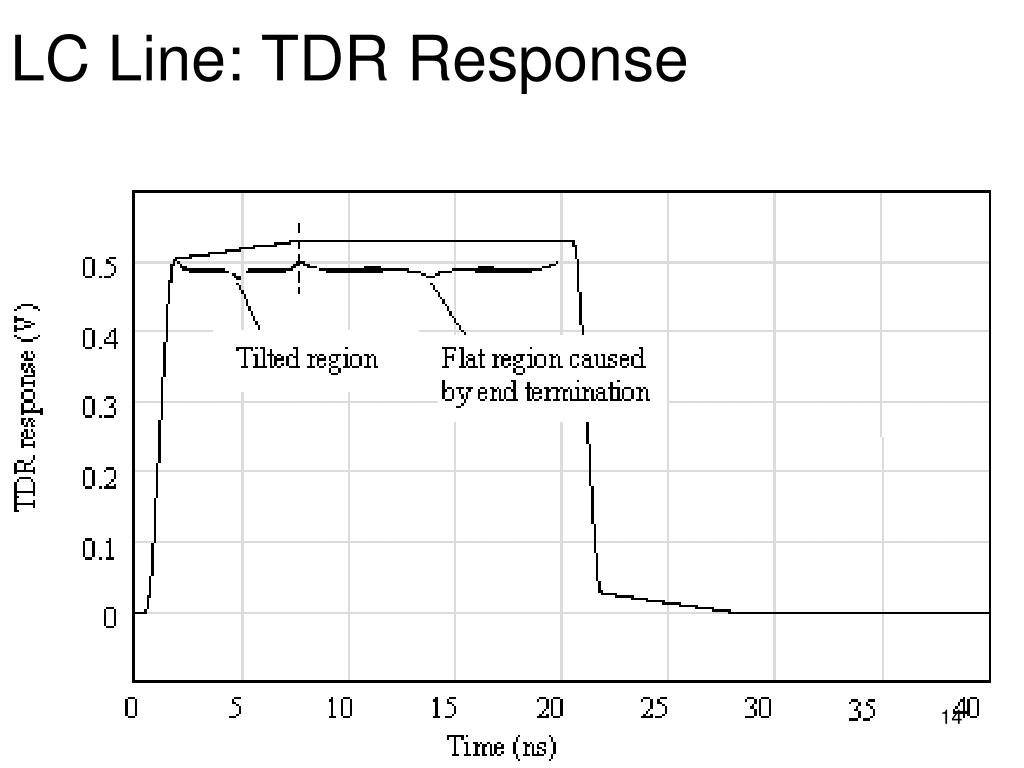

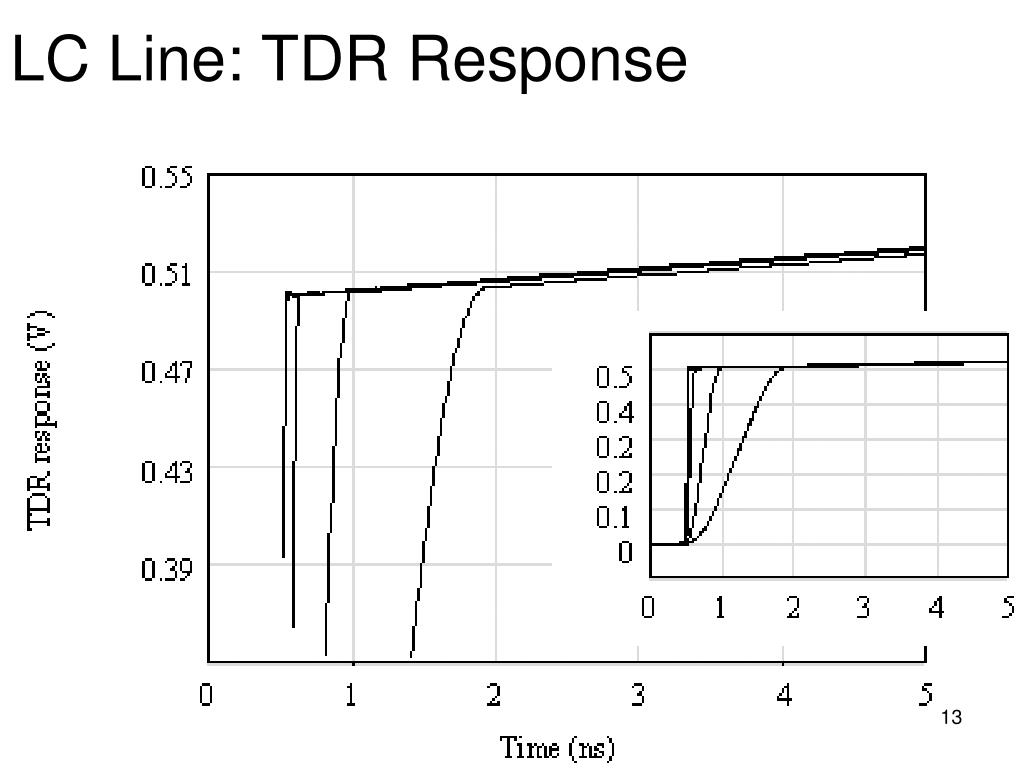

  13. LC Line: TDR Response

  14. LC Line: TDR Response

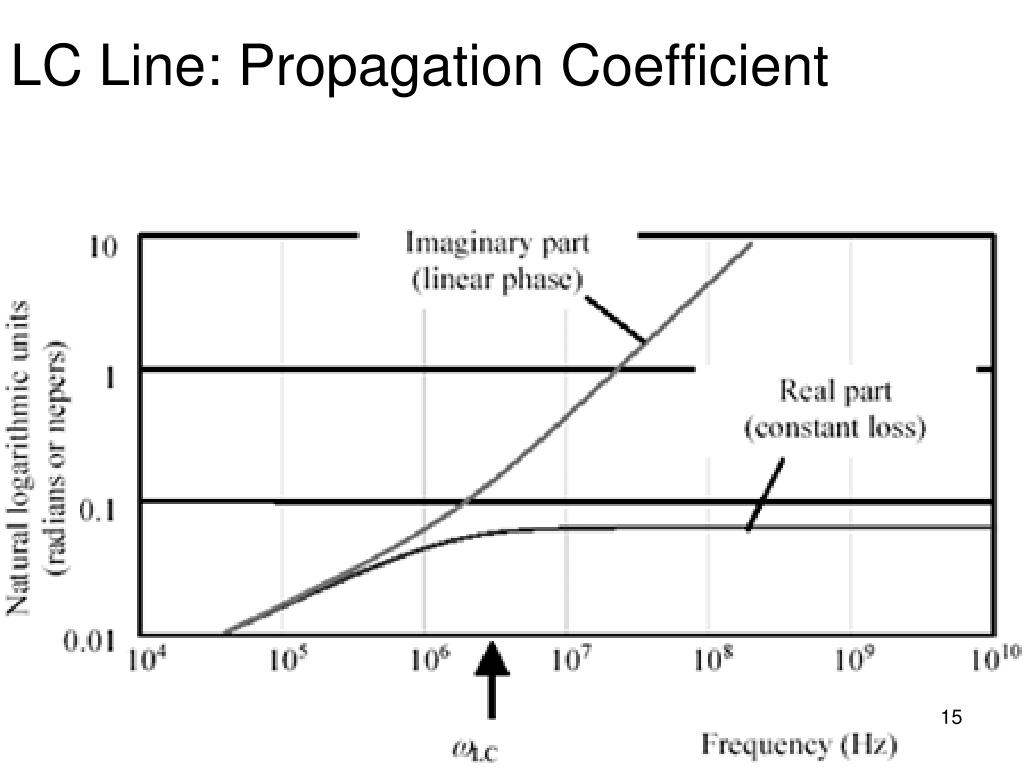

  15. LC Line: Propagation Coefficient

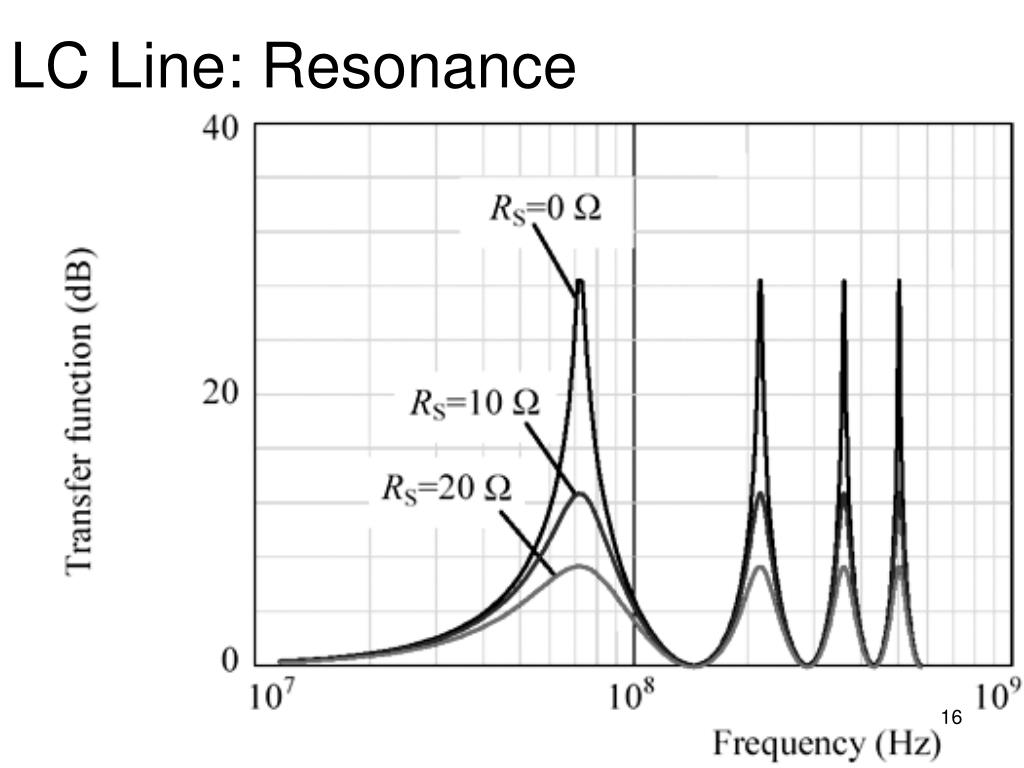

  16. LC Line: Resonance

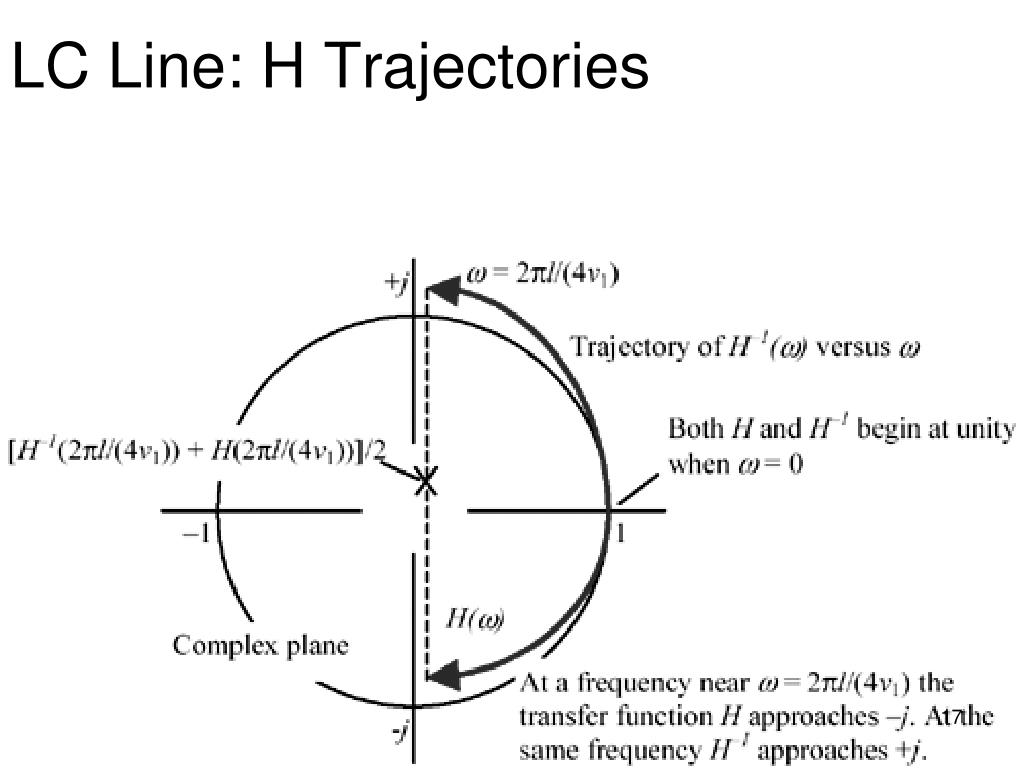

  17. LC Line: H Trajectories

  18. Terminations

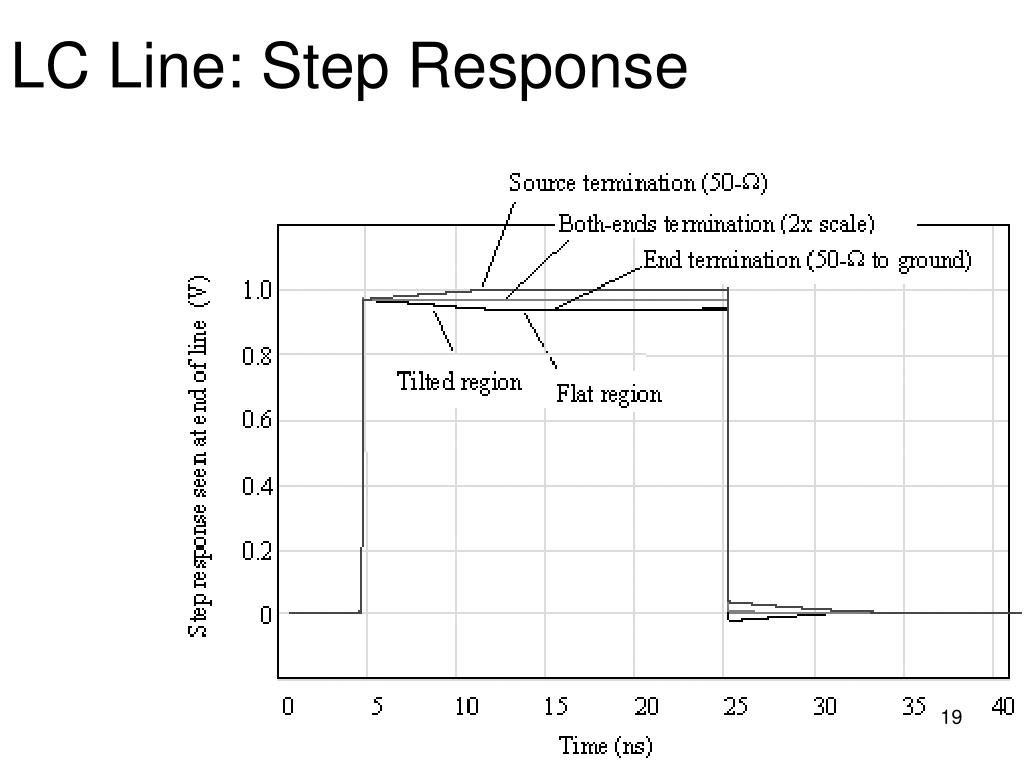

  19. LC Line: Step Response

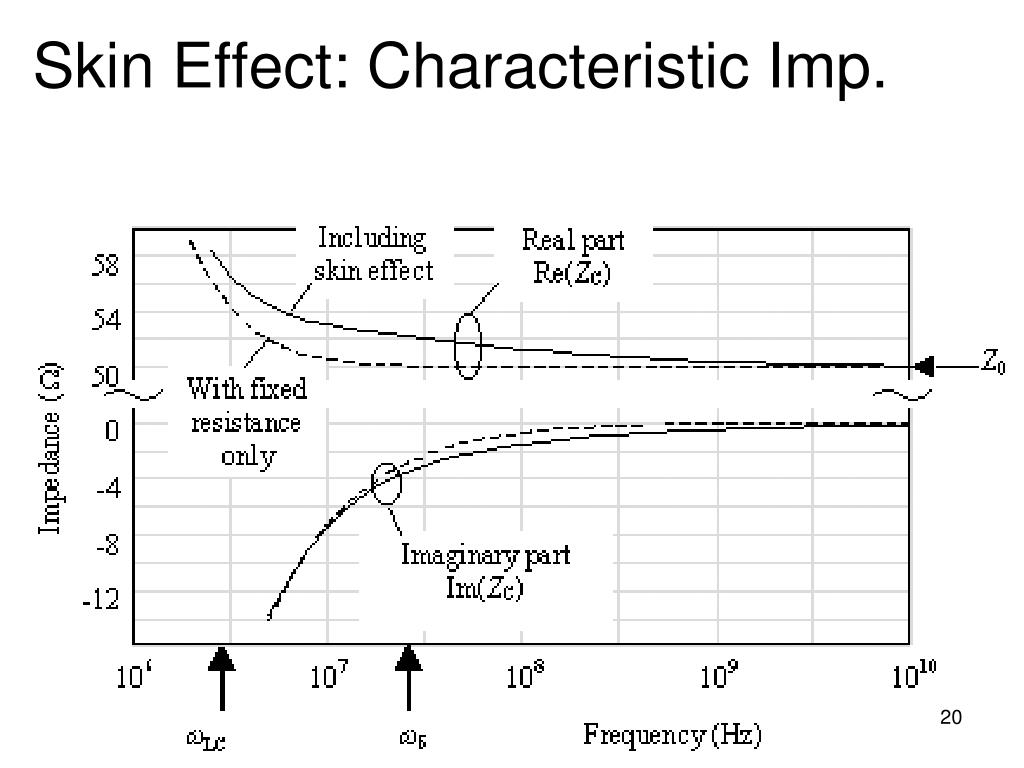

  20. Skin Effect: Characteristic Imp.

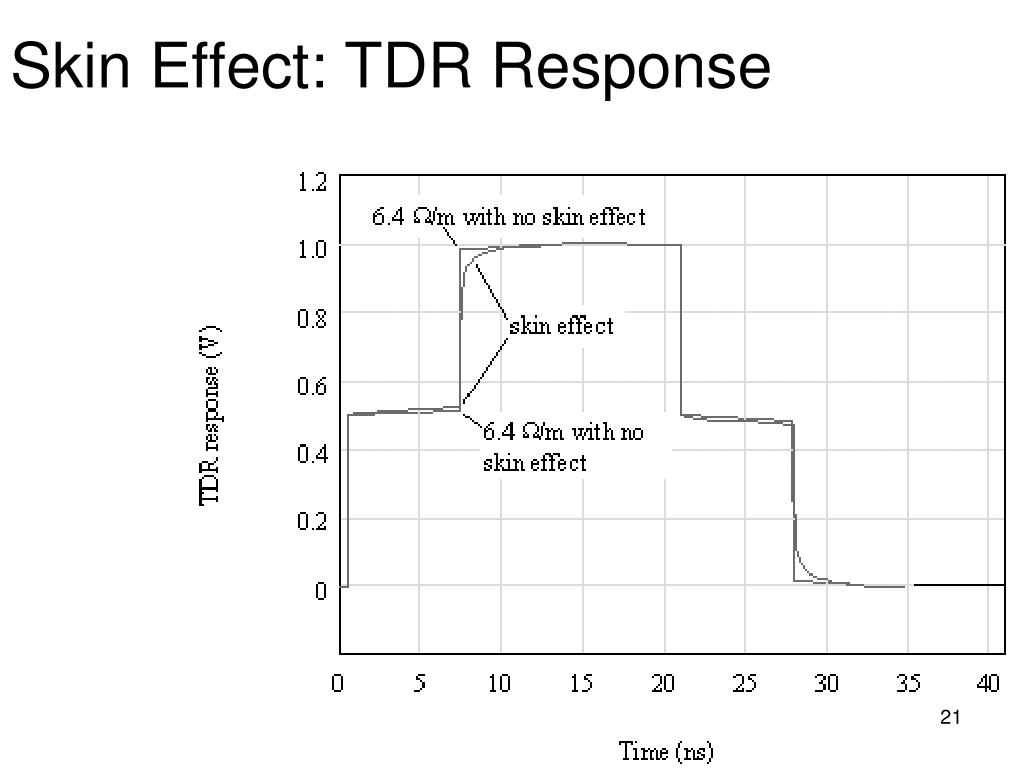

  21. Skin Effect: TDR Response

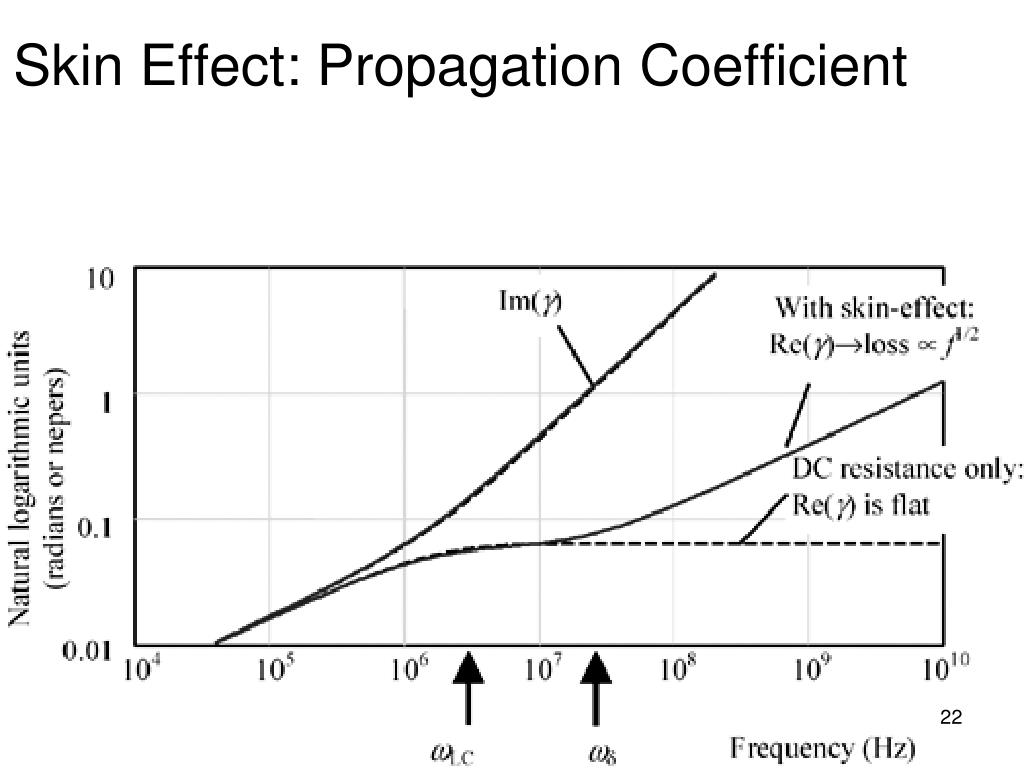

  22. Skin Effect: Propagation Coefficient

  23. Skin Effect: Step Responses vs Termination Styles

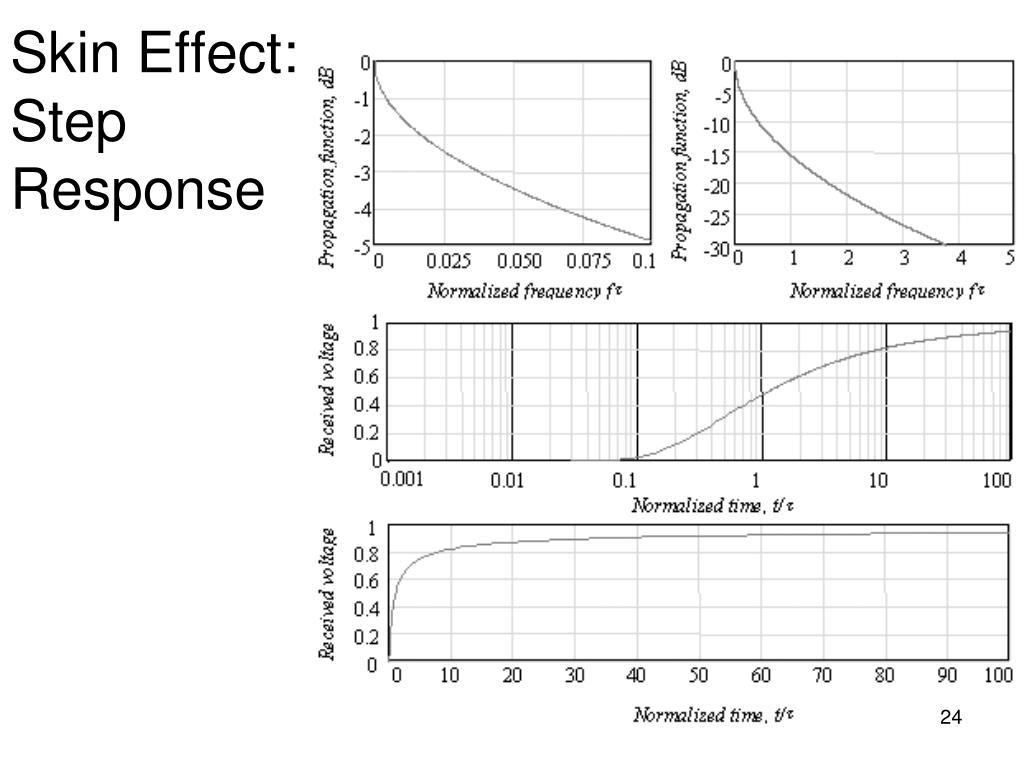

  24. Skin Effect:Step Response

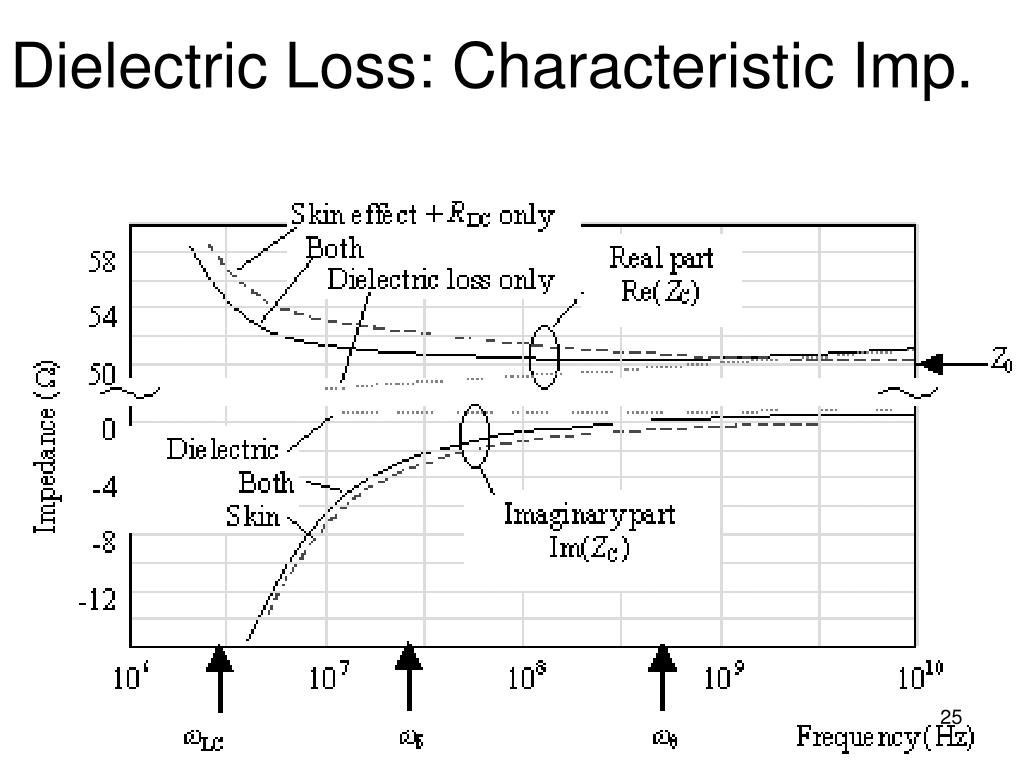

  25. Dielectric Loss: Characteristic Imp.

  26. Dielectric Loss:TDR

  27. Dielectric Loss: Propagation Coeffcient

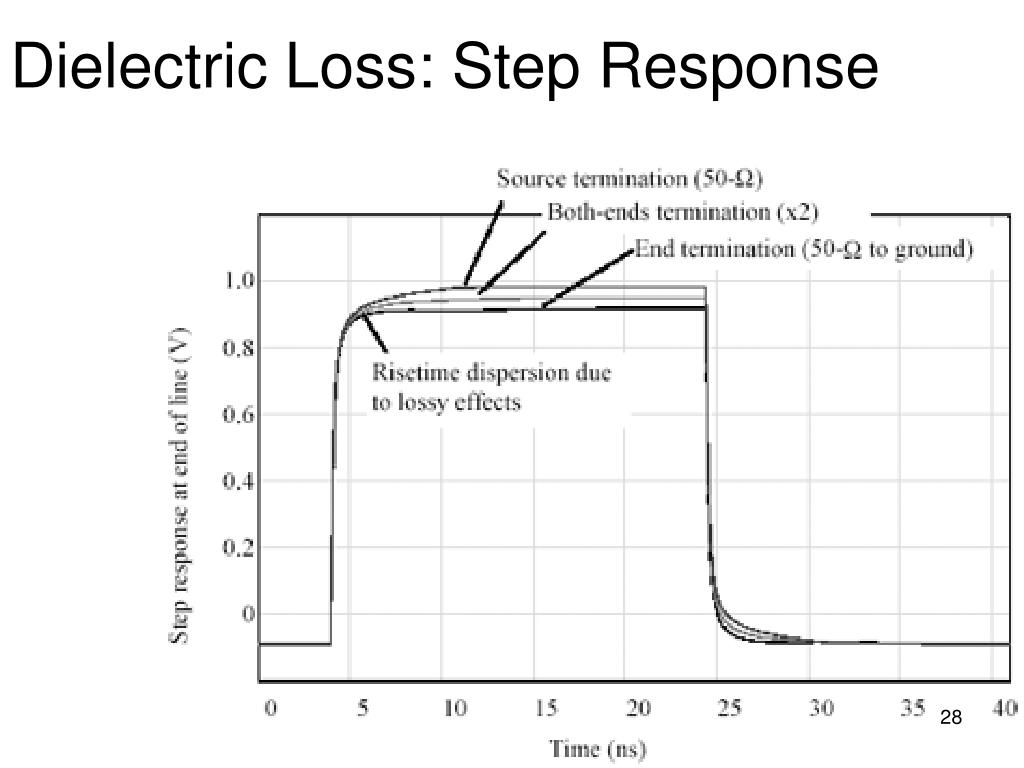

  28. Dielectric Loss: Step Response

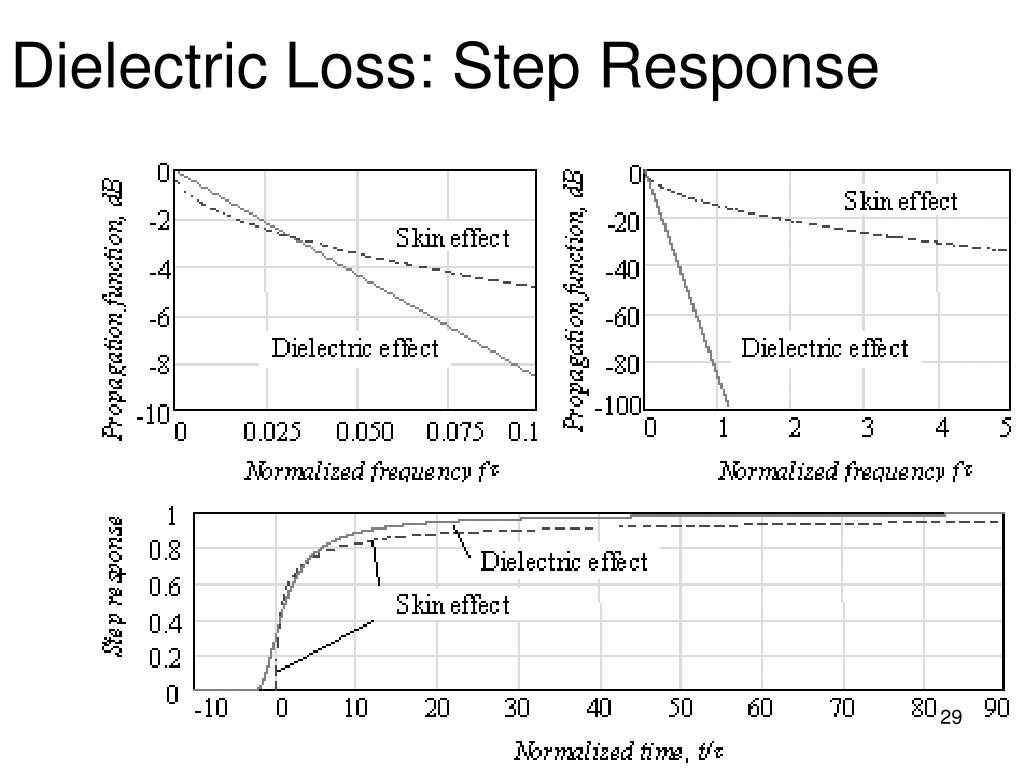

  29. Dielectric Loss: Step Response

  30. Response for Belden coaxial cable

  31. Eye Quality for Belden coaxial cable

  32. Length Scaling

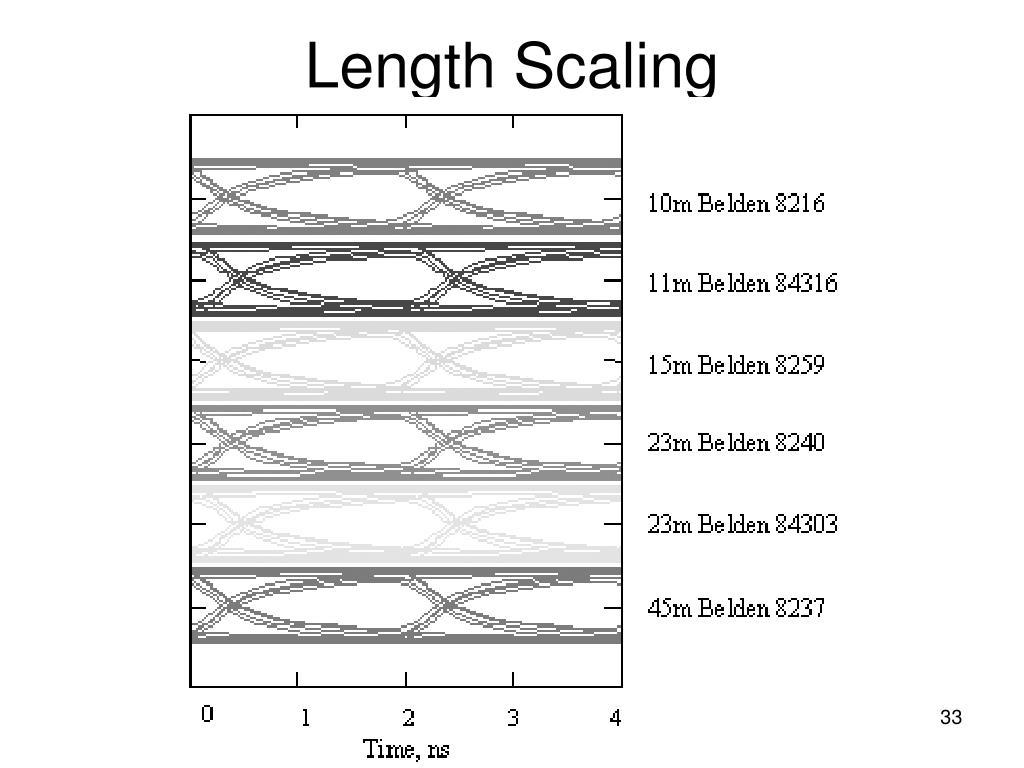

  33. Length Scaling

  34. Length Scaling and Skin Effect

  35. Length and Width Scaling

  36. Length Scaling

  37. Distortion vs Length

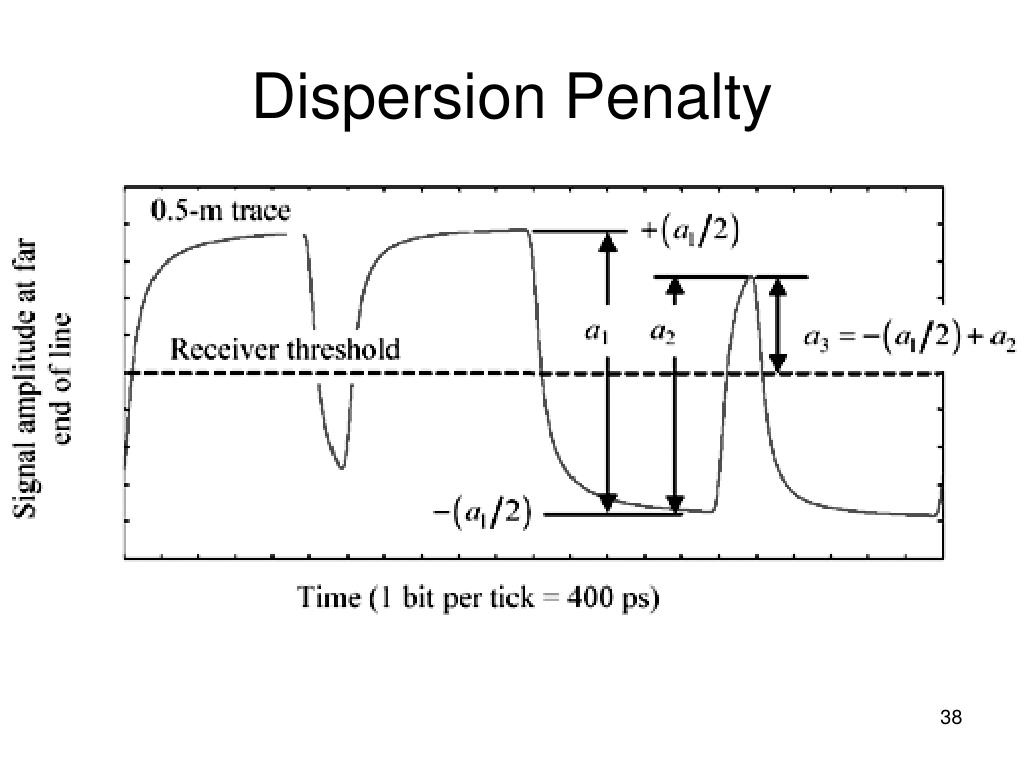

  38. Dispersion Penalty

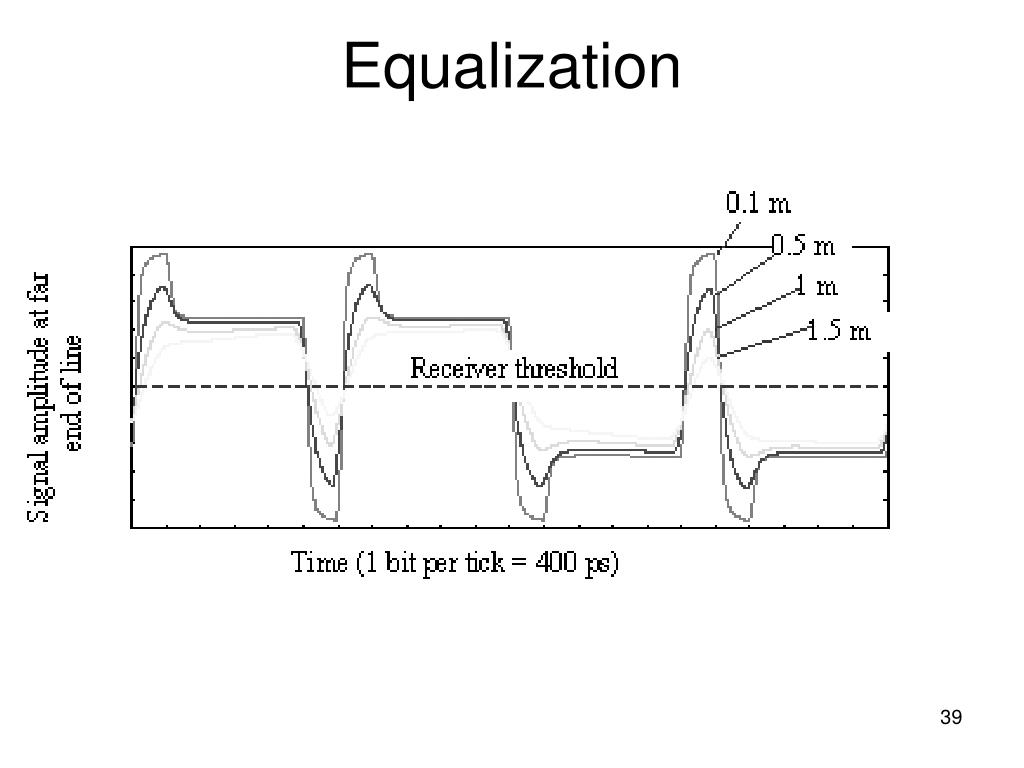

  39. Equalization
