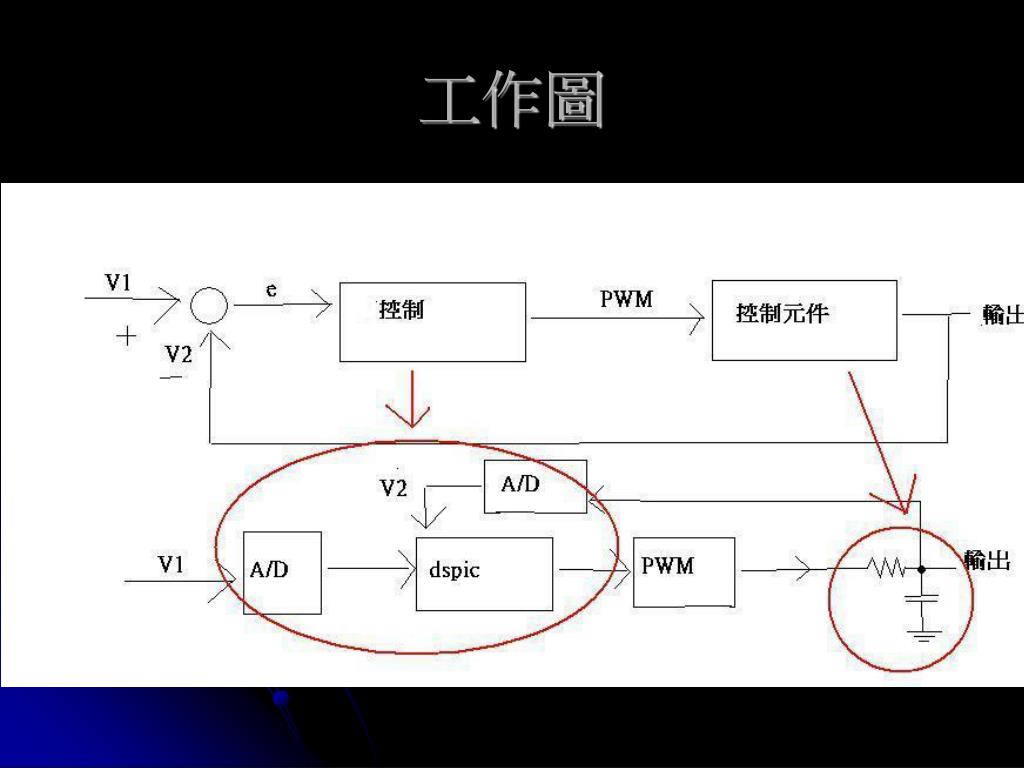

輸出動作與輸入命令相同. 工作圖. //#include <stdio.h> // 呼叫 stdio( 標準輸入輸出 ) 指令巨集 //#define FCY 2000000 #include <p30F4011.h> // 呼叫 p30F3011(IC) 指令巨集 #include <timer.h> #include <math.h> unsigned int icount=0; double v1=0.0,v2=0.0,e_new=0.0,e_old=0.0,d_new=0.0,d_old=0.0,kp=1.0,ki=100.0;

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about '輸出動作與輸入命令相同' - tamal


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide3
//#include <stdio.h> //呼叫stdio(標準輸入輸出)指令巨集//#include <stdio.h> //呼叫stdio(標準輸入輸出)指令巨集
  • //#define FCY 2000000
  • #include <p30F4011.h> //呼叫p30F3011(IC)指令巨集
  • #include <timer.h>
  • #include <math.h>
  • unsigned int icount=0;
  • double v1=0.0,v2=0.0,e_new=0.0,e_old=0.0,d_new=0.0,d_old=0.0,kp=1.0,ki=100.0;
  • _FWDT(WDT_OFF);
  • void PWM_Initial(void)
  • {
  • PTPER = 1250; //PWM = (10MHz / (2000)) = 5 KHz
  • IEC2bits.PWMIE = 0; //Disable PWM Interrupt
  • PTCON = 0xA008; // 0b 1010 0000 0000 0000
  • PWMCON1 = 0x0777; // 0b 0000 0111 0111 0111
  • PDC1=0;
  • OVDCON= 0x0100; //設定輸出腳位
  • IPC9bits.PWMIP = 7;
  • }
slide4

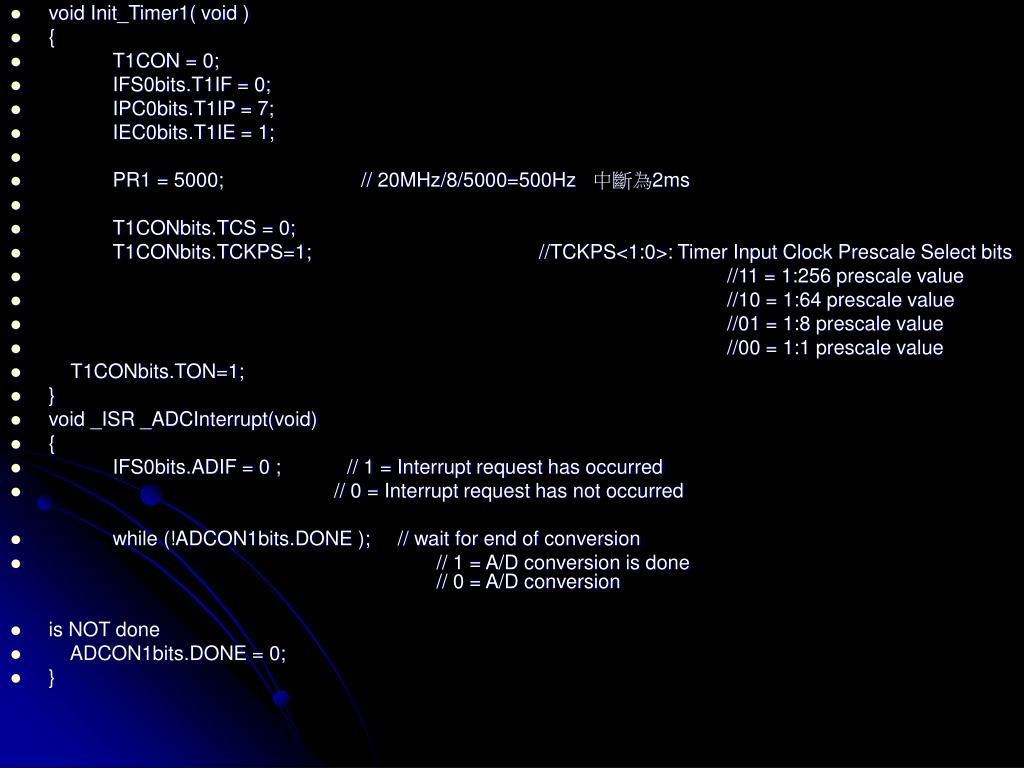

void Init_Timer1( void )
  • {
  • T1CON = 0;
  • IFS0bits.T1IF = 0;
  • IPC0bits.T1IP = 7;
  • IEC0bits.T1IE = 1;
  • PR1 = 5000; // 20MHz/8/5000=500Hz 中斷為2ms
  • T1CONbits.TCS = 0;
  • T1CONbits.TCKPS=1; //TCKPS<1:0>: Timer Input Clock Prescale Select bits
  • //11 = 1:256 prescale value
  • //10 = 1:64 prescale value
  • //01 = 1:8 prescale value
  • //00 = 1:1 prescale value
  • T1CONbits.TON=1;
  • }
  • void _ISR _ADCInterrupt(void)
  • {
  • IFS0bits.ADIF = 0 ; // 1 = Interrupt request has occurred
  • // 0 = Interrupt request has not occurred
  • while (!ADCON1bits.DONE ); // wait for end of conversion
  • // 1 = A/D conversion is done // 0 = A/D conversion
  • is NOT done
  • ADCON1bits.DONE = 0;
  • }
slide5

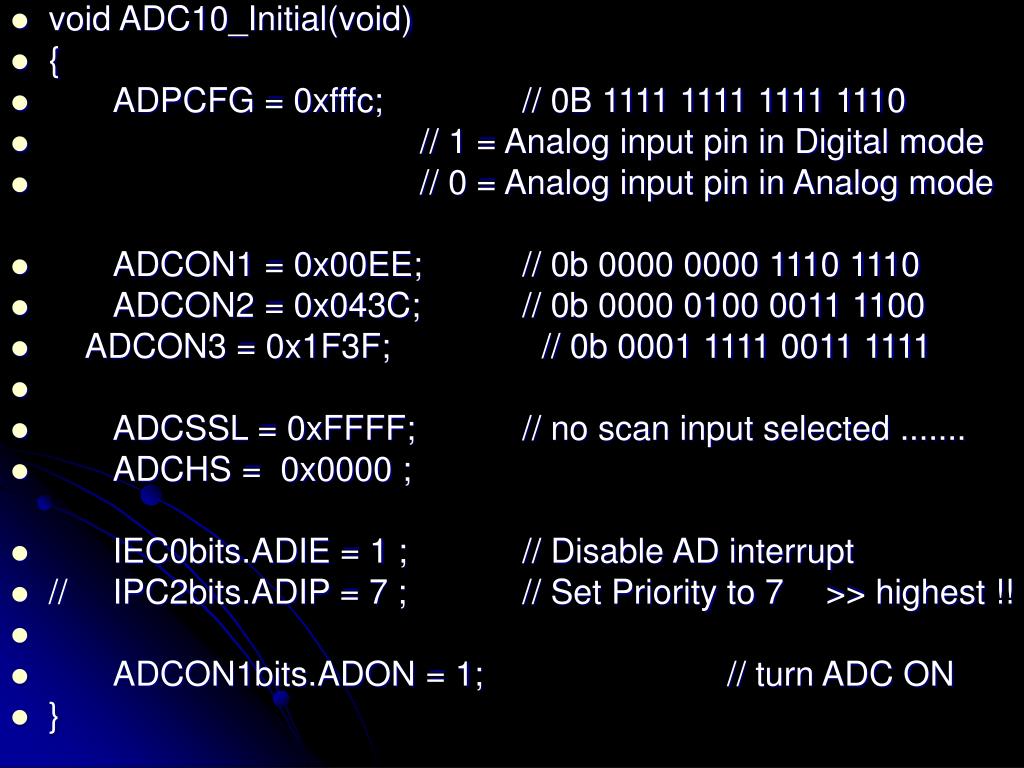

void ADC10_Initial(void)
  • {
  • ADPCFG = 0xfffc; // 0B 1111 1111 1111 1110
  • // 1 = Analog input pin in Digital mode
  • // 0 = Analog input pin in Analog mode
  • ADCON1 = 0x00EE; // 0b 0000 0000 1110 1110
  • ADCON2 = 0x043C; // 0b 0000 0100 0011 1100
  • ADCON3 = 0x1F3F; // 0b 0001 1111 0011 1111
  • ADCSSL = 0xFFFF; // no scan input selected .......
  • ADCHS = 0x0000 ;
  • IEC0bits.ADIE = 1 ; // Disable AD interrupt
  • // IPC2bits.ADIP = 7 ; // Set Priority to 7 >> highest !!
  • ADCON1bits.ADON = 1; // turn ADC ON
  • }
slide6

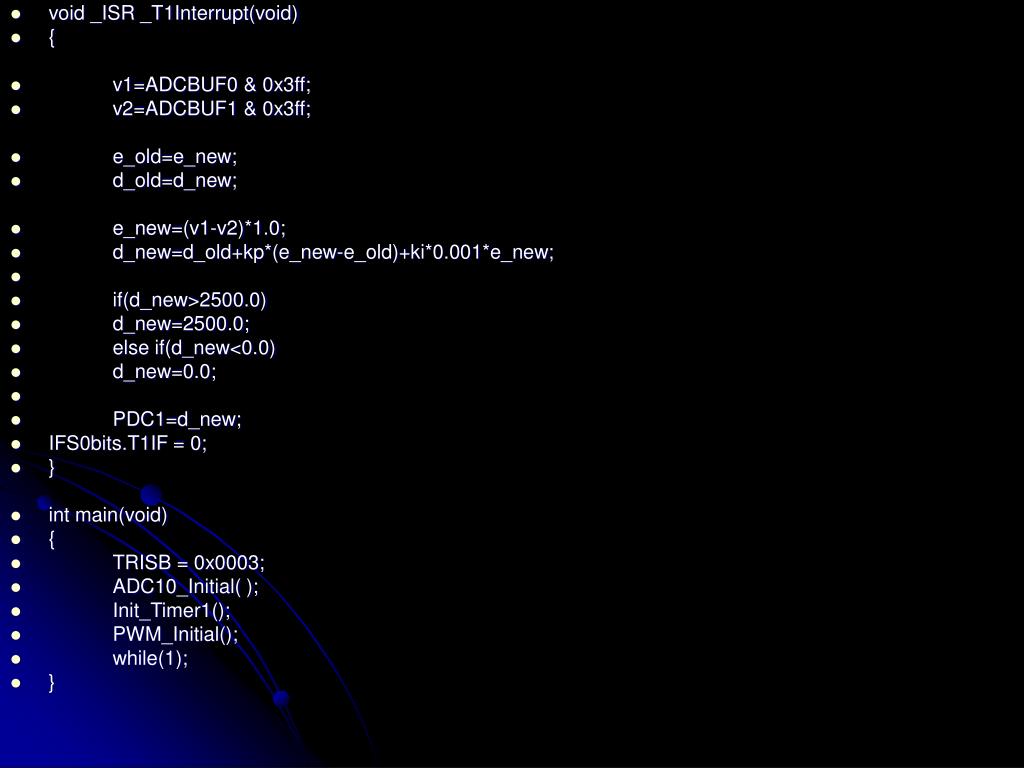

void _ISR _T1Interrupt(void)
  • {
  • v1=ADCBUF0 & 0x3ff;
  • v2=ADCBUF1 & 0x3ff;
  • e_old=e_new;
  • d_old=d_new;
  • e_new=(v1-v2)*1.0;
  • d_new=d_old+kp*(e_new-e_old)+ki*0.001*e_new;
  • if(d_new>2500.0)
  • d_new=2500.0;
  • else if(d_new<0.0)
  • d_new=0.0;
  • PDC1=d_new;
  • IFS0bits.T1IF = 0;
  • }
  • int main(void)
  • {
  • TRISB = 0x0003;
  • ADC10_Initial( );
  • Init_Timer1();
  • PWM_Initial();
  • while(1);
  • }
slide7
作業
  • 改變輸出或輸入的倍率
