Presentation Transcript
civicrm joomla

CiviCRM/Joomla

development/customization

Brian Shaughnessy

Lighthouse Consulting & Design

www.lcdservices.biz

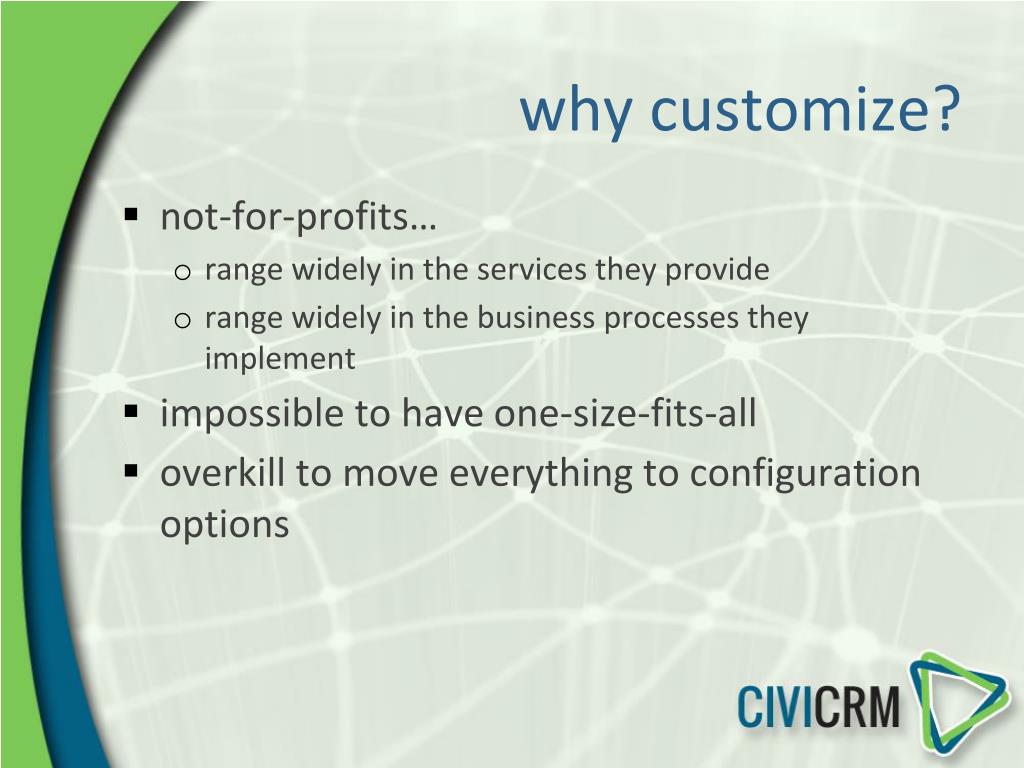

why customize
why customize?
  • not-for-profits…
    • range widely in the services they provide
    • range widely in the business processes they implement
  • impossible to have one-size-fits-all
  • overkill to move everything to configuration options
goals
goals
  • code review/architecture
  • customization methods
  • best practices
  • examples

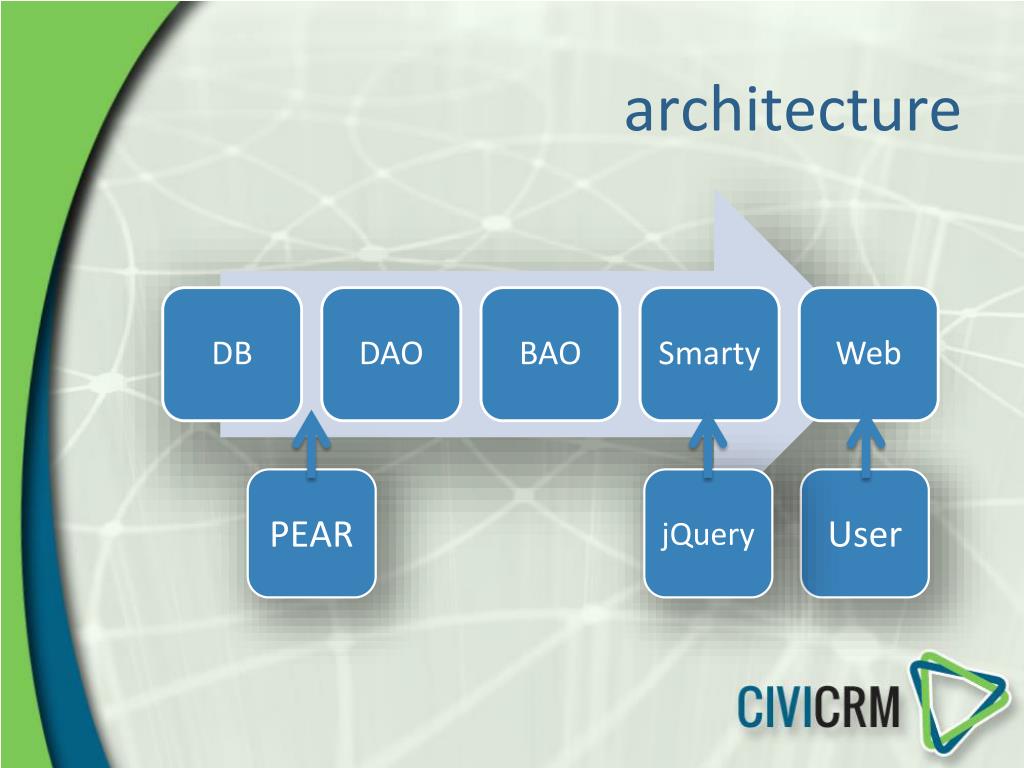

architecture
architecture

PEAR

jQuery

User

directory structure
directory structure
  • CRM: application
  • templates: Smarty .tpl files
  • packages: included libraries
  • extern: externally triggered files (IPN)
  • css
  • Joomla

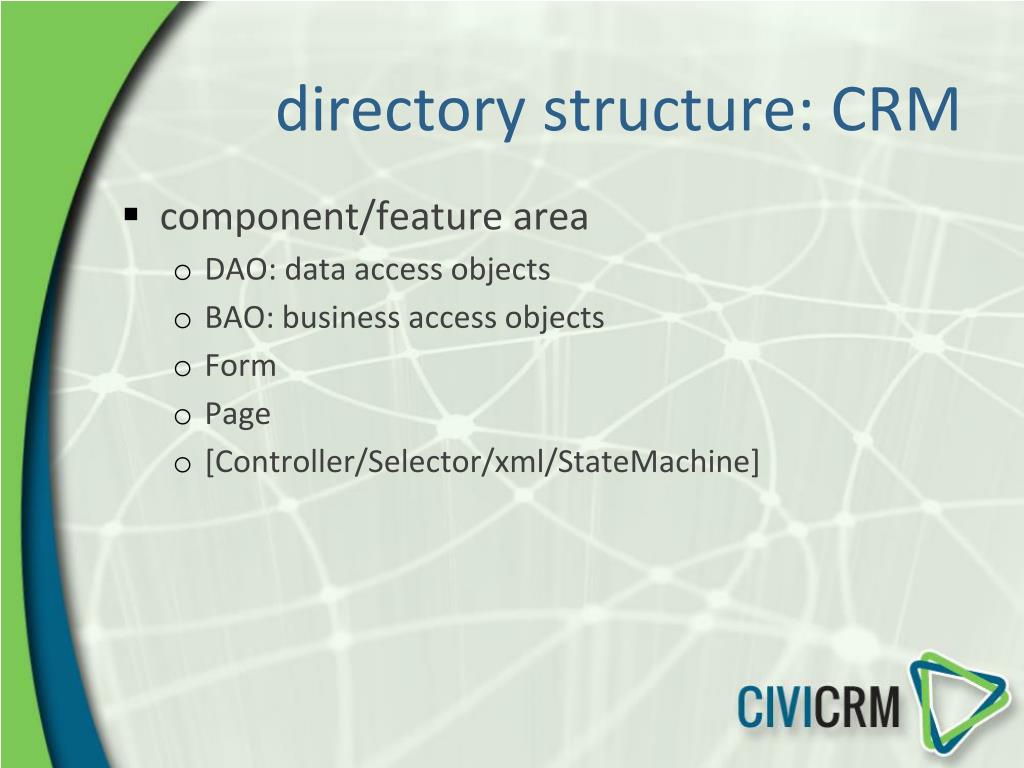

directory structure crm
directory structure: CRM
  • component/feature area
    • DAO: data access objects
    • BAO: business access objects
    • Form
    • Page
    • [Controller/Selector/xml/StateMachine]

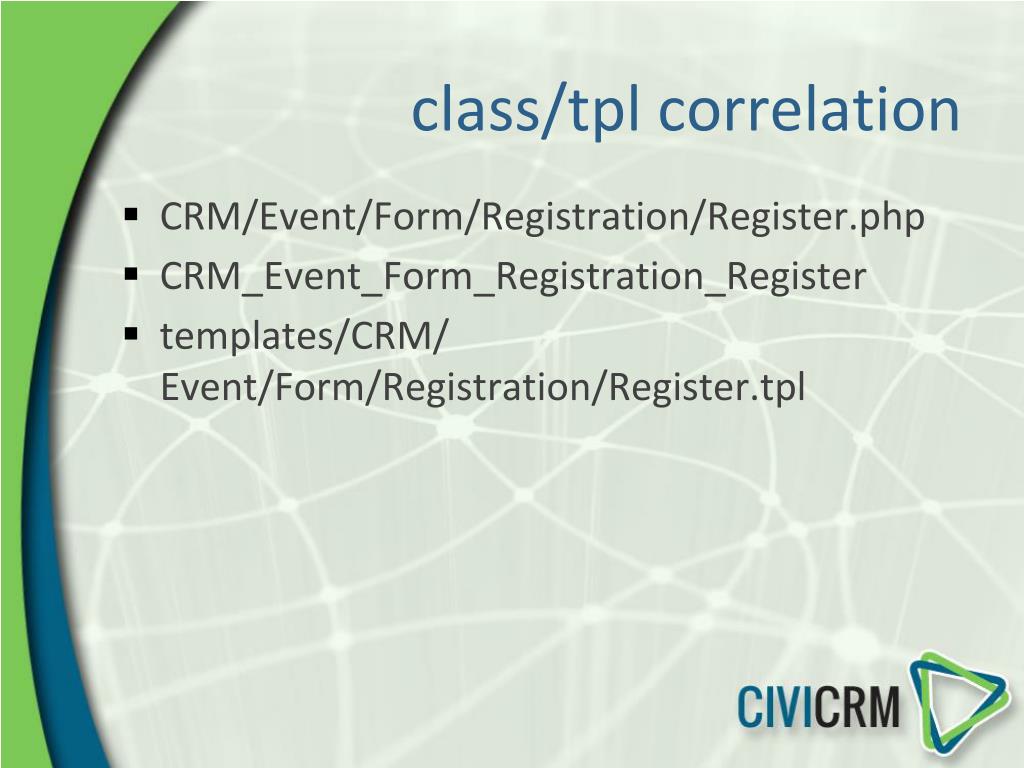

class tpl correlation
class/tpl correlation
  • CRM/Event/Form/Registration/Register.php
  • CRM_Event_Form_Registration_Register
  • templates/CRM/Event/Form/Registration/Register.tpl
standard form flow
standard form flow
  • ::preProcess
  • ::setDefaultValues
  • ::buildQuickForm
  • ::formRule
  • ::postProcess
customization methods
customization methods
  • PHP overrides
  • Smarty overrides
    • file.extra.tpl addendum
  • Joomlaplugin
  • CiviCRM extensions
    • reports
    • search
    • payment gateway
    • modules*

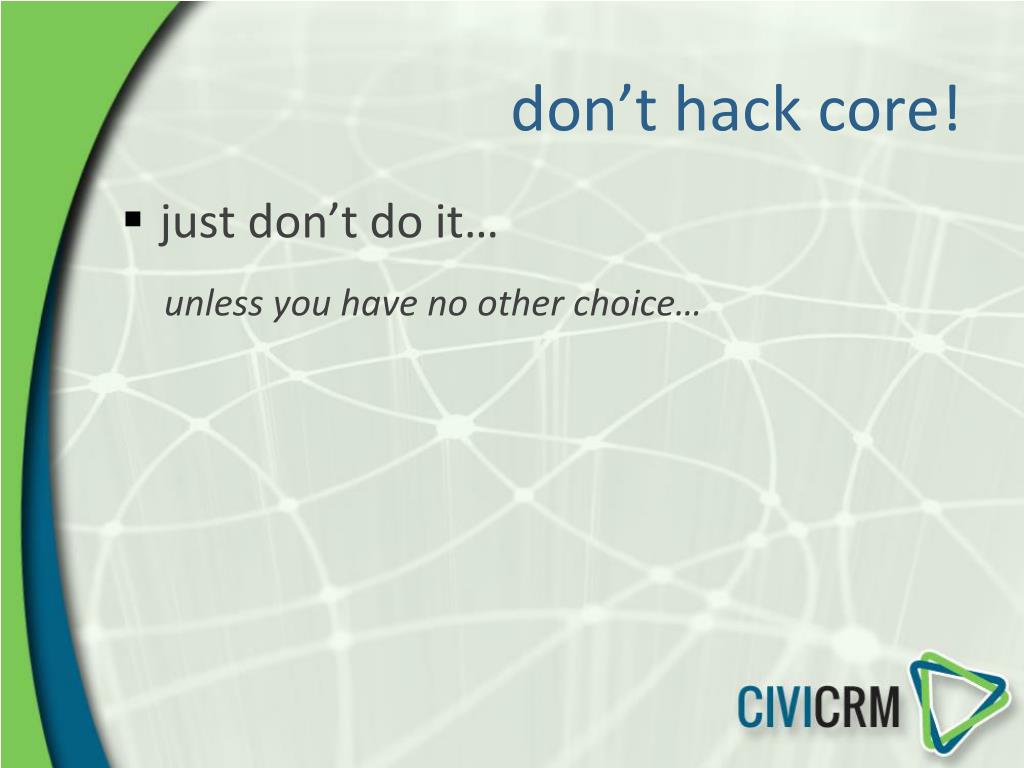

don t hack core
don’t hack core!
  • just don’t do it…

unless you have no other choice…

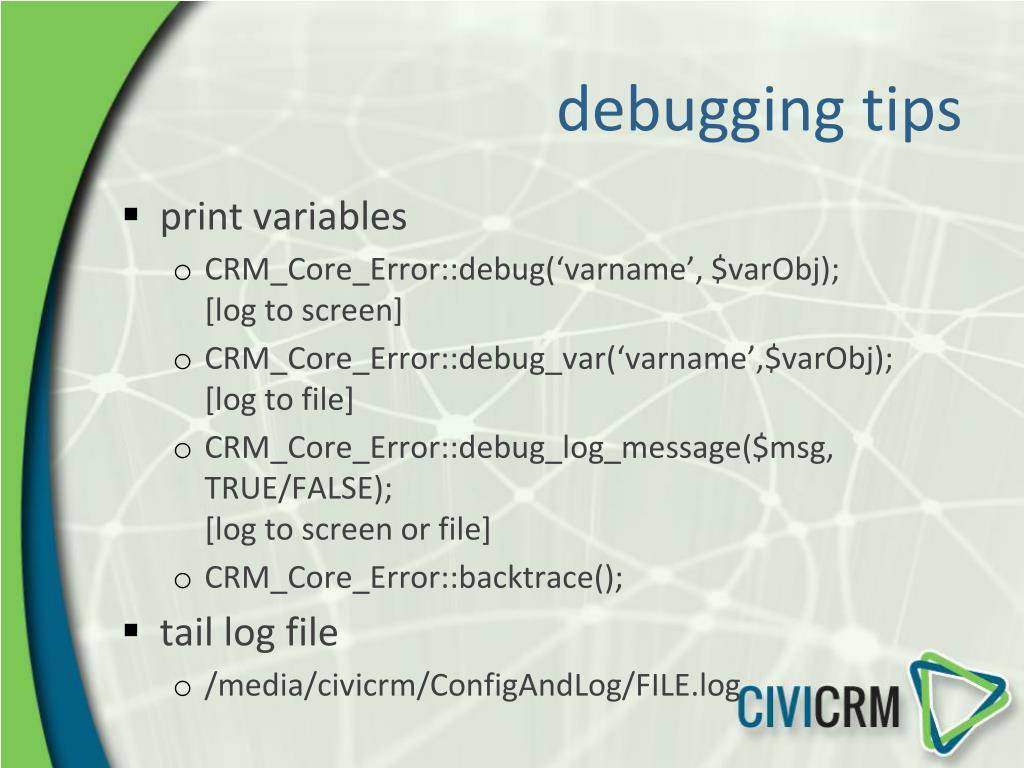

debugging tips
debugging tips
  • print variables
    • CRM_Core_Error::debug(‘varname’, $varObj); [log to screen]
    • CRM_Core_Error::debug_var(‘varname’,$varObj); [log to file]
    • CRM_Core_Error::debug_log_message($msg, TRUE/FALSE);[log to screen or file]
    • CRM_Core_Error::backtrace();
  • tail log file
    • /media/civicrm/ConfigAndLog/FILE.log

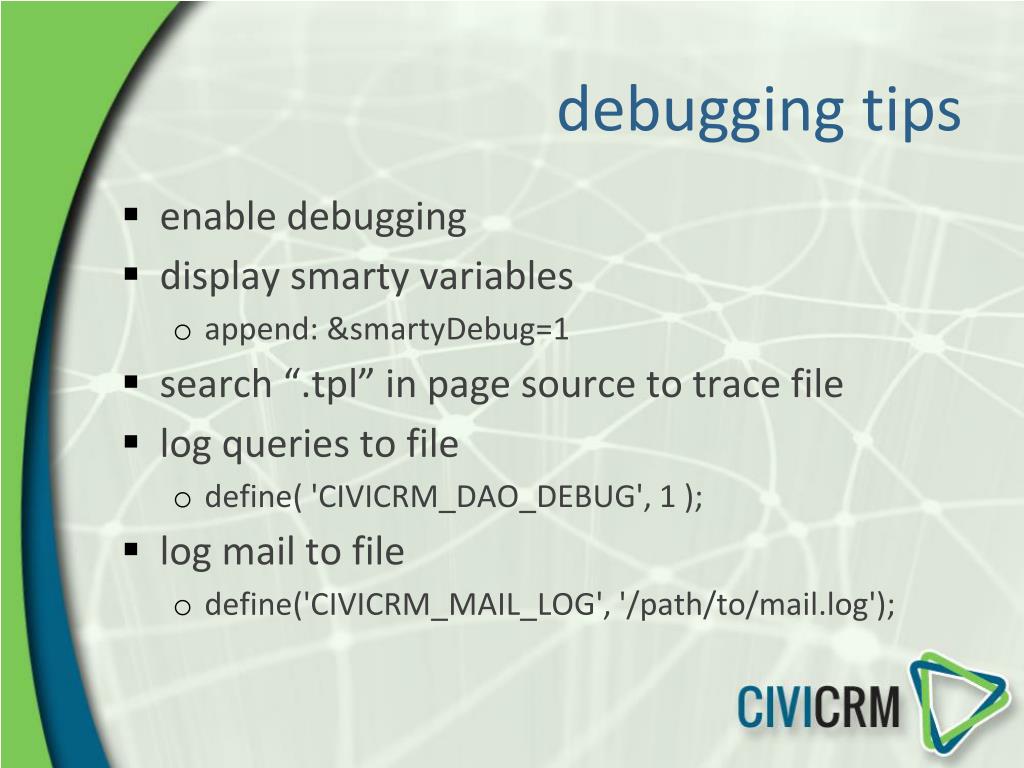

debugging tips1
debugging tips
  • enable debugging
  • display smarty variables
    • append: &smartyDebug=1
  • search “.tpl” in page source to trace file
  • log queries to file
    • define( 'CIVICRM_DAO_DEBUG', 1 );
  • log mail to file
    • define('CIVICRM_MAIL_LOG', '/path/to/mail.log');

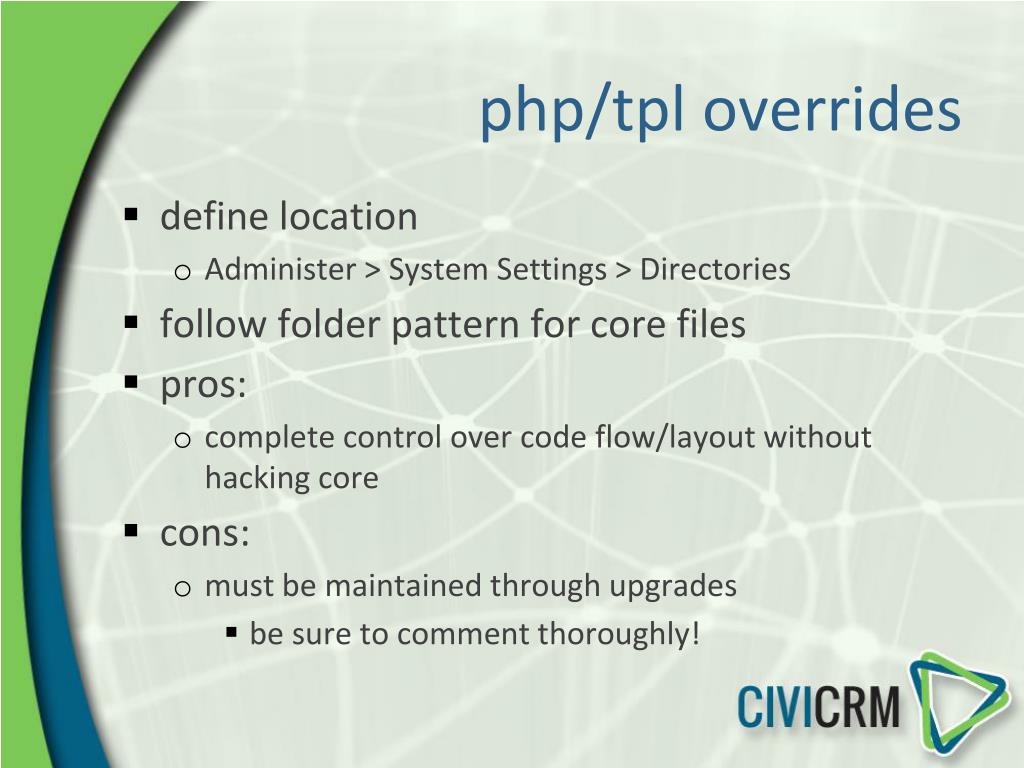

php tpl overrides
php/tpl overrides
  • define location
    • Administer > System Settings > Directories
  • follow folder pattern for core files
  • pros:
    • complete control over code flow/layout without hacking core
  • cons:
    • must be maintained through upgrades
      • be sure to comment thoroughly!

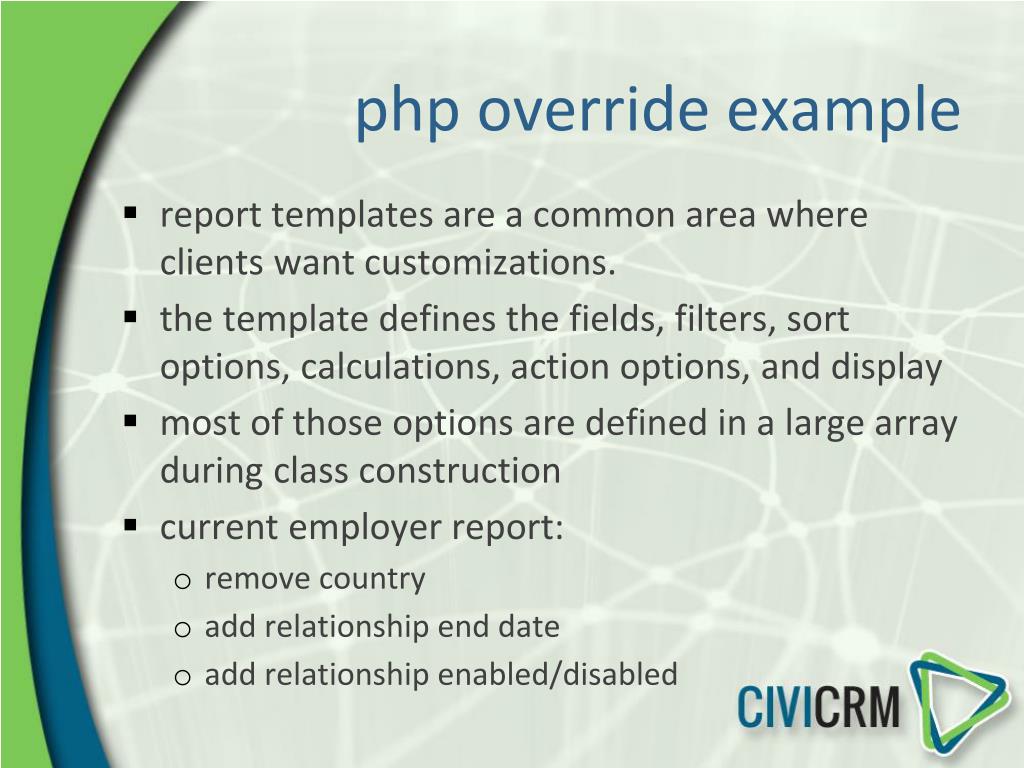

php override example
php override example
  • report templates are a common area where clients want customizations.
  • the template defines the fields, filters, sort options, calculations, action options, and display
  • most of those options are defined in a large array during class construction
  • current employer report:
    • remove country
    • add relationship end date
    • add relationship enabled/disabled

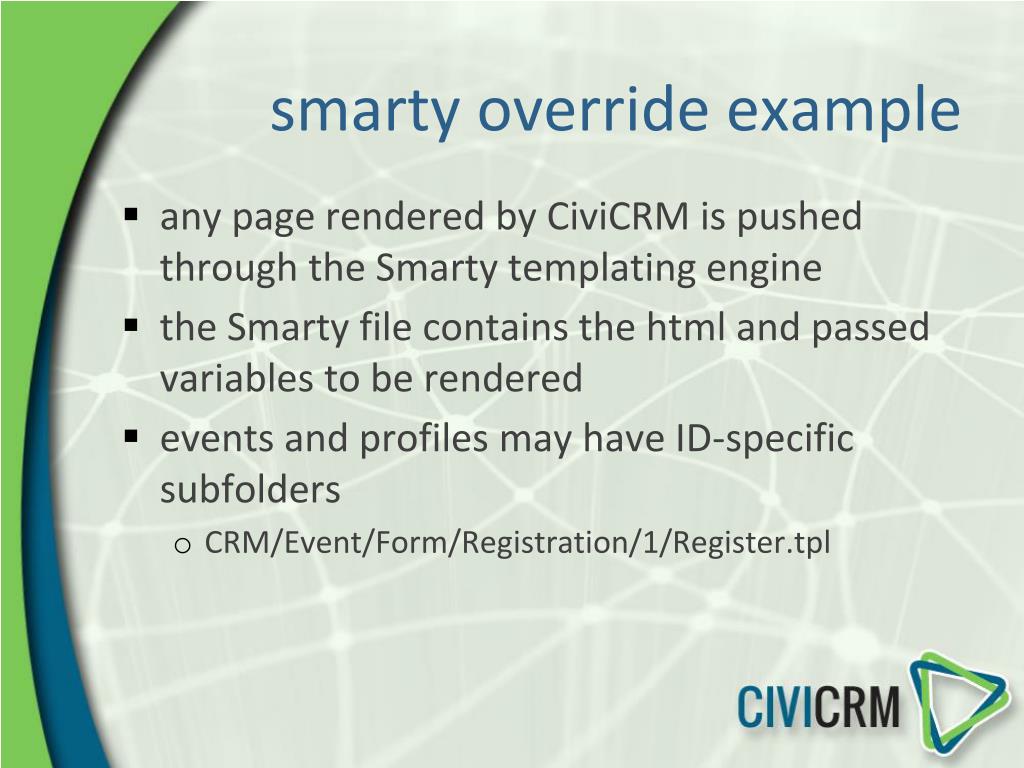

smarty override example
smarty override example
  • any page rendered by CiviCRM is pushed through the Smarty templating engine
  • the Smarty file contains the html and passed variables to be rendered
  • events and profiles may have ID-specific subfolders
    • CRM/Event/Form/Registration/1/Register.tpl

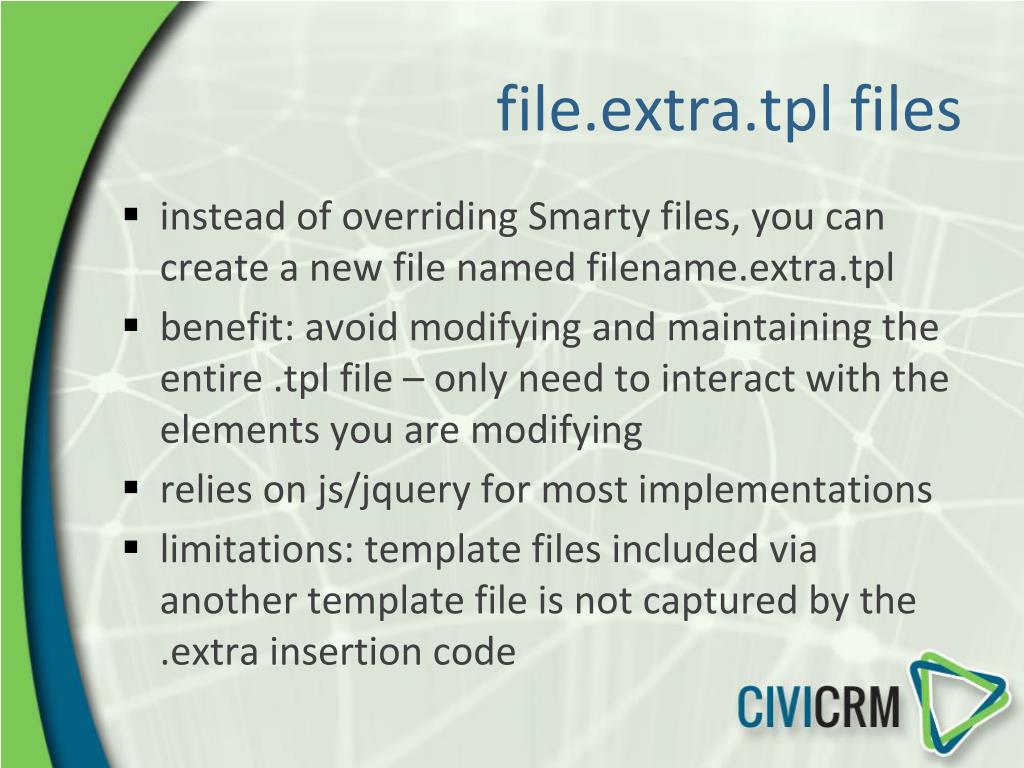

file extra tpl files
file.extra.tpl files
  • instead of overriding Smarty files, you can create a new file named filename.extra.tpl
  • benefit: avoid modifying and maintaining the entire .tpl file – only need to interact with the elements you are modifying
  • relies on js/jquery for most implementations
  • limitations: template files included via another template file is not captured by the .extra insertion code
joomla plugins
Joomlaplugins
  • use plugins to implement hooks (events)
  • wiki.civicrm.org/confluence/display/CRMDOC/Hook+Reference
  • within your plugin class, implement:
    • civicrm_hookName(…) { }
hooks
hooks
  • modify forms process
  • impact objects before/after saving
  • extension lifecycle
  • ACL
  • impact GUI (links, page, nav, etc.)
  • other…
plugin example
plugin example
  • CiviCRM has a user dashboard page that summarizes the contact’s involvement with your organization
  • Let’s create a plugin to retrieve the contact’s product purchases from RedShop and include the list in the dashboard

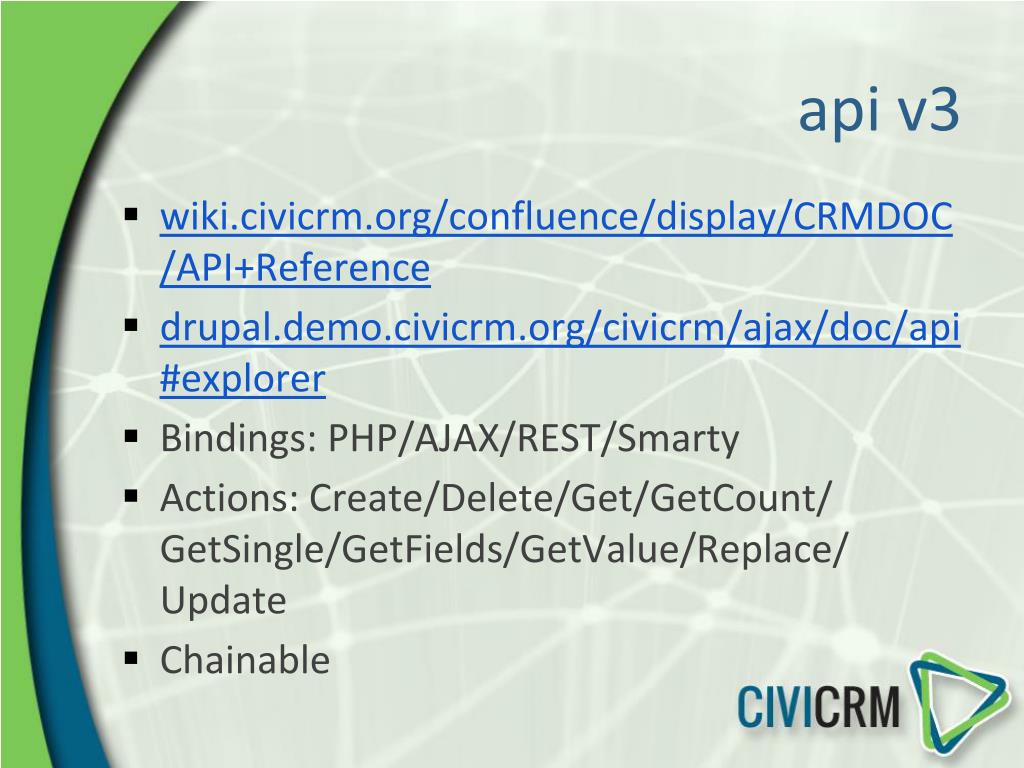

api v3
api v3
  • wiki.civicrm.org/confluence/display/CRMDOC/API+Reference
  • drupal.demo.civicrm.org/civicrm/ajax/doc/api#explorer
  • Bindings: PHP/AJAX/REST/Smarty
  • Actions: Create/Delete/Get/GetCount/ GetSingle/GetFields/GetValue/Replace/ Update
  • Chainable
api php

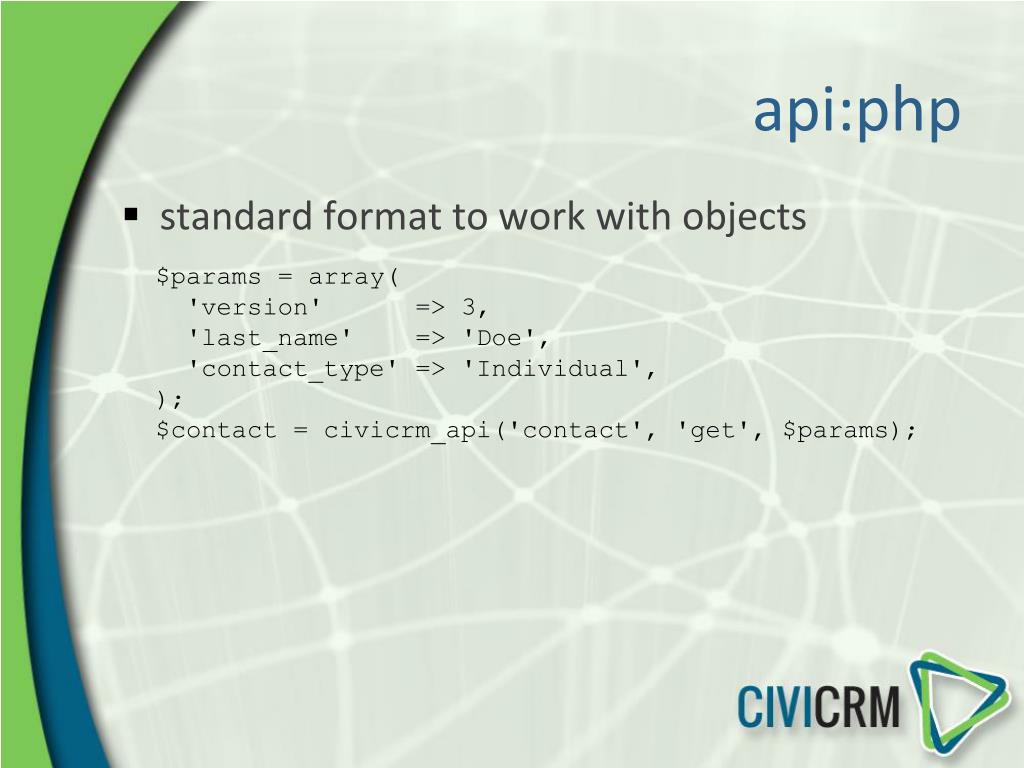

api:php
  • standard format to work with objects

$params = array(

'version' => 3,

'last_name' => 'Doe',

'contact_type' => 'Individual',

);

$contact = civicrm_api('contact', 'get', $params);

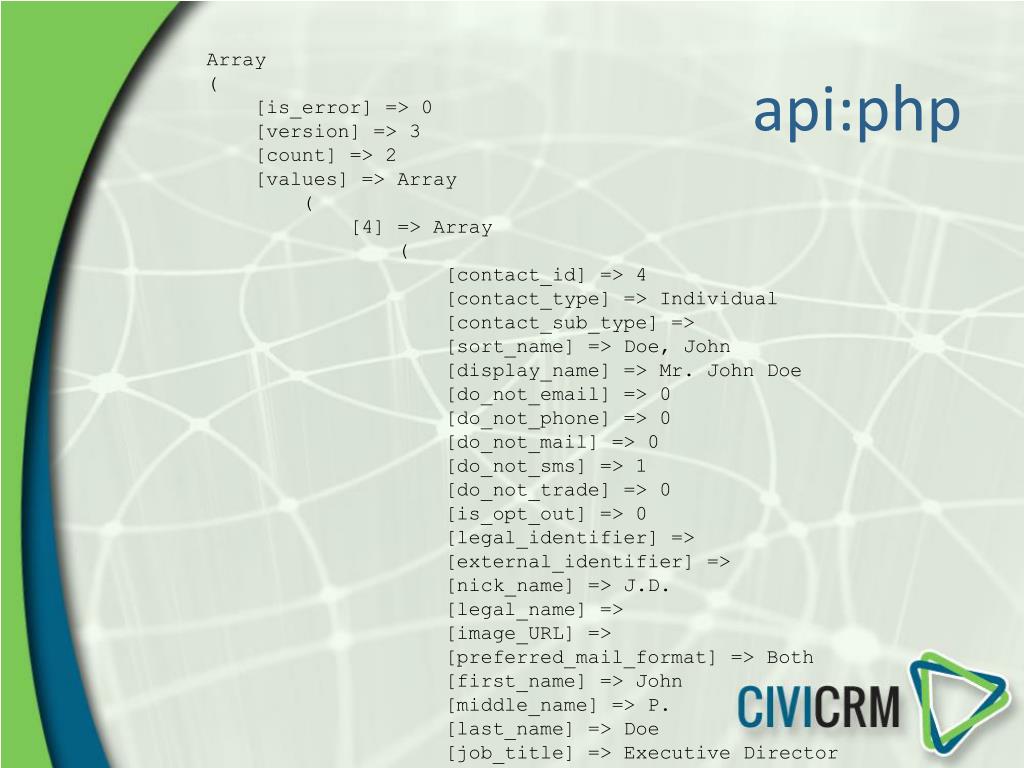

api php1
api:php

Array

(

[is_error] => 0

[version] => 3

[count] => 2

[values] => Array

(

[4] => Array

(

[contact_id] => 4

[contact_type] => Individual

[contact_sub_type] =>

[sort_name] => Doe, John

[display_name] => Mr. John Doe

[do_not_email] => 0

[do_not_phone] => 0

[do_not_mail] => 0

[do_not_sms] => 1

[do_not_trade] => 0

[is_opt_out] => 0

[legal_identifier] =>

[external_identifier] =>

[nick_name] => J.D.

[legal_name] =>

[image_URL] =>

[preferred_mail_format] => Both

[first_name] => John

[middle_name] => P.

[last_name] => Doe

[job_title] => Executive Director

[birth_date] =>

[is_deceased] => 0

[deceased_date] =>

[household_name] =>

[organization_name] =>

[sic_code] =>

[contact_is_deleted] => 0

[gender_id] => 2

[gender] => Male

[prefix_id] => 3

[prefix] => Mr.

[suffix_id] =>

[suffix] =>

[current_employer] => Worldwide United for Food

[address_id] => 4

[street_address] => 123 Main Street

[supplemental_address_1] =>

[supplemental_address_2] =>

[city] => Albany

[postal_code_suffix] =>

[postal_code] => 12208

[geo_code_1] =>

[geo_code_2] =>

[state_province_id] => 1031

[state_province_name] => New York

[state_province] => NY

[country_id] => 1228

[country] => United States

[phone_id] => 2

[phone_type_id] => 1

[phone] => 800-123-4567

[email_id] => 4

[email] => john@wuff.org

[on_hold] => 0

[im_id] =>

[provider_id] =>

[im] =>

[worldregion_id] => 2

[world_region] => America South, Central, North and Caribbean

[id] => 4

)

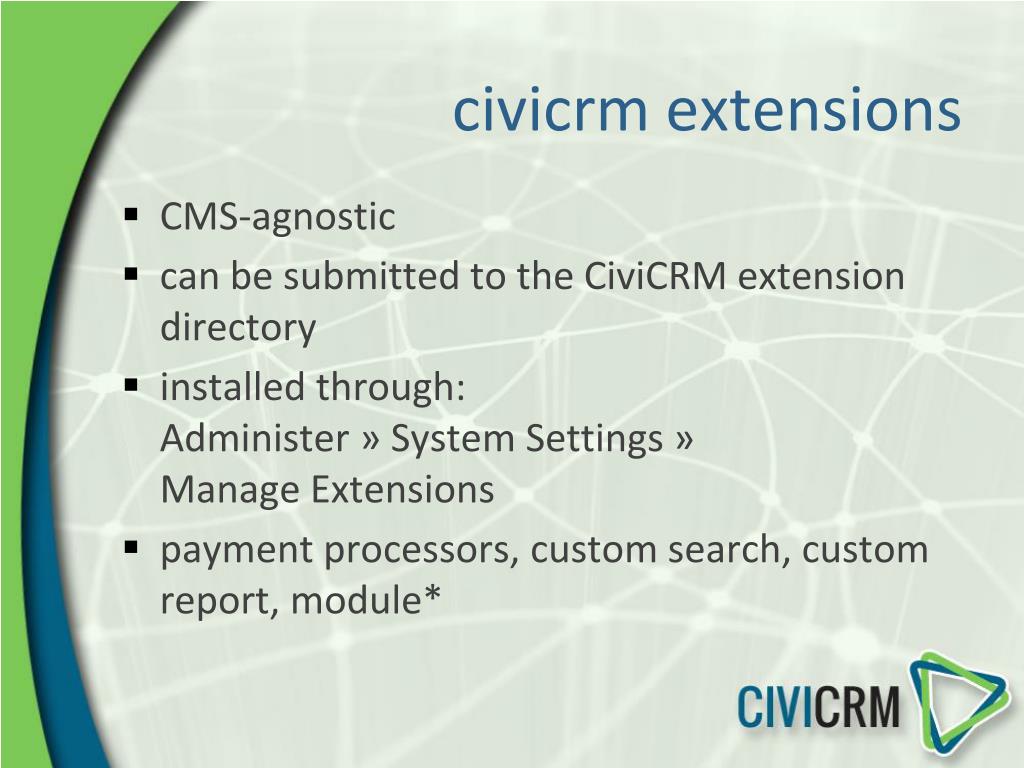

civicrm extensions
civicrm extensions
  • CMS-agnostic
  • can be submitted to the CiviCRM extension directory
  • installed through:Administer » System Settings » Manage Extensions
  • payment processors, custom search, custom report, module*
extension
extension
  • create folder in custom extension directory: domain.type.name
  • create info.xml to define the extension parameters
  • refer to documentation for xml options and naming conventions
  • create php and tpl files
    • php files reside in base directory
    • tpl files reside in
  • install/enable/run/test
extension1
extension
  • wiki.civicrm.org/confluence/display/CRMDOC/Extensions
  • wiki.civicrm.org/confluence/display/CRMDOC/Extension+Reference
  • wiki.civicrm.org/confluence/display/CRMDOC/Create+a+Module+Extension
  • github.com/totten/civix/
  • civicrm.org/extensions
sample civi module
sample civi module
  • custom birthday search via module
  • provide advanced tools tosearch contacts by birthday, including searching by month, year range, age range, day range

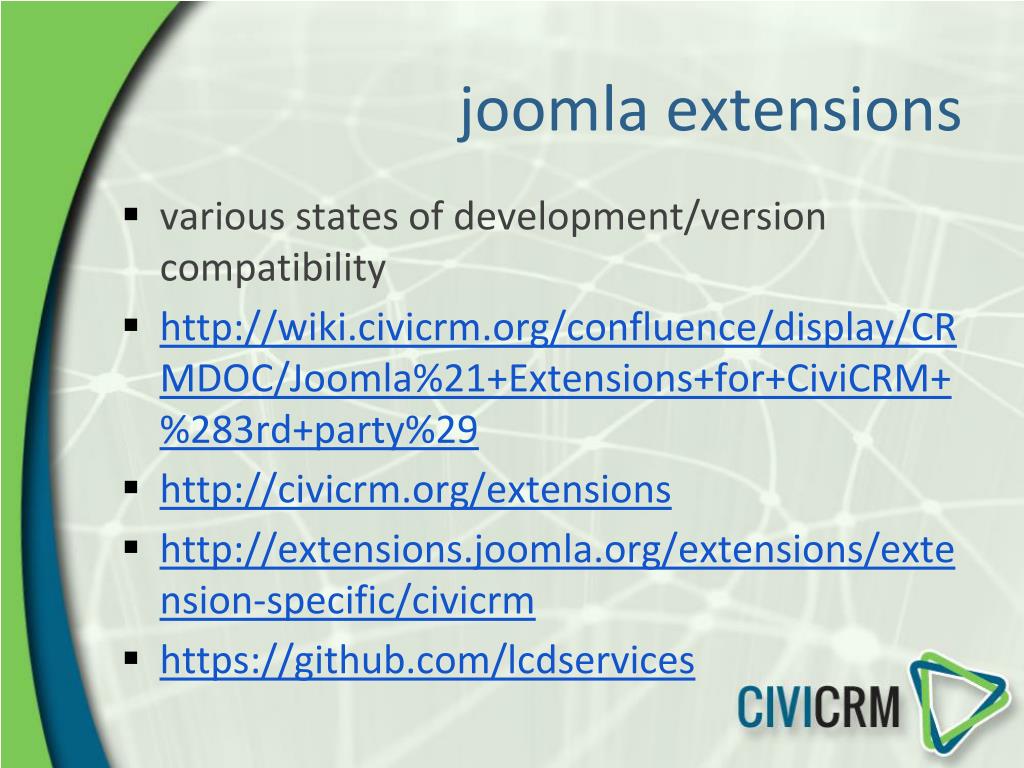

joomla extensions
joomla extensions
  • various states of development/version compatibility
  • http://wiki.civicrm.org/confluence/display/CRMDOC/Joomla%21+Extensions+for+CiviCRM+%283rd+party%29
  • http://civicrm.org/extensions
  • http://extensions.joomla.org/extensions/extension-specific/civicrm
  • https://github.com/lcdservices
extensions
extensions
  • CiviSearchplugin
  • CiviCRM Group Sync component
  • CiviAuthenticateplugin
  • CiviEvent module
  • CiviUser component
  • CiviLinkerplugin
  • Gloriant CiviCRM component
  • CiviLead
resources
resources
  • www.civicrm.org
  • book.civicrm.org/[user admin and developer guides]
  • wiki.civicrm.org/confluence/display/CRMDOC/CiviCRM+Documentation[online documentation]
community
community
  • wiki: http://wiki.civicrm.org
  • forum: http://forum.civicrm.org/
  • IRC: #civicrm on irc.freenode.net
  • blogs: http://civicrm.org/blog/
  • bug: http://issues.civicrm.org
