  1. www.osram.com/signage LED Modules for Signage Applications Hans Stalenhoef | 12-11-2013

  2. LED Module for Signage Potential markets Other applications Key applications Out Of Home Media (Clear Channel, JCDecaux, Stroer, CBS Outdoor,…) Channel letters (Retail chains, restaurant chains, shops,…) Indoor signaling (Train stations, airports, shopping malls, stadiums,…) Billboards Don’t forget:architectural and other potential applications. Title/Occasion | MM/DD/YYYY

  3. Channel Letters

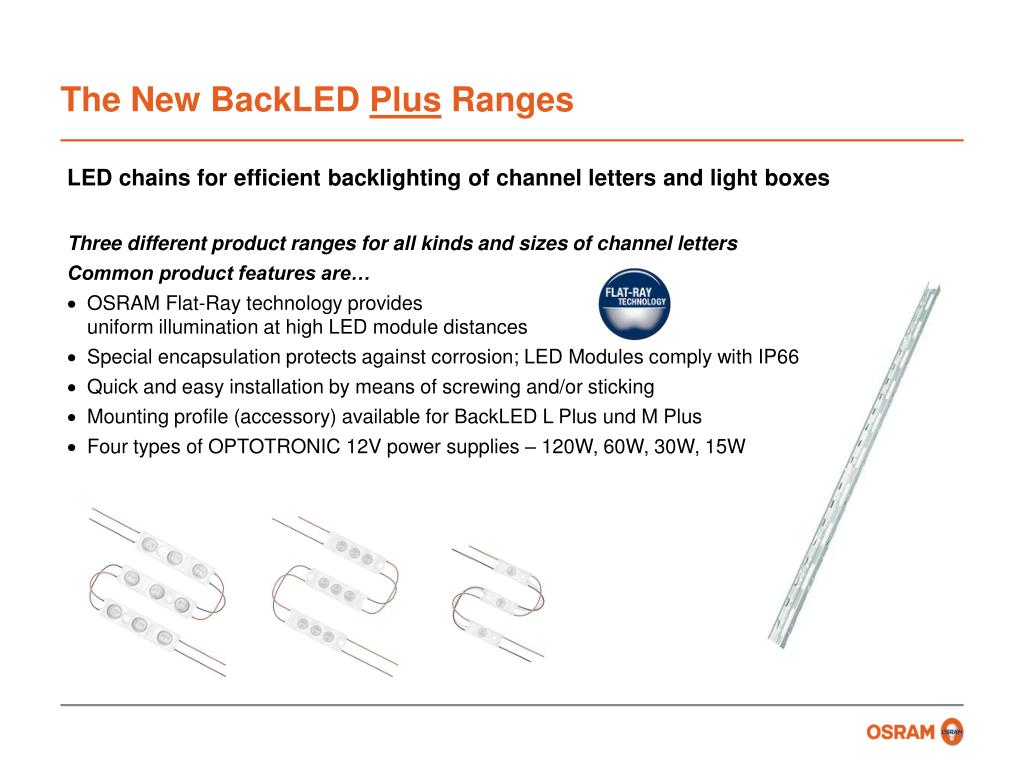

  4. The New BackLED Plus Ranges LED chains for efficient backlighting of channel letters and light boxes Three different product ranges for all kinds and sizes of channel letters Common product features are… • OSRAM Flat-Ray technology providesuniform illumination at high LED module distances • Special encapsulation protects against corrosion; LED Modules comply with IP66 • Quick and easy installation by means of screwing and/or sticking • Mounting profile (accessory) available for BackLED L Plus und M Plus • Four types of OPTOTRONIC 12V power supplies – 120W, 60W, 30W, 15W

  5. OSRAM Flat-Ray technology: 3 modules BackLED S Plus LED module distance: 100mm LED module distance to acrylic: 60mm LED w/ooptics: OSRAM Flat-Ray Technology • The OSRAM Flat-Ray technology provides uniform illumination at high LED module distances • Up to 75% less modules required compared to conventional system w/o special lens technology • Up to 30% higher application efficiency (cd/qm/W) compared to systems w/o lenses

  6. OSRAM Flat-Ray Technology without optics with Flat-Ray technology light emits directly radiation pattern optics disperse the light radiation pattern

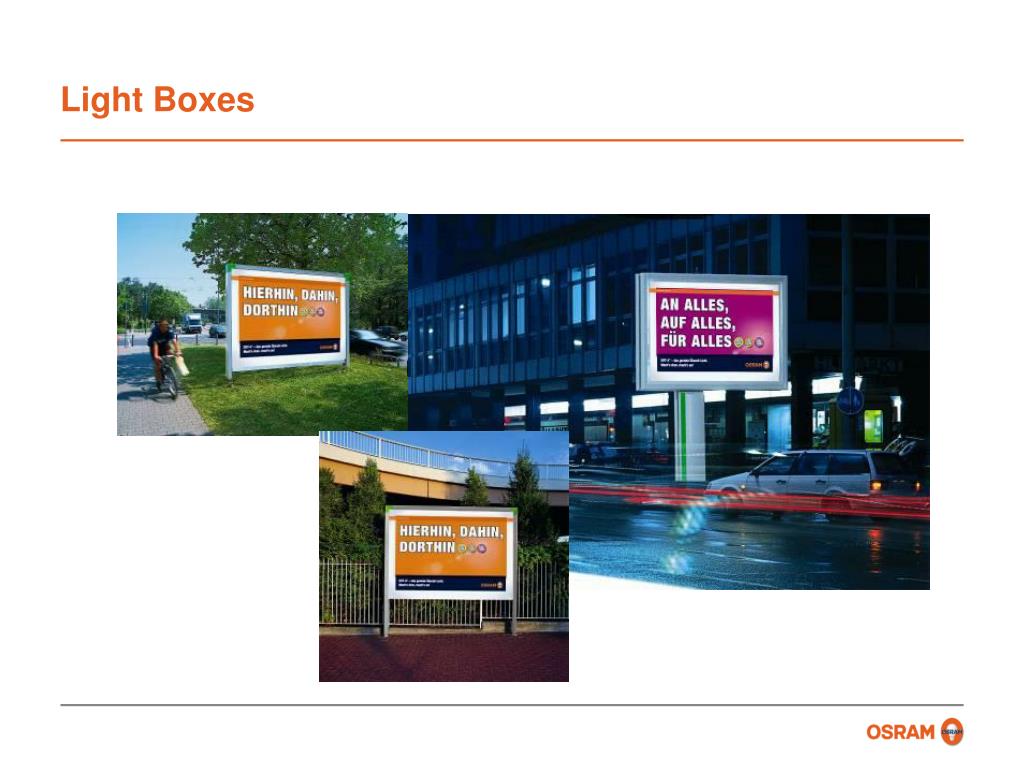

  7. Light Boxes

  8. The New BoxLED Plus Product Ranges High performance LED systems replace fluorescent tubes in all kinds and sizes of light boxes Two different product ranges for all kinds and sizes of channel letters Common product features are… • 290 lm (6500K) per module at 3.60W power consumption • Quick and easy installation in light boxes by means of the universal BoxLED mounting profile • Special encapsulation protects against corrosion; LED Modules comply with IP66 • Power consumption per chain is 120W • Six types of OPTOTRONIC 24V power supplies – 240W, 120W, 80W, alternatively equipped with integrated 1…10V interface

  9. BoxLED Plus – Mounting Options Side Lighting(single- and double-sided) Backlightingsingle-sided Backlightingdouble-sided

  10. BoxLED mounting profile/BackLED mounting profile Universal profiles for single-and double-sided light boxes • Quick and easy installation • Significantly reduces time for measuring and positioning • Click-and-Play: Fast mounting of the LED modules into the profile without any tools needed • Only two profiles for five module types and three mounting options • Suitable for all BoxLED (Plus) and BackLED Plus LED modules, except BackLED S Plus • To be mounted on the inner edges, the backplane or as a grid inside of the light box. • Integrated mounting grid (55/50mm) for constant distances of LEDs/modules • Overall length 2,365/2,000mm – easy cutting to length • Pre-cut square holes for easy fixation of cables

  11. Preview:BoxLED Back Plus DS The efficient solution for large double-sided light boxes and pylons Maximum savings of energy and installation cost • One BoxLED Back Plus DS chain comprises 16 LED modules with 12 LEDs each • 580 lm (6500K) per module at 7.20W power consumption • Only 140mm module length for maximum versatility • Innovative mounting system for quick installation with almost no tools required • Die OSRAM Flat-Ray technology provides uniform illumination at high LED module distances • Efficacy of up to 80 lm/W – incl. optics • Light color: white 6500K • Maximum distance of module centers is 400mm – maximum total chain length is 6.40m • Available as of April 2013

  12. BoxLED Side The proven alternative solution to BoxLED Side Plus Excellent uniformity – even for flat light boxes • One BoxLED Side module chain comprises 8 LED modules with 3 LEDs each • Quick and easy installation in light boxes by means of the universal BoxLED mounting profile • Optics with elliptical radiation pattern provide uniform backlighting results • 492 lm (6500K) per module at 7.50W power consumption • Light colors: white 6500K, 4000K, 3000K • Special encapsulation protects against corrosion; LED Modules comply with IP66 • Maximum distance of module centers is 450mm – maximum total chain length is 3.60m • Four types of OPTOTRONIC 12V power supplies available – 120W, 60W, 30W, 15W
