slide1

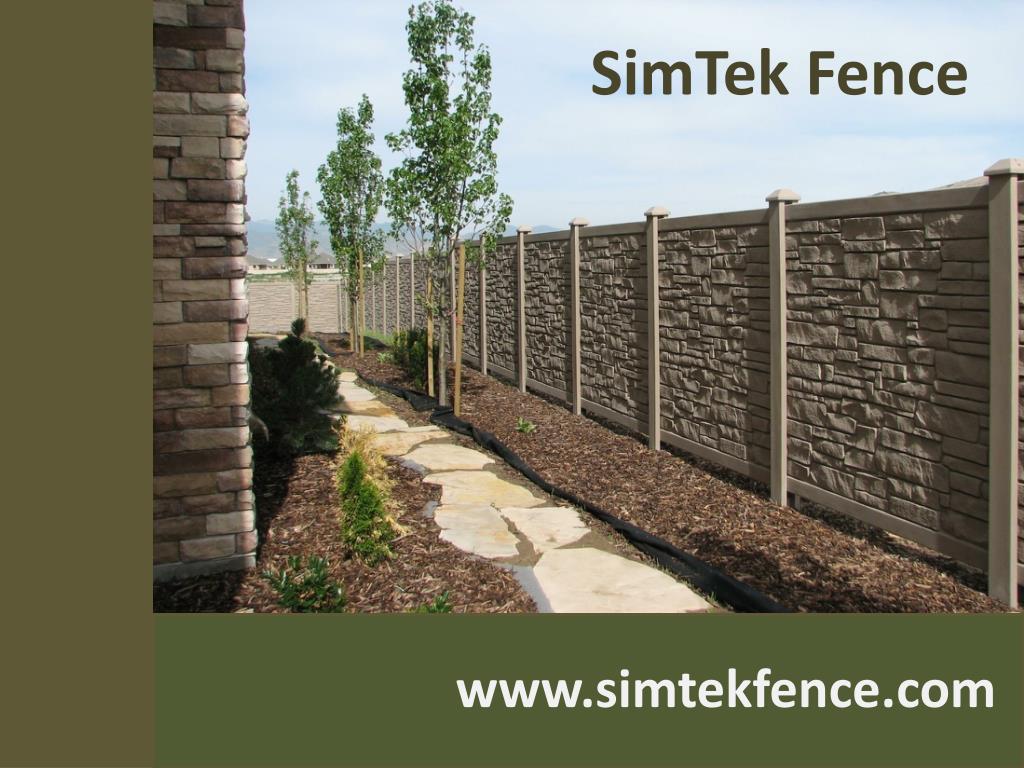

SimTek Fence

www.simtekfence.com

www.simtekfence.com

slide2

Founded in 2007, SimTek Fence has reinvented fence manufacturing with its patented design of rotationally-molded fencing allowing realistic stone appearance and superior performance. We are one of the fastest growing fence manufacturer in the United States

About Us

slide3

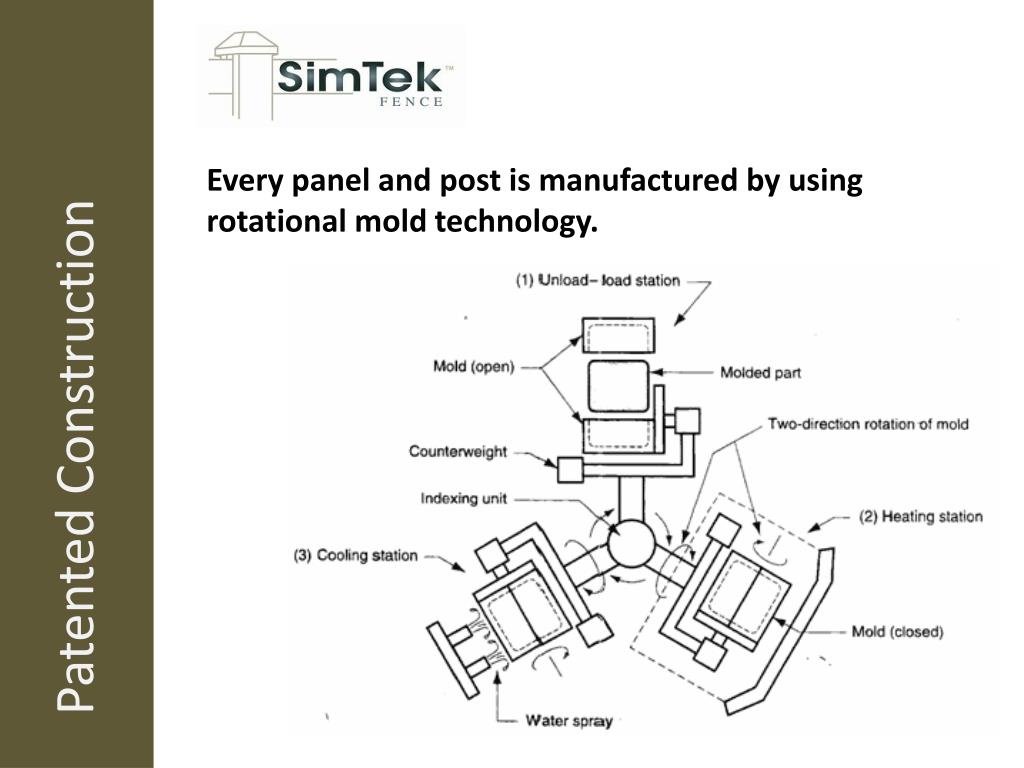

Every panel and post is manufactured by using rotational mold technology.

Patented Construction

slide4

Our fence system is made with proprietary Linear Low Density Polyethylene Plastic (LLDPE) and is reinforced with galvanized steel.

17 High Strength gauge 1 ½” squared galvanized steel tube

Patented Construction

slide5

SimTek Fence has been engineered to meet and exceed the wind load requirements for Miami-Dade County for hurricane force wind loads.

- 110 mph sustained wind loads with a

maximum burst of 130 mph.

Superior Wind Load Rating

slide6

SimTekFence

SimTek fence blocks 98% of direct sound

Our Sound Transmission Class Rating is (STC) is 26

Excellent Sound Barrier

slide7

SimTek fence contains UV-12 inhibitors that allows the plastic to maintain its original granite color.

The fence will not fade or ever change colors.

Fade Resistant

slide8

our new √ green

(formula)

+ Rotomolding =

Greener Solution

SimTek Fence uses more than 200,000 lbs. of recycled polyethylene plastic.

No trees are cut down for the purpose of manufacturing our fence.

We recycle, regrind, and reuse all our polyethylene – we produce no waste or plastic scrap.

Were possible, we use recycled packaging materials

Our fence is 100% recyclable.

slide9

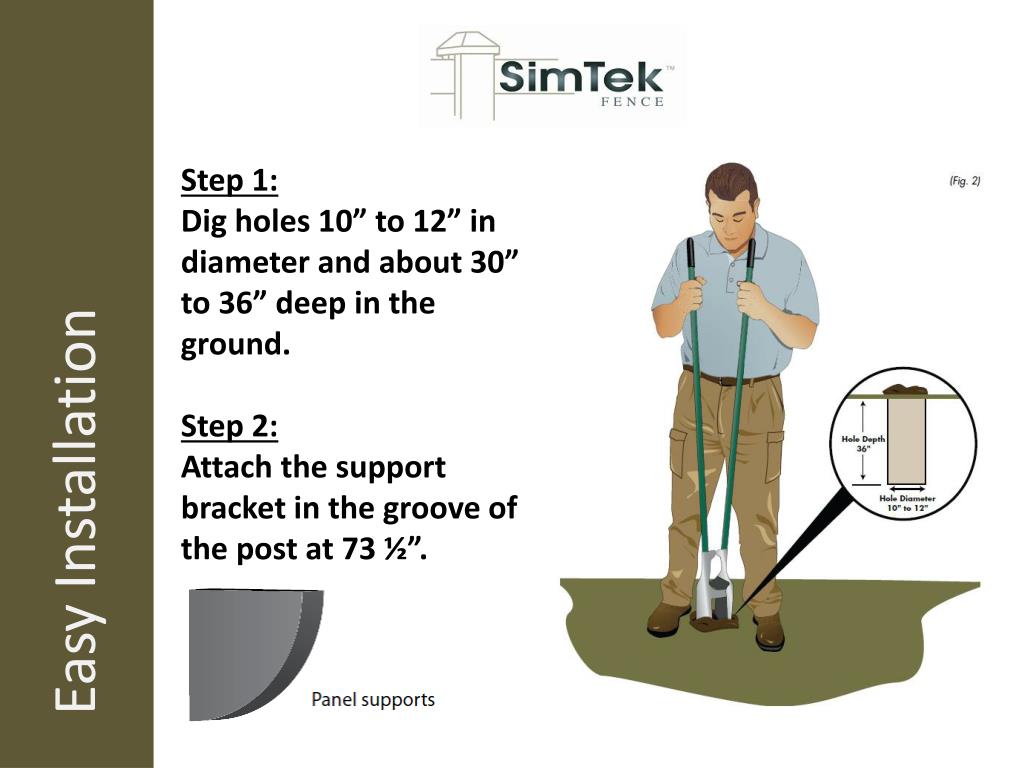

Step 1:

Dig holes 10” to 12” in diameter and about 30” to 36” deep in the ground.

Step 2:

Attach the support bracket in the groove of the post at 73 ½”.

Easy Installation

slide10

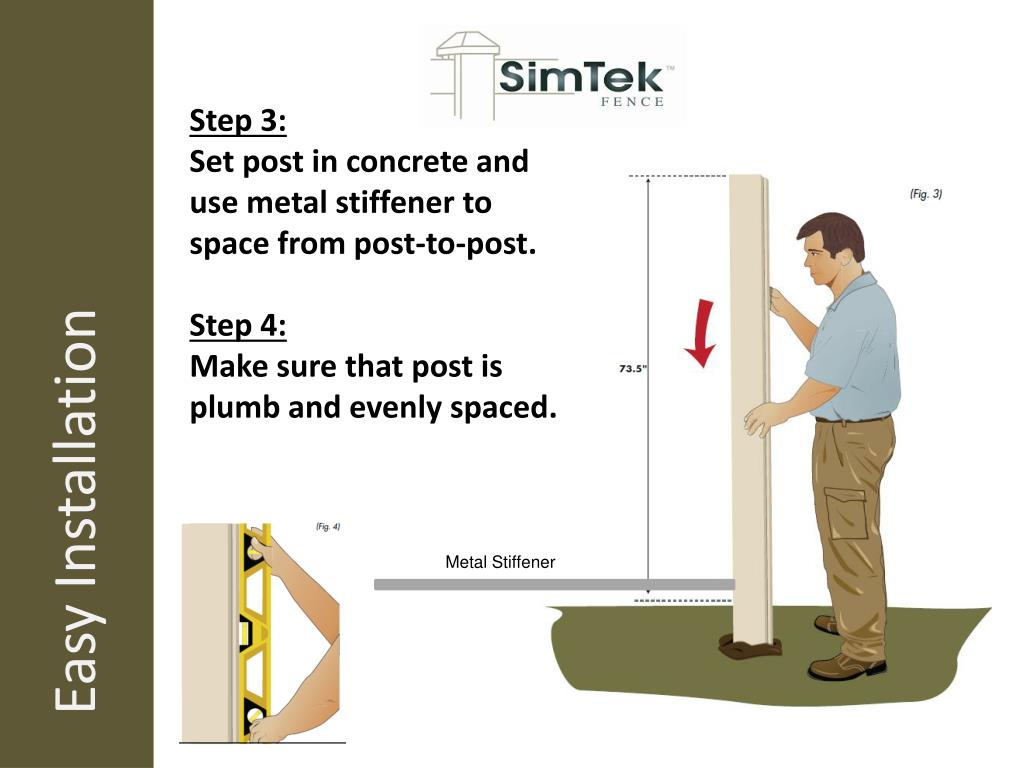

Step 3:

Set post in concrete and use metal stiffener to space from post-to-post.

Step 4:

Make sure that post is plumb and evenly spaced.

Easy Installation

Metal Stiffener

slide11

Step 5:

Once the concrete cures, panels can be installed by sliding them in the channel of the post.

Easy Installation

slide12

Step 6:

  • Panels can be cut to any desired length.
  • Remove steel stiffeners from panel. Determine the exact width between post grooves. Mark and cut stiffeners with a metal blade.
  • Cut the panel to the stiffener width minus ½” to allow for thermal expansion and contraction.

Cutting Panels

slide13

Step 7:

Install caps over the post. Caps are pressure fitted.

Recommendation:

Panels are universal with no front or back and no top or bottom edge. Randomly installing panels gives the most pleasing aesthetic effect.

Easy Installation

slide16

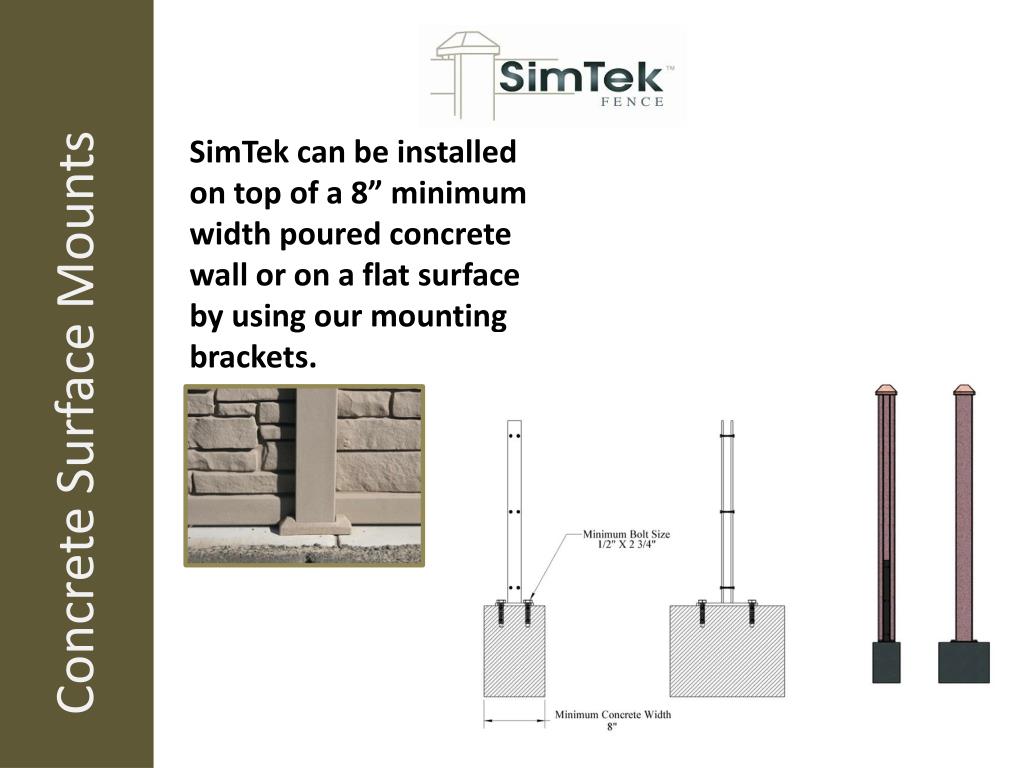

SimTek can be installed on top of a 8” minimum width poured concrete wall or on a flat surface by using our mounting brackets.

Concrete Surface Mounts

slide17

EcoStone Colors

Eco Dark Brown Eco Brown

Eco Beige Eco Grey

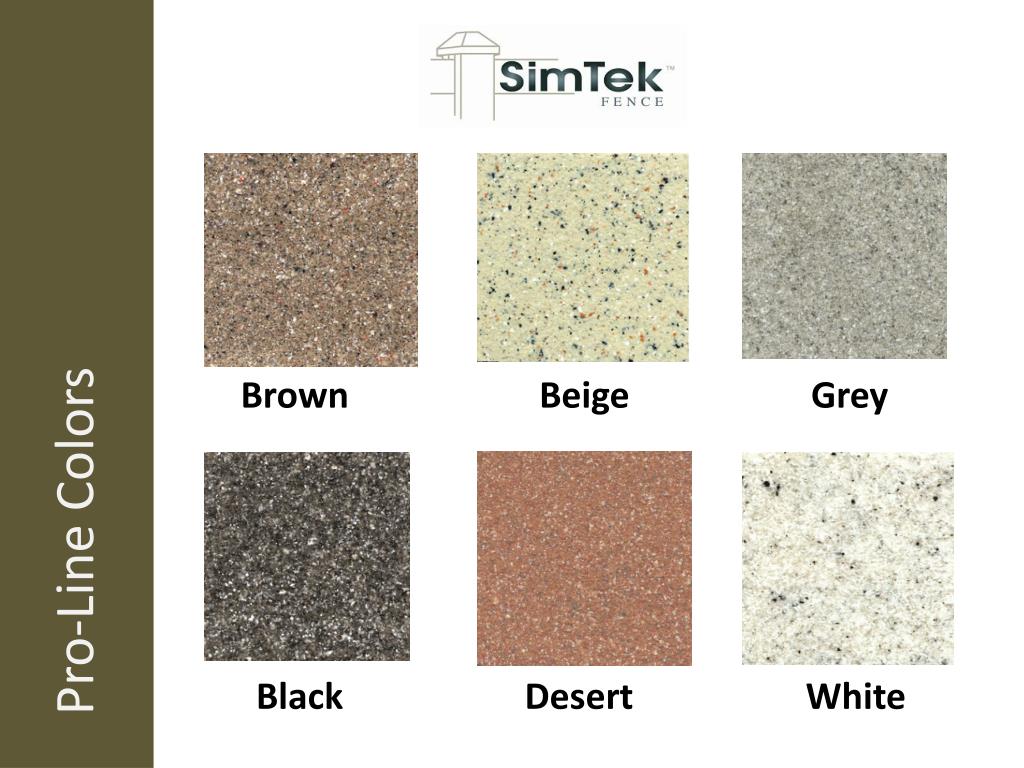

slide18

Brown Beige Grey

Pro-Line Colors

Black Desert White

slide19

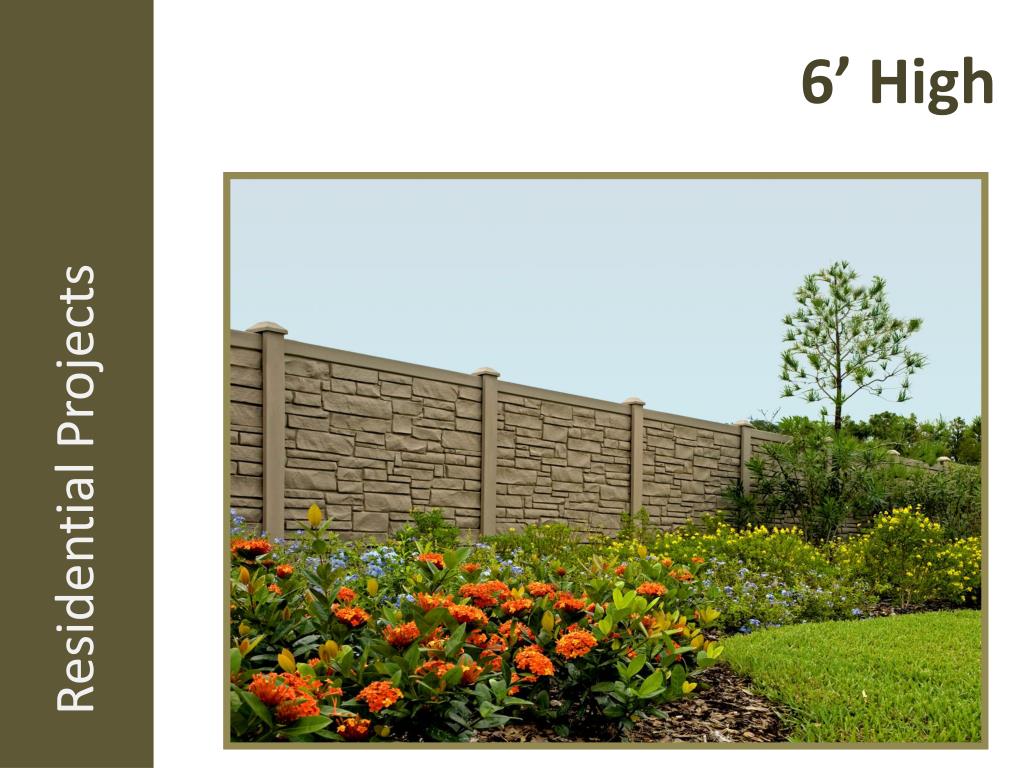

6’ High

Residential Projects

slide20

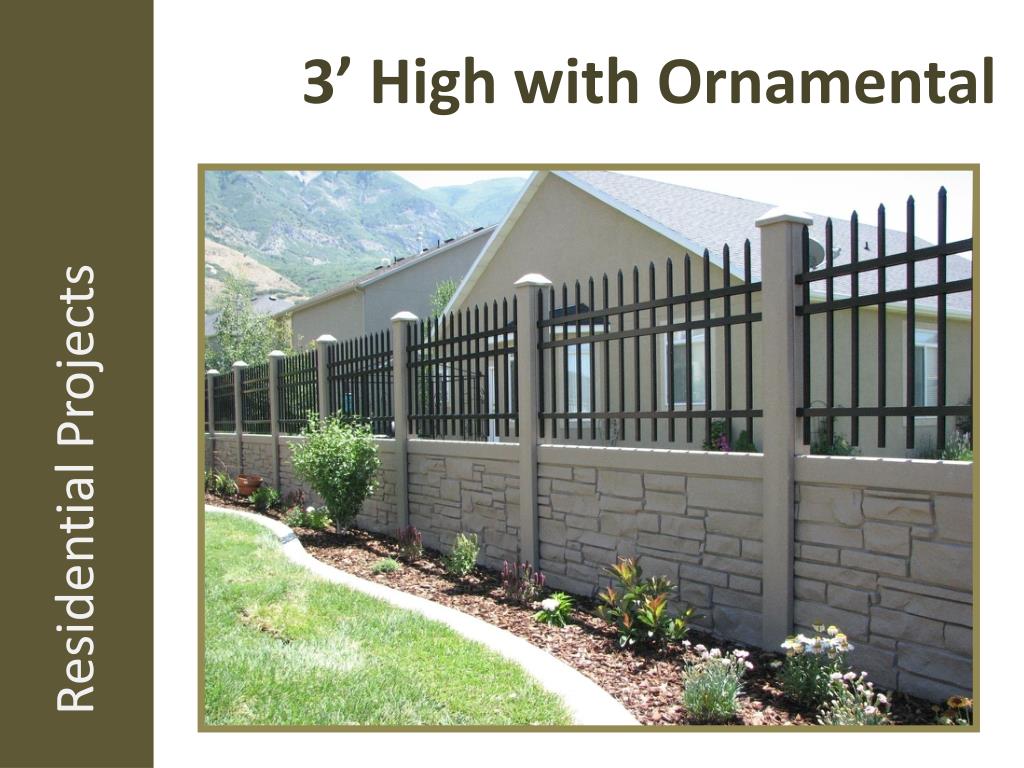

3’ High with Ornamental

Residential Projects

slide21

Great Around Swimming Pools

Residential Projects

slide23

6’ High

Commercial Projects

slide24

8’ High

Commercial/Industrial Projects
