Presentation Transcript
atom 3 a t ool f o r m ulti formalism and m eta m odelling

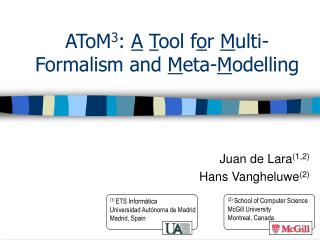

AToM3: ATool for Multi-Formalism and Meta-Modelling

Juan de Lara(1,2)

Hans Vangheluwe(2)

(2) School of Computer Science

McGill University

Montreal, Canada

(1) ETS Informática

Universidad Autónoma de Madrid

Madrid, Spain

slide2

Problems

  • To model and simulate complex systems:
    • Many components
    • Each one is better described in a particular formalism.
  • To transform models between formalisms preserving behaviour.
slide3

Goals

  • We propose Meta-Modelling + Graph-Rewriting to solve these problems.
  • To be able to automatically generate tools for the processing of models.
  • Common framework for all these tools.
slide4

Index

  • Problems
  • Goals
  • Background.
    • Multi-Formalism Modelling
    • Meta-Modelling.
    • Graph Grammars.
  • AToM3.
  • Transforming NFA into DFA.
  • Conclusions and Future work.
slide5

Multi-Formalism Modelling

Formalism Transformation Graph

slide6

Meta-Modelling (i)

  • Need of multiple, heterogeneous tools for multi-formalism modelling?
  • We solve it with Meta-Modelling:
    • Modelling the formalism...
    • And generating automatically a tool for processing models in the described formalism.
slide7

Meta-Modelling (ii)

  • Introduce higher modelling layers to model the formalisms themselves.

Order

Description

Example

Meta-Meta

Model

Models of (meta-)

formalisms, which can be

used to describe other

formalisms

  • Models of:
  • Entity-Relationship Diagrams
  • UML class Diagrams
  • ...

Meta-

Model

Models of formalisms.

  • Models of:
  • Deterministic Finite Automata
  • DFD, Structure Charts
  • Ordinary Differential Equations
  • ...

Model

The description of an

object in a certain

formalism.

  • f´(x) = -sin(x), f(0) = 0 (in the
  • ODEs formalism).
  • ...
slide8

Meta-Modelling (iii)

  • Example:

0..N

1..1

1

State

Name: String

Type: (I, R, F)

StateTransition.forAll(t1,

t2|t1.Condition<>t2.Condition)

1

S0

S1

Transition

Condition: String

0..N

1

1..1

0

0

S2

S3

  • Constraints
  • distinctStateNames: State.forAll(p, q|p.Name<>q.Name)
  • uniqueInitial: State.exists(n|n.Type==I and
      • State.forAll(m|n<>m and m.Type<>I)
  • existsFinal: State.exists(n|n.Type==F)

0

Model: Even binary numbers (DFA)

Meta-Model: DFA formalism (“UML” class diagram + OCL)

slide9

Meta-Modelling (iv)

E-R

E-R

(meta-meta-model)

E-R

DFA

(meta-model)

Meta-Modelling

Tool

(AToM3 Kernel)

  • User Input:
  • Create entities
  • Delete entities
  • Verify conditions
  • (local, global)

DFA

Even

Binary

Numbers

Meta-Modelling

Tool

(AToM3 Kernel)

  • User Input:
  • Create entities
  • Delete entities
  • Verify conditions
  • (local, global)

(model)

slide10

Graph Grammars (i)

  • A (meta-)* model is a graph.
  • Just like string grammars, but rules have graphs in LHSs and RHSs.
  • If a matching is found between a LHS and a zone in the graph, this subgraph is substituted by the RHS.
  • A Graph Rewriting System tries each rule in sequence until none of them is applicable.
slide11

Graph Grammars (ii)

  • We use graph grammars to:
    • Express operational semantics (simulator specification)
    • Transform models into behaviourally equivalent models expressed in another formalism.
    • Optimize models.
    • Generate code for a particular tool (  denotational semantics).
slide12

Index

  • Problems
  • Goals
  • Background.
  • AToM3.
    • Meta-Modelling the DFA Formalism.
  • Transforming NFAs into DFAs.
  • Conclusions and Future work.
slide13

AToM3(i)

Graphical

Icons

User Interface

Model

ASG Nodes Structure

ASG Structure

(meta-meta-model)

E-R

E-R

Graph

Rewriting

Processor

Graphical

Model

Abstract

Syntax

Graph

(meta-model)

Meta-Modelling

Tool

(AToM3 Kernel)

User Interface

E-R

DFA

Constraint

Manager

Code

Generator

  • User Input:
  • Create entities
  • Delete entities
  • Verify conditions
  • (local, global)

DFA

Even

Binary

Numbers

Meta-Modelling

Tool

(AToM3 Kernel)

(model)

  • User Input:
  • Create entities
  • Delete entities
  • Verify conditions
  • (local, global)
slide14

AToM3(ii)

  • Types is another formalism.
  • Atomic (integer, boolean, ...) or composite.
  • A composite type is a model in the “types” formalism.
  • Regular or Generative:
    • ATOM3Attribute
    • ATOM3Constraint
    • ATOM3Link
    • ATOM3Appearance
slide15

AToM3(iii)

  • DFA Meta-Model
  • Semantic information

Edit Cardinalities

Edit Properties

slide16

AToM3(iii)

  • DFA Meta-Model
  • Semantic information

Constraints

slide17

AToM3(iv)

  • DFA Meta-Model
  • Graphical information

Edit Appearance

slide18

AToM3(v)

  • DFA Meta-Model
  • Global Semantic Information and Constraints.

Edit Model Attributes

slide19

AToM3(vi)

  • Configuring the DFA User Interface (In the Buttons formalism).
  • Automatically generated by a Graph-Grammar:
    • Transforms a Model in the Eentity Relationship formalism into a Model in the Buttons Formalism.

Edit Entity

Config. Action

slide20

AToM3(vii)

  • The Tool to Process DFA Models.
  • Create, Edit, Verify...
  • Other manipulations can be defined by means of graph grammars:
    • Simulate.
    • Optimize.
    • Transform.
    • Generate Code.
    • ...
slide21

Index

  • Problems
  • Goals
  • Background.
  • AToM3.
  • Transforming NFAs into DFAs.
    • Example
  • Conclusions and Future work.
slide22

Transforming NFAs into DFAs (i)

Eliminates unreachable states

Joins equivalent states

Eliminates non determinism between two different states

Eliminates non determinism with self-loops.

slide23

Transforming NFAs into DFAs (ii)

Rule 3: Eliminates non determinism between two different states

RHS

LHS

Condition:node(2).condition == node(3).condition

Action:Copy inputs and outpus from node(4) and node(5)

into node(7)

slide24

Transforming NFAs into DFAs (ii)

Example (i)

Rule 3

Rule 1

slide25

Transforming NFAs into DFAs (ii)

Example (ii)

Rule 1

Rule 1

Rule 3

slide26

Transforming NFAs into DFAs (ii)

Example (iii)

Rule 1

Rule 1

Rule 3

slide28

Index

  • Problems
  • Goals
  • Background.
  • AToM3.
  • Transforming NFAs into DFAs.
  • Conclusions and Future work.
slide29

Conclusions

  • Meta-Modelling + Graph Transformation is a powerful combination for Multi-Paradigm Modelling.
  • AToM3 implements such a combination:
    • Meta-Modelling facilitates the generation of modelling tools.
    • Graph Transformation facilitates the processing of models (transformation, simulation, optimization, code generation).
slide30

Future Work

  • Extend AToM3:
    • Hierarchy. Hierarchical Graph Grammars.
    • Meta-Model Inheritance. Formalism inheritance.
    • Collaborative Modelling. XML representation.
    • Meta-Model UML Class Diagrams.
  • Implement all the Formalisms and Transformations in the Formalism Transformation Graph.
  • AToM3 is available at:

http://moncs.cs.mcgill.ca/MSDL/research/projects/AToM3/
