  1. Evolution of database services Eva Dafonte Pérez 2014 WLCG Collaboration Workshop

  2. Outline • CERN’s databases overview • Service evolution • HW • Storage • Service configuration • SW • New database services • Replication • Database On Demand (DBoD) service • Hadoop+ Impala • Future plans • Summary

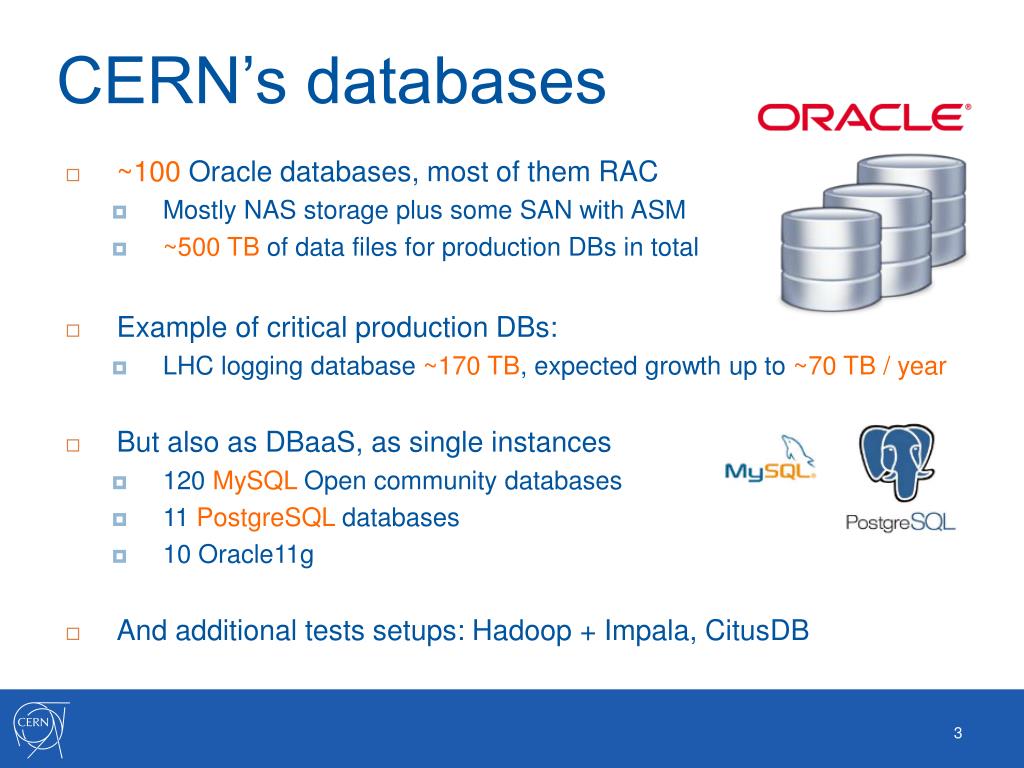

  3. CERN’s databases • ~100 Oracle databases, most of them RAC • Mostly NAS storage plus some SAN with ASM • ~500 TB of data files for production DBs in total • Example of critical production DBs: • LHC logging database ~170 TB, expected growth up to ~70 TB / year • But also as DBaaS, as single instances • 120 MySQL Open community databases • 11 PostgreSQL databases • 10 Oracle11g • And additional tests setups: Hadoop+ Impala, CitusDB

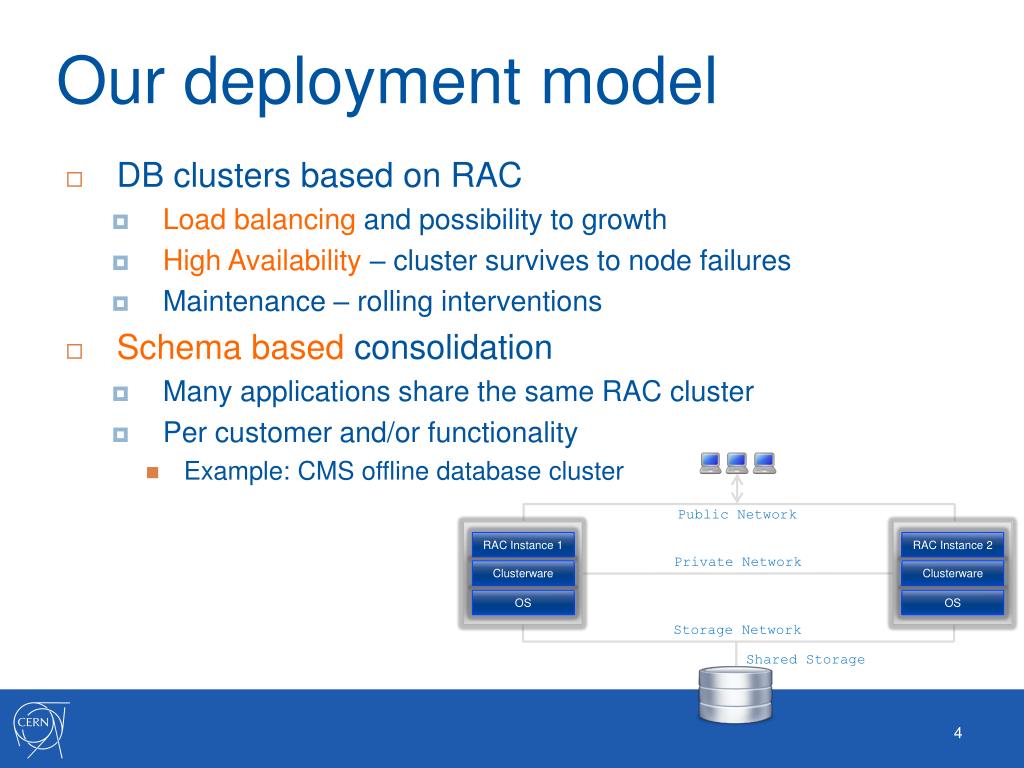

  4. Our deployment model Public Network RAC Instance 1 RAC Instance 2 Private Network Clusterware Clusterware OS OS Storage Network Shared Storage • DB clusters based on RAC • Load balancing and possibility to growth • High Availability – cluster survives to node failures • Maintenance – rolling interventions • Schema based consolidation • Many applications share the same RAC cluster • Per customer and/or functionality • Example: CMS offline database cluster

  5. Service evolution • Preparation for RUN2 • Changes have to fit LHC schedule • New HW installation in BARN • Decommission of some old HW • Critical power move from current location to BARN • Keep up with Oracle SW evolution • Applications’ evolution - more resources needed • Integration with Agile Infrastructure @CERN • LS1: no stop for the computing or other DB services

  6. Hardware evolution • 100production servers in the BARN • Dual 8 core XEON e5-2650 • 128GB/256GB RAM • 3x10Gb interfaces • Specific network requirements • IP1, ATLAS PIT, Technical Network, routed and non-routed network • New generation of storage from NetApp

  7. Storage evolution scaling up scaling out

  8. Storage consolidation 2 1 7 … 56 controllers (FAS3000) & 2300 disks (1400TB storage) 14 controllers (FAS6220) & 960 disks (1660 TB storage)

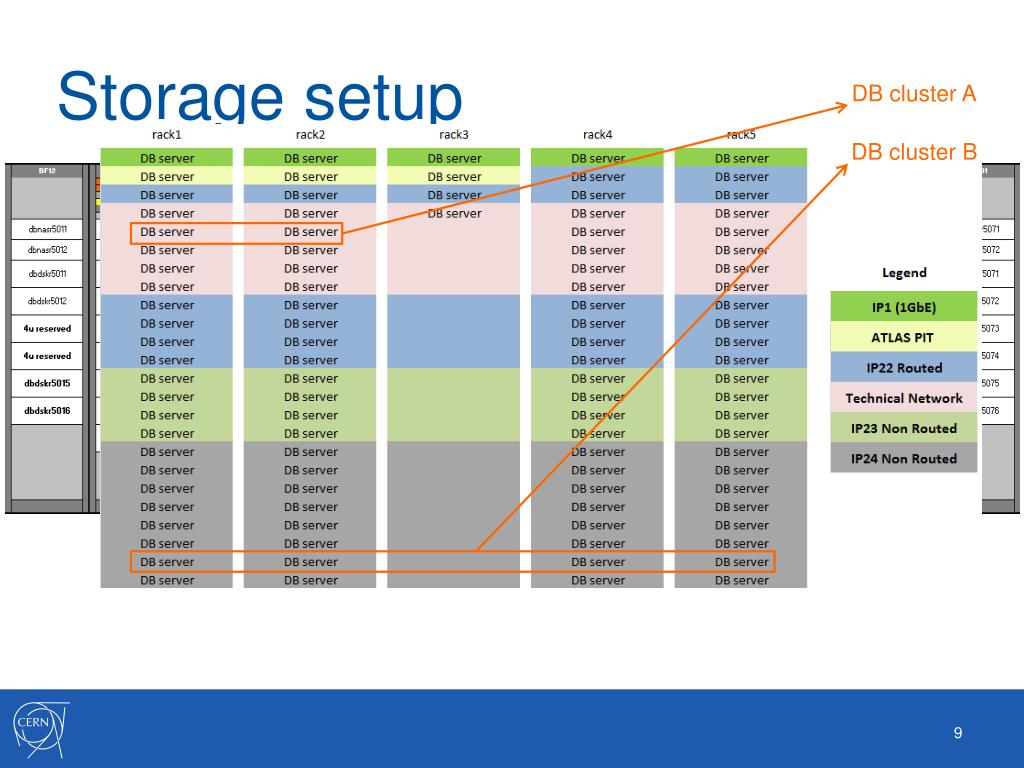

  9. Storage setup DB cluster A DB cluster B

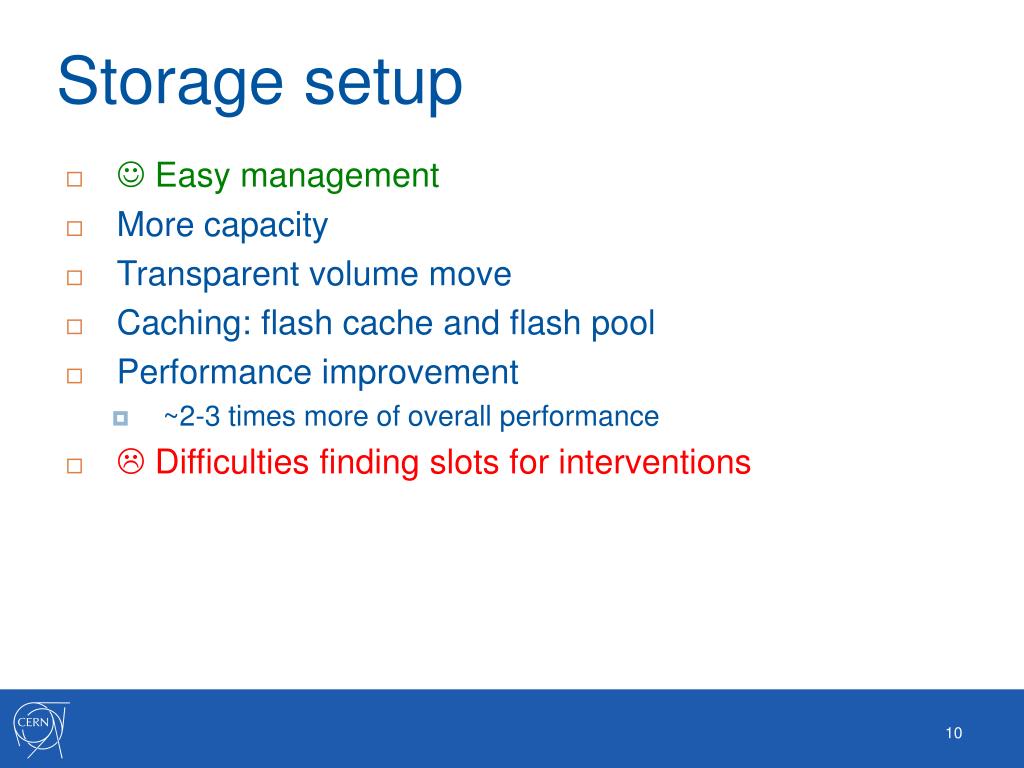

  10. Storage setup •  Easy management • More capacity • Transparent volume move • Caching: flash cache and flash pool • Performance improvement • ~2-3 timesmoreof overall performance •  Difficulties finding slots for interventions

  11. Service configuration - Puppet * Syscontrol-LDAP for IT-DB: stores configuration for IT-DB services • Following CERN IT’s strategy, IT-DB group adopted Puppet • Good occasion to re-think how the services are configured and managed • Rely on the same Syscontrol-LDAP* data source for Quattor-managed services • Developed custom modules for: • Private storage and network configuration • Database installation • Backups configuration • Removed sshkeys and service accounts in favour of kerberos+sudo • Improves traceability & manageability • RHEL 5 8RHEL 6

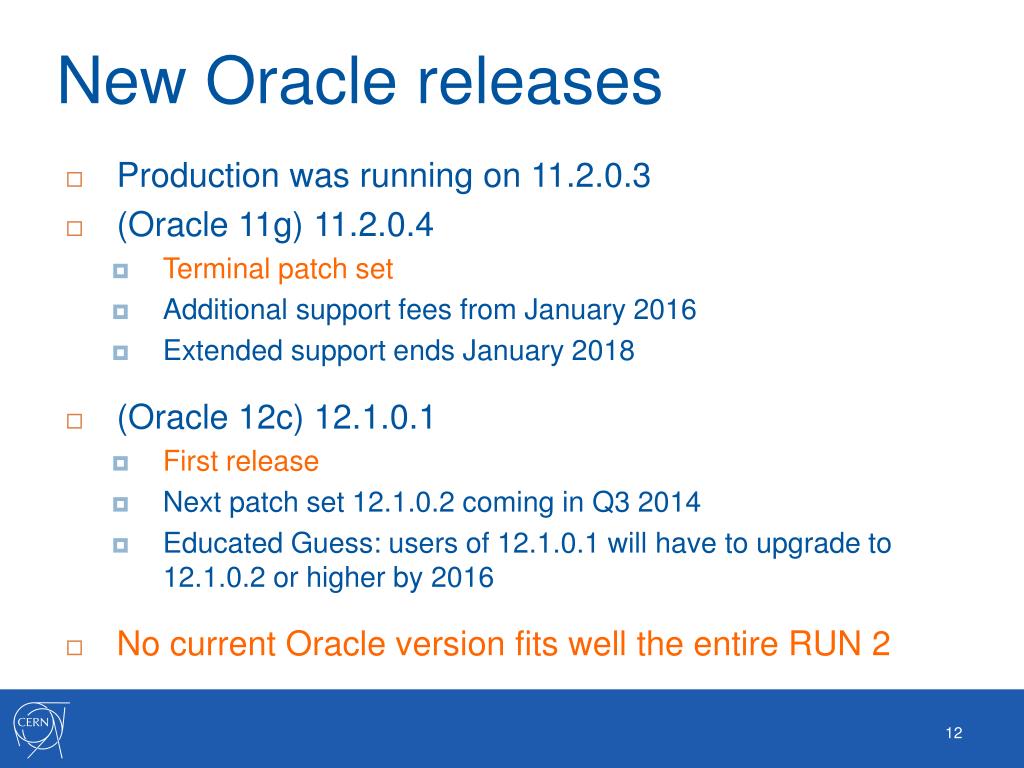

  12. New Oracle releases • Production was running on 11.2.0.3 • (Oracle 11g) 11.2.0.4 • Terminal patch set • Additional support fees from January 2016 • Extended support ends January 2018 • (Oracle 12c) 12.1.0.1 • First release • Next patch set 12.1.0.2 coming in Q3 2014 • Educated Guess: users of 12.1.0.1 will have to upgrade to 12.1.0.2 or higher by 2016 • No current Oracle version fits well the entire RUN 2

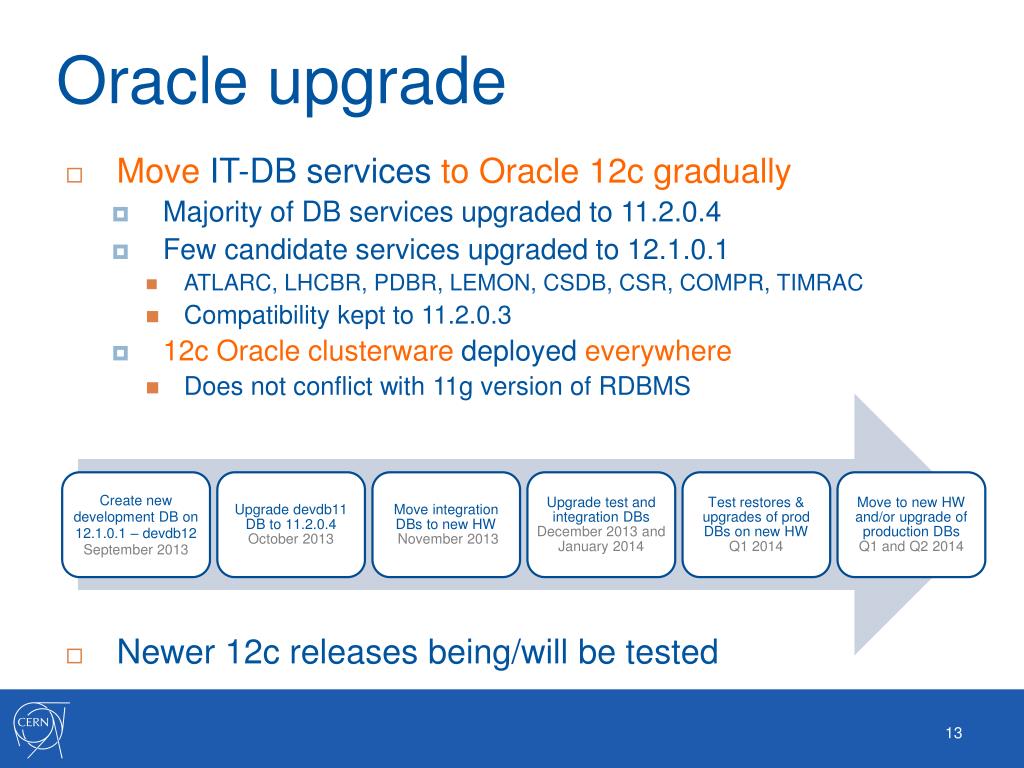

  13. Oracle upgrade • Move IT-DB services to Oracle 12c gradually • Majority of DB services upgraded to 11.2.0.4 • Few candidate services upgraded to 12.1.0.1 • ATLARC, LHCBR, PDBR, LEMON, CSDB, CSR, COMPR, TIMRAC • Compatibility kept to 11.2.0.3 • 12c Oracle clusterwaredeployed everywhere • Does not conflict with 11g version of RDBMS • Newer 12c releases being/will be tested

  14. New database services • QPSR • Quench Protection System • Will store ~150K rows/second (64GB per redo log) • 1M rows/second achieved during catch-up tests • Need to keep data for a few days (~ 50 TB) • Doubtful if previous HW could have handled that • SCADAR • Consolidated WinCC/PVSS archive repository • Will store ~50-60K rows/second (may increase in the future) • The data retention varies depending on the application (from a few days to 5 years)

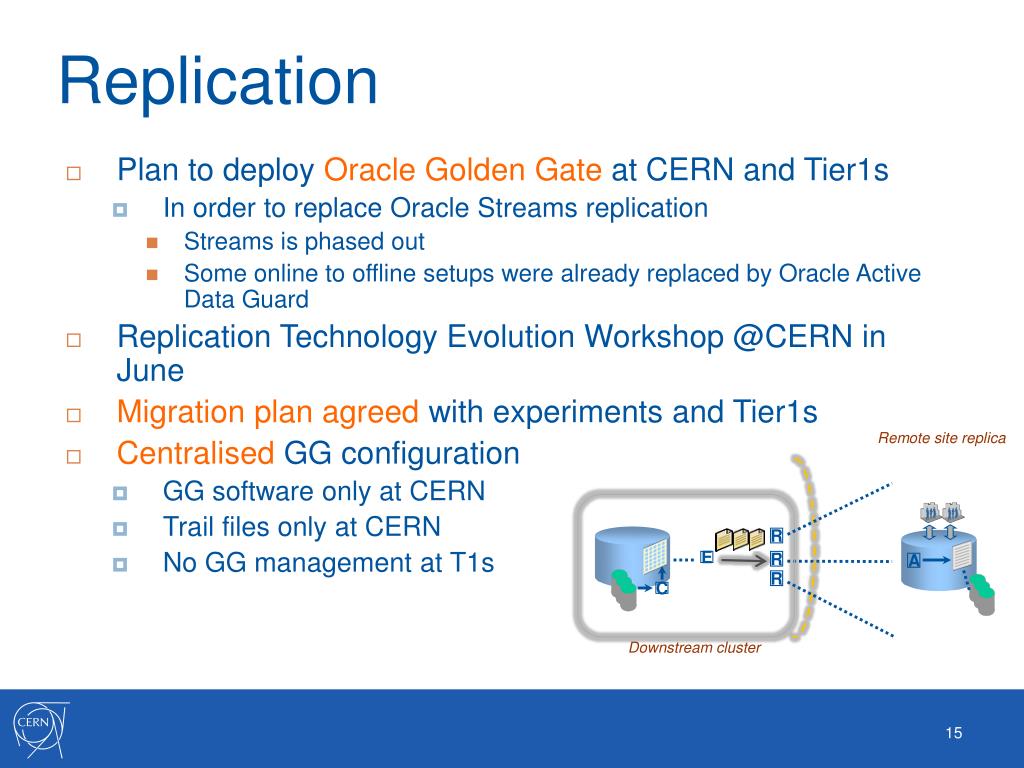

  15. Replication A Remote site replica R E R R C • Plan to deploy Oracle Golden Gate at CERN and Tier1s • In order to replace Oracle Streams replication • Streams is phased out • Some online to offline setups were already replaced by Oracle Active Data Guard • Replication Technology Evolution Workshop @CERN in June • Migration plan agreed with experiments and Tier1s • Centralised GG configuration • GG software only at CERN • Trail files only at CERN • No GG management at T1s Downstream cluster

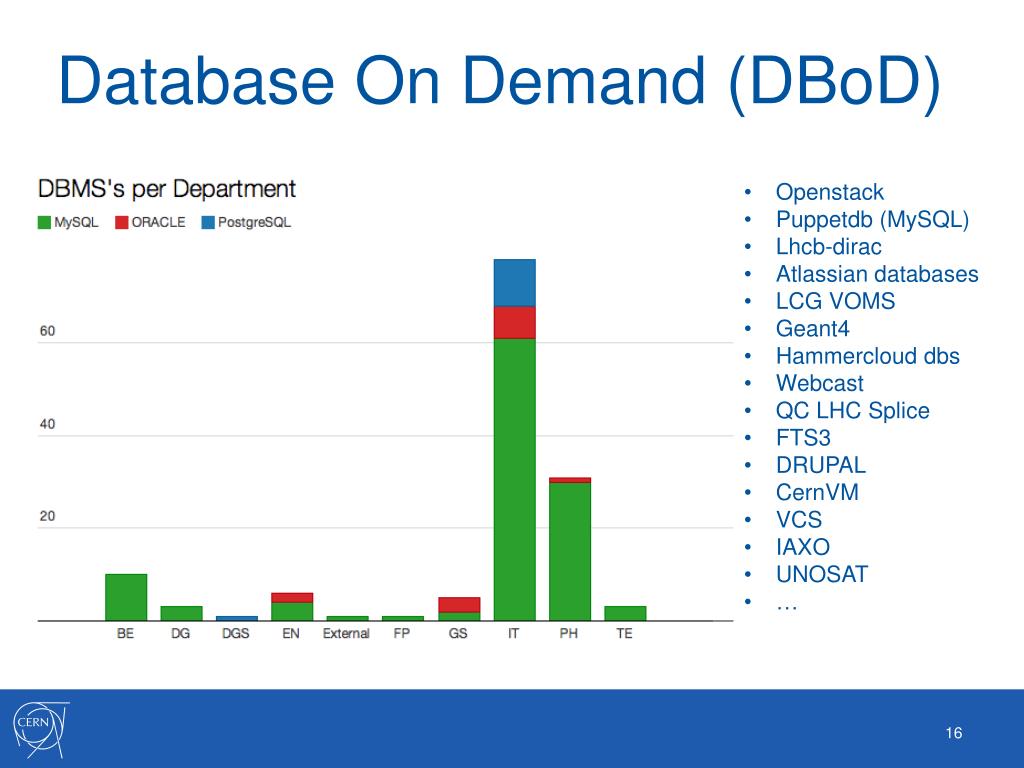

  16. Database On Demand (DBoD) • Openstack • Puppetdb (MySQL) • Lhcb-dirac • Atlassian databases • LCG VOMS • Geant4 • Hammerclouddbs • Webcast • QC LHC Splice • FTS3 • DRUPAL • CernVM • VCS • IAXO • UNOSAT • …

  17. DBoD evolution • PostgreSQL since September 2013 • Deprecated virtualization solution based on RHEL + OVM • HW servers and storage evolution as for the Oracle database services • Migration to CERN Agile infrastructure • Customized RPM packages for MySQL and PostgreSQL servers • High Availability cluster solution based on Oracle clusterware • 4 nodes cluster (3 nodes active + 1 as spare) • SW upgrades • MySQL currently migrating to 5.6 • Oracle 11g migrating towards Oracle 12c multi-tenancy • Tape backups

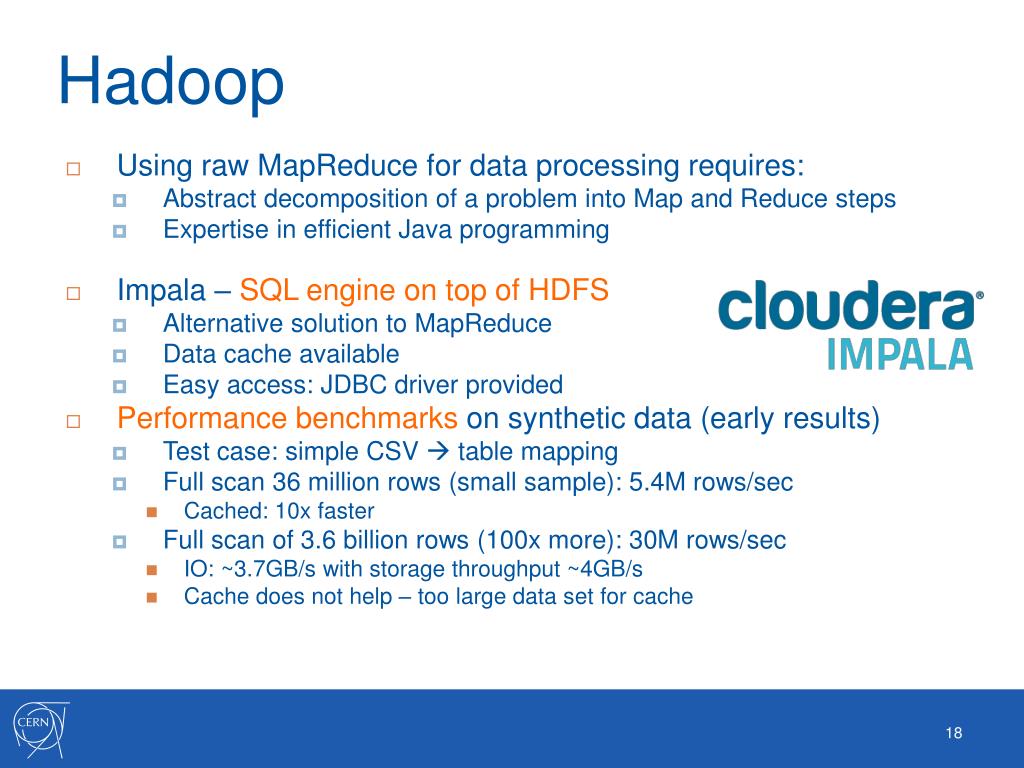

  18. Hadoop • Using raw MapReduce for data processing requires: • Abstract decomposition of a problem into Map and Reduce steps • Expertise in efficient Java programming • Impala – SQL engine on top of HDFS • Alternative solution to MapReduce • Data cache available • Easy access: JDBC driver provided • Performance benchmarks on synthetic data (early results) • Test case: simple CSV  table mapping • Full scan 36 million rows (small sample): 5.4M rows/sec • Cached: 10x faster • Full scan of 3.6 billion rows (100x more): 30M rows/sec • IO: ~3.7GB/s with storage throughput ~4GB/s • Cache does not help – too large data set for cache

  19. Future plans • New HW installations • Second cluster in BARN • Wigner (for Disaster Recovery) • SW upgrades • First Oracle 12c patch set 12.1.0.2 (Q3 2014) • More consolidation – run different DB services on the same machine • Study the use of Oracle Golden Gate for near zero downtime upgrades • Quattor decommission • DBoD • High density consolidation • Cloning and replication • Virtualization as OpenStack evolves • Hadoop + Impala • Columnar storage (Parquet) • Importing data from Oracle into Hadoop • Tests with production data (WLCG dashboards, ACC logging, …) • Analyze different engines (Shark)

  20. Summary • HW, Storage, SW and configuration evolution for the DB service during last year • Complex project • Many people involved at various levels • Experience gained will be very useful for the new installations • Careful planning is critical • Validation is a key to successful change • New systems give more capacity and stability for RUN2 • New services provided • and more coming • Keep looking at new technologies

  21. Q&A

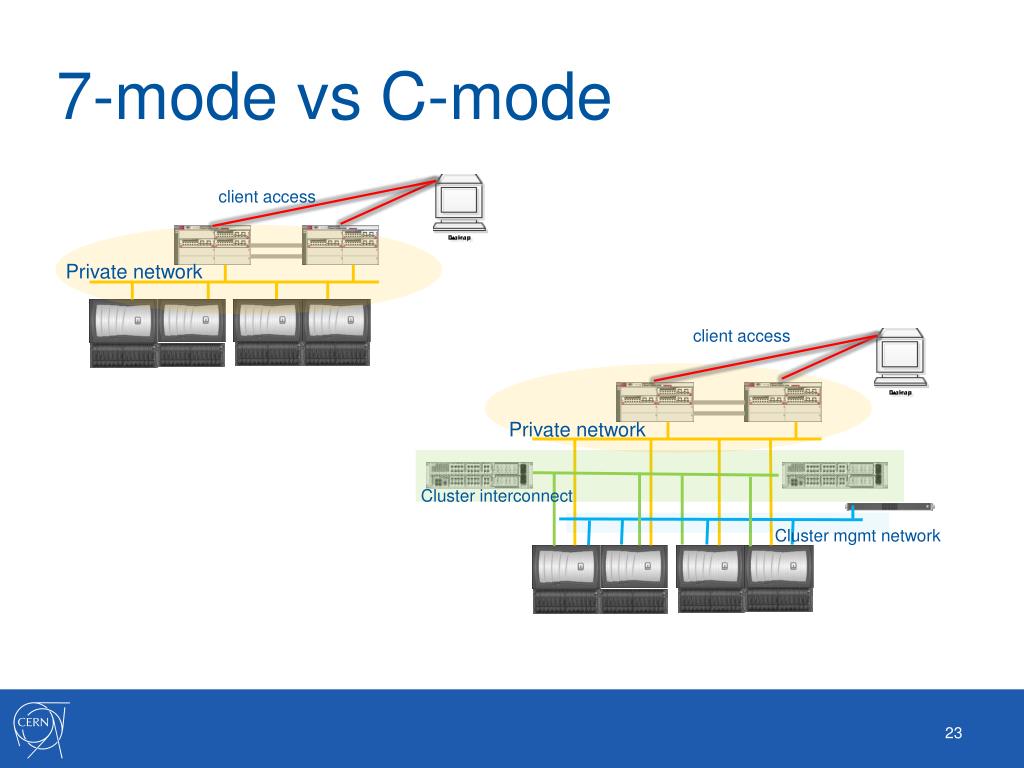

  22. 7-mode vs C-mode client access Private network client access Private network Cluster interconnect Cluster mgmt network

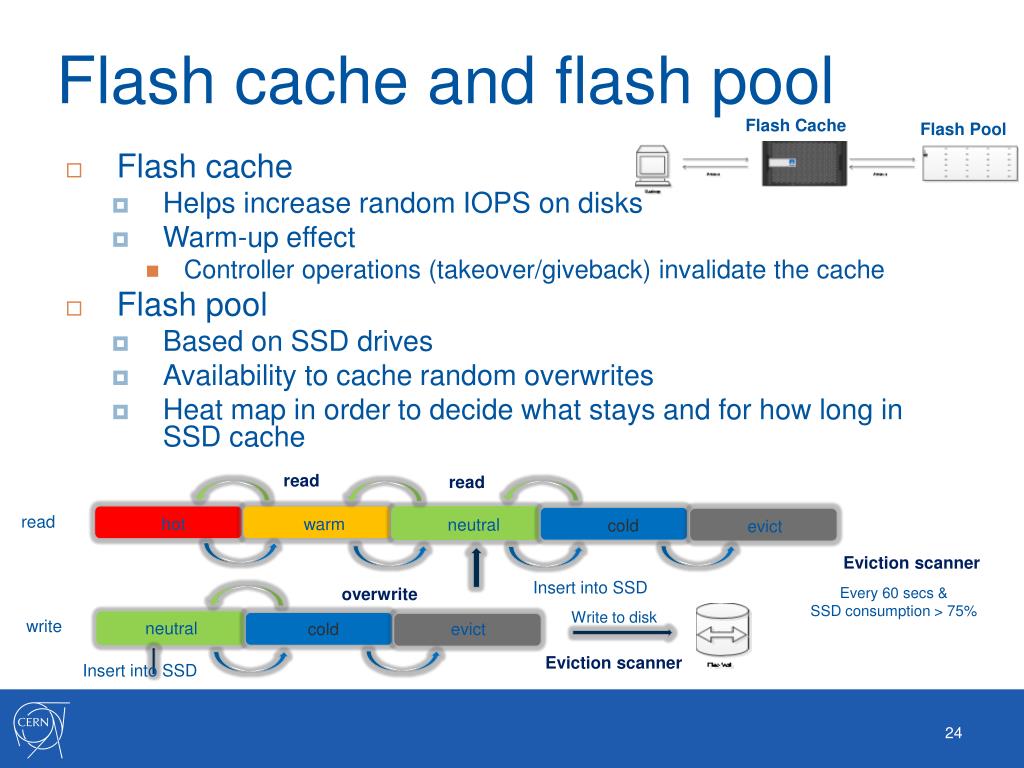

  23. Flash cache and flash pool Flash Cache Flash Pool read read read warm hot neutral cold evict Eviction scanner Insert into SSD Every 60 secs & SSD consumption > 75% overwrite Write to disk write neutral cold evict Eviction scanner Insert into SSD • Flash cache • Helps increase random IOPS on disks • Warm-up effect • Controller operations (takeover/giveback) invalidate the cache • Flash pool • Based on SSD drives • Availability to cache random overwrites • Heat map in order to decide what stays and for how long in SSD cache

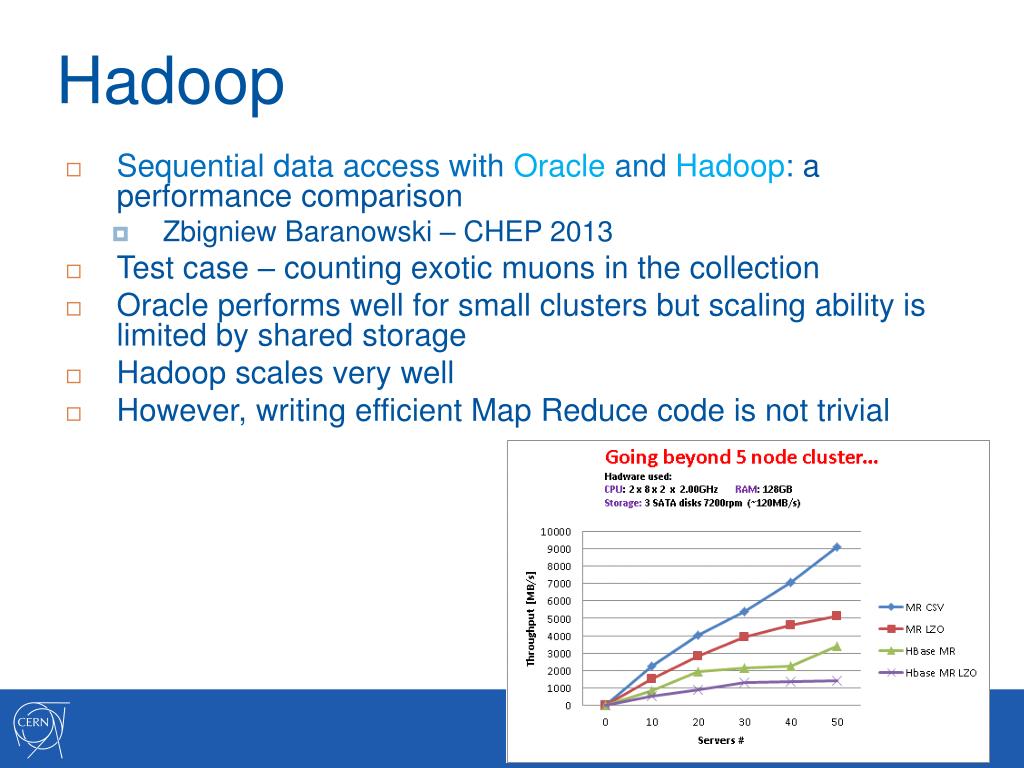

  24. Hadoop • Sequential data access with Oracle and Hadoop:a performance comparison • ZbigniewBaranowski – CHEP 2013 • Test case – counting exotic muons in the collection • Oracle performs well for small clusters but scaling ability is limited by shared storage • Hadoopscales very well • However, writing efficient Map Reduce code is not trivial

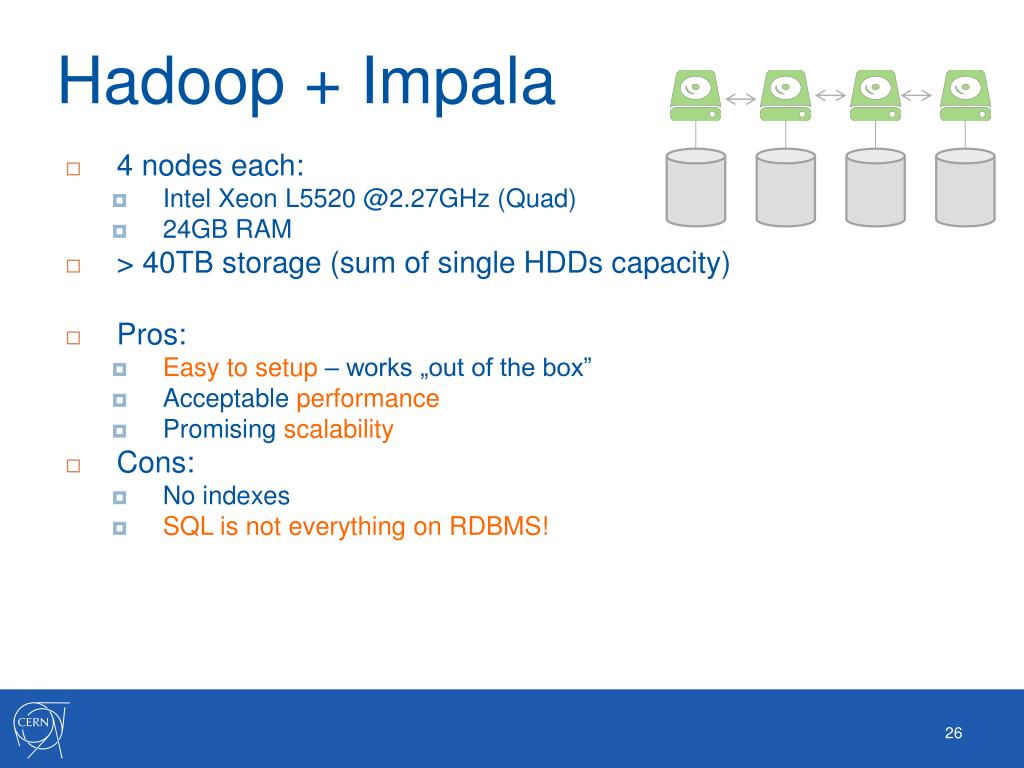

  25. Hadoop + Impala • 4 nodes each: • Intel Xeon L5520 @2.27GHz (Quad) • 24GB RAM • > 40TB storage (sum of single HDDs capacity) • Pros: • Easy to setup – works „out of the box” • Acceptable performance • Promising scalability • Cons: • No indexes • SQL is not everything on RDBMS!
