  1. MANUAL TRANSMISSIONELECTRICAL

  2. OBJECTIVES • Diagnose electrical problems by logic and symptom description. • Perform troubleshooting procedures using meters, test lights, and jumper wires. • Repair electrical wiring. • Replace electrical connectors. Page 369 Lab

  3. OBJECTIVES • Locate, test,adjust, and replace electrical switches on a transmission. • Locate, test, and replace transmission related solenoids. • Test, and replace electromagnetic clutches. • Diagnose transmission -related electronic control circuits. Page 369 Lab

  4. BASIC ELECTRICAL TERMS • CIRCUIT • VOLTAGE (Use Voltmeter) • CURRENT (Use Ammeter) • RESISTANCE (Use Ohmmeter) • LOAD • POWER SOURCE Shop Manual - Page 369

  5. OHM GUYS Ohm’s Law It takes 1 volt to push 1 amp through 1 ohm of resistance.

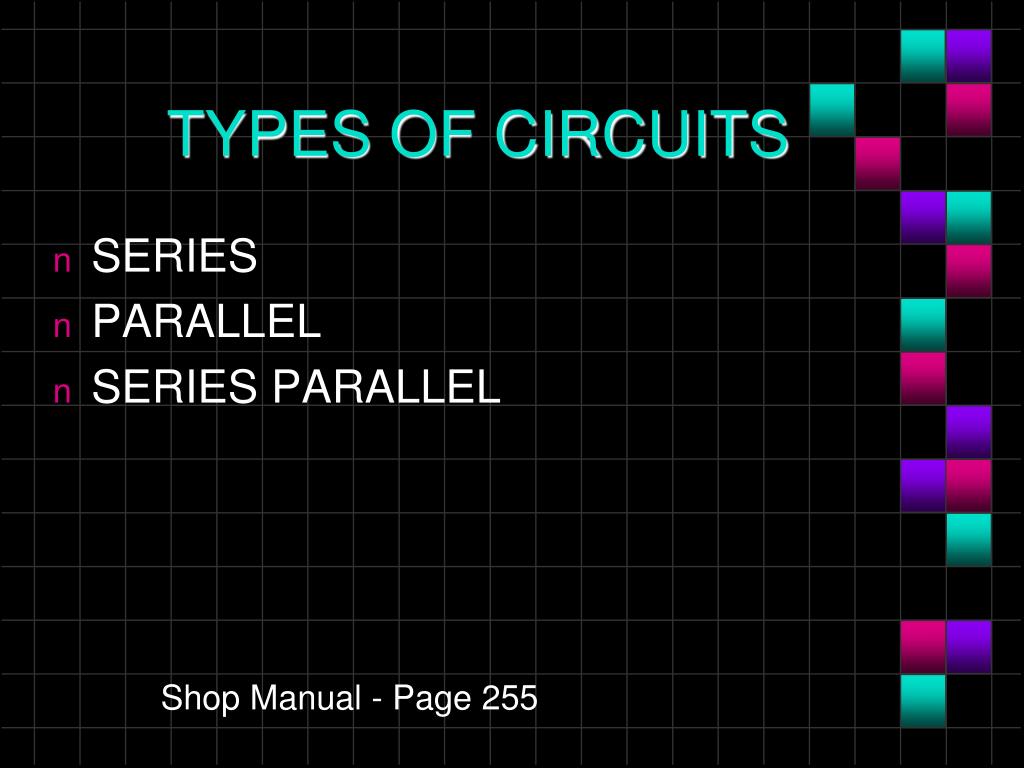

  6. TYPES OF CIRCUITS • SERIES • PARALLEL • SERIES PARALLEL Shop Manual - Page 255

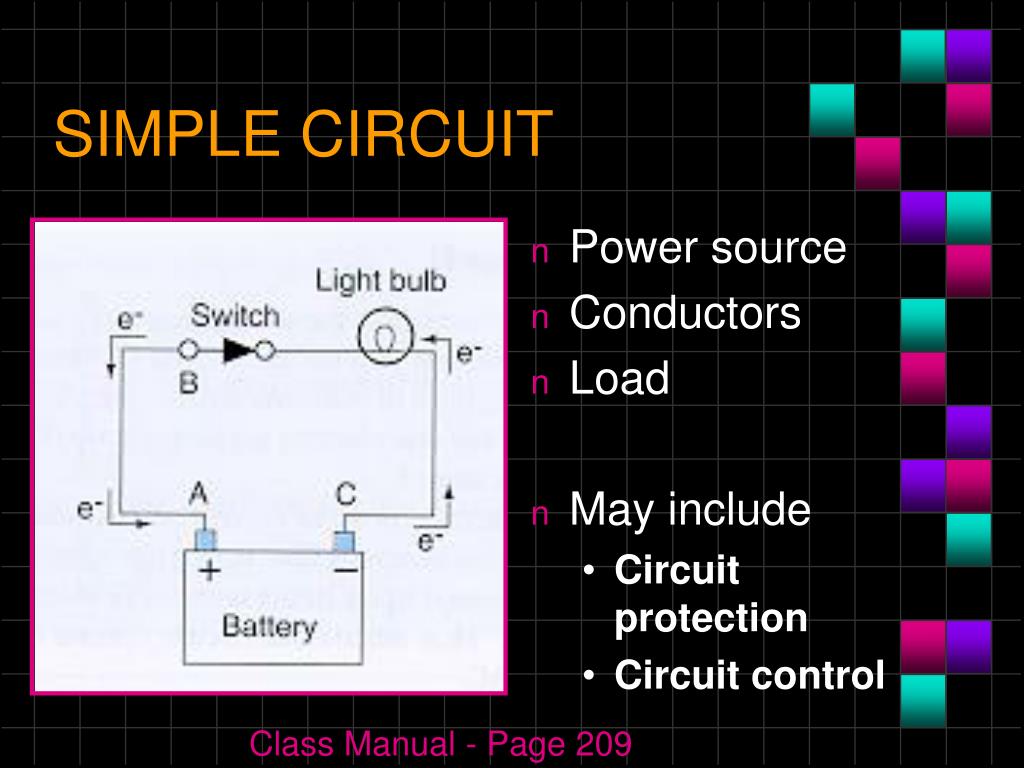

  7. SIMPLE CIRCUIT • Power source • Conductors • Load • May include • Circuit protection • Circuit control Class Manual - Page 209

  8. TYPES OF CIRCUIT FAILURES • Opens Circuits • Shorted Circuits • Grounded Circuits • Poor Connection (common to transmission problems) Shop Manual - Page 372

  9. ELECTRICAL CONNECTIONS • Many different electrical connections • Must be clean and dry • Must be secure and tight • Oil and water will deteriorate connections • Wiring condition must be in good shape Shop Manual - Page 372

  10. PROTECTION DEVICES • Fuses • Cartridge • Blade • Ceramic • Fusible Links • Maxi-Fuses • Circuit Breakers Shop Manual - Page 383

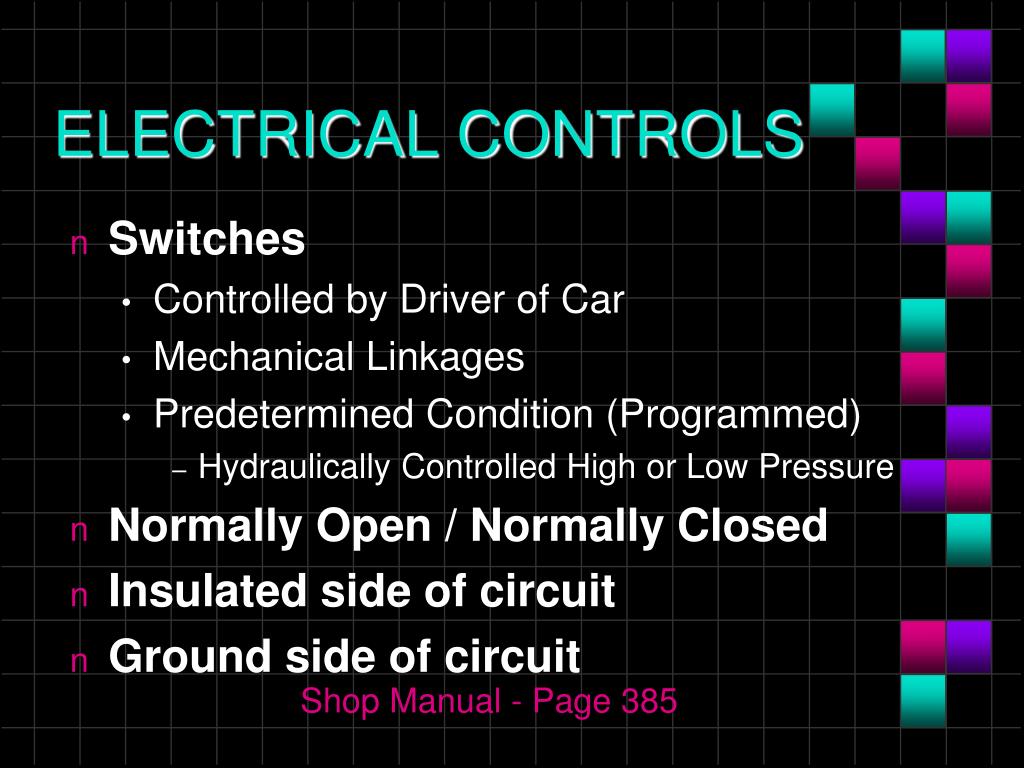

  11. ELECTRICAL CONTROLS • Switches • Controlled by Driver of Car • Mechanical Linkages • Predetermined Condition (Programmed) • Hydraulically Controlled High or Low Pressure • Normally Open / Normally Closed • Insulated side of circuit • Ground side of circuit Shop Manual - Page 385

  12. PRESSURE SWITCHES • Normally Open Single Contact Switch • Normally Open Dual Contact Switch • Apply Air to Test • Ohmmeter

  13. NEUTRAL SAFETY SWITCH • Clutch Start Switch • Electrical Operation and Circuit • Prevents Starter from engaging in gear • Backup Light Switch • Testing and Adjusting • Can use Voltmeter or Ohmmeter Shop Manual - Page 385

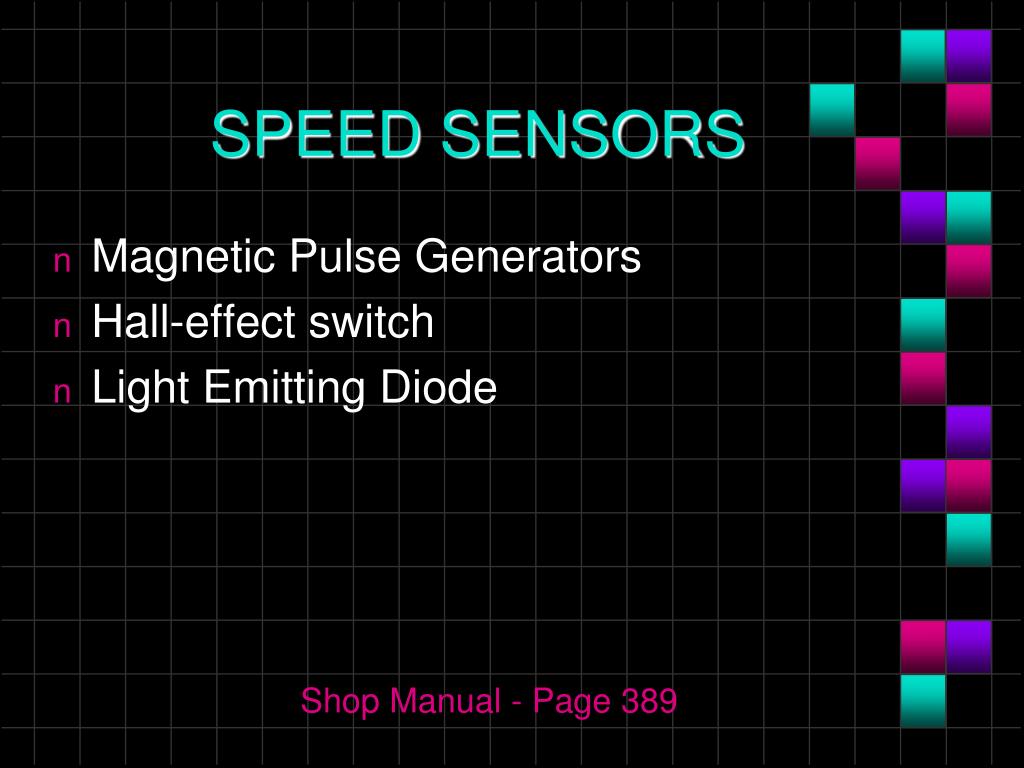

  14. SPEED SENSORS • Magnetic Pulse Generators • Hall-effect switch • Light Emitting Diode Shop Manual - Page 389

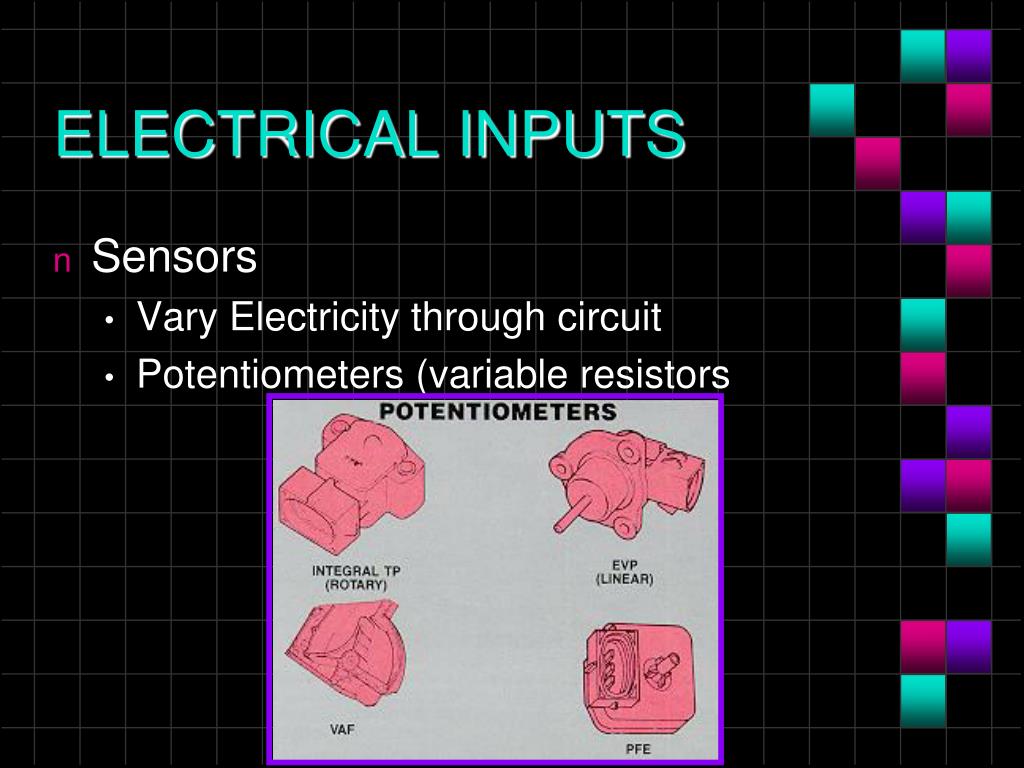

  15. ELECTRICAL INPUTS • Sensors • Vary Electricity through circuit • Potentiometers (variable resistors

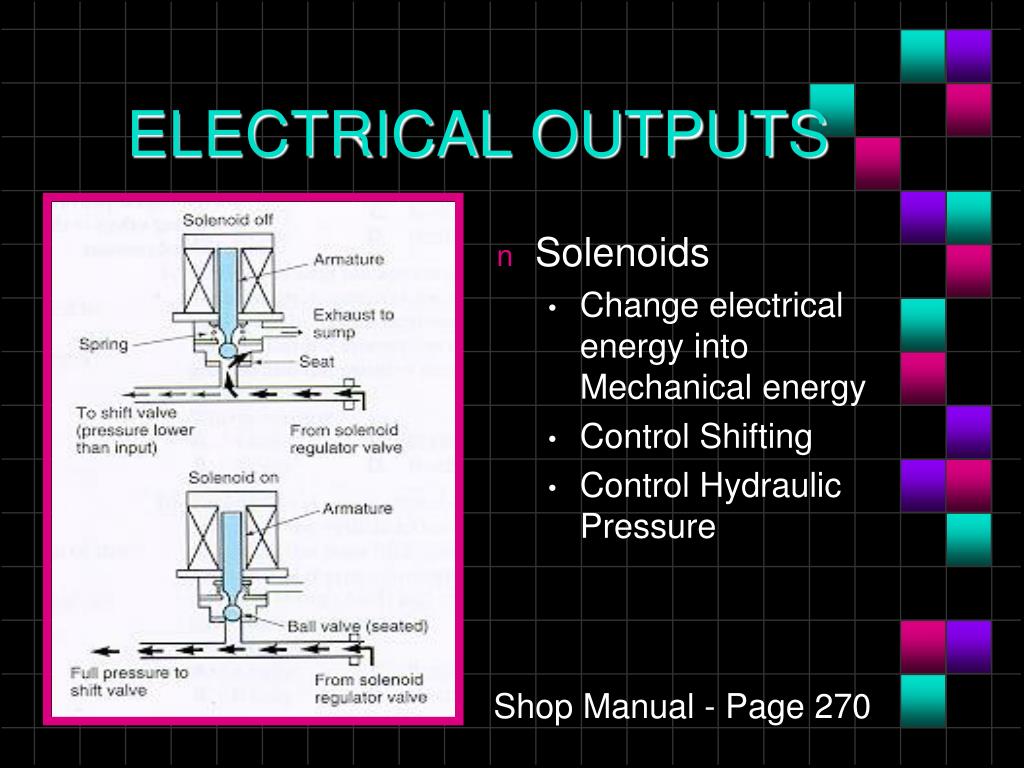

  16. ELECTRICAL OUTPUTS • Solenoids • Change electrical energy into Mechanical energy • Control Shifting • Control Hydraulic Pressure Shop Manual - Page 270

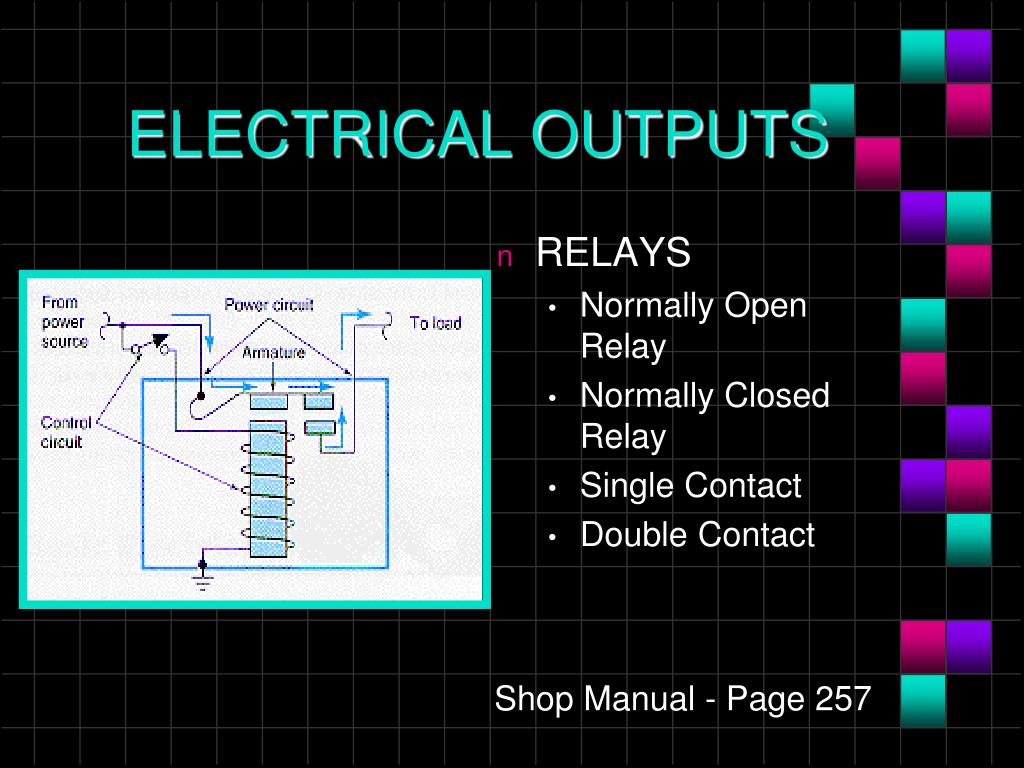

  17. ELECTRICAL OUTPUTS • RELAYS • Normally Open Relay • Normally Closed Relay • Single Contact • Double Contact Shop Manual - Page 257

  18. ELECTRONIC DEFAULTS • Faulty sensor signal will cause transmission to go into default mode • It will protect itself from destruction • Testing for Electronic faults • Scanners • Jumper Wires • Transmission Testers Shop Manual - Page 54 and 283

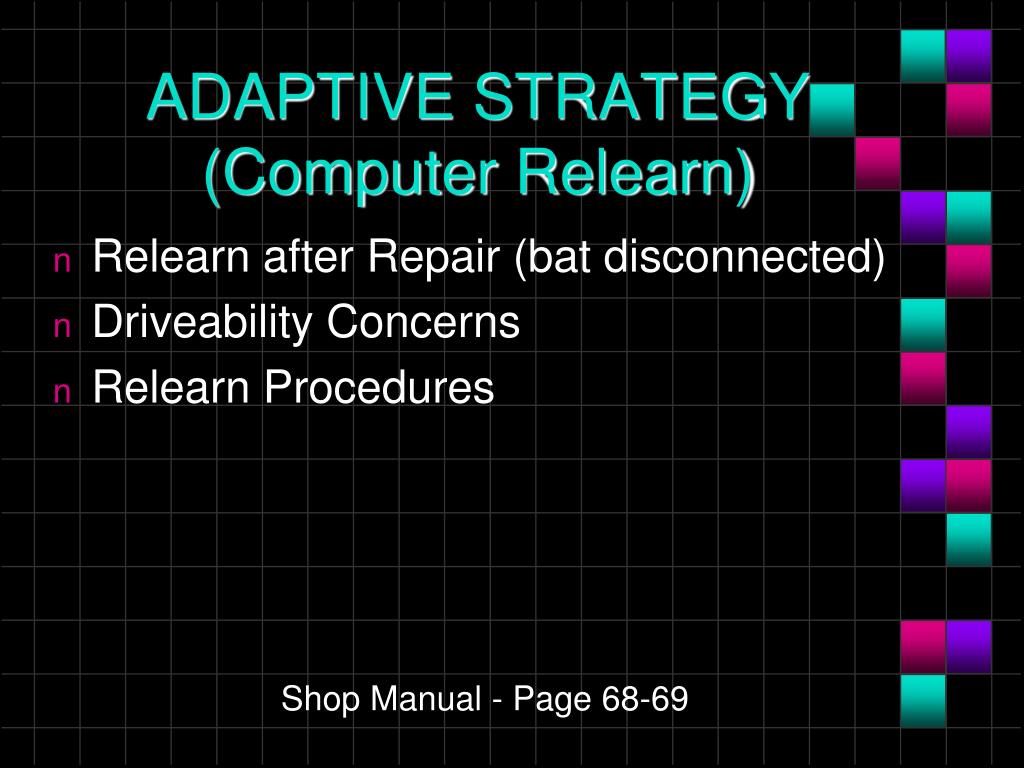

  19. ADAPTIVE STRATEGY(Computer Relearn) • Relearn after Repair (bat disconnected) • Driveability Concerns • Relearn Procedures Shop Manual - Page 68-69

  20. CIRCUIT BOARD • Install a WHITE wire between 55 & 60. • Install a RED wire between 57 & 167. • Install a WHITE wire between 168 & 169. • Install a GREEN wire between 170 & 58. RK

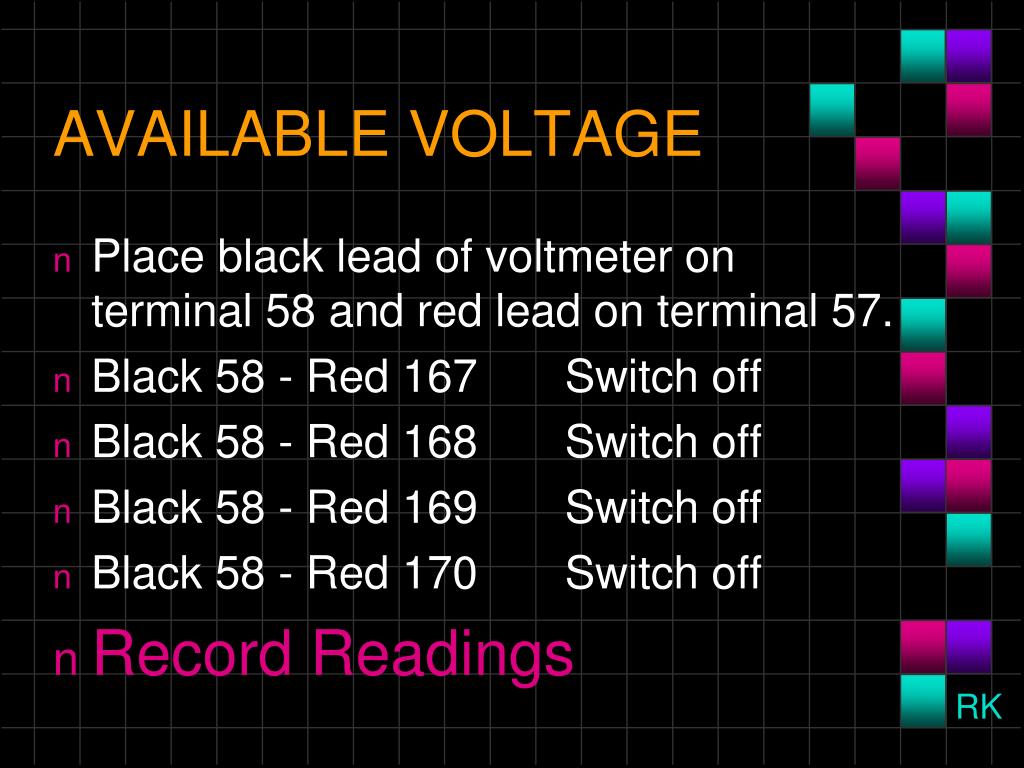

  21. AVAILABLE VOLTAGE • Place black lead of voltmeter on terminal 58 and red lead on terminal 57. • Black 58 - Red 167 Switch off • Black 58 - Red 168 Switch off • Black 58 - Red 169 Switch off • Black 58 - Red 170 Switch off • Record Readings RK

  22. AVAILABLE VOLTAGE • Place black lead of voltmeter on terminal 58 and red lead on terminal 57. • Black 58 - Red 167 Switch on • Black 58 - Red 168 Switch on • Black 58 - Red 169 Switch on • Black 58 - Red 170 Switch on • Record Readings RK
