  1. Efficiency of Algorithms February 9th

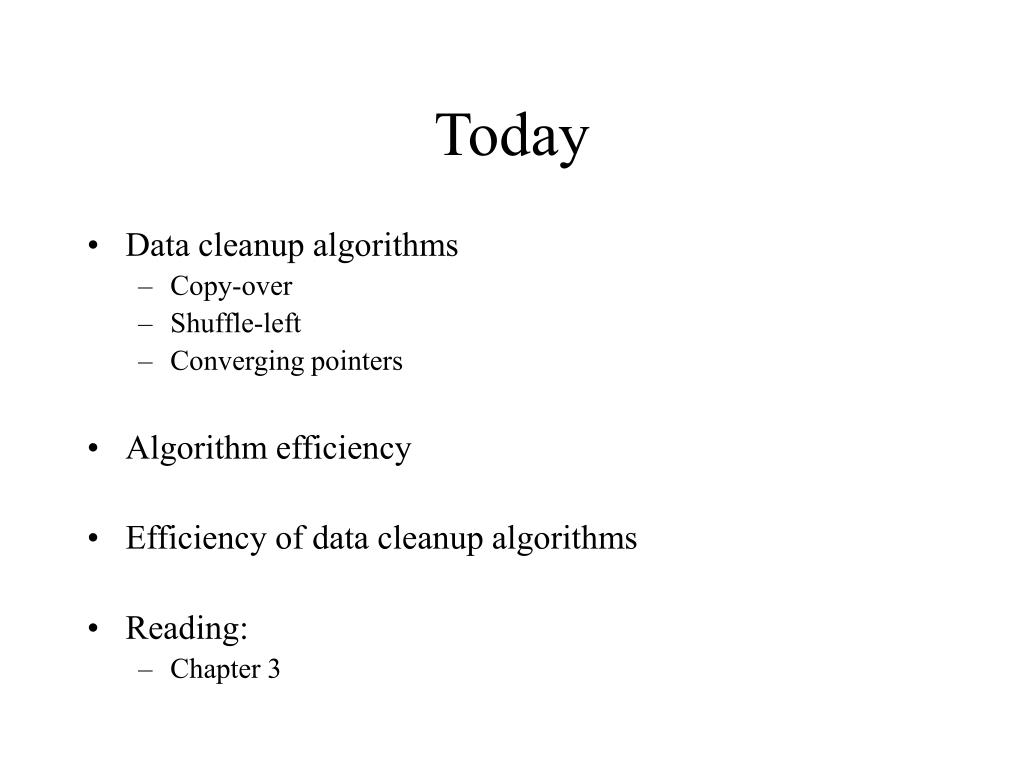

  2. Today • Data cleanup algorithms • Copy-over • Shuffle-left • Converging pointers • Algorithm efficiency • Efficiency of data cleanup algorithms • Reading: • Chapter 3

  3. Comparing Algorithms • Algorithm • Design • Correctness • Efficiency • Also, clarity, elegance, ease of understanding • There are many ways to solve a problem • Conceptually • Also different ways to write pseudocode for the same conceptual idea • How to compare algorithms?

  4. Efficiency of Algorithms • Efficiency: Amount of resources used by an algorithm • Space (number of variables) • Time (number of instructions) • When design algorithm must be aware of its use of resources • If there is a choice, pick the more efficient algorithm!

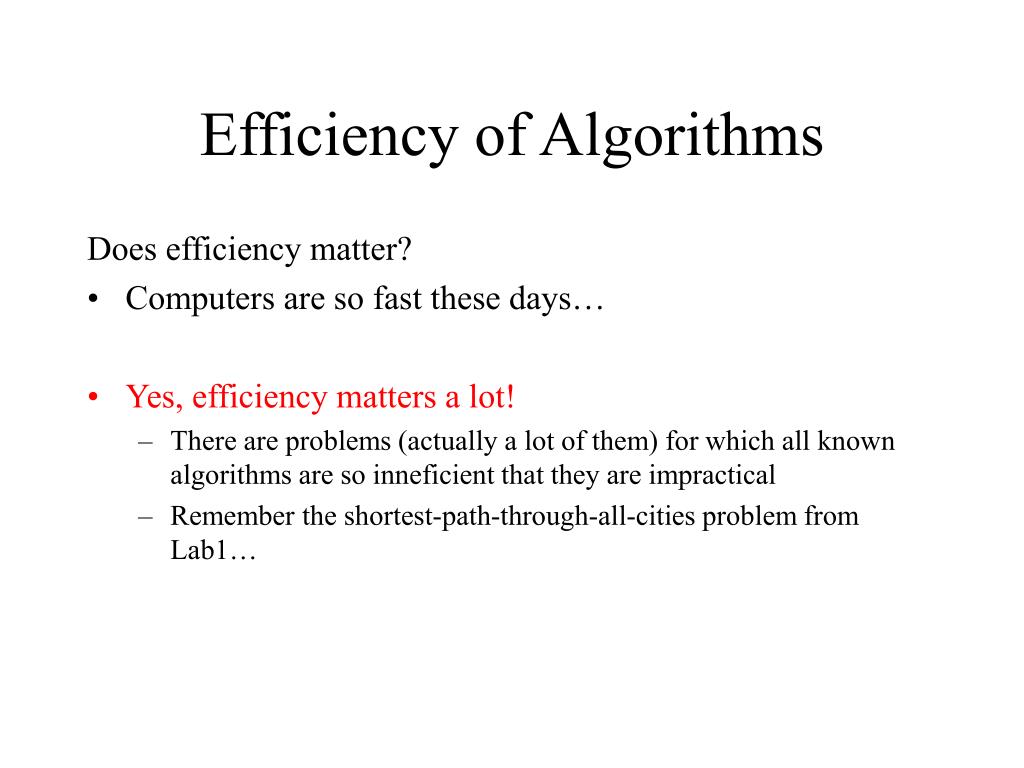

  5. Efficiency of Algorithms Does efficiency matter? • Computers are so fast these days… • Yes, efficiency matters a lot! • There are problems (actually a lot of them) for which all known algorithms are so inneficient that they are impractical • Remember the shortest-path-through-all-cities problem from Lab1…

  6. Data Cleanup Algorithms What are they? A systematic strategy for removing errors from data. Why are they important? Errors occur in all real computing situations. How are they related to the search algorithm? To remove errors from a series of values, each value must be examined to determine if it is an error. E.g., suppose we have a list d of data values, from which we want to remove all the zeroes (they mark errors), and pack the good values to the left. Legit is the number of good values remaining when we are done. 5 3 4 0 6 2 4 0 d1 d2 d3 d4 d5 d6 d7 d8 Legit

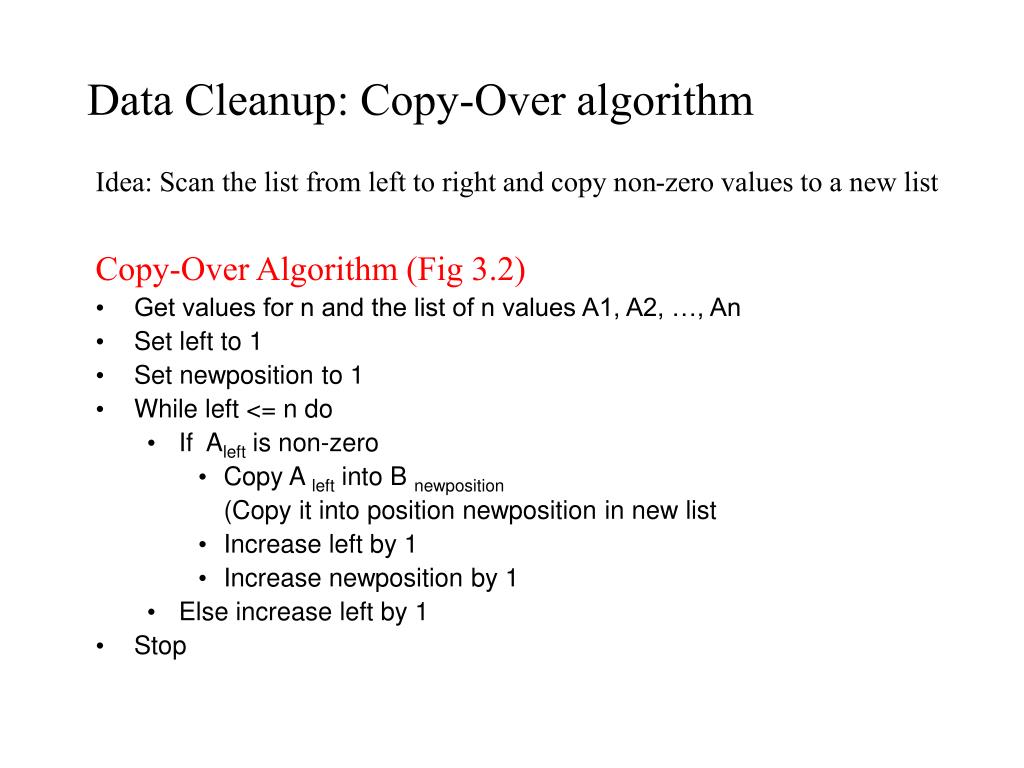

  7. Data Cleanup: Copy-Over algorithm Idea: Scan the list from left to right and copy non-zero values to a new list Copy-Over Algorithm (Fig 3.2) • Get values for n and the list of n values A1, A2, …, An • Set left to 1 • Set newposition to 1 • While left <= n do • If Aleft is non-zero • Copy A left into B newposition (Copy it into position newposition in new list • Increase left by 1 • Increase newposition by 1 • Else increase left by 1 • Stop

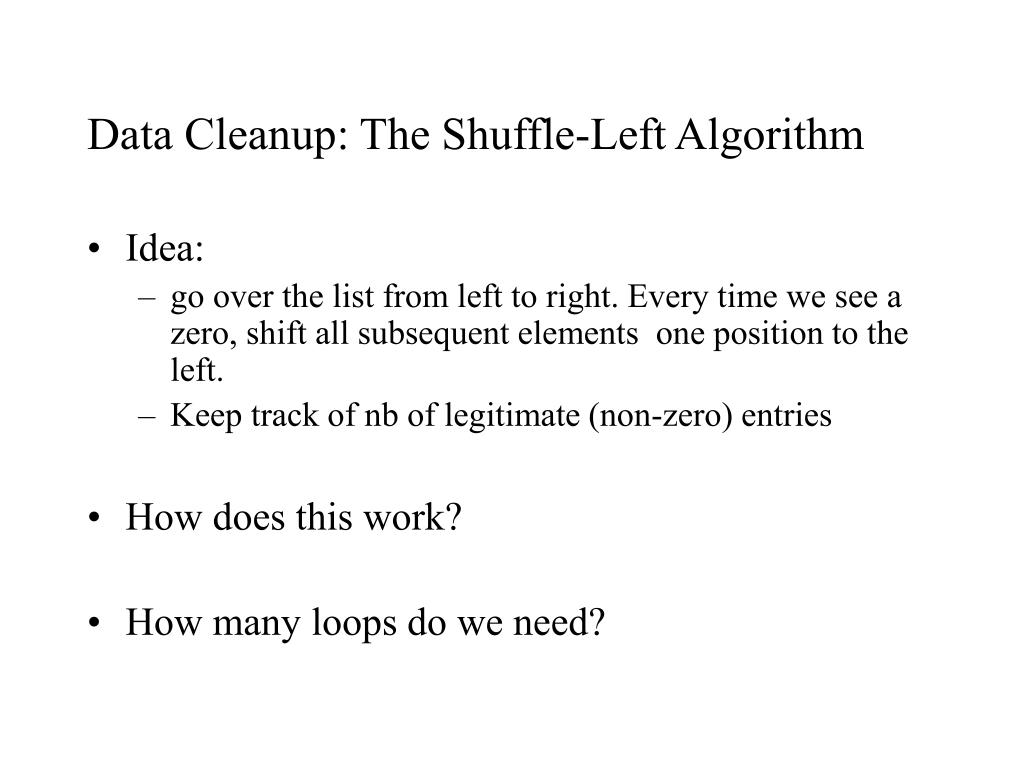

  8. Data Cleanup: The Shuffle-Left Algorithm • Idea: • go over the list from left to right. Every time we see a zero, shift all subsequent elements one position to the left. • Keep track of nb of legitimate (non-zero) entries • How does this work? • How many loops do we need?

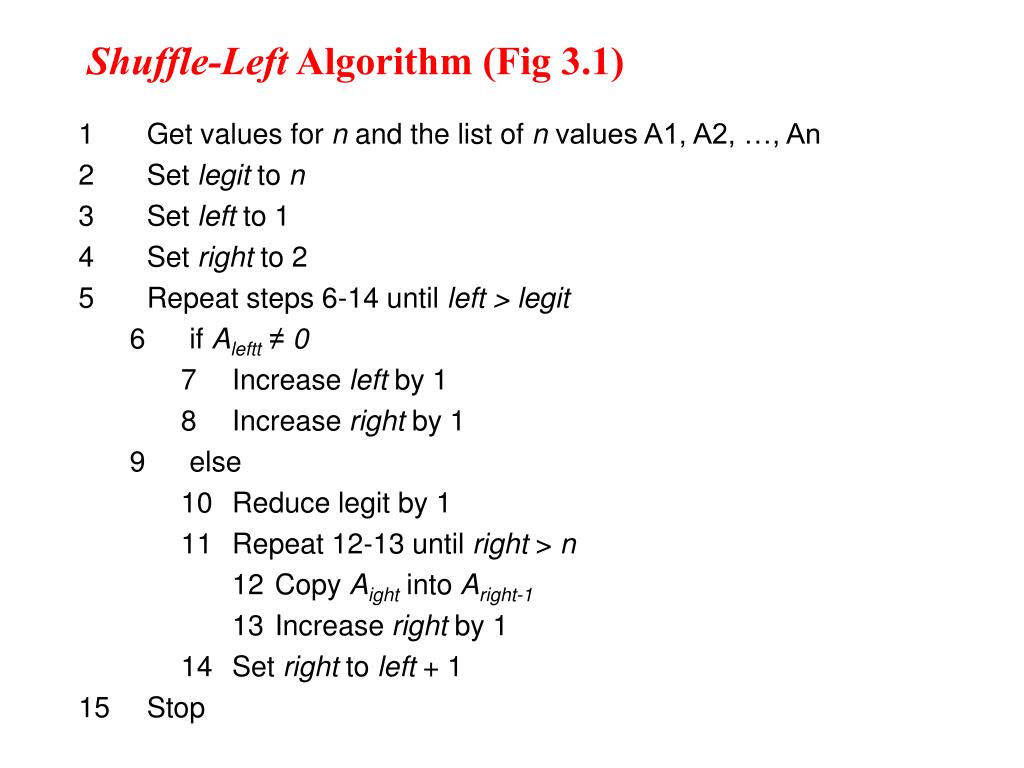

  9. Shuffle-Left Algorithm (Fig 3.1) • Get values for n and the listof n values A1, A2, …, An • Set legit to n • Set left to 1 • Set right to 2 • Repeat steps 6-14 until left > legit 6 if Aleftt ≠ 0 7 Increase left by 1 8 Increase right by 1 9 else 10 Reduce legit by 1 • Repeat 12-13 until right > n • Copy Aight into Aright-1 • Increase right by 1 14 Set right to left + 1 15 Stop

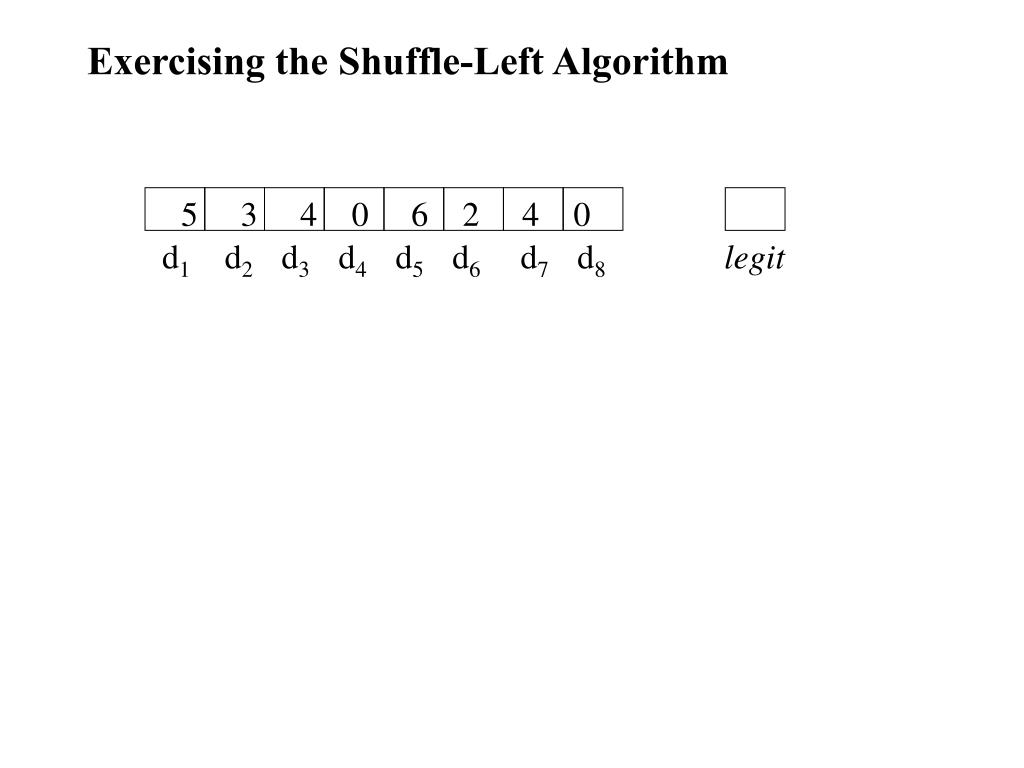

  10. Exercising the Shuffle-Left Algorithm 5 3 4 0 6 2 4 0 d1 d2 d3 d4 d5 d6 d7 d8 legit

  11. Data Cleanup: The Converging-Pointers Algorithm • Idea: • One finger moving left to right, one moving right to left • Move left finger over non-zero values; • If encounter a zero value then • Copy element at right finger into this position • Shift right finger to the left

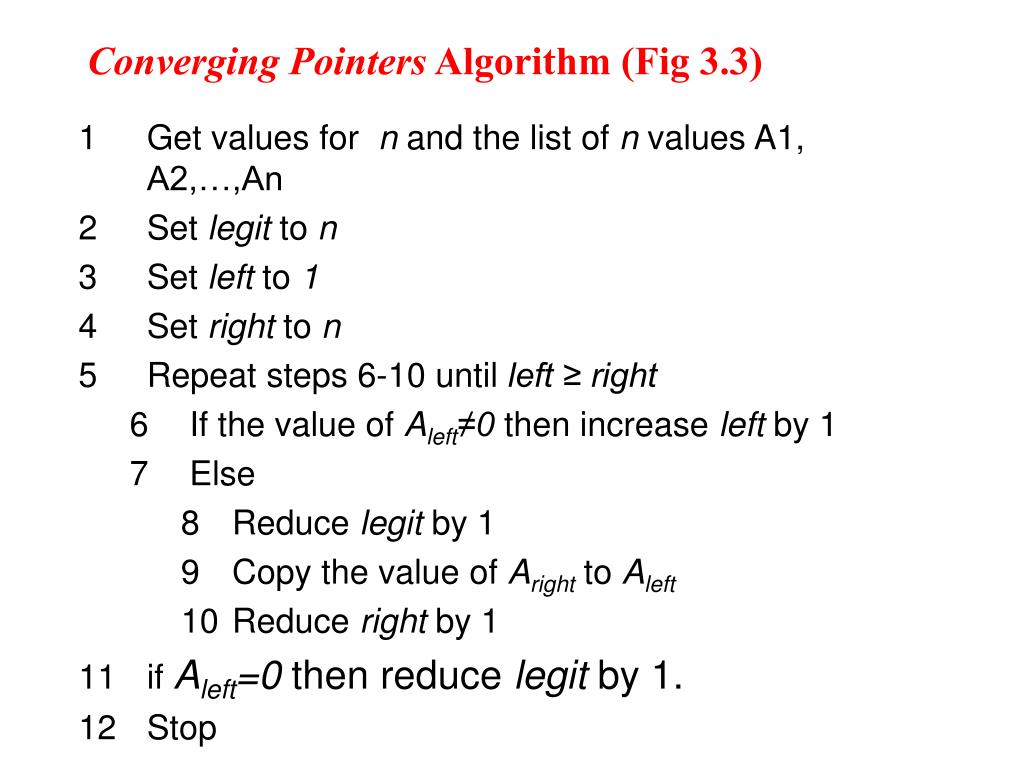

  12. Converging Pointers Algorithm (Fig 3.3) • Get values for n and the listof n values A1, A2,…,An • Set legit to n • Set left to 1 • Set right to n • Repeat steps 6-10 until left ≥ right • If the value of Aleft≠0 then increase left by 1 • Else • Reduce legit by 1 • Copy the value of Aright to Aleft 10 Reduce right by 1 • if Aleft=0 thenreduce legit by 1. • Stop

  13. Exercising the Converging Pointers Algorithm 5 3 4 0 6 2 4 0 d1 d2 d3 d4 d5 d6 d7 d8 legit

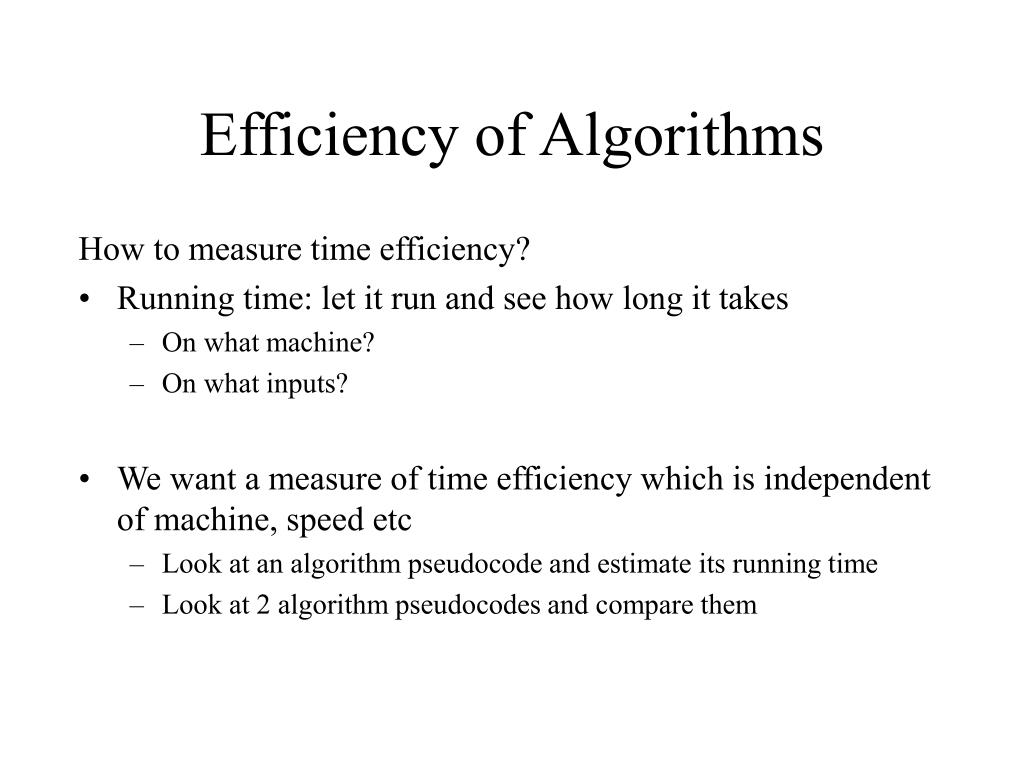

  14. Efficiency of Algorithms How to measure time efficiency? • Running time: let it run and see how long it takes • On what machine? • On what inputs? • We want a measure of time efficiency which is independent of machine, speed etc • Look at an algorithm pseudocode and estimate its running time • Look at 2 algorithm pseudocodes and compare them

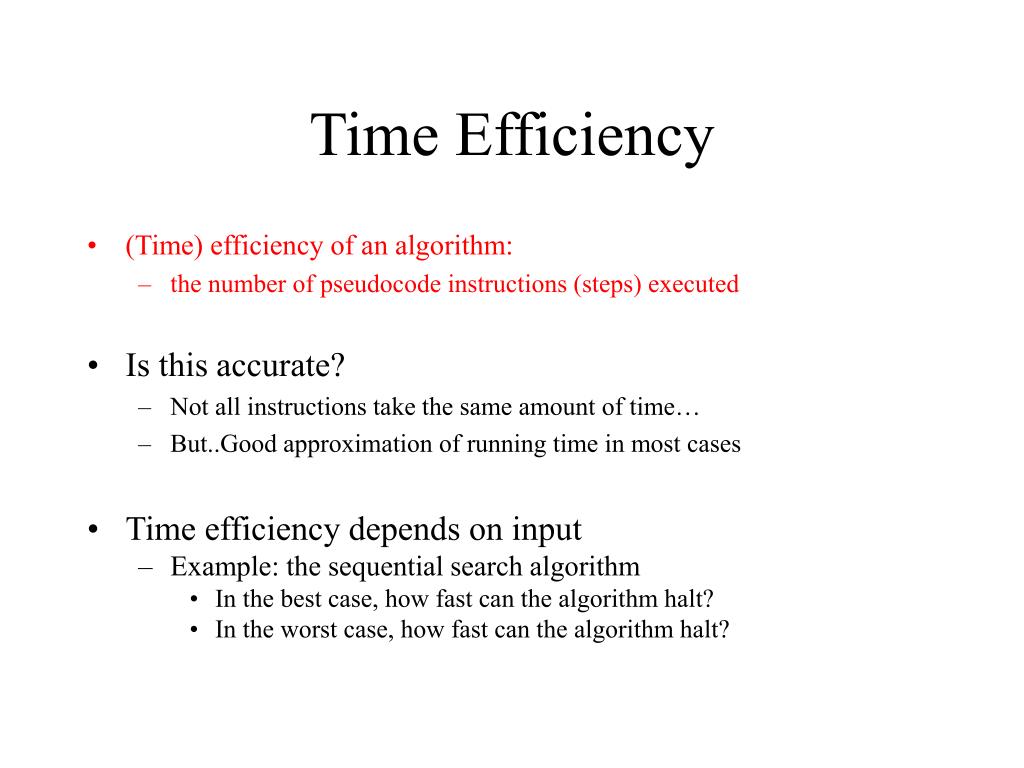

  15. Time Efficiency • (Time) efficiency of an algorithm: • the number of pseudocode instructions (steps) executed • Is this accurate? • Not all instructions take the same amount of time… • But..Good approximation of running time in most cases • Time efficiency depends on input • Example: the sequential search algorithm • In the best case, how fast can the algorithm halt? • In the worst case, how fast can the algorithm halt?

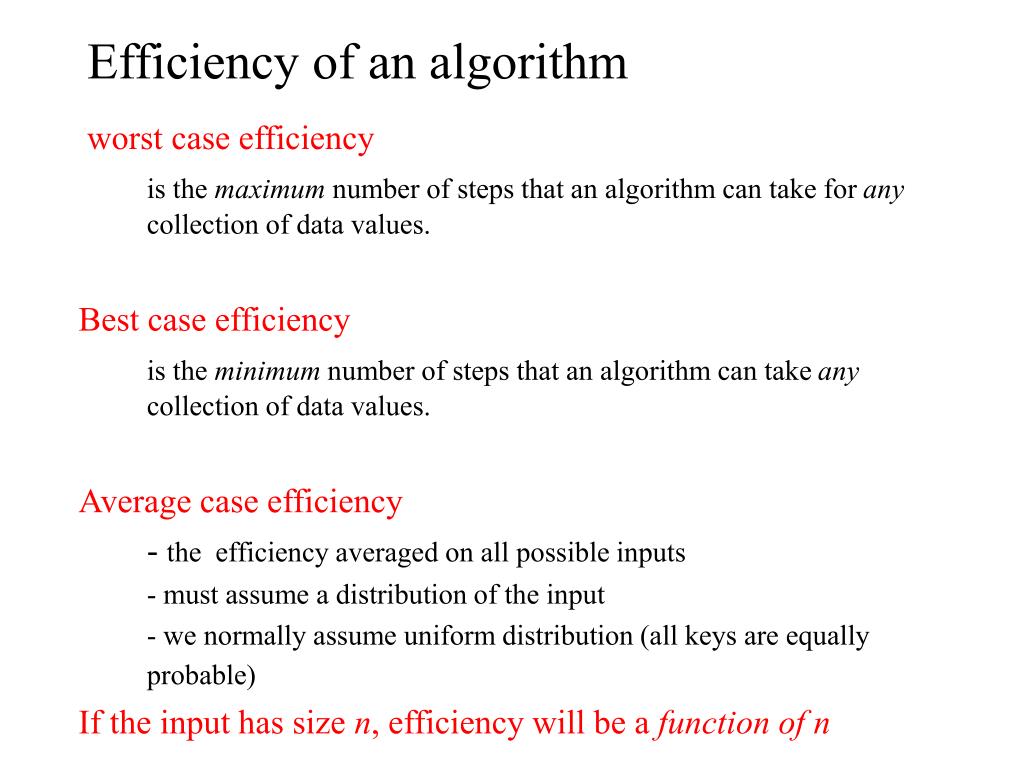

  16. Efficiency of an algorithm worst case efficiency is the maximum number of steps that an algorithm can take for any collection of data values. Best case efficiency is the minimum number of steps that an algorithm can take any collection of data values. Average case efficiency - the efficiency averaged on all possible inputs - must assume a distribution of the input - we normally assume uniform distribution (all keys are equally probable) If the input has size n, efficiency will be a function of n

  17. Worst Case Efficiency for Sequential Search • Get the value of target, n, and the list of n values 1 • Set index to 1 1 • Set found to false 1 • Repeat steps 5-8 until found = true or index > n n 5 if the value of listindex = target thenn • Output the index 0 • Set found to true0 8 else Increment the index by 1n 9 if not found then 1 10 Print a message that target was not found 0 • Stop 1 Total 3n+5

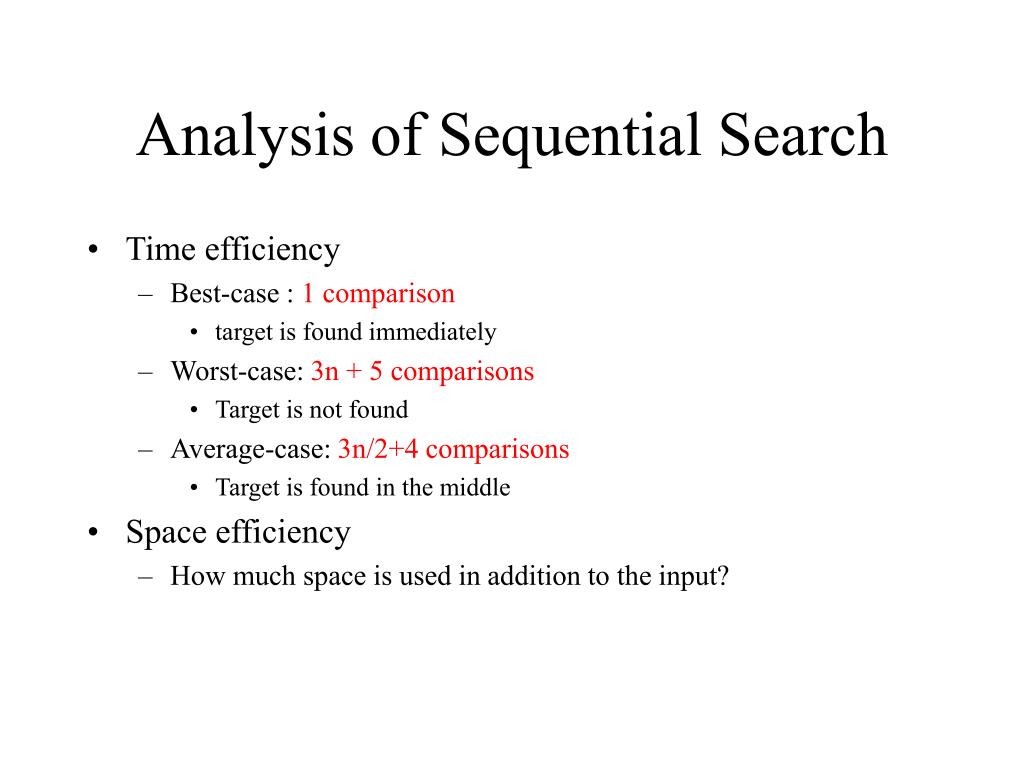

  18. Analysis of Sequential Search • Time efficiency • Best-case : 1 comparison • target is found immediately • Worst-case: 3n + 5 comparisons • Target is not found • Average-case: 3n/2+4comparisons • Target is found in the middle • Space efficiency • How much space is used in addition to the input?

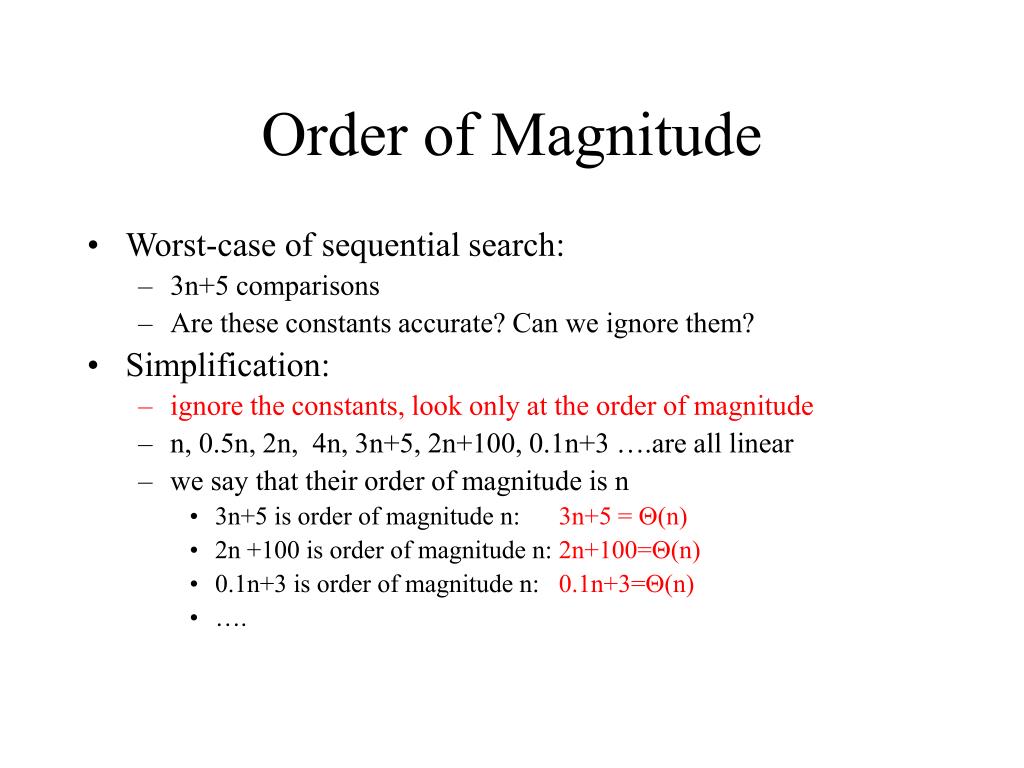

  19. Order of Magnitude • Worst-case of sequential search: • 3n+5 comparisons • Are these constants accurate? Can we ignore them? • Simplification: • ignore the constants, look only at the order of magnitude • n, 0.5n, 2n, 4n, 3n+5, 2n+100, 0.1n+3 ….are all linear • we say that their order of magnitude is n • 3n+5 is order of magnitude n: 3n+5 = (n) • 2n +100 is order of magnitude n: 2n+100=(n) • 0.1n+3 is order of magnitude n: 0.1n+3=(n) • ….

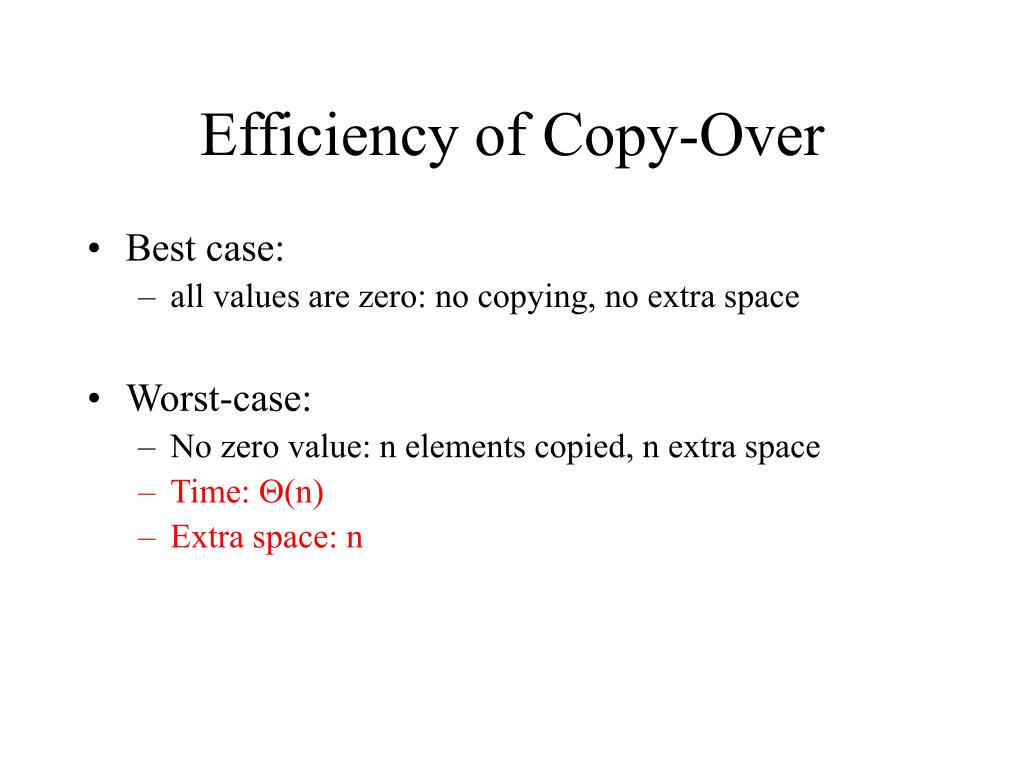

  20. Efficiency of Copy-Over • Best case: • all values are zero: no copying, no extra space • Worst-case: • No zero value: n elements copied, n extra space • Time: (n) • Extra space: n

  21. Efficiency of Shuffle-Left • Space: • no extra space (except few variables) • Time • Best-case • No zero value: • no copying ==> order of n = (n) • Worst case • All zero values: • every element thus requires copying n-1 values one to the left • n x (n-1) = n2 - n = order of n2 = (n2) (why?) • Average case • Half of the values are zero • n/2 x (n-1) = (n2 - n)/2 = order of n2 = (n2)

  22. Efficiency of Converging Pointers Algorithm • Space • No extra space used (except few variables) • Time • Best-case • No zero value • No copying => order of n = (n) • Worst-case • All values zero: • One copy at each step => n-1 copies • order of n = (n) • Average-case • Half of the values are zero: • n/2 copies • order of n = (n)

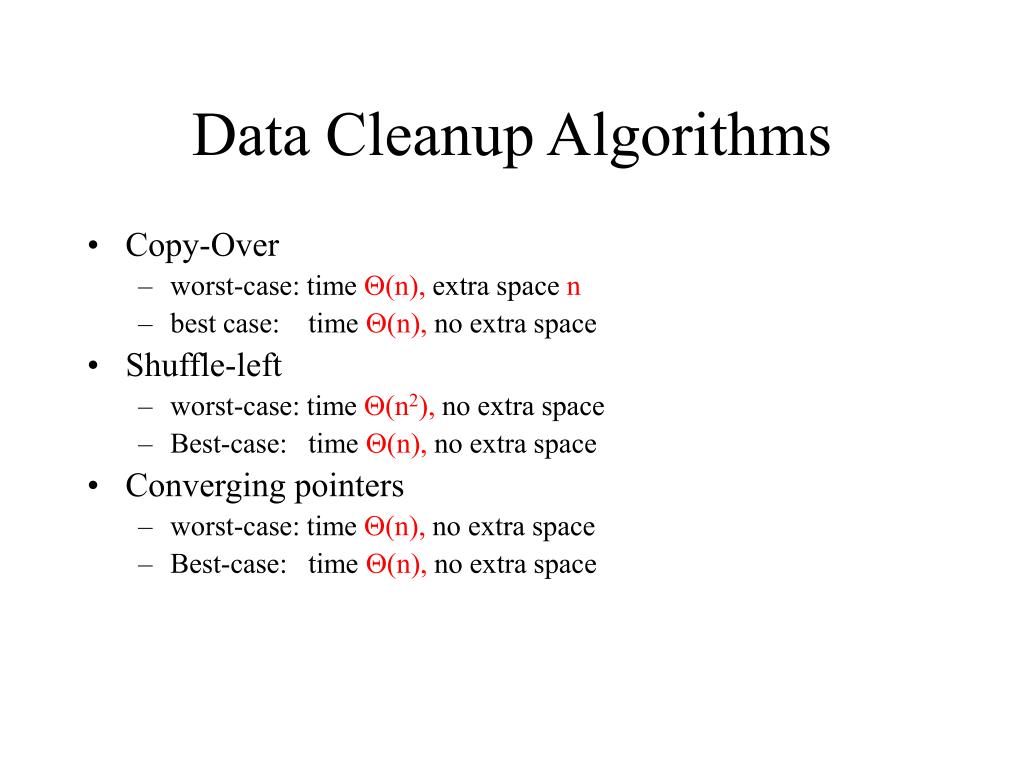

  23. Data Cleanup Algorithms • Copy-Over • worst-case: time (n), extra space n • best case: time (n), no extra space • Shuffle-left • worst-case: time (n2), no extra space • Best-case: time (n), no extra space • Converging pointers • worst-case: time (n), no extra space • Best-case: time (n), no extra space
