Innovative Clockwork Mechanism: The Alarm Shutdown Sequence

This project focuses on a creative design where the alarm is turned off through a series of energy conversion processes involving a rat trap, domino structure, weight, and car. Calculations for potential energy and kinetic energy are discussed to understand the efficiency of the system.

tacey
Download Presentation

Innovative Clockwork Mechanism: The Alarm Shutdown Sequence

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Clockworks Curt Huddle Andrew Jackson Josh Kerr Sam Moss

  2. Overview • Objective • Design Aspects • Energy Conversion Processes • Wrap Up • Questions

  3. Objective Turn off an alarm clock

  4. Design Aspects • Alarm goes off, winding a string connected to a rat trap • Rat trap is sprung, pulling base out of a domino structure • Structure falls, dropping a weight • Weight pulls a string, releasing a car down the track • Car hits clock and turns off alarm

  5. Energy Conversion Process • Potential Energy of the Spring • Force measured as 9.5 lbs • Distance from the bar to the middle = 3 inches • PE = 3*9.5*Pi = 7.46 ft-lb

  6. Energy Conversion Processes • Potential Energy of the dropping weight • Measured at the top of the track • Height = 2.25” • Mass = .013 slugs • PE = mgh = 2.25*.013*32.2=.0785

  7. Energy Conversion Process • Kinetic Energy of the car • Measured at the end of the track • HeightI = 3 ft • Mass = .0033 slugs • V1 = (2*32.3*3)^1/2=13.9 ft/s • KE = .0033*32.2*3 = 0.319 ft-lb

  8. Energy Conversion Process • Kinetic Energy of the car up the ramp • v2=(2*32.2*2")^1/2=3.28 ft/s • v1-v2=10.6 ft/s • KE = .5mv2 = 0.018 ft-lb

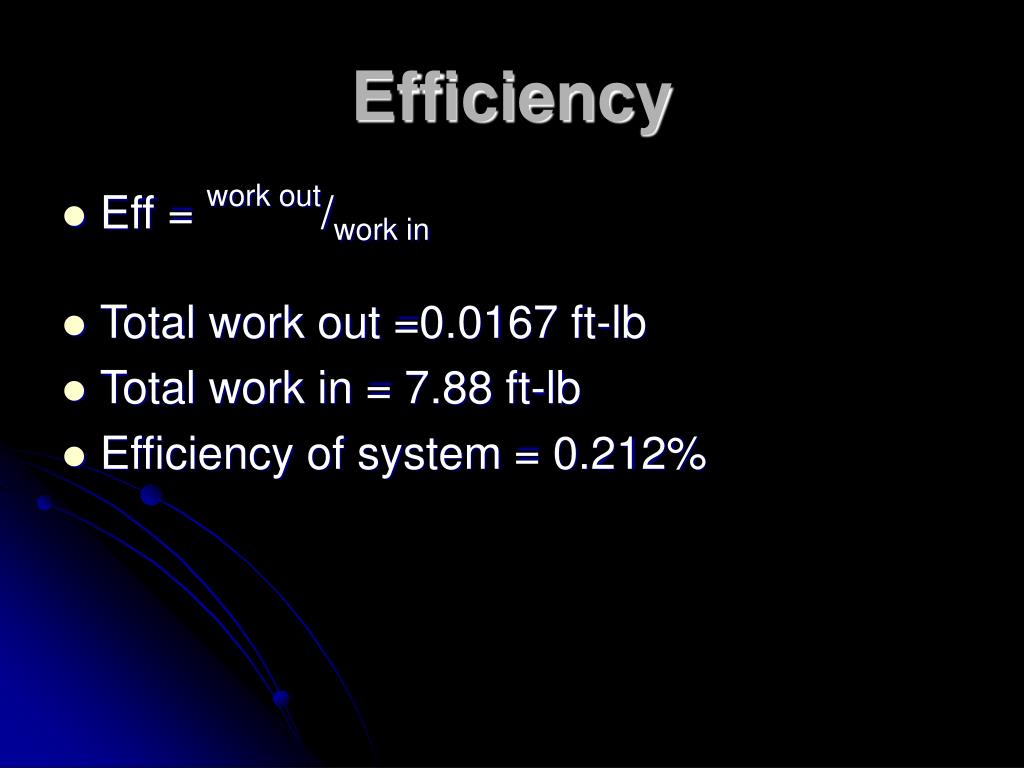

  9. Efficiency • Eff = work out/work in • Total work out =0.0167 ft-lb • Total work in = 7.88 ft-lb • Efficiency of system = 0.212%

  10. Questions
