Presentation Transcript

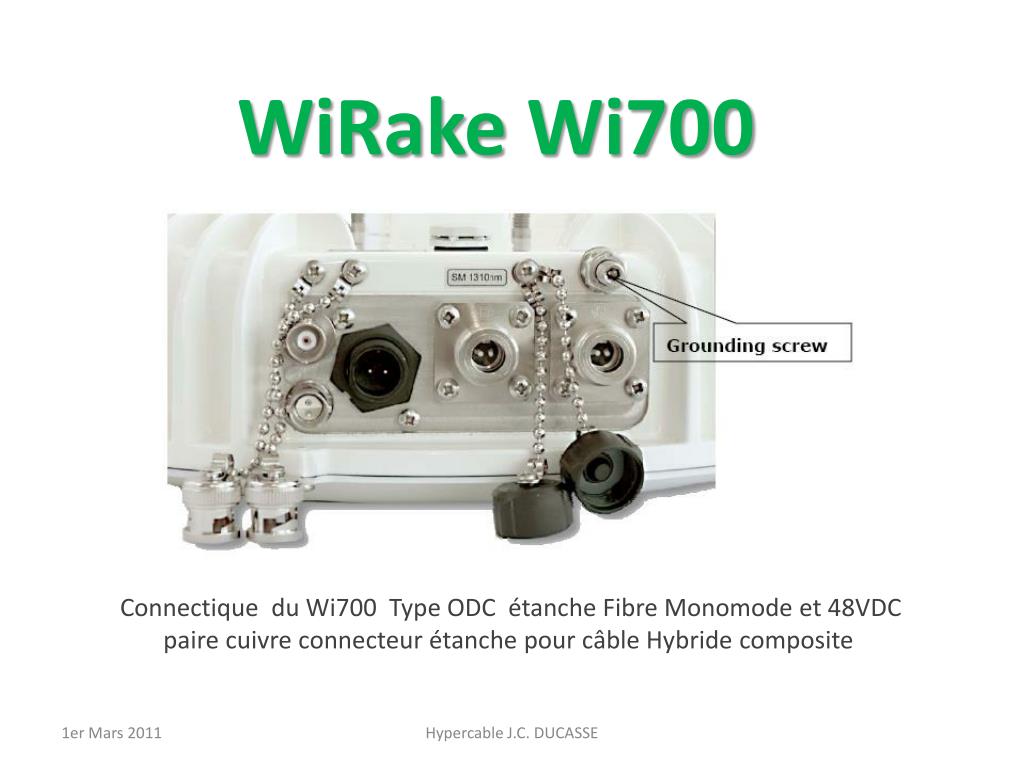

  1. WiRake Wi700 Connectique du Wi700 Type ODC étanche Fibre Monomode et 48VDC paire cuivre connecteur étanche pour câble Hybride composite Hypercable J.C. DUCASSE

  2. 2 Monomode OPTICAL FIBERS 50μm + 2x1,5 MM² POWER WIRES WiRake Wi700 Détails du câble composite Hypercable J.C. DUCASSE

  3. WiRake Wi700 Détails du câble composite Hypercable J.C. DUCASSE

  4. Wi700 Connectique 48 VDC Wi700 Connectique ODC>LC Single mode 2 channel fibre with 2 fibre ODC plug is required for management and user data. Length of the fibre optics cable using default single mode 1310nm SFP module is up to 8km. Hypercable can provide pigtail cable with ODC-LC connectors and length of 30 , 60 or 100 mètres. Hypercable J.C. DUCASSE

  5. WiRake Wi700Fast251010PL202 NEXANS Adaptation Hybridcable indoor side for LC cable and Domino for Power Supply 48 VDC Cable Hypercable J.C. DUCASSE

  6. Câble hybride 1/3 Hypercable J.C. DUCASSE

  7. Câble hybride 2/3 Hypercable J.C. DUCASSE

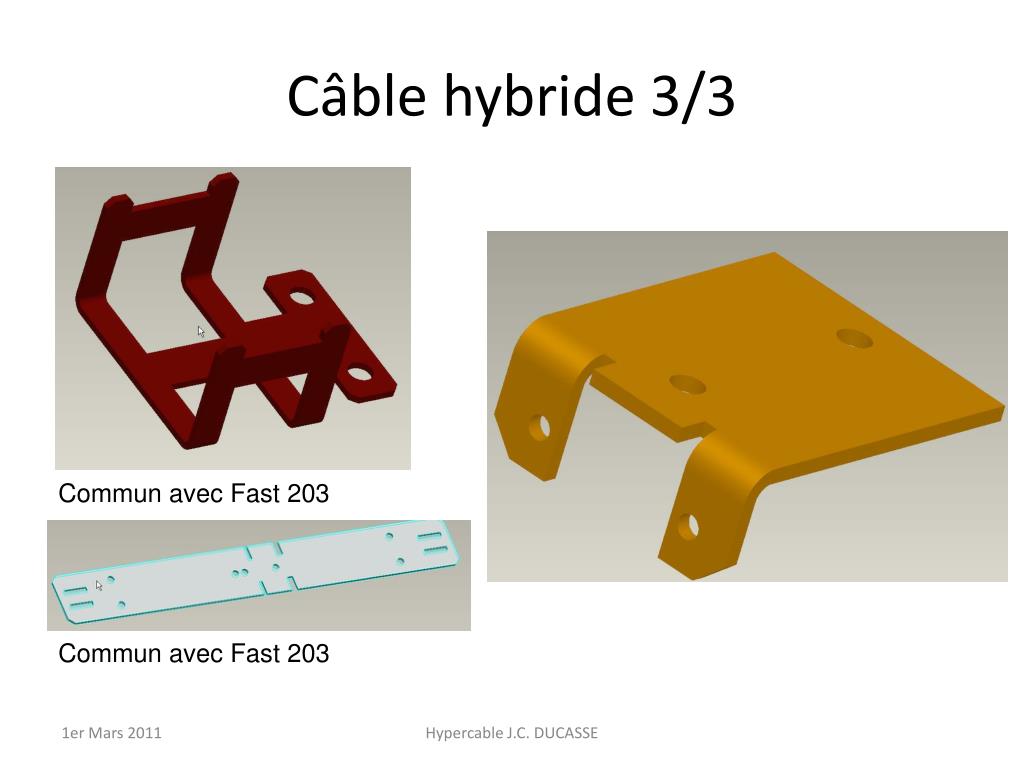

  8. Câble hybride 3/3 Commun avec Fast 203 Commun avec Fast 203 Hypercable J.C. DUCASSE
