No more Rusting/Corrosion! It’s Shock-proof too!

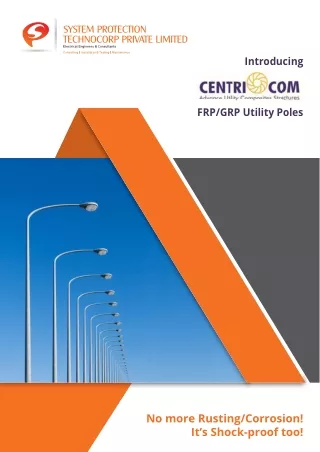

1. Consult ng | Installat on | Test ng | Ma ntenance Introducing FRP/GRP Utility Poles No more Rusting/Corrosion! It’s Shock-proof too!

2. Comparison FRP/GRP Composite Poles Metal/Steel Poles Even after Powder Coating or Galvanising, Rusting can occur from inside Rusting No Rusting Completely Maintenance Free Maintenance Needs periodical Re-coating/Re-furbishing Completely Non-conductive, hence Electric Shock-proof and Safe Conductive, hence Shock-prone and Unsafe Insulation Highly prone to corrosion, especially in Harsh/Saline/Chemicalised/Acidic environments Completely Non-corrosive, can be used in harsh environments and locations Corrosion Resistance Quite short, 5-7 years approx, even less in Saline/Acidic environment, added costing incurred in Maintenance Very long, 20-25 years approximately, Maintenance Free Life Service Life Being very heavy, needs Lifting Machines; If Manpower is employed, chances of injury while handling/installation Safe and easy handling and installation being light weight, can be easily handled by a person or two Safety/Handling About 20-25 % that of Steel About 4 to 5 times heavier than FRP/GRP Weight Smooth and homogeneous, not dependent on Temperature Changes Coating falls off after some time, highly dependent on Temperature Changes Surface Finish Can withstand Wind Speed up to 200 KM/HR, being light weight Prone to get uprooted during Cyclones given its heavy weight Wind Resistance Can withstand Stability even after bending up to 25 to 30 Degree Can be bent but compromising on Stability, and hence overall life Bendability Can damage the Vehicle and can injure the person in the Vehicle Vehicle Impact Can break, person in the Vehicle can be Safe Quite economical, given its Maintenance Free and longer Service Life Quite high, given its high Maintenance and lower Service Life Effective Costing

3. About Technology Centrifugal Casting is a Production Technology used to make Composite Poles using Fiberglass, in the shape of a Truncated Cone with length up to 10 Metres. The Pole is formed by inserting the Re-inforced Fiberglass, in a specific Rotating Mould that has a Truncated Cone cavity. Due to centrifugal force, the Fiberglass adheres to the walls of the Mould and takes its shape. The Matrix (Resin) inside the Mould is impregnated with Fiberglass due to the rapid rotation of the Mould (Centrifugal Casting), and gets hardened by polymerising when it comes in contact with the heated Mould. The Poles thus produced by Centrifugal Casting, have consistent thickness due to controlled distribution of the reinforcement inside the Mould. This way, tapered Poles are obtained without increasing the thickness and thus weight, over its entire length. This technology makes it possible to manufacture Products with a high degree of dimensional precision and Physio-Mechanical repeatability. Please contact us to know more! Applications Accessories 1. Offshore Platforms 2. Chemical Plants 3. Street Lighting 4. Garden Lighting 5. Jetty Lighting 6. Solar Lighting 7. Flag Poles 8. CCTV Poles 9. Sign Poles 1. Single Arm 2. Double Arm 3. External Junction Box 4. Internal Junction Box 5. Base Bracket Mounting 6. Special Designed Bracket Standard Dimensions Bottom OD Test Load on Top, KG S/No. Model Length Top OD Thickness 1 CK3 3000 76 126 5 200 2 CK4 4000 76 143 5 200 3 CK5 5000 76 160 5 200 4 CK6 6000 76 176 5 200 5 CK7 7000 76 193 7 200 6 CK8 8000 76 210 7 200 CK9 9000 76 228 7 200 7 CK10 10000 76 245 7 200 8 Note : All the dimensions are in MM, Tolerance : ± 1.5 % Linear, ± 10 % Thickness

4. Authorised Channel Partner What is your Protection Maturity score? Scan the QR Code or visit pma.systemprotection.in Consult ng | Installat on | Test ng | Ma ntenance An ISO 9001:2015 Certified Company O : + 91-265-2225137 | E : info@systemprotection.in | W : www.systemprotection.in Address: “Paramhans”, 54, Vishwas Colony, Jetalpur Road, Vadodara 390 007 Gujarat, India
