Advanced Intelligent PDU with Accurate Metering and Secure Management for Efficient Power Control

DESCRIPTION

The Dominion PX Intelligent PDU offers accurate metering at both the rack and outlet levels, providing detailed power data including voltage, current, power factor, and energy consumption. It features secure session encryption via HTTPS, SSH, and AES, along with robust user management through LDAP/AD. Customizable options are available, including build-to-order designs and environmental sensor support. With high-quality construction and innovative cooling solutions, this PDU ensures reliability, efficiency, and heightened state information through discrete billing-grade energy meters.

1 / 26

Download Presentation

Advanced Intelligent PDU with Accurate Metering and Secure Management for Efficient Power Control

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Switches Power management

  2. Dominion PX Intelligent PDU • Accurate Metering at the rack PDU (or branch circuit) level, plus circuit breakers, AND at individual outlets • Rich power data collection with PowerIQ • Voltage (V), Current (A), Power Factor, Apparent Power (kVA), Active Power (Watts), Energy Consumption (kWH) • Secure • Encryption of sessions and session data: HTTPS, SSH, AES, SSL • Rich user /user group: LDAP/AD • Standards based management • SNMP V2, V2, V3 with encryption • Built-in support for environmental sensors • Custom iPDU with, Build-To-Order and Engineer-To-Order process

  3. Control Panel

  4. PDU models

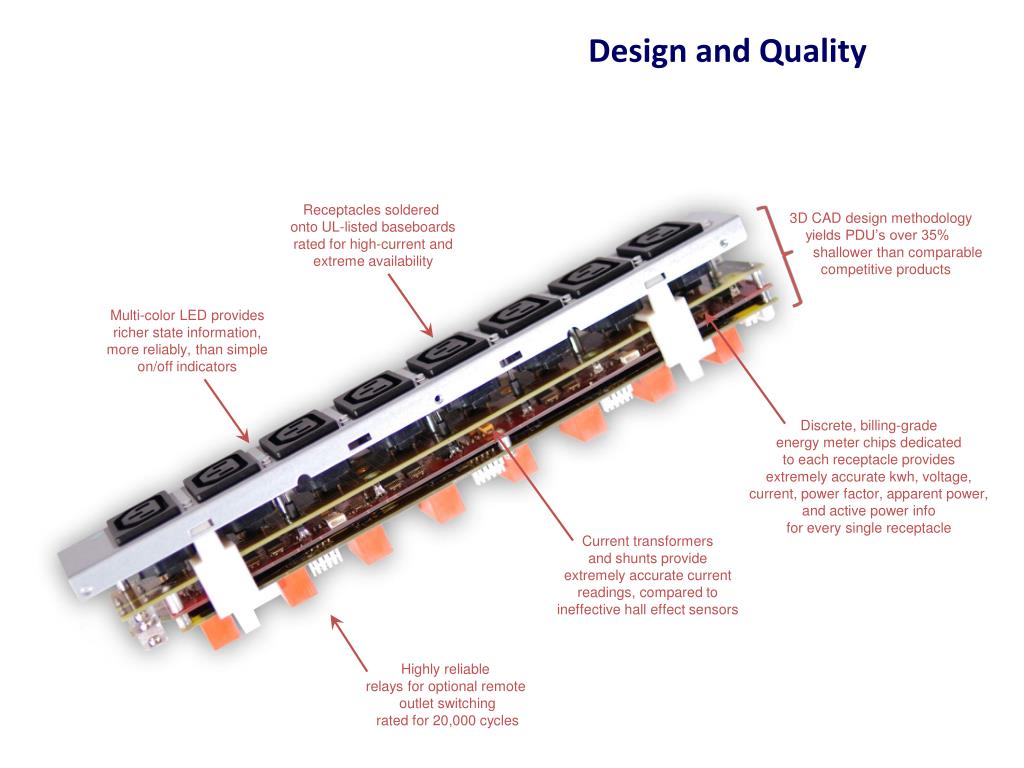

  5. Design and Quality Receptacles soldered onto UL-listed baseboards rated for high-current and extreme availability 3D CAD design methodology yields PDU’s over 35% shallower than comparable competitive products Multi-color LED providesricher state information,more reliably, than simpleon/off indicators Discrete, billing-grade energy meter chips dedicated to each receptacle providesextremely accurate kwh, voltage,current, power factor, apparent power,and active power infofor every single receptacle Current transformersand shunts provideextremely accurate currentreadings, compared toineffective hall effect sensors Highly reliable relays for optional remote outlet switching rated for 20,000 cycles

  6. Customization • PDUsupport Wifi(WiFi 802.11n/g) • C13/C19 port count • Colour • IECC13/C19 lockable outlet

  7. Branch Circuit Monitoring for non-intelligent equipment Data Gathering Module (DGM)

  8. Branch Circuit Monitoring

  9. Modbus & IP support

  10. pMon Software

  11. Cooling innovations

  12. Sensors

  13. Space Saving Solutions
