Cardiovascular System

Cardiovascular System. Mr. N euberger. Cardiac muscle. Constitutes most of the heart Striated like skeletal muscle Cardiocytes are not long multinucleated fibers but short, stumpy, slightly branched cells Contain dark lines called intercalated discs

sylvia
Download Presentation

Cardiovascular System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Cardiovascular System Mr. Neuberger

  2. Cardiac muscle • Constitutes most of the heart • Striated like skeletal muscle • Cardiocytes are not long multinucleated fibers but short, stumpy, slightly branched cells • Contain dark lines called intercalated discs • Contain electrical gap junctions that allow cells to communicate with each other and not pull apart during contraction • i.e. the cells are holding hands • Very rich in glycogen and myoglobin, mitochondria so large that it fills 25% of the cell • Very well adapted to aerobic respiration and very resistant to fatigue

  3. Cardiac Muscle • Sarcoplasmic Reticulum is less developed than in skeletal muscle but the T Tubules are larger • Allow electrical signal to disperse faster as well as provide calcium for contraction • Innervated by the Autonomic Nervous System • Operates without our conscious control • Does not generate the heartbeat but rather modulate the heart rate and contraction strength • Cardiocytes pulsate rhythmically even without nervous stimulation- Autorhythmicity

  4. The Heart • Cardiology- a field that embraces the study of the heart • The cardiovascular system has two major divisions: • Pulmonary Circuit- Carries blood to the lungs for gas exchange and returns it to the heart • Systemic Circuit- Supplies blood to every organ of the body (including parts of the lung and the walls of the heart)

  5. Right Side • The right side of the heart serves as the pulmonary circuit • Receives blood that has circulated through the body and pumps it into the large artery called the Pulmonary Trunk • From here the oxygen-poor blood is distributed to the lungs • Unloads carbon dioxide and picks up oxygen • Returns blood to the left side of the heart by way of the pulmonary veins

  6. Left Side • Serves as the Systemic Circuit • Pumps blood into the largest artery in the body, Aorta • Gives of branches that deliver oxygen to every organ of the body and picks up carbon dioxide and other wastes • After the gas exchange, the blood returns to the heart by way of the body’s two largest veins: Superior vena cava (drains the upper body), Inferior vena cava (drains everything below the diaphragm • The pulmonary trunk, pulmonary veins, aorta, and two vena cava- called The Great Vessels

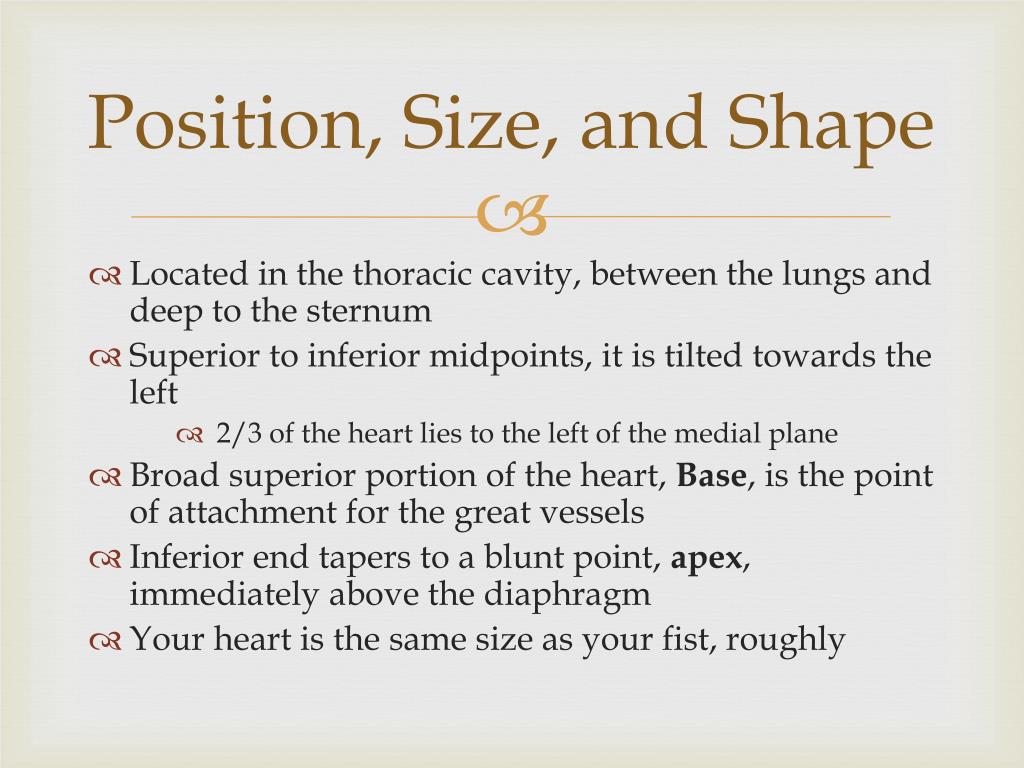

  7. Position, Size, and Shape • Located in the thoracic cavity, between the lungs and deep to the sternum • Superior to inferior midpoints, it is tilted towards the left • 2/3 of the heart lies to the left of the medial plane • Broad superior portion of the heart, Base, is the point of attachment for the great vessels • Inferior end tapers to a blunt point, apex, immediately above the diaphragm • Your heart is the same size as your fist, roughly

  8. The Pericardium • The heart is enclosed in a double-walled sac called the Pericardium • The outer wall, called the Pericardial sac, has a tough, superficial fibrous layer of dense irregular connective tissue and a deep, thin serous layer • The serous layer turns inward at the base of the heart and forms the Epicardium, covering the heart surface • The pericardial sac is anchored by ligaments to the diaphragm below and the sternum anterior to it • More loosely anchored by fibrous connective tissue to mediastinal tissue posterior to the heart

  9. The Pericardium • The space between the parietal and visceral membranes is called the Pericardial cavity • Contains Pericardial fluid, released by the serous pericardium • Lubricates the membranes and allows the heart to beat with minimal friction • The pericardium separates the heart from other thoracic organs and allows it room to expand, yet resist excessive expansion

  10. The Heart Wall • Consists of three layers • Epicardium, Myocardium, Endocardium • Epicardium- serous membrane on the heart surface • Simple squamous epithelium overlying a thin layer of areolar tissue, some areas of the heart will have a layer of adipose tissue as well • Endocardium- lines the interior of the heart chambers, composed of simple squamous epithelium overlying a thin areolar tissue. No adipose tissue

  11. Myocardium • Performs the work of the heart • Thickness is proportionate of the workload of the individual heart chambers • Consists primarily of cardiac muscle, spirals around heart • Heart twists as it contracts • Fibrous Skeleton- meshwork of collagenous and elastic fibers, esp. concentrated in between the heart chambers • Fibrous rings • Purposes- (1) Provides structural support for heart, (2) anchors the myocytes, (3) Electrical insulation, (4) refills heart with blood after each beat

  12. The Chambers • Two at superior pole- Right, Left Atria • Thin-walled receiving chambers for blood returning to the heart by way of the great veins • Auricle- increases the volume • Inferior heart chambers- Right, Left Ventricles • Eject blood into the arteries and keep it flowing • On the surface of the heart, the 4 chambers are marked by three sulci (grooves), largely filled with fat and coronary blood vessels

  13. The Valves • Must have a predominantly one-way flow • One at each valve between each atrium and the corresponding ventricle and another at the exit from each ventricle into its great artery • 2-3 fibrous flaps of tissue called Cusps or leaflets covered with endocardium • Atrioventricular (AV) Valves- regulate the openings between the atria and ventricles • Right AV Valve- three cusps • Left AV Valve (Mitral Valve)- two cusps

  14. The Valves • StringlikeTendinous cords connect the valve cusps to conical papillary muscles on the floor of the ventricle • Semilunar Valves regulate the flow of blood from the ventricles into the great arteries. • Pulmonary Valve controls the opening from the right ventricle into the pulmonary trunk • Aortic Valve controls the opening from the left ventricle into the aorta
