Premium Sound Speaker System with Perfect Time Alignment

The SMX2121 12-inch low driver and DH3 1.25-inch high driver deliver top-quality sound. Features Backbone Grille design for a sleek look. Achieve perfect time alignment with drivers aligned on the same axis. Specifications: Frequency Response: 70Hz-20kHz (-3dB), 55Hz-20kHz (-10dB). Sensitivity: 99dB (1W/1m). Maximum Sound Pressure Level: 132dB. Dispersion: 90° x 50°. Long-term Power Rating: 500W. Maximum Power Handling: 2,000W. Transducers: 12" SMX2121 LF, 1" DH3 HF. Crossover Frequency: 1.6kHz. Nominal Impedance: 8Ω. Connectors: Speakon NL4 x 2. Dimensions: 364 x 440 x 573 mm. Weight: 19.8 kg.

sylvia-brewer
Download Presentation

Premium Sound Speaker System with Perfect Time Alignment

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

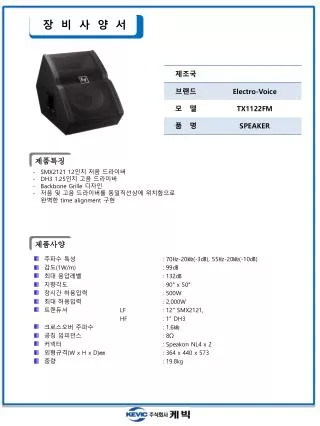

  1. 장 비 사 양 서 제품특징 • SMX2121 12인치 저음 드라이버 • DH3 1.25인치 고음 드라이버 • Backbone Grille 디자인 • 저음 및고음 드라이버를 동일직선상에 위치함으로 • 완벽한 time alignment 구현 제품사양 • 주파수 특성 : 70㎐-20㎑(-3㏈), 55㎐-20㎑(-10㏈) • 감도(1W/m) : 99㏈ • 최대 음압레벨: 132㏈  • 지향각도 : 90° x 50° • 장시간 허용입력 : 500W  • 최대 허용입력 : 2,000W  • 트랜듀서 LF : 12" SMX2121, • HF : 1" DH3 • 크로스오버 주파수 : 1.6㎑ • 공칭 임피던스: 8Ω • 커넥터 : Speakon NL4 x 2 • 외형규격(W x H x D)㎜ : 364 x 440 x 573 • 중량 : 19.8㎏
