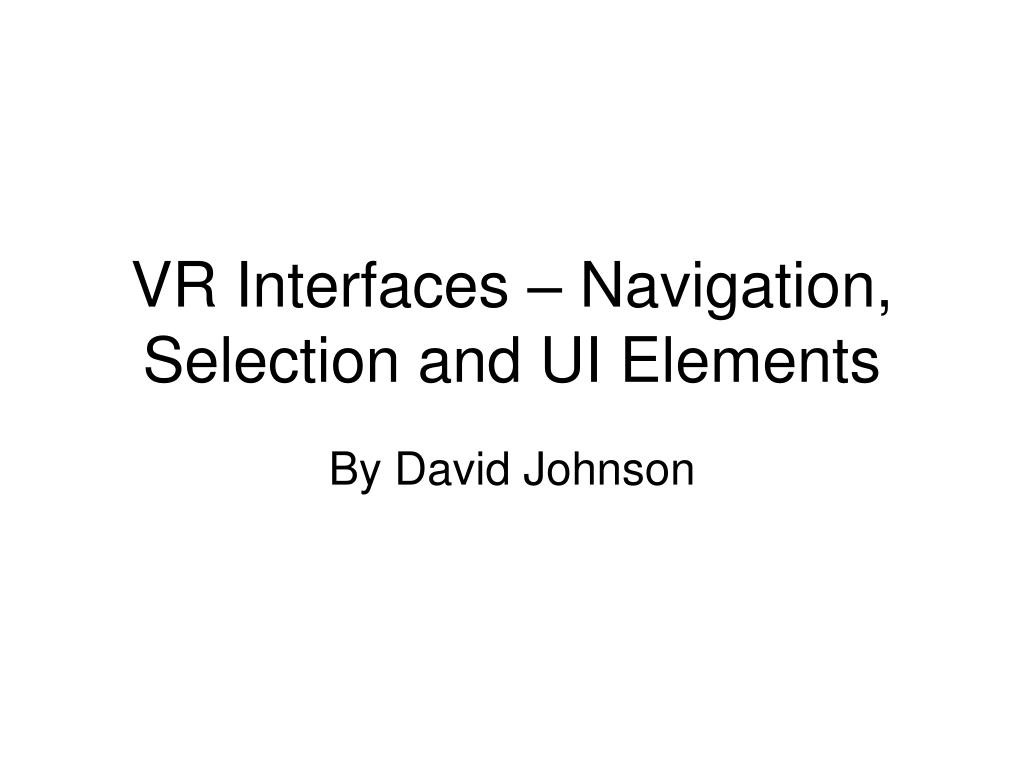

  1. VR Interfaces – Navigation, Selection and UI Elements By David Johnson

  2. VR Interfaces • How do we tell the computer to do things? • How do we select things? • How do we navigate around?

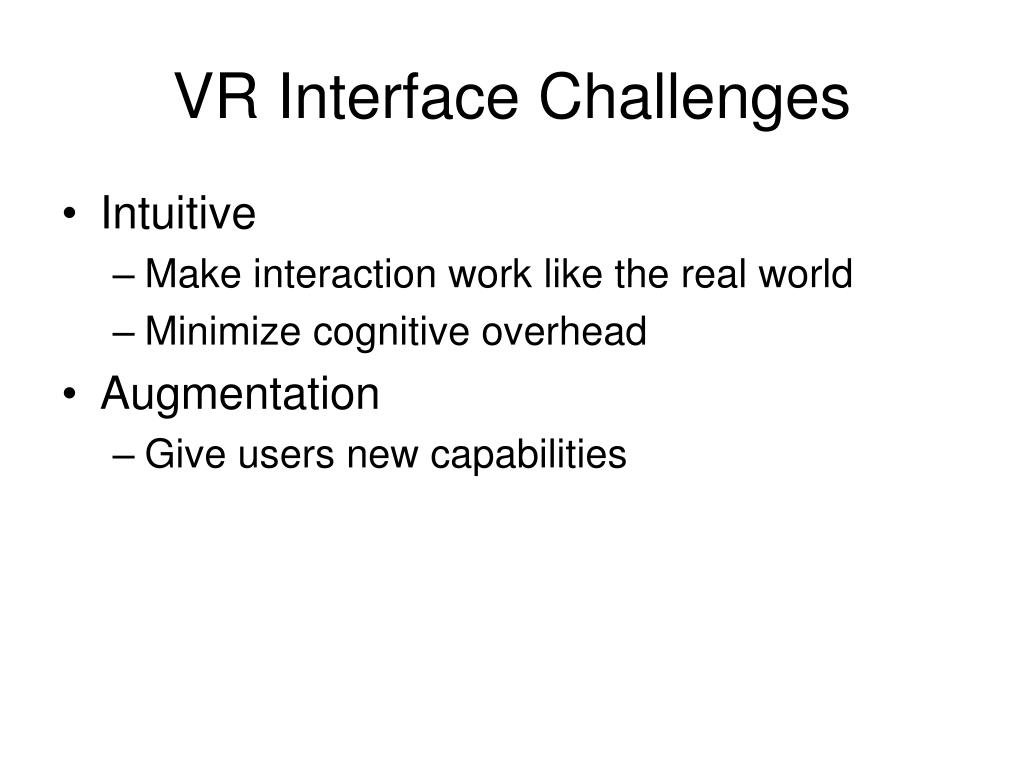

  3. VR Interface Challenges • Intuitive • Make interaction work like the real world • Minimize cognitive overhead • Augmentation • Give users new capabilities

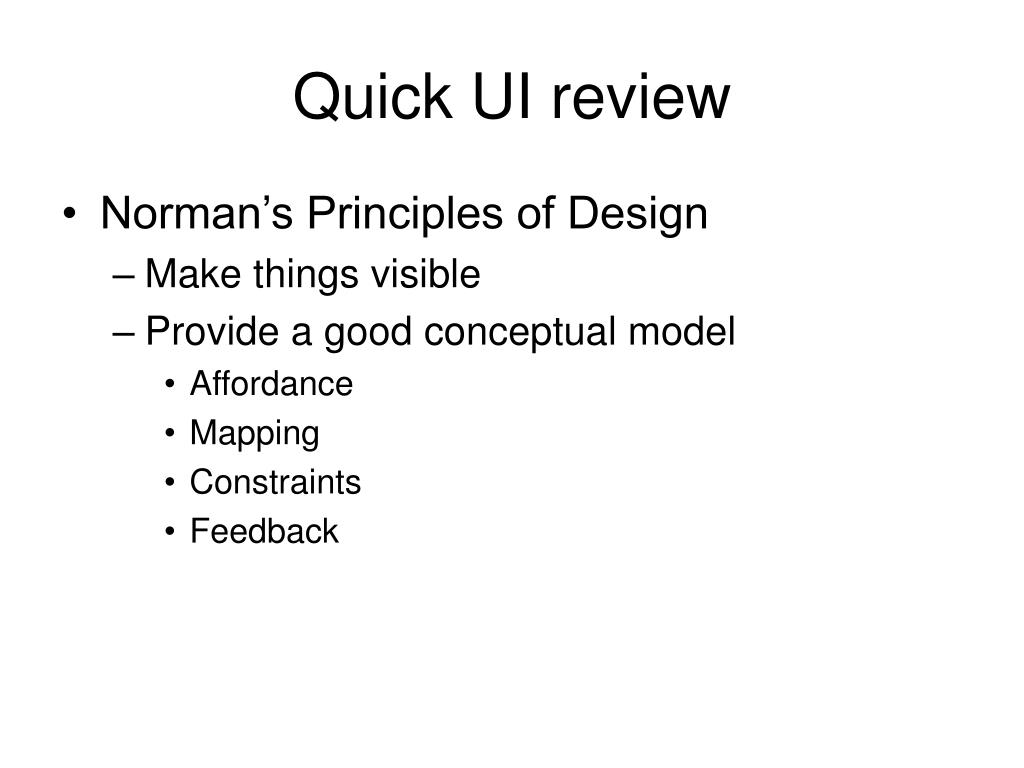

  4. Quick UI review • Norman’s Principles of Design • Make things visible • Provide a good conceptual model • Affordance • Mapping • Constraints • Feedback

  5. Visibility

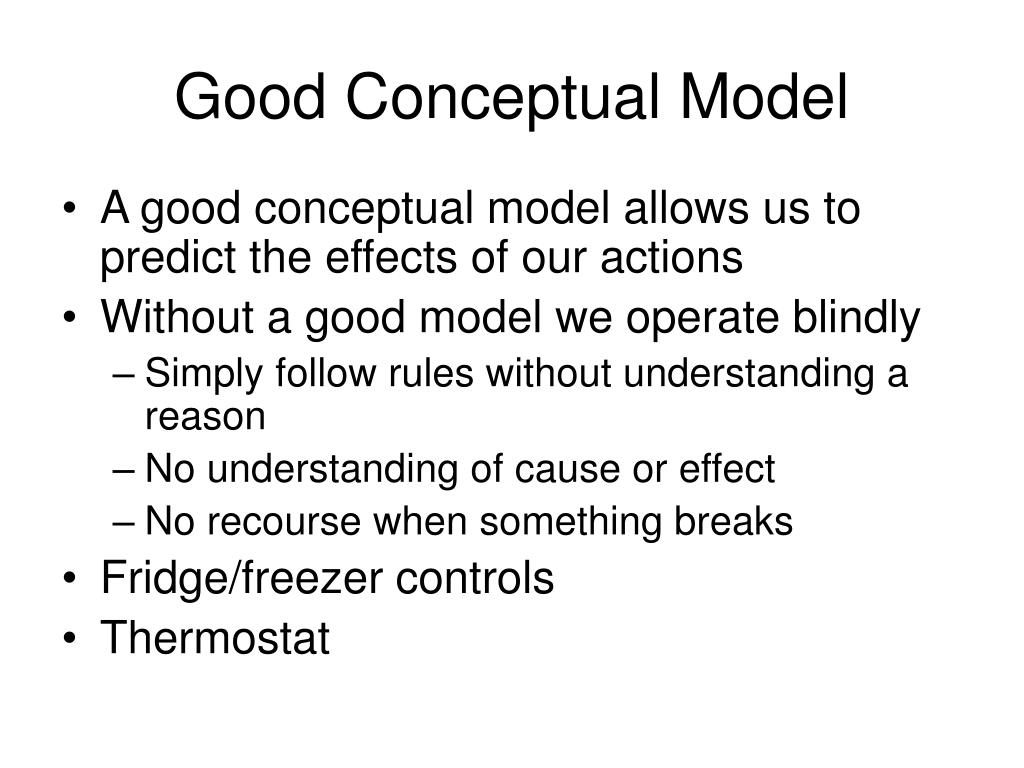

  6. Good Conceptual Model • A good conceptual model allows us to predict the effects of our actions • Without a good model we operate blindly • Simply follow rules without understanding a reason • No understanding of cause or effect • No recourse when something breaks • Fridge/freezer controls • Thermostat

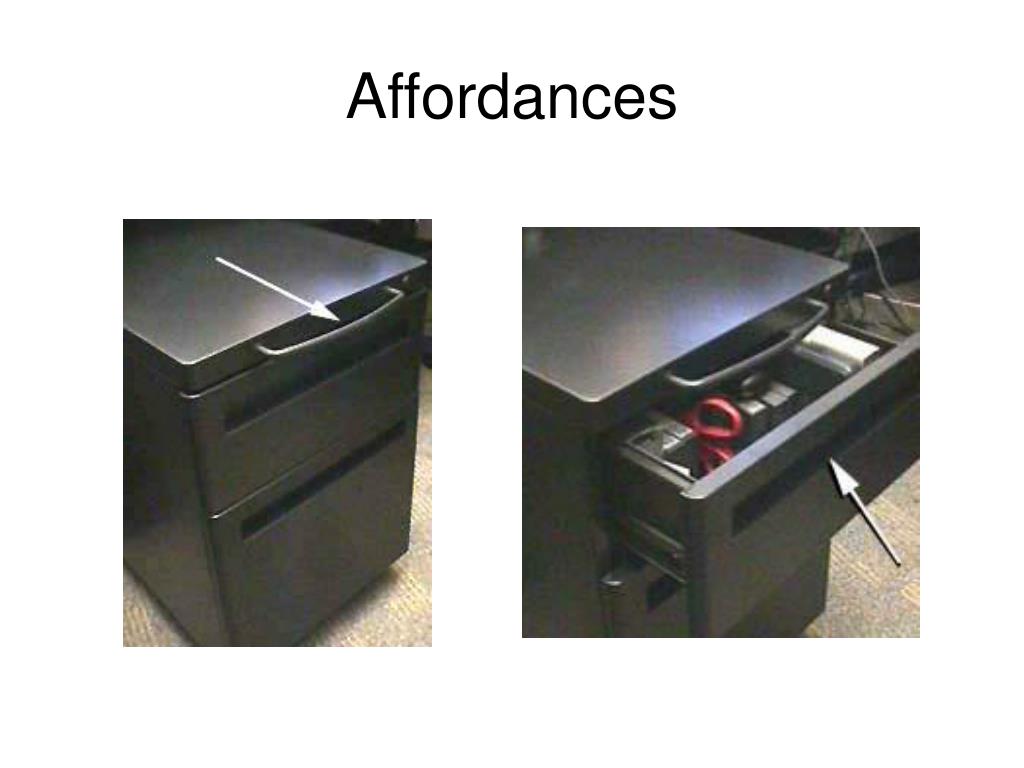

  7. Affordances

  8. Mapping

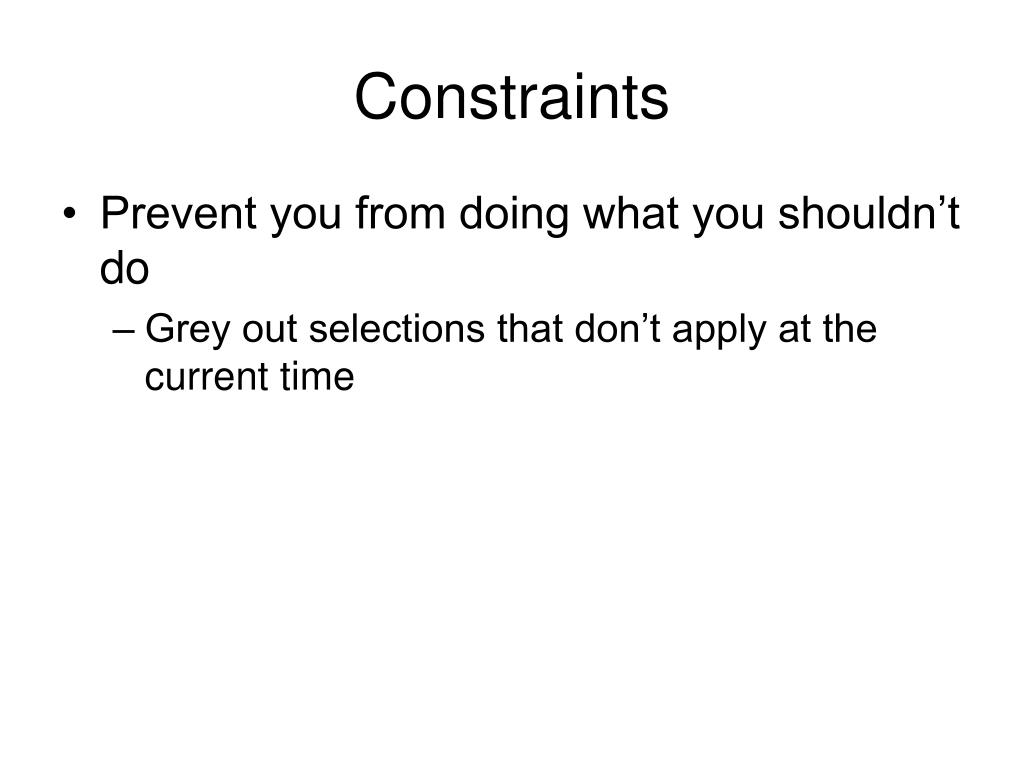

  9. Constraints • Prevent you from doing what you shouldn’t do • Grey out selections that don’t apply at the current time

  10. Feedback Examples • Clicker on your turn signal • Animated icon while waiting for a web page to load

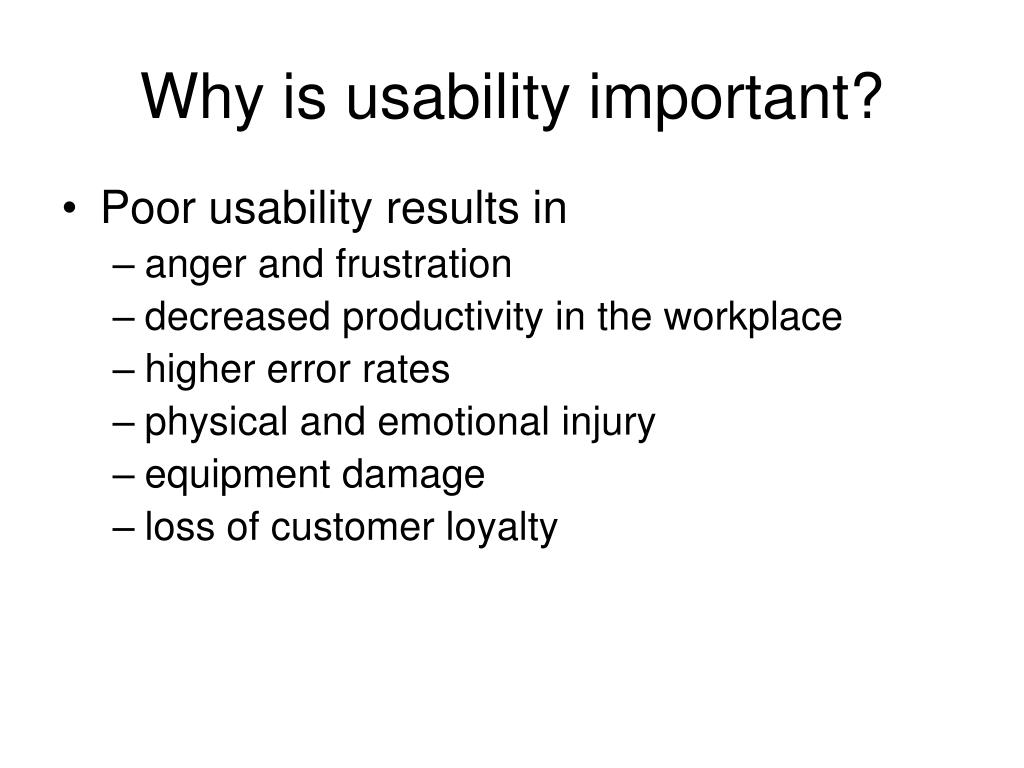

  11. Why is usability important? • Poor usability results in • anger and frustration • decreased productivity in the workplace • higher error rates • physical and emotional injury • equipment damage • loss of customer loyalty

  12. 2D Interfaces • Dominant computer interface uses a mouse and graphical elements Xerox Star (1981)

  13. 2D Interfaces • Why is it a WIMP interface? • Windows • Icons • Menus • Pointer Xerox Star (1981)

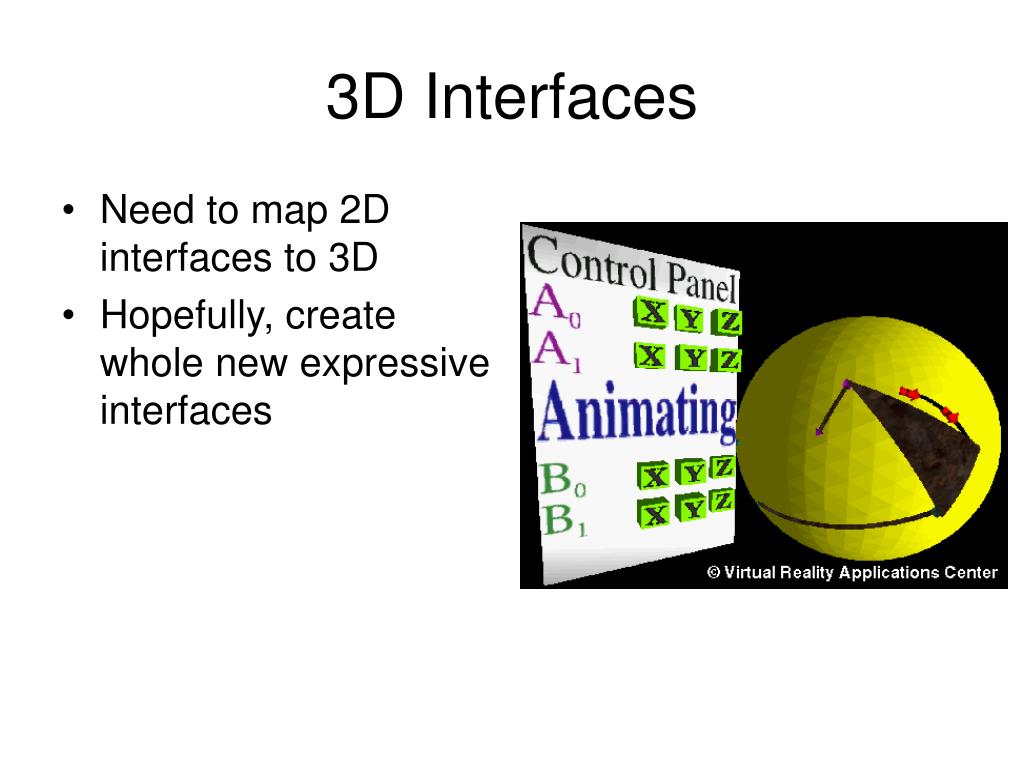

  14. 3D Interfaces • Need to map 2D interfaces to 3D • Hopefully, create whole new expressive interfaces

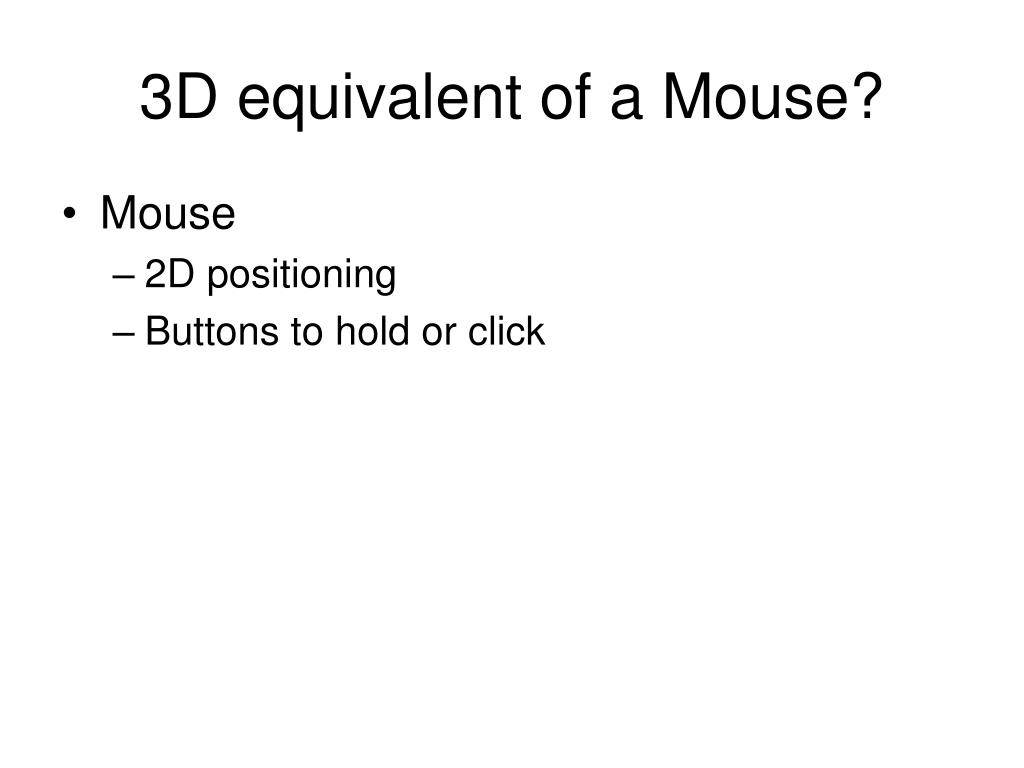

  15. 3D equivalent of a Mouse? • Mouse • 2D positioning • Buttons to hold or click

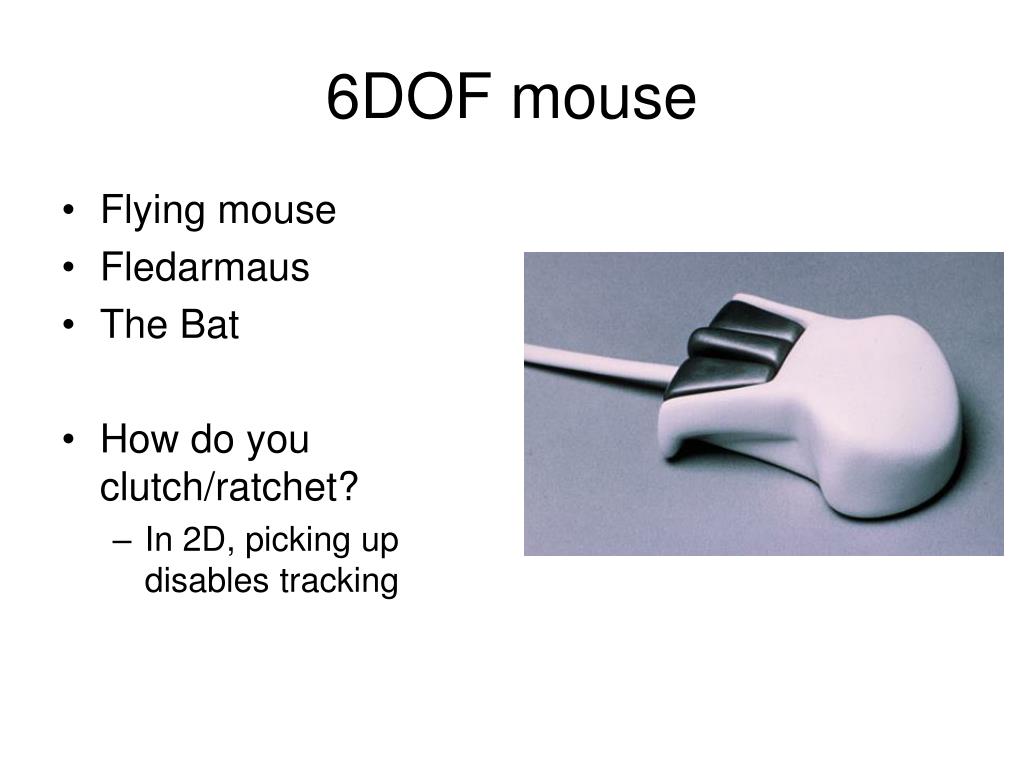

  16. 6DOF mouse • Flying mouse • Fledarmaus • The Bat • How do you clutch/ratchet? • In 2D, picking up disables tracking

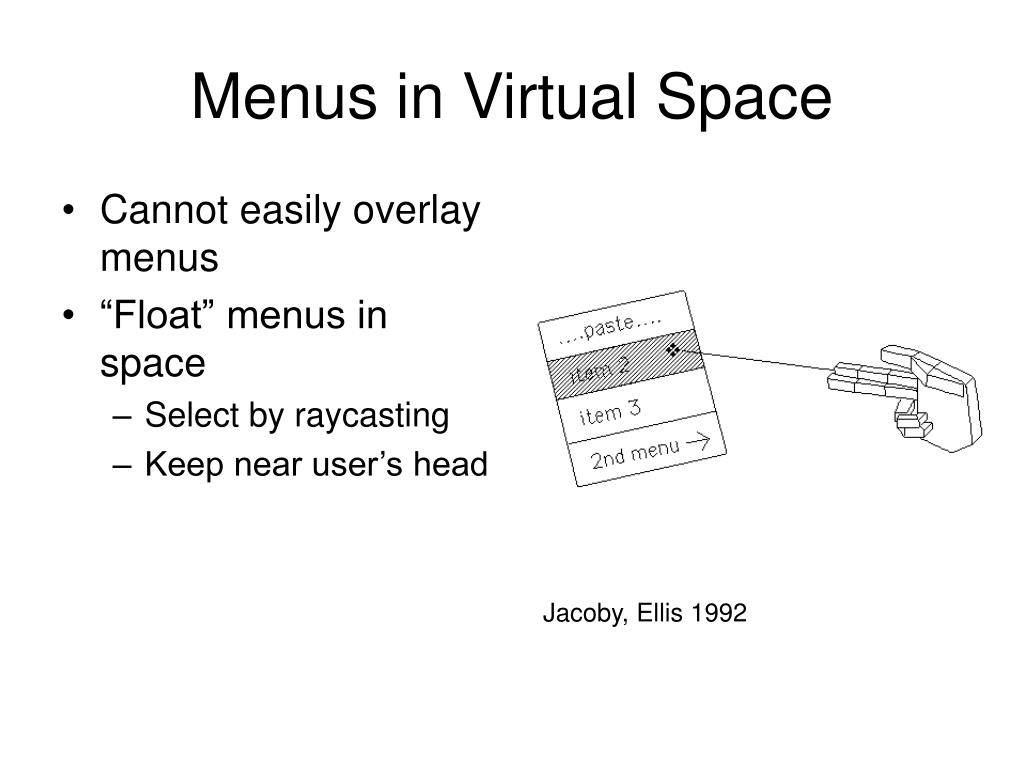

  17. Menus in Virtual Space • Cannot easily overlay menus • “Float” menus in space • Select by raycasting • Keep near user’s head Jacoby, Ellis 1992

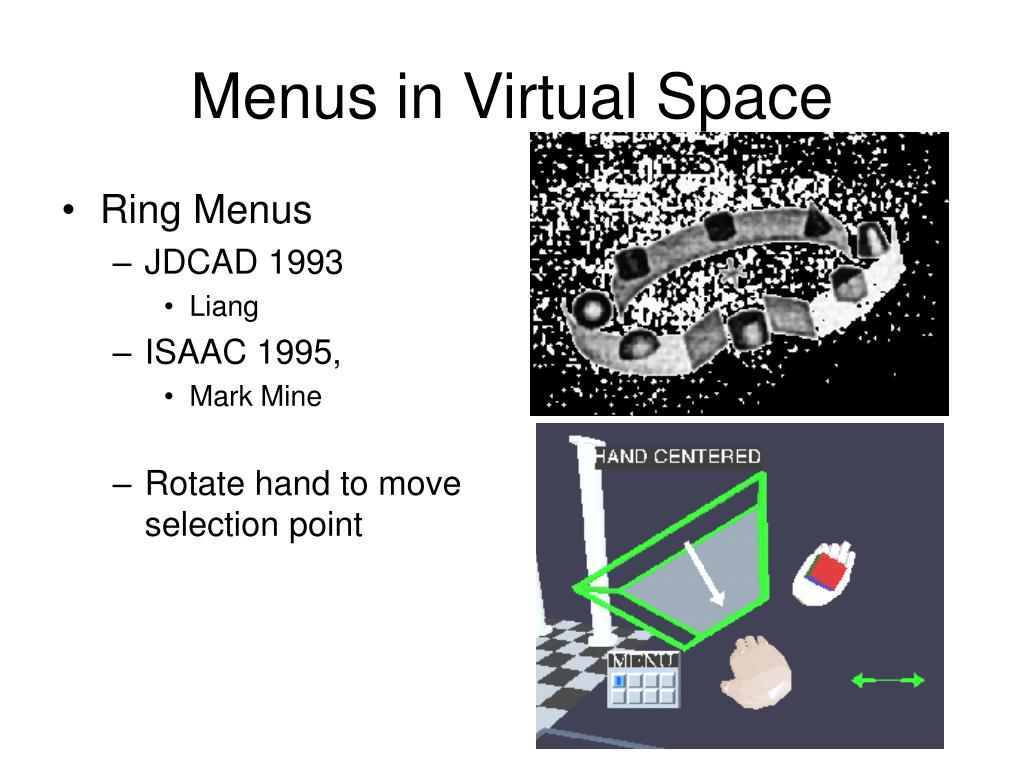

  18. Menus in Virtual Space • Ring Menus • JDCAD 1993 • Liang • ISAAC 1995, • Mark Mine • Rotate hand to moveselection point

  19. Menus in Virtual Space • Darken, 1994 • Overlaid menus • Speech selection

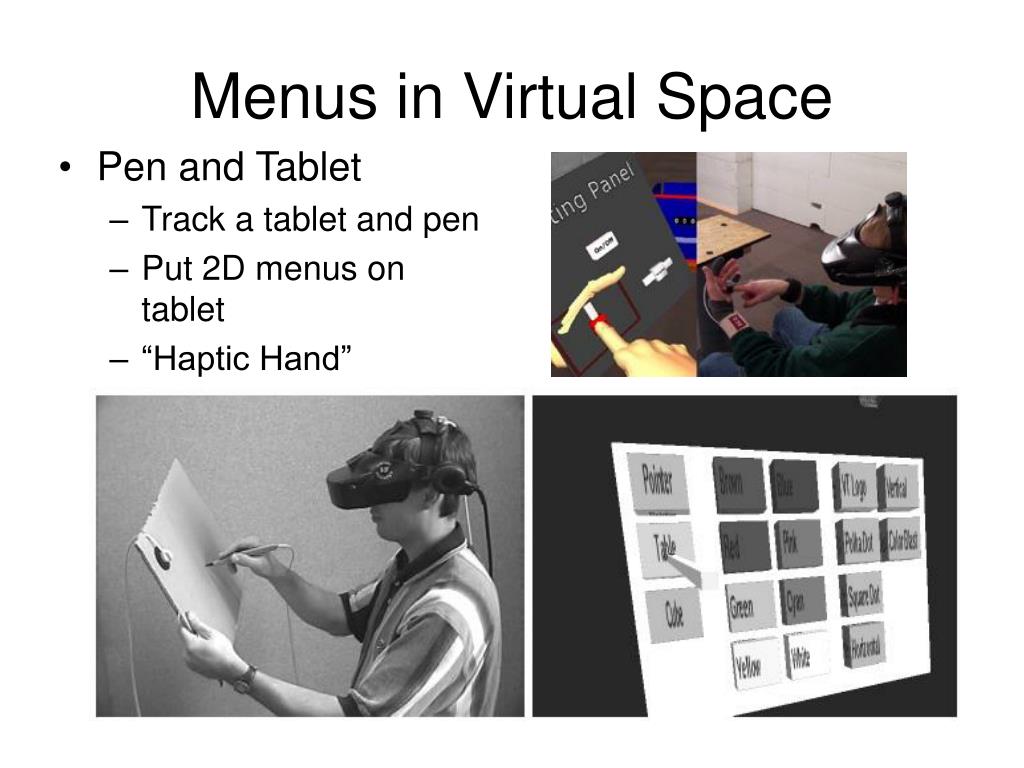

  20. Menus in Virtual Space • Pen and Tablet • Track a tablet and pen • Put 2D menus on tablet • “Haptic Hand”

  21. Menus in Virtual Space • Bowman • Pinch Gloves • Select with thumb to finger • High-level menu on ND hand • Secondary menu on D hand • First tries • Scrolling menu using pinches or • More items on pinkie

  22. TULIP Menus • Three-Up, Labels in Palm • Virtually raise hands • Rotate menus • Put ‘next’ groups on palms • Users preferred over floating and tablet menus • Perhaps slower

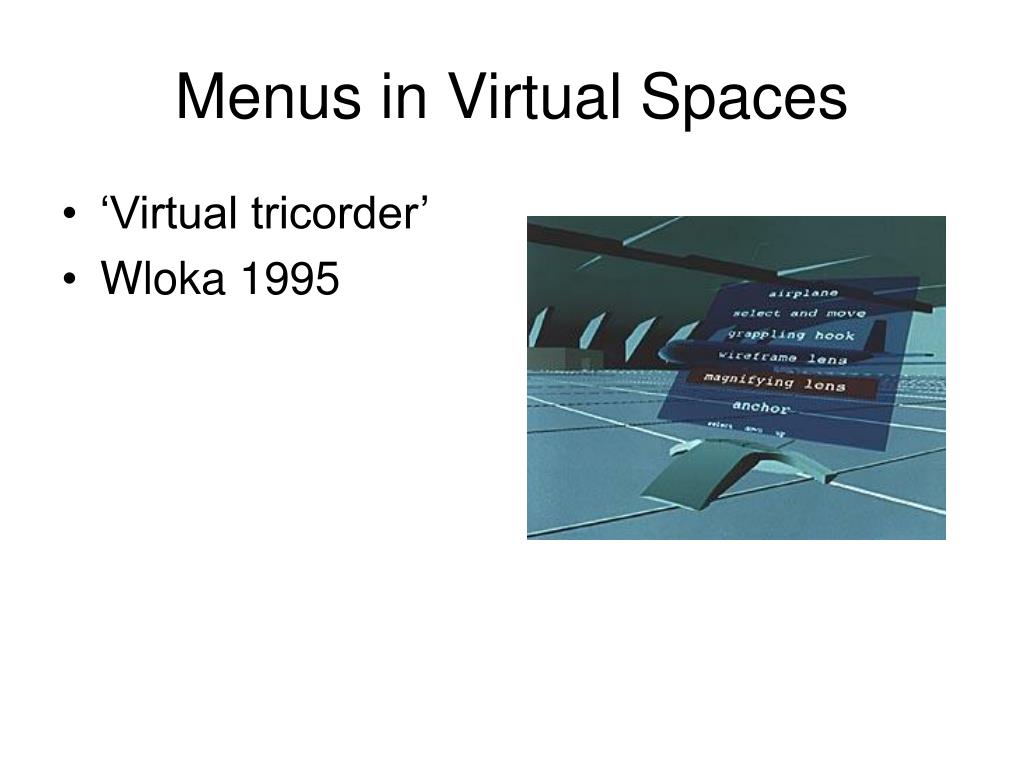

  23. Menus in Virtual Spaces • ‘Virtual tricorder’ • Wloka 1995

  24. Gestures • Symbolic • Cultural meaning (O.K. sign) • Deictic • Pointing, direct viewer’s attention • Iconic • Showing an example path with hand • Pantomimic • Act out the activity

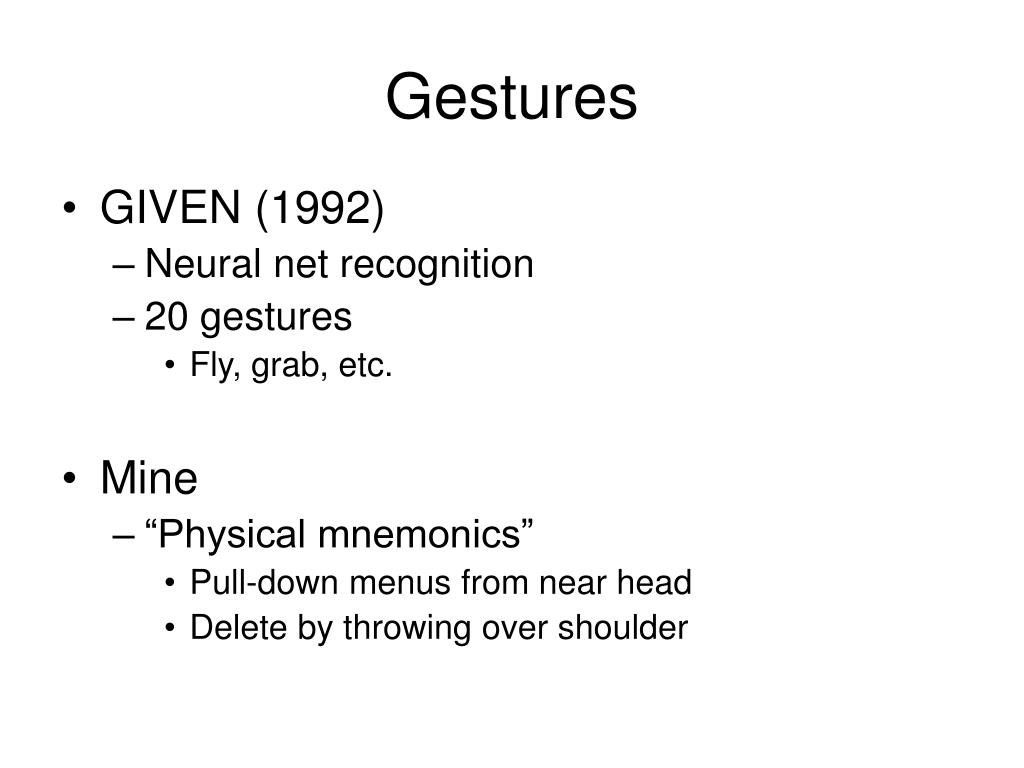

  25. Gestures • GIVEN (1992) • Neural net recognition • 20 gestures • Fly, grab, etc. • Mine • “Physical mnemonics” • Pull-down menus from near head • Delete by throwing over shoulder

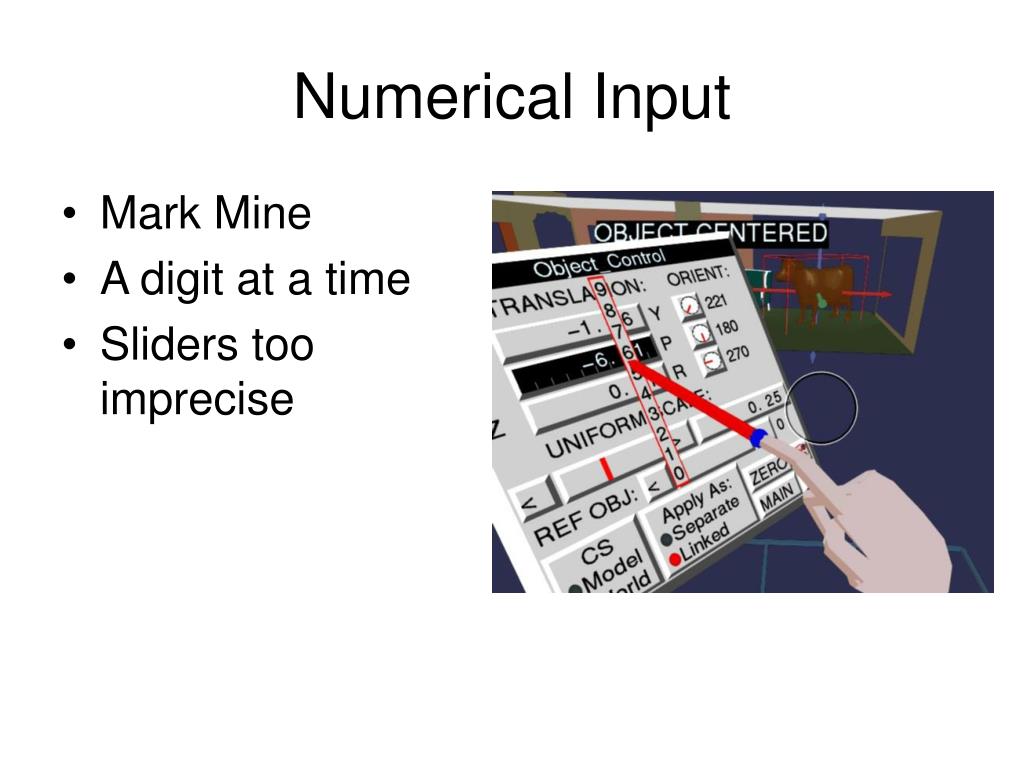

  26. Numerical Input • Mark Mine • A digit at a time • Sliders too imprecise

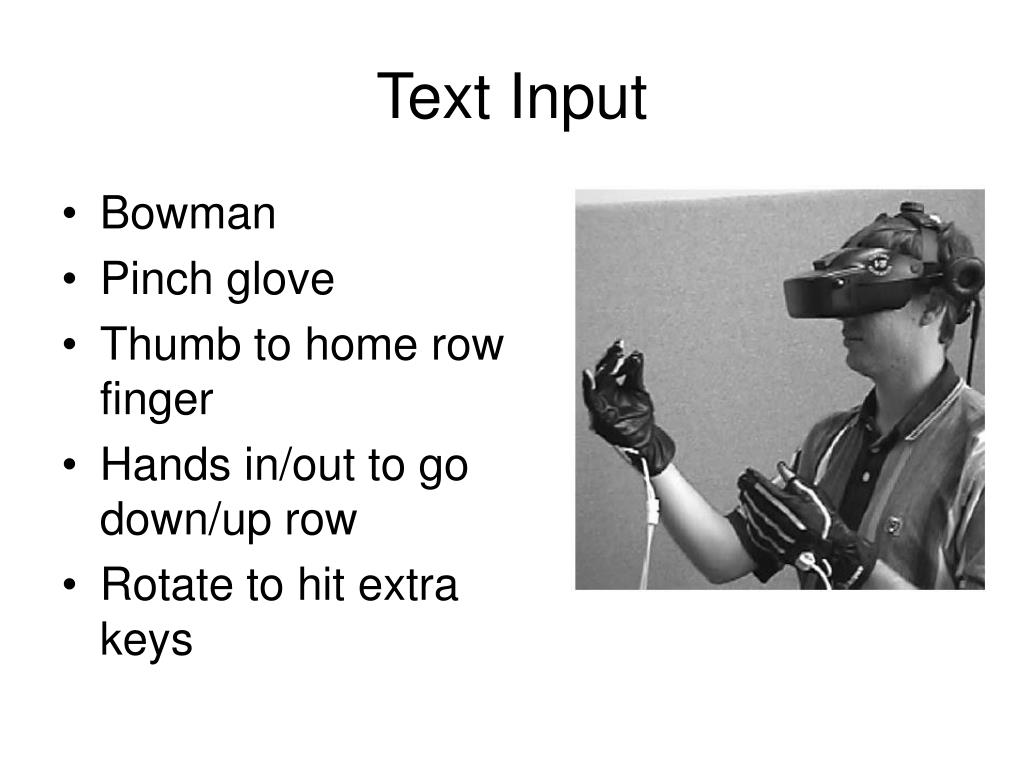

  27. Text Input • Bowman • Pinch glove • Thumb to home row finger • Hands in/out to go down/up row • Rotate to hit extra keys

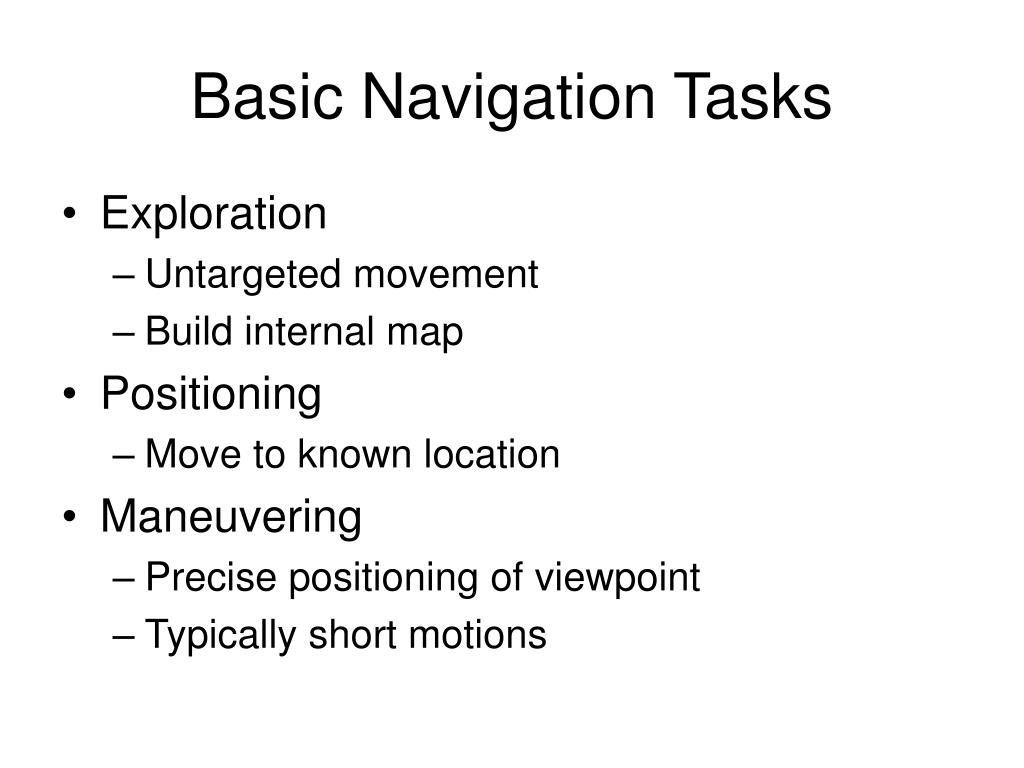

  28. Basic Navigation Tasks • Exploration • Untargeted movement • Build internal map • Positioning • Move to known location • Maneuvering • Precise positioning of viewpoint • Typically short motions

  29. Natural Interfaces • Walking • Biking • Snowboard • Swimming • Issues?

  30. Walking workaround • Redirected walking • movie

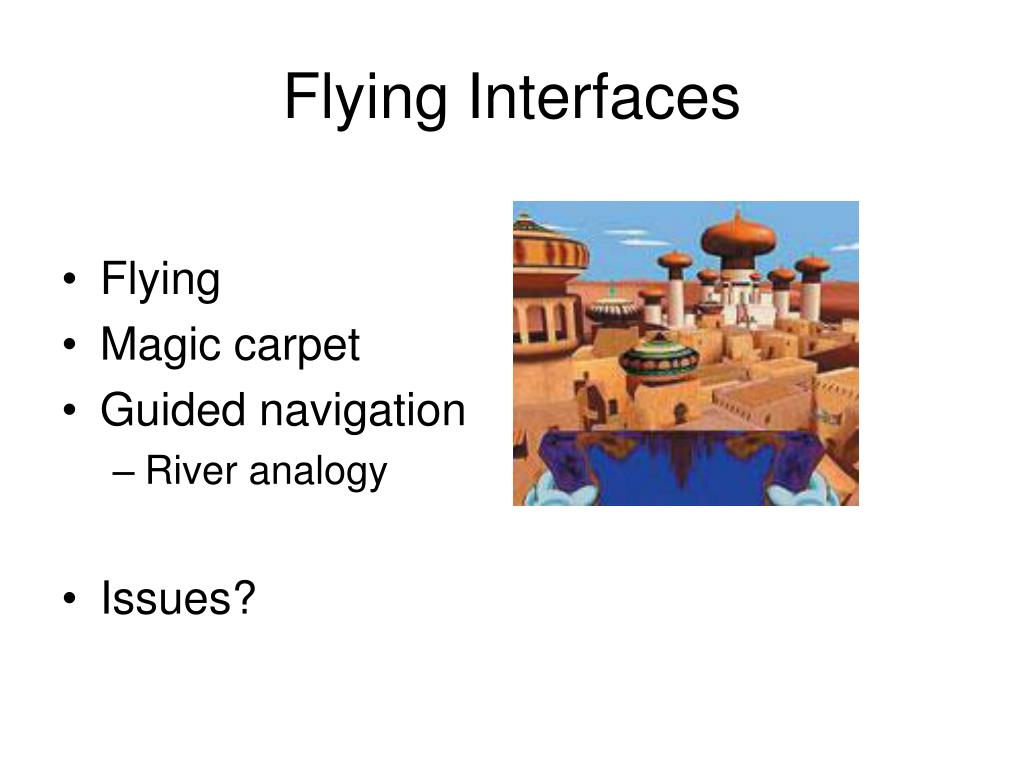

  31. Flying Interfaces • Flying • Magic carpet • Guided navigation • River analogy • Issues?

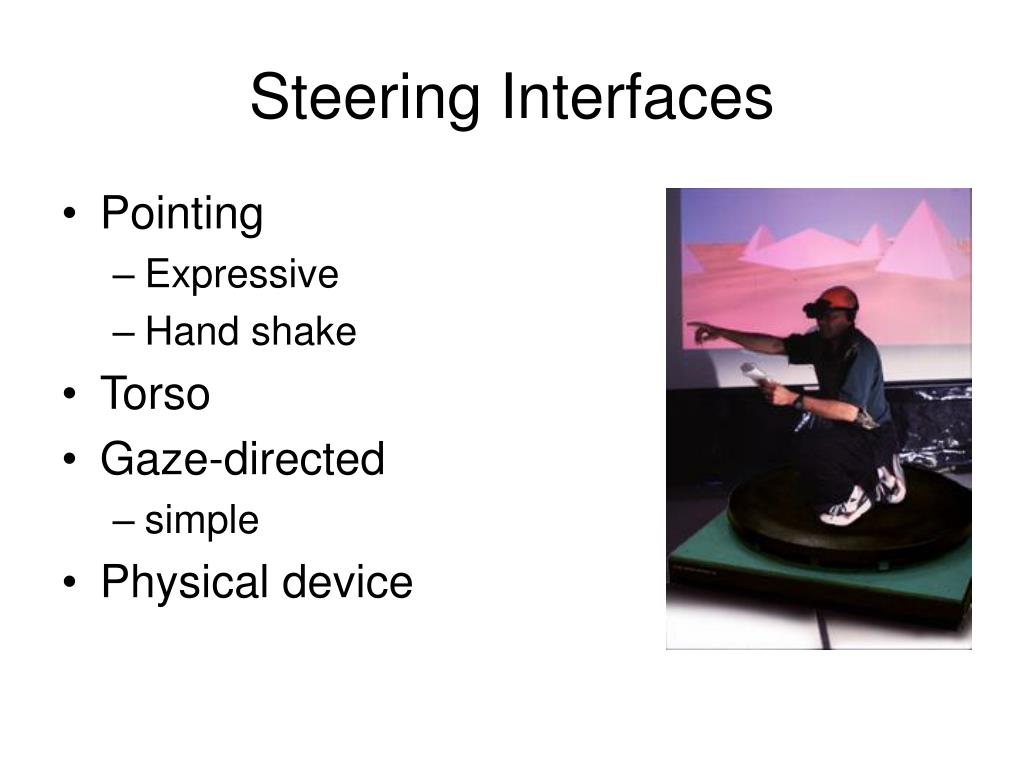

  32. Steering Interfaces • Pointing • Expressive • Hand shake • Torso • Gaze-directed • simple • Physical device

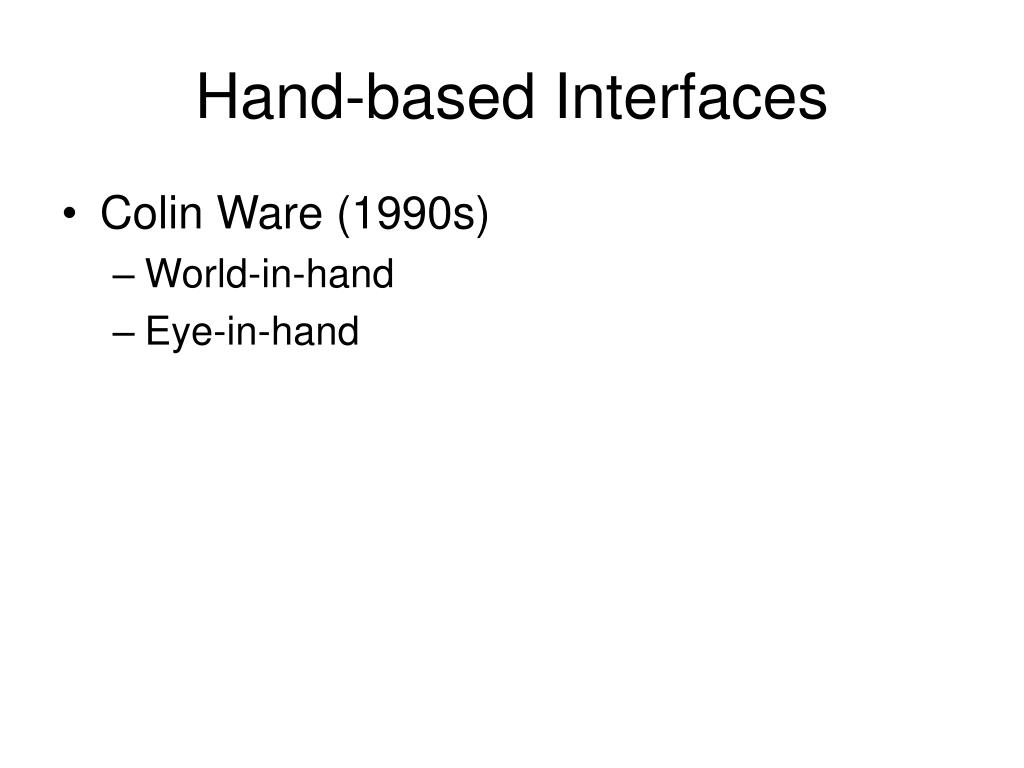

  33. Hand-based Interfaces • Colin Ware (1990s) • World-in-hand • Eye-in-hand

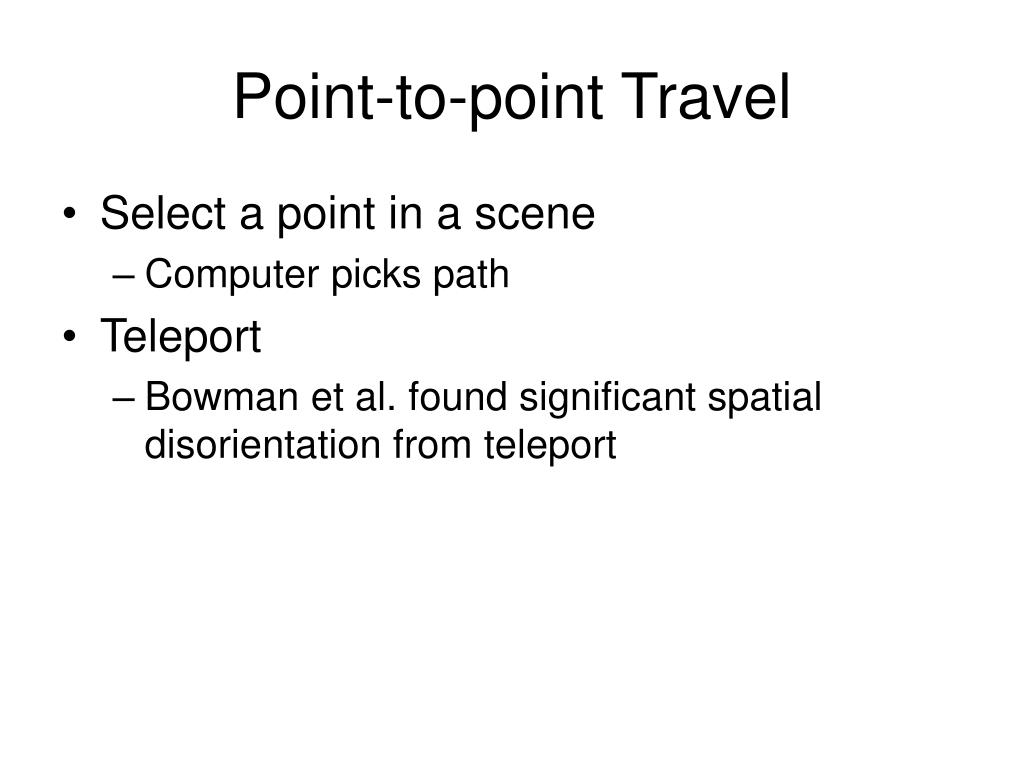

  34. Point-to-point Travel • Select a point in a scene • Computer picks path • Teleport • Bowman et al. found significant spatial disorientation from teleport

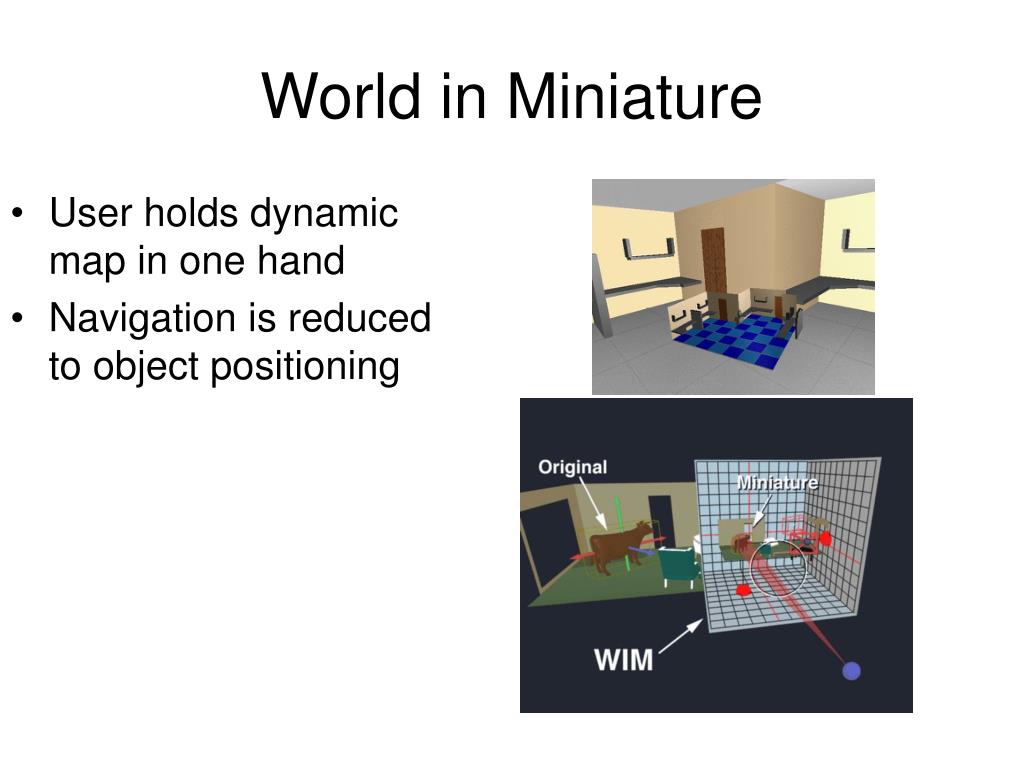

  35. World in Miniature • User holds dynamic map in one hand • Navigation is reduced to object positioning

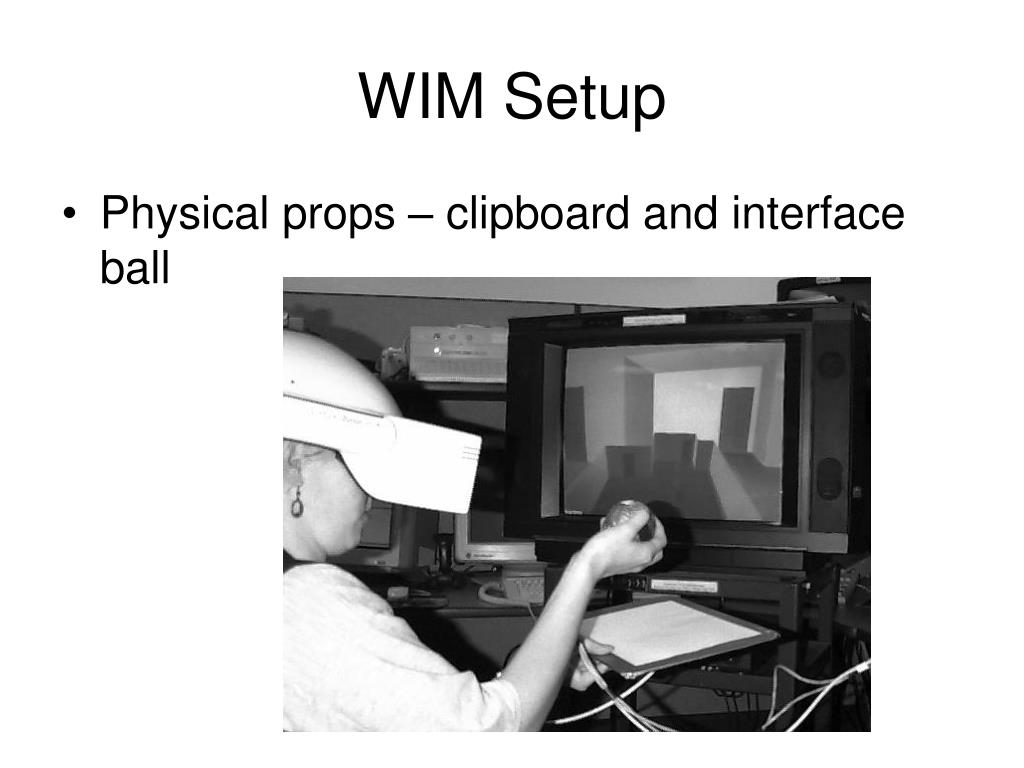

  36. WIM Setup • Physical props – clipboard and interface ball

  37. Two-handed Flying • Mark Mine

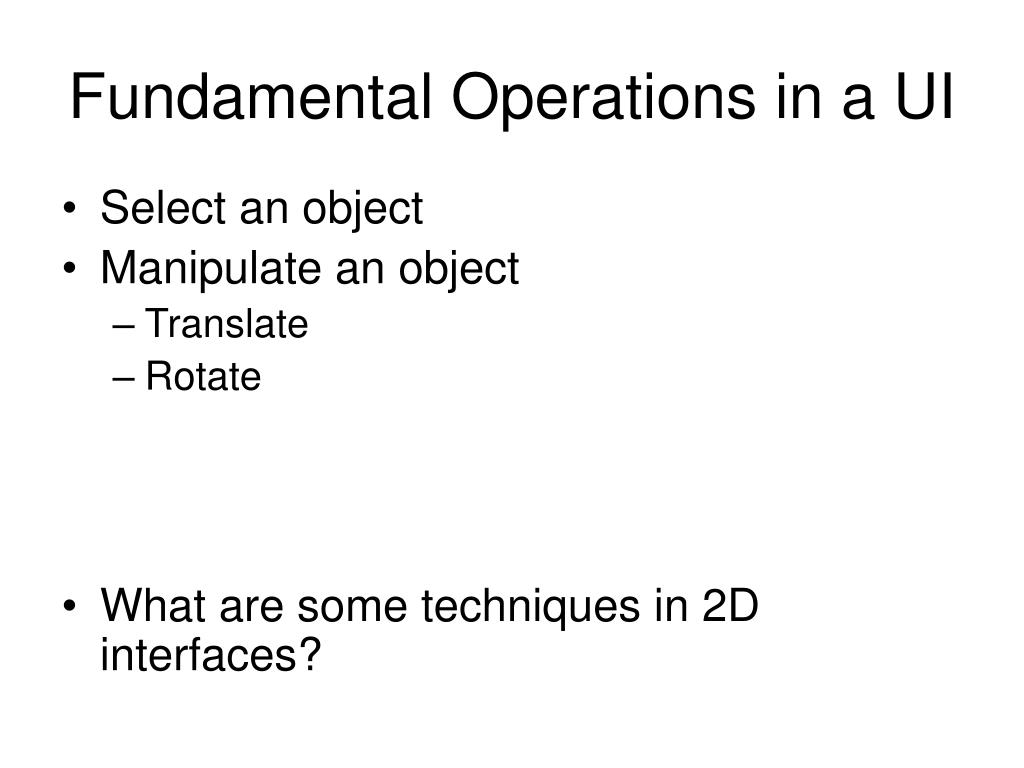

  38. Fundamental Operations in a UI • Select an object • Manipulate an object • Translate • Rotate • What are some techniques in 2D interfaces?

  39. From the Beginning • Sutherland and Vickers • Sorcerer’s Apprentice (1972) • Track stylus • Selection of vertices • Intersection of cube at tip of stylus

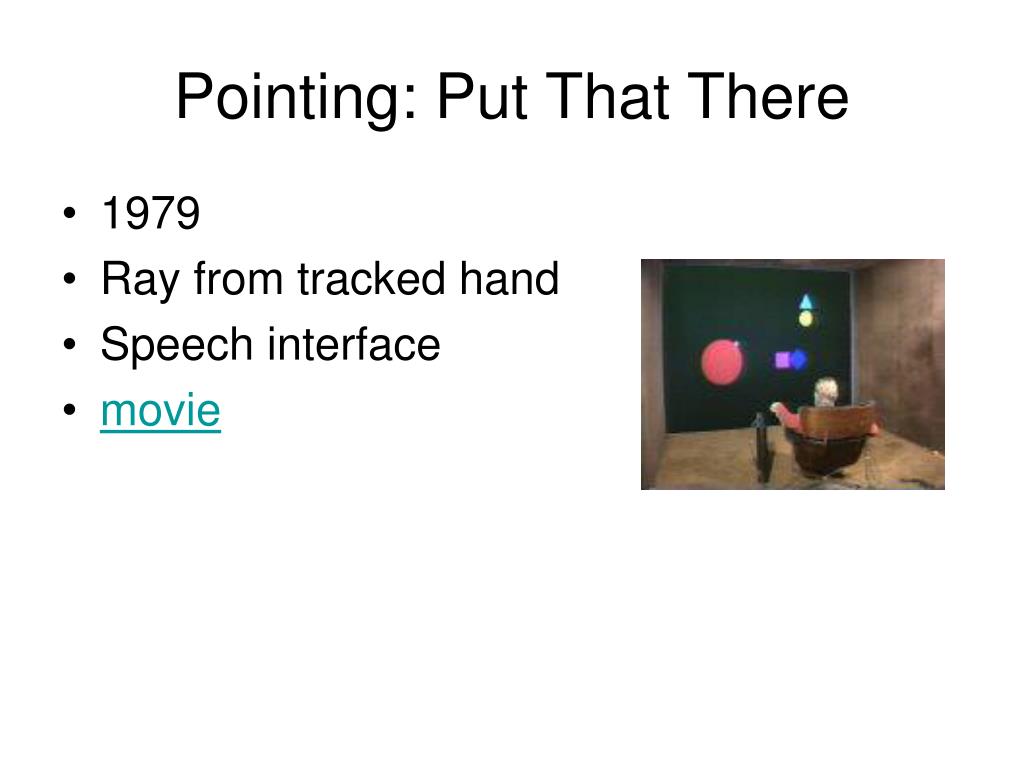

  40. Pointing: Put That There • 1979 • Ray from tracked hand • Speech interface • movie

  41. Pointing: JD-CAD (1993) • “Laser gun” from hand • Tracker noise • Harder to select far away • Spotlight • Add a cone to the ray • Select objects based on • Distance from cone axis • Distance from hand

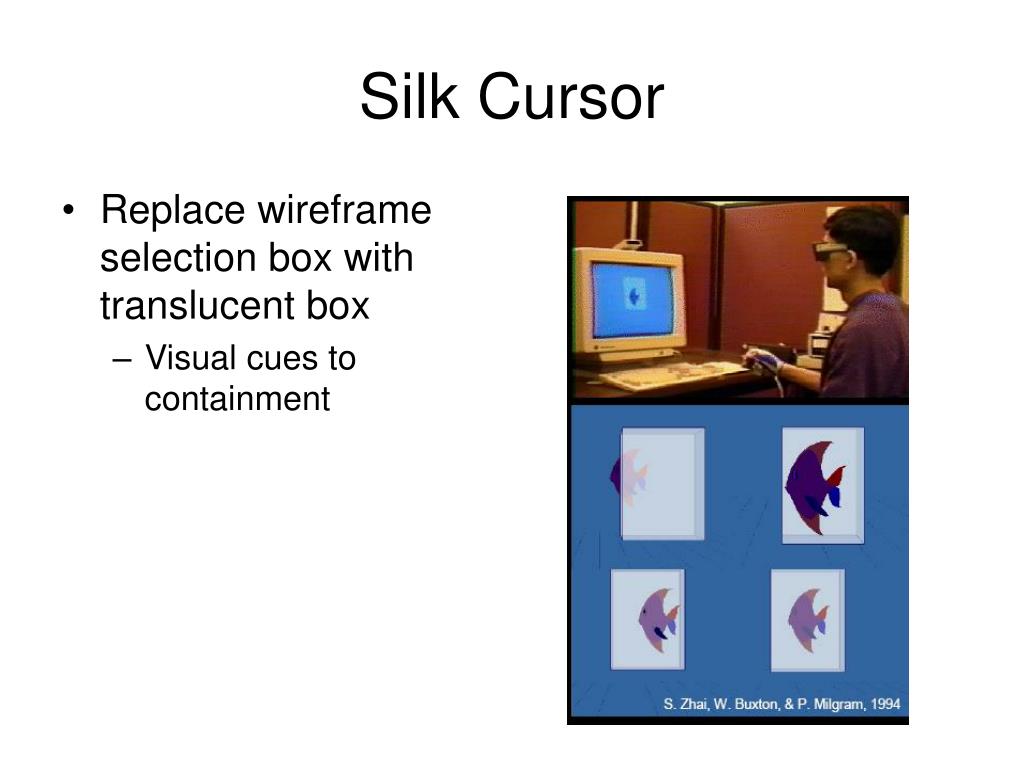

  42. Silk Cursor • Replace wireframe selection box with translucent box • Visual cues to containment

  43. Pointing: Aperture • Spotlight from eye • Cone angle based on distance from hand to eye • Selection modified by hand orientation

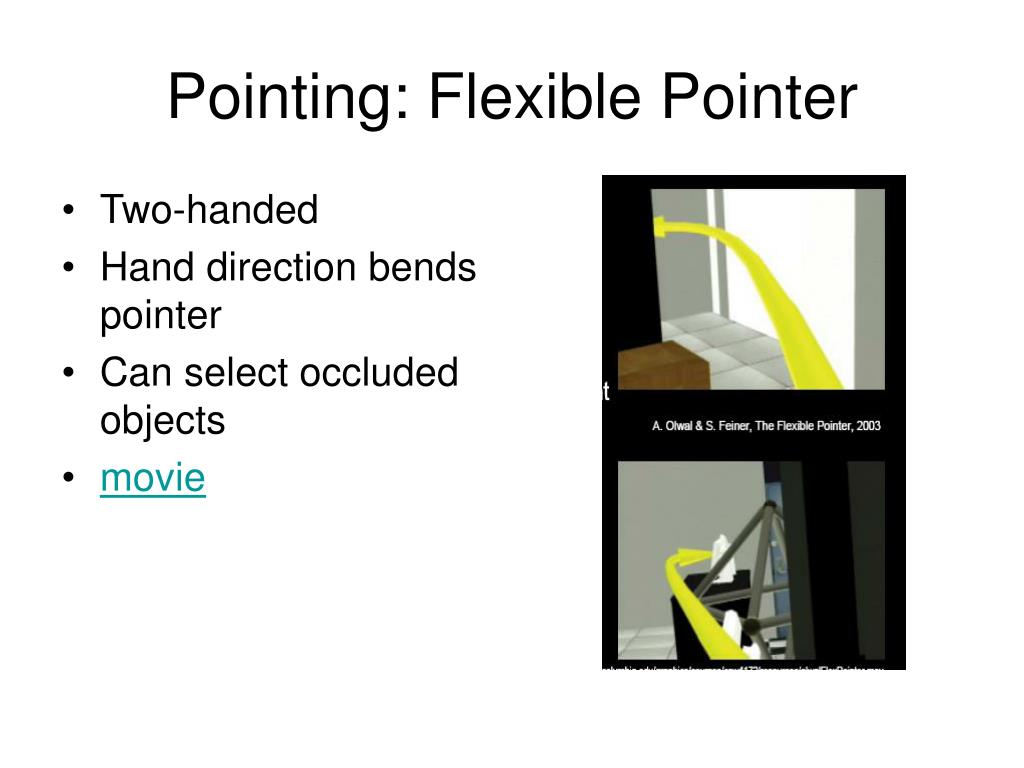

  44. Pointing: Flexible Pointer • Two-handed • Hand direction bends pointer • Can select occluded objects • movie

  45. Hand: GoGo Interaction (1996) • Go-Go uses Non-Linear mapping between virtual and real hand • Control-display ratio • Stretch go-go variation • Pros: • Extended reach when needed • Direct manipulation • Cons: • Reach still limited by arm length • Precision suffers when reach is extended (low level of control) Movie

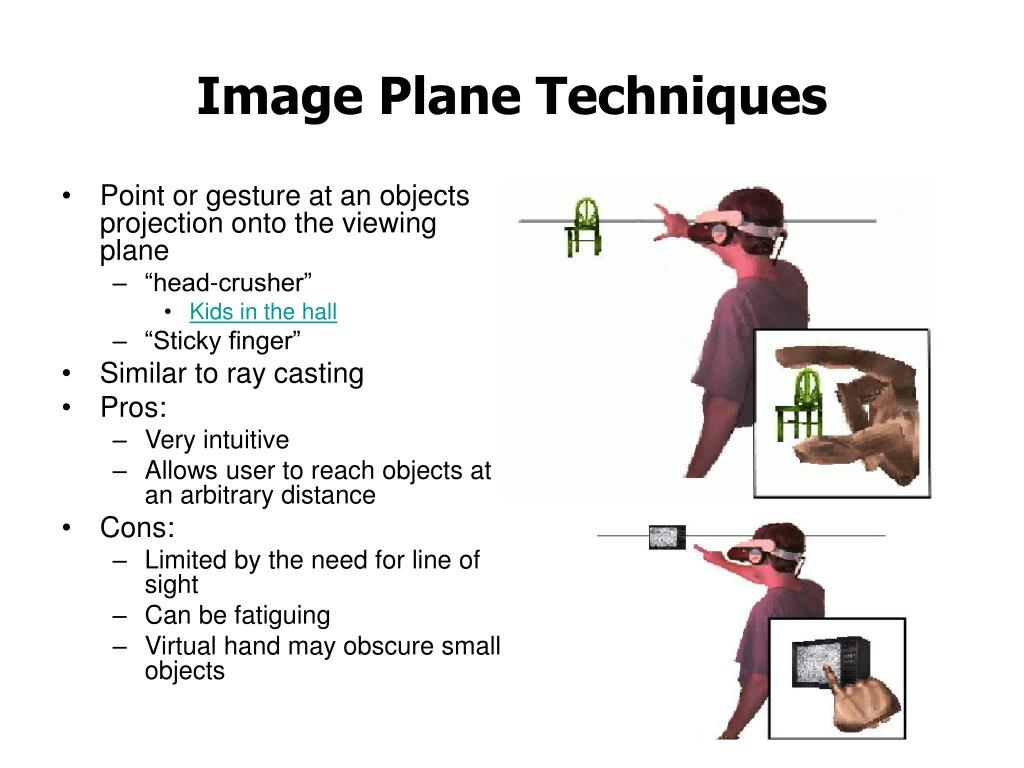

  46. Image Plane Techniques • Point or gesture at an objects projection onto the viewing plane • “head-crusher” • Kids in the hall • “Sticky finger” • Similar to ray casting • Pros: • Very intuitive • Allows user to reach objects at an arbitrary distance • Cons: • Limited by the need for line of sight • Can be fatiguing • Virtual hand may obscure small objects

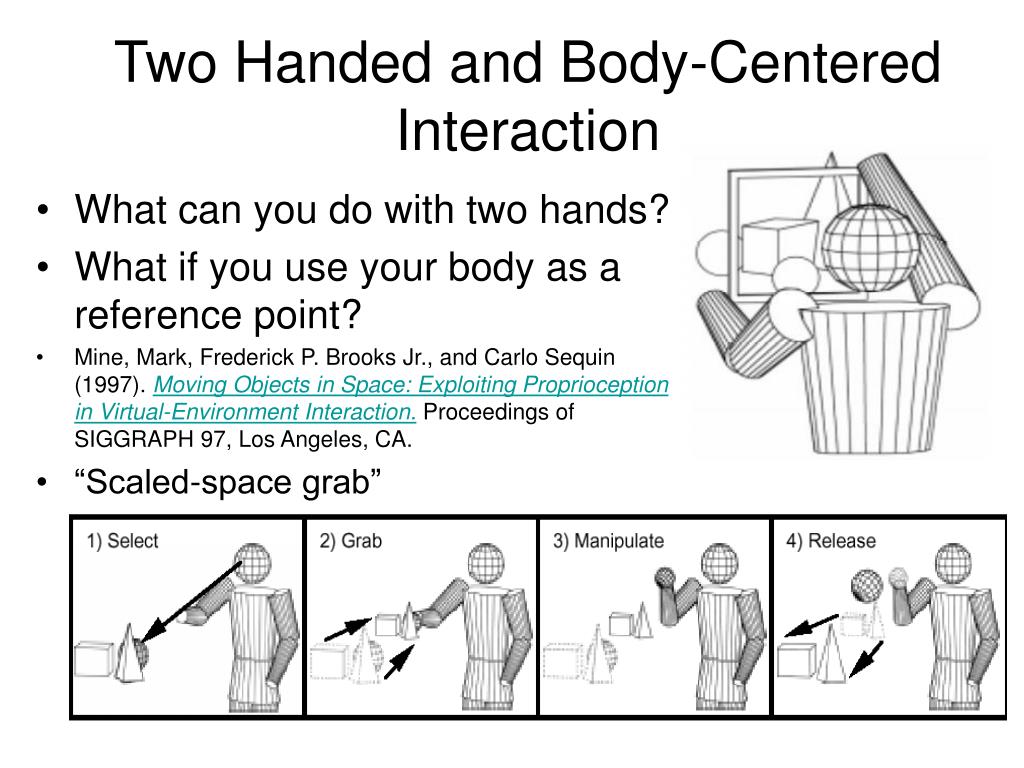

  47. Two Handed and Body-Centered Interaction • What can you do with two hands? • What if you use your body as a reference point? • Mine, Mark, Frederick P. Brooks Jr., and Carlo Sequin (1997). Moving Objects in Space: Exploiting Proprioception in Virtual-Environment Interaction. Proceedings of SIGGRAPH 97, Los Angeles, CA. • “Scaled-space grab”

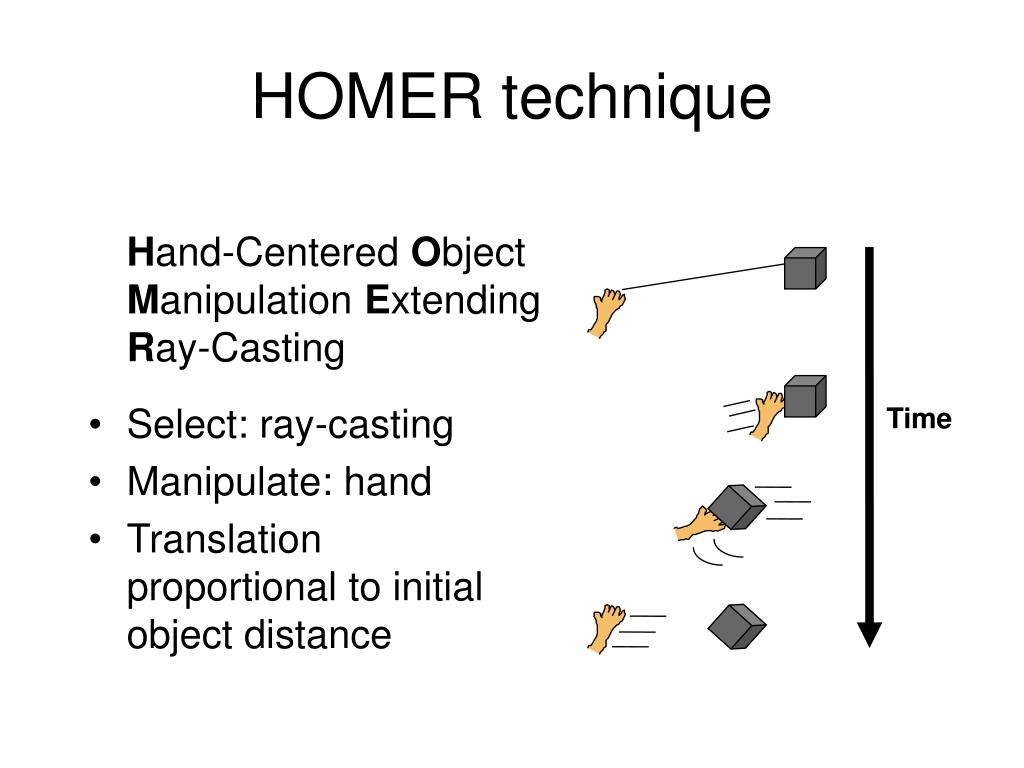

  48. HOMER technique Hand-Centered Object Manipulation Extending Ray-Casting • Select: ray-casting • Manipulate: hand • Translation proportional to initial object distance Time

  49. World in Miniature • User holds dynamic map in one hand • Objects can be moved in map • What about fine positioning? • What about selection of small objects?

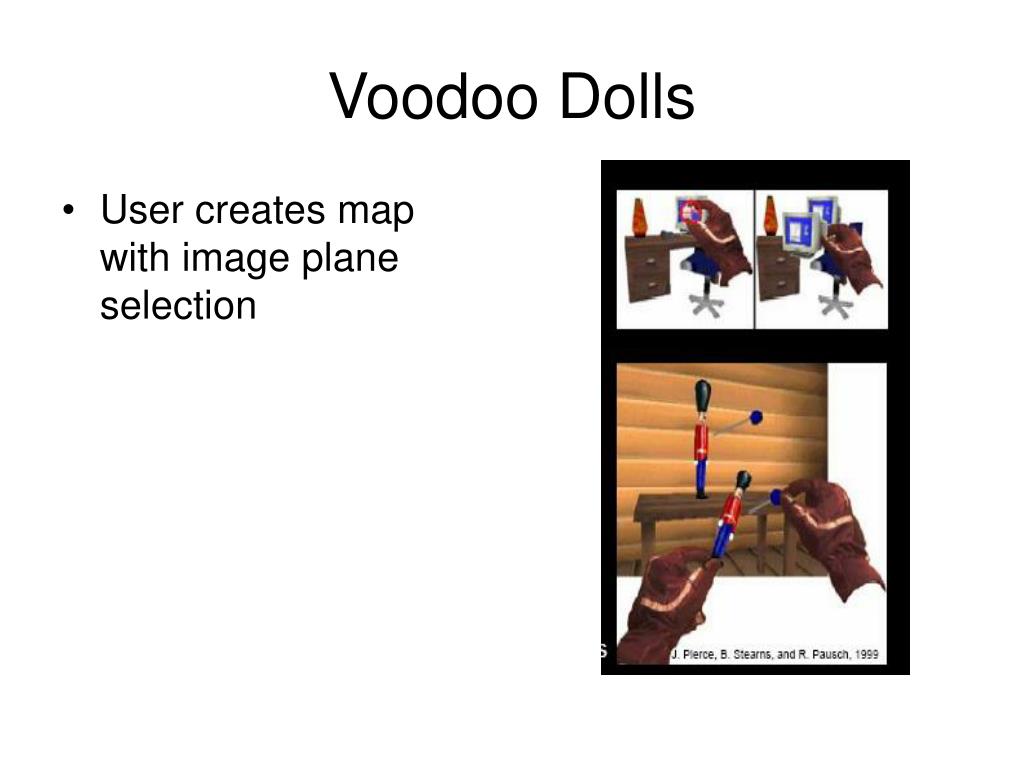

  50. Voodoo Dolls • User creates map with image plane selection
