Presentation Transcript
slide1

5

INTEGRALS

slide2

INTEGRALS

Indefinite Integrals

indefinite integral

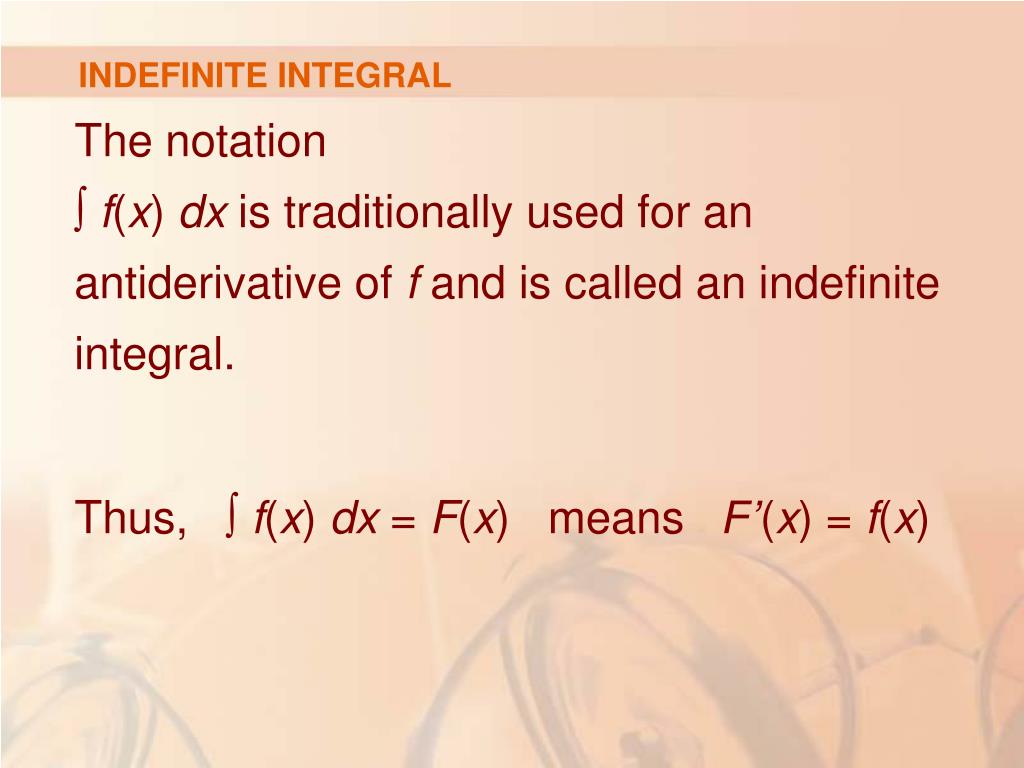

INDEFINITE INTEGRAL

The notation ∫ f(x) dx is traditionally used for an antiderivative of f and is called an indefinite integral.

Thus, ∫ f(x) dx = F(x) means F’(x) = f(x)

indefinite integrals
INDEFINITE INTEGRALS

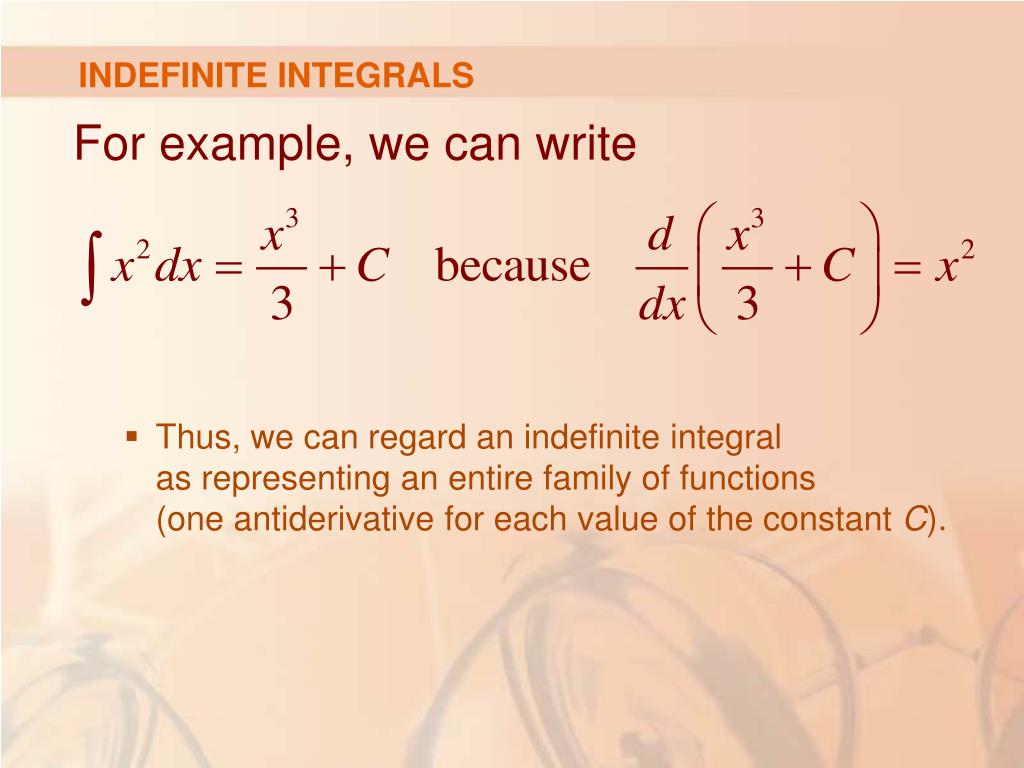

For example, we can write

  • Thus, we can regard an indefinite integral as representing an entire family of functions (one antiderivative for each value of the constant C).
indefinite integrals1
INDEFINITE INTEGRALS

Any formula can be verified by differentiating the function on the right side and obtaining the integrand.

For instance,

indefinite integrals2
INDEFINITE INTEGRALS

Thus, we write with the understanding that it is valid on the interval (0, ∞) or on the interval (-∞, 0).

indefinite integrals3
INDEFINITE INTEGRALS

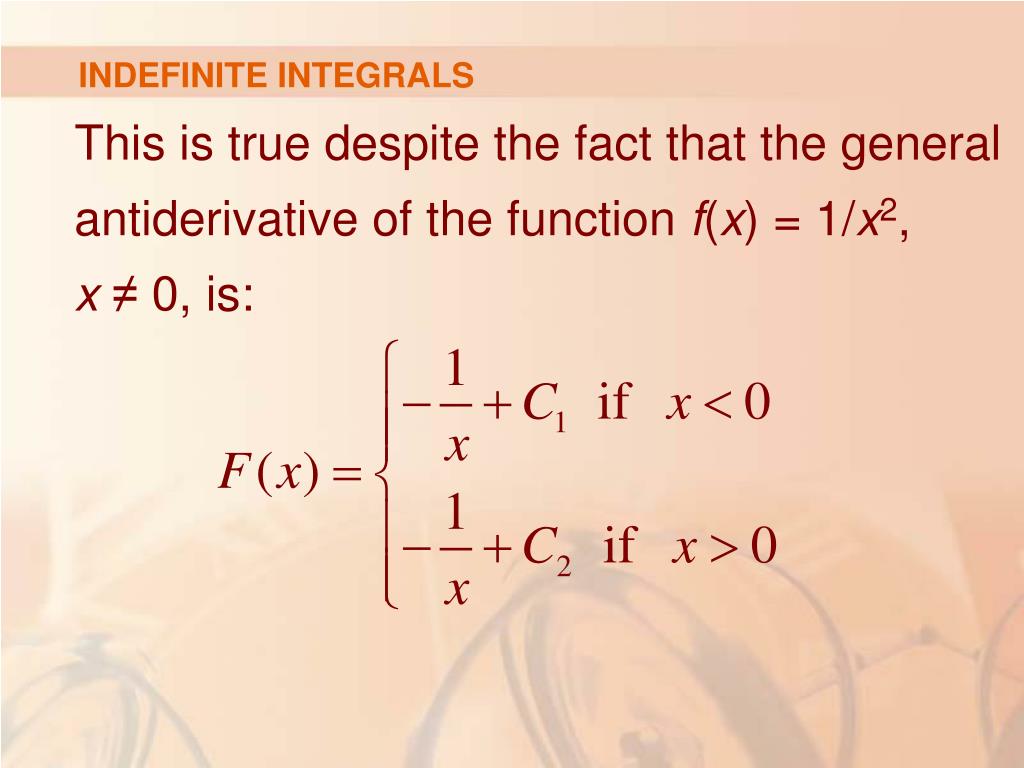

This is true despite the fact that the general antiderivative of the function f(x) = 1/x2, x ≠ 0, is:

indefinite integrals4

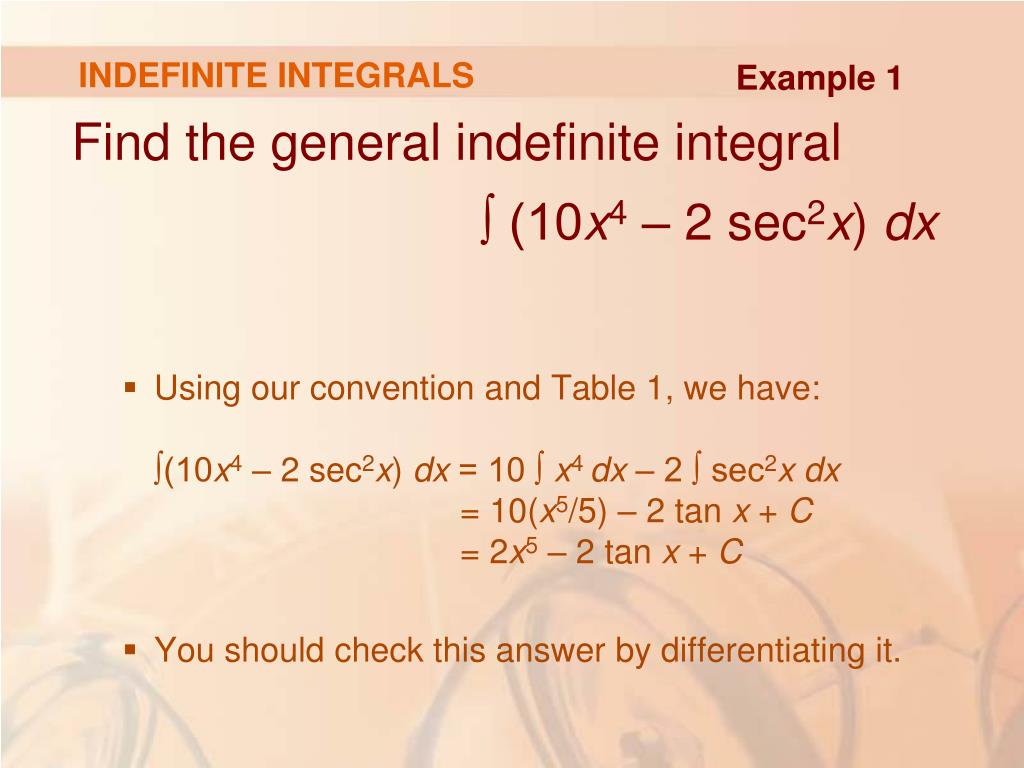

INDEFINITE INTEGRALS

Example 1

Find the general indefinite integral ∫ (10x4 – 2 sec2x) dx

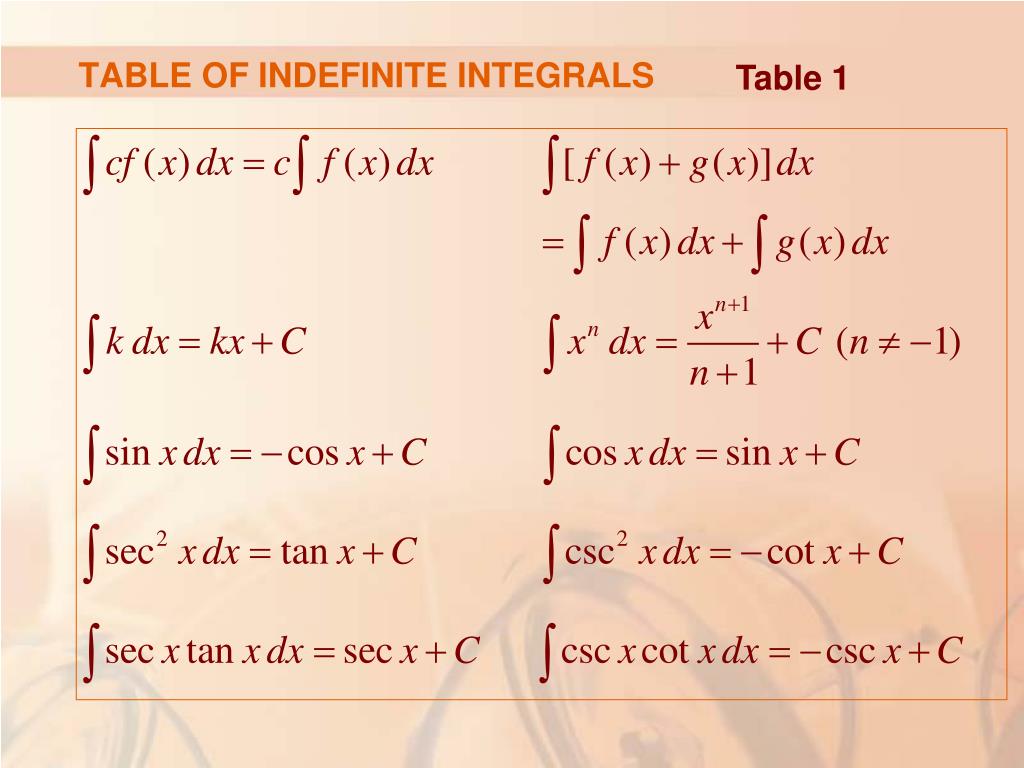

  • Using our convention and Table 1, we have: ∫(10x4 – 2 sec2x) dx = 10 ∫ x4 dx – 2 ∫ sec2x dx= 10(x5/5) – 2 tan x + C= 2x5 – 2 tan x + C
  • You should check this answer by differentiating it.
indefinite integrals5
INDEFINITE INTEGRALS

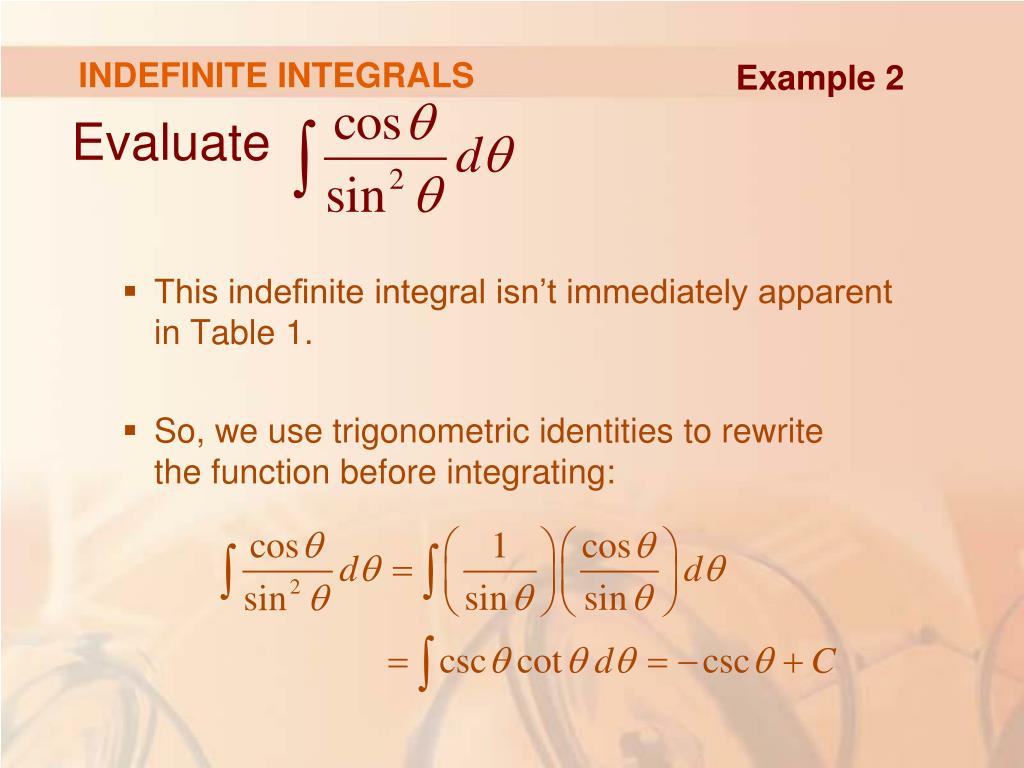

Example 2

Evaluate

  • This indefinite integral isn’t immediately apparent in Table 1.
  • So, we use trigonometric identities to rewrite the function before integrating:
slide11

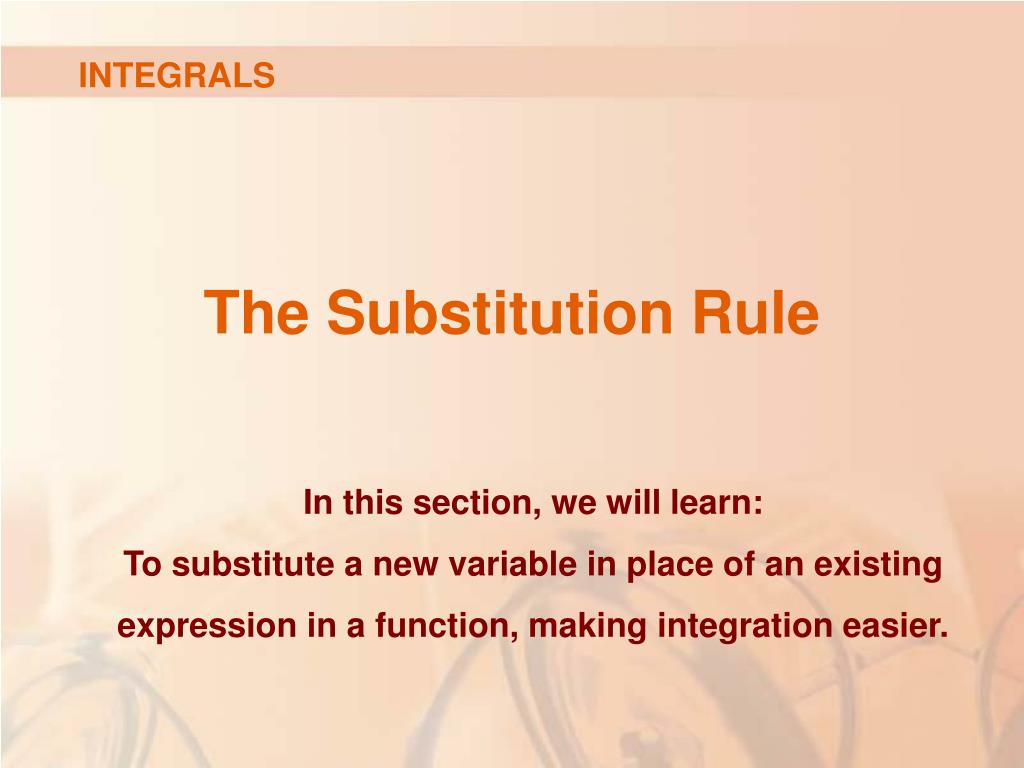

INTEGRALS

The Substitution Rule

In this section, we will learn:

To substitute a new variable in place of an existing

expression in a function, making integration easier.

introduction
INTRODUCTION

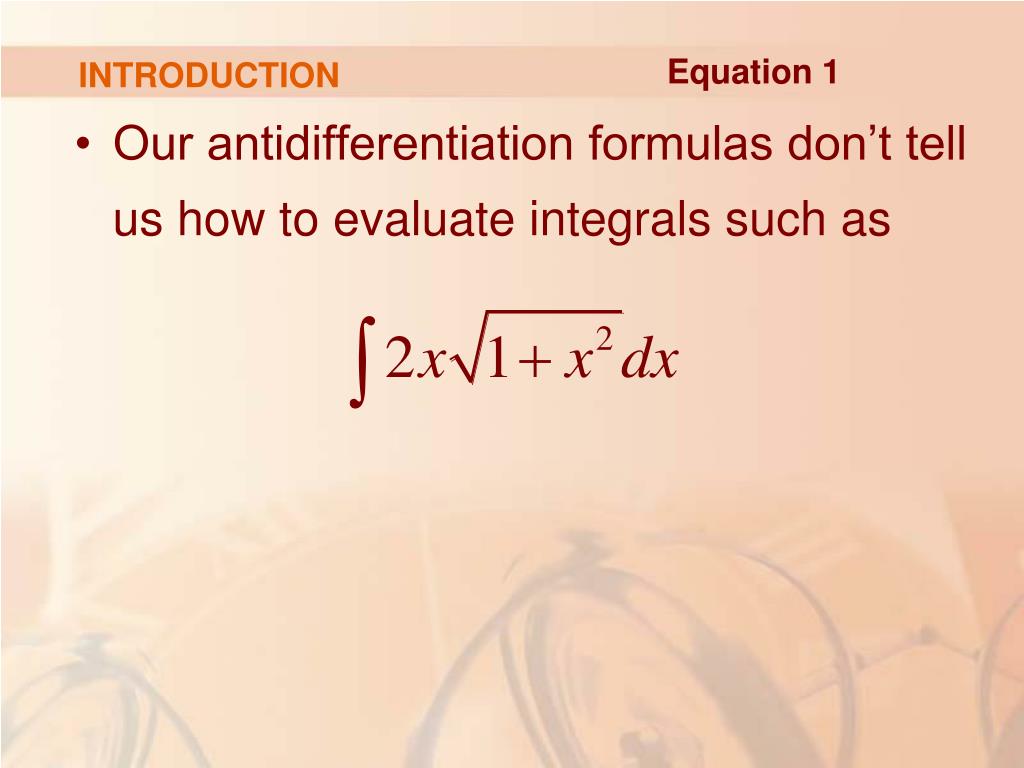

Equation 1

  • Our antidifferentiation formulas don’t tell us how to evaluate integrals such as
introduction1
INTRODUCTION

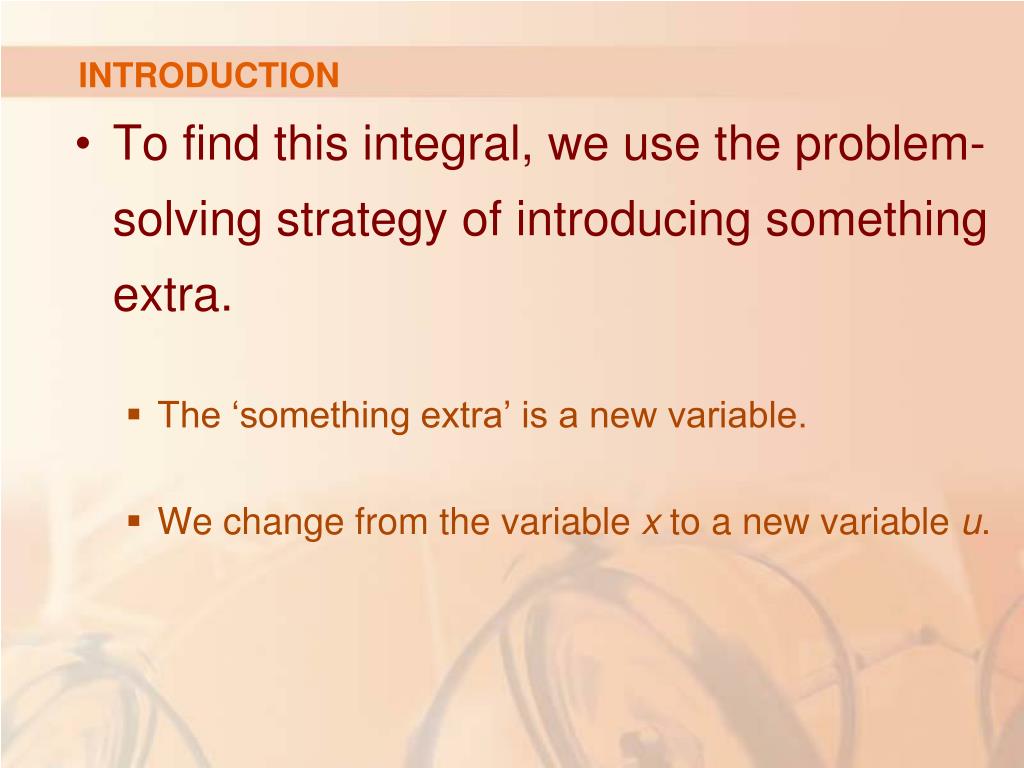

  • To find this integral, we use the problem-solving strategy of introducing something extra.
    • The ‘something extra’ is a new variable.
    • We change from the variable x to a new variable u.
introduction2

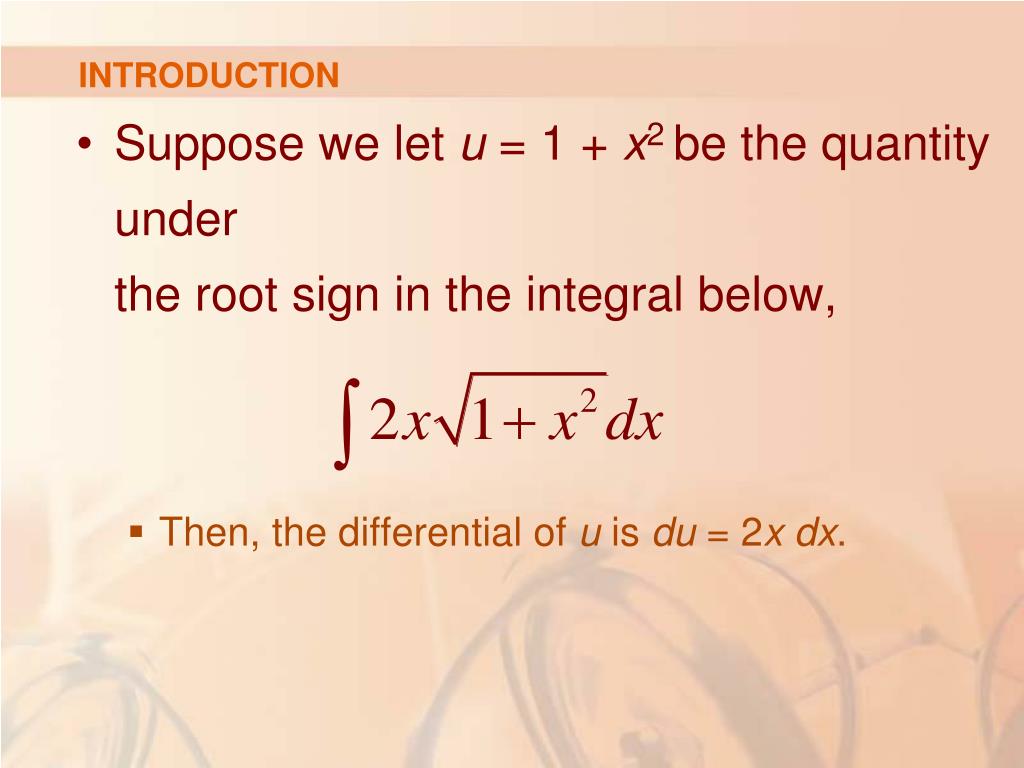

INTRODUCTION
  • Suppose we let u = 1 + x2 be the quantity under the root sign in the integral below,
    • Then, the differential of u is du = 2xdx.
introduction3

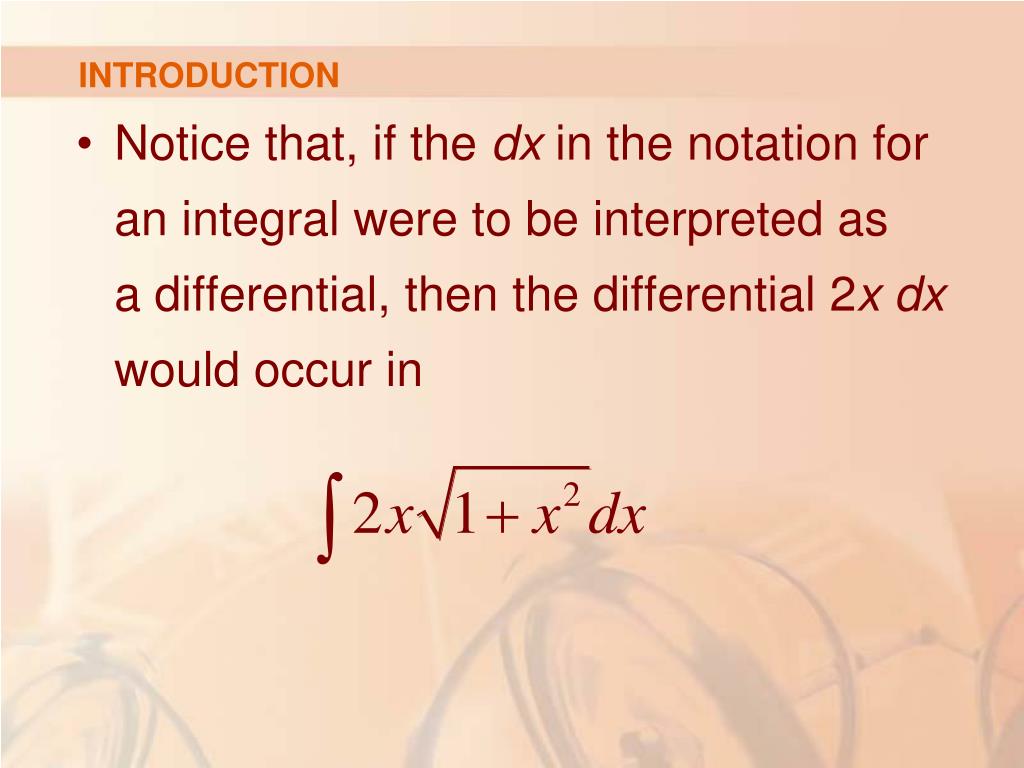

INTRODUCTION
  • Notice that, if the dx in the notation for an integral were to be interpreted as a differential, then the differential 2x dx would occur in
introduction4
INTRODUCTION

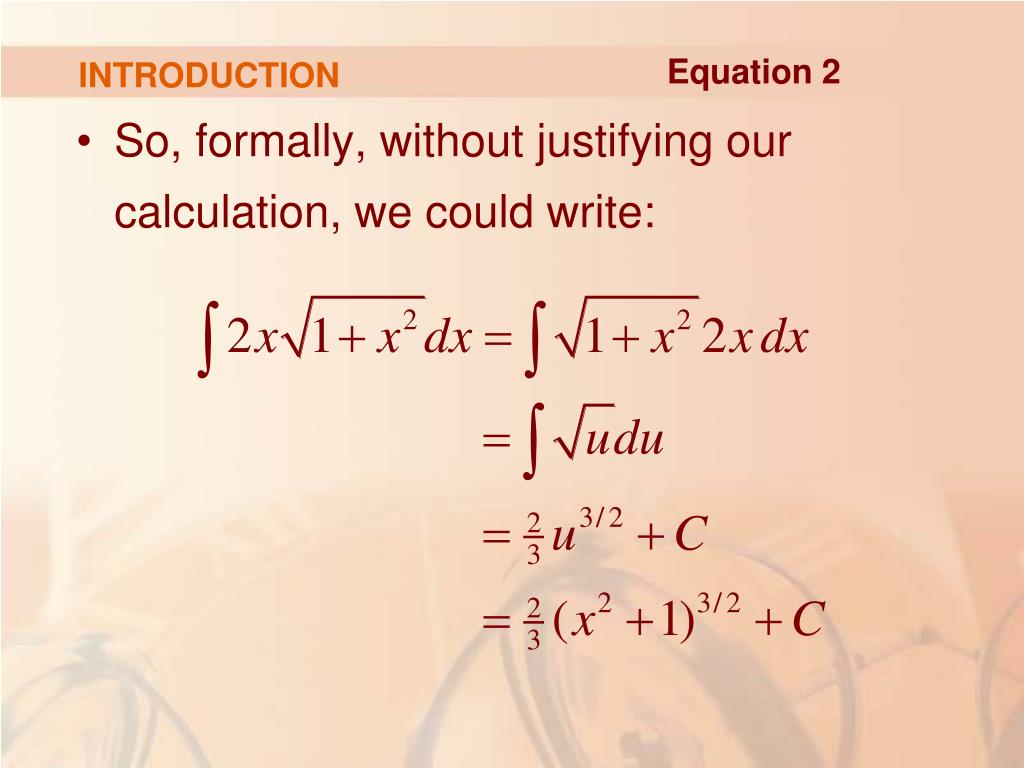

Equation 2

  • So, formally, without justifying our calculation, we could write:
introduction5
INTRODUCTION
  • However, now we can check that we have the correct answer by using the Chain Rule to differentiate
introduction6
INTRODUCTION
  • In general, this method works whenever we have an integral that we can write in the form ∫f(g(x))g’(x) dx
introduction7
INTRODUCTION

Equation 3

  • Observe that, if F’ = f, then
  • ∫F’(g(x))g’(x) dx = F(g(x))+ C
  • because, by the Chain Rule,
introduction8
INTRODUCTION

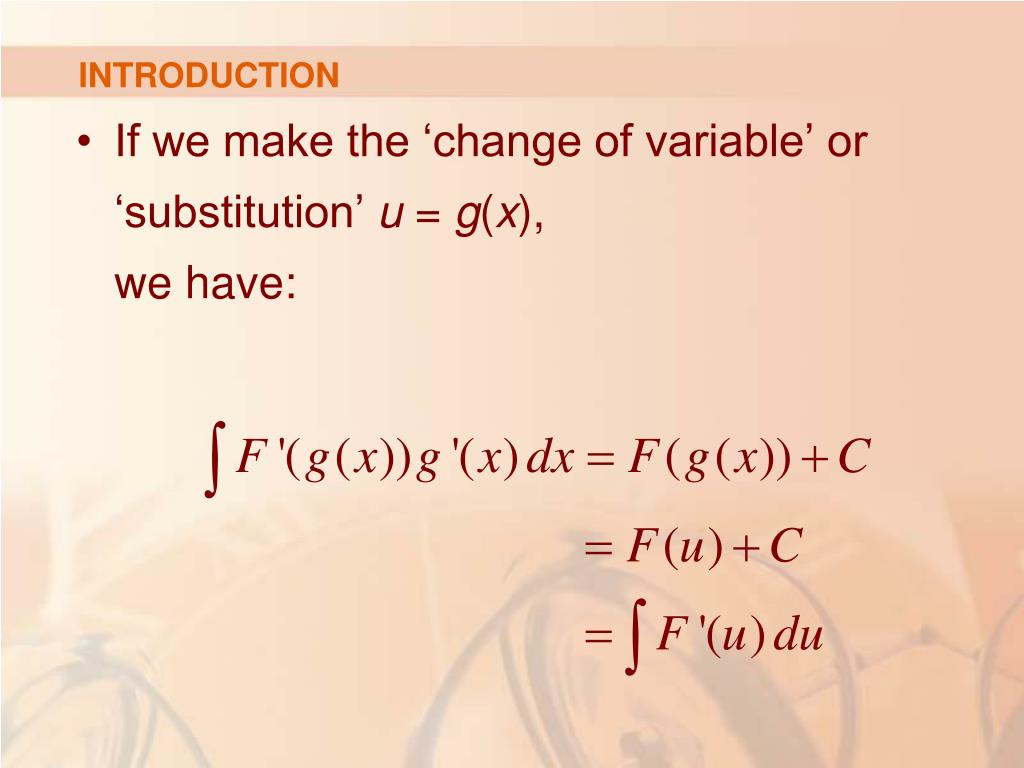

  • If we make the ‘change of variable’ or ‘substitution’ u = g(x), we have:
introduction9

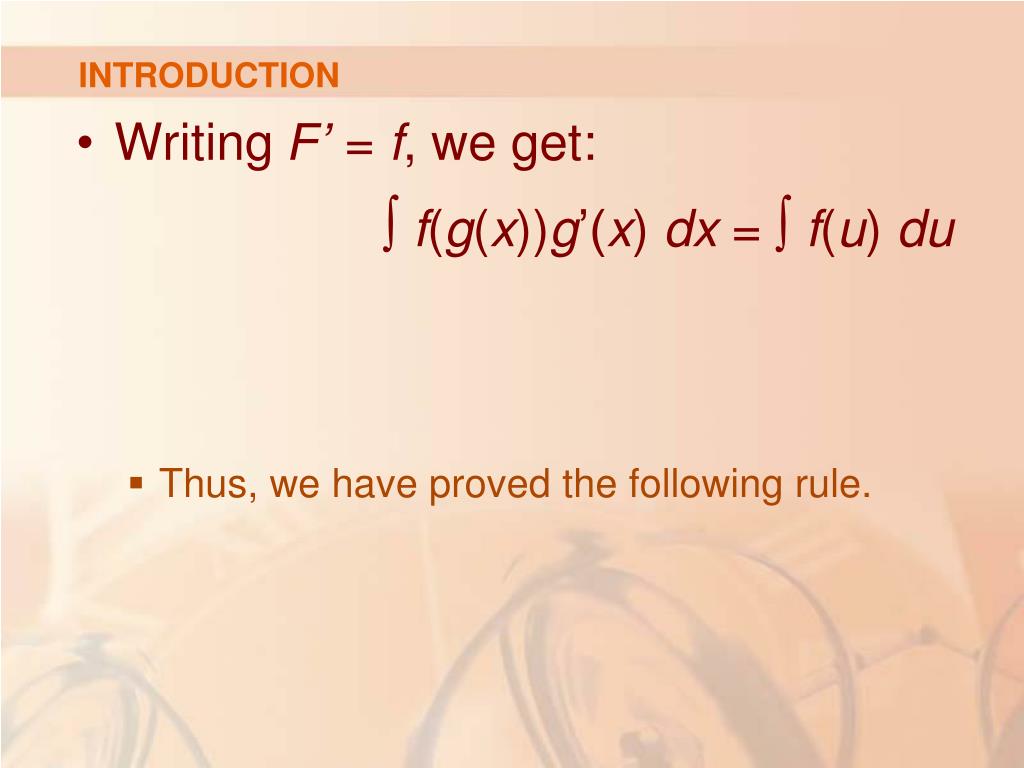

INTRODUCTION
  • Writing F’ = f, we get: ∫f(g(x))g’(x) dx = ∫f(u) du
    • Thus, we have proved the following rule.
substitution rule

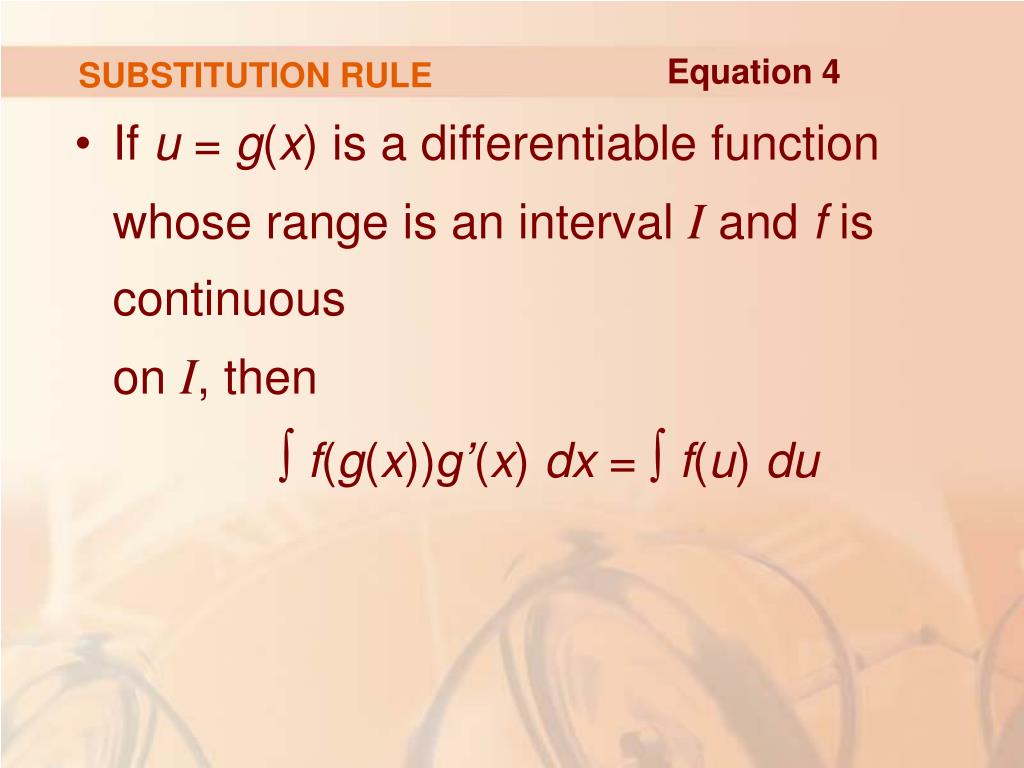

SUBSTITUTION RULE

Equation 4

  • If u = g(x) is a differentiable function whose range is an interval I and f is continuous on I, then ∫f(g(x))g’(x) dx = ∫f(u) du
substitution rule1
SUBSTITUTION RULE

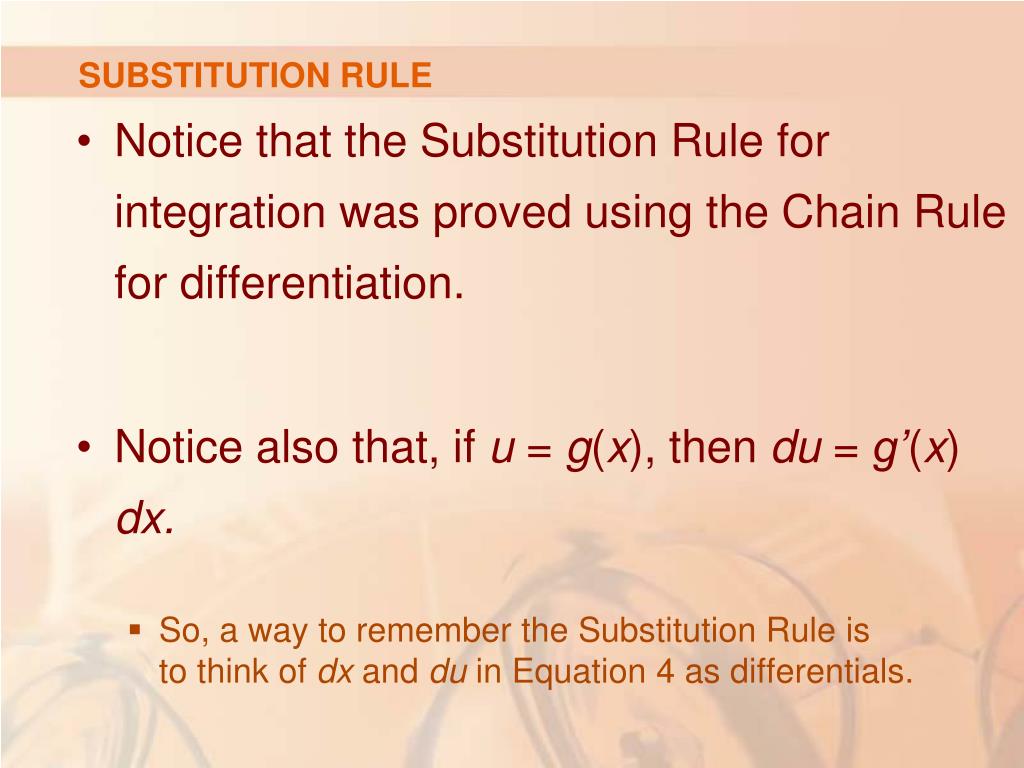

  • Notice that the Substitution Rule for integration was proved using the Chain Rule for differentiation.
  • Notice also that, if u = g(x), then du = g’(x) dx.
    • So,a way to remember the Substitution Rule is to think of dx and du in Equation 4 as differentials.
substitution rule2
SUBSTITUTION RULE
  • Thus, the Substitution Rule says:
  • It is permissible to operate withdx and du after integral signs as if they were differentials.
substitution rule3
SUBSTITUTION RULE

Example 1

  • Find ∫x3 cos(x4 + 2) dx
    • We make the substitution u = x4 + 2.
    • This is because its differential is du = 4x3 dx, which, apart from the constant factor 4, occurs in the integral.
substitution rule4
SUBSTITUTION RULE

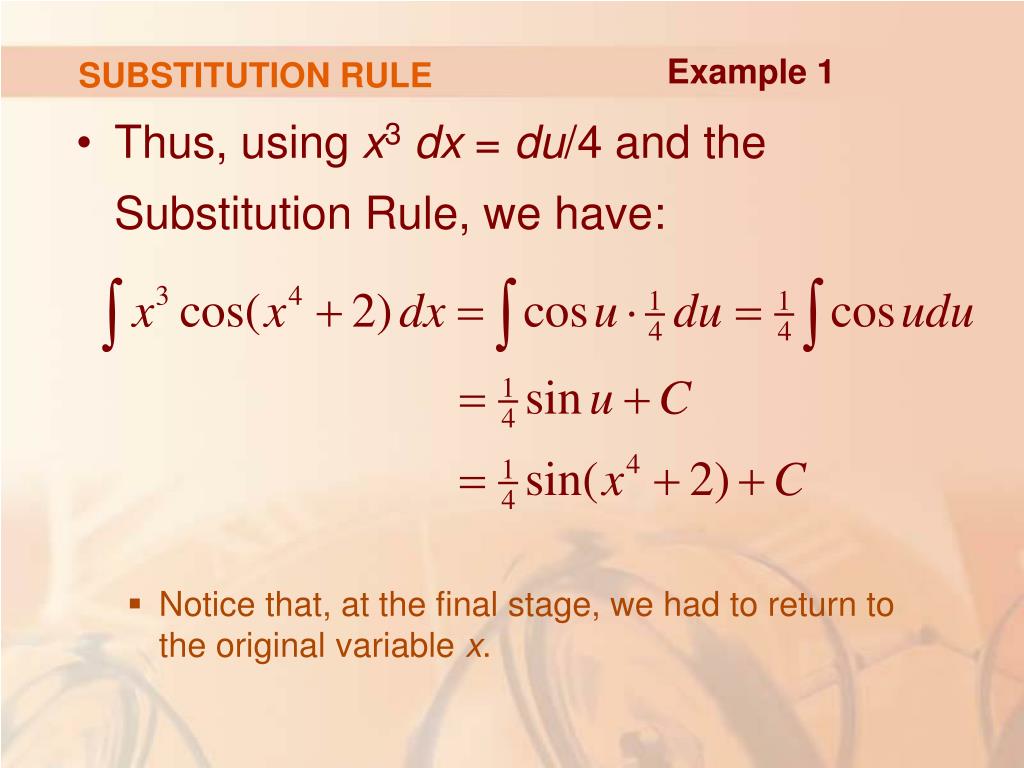

Example 1

  • Thus, using x3dx = du/4 and the Substitution Rule, we have:
    • Notice that, at the final stage, we had to return to the original variable x.
substitution rule5
SUBSTITUTION RULE
  • The idea behind the Substitution Rule is to replace a relatively complicated integral by a simpler integral.
    • This is accomplished by changing from the original variable x to a new variable u that is a function of x.
    • Thus, in Example 1, we replaced the integral ∫ x3cos(x4 + 2) dxby the simpler integral ¼ ∫ cos u du.
substitution rule6
SUBSTITUTION RULE

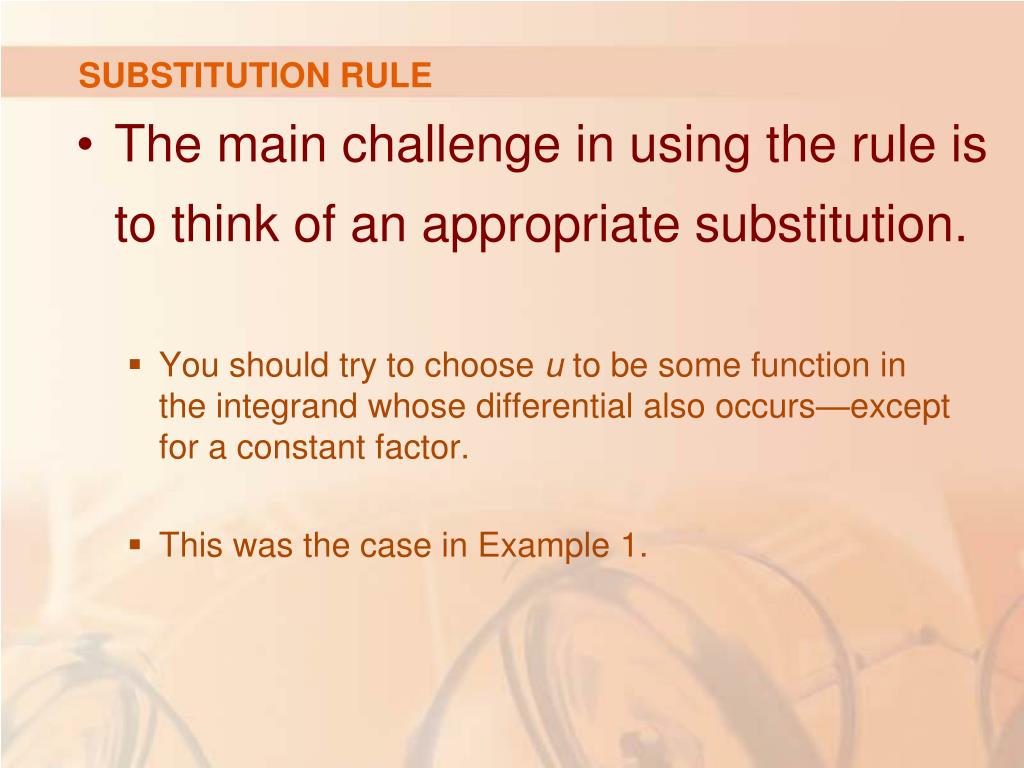

  • The main challenge in using the rule is to think of an appropriate substitution.
    • You should try to choose u to be some function in the integrand whose differential also occurs—except for a constant factor.
    • This was the case in Example 1.
substitution rule7
SUBSTITUTION RULE

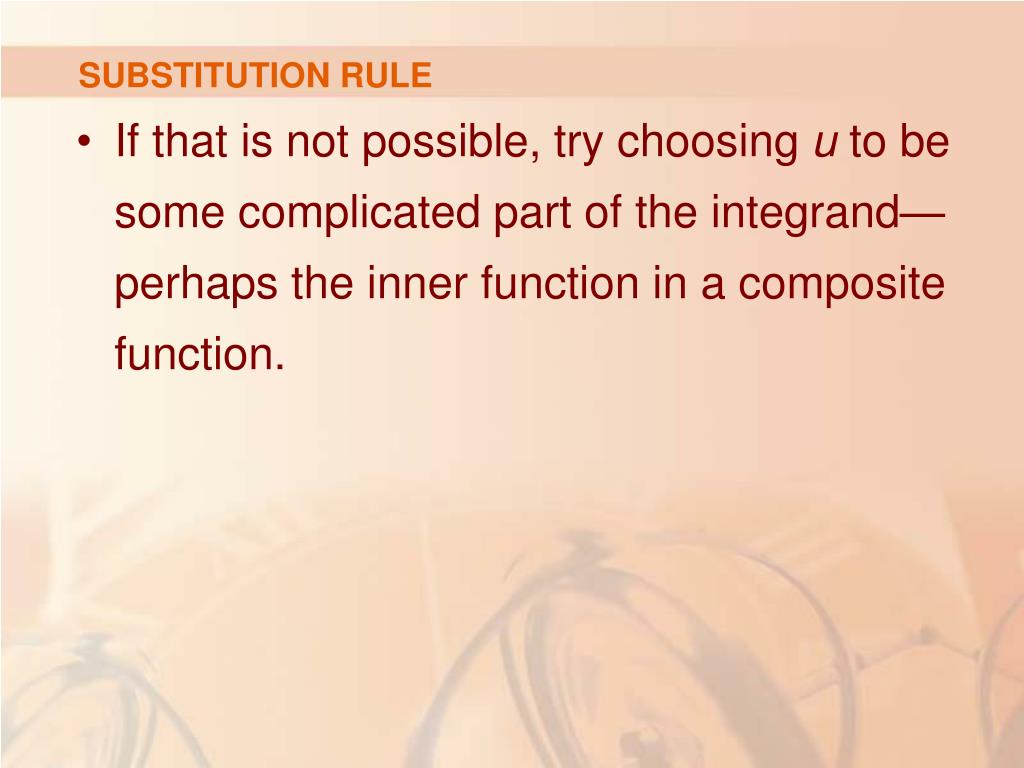

  • If that is not possible, try choosing u to be some complicated part of the integrand—perhaps the inner function in a composite function.
substitution rule8
SUBSTITUTION RULE

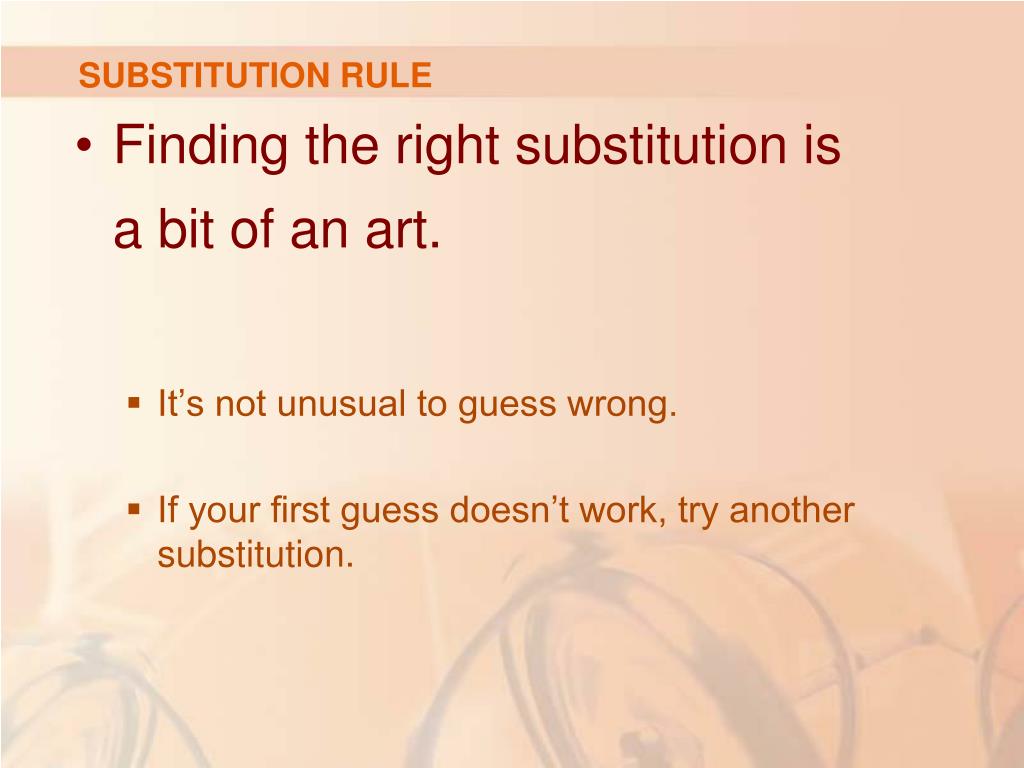

  • Finding the right substitution is a bit of an art.
    • It’s not unusual to guess wrong.
    • If your first guess doesn’t work, try another substitution.
substitution rule9

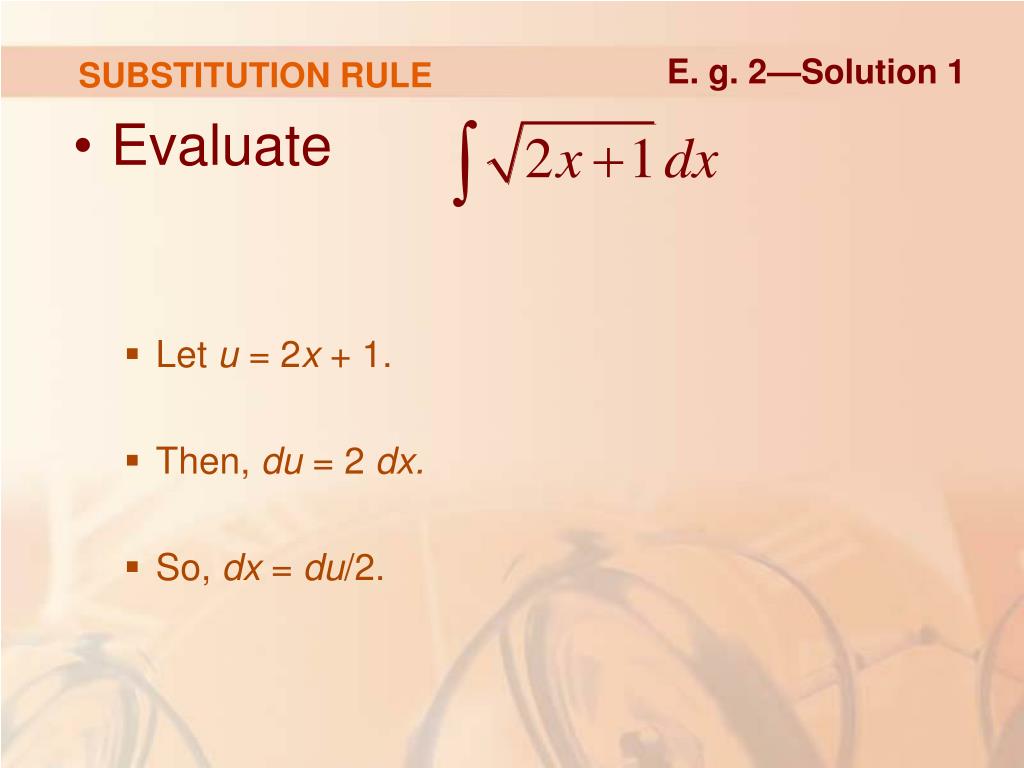

SUBSTITUTION RULE

E. g. 2—Solution 1

  • Evaluate
    • Let u = 2x + 1.
    • Then, du = 2 dx.
    • So, dx = du/2.

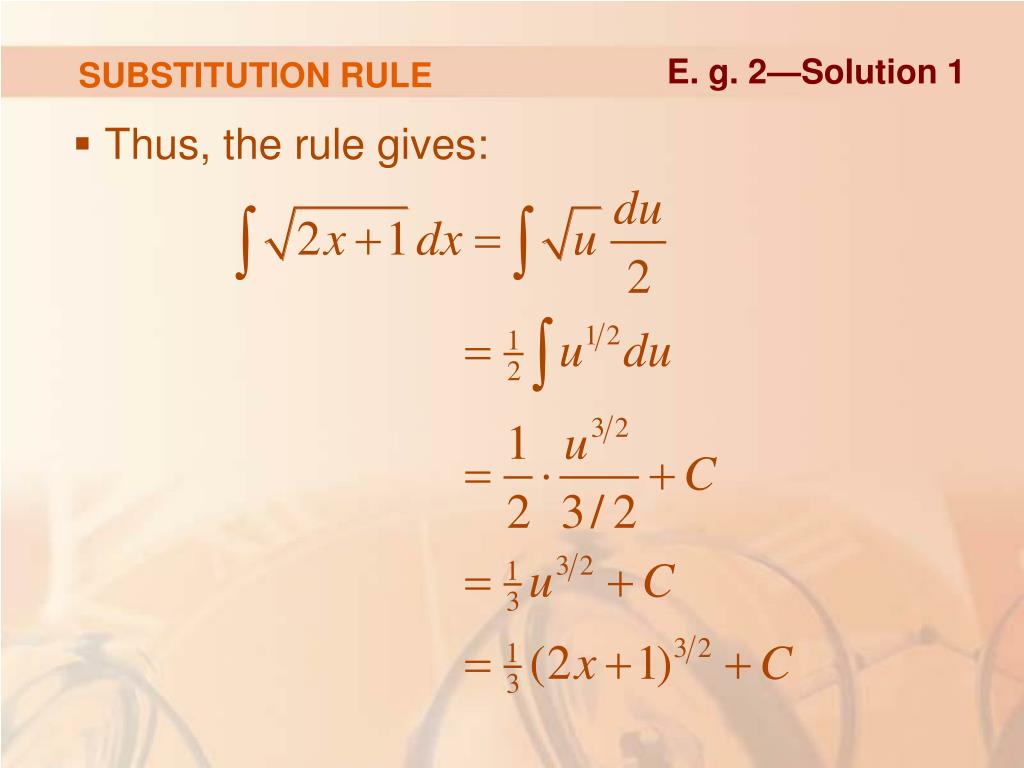

substitution rule10
SUBSTITUTION RULE

E. g. 2—Solution 1

  • Thus, the rule gives:
substitution rule11

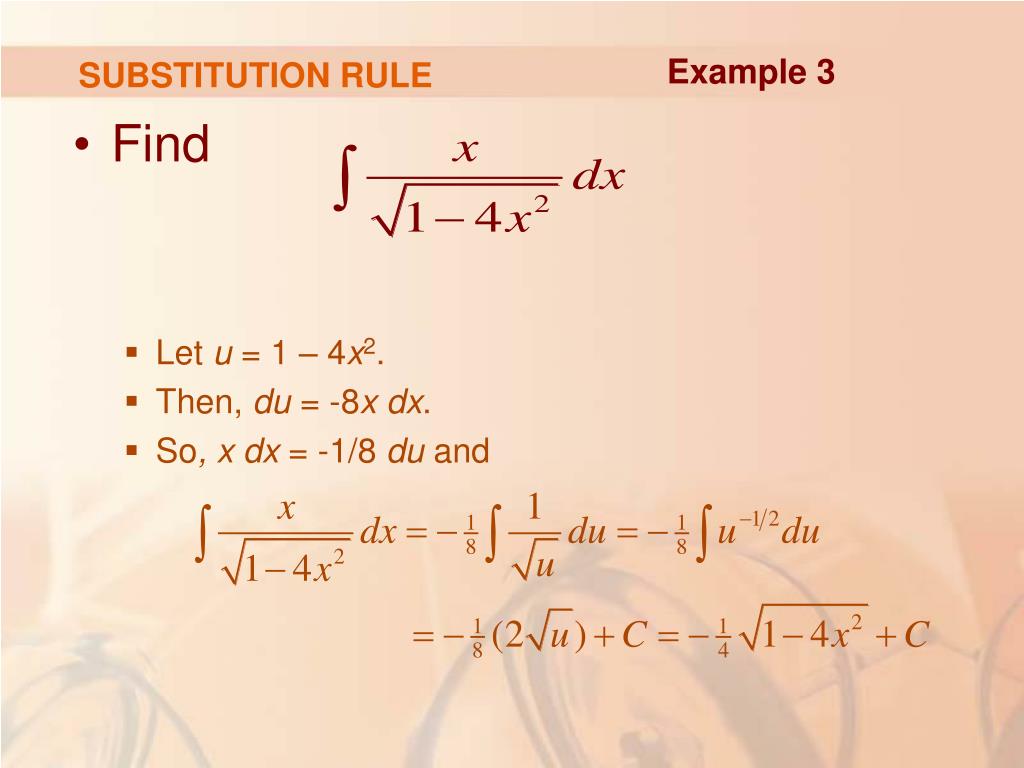

SUBSTITUTION RULE

Example 3

  • Find
    • Let u = 1 – 4x2.
    • Then, du = -8x dx.
    • So, x dx = -1/8 du and
substitution rule12
SUBSTITUTION RULE

Example 4

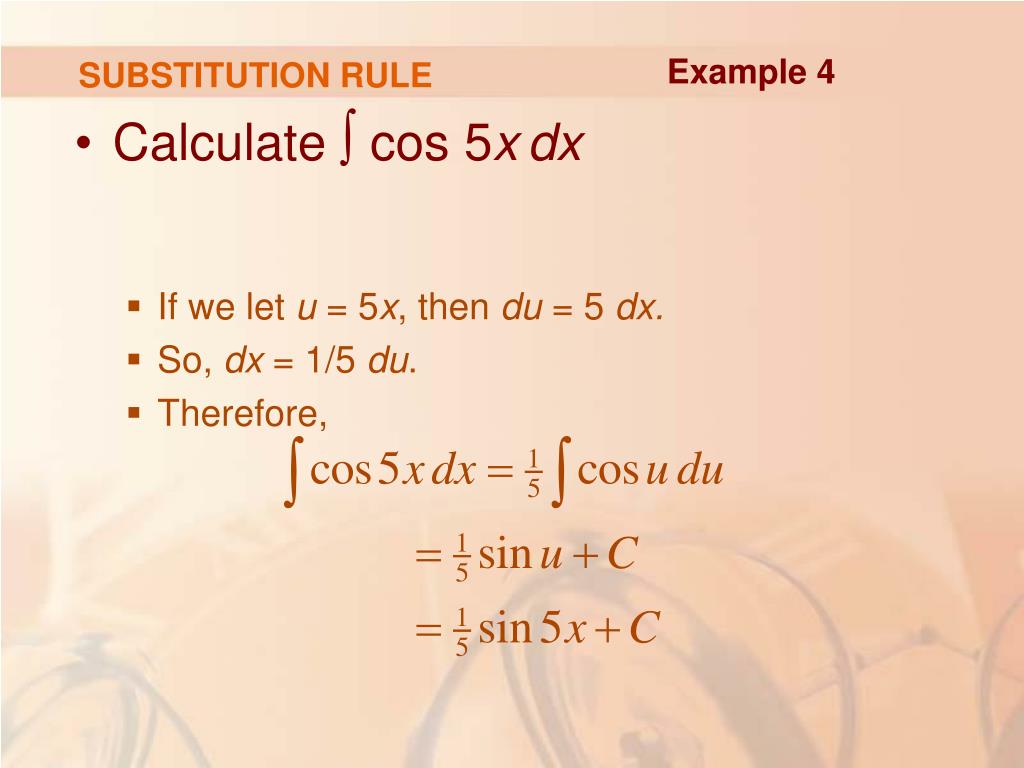

  • Calculate ∫ cos 5xdx
    • If we let u = 5x, then du = 5 dx.
    • So, dx = 1/5 du.
    • Therefore,
