SAE code 61 FLANGE CLAMPS with metric tapped hole FL-WM series

OUR ADVANTAGE<br>Swintool is a leading designer and manufacturers of flange clamps and ratchet tools with certificate of ISO 9001:2008.<br><br>1.Advanced Technology<br>Hot forging of Flange clamps, cold forming of seamless pipe, CNC precision machining.<br><br>2.Custom Capacity<br>Offer various special forging, design ratchet turnbuckle, high volume custom flange clamps.<br><br>3.Quality<br>Our ratchet wrenches and other products undergo strict quality control, we can provide Certificate 3.1 for our customers.<br><br>4.Competitive Price<br>Based on high quality standard, Delivery on time, and our product price, 3 factors combination create competitive price.<br><br>Our range of products includes SAE Flange Clamps, Turnbuckles, top link assembly, Ratchet turnbuckle, Industrial ratchet wrench. These advantages of our ratchet tools are following:<br><br>1. Flange Clamps: SAE J 518 (ISO 6162 -1/-2) standards, from hot forging, CNC machining in our factory. OEM solution is also offered by SWINTOOL.<br><br>2. Turnbuckle: A leader in Turnbuckle DIN 1478 made of seamless steel pipe. 500 ton Horizontal hydraulic machine for pipe forming bigger diameter and longer length, also for drop forging.<br><br>CONTACT US<br><br> TEL:0086-0574 5822 5920<br> MOB:0086-181 0574 3205<br> Fax:0086 181 0574 3205<br> Email:Swintool@aliyun.com(main)<br> Email:ws@swintool.com<br> ADDuff1aTongsiyuan, Zhangting Town, Yuyao,Zhejiang,China <br> Zip Code:315410<br> Webuff1ahttps://www.swintool.com/

swintool
Download Presentation

SAE code 61 FLANGE CLAMPS with metric tapped hole FL-WM series

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

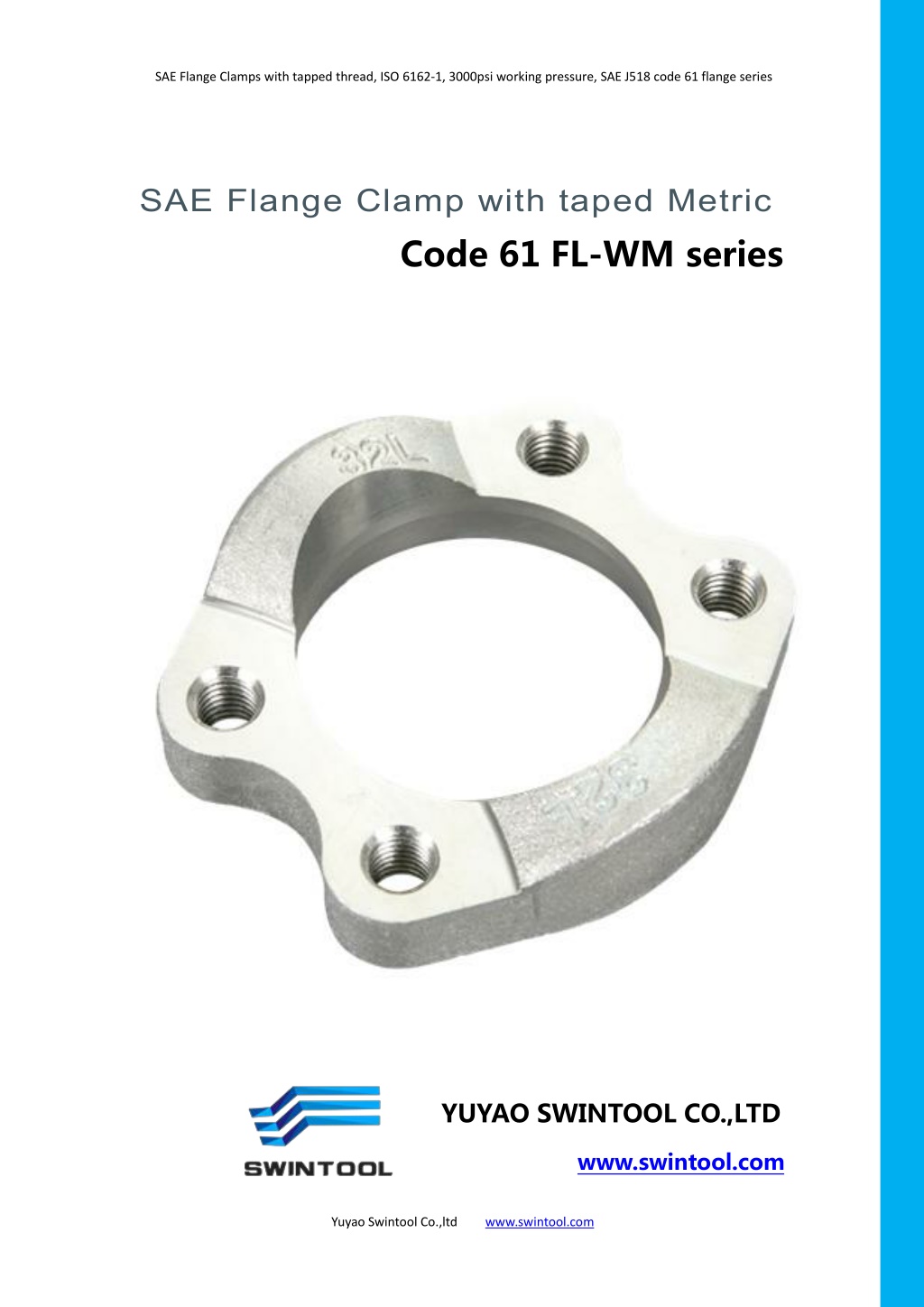

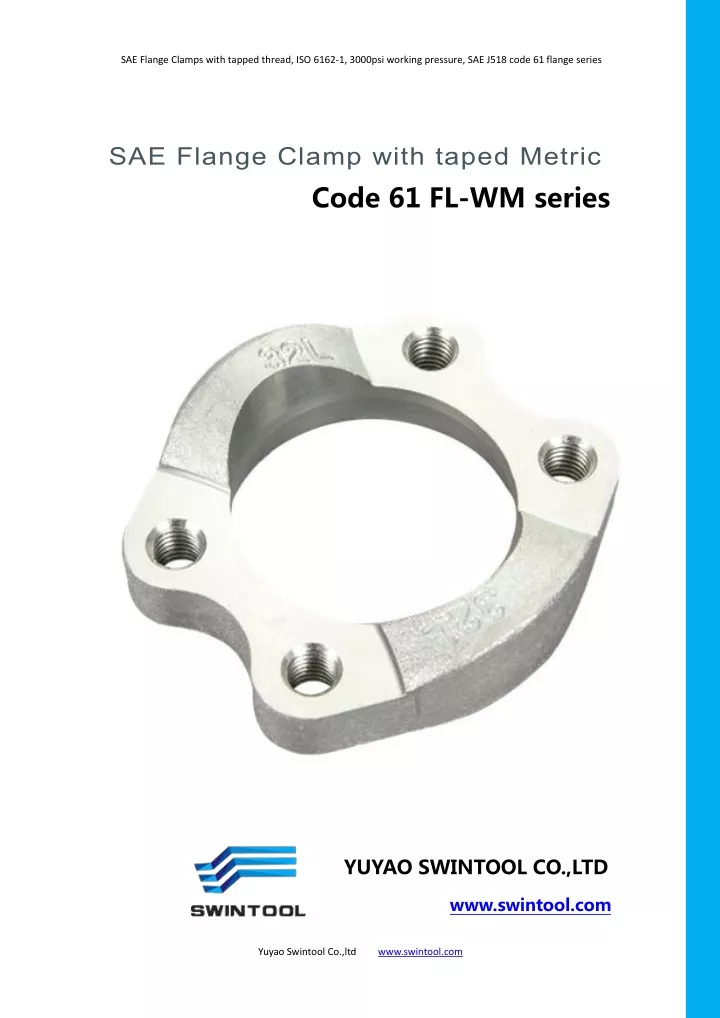

  1. SAE Flange Clamps with tapped thread, ISO 6162-1, 3000psi working pressure, SAE J518 code 61 flange series SAE Flange Clamp with taped Metric Code 61 FL-WM series YUYAO SWINTOOL CO.,LTD www.swintool.com Yuyao Swintool Co.,ltd www.swintool.com

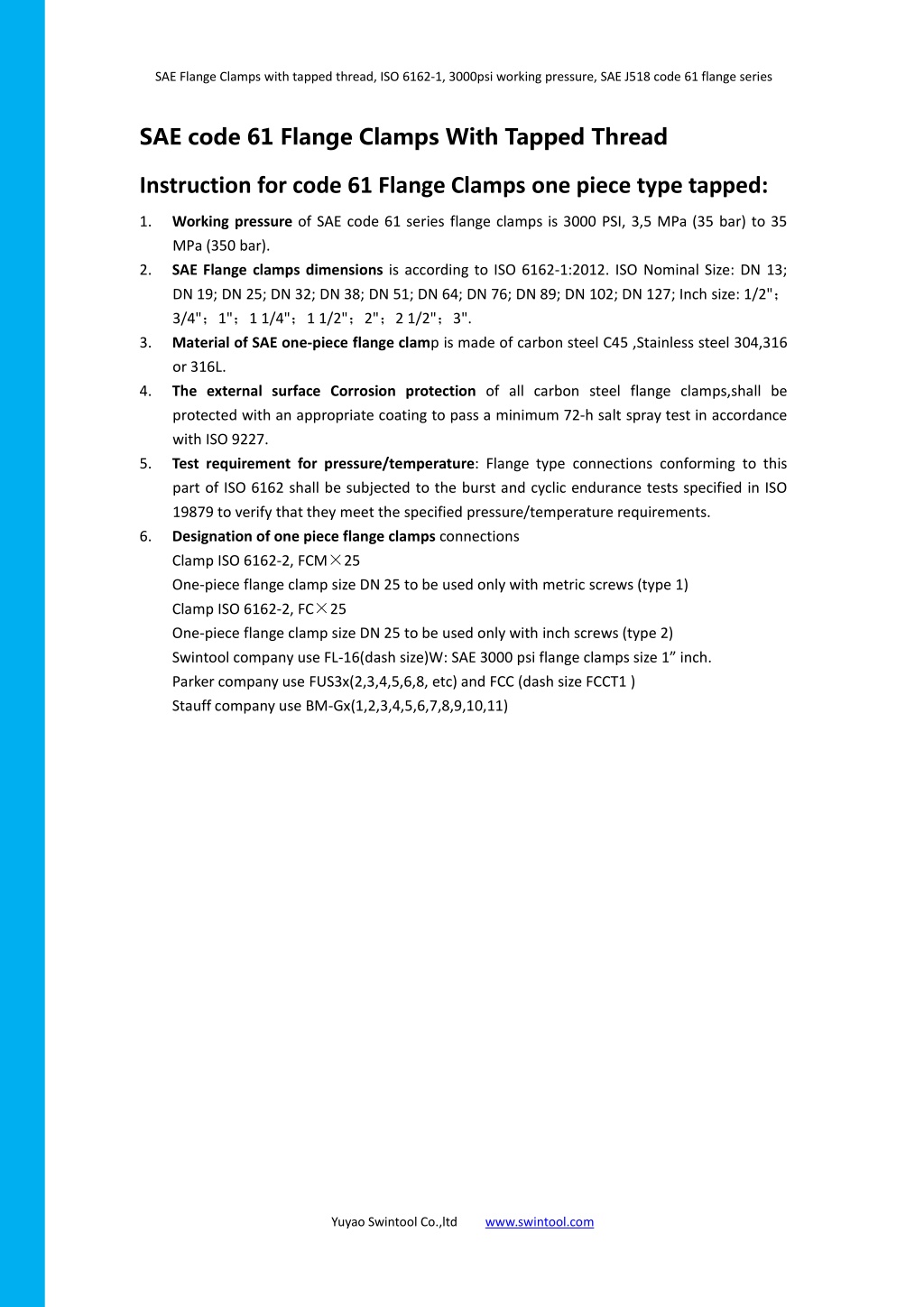

  2. SAE Flange Clamps with tapped thread, ISO 6162-1, 3000psi working pressure, SAE J518 code 61 flange series SAE code 61 Flange Clamps With Tapped Thread Instruction for code 61 Flange Clamps one piece type tapped: 1. Working pressure of SAE code 61 series flange clamps is 3000 PSI, 3,5 MPa (35 bar) to 35 MPa (350 bar). SAE Flange clamps dimensions is according to ISO 6162-1:2012. ISO Nominal Size: DN 13; DN 19; DN 25; DN 32; DN 38; DN 51; DN 64; DN 76; DN 89; DN 102; DN 127; Inch size: 1/2"； 3/4"；1"；1 1/4"；1 1/2"；2"；2 1/2"；3". Material of SAE one-piece flange clamp is made of carbon steel C45 ,Stainless steel 304,316 or 316L. The external surface Corrosion protection of all carbon steel flange clamps,shall be protected with an appropriate coating to pass a minimum 72-h salt spray test in accordance with ISO 9227. Test requirement for pressure/temperature: Flange type connections conforming to this part of ISO 6162 shall be subjected to the burst and cyclic endurance tests specified in ISO 19879 to verify that they meet the specified pressure/temperature requirements. Designation of one piece flange clamps connections Clamp ISO 6162-2, FCM×25 One-piece flange clamp size DN 25 to be used only with metric screws (type 1) Clamp ISO 6162-2, FC×25 One-piece flange clamp size DN 25 to be used only with inch screws (type 2) Swintool company use FL-16(dash size)W: SAE 3000 psi flange clamps size 1” inch. Parker company use FUS3x(2,3,4,5,6,8, etc) and FCC (dash size FCCT1 ) Stauff company use BM-Gx(1,2,3,4,5,6,7,8,9,10,11) 2. 3. 4. 5. 6. Yuyao Swintool Co.,ltd www.swintool.com

  3. SAE Flange Clamps with tapped thread, ISO 6162-1, 3000psi working pressure, SAE J518 code 61 flange series SAE Flange Clamp with Metric Tapped hole FL-xxWM Stauff SAE Flange Clamp Metric Holes no. BM-G FL-xxWU with Inch screw UNF thread DIMENSIONS PART NO. FLANGE SIZE A B d h M N FL-08WM 12" 54 45.6 M8 6.2 38.1 17.5 FL-12WM 34" 65 51.8 M10 6.2 47.6 22.2 FL-16WM 1" 70 58.4 M10 7.5 52.4 26.2 FL-20WM 1.14" 79 72.6 M10 7.5 58.7 30.2 FL-24WM 1.12" 94 82.2 M12 7.5 69.9 35.7 FL-32WM 2" 102 96.4 M12 9 77.8 42.9 FL-40WM 2.12" 114 108.2 M12 9 88.9 50.8 FL-48WM 3" 135 130.6 M16 9 106.4 61.9 Note: 1. Metric thread is Coarse pitch thread in accordance with ISO 261 and ISO 724. SAE Flange Clamp with UNC Tapped hole FL-xxWU UNC thread is Coarse pitch thread in accordance with ISO 263 and ISO 725 (UNC-2A for screw threads, UNC-2B for port threads). Yuyao Swintool Co.,ltd www.swintool.com
