Ion Concentration Meter LBN-IM192

Labnic Ion Concentration Meter is a tabletop device for precise sodium ion and pH measurement, ideal for high-purity water monitoring in power plants. It offers a range of minus two to eighteen pH, auto temperature compensation, a waterproof LCD, auto-calibration, data storage, Bluetooth and IP fifty-four protection.

susanlabnic
Download Presentation

Ion Concentration Meter LBN-IM192

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

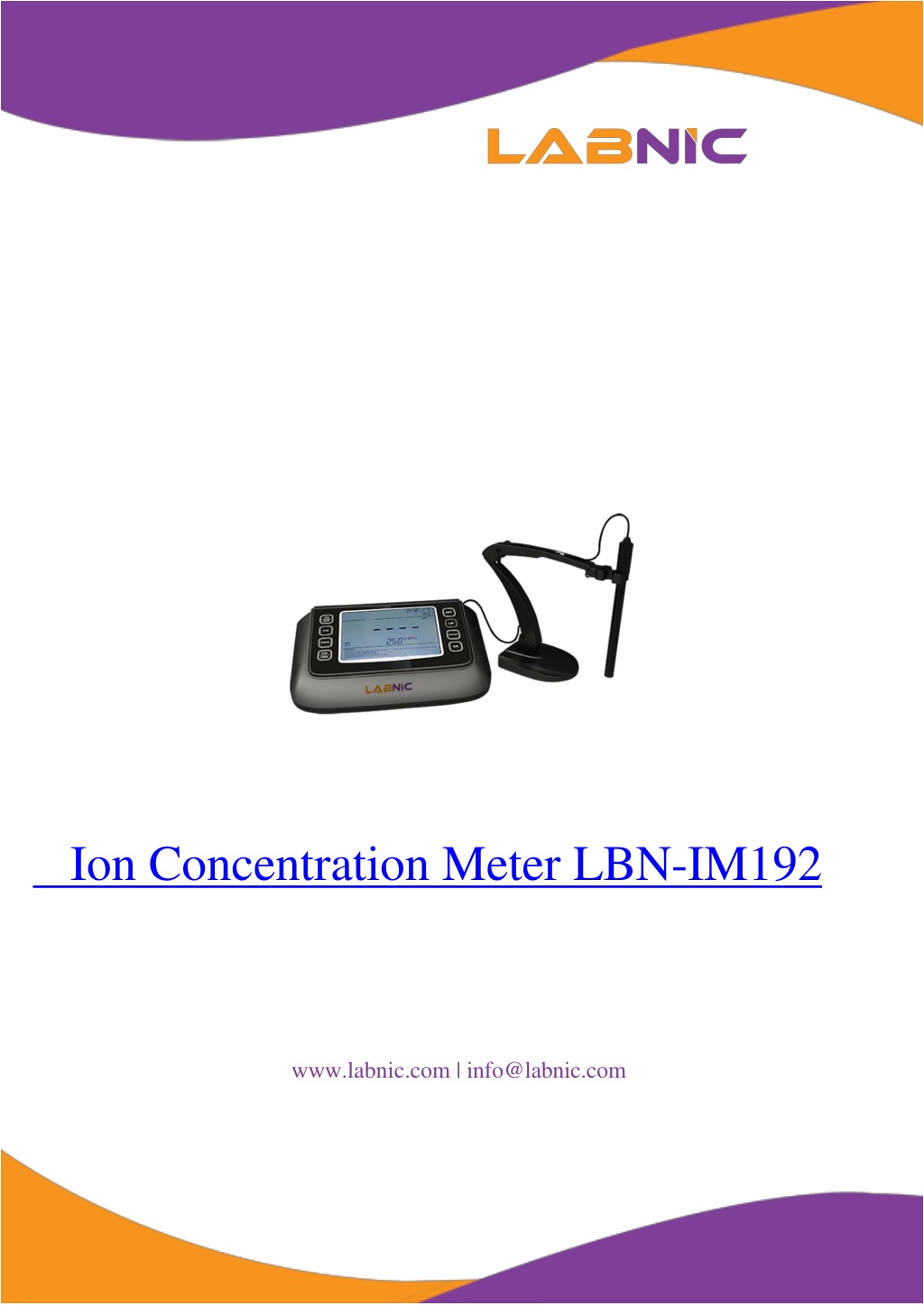

  1. Ion Concentration Meter LBN-IM192 www.labnic.com | info@labnic.com

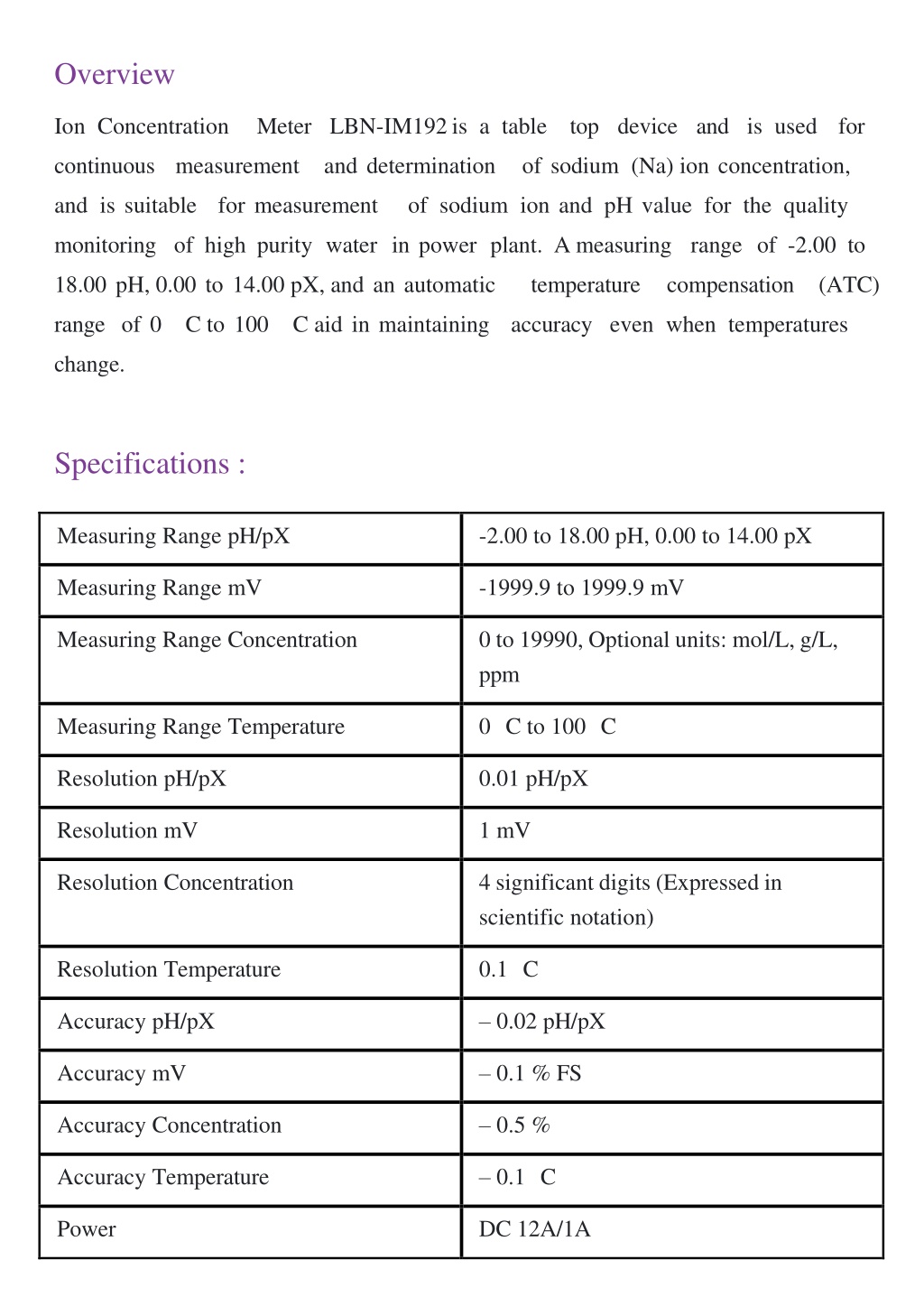

  2. Overview Ion Concentration Meter LBN-IM192 is a table top device and is used for continuous measurement and determination of sodium (Na) ion concentration, and is suitable for measurement of sodium ion and pH value for the quality monitoring of high puritywaterin powerplant. A measuring rangeof -2.00 to 18.00 pH, 0.00 to 14.00 pX, and an automatic temperature compensation (ATC) range of 0 C to 100 C aid in maintaining accuracy even when temperatures change. Specifications : Measuring Range pH/pX -2.00 to 18.00 pH, 0.00 to 14.00 pX Measuring Range mV -1999.9 to 1999.9 mV Measuring Range Concentration 0 to 19990, Optional units: mol/L, g/L, ppm Measuring Range Temperature 0 C to 100 C Resolution pH/pX 0.01 pH/pX Resolution mV 1 mV Resolution Concentration 4 significant digits (Expressed in scientific notation) Resolution Temperature 0.1 C Accuracy pH/pX – 0.02 pH/pX Accuracy mV – 0.1 % FS Accuracy Concentration – 0.5 % Accuracy Temperature – 0.1 C Power DC 12A/1A

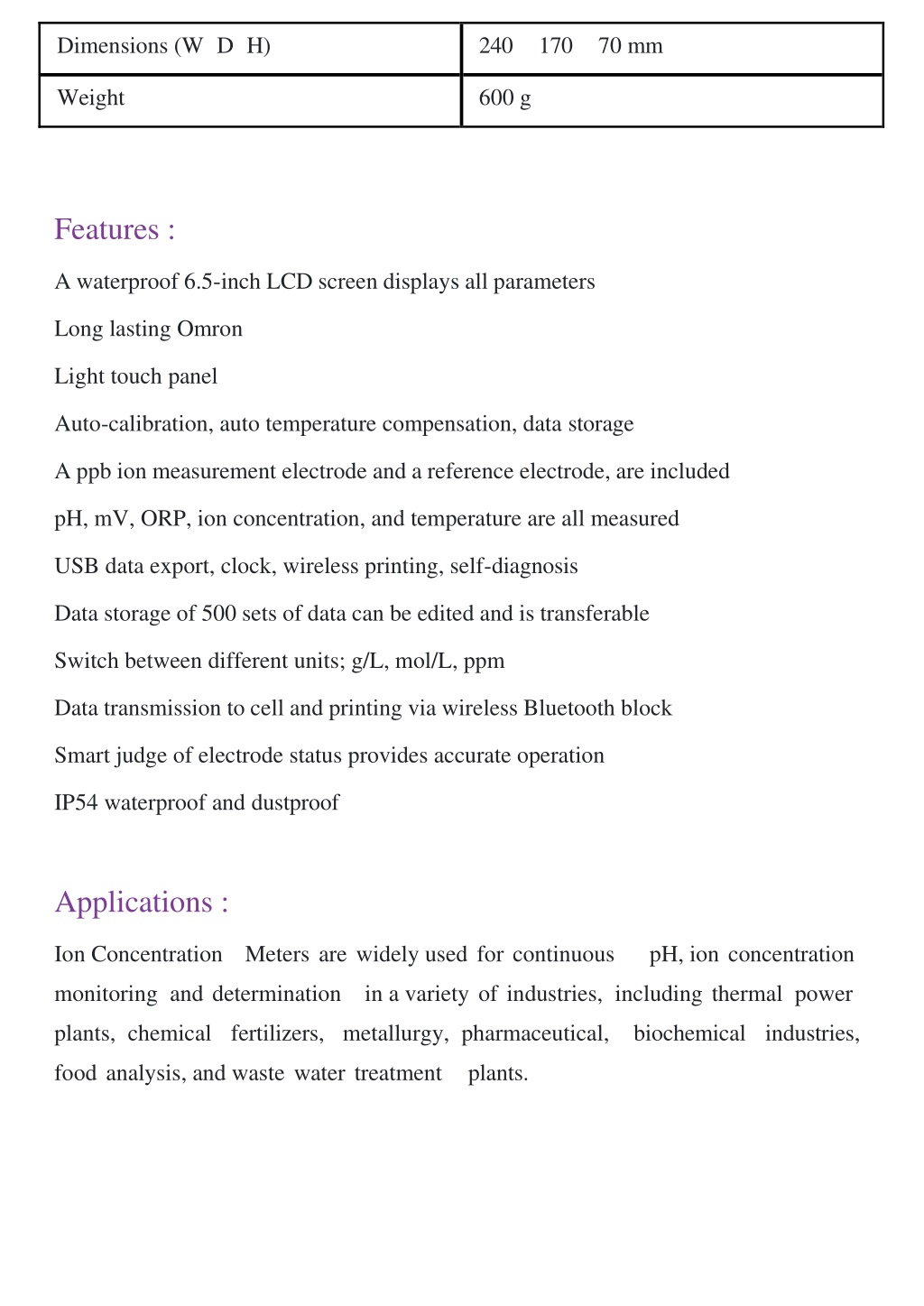

  3. Dimensions (WDH) 240 170 70 mm Weight 600 g Features : A waterproof 6.5-inch LCD screen displays all parameters Long lasting Omron Light touch panel Auto-calibration, auto temperature compensation, data storage A ppb ion measurement electrode and a reference electrode, are included pH, mV, ORP, ion concentration, and temperature are all measured USB data export, clock, wireless printing, self-diagnosis Data storage of 500 sets of data can be edited and is transferable Switch between different units; g/L, mol/L, ppm Data transmission to cell and printing via wireless Bluetooth block Smart judge of electrode status provides accurate operation IP54 waterproof and dustproof Applications : Ion Concentration Meters are widely used for continuous pH, ion concentration monitoring and determination in a variety of industries, including thermal power plants, chemical fertilizers, metallurgy, pharmaceutical, biochemical industries, food analysis, and waste water treatment plants.

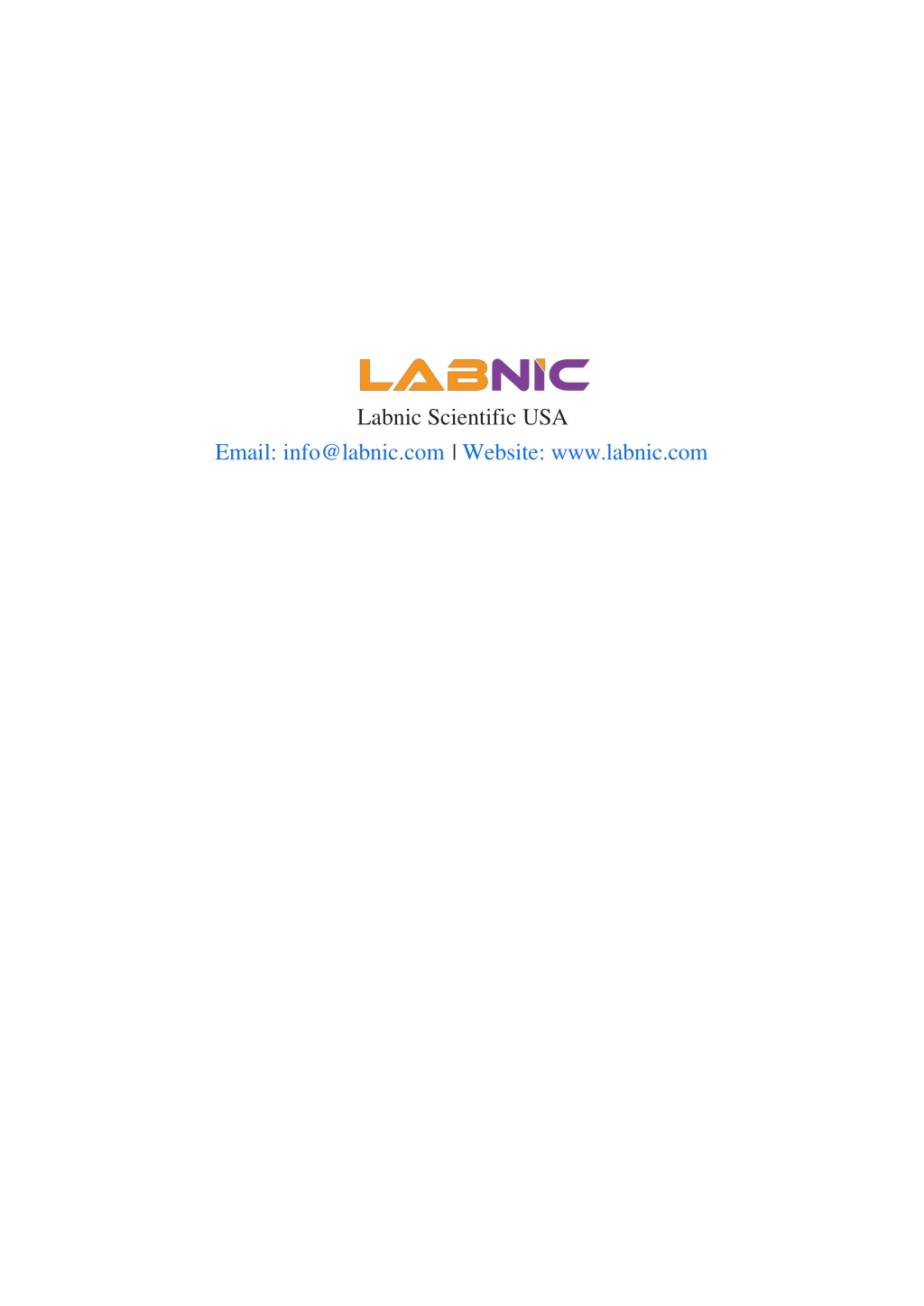

  4. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
