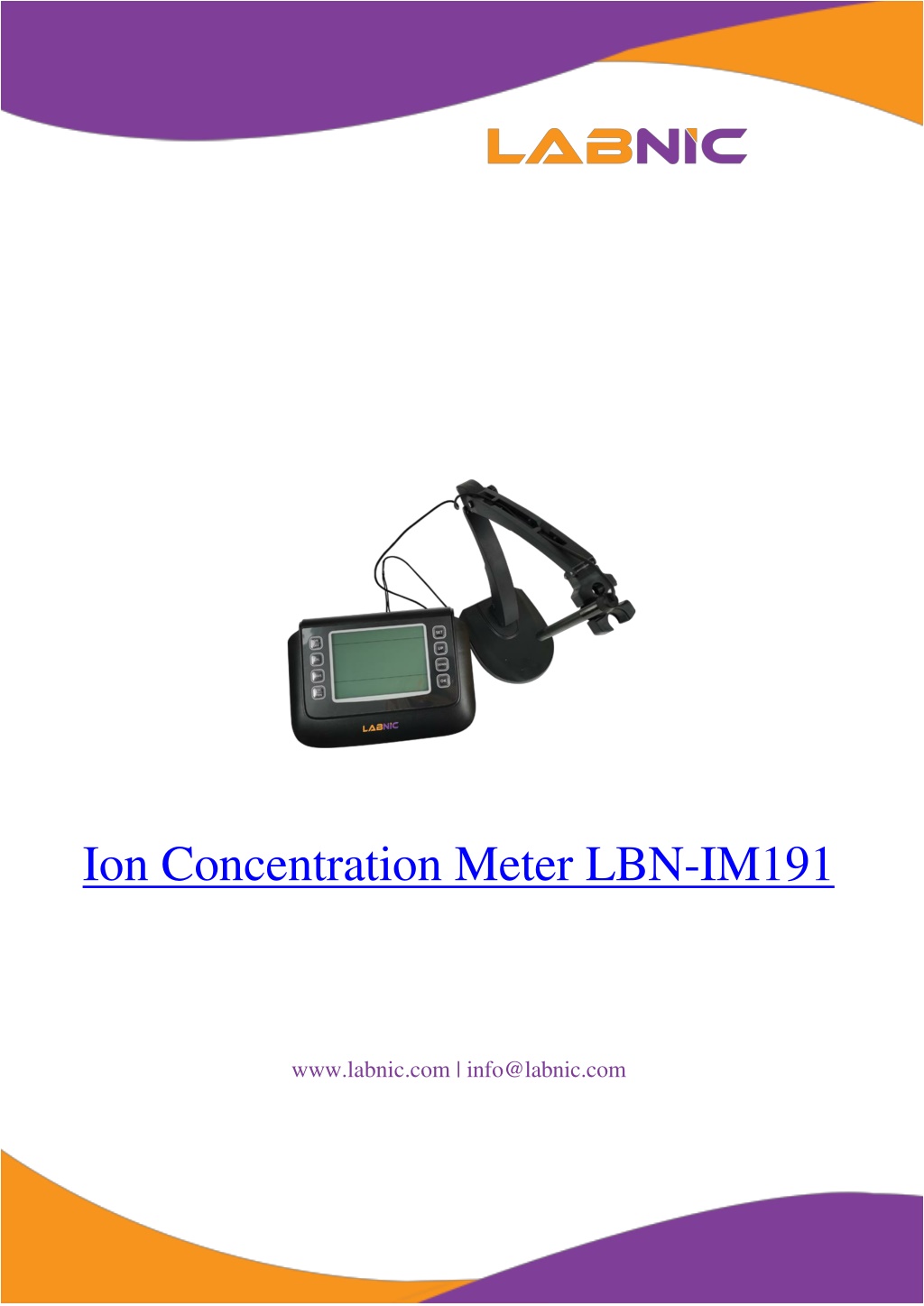

  1. Ion Concentration Meter LBN-IM191 www.labnic.com | info@labnic.com

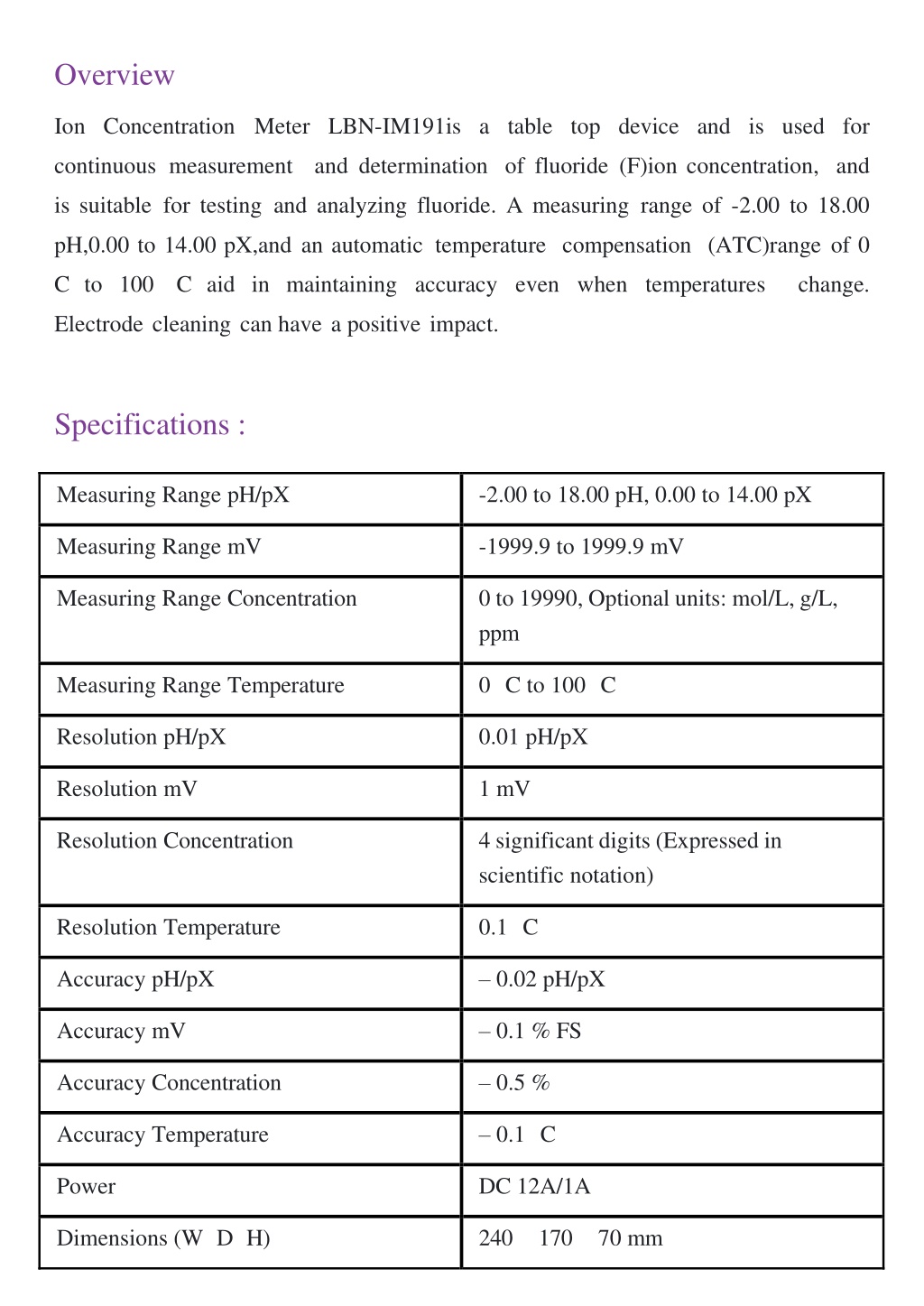

  2. Overview Ion Concentration Meter LBN-IM191is a table top device and is used for continuous measurement and determinationof fluoride (F)ion concentration,and is suitable for testing and analyzing fluoride. A measuring range of -2.00 to 18.00 pH,0.00 to 14.00 pX,and an automatic temperaturecompensation(ATC)range of 0 C to 100C aid in maintaining accuracy even when temperatures change. Electrode cleaning can have a positive impact. Specifications : Measuring Range pH/pX -2.00 to 18.00 pH, 0.00 to 14.00 pX Measuring Range mV -1999.9 to 1999.9 mV Measuring Range Concentration 0 to 19990, Optional units: mol/L, g/L, ppm Measuring Range Temperature 0 C to 100 C Resolution pH/pX 0.01 pH/pX Resolution mV 1 mV Resolution Concentration 4 significant digits (Expressed in scientific notation) Resolution Temperature 0.1 C Accuracy pH/pX – 0.02 pH/pX Accuracy mV – 0.1 % FS Accuracy Concentration – 0.5 % Accuracy Temperature – 0.1 C Power DC 12A/1A Dimensions (WDH) 240 170 70 mm

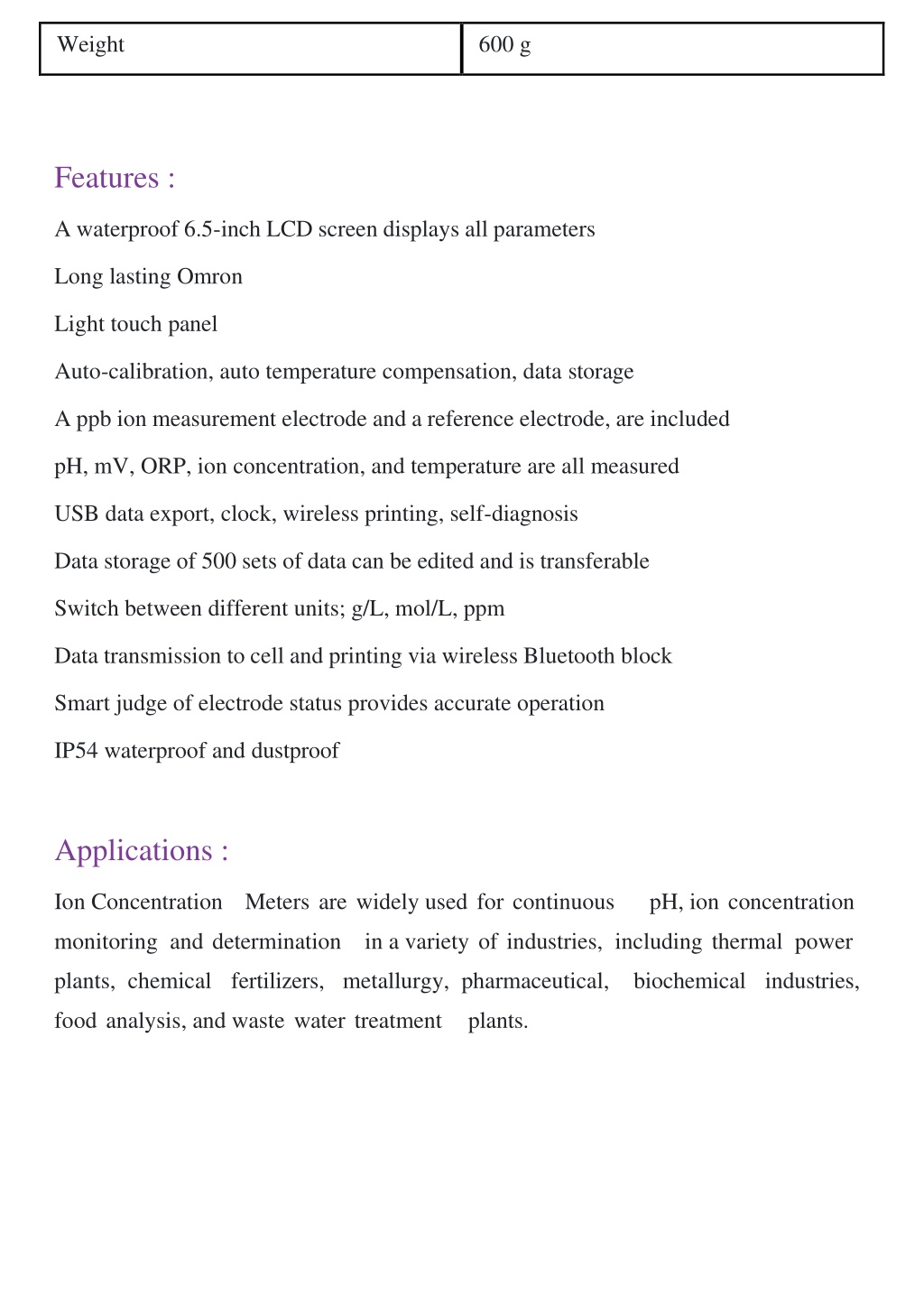

  3. Weight 600 g Features : A waterproof 6.5-inch LCD screen displays all parameters Long lasting Omron Light touch panel Auto-calibration, auto temperature compensation, data storage A ppb ion measurement electrode and a reference electrode, are included pH, mV, ORP, ion concentration, and temperature are all measured USB data export, clock, wireless printing, self-diagnosis Data storage of 500 sets of data can be edited and is transferable Switch between different units; g/L, mol/L, ppm Data transmission to cell and printing via wireless Bluetooth block Smart judge of electrode status provides accurate operation IP54 waterproof and dustproof Applications : Ion Concentration Meters are widely used for continuous pH, ion concentration monitoring and determination in a variety of industries, including thermal power plants, chemical fertilizers, metallurgy, pharmaceutical, biochemical industries, food analysis, and waste water treatment plants.

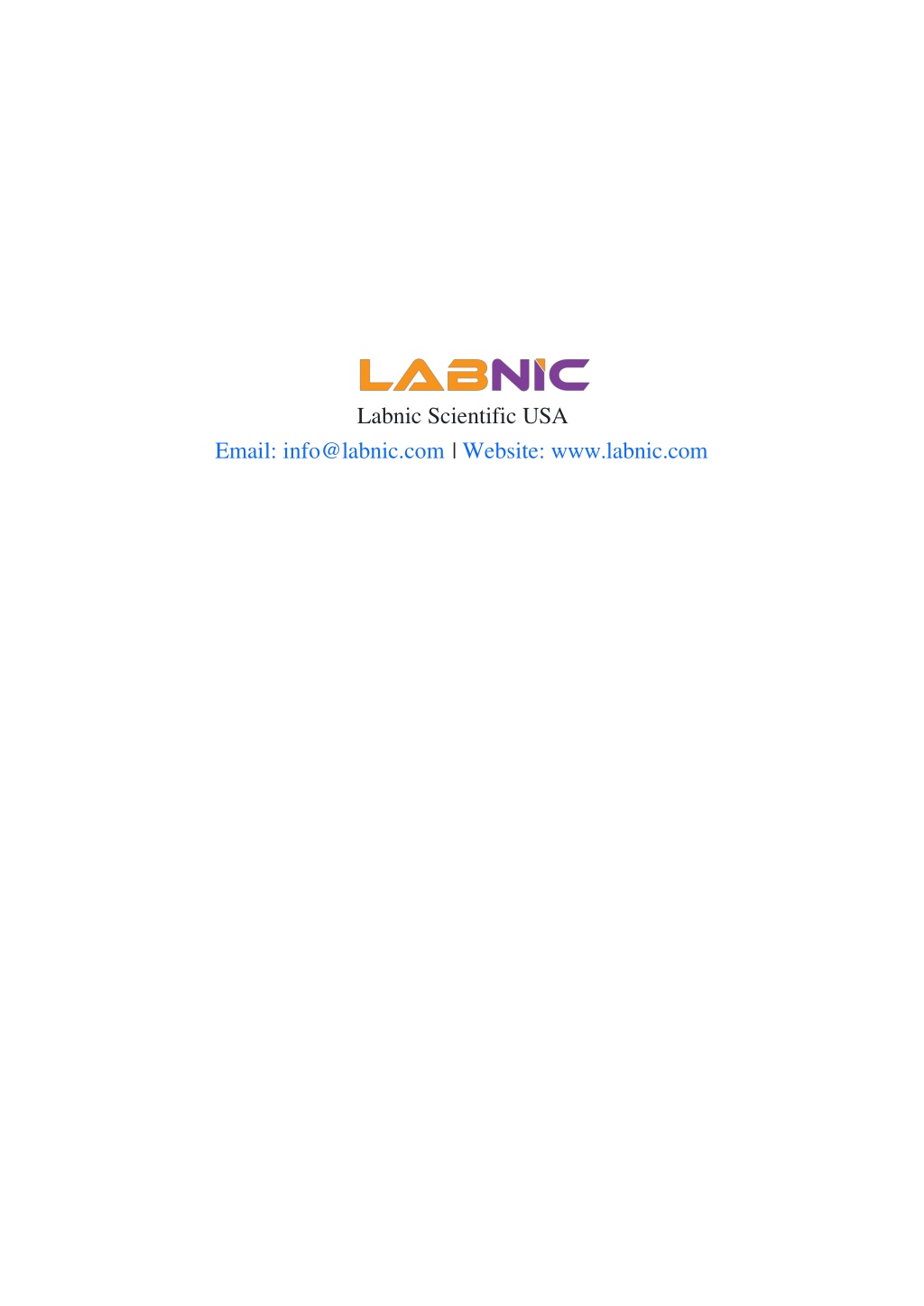

  4. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
