Dissolution Samplers 0ml to 15ml

Labnic Dissolution Sampler uses precision glass syringe pumps for fast, accurate sampling. It features 12 sampling channels, 16 sampling times, a 16-bit rack for 192 test tubes, a 99-hour 59-minute maximum sampling interval and a filter fluid discharge function to reduce adsorption.

susanlabnic
Download Presentation

Dissolution Samplers 0ml to 15ml

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

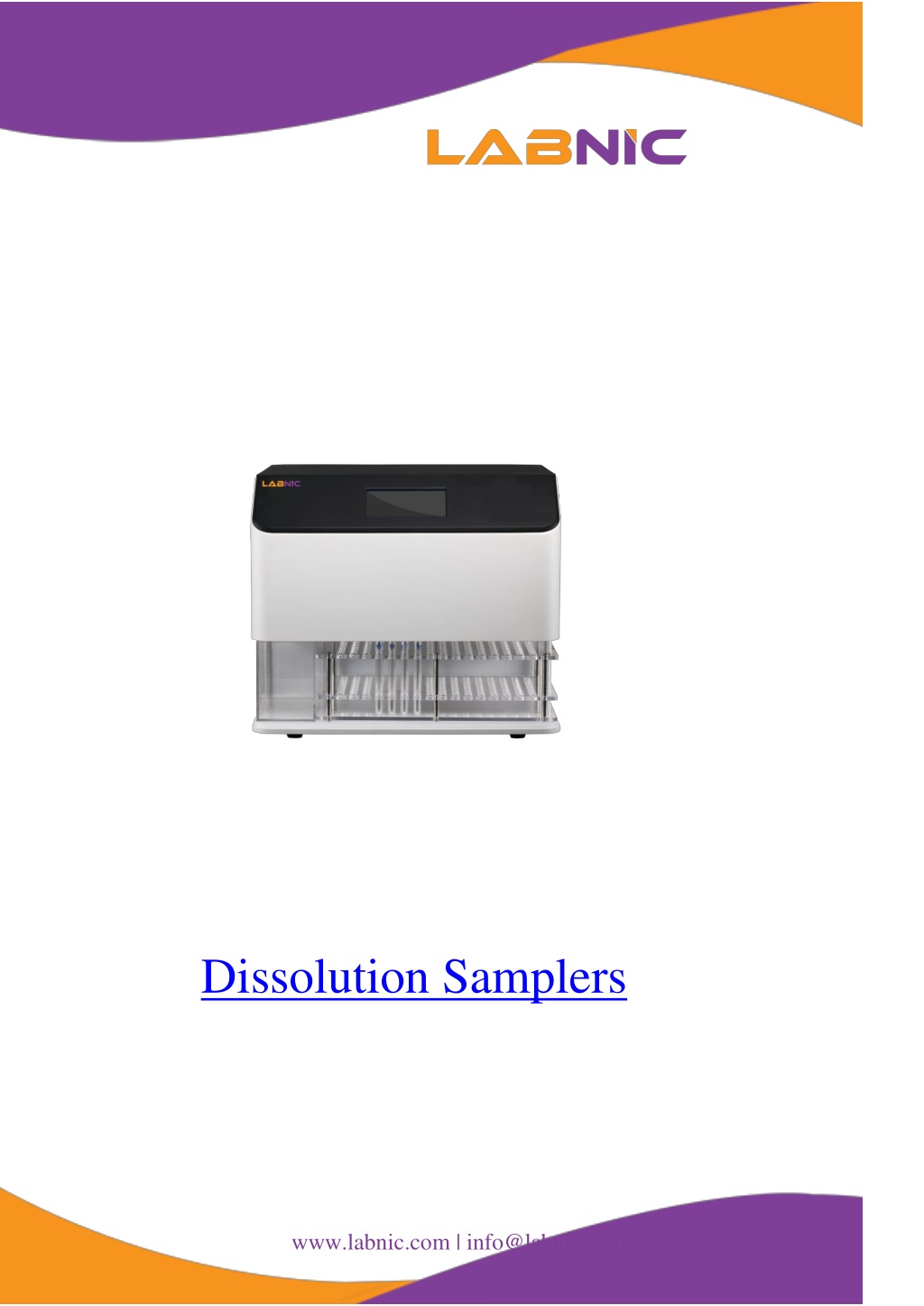

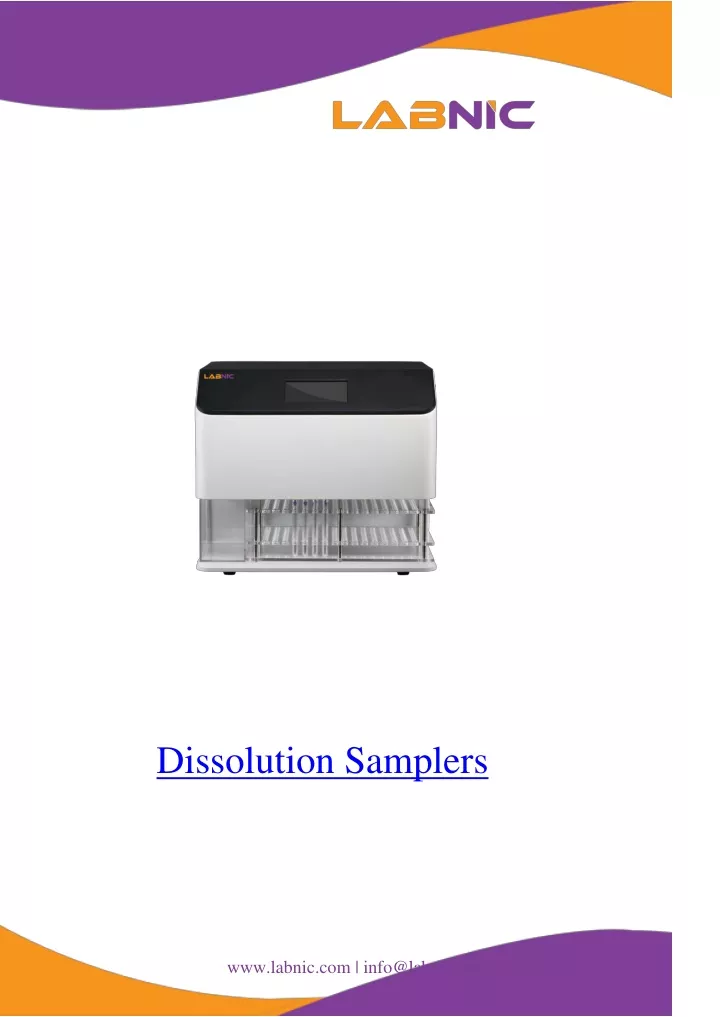

  1. Dissolution Samplers www.labnic.com | info@labnic.com

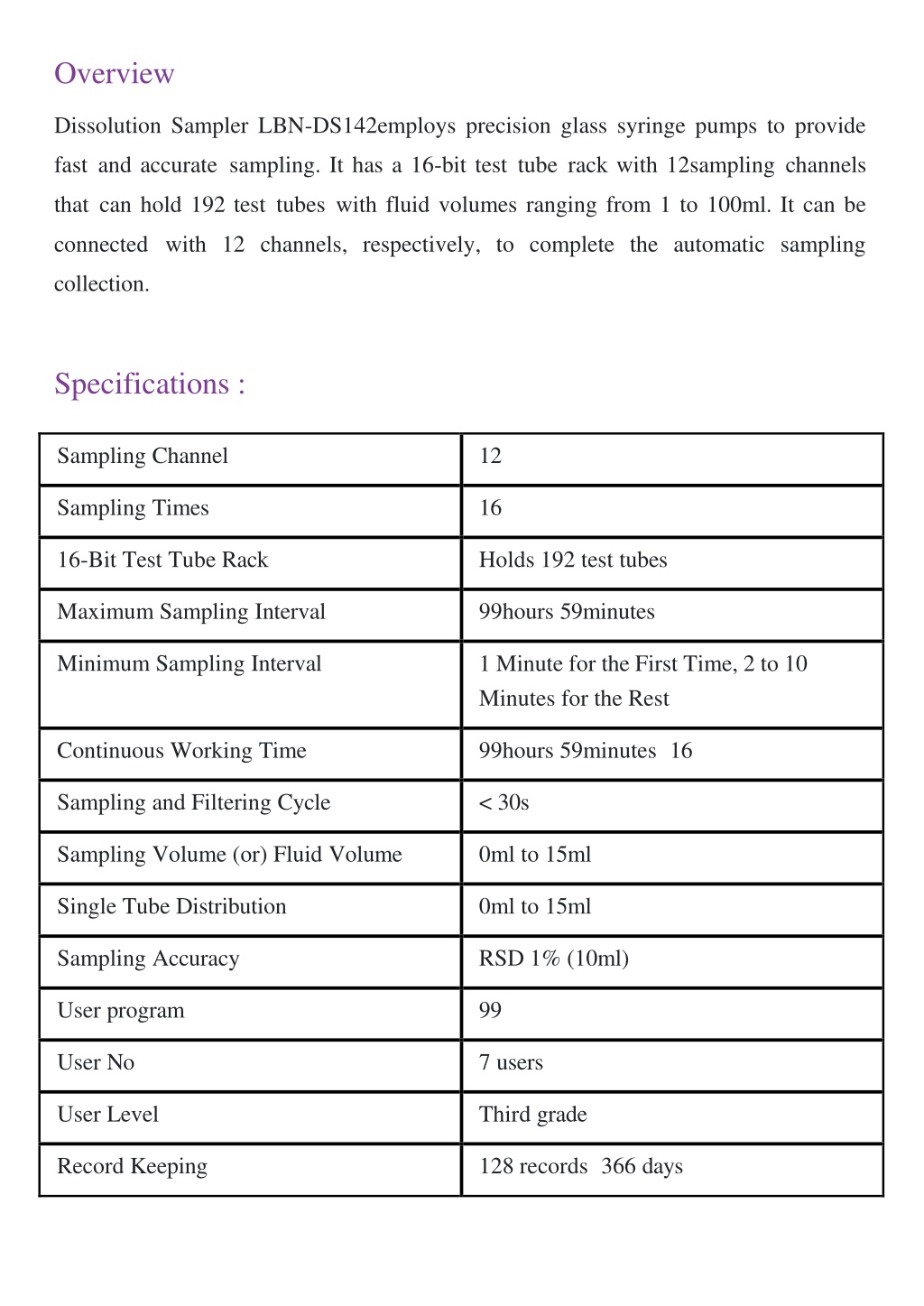

  2. Overview Dissolution Sampler LBN-DS142employs precision glass syringe pumps to provide fast and accurate sampling. It has a 16-bit test tube rack with 12sampling channels that can hold 192 test tubes with fluid volumes ranging from 1 to 100ml. It can be connected with 12 channels, respectively, to complete the automatic sampling collection. Specifications : Sampling Channel 12 Sampling Times 16 16-Bit Test Tube Rack Holds 192 test tubes Maximum Sampling Interval 99hours 59minutes Minimum Sampling Interval 1 Minute for the First Time, 2 to 10 Minutes for the Rest Continuous Working Time 99hours 59minutes16 Sampling and Filtering Cycle < 30s Sampling Volume (or) Fluid Volume 0ml to 15ml Single Tube Distribution 0ml to 15ml Sampling Accuracy RSD 1% (10ml) User program 99 User No 7 users User Level Third grade Record Keeping 128 records366 days

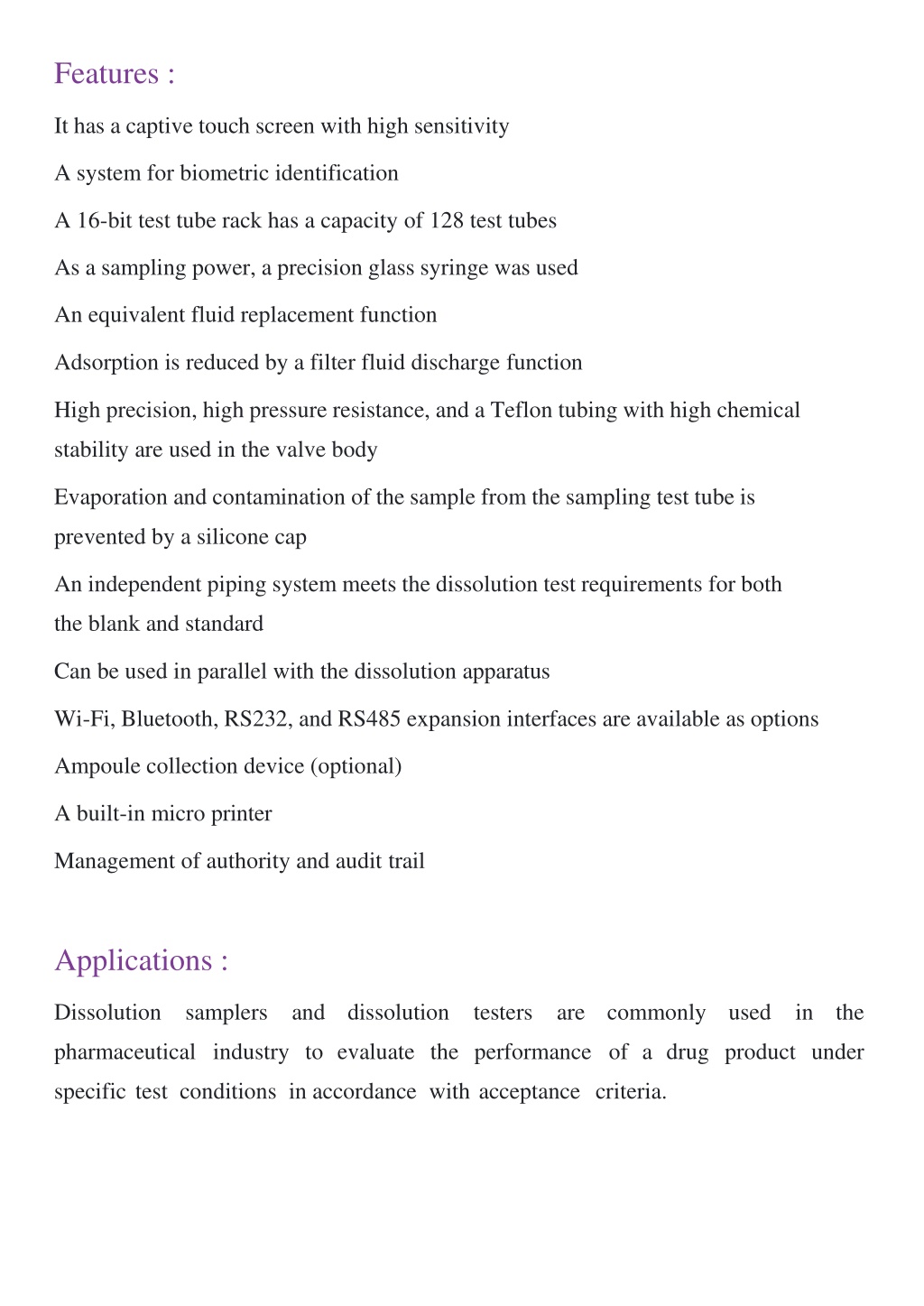

  3. Features : It has a captive touch screen with high sensitivity A system for biometric identification A 16-bit test tube rack has a capacity of 128 test tubes As a sampling power, a precision glass syringe was used An equivalent fluid replacement function Adsorption is reduced by a filter fluid discharge function High precision, high pressure resistance, and a Teflon tubing with high chemical stability are used in the valve body Evaporation and contamination of the sample from the sampling test tube is prevented by a silicone cap An independent piping system meets the dissolution test requirements for both the blank and standard Can be used in parallel with the dissolution apparatus Wi-Fi, Bluetooth, RS232, and RS485 expansion interfaces are available as options Ampoule collection device (optional) A built-in micro printer Management of authority and audit trail Applications : Dissolution samplers and dissolution testers are commonly used in the pharmaceutical industry to evaluate the performance of a drug product under specific test conditions in accordance with acceptancecriteria.

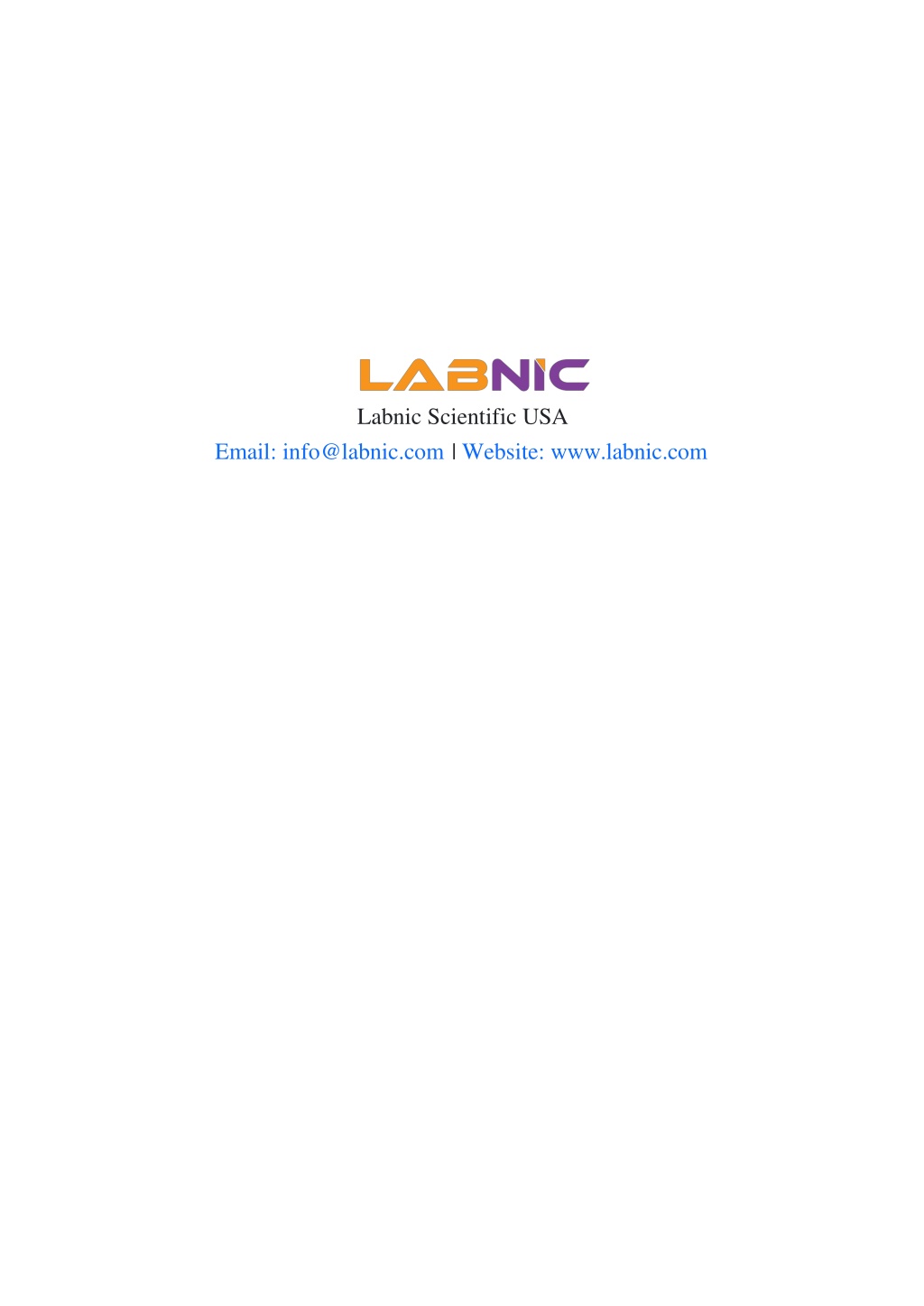

  4. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
