Cube Ice Maker LBN-CI148

Labnic Cube Ice Maker produces up to 700 kg of cube ice daily with a 455 kg insulated bin. It uses a single compressor, air cooling, and R404a refrigerant. Features include fault detection, real-time monitoring, an LCD touchscreen and a detachable rust-free storage bin.

susanlabnic
Download Presentation

Cube Ice Maker LBN-CI148

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

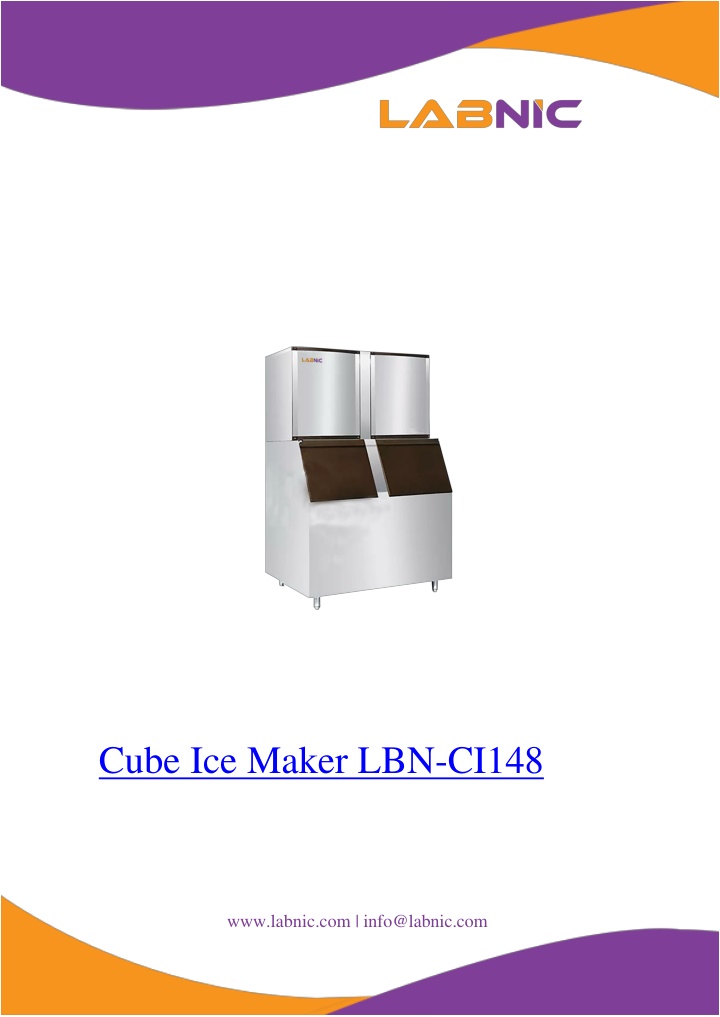

  1. Cube Ice Maker LBN-CI148 www.labnic.com | info@labnic.com

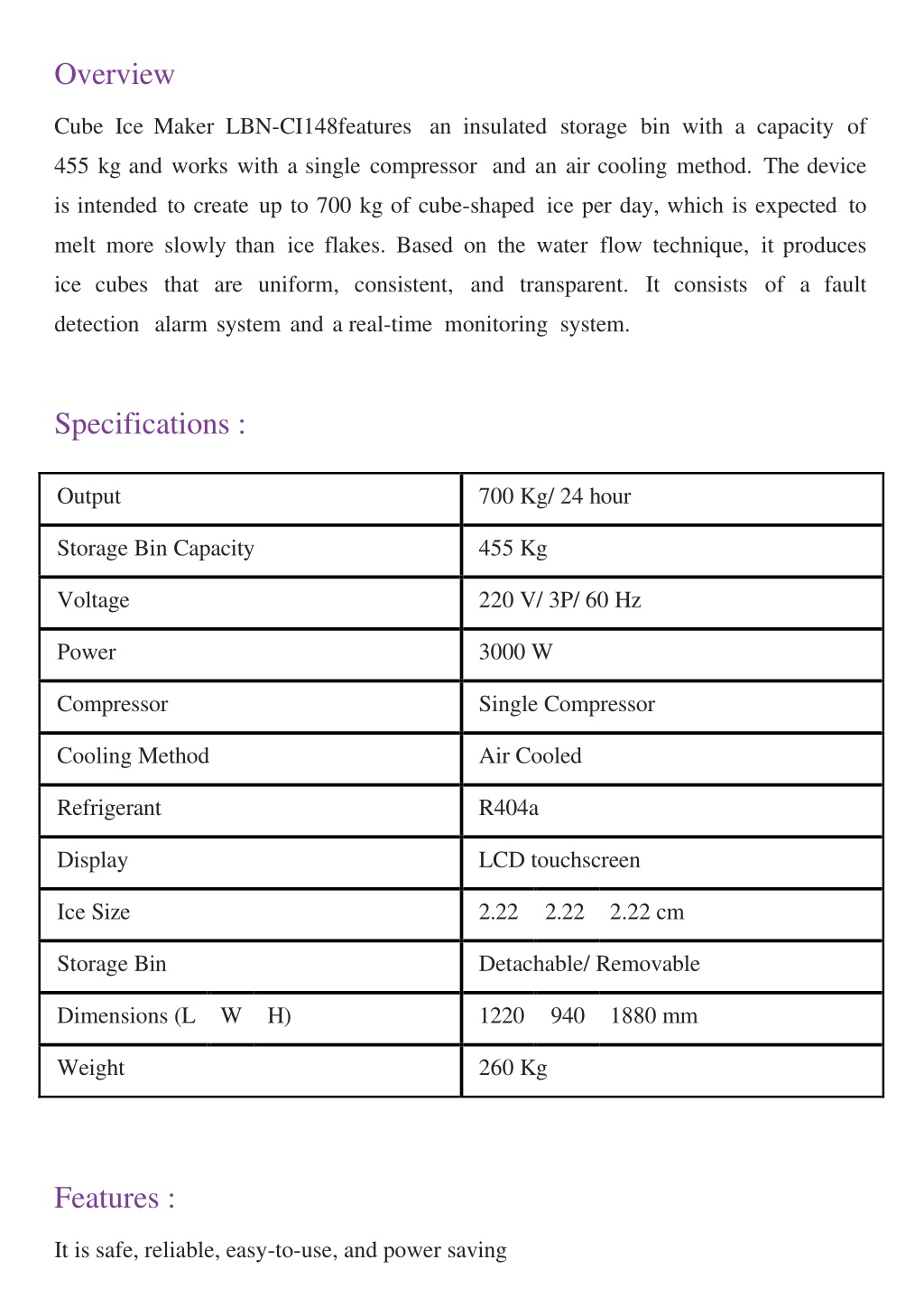

  2. Overview Cube Ice Maker LBN-CI148featuresan insulated storage bin with a capacity of 455 kg and works with a single compressorand an air cooling method. The device is intended to create up to 700 kg of cube-shaped ice per day, which is expected to melt more slowly than ice flakes. Based on the water flow technique, it produces ice cubes that are uniform, consistent, and transparent. It consists of a fault detectionalarm system and a real-time monitoring system. Specifications : Output 700 Kg/ 24 hour Storage Bin Capacity 455 Kg Voltage 220 V/ 3P/ 60 Hz Power 3000 W Compressor Single Compressor Cooling Method Air Cooled Refrigerant R404a Display LCD touchscreen Ice Size 2.22 2.22 2.22 cm Storage Bin Detachable/ Removable Dimensions (L W H) 1220 940 1880 mm Weight 260 Kg Features : It is safe, reliable, easy-to-use, and power saving

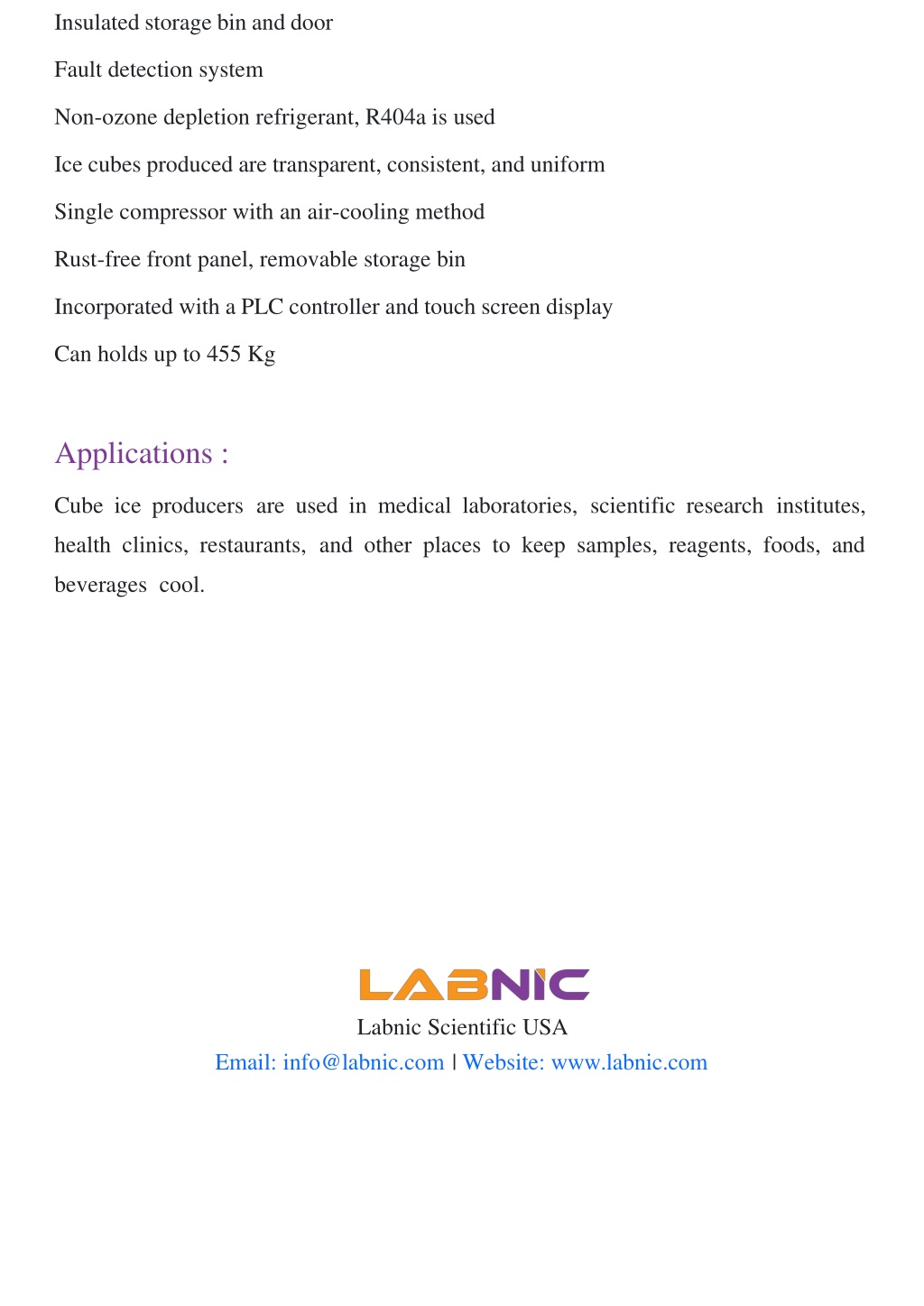

  3. Insulated storage bin and door Fault detection system Non-ozone depletion refrigerant, R404a is used Ice cubes produced are transparent, consistent, and uniform Single compressor with an air-cooling method Rust-free front panel, removable storage bin Incorporated with a PLC controller and touch screen display Can holds up to 455 Kg Applications : Cube ice producers are used in medical laboratories, scientific research institutes, health clinics, restaurants, and other places to keep samples, reagents, foods, and beverages cool. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
