Cube Ice Maker 2350 W

Labnic Cube Ice Maker, equipped with a 200 kg insulated storage bin, produces 465 kg of ice in 24 hours using R404a refrigerant. It operates with a single compressor and air cooling and features a PLC controller, touch-screen display and energy-efficient design.

susanlabnic
Download Presentation

Cube Ice Maker 2350 W

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

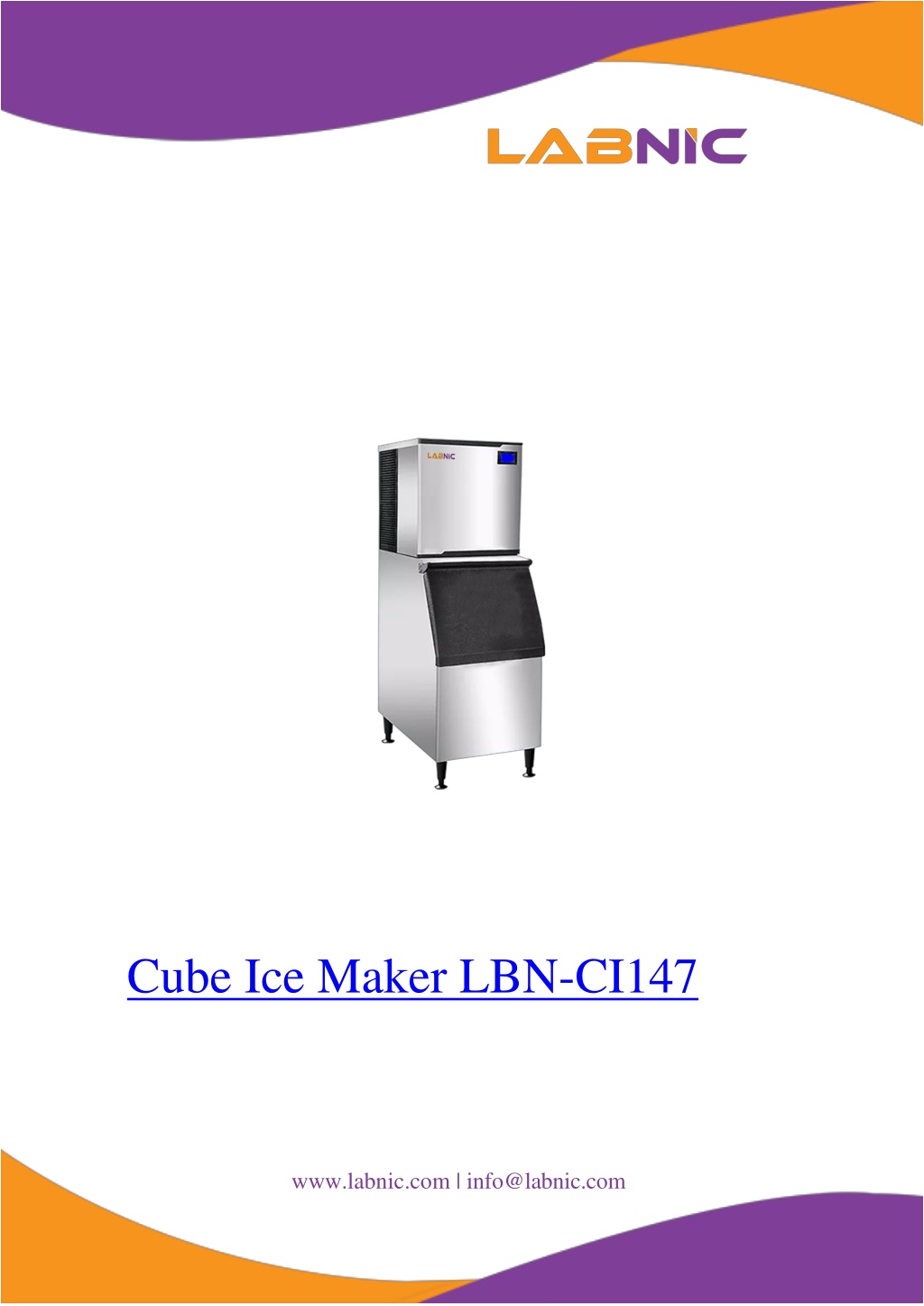

  1. Cube Ice Maker LBN-CI147 www.labnic.com | info@labnic.com

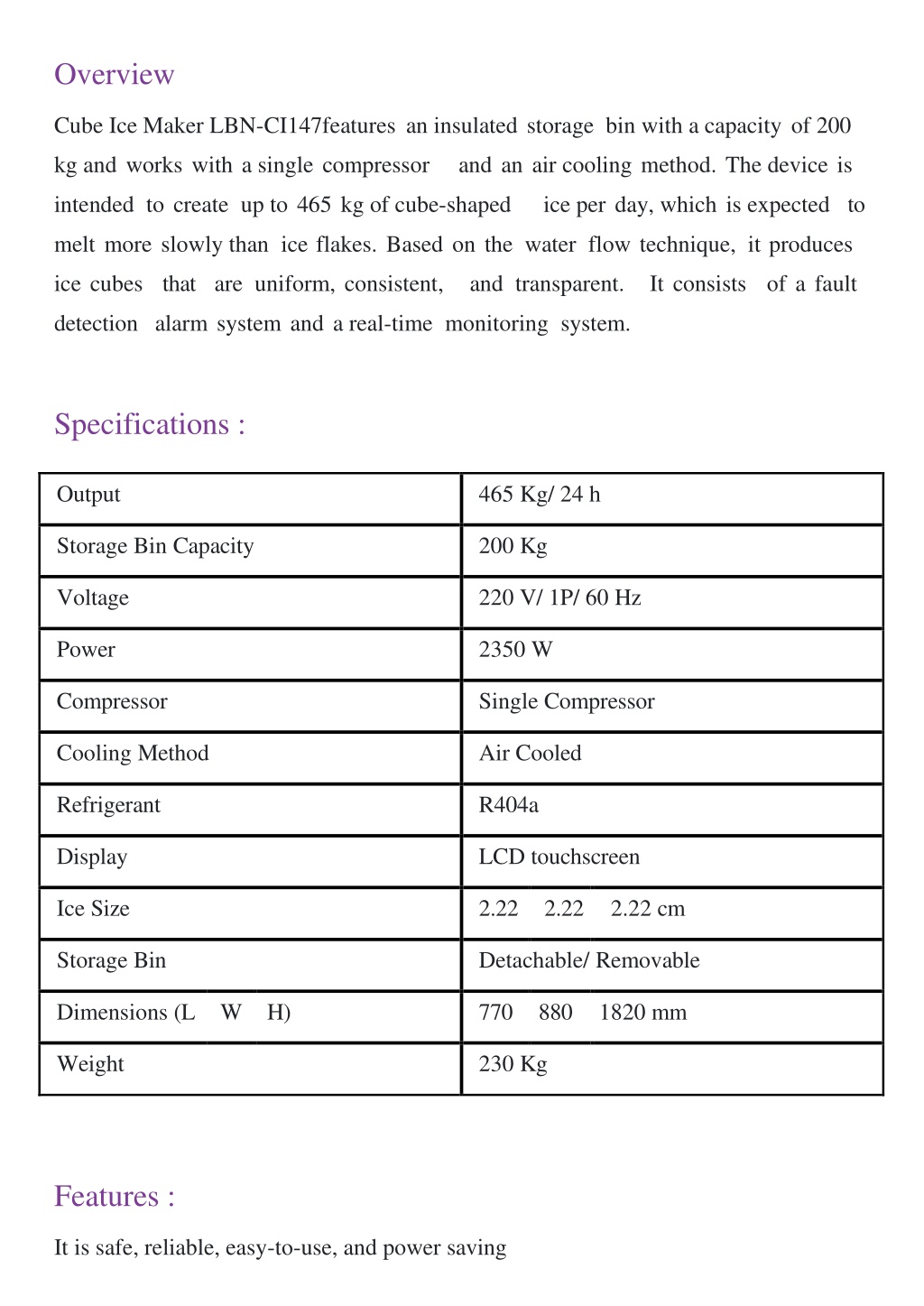

  2. Overview Cube Ice Maker LBN-CI147features an insulated storage bin with a capacity of 200 kg and works with a single compressor and an air cooling method. The device is intended to create up to 465 kg of cube-shaped ice per day, which is expected to melt more slowly than ice flakes. Based on the water flow technique, it produces ice cubes that are uniform, consistent, and transparent. It consists of a fault detection alarm system and a real-time monitoring system. Specifications : Output 465 Kg/ 24 h Storage Bin Capacity 200 Kg Voltage 220 V/ 1P/ 60 Hz Power 2350 W Compressor Single Compressor Cooling Method Air Cooled Refrigerant R404a Display LCD touchscreen Ice Size 2.22 2.22 2.22 cm Storage Bin Detachable/ Removable Dimensions (L W H) 770 880 1820 mm Weight 230 Kg Features : It is safe, reliable, easy-to-use, and power saving

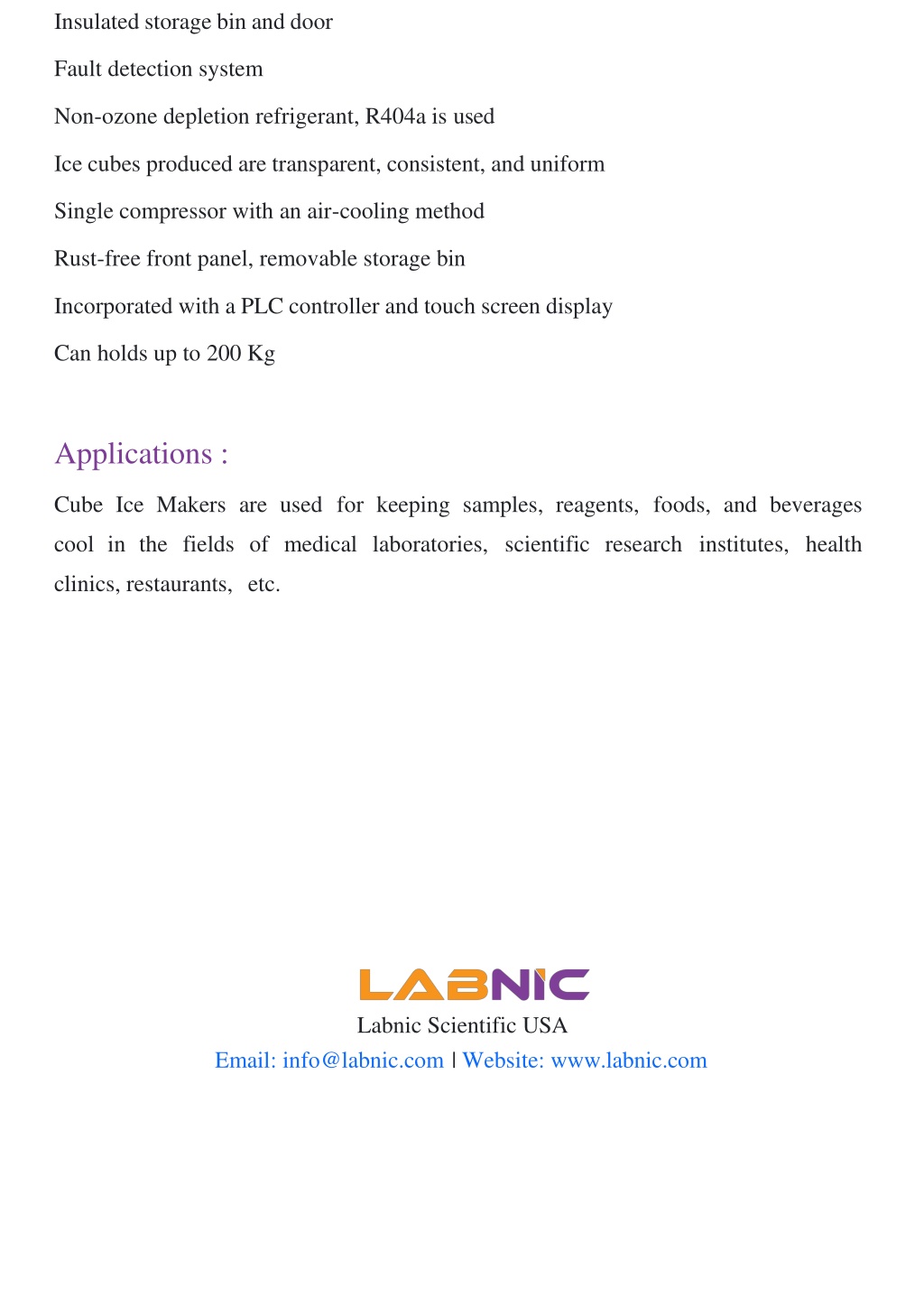

  3. Insulated storage bin and door Fault detection system Non-ozone depletion refrigerant, R404a is used Ice cubes produced are transparent, consistent, and uniform Single compressor with an air-cooling method Rust-free front panel, removable storage bin Incorporated with a PLC controller and touch screen display Can holds up to 200 Kg Applications : Cube Ice Makers are used for keeping samples, reagents, foods, and beverages cool in the fields of medical laboratories, scientific research institutes, health clinics, restaurants,etc. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
