Cube Ice Maker 1350 W

Labnic Cube Ice Maker, with a 200 kg insulated storage bin, uses a single compressor and air cooling to deliver 265 kg of ice daily. It operates at 220V/1P/60Hz, functions efficiently in temperatures ranging from 5u00b0C to 40u00b0C, and ensures optimal performance with water supply temperatures ranging from 5u00b0C to 30u00b0C.

susanlabnic
Download Presentation

Cube Ice Maker 1350 W

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

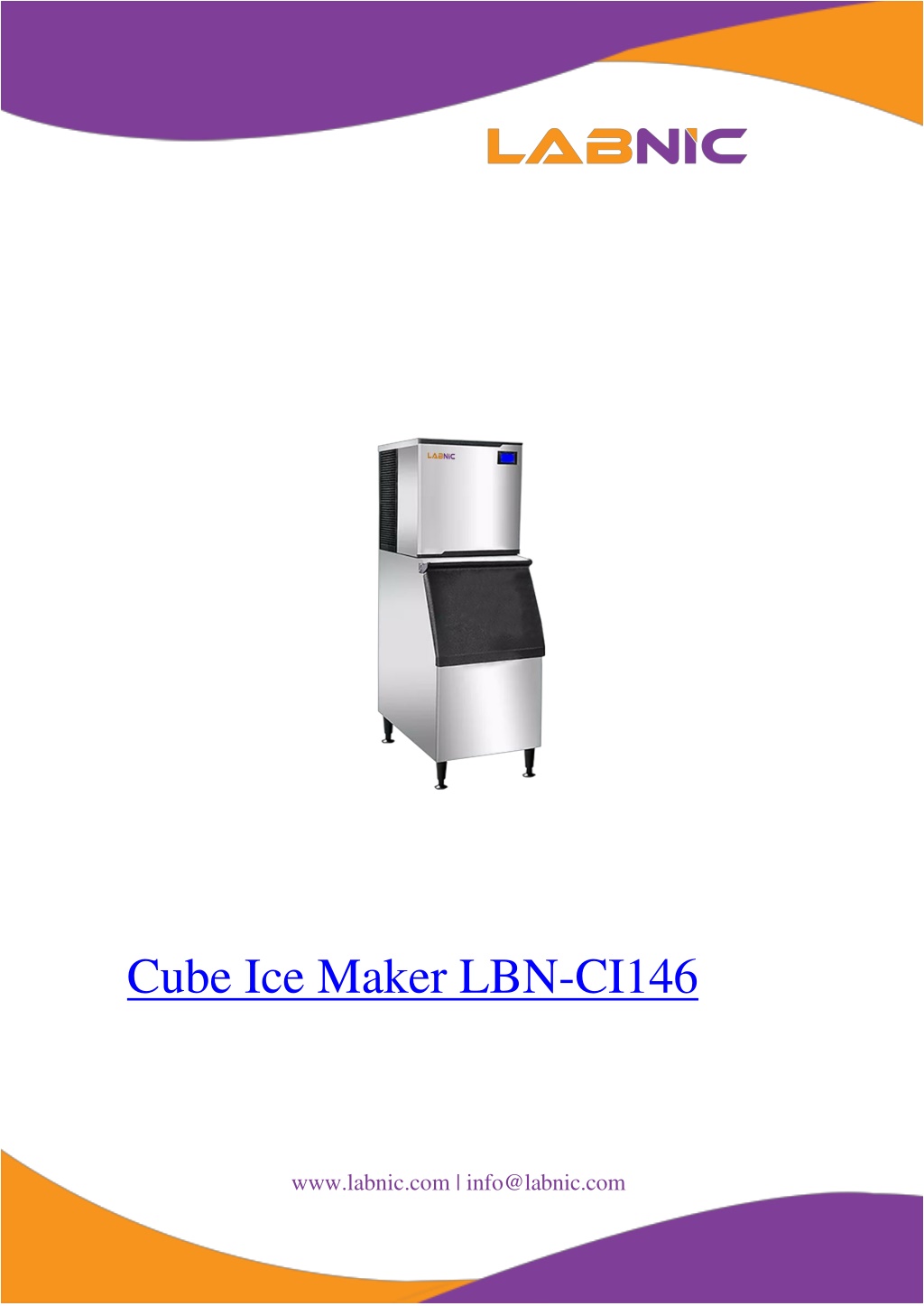

  1. Cube Ice Maker LBN-CI146 www.labnic.com | info@labnic.com

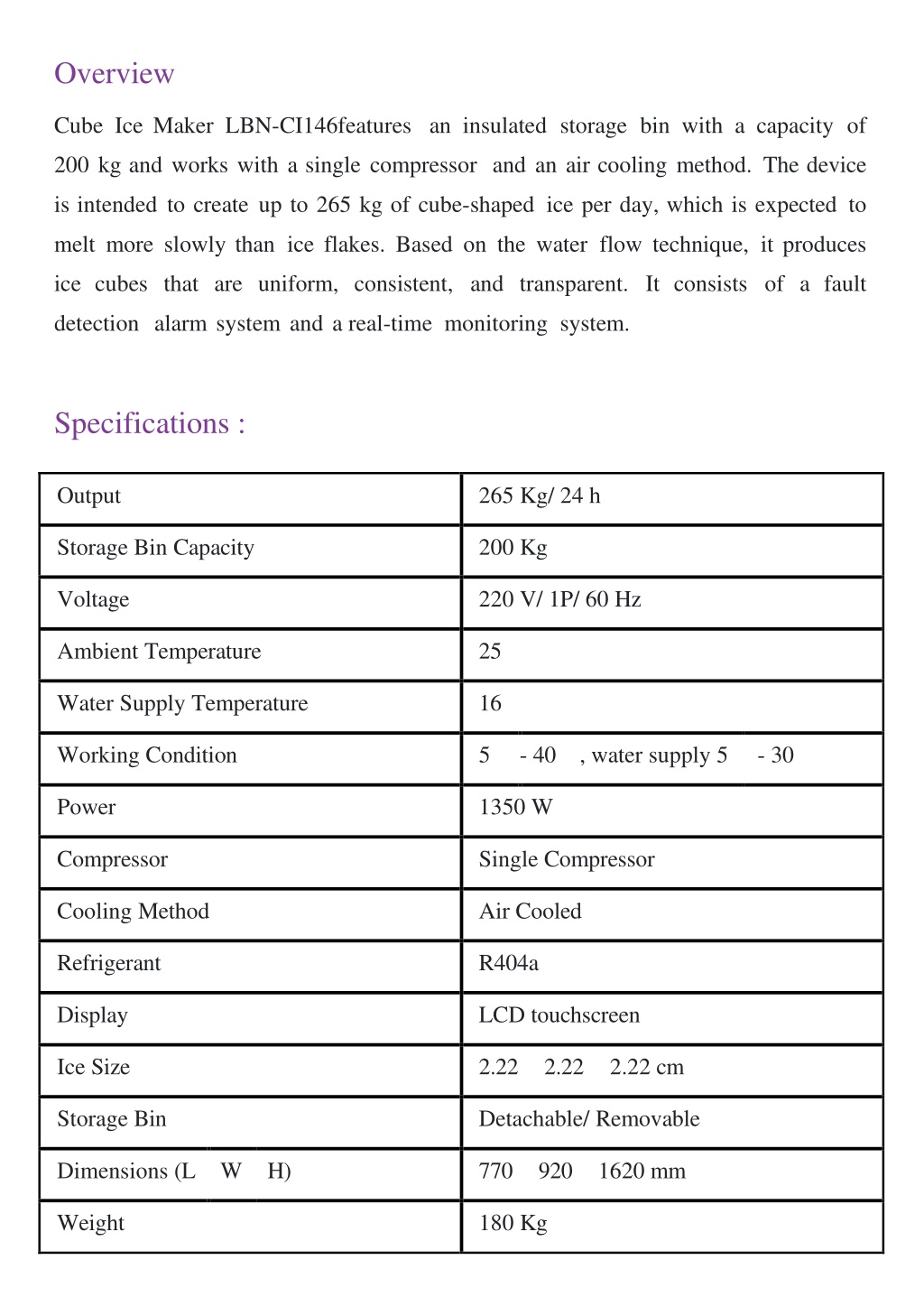

  2. Overview Cube Ice Maker LBN-CI146featuresan insulated storage bin with a capacity of 200 kg and works with a single compressorand an air cooling method. The device is intended to create up to 265 kg of cube-shaped ice per day, which is expected to melt more slowly than ice flakes. Based on the water flow technique, it produces ice cubes that are uniform, consistent, and transparent. It consists of a fault detectionalarm system and a real-time monitoring system. Specifications : Output 265 Kg/ 24 h Storage Bin Capacity 200 Kg Voltage 220 V/ 1P/ 60 Hz Ambient Temperature 25 Water Supply Temperature 16 Working Condition 5 - 40 , water supply 5 - 30 Power 1350 W Compressor Single Compressor Cooling Method Air Cooled Refrigerant R404a Display LCD touchscreen Ice Size 2.22 2.22 2.22 cm Storage Bin Detachable/ Removable Dimensions (L W H) 770 920 1620 mm Weight 180 Kg

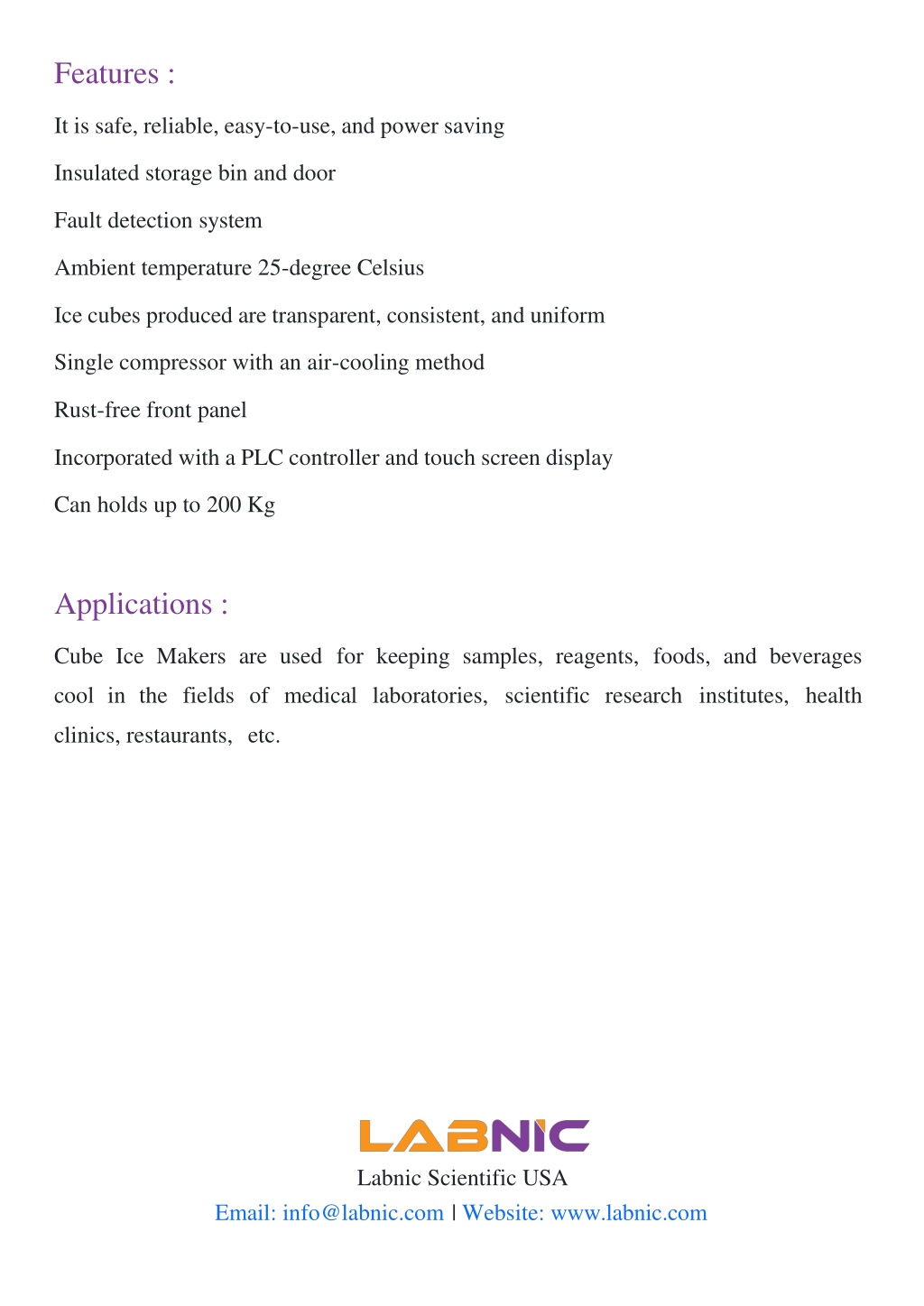

  3. Features : It is safe, reliable, easy-to-use, and power saving Insulated storage bin and door Fault detection system Ambient temperature 25-degree Celsius Ice cubes produced are transparent, consistent, and uniform Single compressor with an air-cooling method Rust-free front panel Incorporated with a PLC controller and touch screen display Can holds up to 200 Kg Applications : Cube Ice Makers are used for keeping samples, reagents, foods, and beverages cool in the fields of medical laboratories, scientific research institutes, health clinics, restaurants,etc. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
