1 / 4

Conductivity Meter ≤ 85 %

Labnic Conductivity Meter is a water-resistant device with a large LCD screen, measuring 0.00u201319.99 u00b5S/cm, TDS up to 100 g/L, salinity up to 100 ppt, and resistivity up to 100 Mu2126.cm. It features auto-temp compensation, auto-power off, <br>eight solution recognitions and 2 standard buffer series.

susanlabnic
Download Presentation

Conductivity Meter ≤ 85 %

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

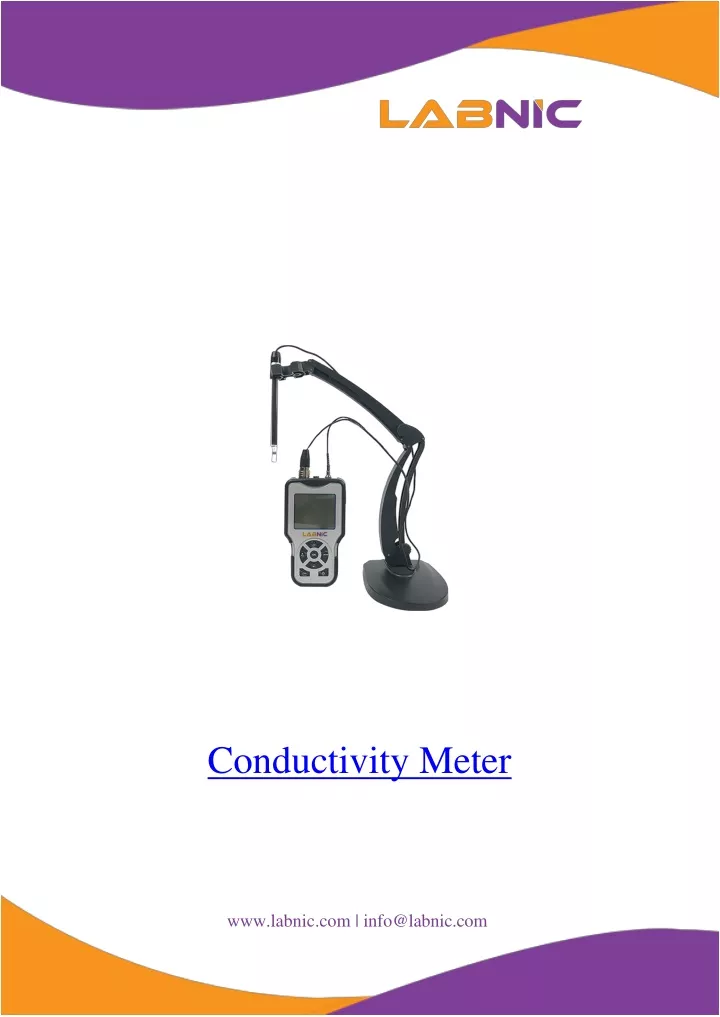

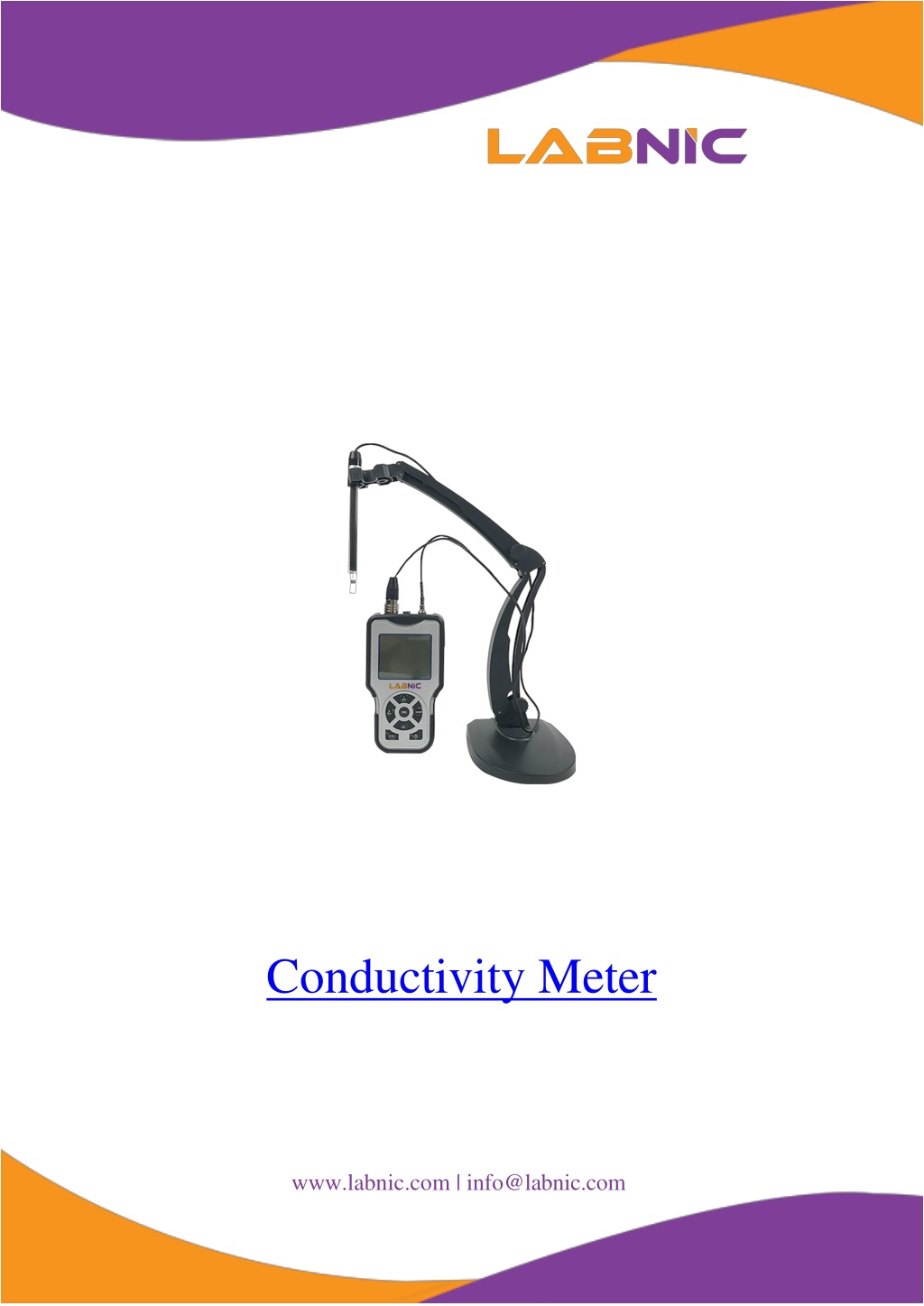

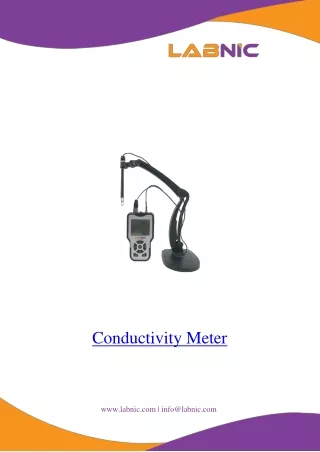

  1. Conductivity Meter www.labnic.com | info@labnic.com

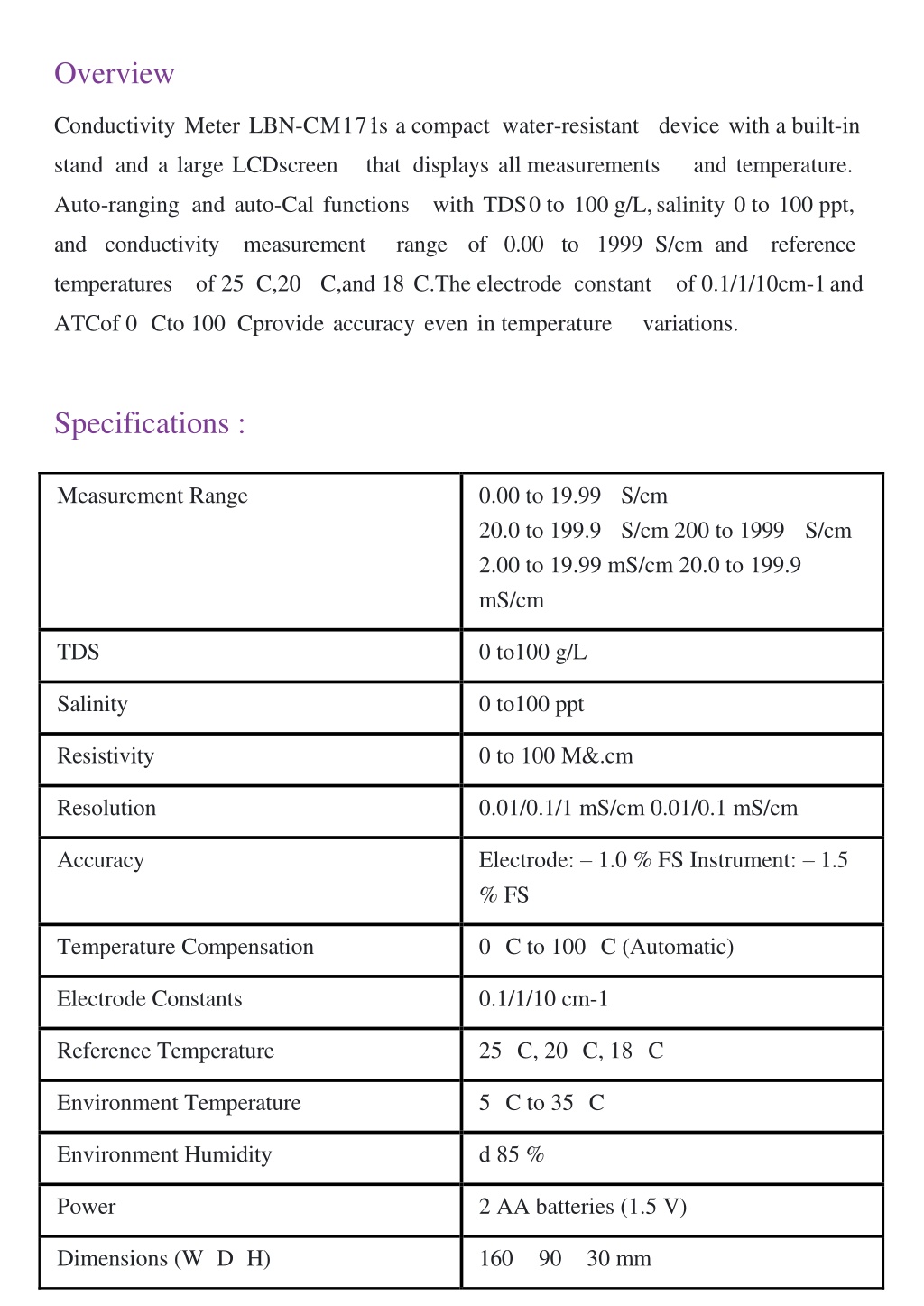

  2. Overview Conductivity Meter LBN-CM171 is a compact water-resistant device with a built-in stand and a large LCDscreen that displays all measurements and temperature. Auto-ranging and auto-Cal functions with TDS 0 to 100 g/L, salinity 0 to 100 ppt, and conductivity measurement range of 0.00 to 1999 S/cm and reference temperatures of 25 C,20 C,and 18 C.The electrode constant of 0.1/1/10cm-1 and ATCof 0 Cto 100 Cprovide accuracy even in temperature variations. Specifications : Measurement Range 0.00 to 19.99 S/cm 20.0 to 199.9 S/cm 200 to 1999 S/cm 2.00 to 19.99 mS/cm 20.0 to 199.9 mS/cm TDS 0 to100 g/L Salinity 0 to100 ppt Resistivity 0 to 100 M&.cm Resolution 0.01/0.1/1 mS/cm 0.01/0.1 mS/cm Accuracy Electrode: – 1.0 % FS Instrument: – 1.5 % FS Temperature Compensation 0 C to 100 C (Automatic) Electrode Constants 0.1/1/10 cm-1 Reference Temperature 25 C, 20 C, 18 C Environment Temperature 5 C to 35 C Environment Humidity d 85 % Power 2 AA batteries (1.5 V) Dimensions (WDH) 160 90 30 mm

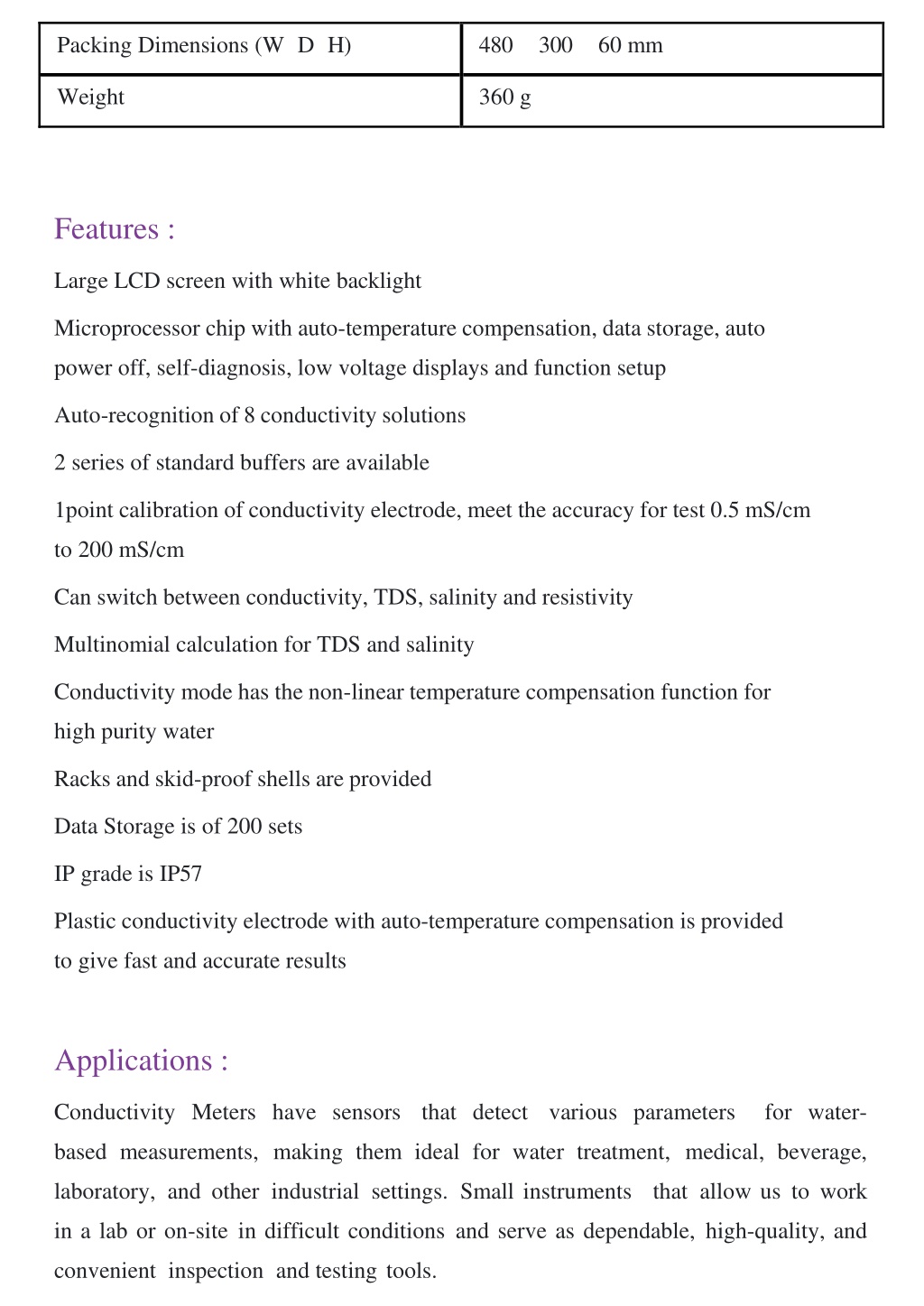

  3. Packing Dimensions (WDH) 480 300 60 mm Weight 360 g Features : Large LCD screen with white backlight Microprocessor chip with auto-temperature compensation, data storage, auto power off, self-diagnosis, low voltage displays and function setup Auto-recognition of 8 conductivity solutions 2 series of standard buffers are available 1point calibration of conductivity electrode, meet the accuracy for test 0.5 mS/cm to 200 mS/cm Can switch between conductivity, TDS, salinity and resistivity Multinomial calculation for TDS and salinity Conductivity mode has the non-linear temperature compensation function for high purity water Racks and skid-proof shells are provided Data Storage is of 200 sets IP grade is IP57 Plastic conductivity electrode with auto-temperature compensation is provided to give fast and accurate results Applications : Conductivity Meters have sensorsthat detectvarious parameters for water- based measurements, making them ideal for water treatment, medical, beverage, laboratory, and other industrial settings. Small instruments that allow us to work in a lab or on-site in difficult conditions and serve as dependable, high-quality, and convenient inspection and testing tools.

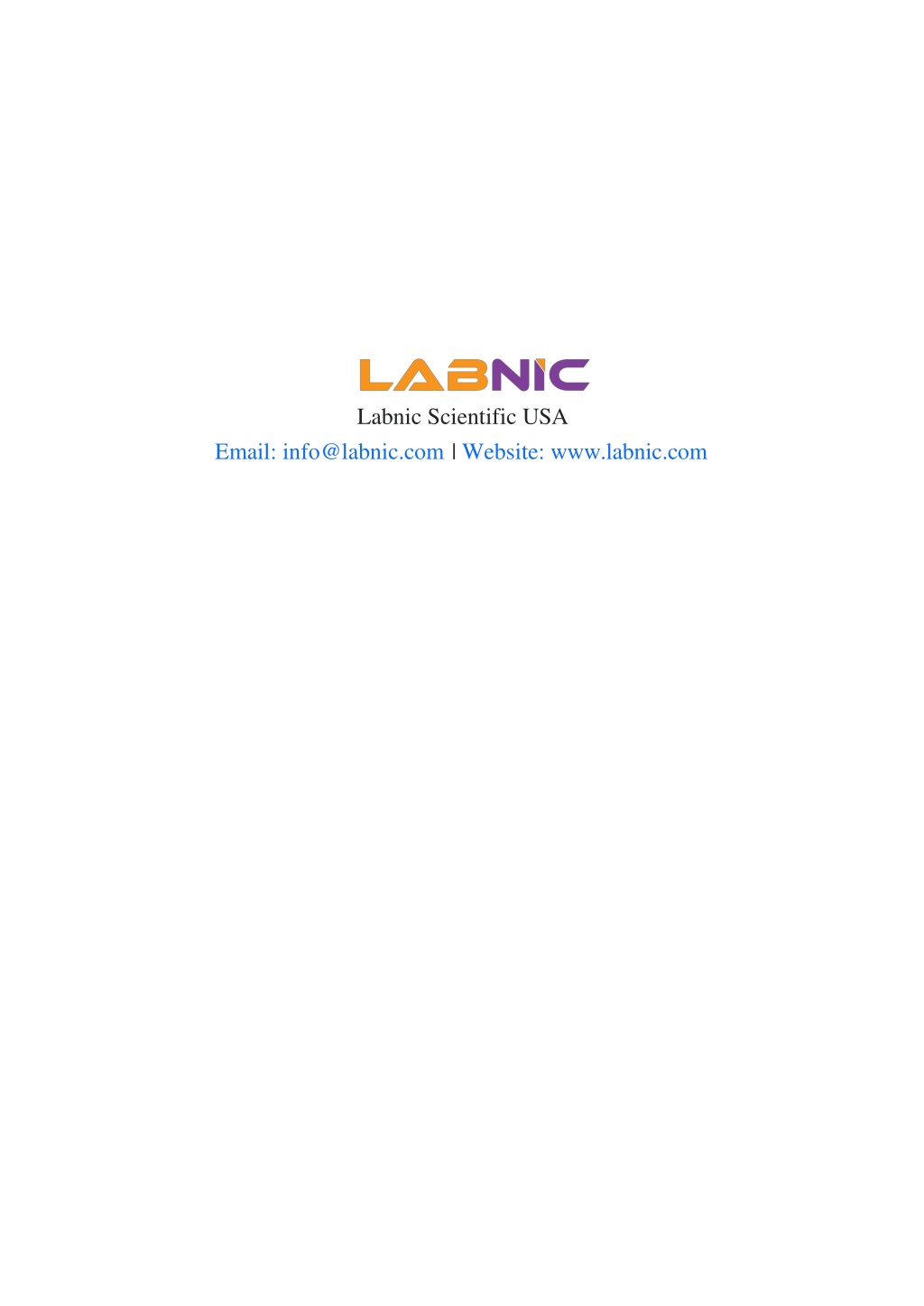

  4. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
