Conductivity Meter 0.1 °C

Labnic Conductivity Meter, a desktop instrument with a 7-inch high-resolution capacitive touch screen, offers a conductivity range of 0.00 S/cm to 200.0 mS/cm, 0 to 100 g/L TDS, and 0 to 100 Mu03a9u00b7cm resistivity, with automatic temperature <br>compensation (0u00b0C to 100u00b0C) and bilingual operation for precise measurements.

susanlabnic
Download Presentation

Conductivity Meter 0.1 °C

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

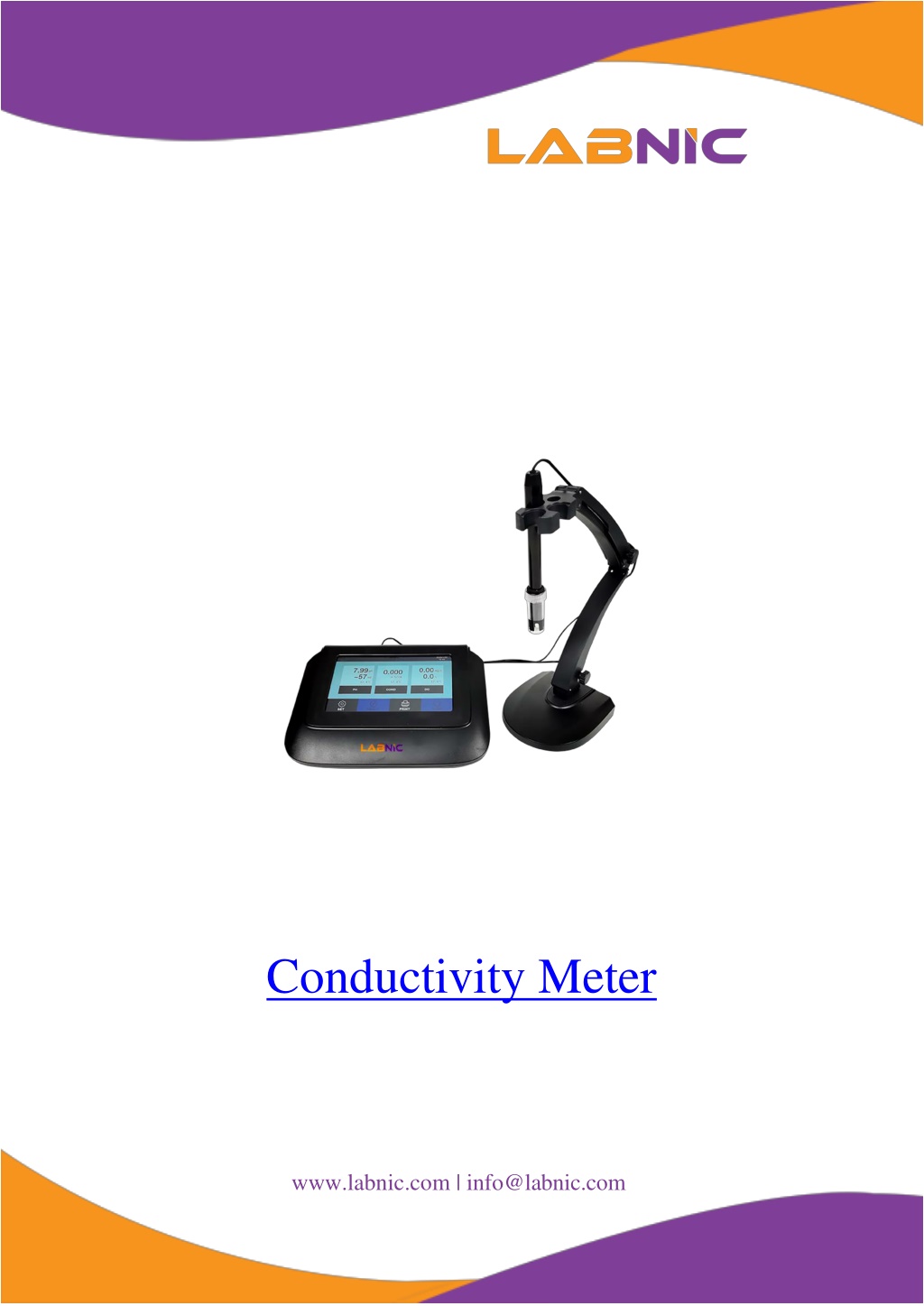

  1. Conductivity Meter www.labnic.com | info@labnic.com

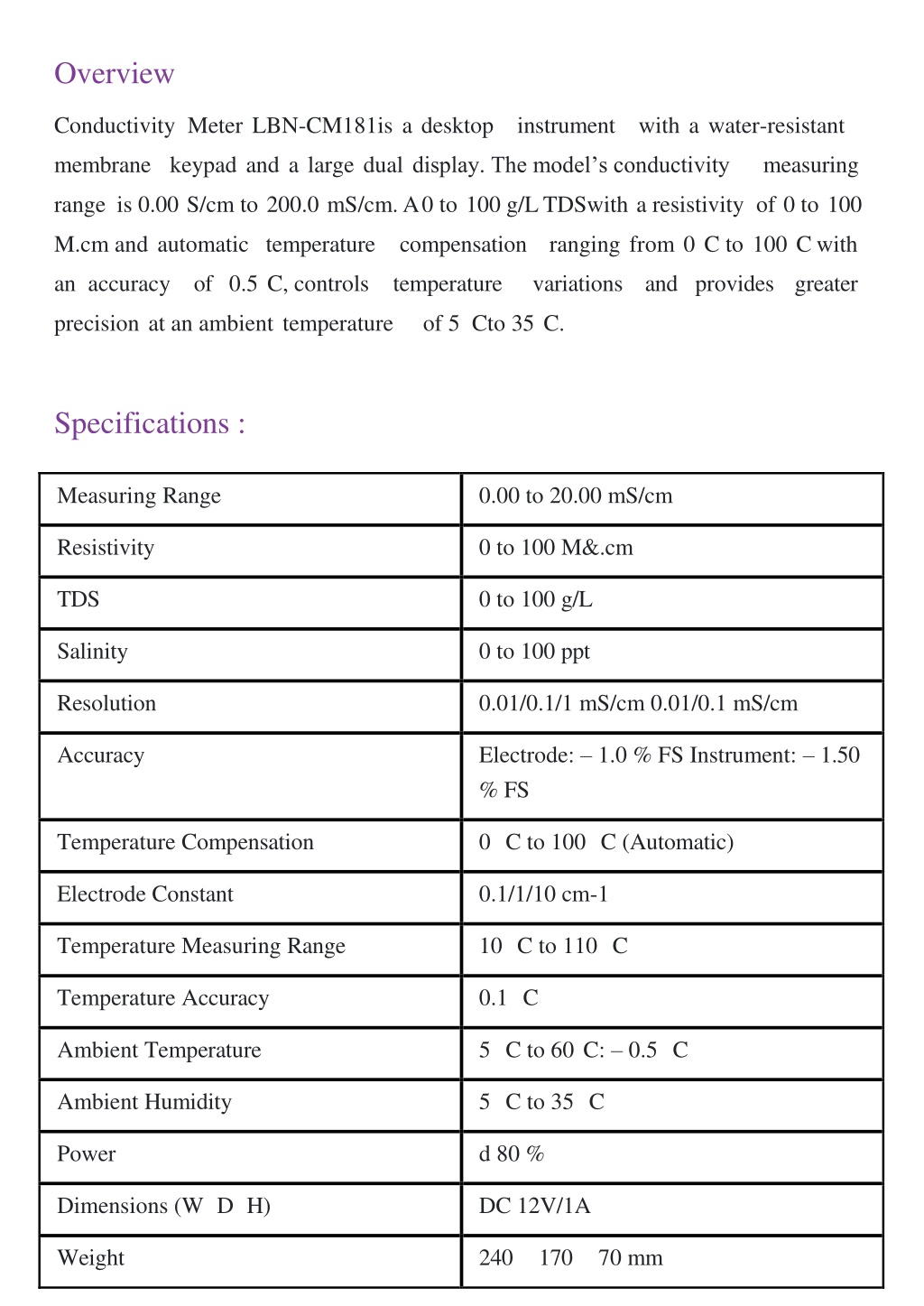

  2. Overview Conductivity Meter LBN-CM181is a desktop instrument with a water-resistant membrane keypad and a large dual display. The model’s conductivity measuring range is 0.00 S/cm to 200.0 mS/cm. A 0 to 100 g/L TDSwith a resistivity of 0 to 100 M.cm and automatic temperature compensation ranging from 0 C to 100 C with an accuracy of 0.5 C, controls temperature variations and provides greater precision at an ambient temperature of 5 Cto 35 C. Specifications : Measuring Range 0.00 to 20.00 mS/cm Resistivity 0 to 100 M&.cm TDS 0 to 100 g/L Salinity 0 to 100 ppt Resolution 0.01/0.1/1 mS/cm 0.01/0.1 mS/cm Accuracy Electrode: – 1.0 % FS Instrument: – 1.50 % FS Temperature Compensation 0 C to 100 C (Automatic) Electrode Constant 0.1/1/10 cm-1 Temperature Measuring Range 10 C to 110 C Temperature Accuracy 0.1 C Ambient Temperature 5 C to 60 C: – 0.5 C Ambient Humidity 5 C to 35 C Power d 80 % Dimensions (WDH) DC 12V/1A Weight 240 170 70 mm

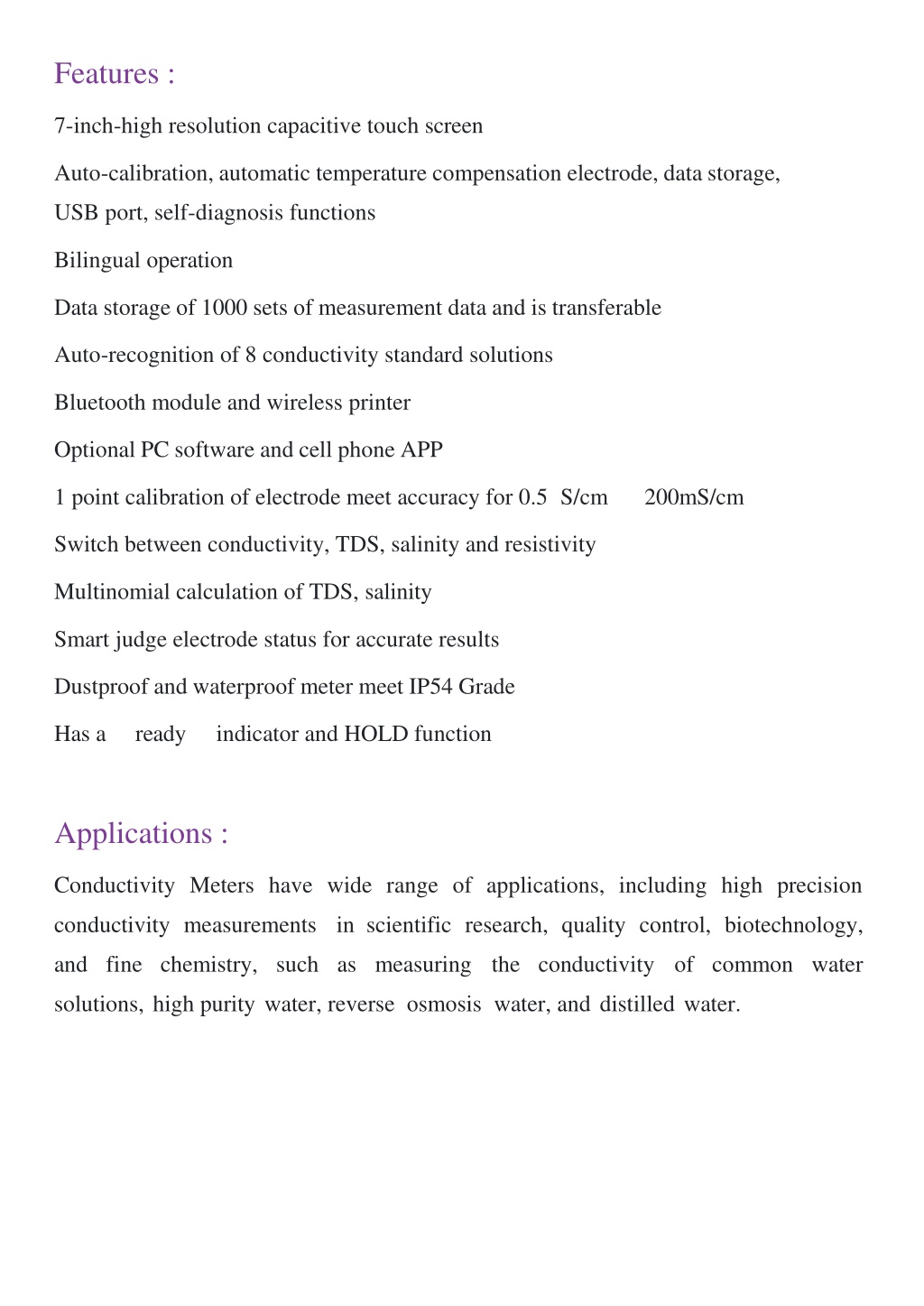

  3. Features : 7-inch-high resolution capacitive touch screen Auto-calibration, automatic temperature compensation electrode, data storage, USB port, self-diagnosis functions Bilingual operation Data storage of 1000 sets of measurement data and is transferable Auto-recognition of 8 conductivity standard solutions Bluetooth module and wireless printer Optional PC software and cell phone APP 1 point calibration of electrode meet accuracy for 0.5 S/cm 200mS/cm Switch between conductivity, TDS, salinity and resistivity Multinomial calculation of TDS, salinity Smart judge electrode status for accurate results Dustproof and waterproof meter meet IP54 Grade Has a ready indicator and HOLD function Applications : Conductivity Meters have wide range of applications, including high precision conductivity measurementsin scientific research, quality control, biotechnology, and fine chemistry, such as measuring the conductivity of common water solutions, high purity water, reverse osmosis water, and distilled water.

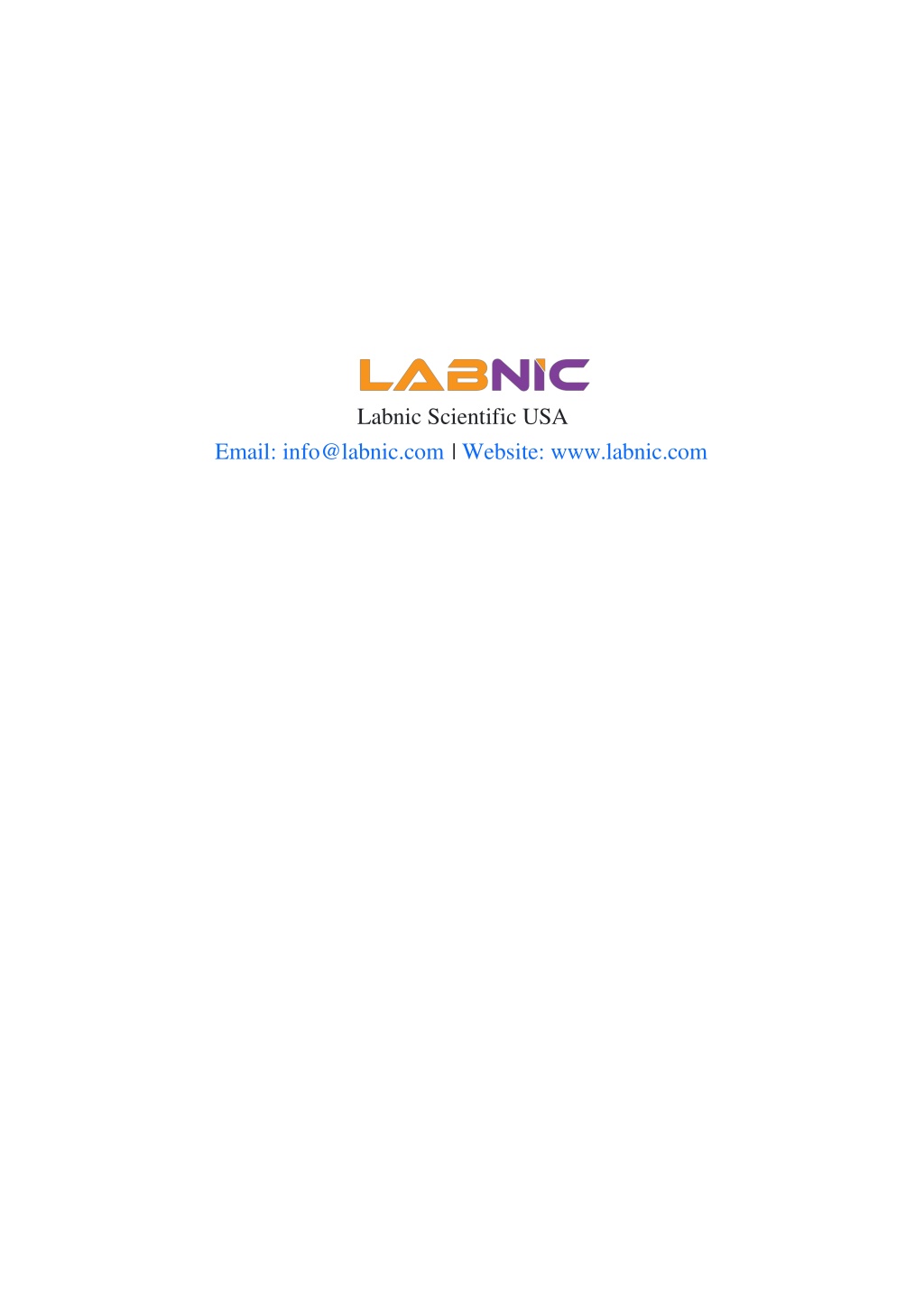

  4. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
