Colorimeter ɸ40 mm

Labnic Colorimeter, featuring D/8 optical geometry with a planar grating spectroscopic method, operates within a 400u2013700 nm wavelength range. It features dual 32-array sensors, a full-balanced LED light source, and a professional white board for precise, reliable color measurement and fast charging.

susanlabnic
Download Presentation

Colorimeter ɸ40 mm

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

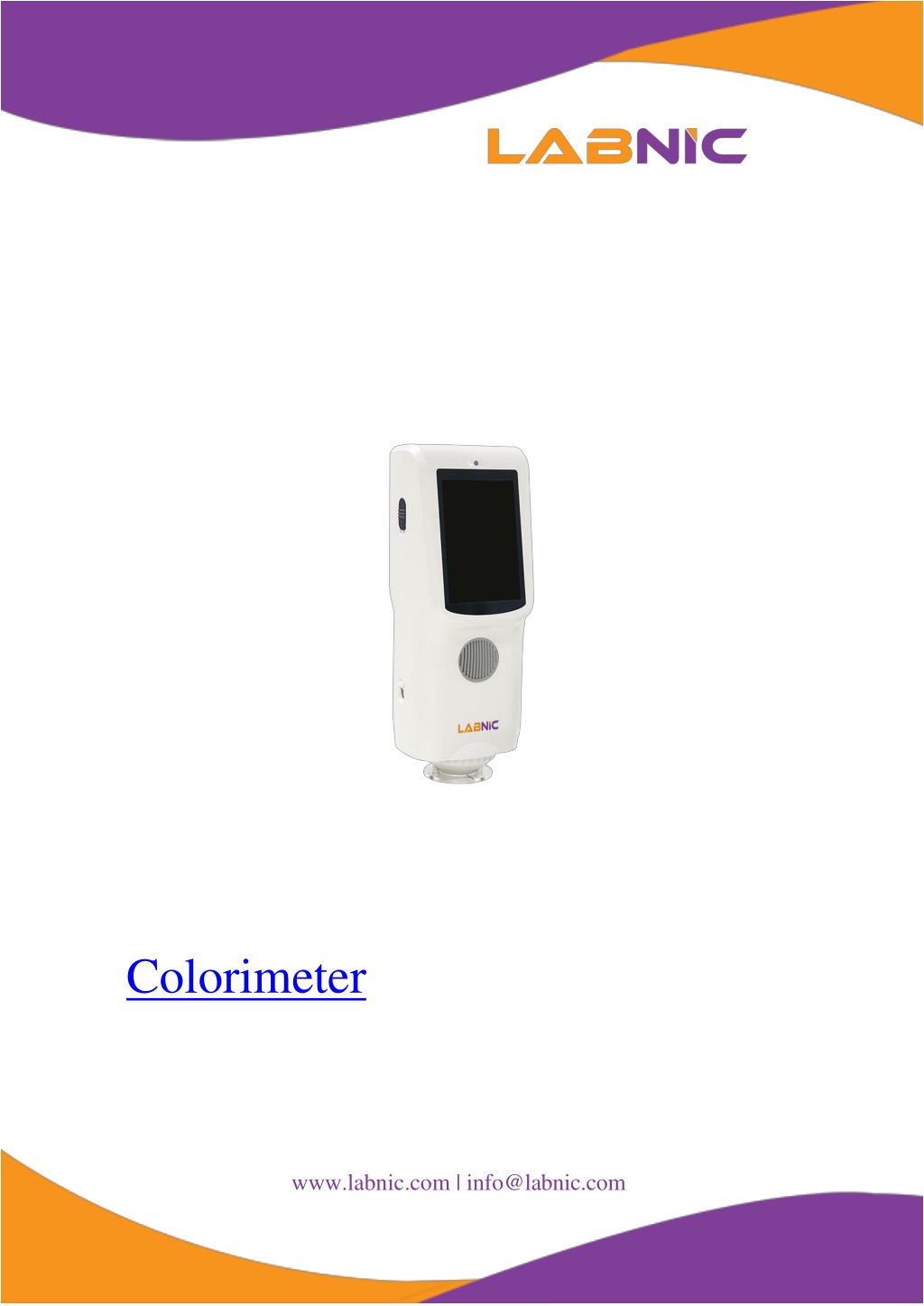

  1. Colorimeter www.labnic.com | info@labnic.com

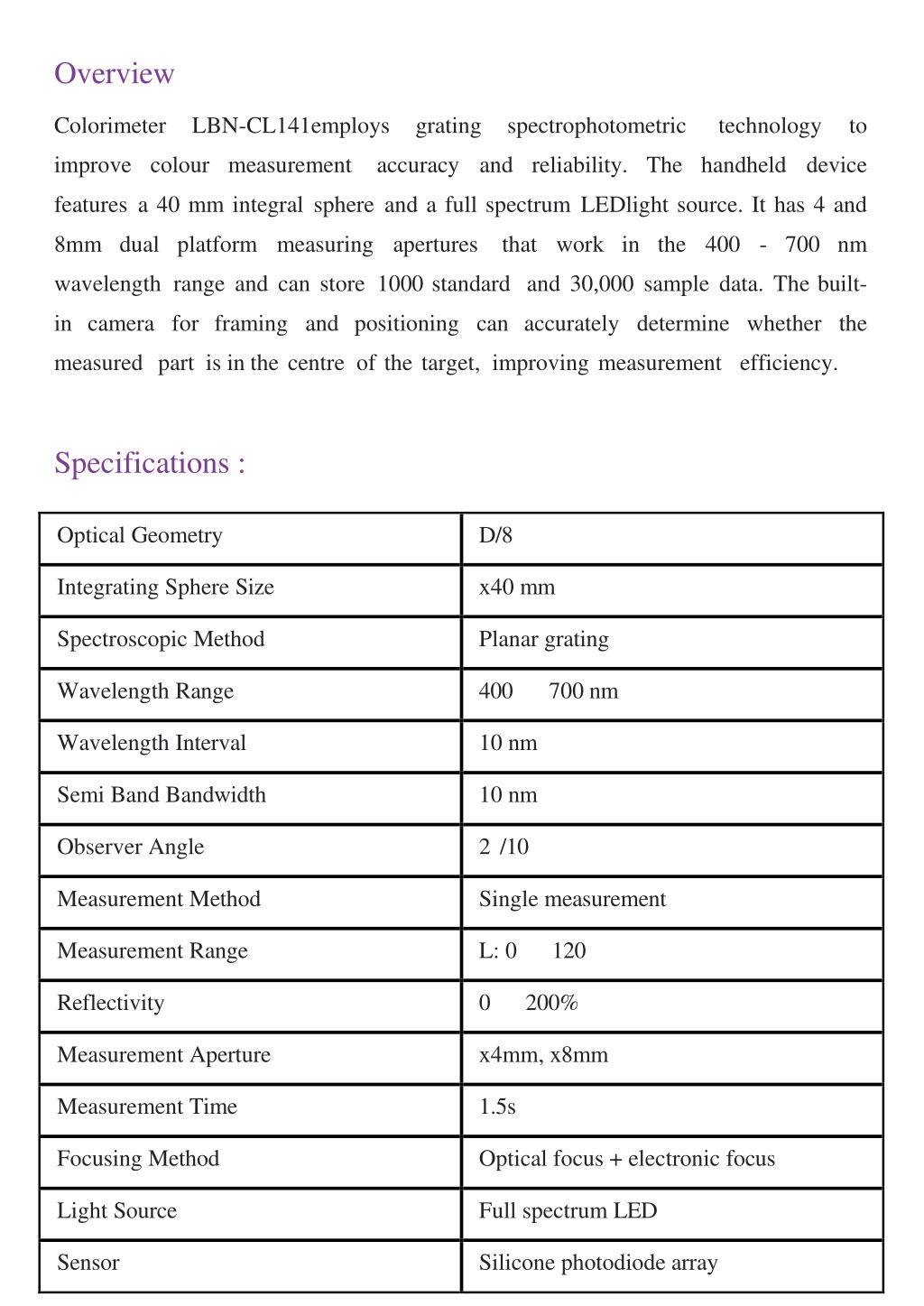

  2. Overview Colorimeter LBN-CL141employs grating spectrophotometric technology to improve colour measurementaccuracy and reliability. The handheld device features a 40 mm integral sphere and a full spectrum LEDlight source. It has 4 and 8mm dual platform measuring aperturesthat work in the 400 - 700 nm wavelength range and can store 1000 standardand 30,000 sample data. The built- in camera for framing and positioning can accurately determine whether the measuredpart is in the centre of the target, improving measurement efficiency. Specifications : Optical Geometry D/8 Integrating Sphere Size x40 mm Spectroscopic Method Planar grating Wavelength Range 400 700 nm Wavelength Interval 10 nm Semi Band Bandwidth 10 nm Observer Angle 2 /10 Measurement Method Single measurement Measurement Range L: 0 120 Reflectivity 0 200% Measurement Aperture x4mm, x8mm Measurement Time 1.5s Focusing Method Optical focus + electronic focus Light Source Full spectrum LED Sensor Silicone photodiode array

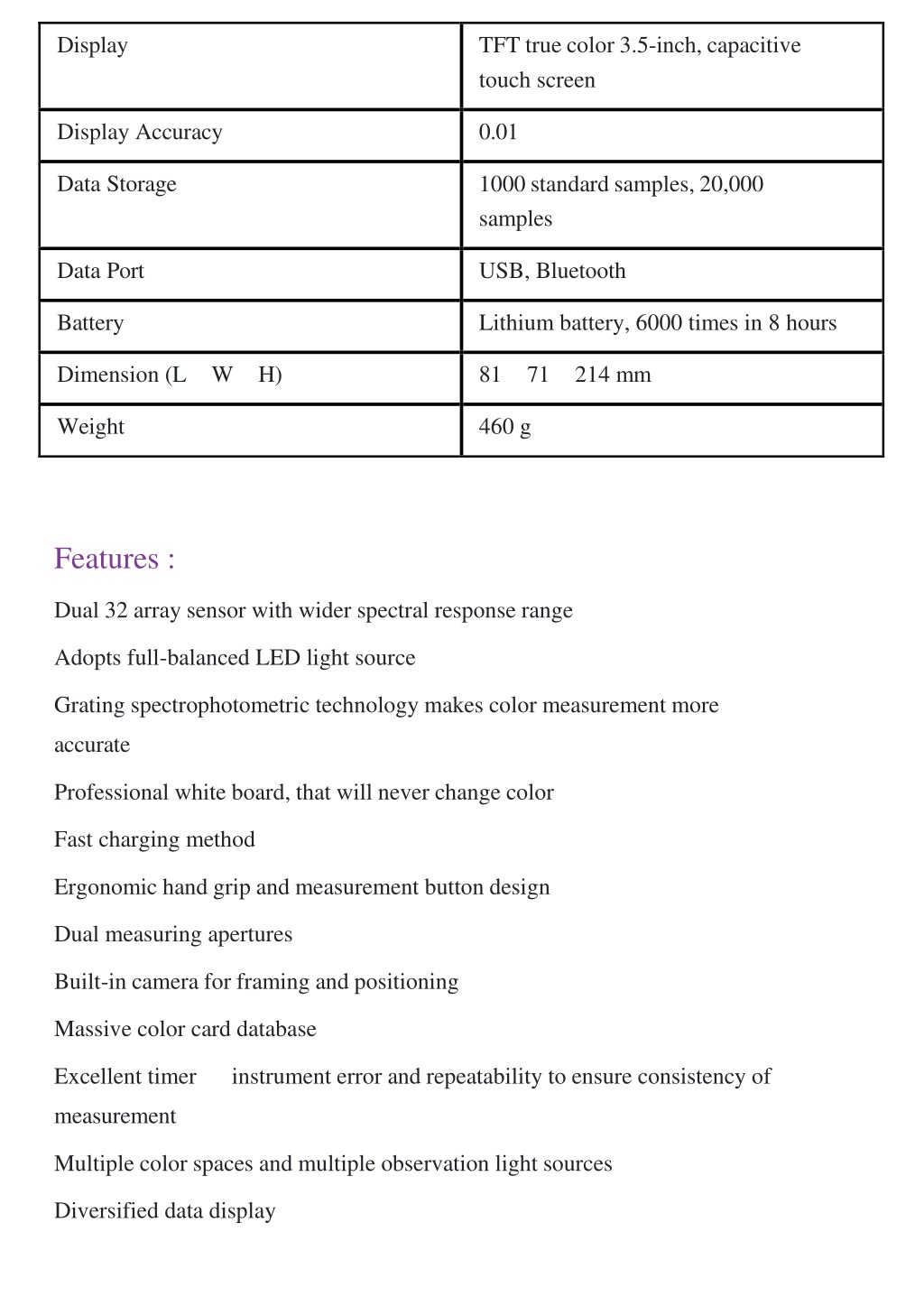

  3. Display TFT true color 3.5-inch, capacitive touch screen Display Accuracy 0.01 Data Storage 1000 standard samples, 20,000 samples Data Port USB, Bluetooth Battery Lithium battery, 6000 times in 8 hours Dimension (L W H) 81 71 214 mm Weight 460 g Features : Dual 32 array sensor with wider spectral response range Adopts full-balanced LED light source Grating spectrophotometric technology makes color measurement more accurate Professional white board, that will never change color Fast charging method Ergonomic hand grip and measurement button design Dual measuring apertures Built-in camera for framing and positioning Massive color card database Excellent timer instrument error and repeatability to ensure consistency of measurement Multiple color spaces and multiple observation light sources Diversified data display

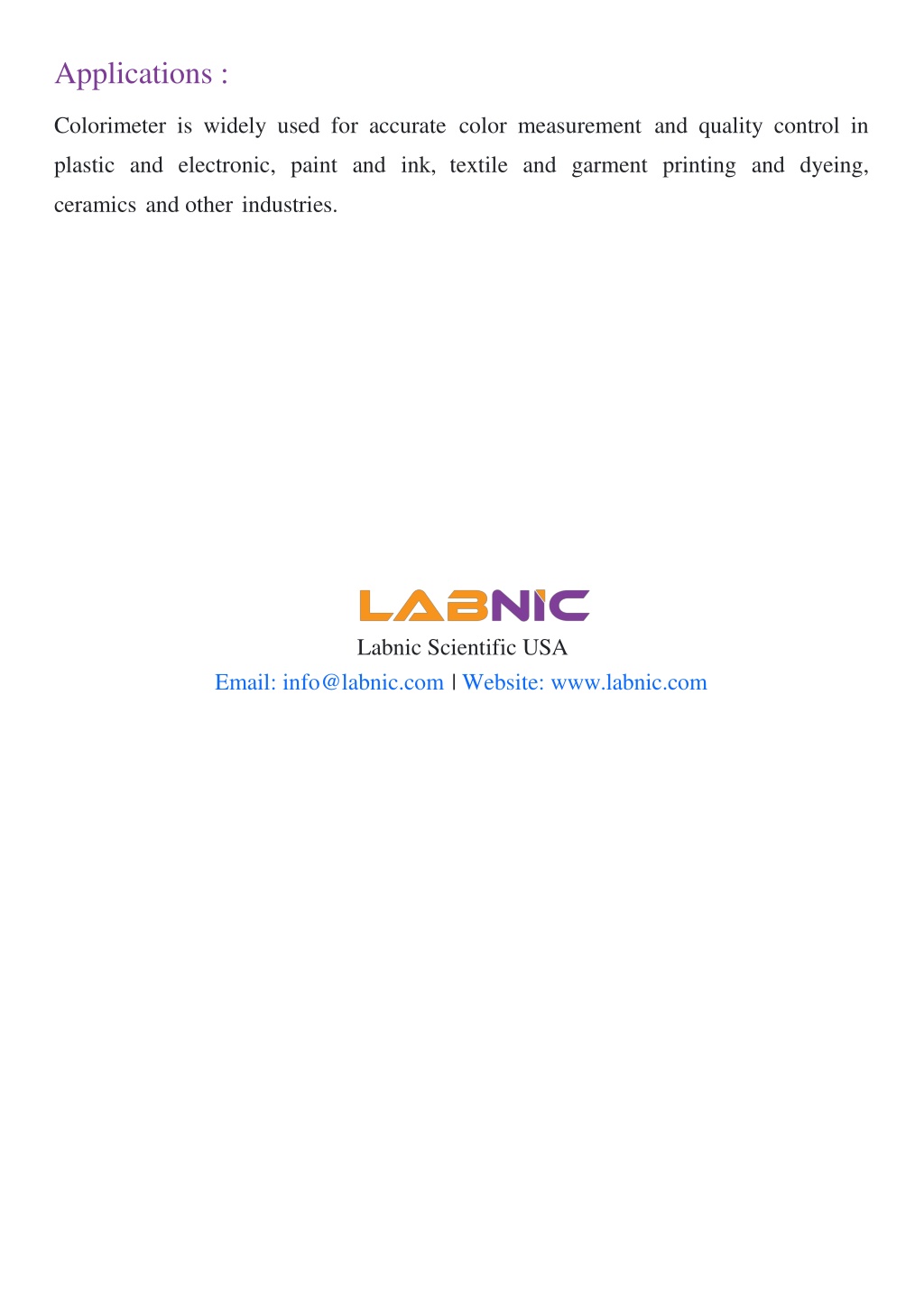

  4. Applications : Colorimeter is widely used for accurate color measurement and quality control in plastic and electronic, paint and ink, textile and garment printing and dyeing, ceramics and other industries. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
