Automated Immunoassay Analyzer LBN-IA171

Labnic Automated Immunoassay Analyzer processes 10 to 200 microliters with a 180 tests per hour throughput. It supports 25 reagent pieces at 2 to 8 degrees Celsius, offers 58 degrees Celsius incubation, and has a correlation coefficient of greater than or equal to 0.99. Features forced air-cooling reagent tray.

susanlabnic
Download Presentation

Automated Immunoassay Analyzer LBN-IA171

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

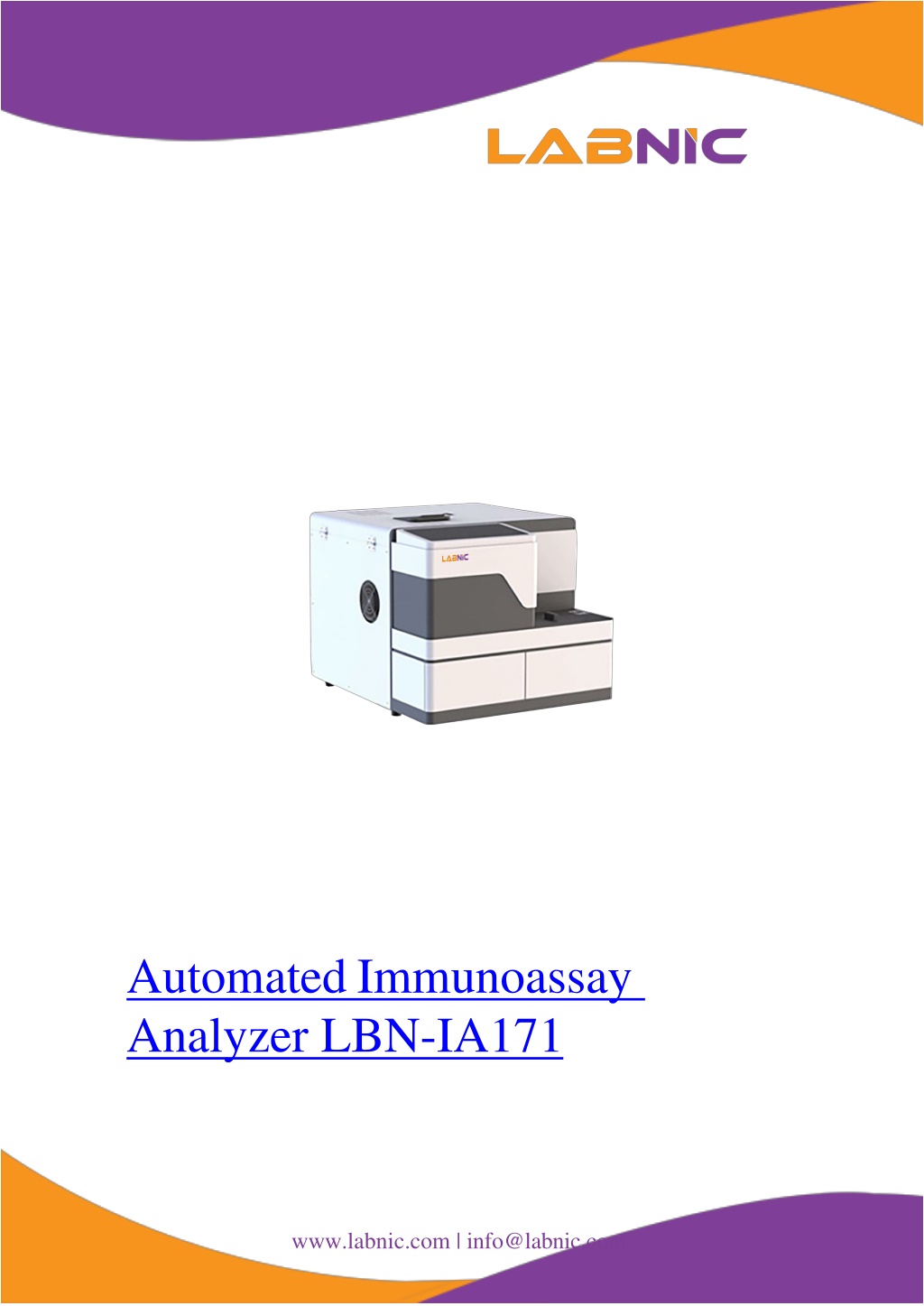

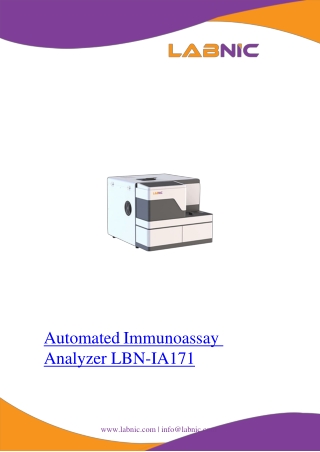

  1. Automated Immunoassay Analyzer LBN-IA171 www.labnic.com | info@labnic.com

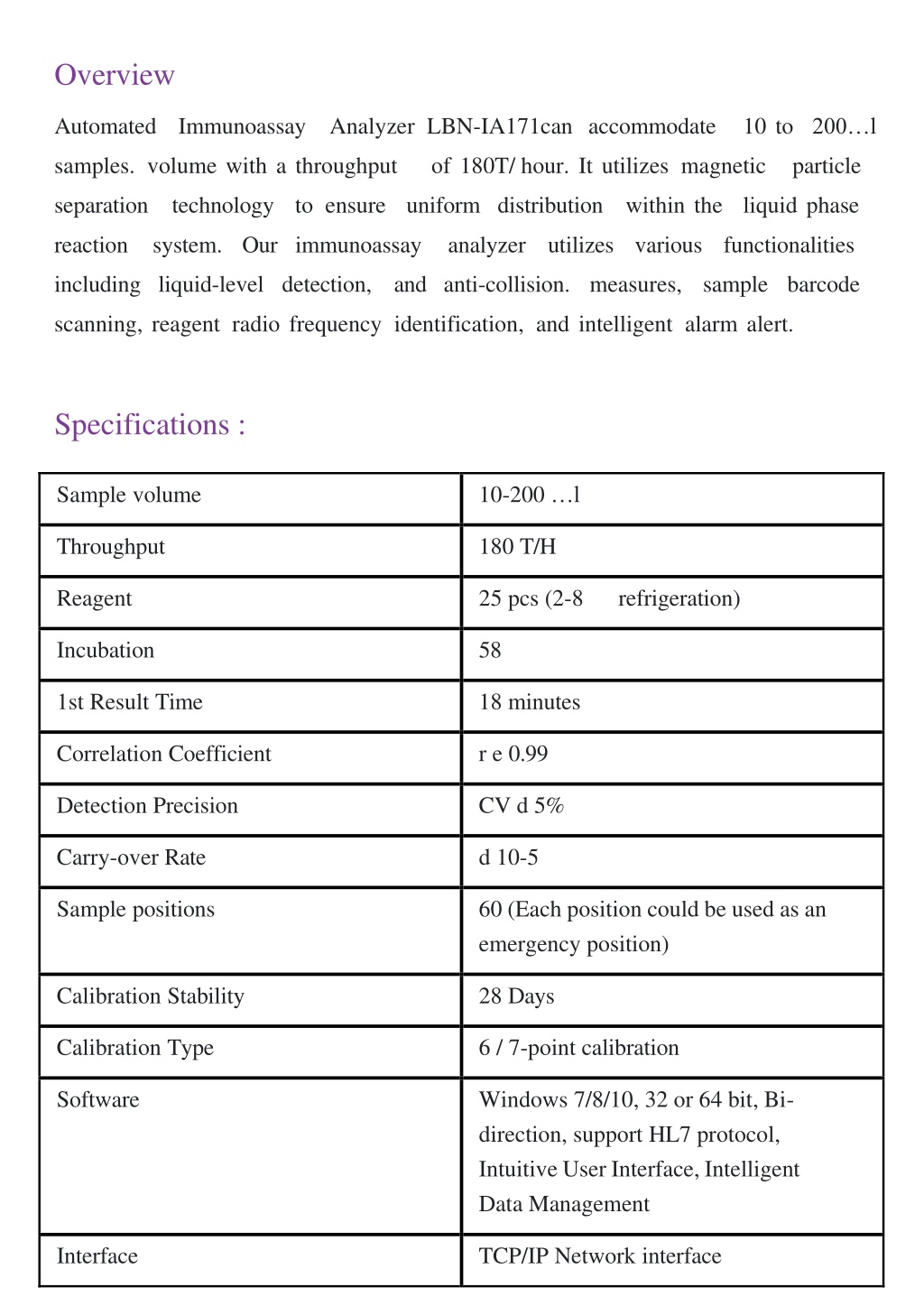

  2. Overview Automated Immunoassay Analyzer LBN-IA171can accommodate 10 to 200…l samples. volume with a throughput of 180T/ hour. It utilizes magnetic particle separation technology to ensure uniform distribution within the liquid phase reaction system. Our immunoassay analyzer utilizes various functionalities including liquid-level detection, and anti-collision. measures, sample barcode scanning, reagent radio frequency identification, and intelligent alarm alert. Specifications : Sample volume 10-200 …l Throughput 180 T/H Reagent 25 pcs (2-8 refrigeration) Incubation 58 1st Result Time 18 minutes Correlation Coefficient r e 0.99 Detection Precision CV d 5% Carry-over Rate d 10-5 Sample positions 60 (Each position could be used as an emergency position) Calibration Stability 28 Days Calibration Type 6 / 7-point calibration Software Windows 7/8/10, 32 or 64 bit, Bi- direction, support HL7 protocol, Intuitive User Interface, Intelligent Data Management Interface TCP/IP Network interface

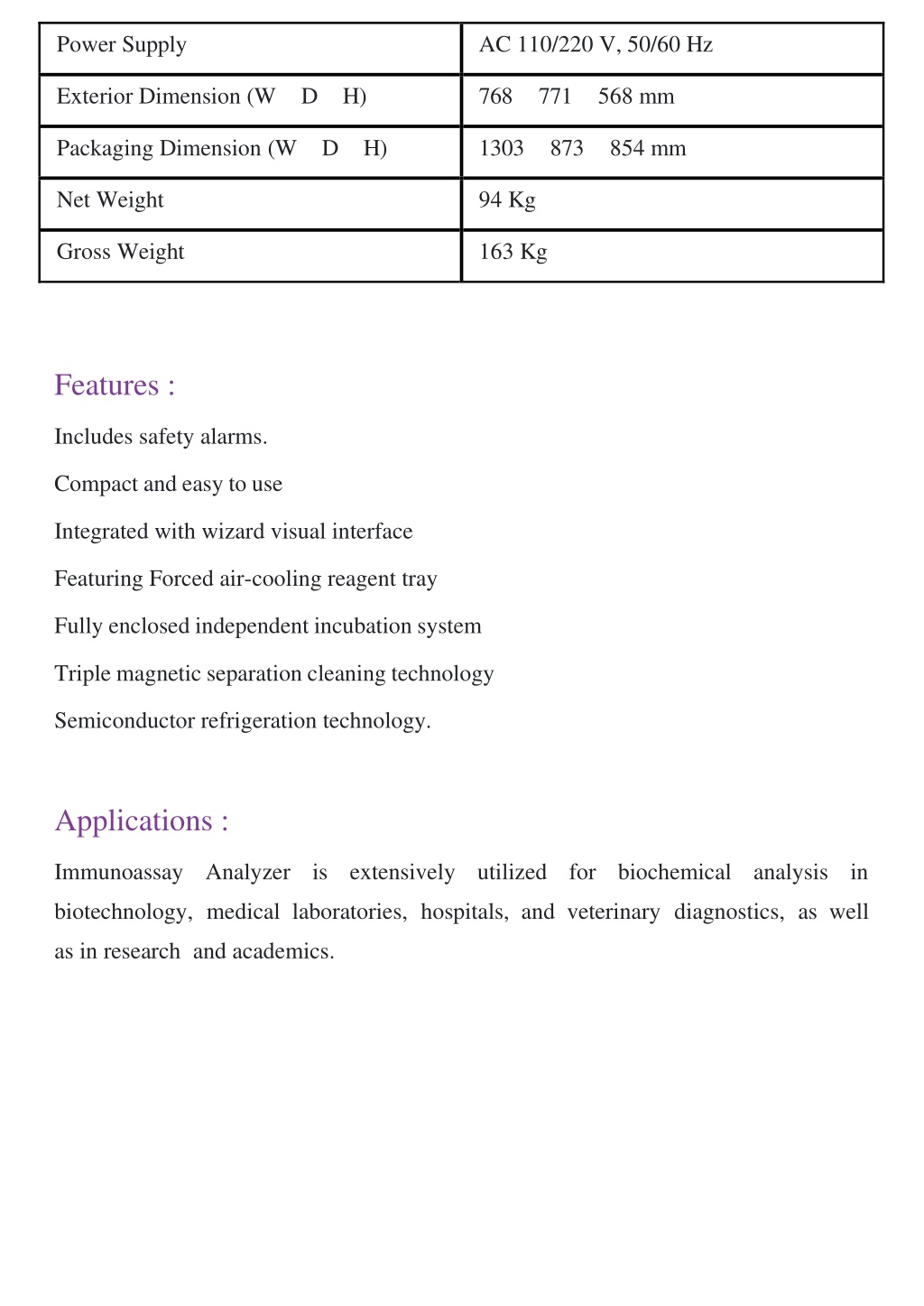

  3. Power Supply AC 110/220 V, 50/60 Hz Exterior Dimension (W D H) 768 771 568 mm Packaging Dimension (W D H) 1303 873 854 mm Net Weight 94 Kg Gross Weight 163 Kg Features : Includes safety alarms. Compact and easy to use Integrated with wizard visual interface Featuring Forced air-cooling reagent tray Fully enclosed independent incubation system Triple magnetic separation cleaning technology Semiconductor refrigeration technology. Applications : Immunoassay Analyzer is extensively utilized for biochemical analysis in biotechnology, medical laboratories, hospitals, and veterinary diagnostics, as well as in research and academics.

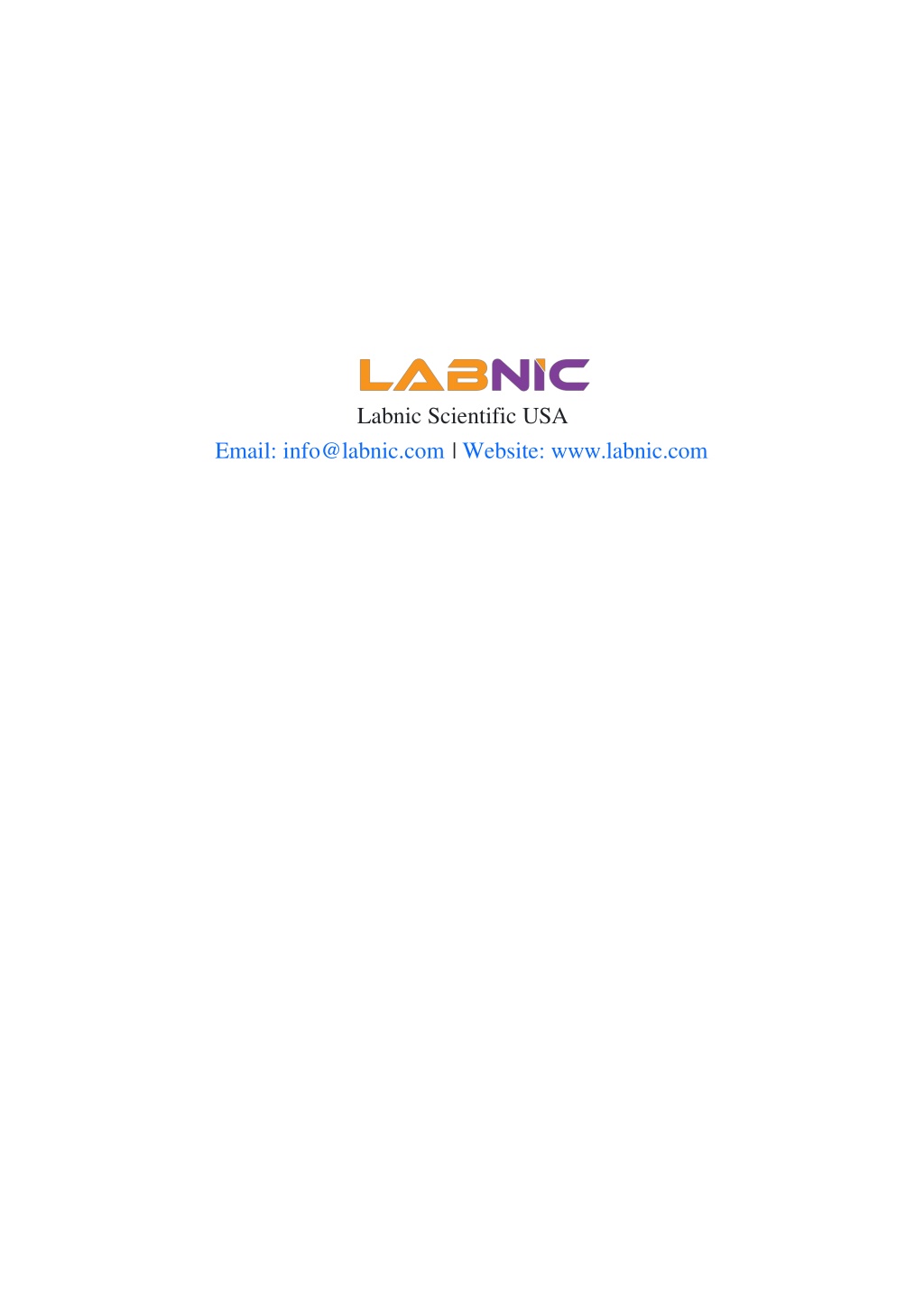

  4. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
