Smart Soil NPK Sensor - SunBio IT Solutions

The Soil NPK Sensor is a state-of-the-art device designed for real-time monitoring of soil nutrientsu2014Nitrogen (N), Phosphorus (P), and Potassium (K). This sensor provides accurate, instantaneous data crucial for optimizing soil health and crop yield. Engineered for durability and precision, it integrates seamlessly with IoT platforms, enabling farmers and researchers to make informed, timely decisions for sustainable agriculture.

sunbio_it_solutions
Download Presentation

Smart Soil NPK Sensor - SunBio IT Solutions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

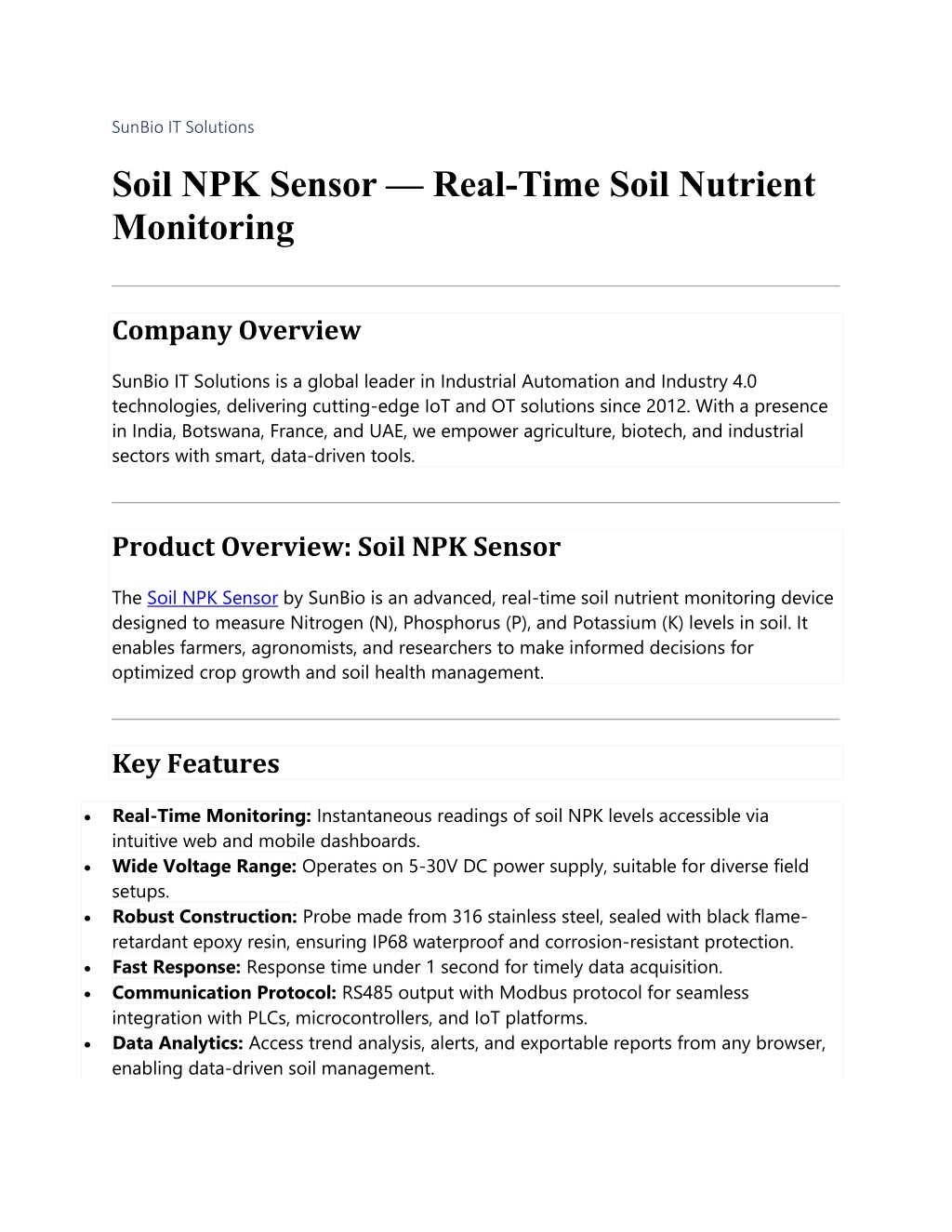

  1. SunBio IT Solutions Soil NPK Sensor — Real-Time Soil Nutrient Monitoring Company Overview SunBio IT Solutions is a global leader in Industrial Automation and Industry 4.0 technologies, delivering cutting-edge IoT and OT solutions since 2012. With a presence in India, Botswana, France, and UAE, we empower agriculture, biotech, and industrial sectors with smart, data-driven tools. Product Overview: Soil NPK Sensor The Soil NPK Sensor by SunBio is an advanced, real-time soil nutrient monitoring device designed to measure Nitrogen (N), Phosphorus (P), and Potassium (K) levels in soil. It enables farmers, agronomists, and researchers to make informed decisions for optimized crop growth and soil health management. Key Features Real-Time Monitoring: Instantaneous readings of soil NPK levels accessible via intuitive web and mobile dashboards. Wide Voltage Range: Operates on 5-30V DC power supply, suitable for diverse field setups. Robust Construction: Probe made from 316 stainless steel, sealed with black flame- retardant epoxy resin, ensuring IP68 waterproof and corrosion-resistant protection. Fast Response: Response time under 1 second for timely data acquisition. Communication Protocol: RS485 output with Modbus protocol for seamless integration with PLCs, microcontrollers, and IoT platforms. Data Analytics: Access trend analysis, alerts, and exportable reports from any browser, enabling data-driven soil management. • • • • • •

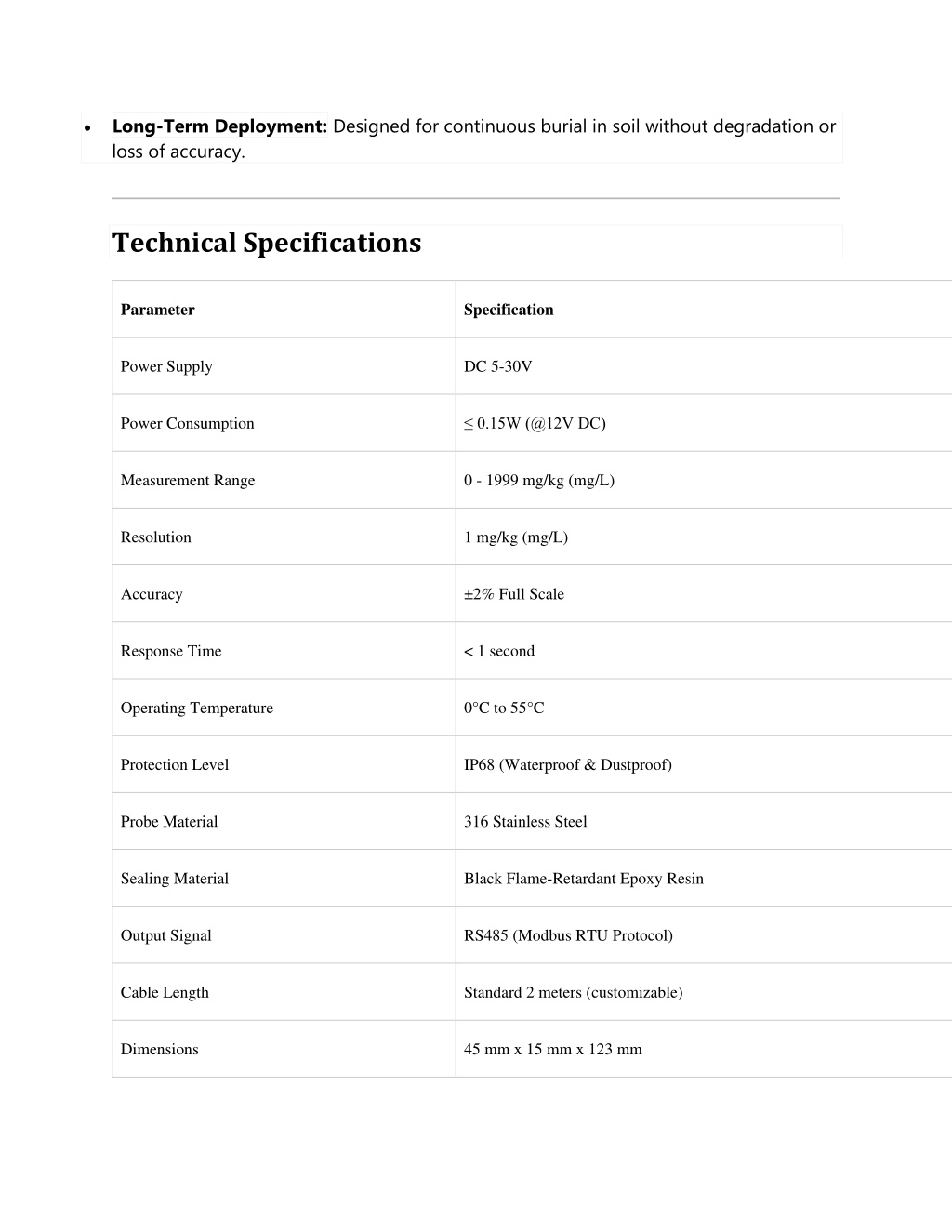

  2. Long-Term Deployment: Designed for continuous burial in soil without degradation or loss of accuracy. • Technical Specifications Parameter Specification Power Supply DC 5-30V Power Consumption ≤ 0.15W (@12V DC) Measurement Range 0 - 1999 mg/kg (mg/L) Resolution 1 mg/kg (mg/L) Accuracy ±2% Full Scale Response Time < 1 second Operating Temperature 0°C to 55°C Protection Level IP68 (Waterproof & Dustproof) Probe Material 316 Stainless Steel Sealing Material Black Flame-Retardant Epoxy Resin Output Signal RS485 (Modbus RTU Protocol) Cable Length Standard 2 meters (customizable) Dimensions 45 mm x 15 mm x 123 mm

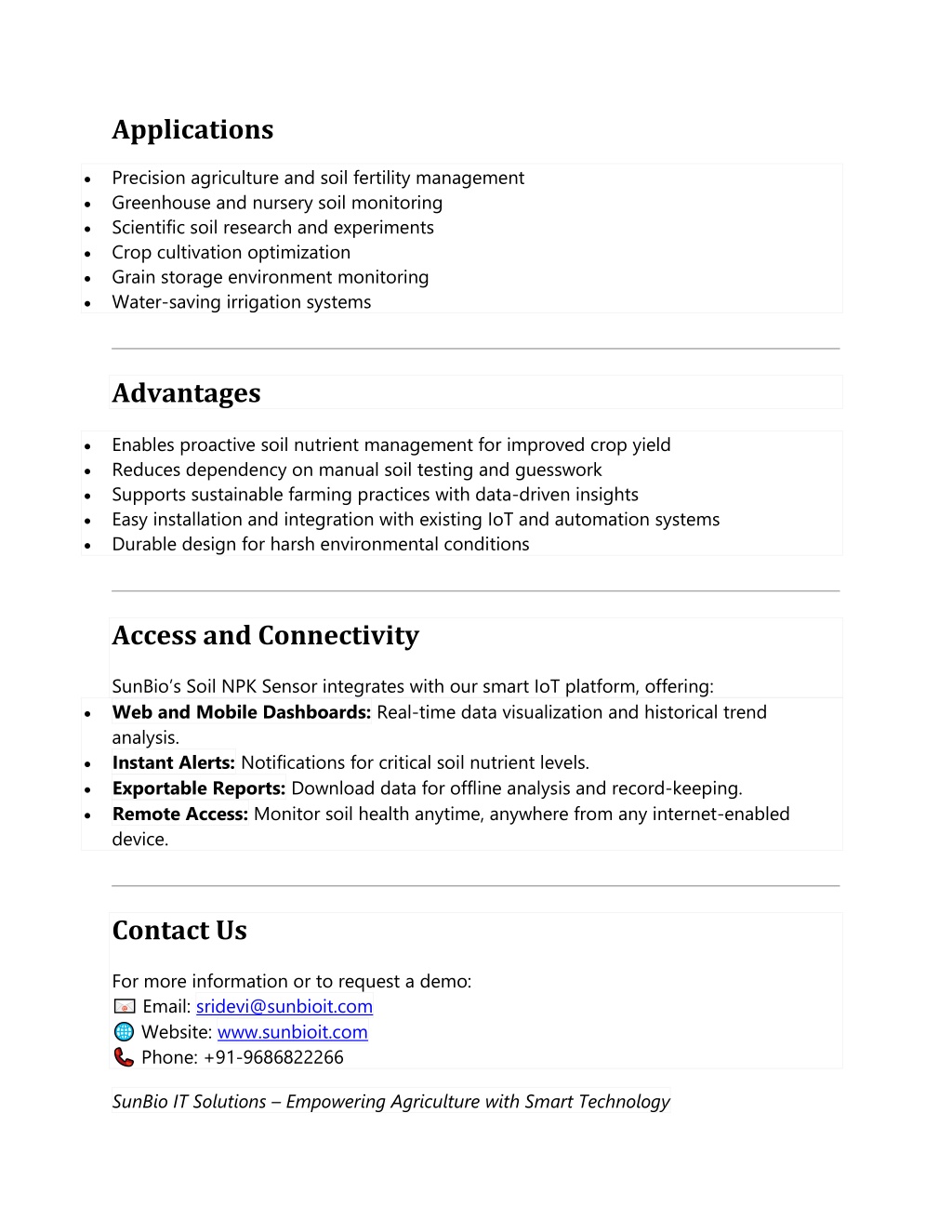

  3. Applications •Precision agriculture and soil fertility management •Greenhouse and nursery soil monitoring •Scientific soil research and experiments •Crop cultivation optimization •Grain storage environment monitoring •Water-saving irrigation systems Advantages •Enables proactive soil nutrient management for improved crop yield •Reduces dependency on manual soil testing and guesswork •Supports sustainable farming practices with data-driven insights •Easy installation and integration with existing IoT and automation systems •Durable design for harsh environmental conditions Access and Connectivity SunBio’s Soil NPK Sensor integrates with our smart IoT platform, offering: Web and Mobile Dashboards: Real-time data visualization and historical trend analysis. Instant Alerts: Notifications for critical soil nutrient levels. Exportable Reports: Download data for offline analysis and record-keeping. Remote Access: Monitor soil health anytime, anywhere from any internet-enabled device. • • • • Contact Us For more information or to request a demo: Email: sridevi@sunbioit.com Website: www.sunbioit.com Phone: +91-9686822266 SunBio IT Solutions – Empowering Agriculture with Smart Technology
