COMP211 Computer Logic Design. Lecture 1. Number Systems. Prof. Taeweon Suh Computer Science Education Korea University. A Desktop Computer System ( as of 2008). The term “Processor” is used to refer to CPU. CPU. Main Memory (DDR2). FSB (Front-Side Bus). North Bridge. Graphics card.

Download Presentation

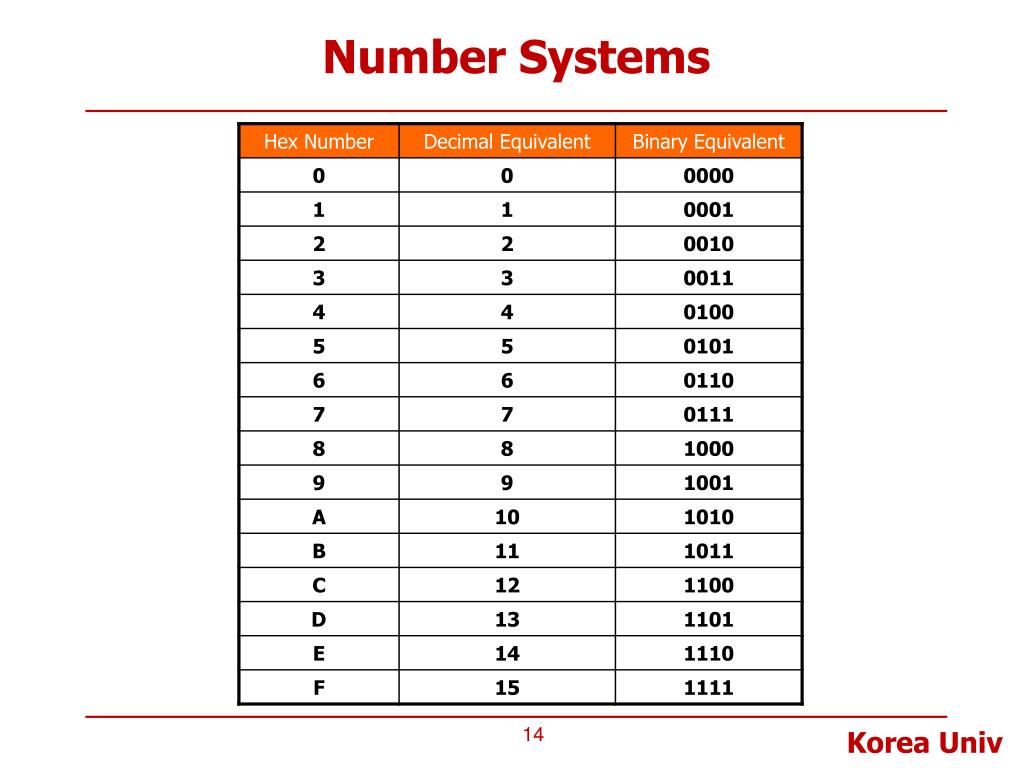

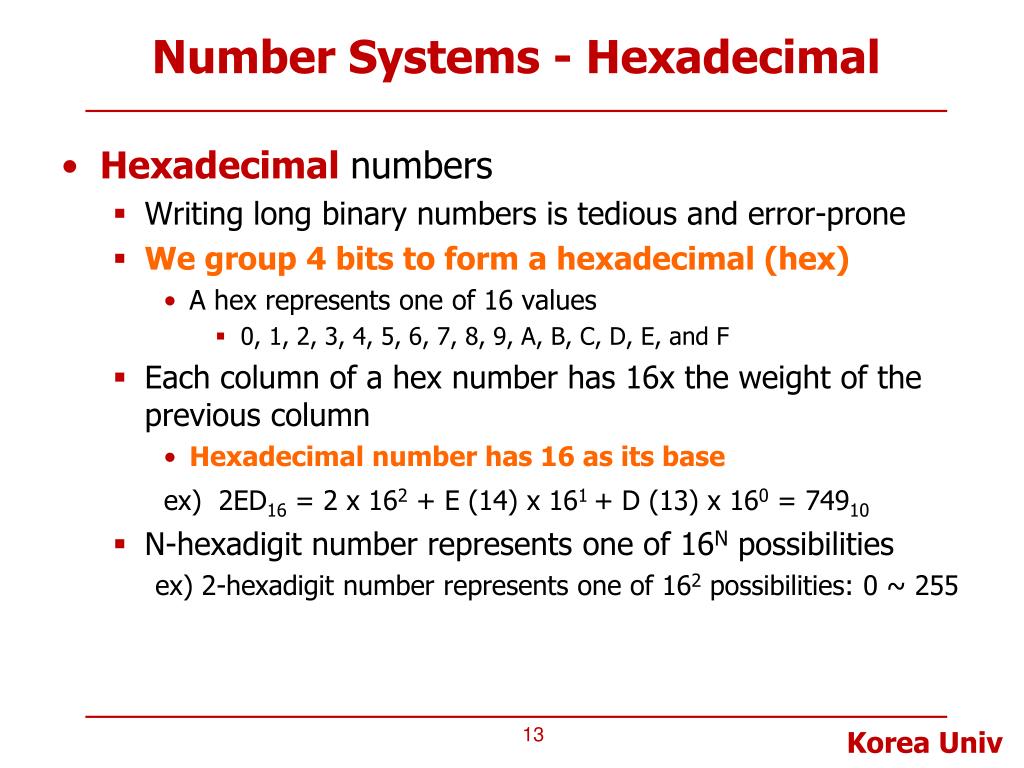

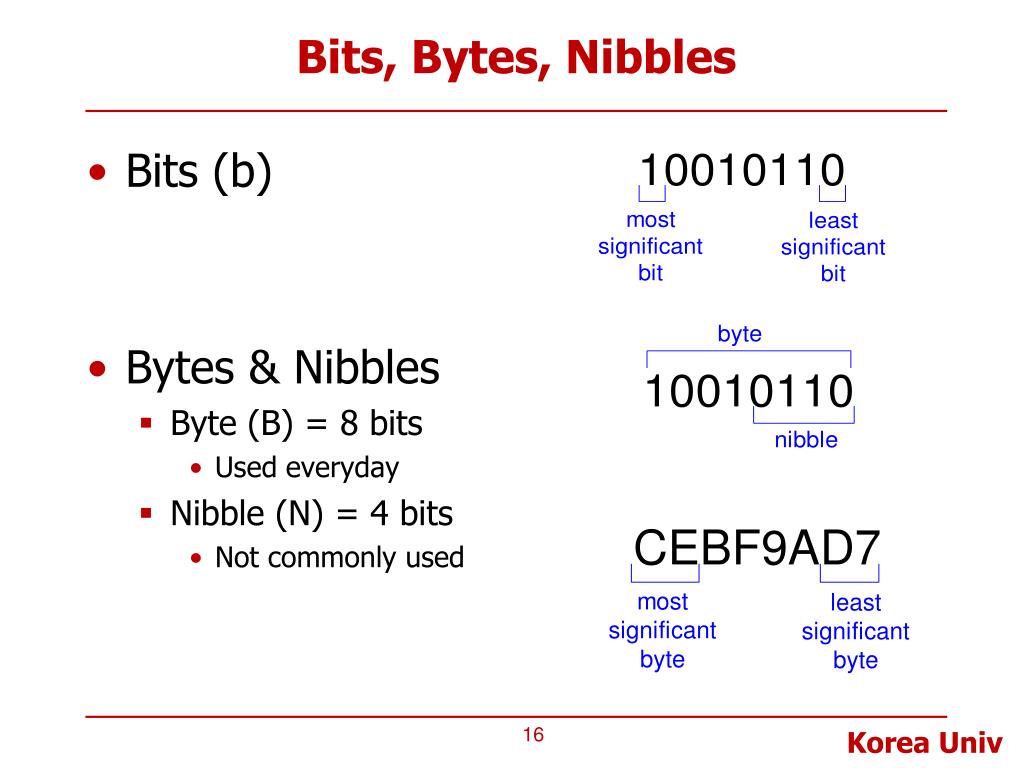

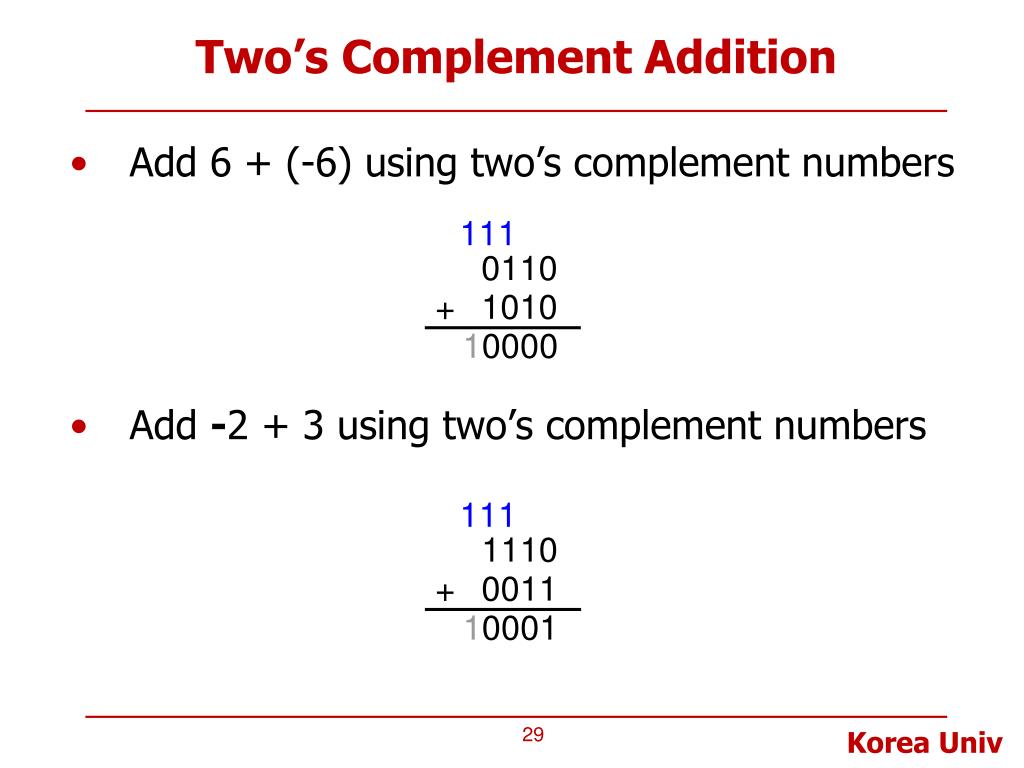

## Lecture 1. Number Systems

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

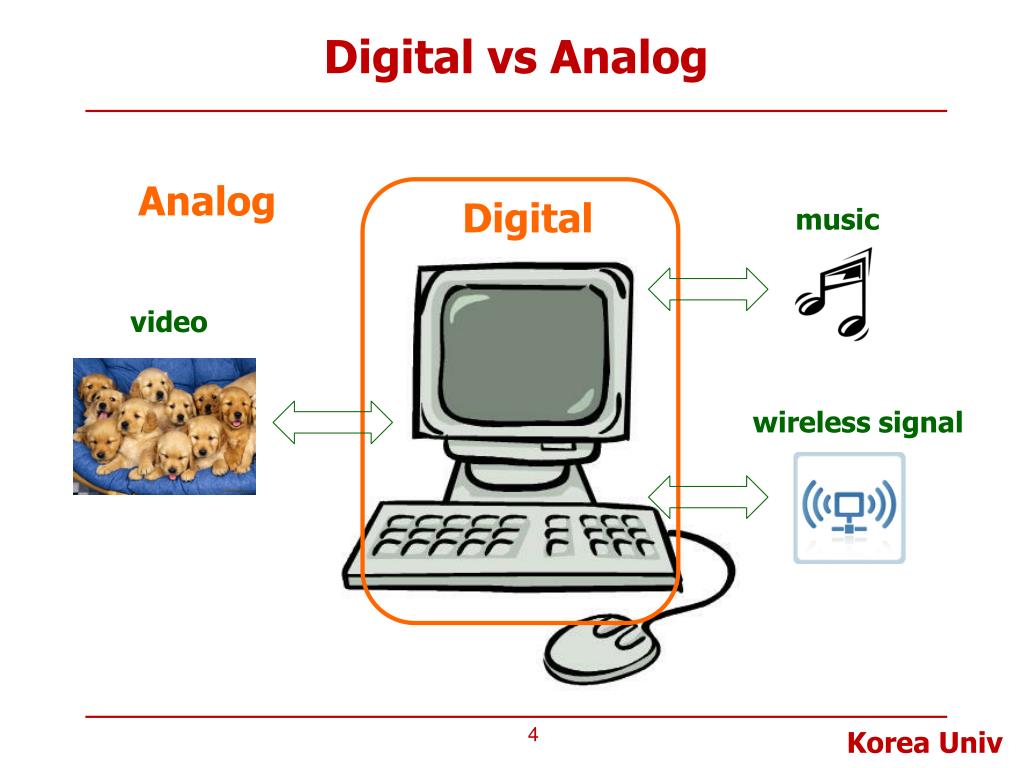

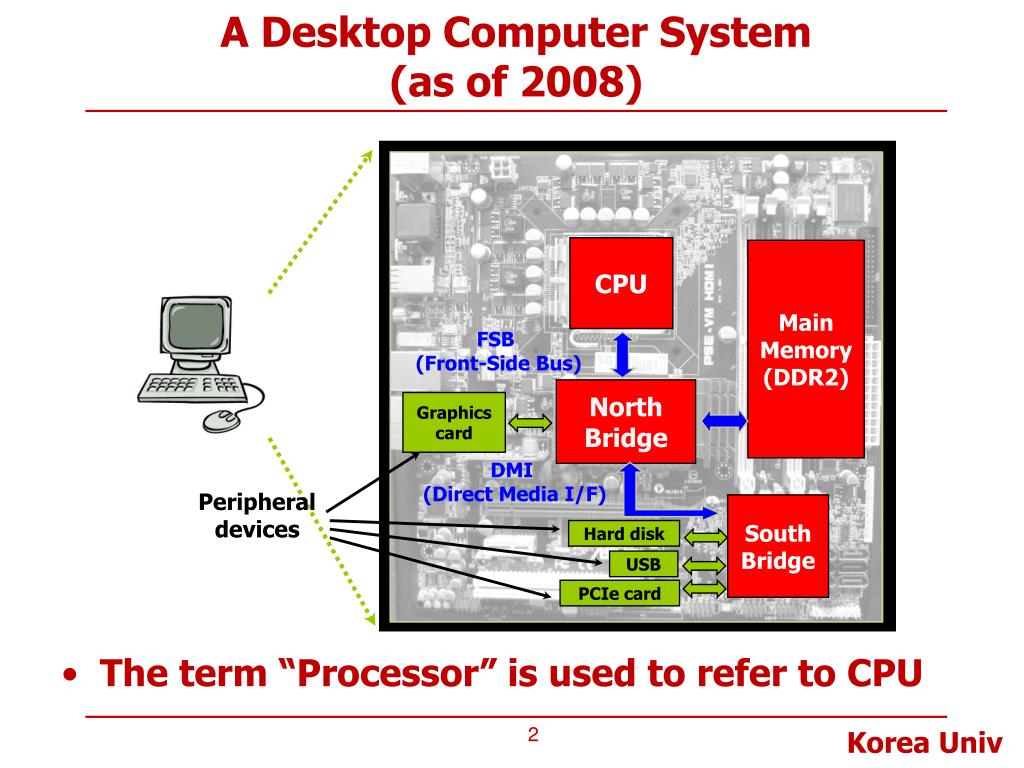

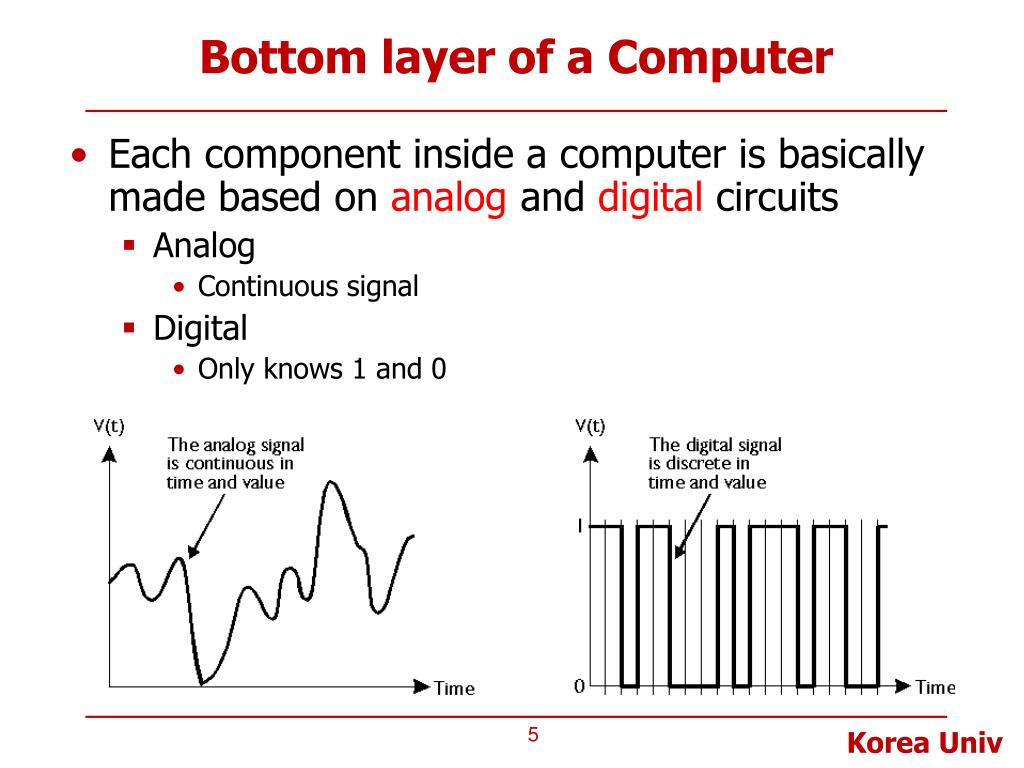

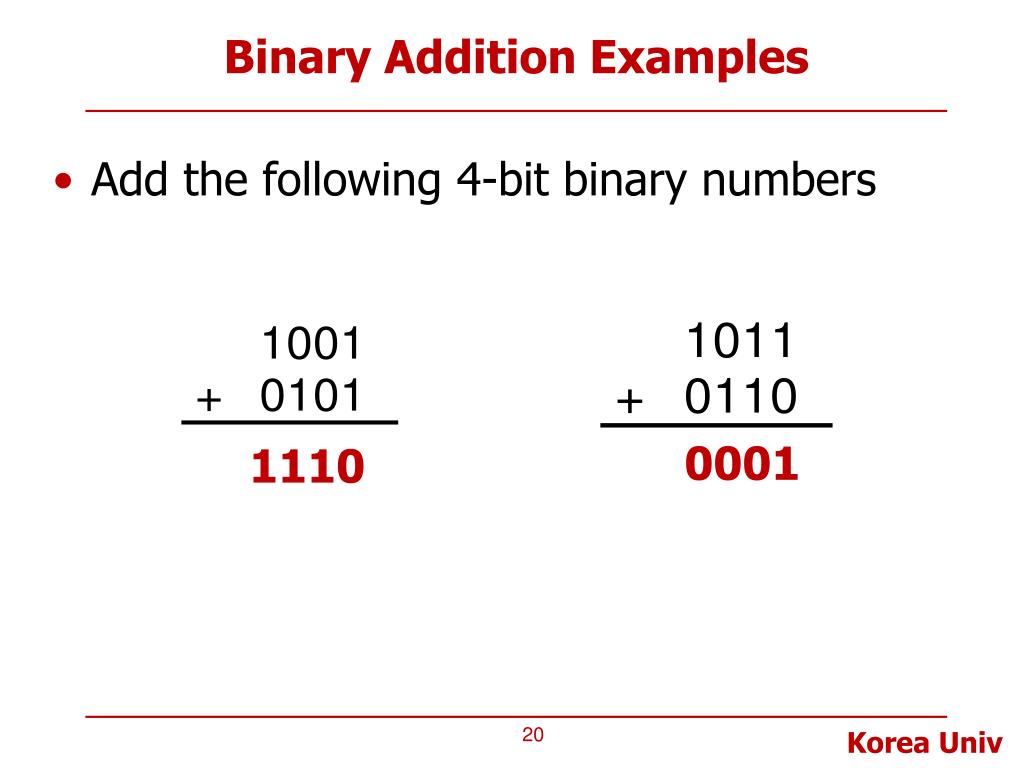

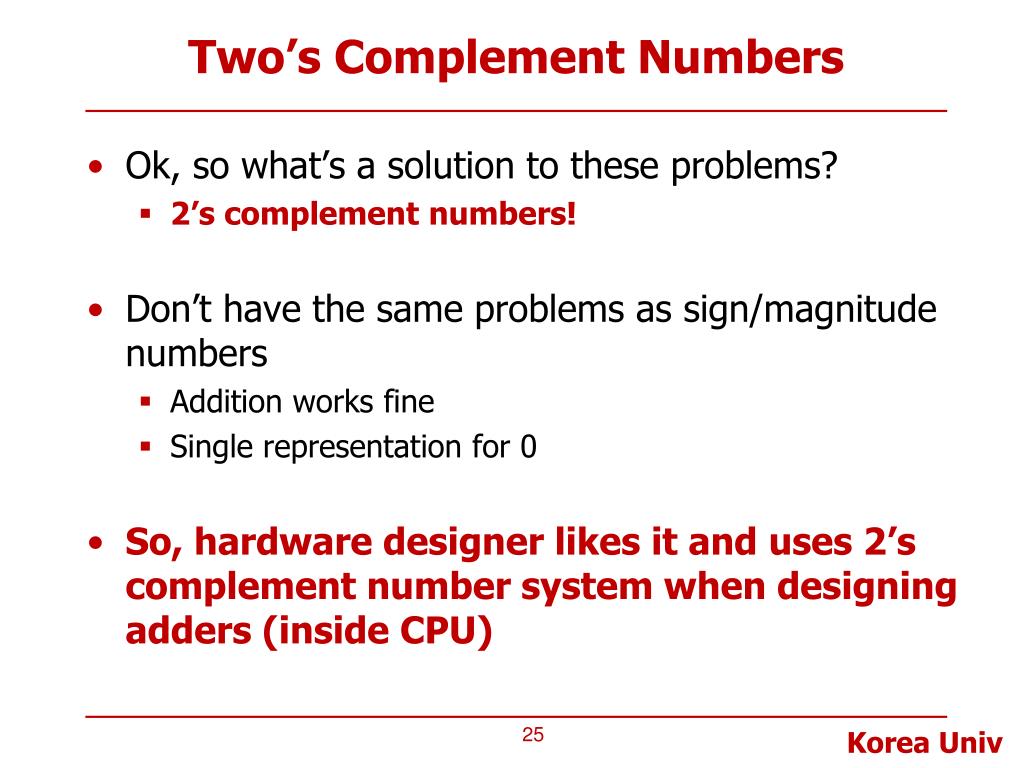

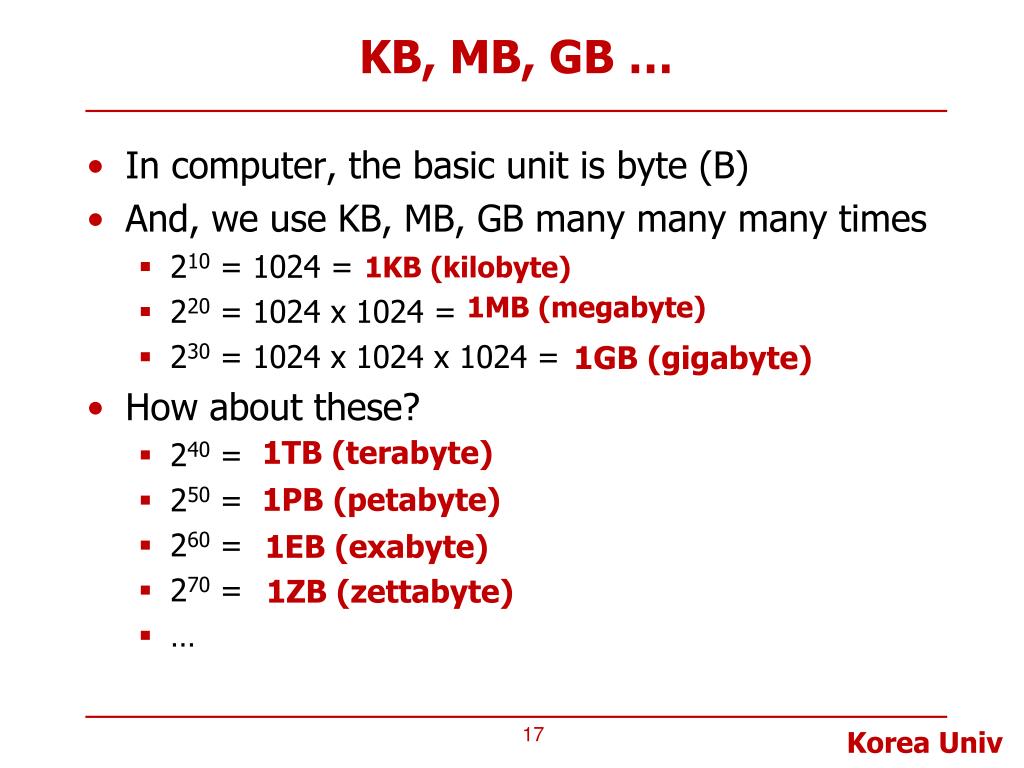

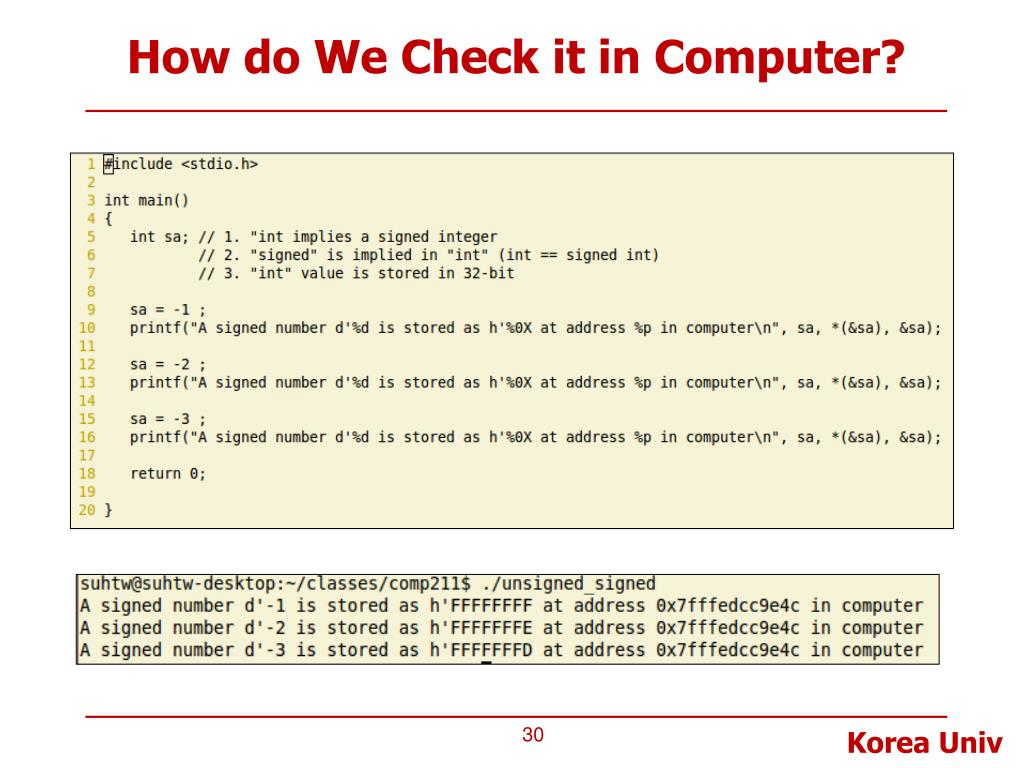

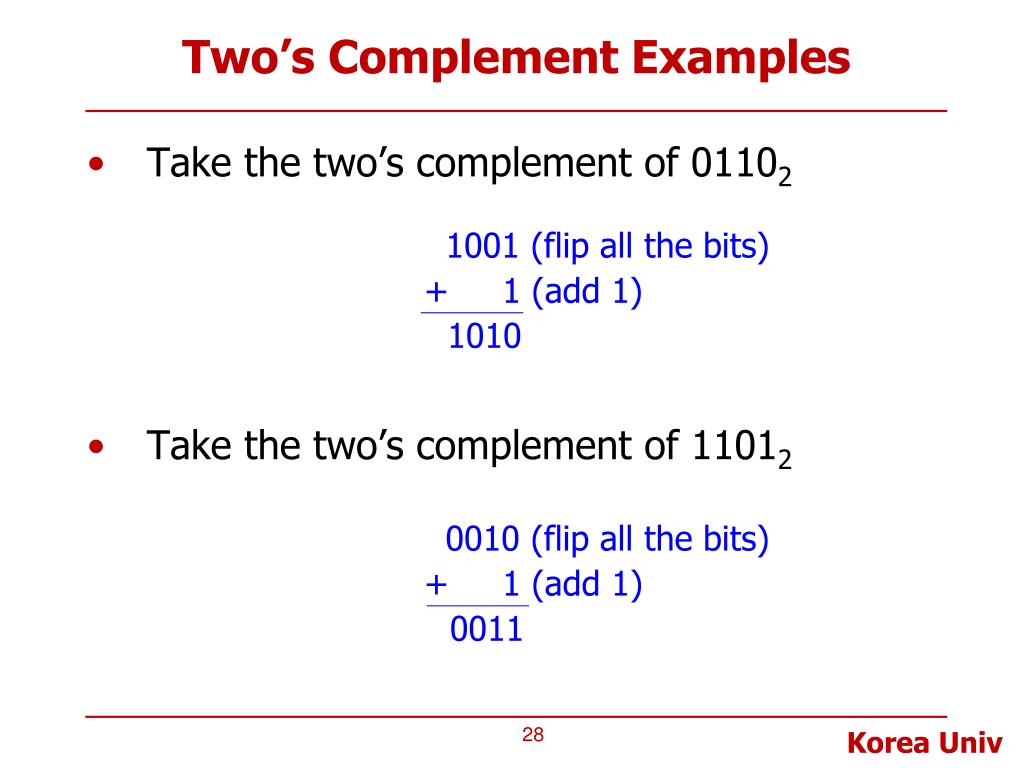

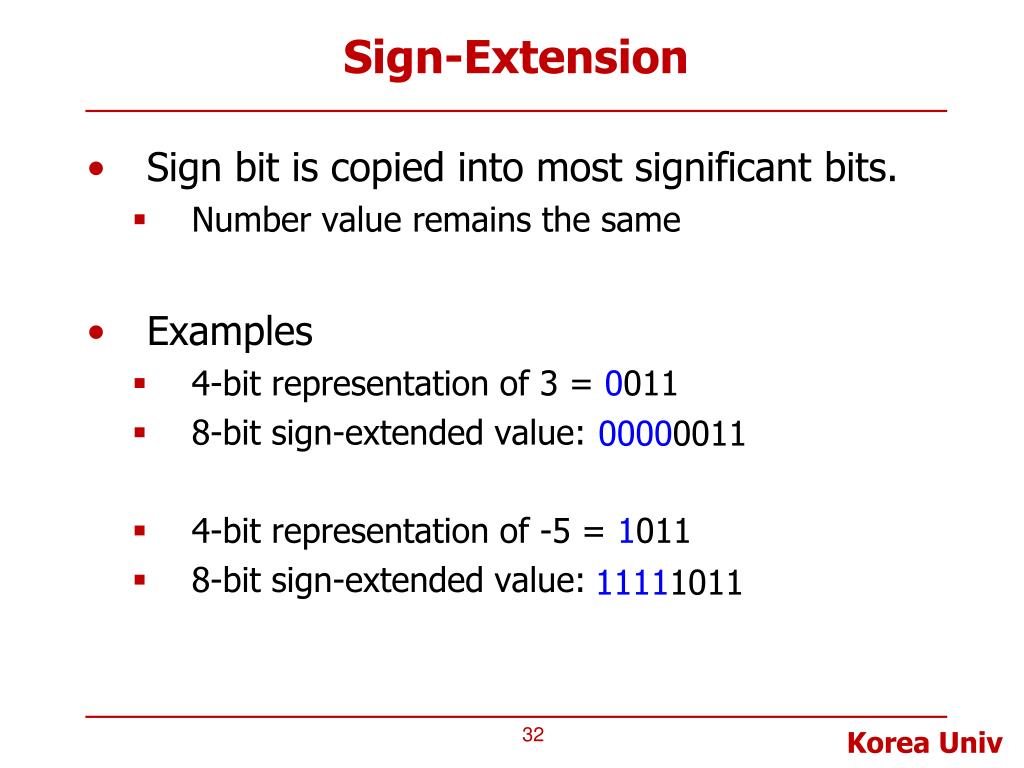

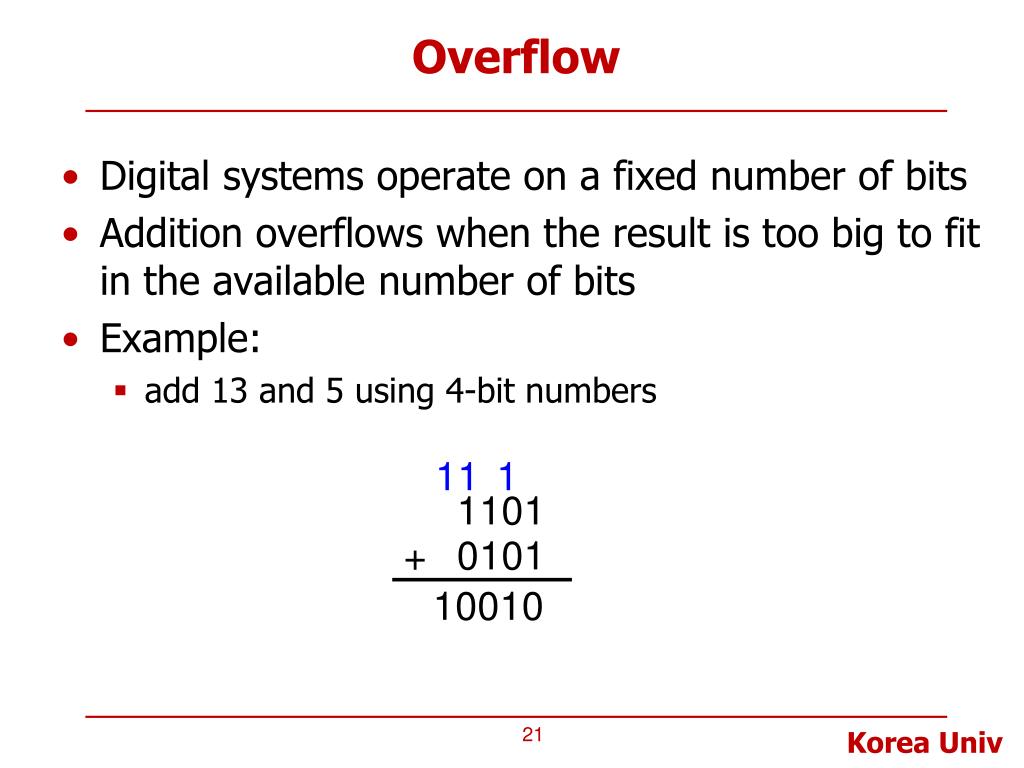

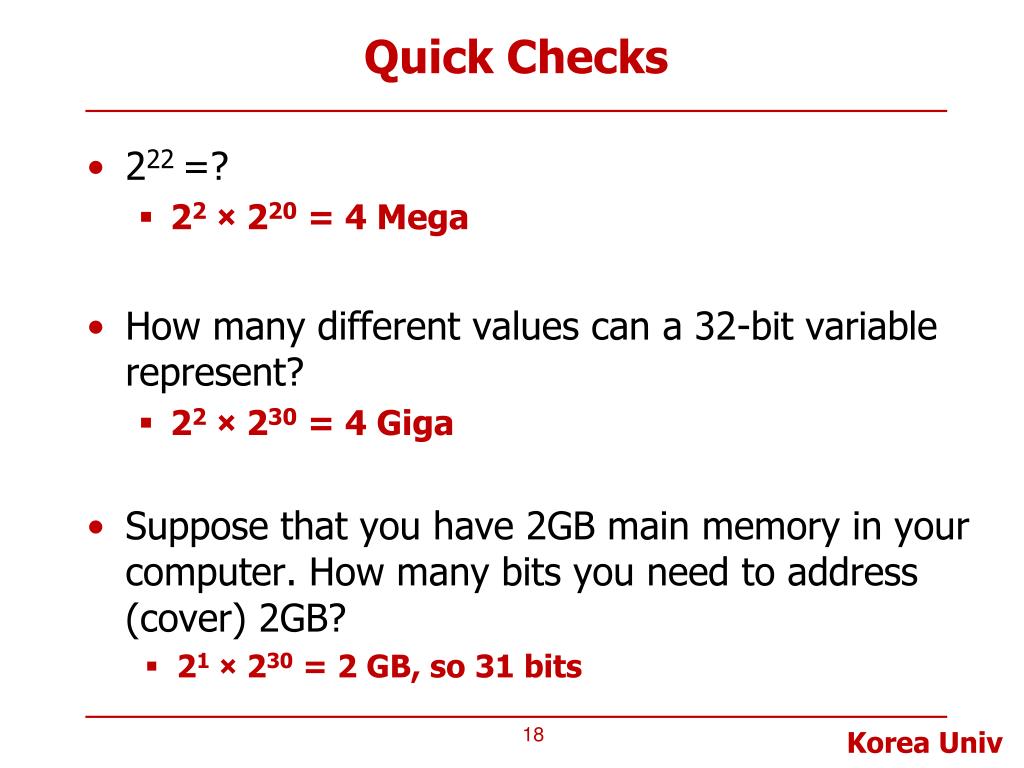

**COMP211 Computer Logic Design**Lecture 1. Number Systems Prof. Taeweon Suh Computer Science Education Korea University**A Desktop Computer System (as of 2008)**• The term “Processor” is used to refer to CPU CPU Main Memory (DDR2) FSB (Front-Side Bus) North Bridge Graphics card DMI (Direct Media I/F) Peripheral devices South Bridge Hard disk USB PCIe card**A Computer System**• Computer is composed of many components • CPU (Intel’s Core 2 Duo, AMD’s Opteron etc) • Memory (DDR3) • Chipsets (North Bridge and South Bridge) • Power Supply • Peripheral devices such as Graphics card and Wireless card • Monitor • Keyboard/mouse • etc**Digital vs Analog**Analog Digital music video wireless signal**Bottom layer of a Computer**• Each component inside a computer is basically made based on analog and digital circuits • Analog • Continuous signal • Digital • Only knows 1 and 0**What you mean by 0 or 1 in Digital Circuit?**• In fact, everything in this world is analog • For example, sound, light, electric signals are all analog since they are continuous in time • Digital circuit is a special case of analog circuit • Power supply provides power to the computer system • Power supply has several outlets (such as 3.3V, 5V, and 12V)**What you mean by 0 or 1 in Digital Circuit?**• Digital circuit treats a signal above a certain level as “1” and a signal below a certain level as “0” • Different components in a computer have different voltage requirements • CPU (Core 2 Duo): 1.325 V • Chipsets: 1.45 V • Peripheral devices: 3.3V, 1.5V Note: Voltage requirements change as the technology advances 1.325V “1” Not determined “0” 0V time**Number Systems**• Analog information (video, sound etc) is converted to a digital format for processing • Computer processes information in digital • Since digital knows “1” and “0”, we use different number systems in computer • Binary and Hexadecimal numbers**Number Systems - Decimal**• Decimal numbers • Most natural to human because we have ten fingers (?) and/or because we are used to it (?) • Each column of a decimal number has 10x the weight of the previous column • Decimal number has 10 as its base ex) 537410 = 5 x 103 + 3 x 102 + 7 x 101 + 4 x 100 • N-digit number represents one of 10N possibilities ex) 3-digit number represents one of 1000 possibilities: 0 ~ 999**Number Systems - Binary**• Binary numbers • Bit represents one of 2 values: 0 or 1 • Each column of a binary number has 2x the weight of the previous column • Binary number has 2 as its base ex) 101102 = 1 x 24 + 0 x 23 + 1 x 22 + 1 x 21 + 0 x 20 = 2210 • N-bit binary number represents one of 2N possibilities ex) 3-bit binary number represents one of 8 possibilities: 0 ~ 7**Power of 2**• 20 = • 21 = • 22 = • 23 = • 24 = • 25 = • 26 = • 27 = • 28 = • 29 = • 210 = • 211 = • 212 = • 213 = • 214 = • 215 =**Power of 2**• 20 = 1 • 21 = 2 • 22 = 4 • 23 = 8 • 24 = 16 • 25 = 32 • 26 = 64 • 27 = 128 * Handy to memorize up to 29 • 28 = 256 • 29 = 512 • 210 = 1024 • 211 = 2048 • 212 = 4096 • 213 = 8192 • 214 = 16384 • 215 = 32768**Number Systems - Hexadecimal**• Hexadecimalnumbers • Writing long binary numbers is tedious and error-prone • We group 4 bits to form a hexadecimal (hex) • A hex represents one of 16 values • 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F • Each column of a hex number has 16x the weight of the previous column • Hexadecimal number has 16 as its base ex) 2ED16 = 2 x 162 + E (14) x 161 + D (13) x 160 = 74910 • N-hexadigit number represents one of 16N possibilities ex) 2-hexadigit number represents one of 162 possibilities: 0 ~ 255**Number Conversions**• Hexadecimal to binary conversion: • Convert 4AF16 (also written 0x4AF) to binary number • Hexadecimal to decimal conversion: • Convert 0x4AF to decimal number • 0100 1010 11112 • 4×162 + A (10)×161 + F (15)×160 = 119910**Bits, Bytes, Nibbles**• Bits (b) • Bytes & Nibbles • Byte (B) = 8 bits • Used everyday • Nibble (N) = 4 bits • Not commonly used**KB, MB, GB …**• In computer, the basic unit is byte (B) • And, we use KB, MB, GB many manymany times • 210 = 1024 = • 220 = 1024 x 1024 = • 230 = 1024 x 1024 x 1024 = • How about these? • 240 = • 250 = • 260 = • 270 = • … 1KB (kilobyte) 1MB (megabyte) 1GB (gigabyte) 1TB (terabyte) 1PB (petabyte) 1EB (exabyte) 1ZB (zettabyte)**Quick Checks**• 222 =? • 22 × 220 = 4 Mega • How many different values can a 32-bit variable represent? • 22 × 230 = 4 Giga • Suppose that you have 2GB main memory in your computer. How many bits you need to address (cover) 2GB? • 21 × 230 = 2 GB, so 31 bits**Addition**• Decimal • Binary**Binary Addition Examples**• Add the following 4-bit binary numbers 0001 1110**Overflow**• Digital systems operate on a fixed number of bits • Addition overflows when the result is too big to fit in the available number of bits • Example: • add 13 and 5 using 4-bit numbers**Signed Binary Numbers**• How does the computer represent positive and negative integer numbers? • There are 2 ways • Sign/Magnitude Numbers • Two’s Complement Numbers**Sign/Magnitude Numbers**• 1 sign bit, N-1 magnitude bits • Sign bit is the most significant (left-most) bit • Negative number: sign bit = 1 • Positive number: sign bit = 0 • Example: 4-bit representations of ± 5: +5 = 01012 - 5 = 11012 • Range of an N-bit sign/magnitude number: [-(2N-1-1), 2N-1-1]**Sign/Magnitude Numbers**• Problems • Addition doesn’t work naturally • Example: 5 + (-5) 0101 + 1101 10010 • Two representations of 0 (±0) 0000 (+0) 1000 (-0)**Two’s Complement Numbers**• Ok, so what’s a solution to these problems? • 2’s complement numbers! • Don’t have the same problems as sign/magnitude numbers • Addition works fine • Single representation for 0 • So, hardware designer likes it and uses 2’s complement number system when designing adders (inside CPU)**Two’s Complement Numbers**• Same as unsigned binary numbers, but the most significant bit (MSB) has value of -2N-1 • Example • Biggest positive 4-bit number: 01112 (710) • Lowest negative 4-bit number: 10002 (-23 = -810) • The most significant bit still indicates the sign • If MSB == 1, a negative number • If MSB == 0, a positive number • Range of an N-bit two’s complement number [-2N-1, 2N-1-1]**How to Make 2’s Complement Numbers?**• Reversing the sign of a two’s complement number • Method: • Flip (Invert) the bits • Add 1 • Example -7: 2’s complement number of +7 0111 (+7) 1000 (flip all the bits) + 1 (add 1) 1001 (-7)**Two’s Complement Examples**• Take the two’s complement of 01102 1001 (flip all the bits) + 1 (add 1) 1010 • Take the two’s complement of 11012 0010 (flip all the bits) + 1 (add 1) 0011**Two’s Complement Addition**• Add 6 + (-6) using two’s complement numbers • Add -2 + 3 using two’s complement numbers**Increasing Bit Width**• Sometimes, you need to increase the bit width when you design a computer • For example, read a 8-bit data from main memory and store it to a 32-bit • A value can be extended from N bits to M bits (where M > N) by using: • Sign-extension • Zero-extension**Sign-Extension**• Sign bit is copied into most significant bits. • Number value remains the same • Examples • 4-bit representation of 3 = 0011 • 8-bit sign-extended value: • 4-bit representation of -5 = 1011 • 8-bit sign-extended value: 00000011 11111011**Zero-Extension**• Zeros are copied into most significant bits. • Number value may change. • Examples • 4-bit value = 0011 • 8-bit zero-extended value: • 4-bit value = 1011 • 8-bit zero-extended value: 00000011 00001011**Number System Comparison**For example, 4-bit representation:
