Water Based Sprinkler Systems

Water Based Sprinkler Systems. 2 major different types of water sprinkler systems Wet pipe system Dry pipe system. Wet Pipe System. Water is in all piping As sprinkler heads open, water is discharged. Wet Pipe Clapper Valve. Dry Pipe System.

stu
Download Presentation

Water Based Sprinkler Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Water Based Sprinkler Systems • 2 major different types of water sprinkler systems • Wet pipe system • Dry pipe system

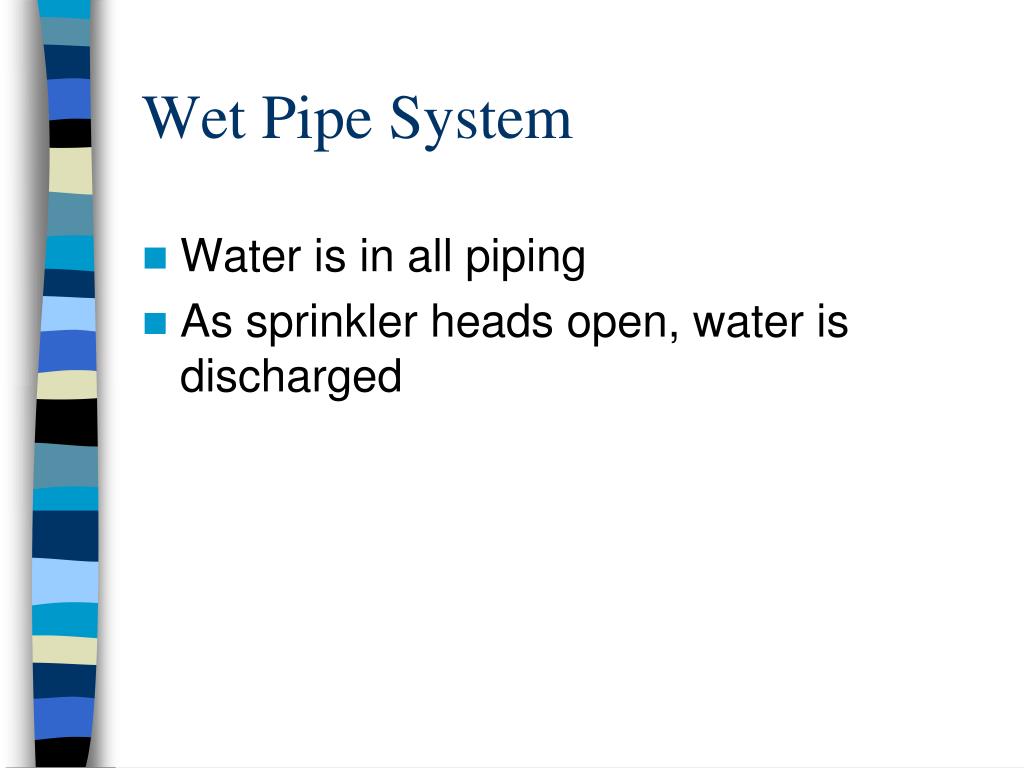

  2. Wet Pipe System • Water is in all piping • As sprinkler heads open, water is discharged

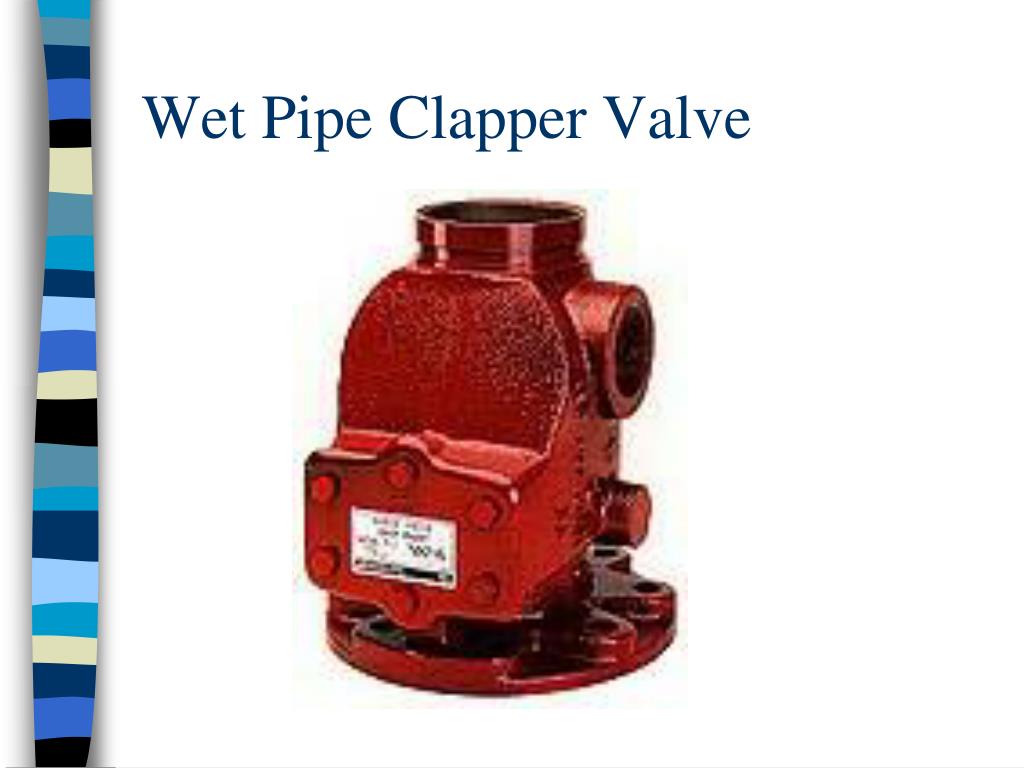

  3. Wet Pipe Clapper Valve

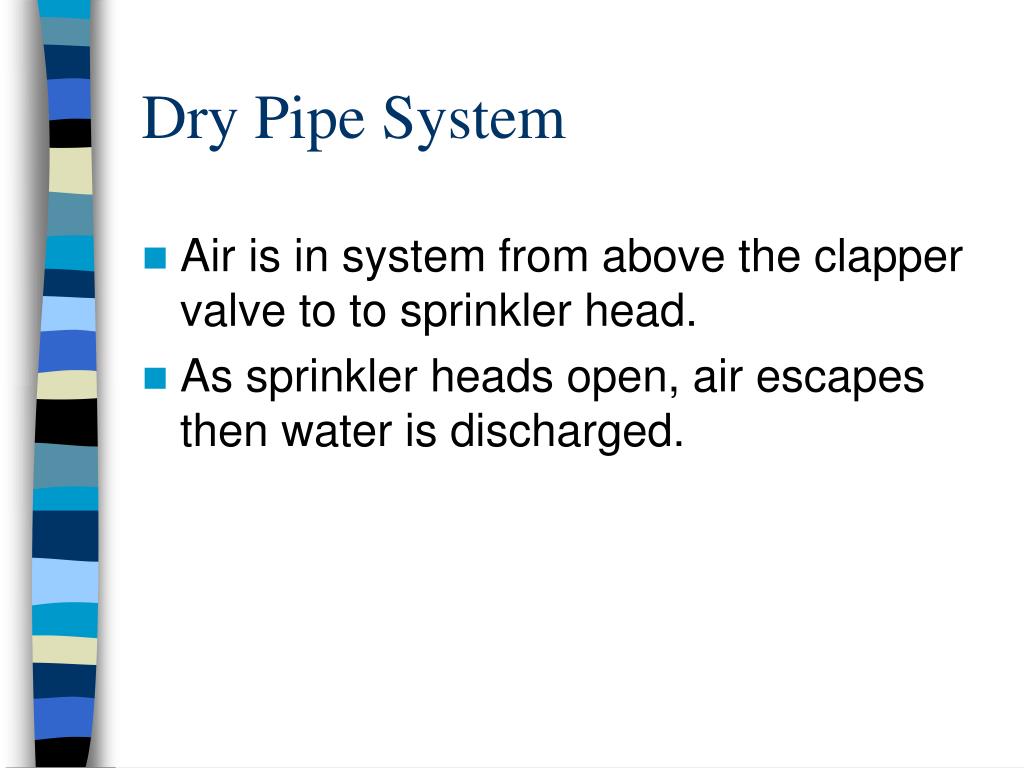

  4. Dry Pipe System • Air is in system from above the clapper valve to to sprinkler head. • As sprinkler heads open, air escapes then water is discharged.

  5. Dry Pipe Clapper Valve

  6. Pre-action Systems • Sensors in the area of the fire are activated. • The water valve is then open. • And water flows to the area.

  7. Deluge System • All sprinklers are activated at once when a detecting device is activated.

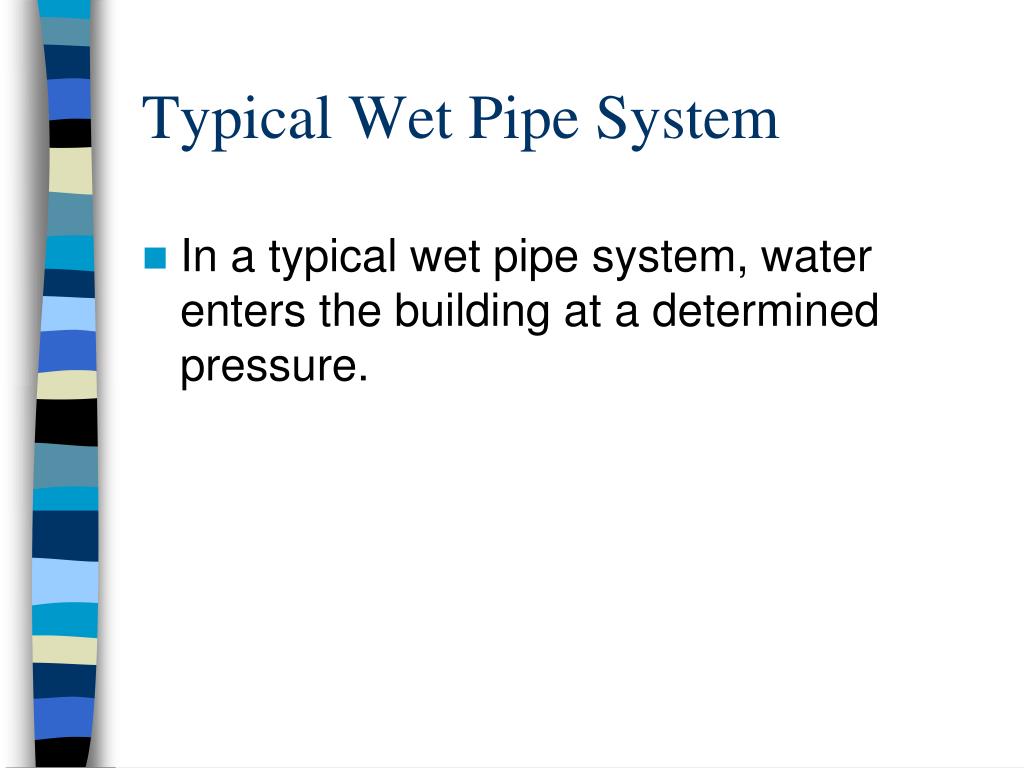

  8. Typical Wet Pipe System • In a typical wet pipe system, water enters the building at a determined pressure.

  9. Backflow Preventers • Backflow preventers are placed before the riser. • If there are significant decreases in water pressure, the backflow preventers prevent water from being sucked out of the sprinkler system. • These backflow preventers must be checked by certified plumbers at least annually (EPA requirements).

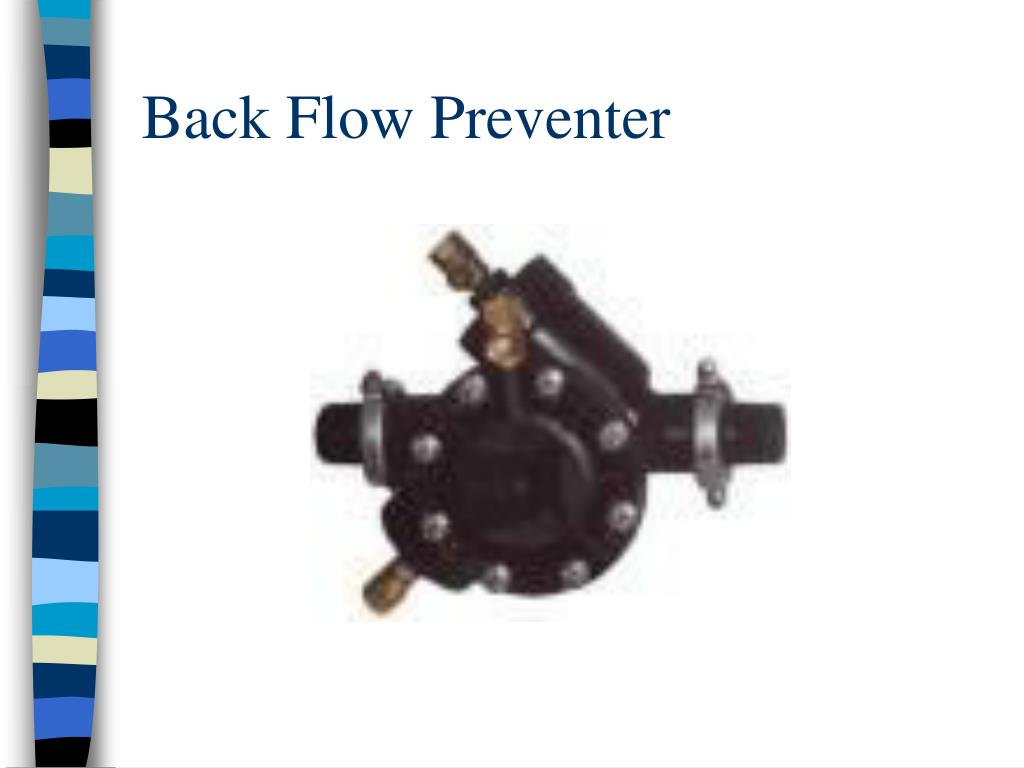

  10. Back Flow Preventer

  11. Sprinkler Riser • The water then flows to the riser. • At the riser, a series of valves and gauges, maintain the water in the system.

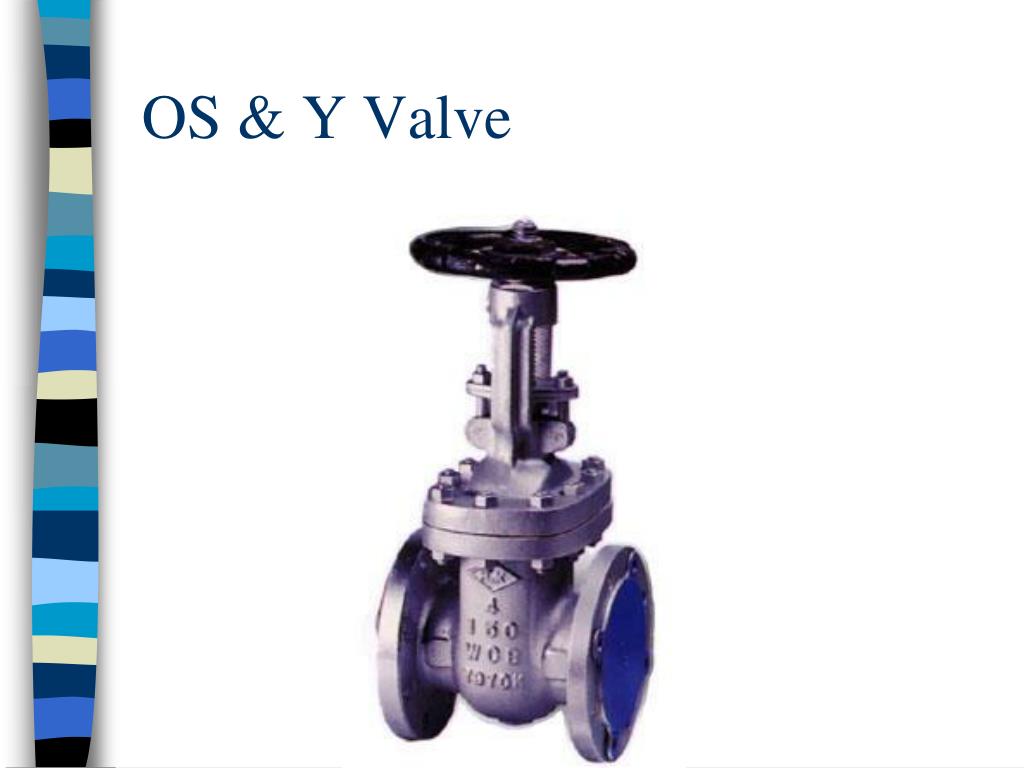

  12. OS & Y Valve • Outside stem and yoke valve. • The water first passes through an outside stem and yoke valve. (OS & Y valve). • To close this valve, the handle must be rotated out.

  13. OS & Y Valve

  14. OS & Y Valve

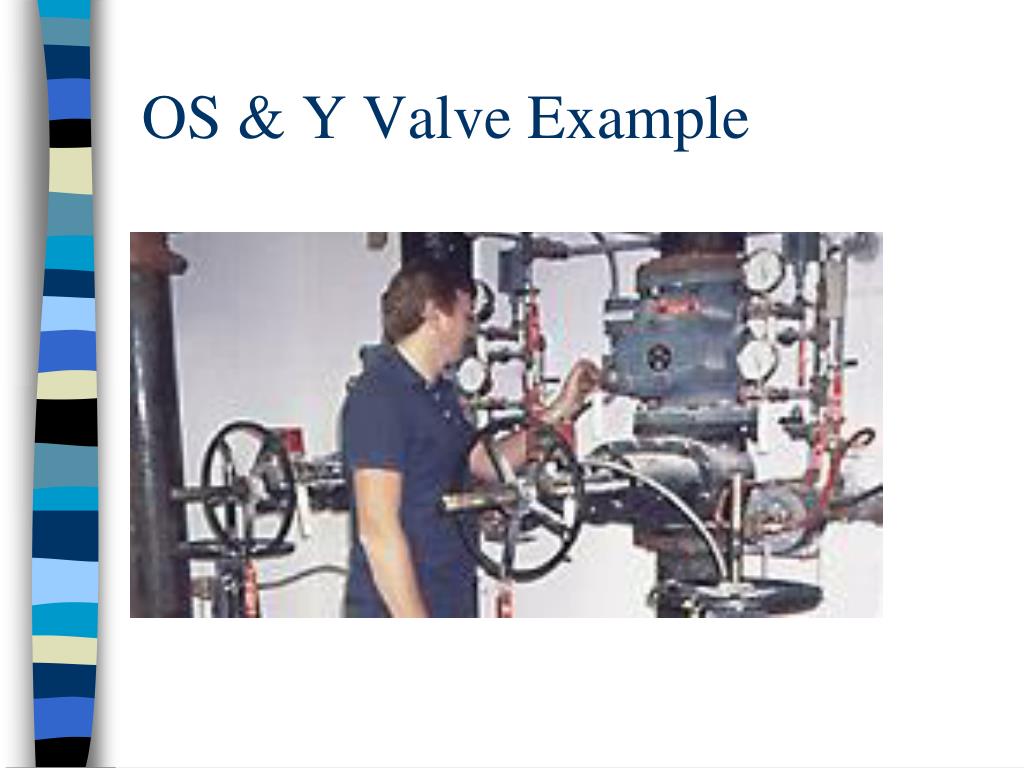

  15. OS & Y Valve Example

  16. Tamper Switches • In some instances, there are tamper switches on these valves. • If they are turned, the monitoring service will receive a trouble alarm. • This valve should be alarmed and chained open.

  17. Tamper Switches

  18. Main Water Clapper • The water then enters the main section of the riser. • There is a main water clapper that sits at the base of the riser. • If there is major water pressure loss, the water will stay in the sprinkler system.

  19. Water Gauges • Water pressure gauges are found above and below the water clapper. • This will alert the person to pressure problems in the water lines. • In a wet pipe system, both pressure gauges may read the same. • Check the design spcifications!!

  20. Water Flow Alarm • These are found above the main clapper. • If there is a flow of water, the alarms will be activated.

  21. 2" Main Drain • A two inch pipe comes out of the main riser area to a drain. • This two inch line is used for testing purposes. • Closing the water valve above the 2 inch line then opening the 2 inch water line tests water coming in from the municipal service.

  22. Riser • The next section of pipe is the riser pipe itself. • The riser pipe goes up to the sprinkler branch lines in the building.

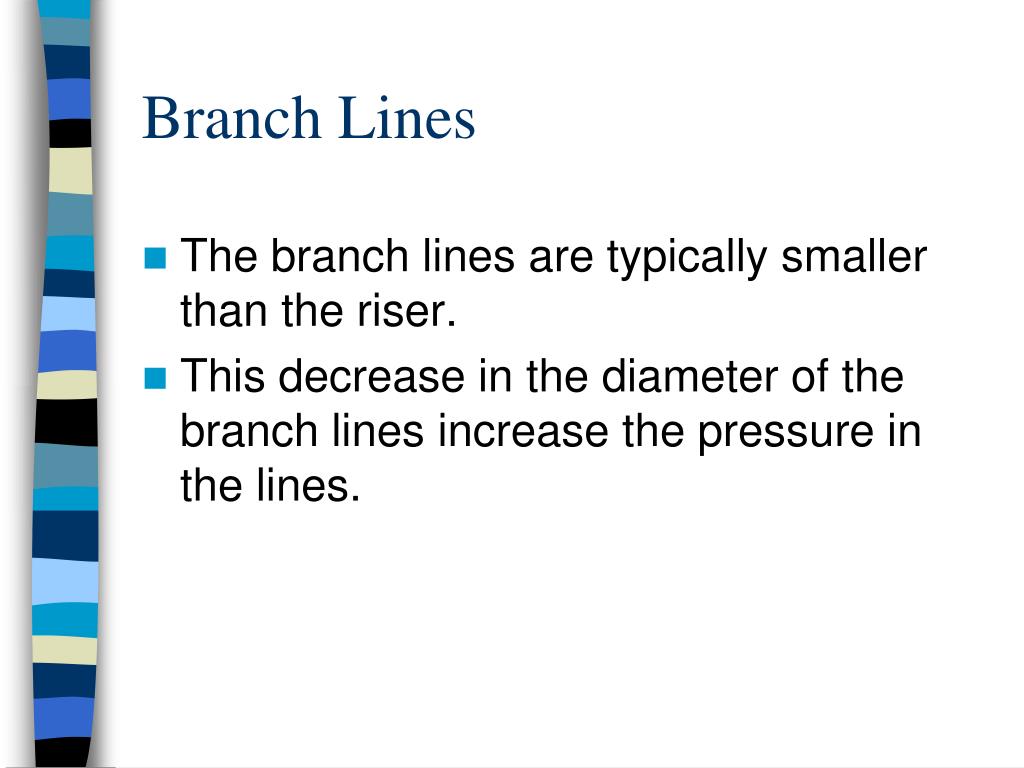

  23. Branch Lines • The branch lines are typically smaller than the riser. • This decrease in the diameter of the branch lines increase the pressure in the lines.

  24. Inspectors Test • Located at the furthest point from the riser • Simulates the opening of one sprinkler head

  25. Wet Pipe Sprinkler System Inspections • Inspector's test • 2 inch main drain test • Water flow alarm test

  26. Inspectors Test • Signifies that one sprinkler head at the sprinkler head furthest from the riser has been opened. • This verifies that adequate pressure and flow can be achieved.

  27. Water Flow Alarm • "Trip test“. • At the inspector's test valve, open the inspectors test valve. • A slight decrease in pressure should be observed. • The water flow alarm should be activated and the fire department should receive a signal that the fire alarm has been activated. • There should be a short time delay from when the water flows and the alarm is activated. • The delay should not be any greater than 90 seconds. • Close the inspectors valve and reset the system.

  28. Two Inch Main Drain Test • The purpose of the two inch drain is to determine if there is adequate water supply to the system. • Open the two inch drain fully, check and record the water pressure. • There should not be a significant drop in water pressure when the two inch drain is open. • If there is, there may be a blockage in the supply line. • Close the two inch drain and record the pressures. • The pressure should return to approximately normal.
