YIELD STRESS. Some Observations. A jar of mayonnaise, ketchup, whipped topping or chutney may be tilted without the product flowing A jar of mayonniase can be gently pushed with a spoon, and it may return to its original position Such products may behave as thick liquids or as semi-solids.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'YIELD STRESS' - storm


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
some observations
Some Observations
  • A jar of mayonnaise, ketchup, whipped topping or chutney may be tilted without the product flowing
  • A jar of mayonniase can be gently pushed with a spoon, and it may return to its original position
  • Such products may behave as thick liquids or as semi-solids
yield stress7
Yield Stress
  • If the lateral force on the food is strong enough, the mayonnaise will not return to its initial position
  • If the thick ketchup is shaken or jerked with enough force, the ketchup will flow
  • The yield stress is the minimum force required to make the material flow
does it really exist
Does it really exist?

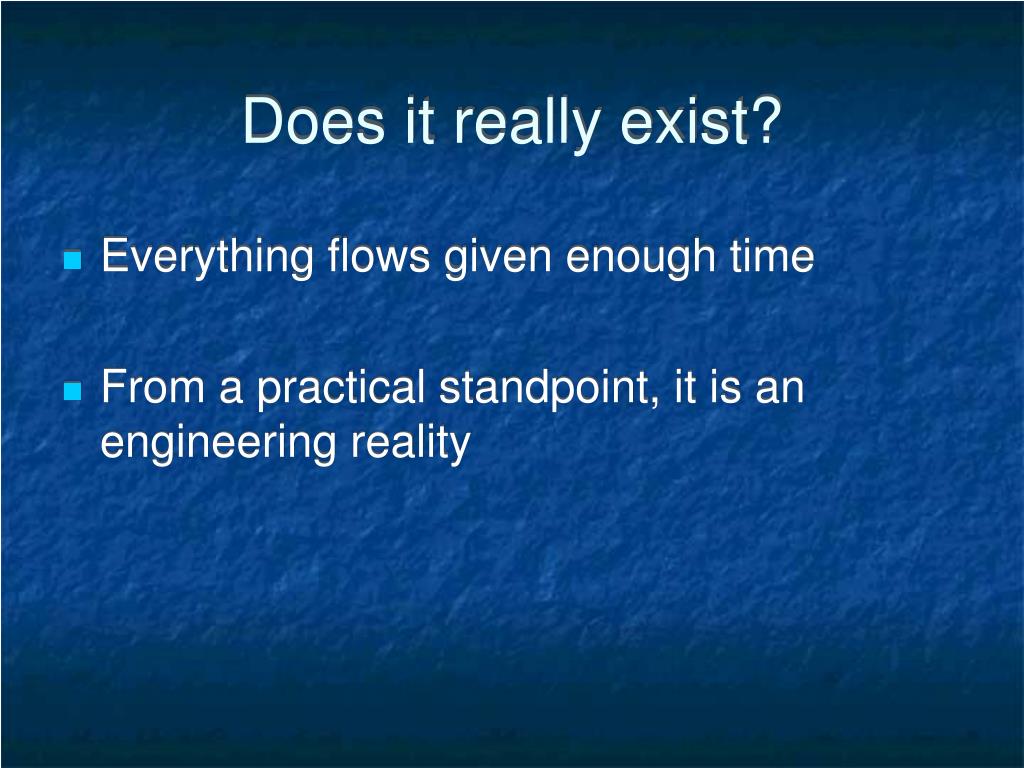

  • Everything flows given enough time
  • From a practical standpoint, it is an engineering reality
it might be good
. . . It might be good
  • May inhibit flow under low stress caused by gravity
  • May give sag or slump resistance to molten chocolate or batters
  • May prevent particle settling
  • Yield stress plays a big role on how well some foods are coated
on the down side
. . . On the down side
  • Causes problems in gravity feed systems
  • Excess residue on sides of bottles
static vs dynamic yield stress
Static vs dynamic yield stress
  • There can be two types of structure in a thixotropic fluid
    • One structure insensitive to shear rate- defines dynamic yield stress
    • A weak structure forms over time when the system is at rest
    • Together, both contribute to resistance to flow leading to static yield stress
slide13

Static yield

stress

Equilibrium flow curve

Shear Stress

Dynamic yield stress

Shear Rate

measuring yield stress
Measuring Yield Stress

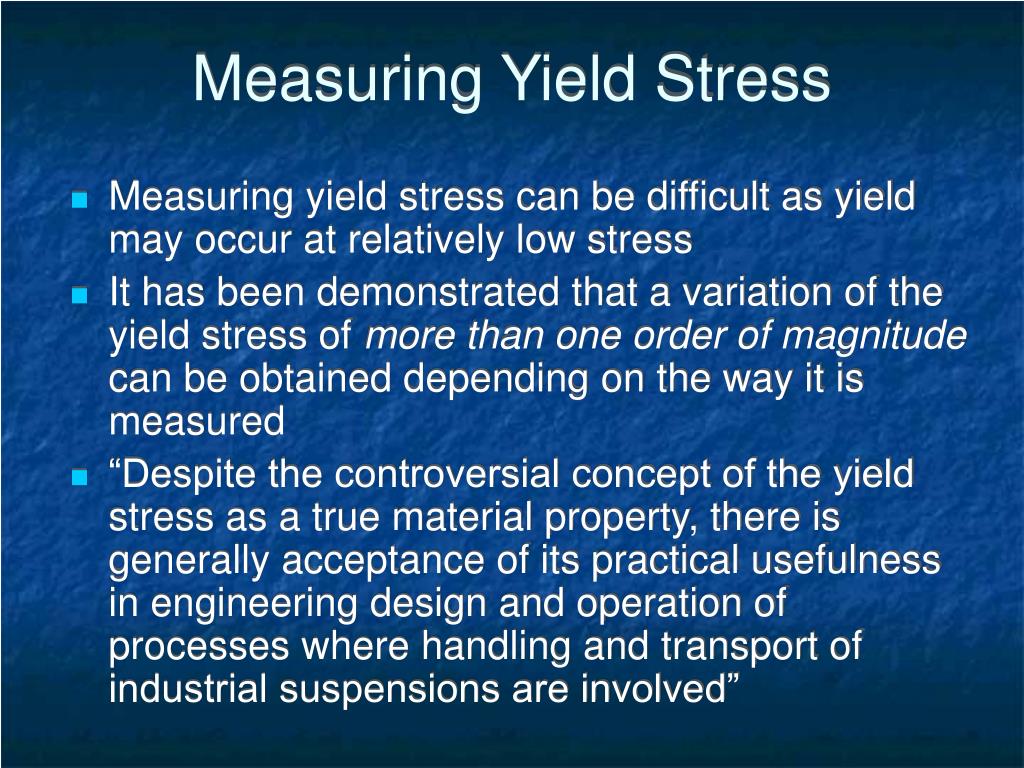

  • Measuring yield stress can be difficult as yield may occur at relatively low stress
  • It has been demonstrated that a variation of the yield stress of more than one order of magnitude can be obtained depending on the way it is measured
  • “Despite the controversial concept of the yield stress as a true material property, there is generally acceptance of its practical usefulness in engineering design and operation of processes where handling and transport of industrial suspensions are involved”
traditional viscometry
Traditional viscometry
  • Plot shear stress versus shear rate
  • Fir data with a model that helps predict yield stess
slide16

Model fit such as power law

or Casson

Often, data is unavailable at low shear stresses . . . The very part we are most interested in.

slump test
Slump Test

Sample is placed in a holding cup of specific dimensions.

Material is inverted and released

The distance “slumped” over a given time is measured

slide19

Devices similar to the USDA Consistometer have been used to study canned pumpkin and similar products

h

h’

vane rheometry
Vane Rheometry
  • Use a vane viscometer
  • Vane is lowered slowly into sample

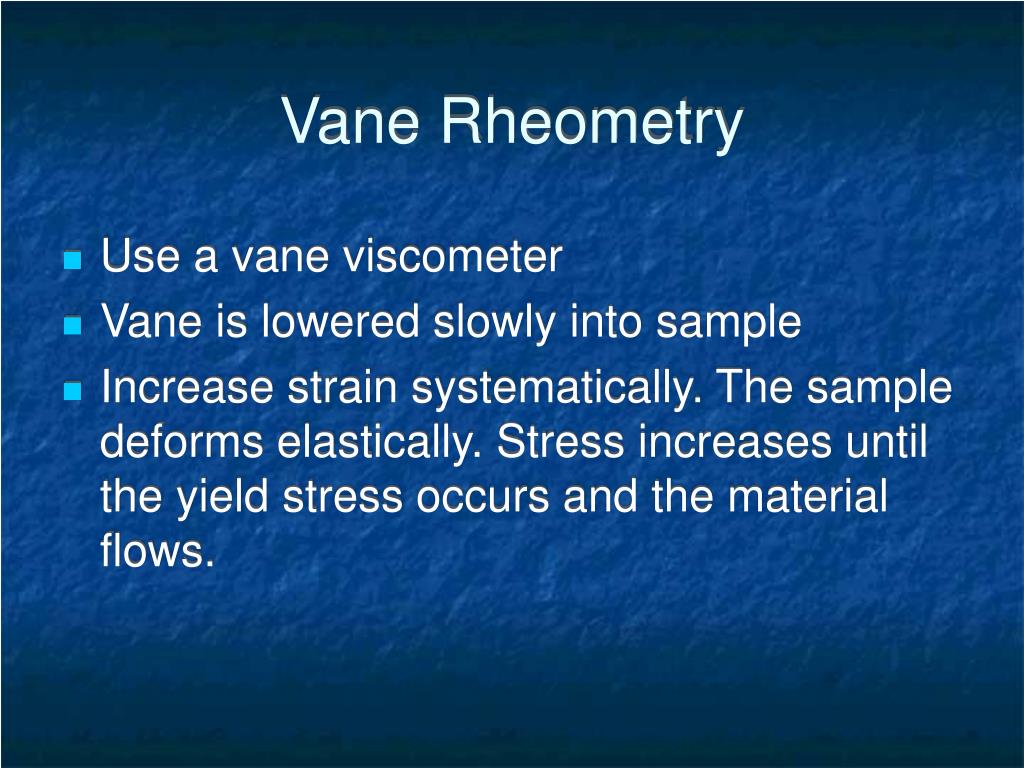

  • Increase strain systematically. The sample deforms elastically. Stress increases until the yield stress occurs and the material flows.
vane method 1 measure minimum torque required to initiate flow

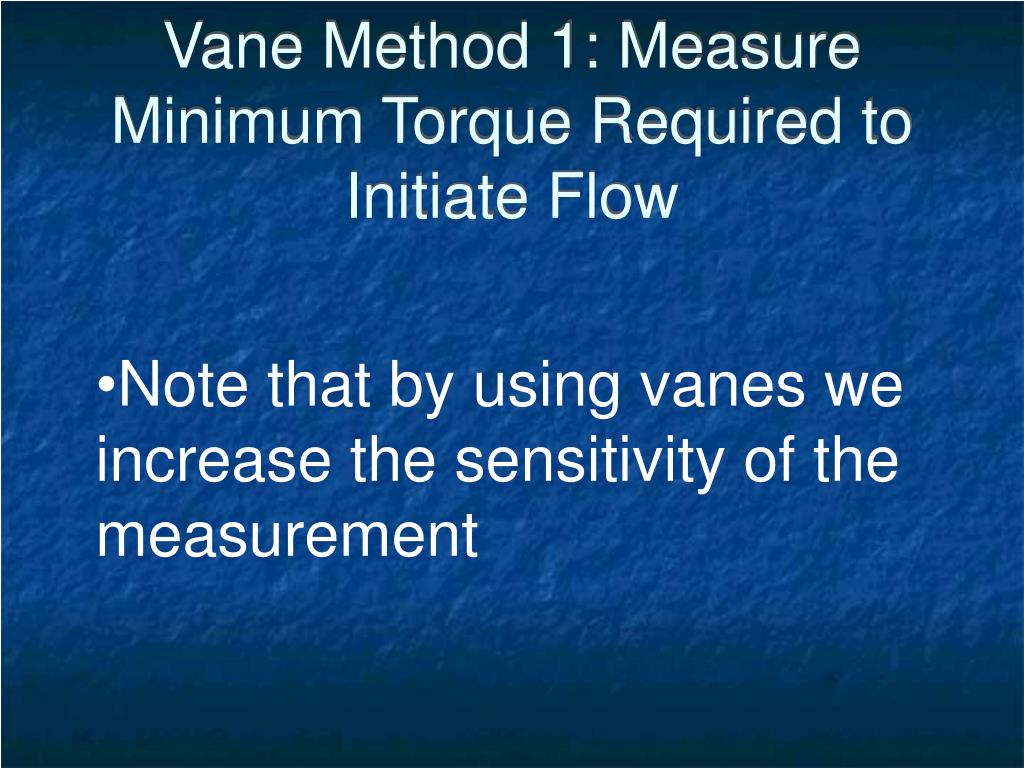

Vane Method 1: Measure Minimum Torque Required to Initiate Flow
  • Note that by using vanes we increase the sensitivity of the measurement

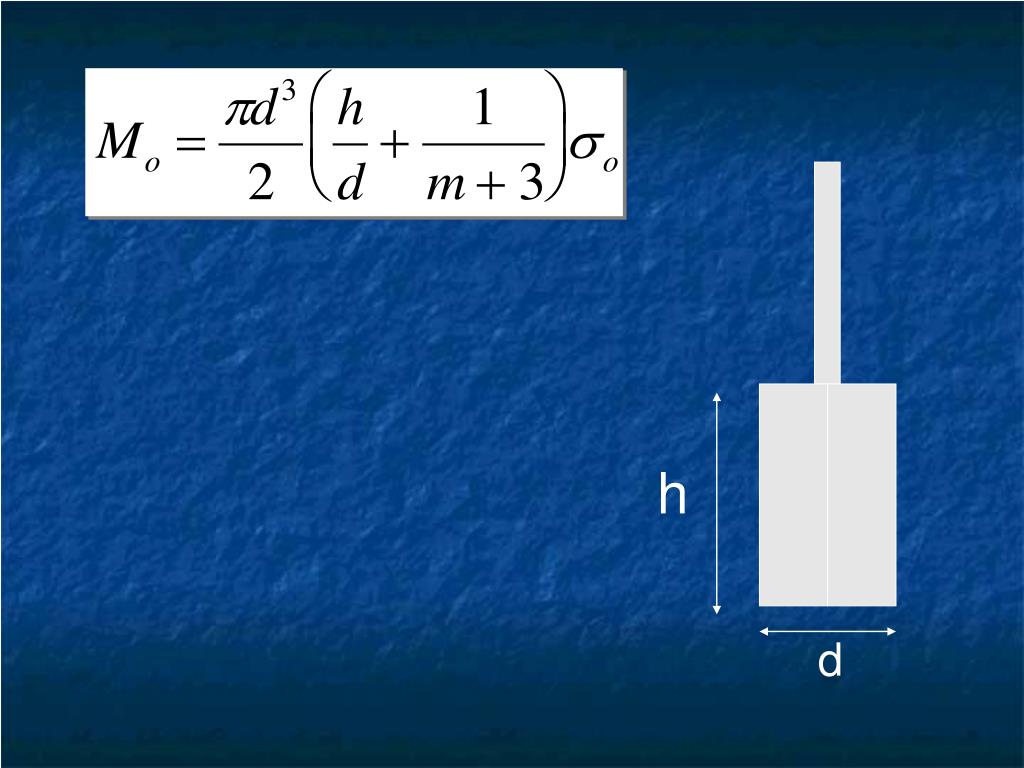

slide24

h

d

slide25

Mo

Torque

Time

slide26

time evolution of the stress for imposed shear rate experiments at different imposed rates

slide28

Shear Stress

Shear Rate

slide30

% Strain

Yield

stress

Stress (Pa)

cone penetrometer method
Cone Penetrometer Method

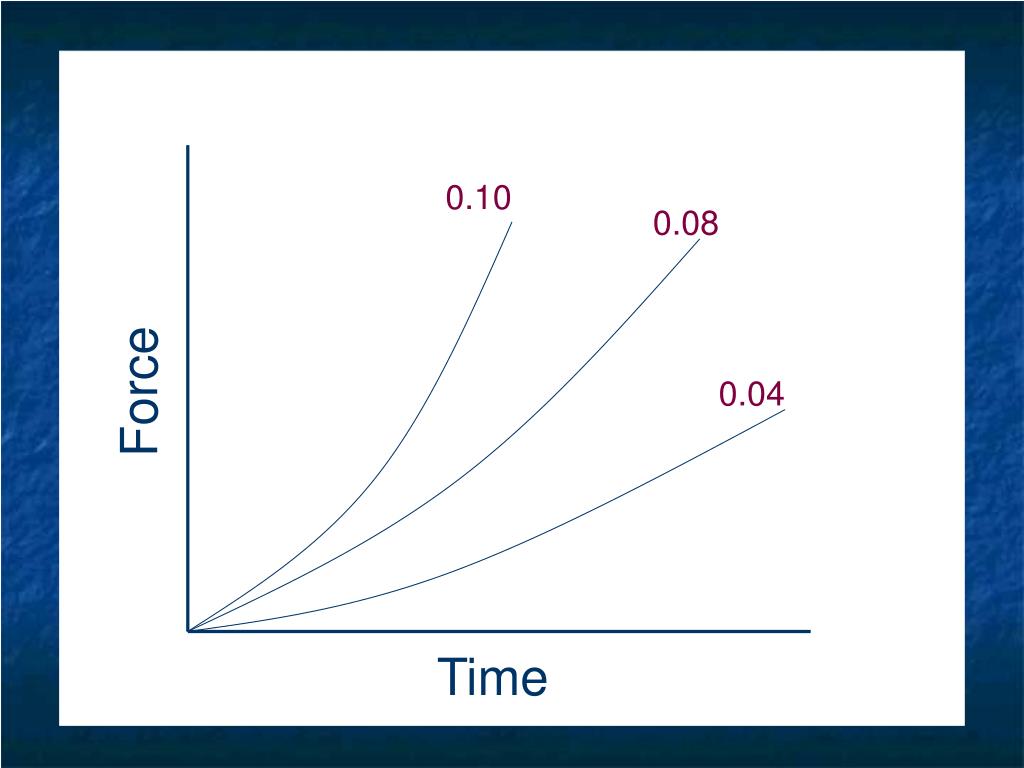

A cone is brought into the sample. Several experiments are run at different speeds

slide33

0.10

0.08

Force

0.04

Time
