internal furnace inspections
Internal Furnace Inspections

Infrared Image

Visible Image

Colorized Image in Crude Oil Heater

internal furnace inspections1
Internal Furnace Inspections

Infrared Image

Visible Image

Colorized Image in Crude Oil Heater

internal furnace inspections2
Internal Furnace Inspections

Infrared Image

Visible Image

Colorized Image in Husky Heater

electrical maintenance

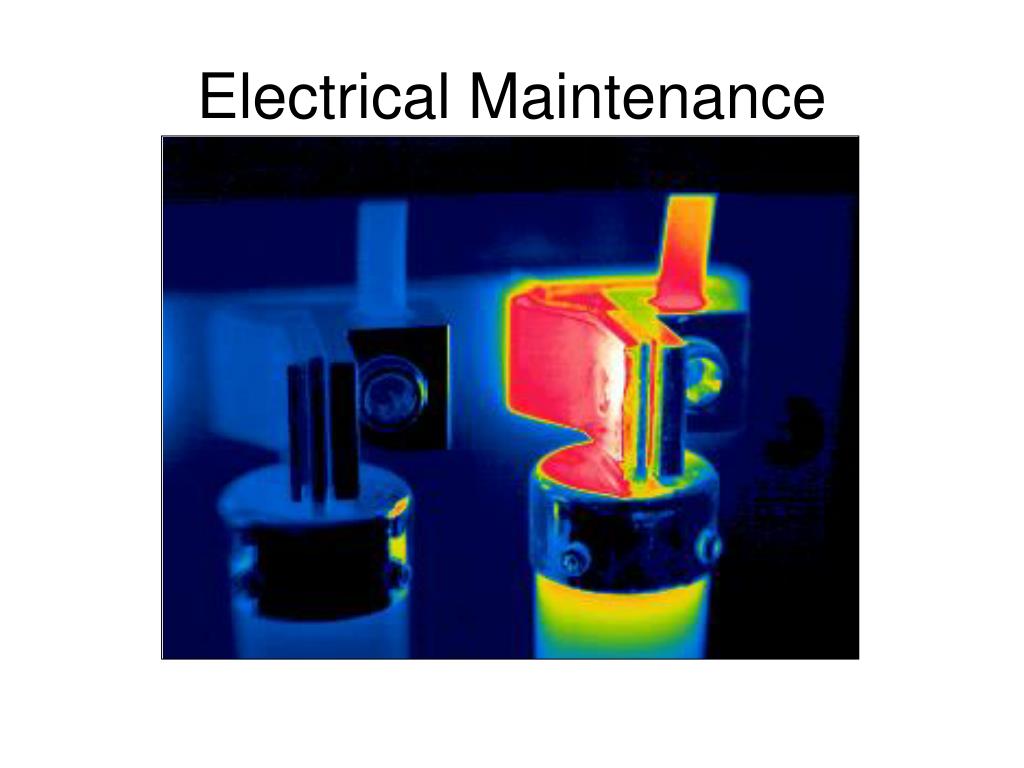

Electrical Maintenance
  • Maintenance: Much more than a “Necessary Evil”
  • Most downtime is NOT inevitable
  • Prevent failures
  • Reduce both cost and time required for repair
  • Take control of your production and profitability
mechanical maintenance
Mechanical Maintenance

Infrared Image:

Bearing Load Strain/Wear

Reference Image:

Adjacent Pump

mechanical maintenance1
Mechanical Maintenance

Refractory Integrity

mechanical maintenance2
Mechanical Maintenance

Tempering Furnace Door

mechanical maintenance3
Mechanical Maintenance

Ladle Refractory

roof moisture detection
Roof Moisture Detection

Infrared Image:

Trapped Moisture in the Insulation

Photo:

Trapped Moisture in the Insulation

infrared imaging applications summary
Infrared Imaging ApplicationsSummary
  • Process/Quality Control
  • Research & Development
  • Electrical Maintenance
  • Mechanical Maintenance
  • Line Camera Speeds up to 18,000HZ.
take control of your plant efficiency
Take Control of your Plant Efficiency!
  • Control process temperatures to improve quality and reduce operating costs
  • Develop and design better products with increased efficiency
  • Prevent electrical and mechanical downtime
elements of a process control system
Elements of a Process Control System
  • What is the target material?
  • What is the target temperature? Maximum and minimum temps!
  • Is the target moving? At what speed?
  • What is the target size?
  • Is 1-5 frames per second adequate for this application or do they need 30-60 frames per second?
elements of a process control system1
Elements of a Process Control System

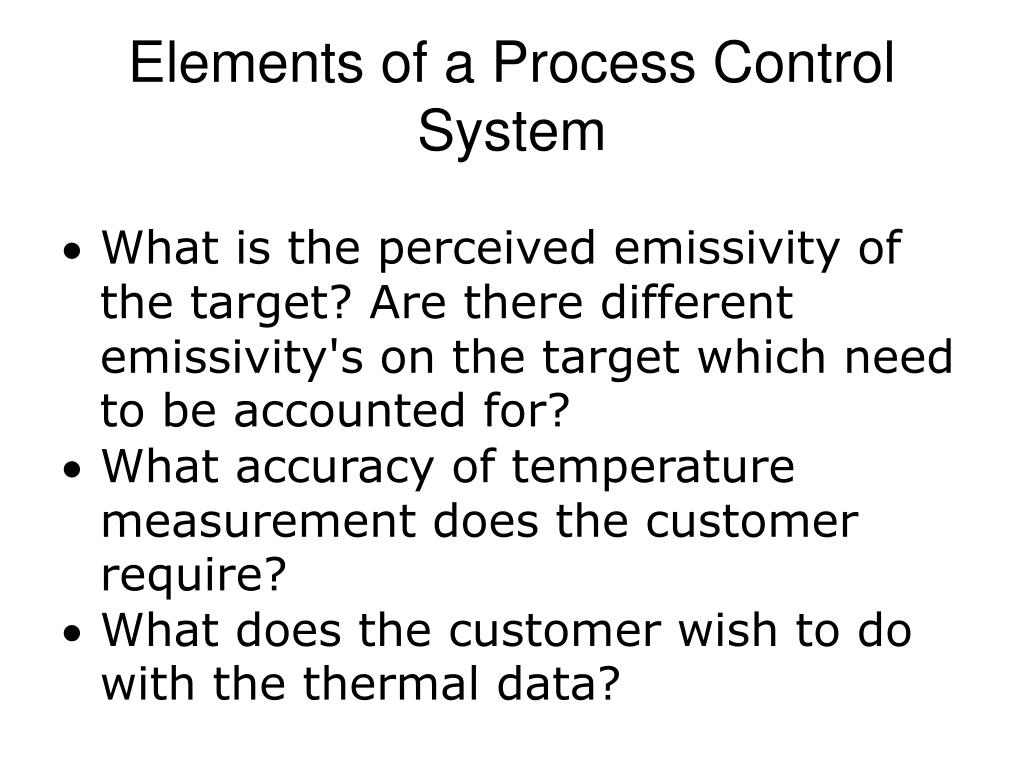

  • What is the perceived emissivity of the target? Are there different emissivity's on the target which need to be accounted for?
  • What accuracy of temperature measurement does the customer require?
  • What does the customer wish to do with the thermal data?
elements of a process control system2
Elements of a Process Control System

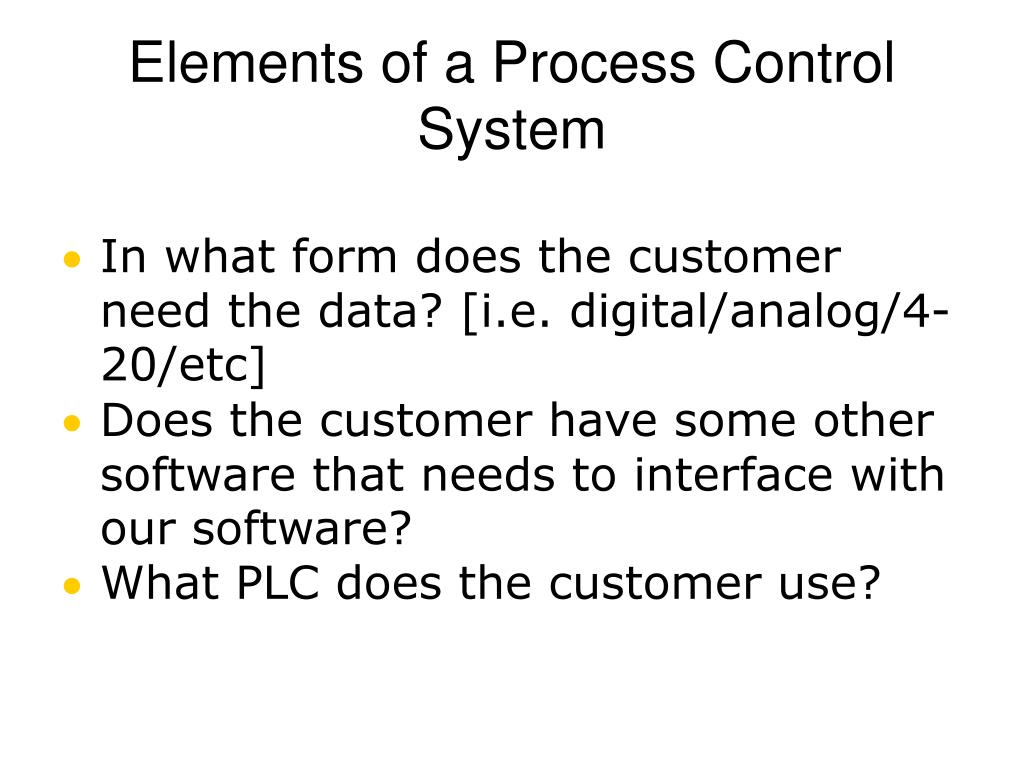

  • In what form does the customer need the data? [i.e. digital/analog/4-20/etc]
  • Does the customer have some other software that needs to interface with our software?
  • What PLC does the customer use?
elements of a process control system3
Elements of a Process Control System

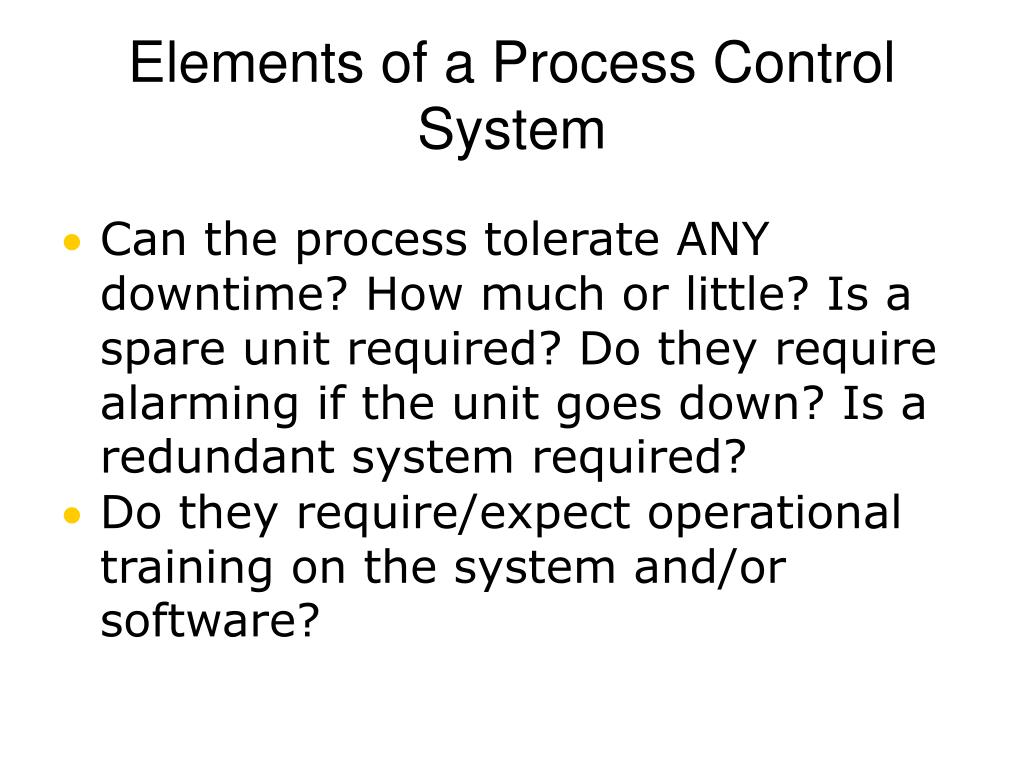

  • Can the process tolerate ANY downtime? How much or little? Is a spare unit required? Do they require alarming if the unit goes down? Is a redundant system required?
  • Do they require/expect operational training on the system and/or software?
elements of a process control system4
Elements of a Process Control System

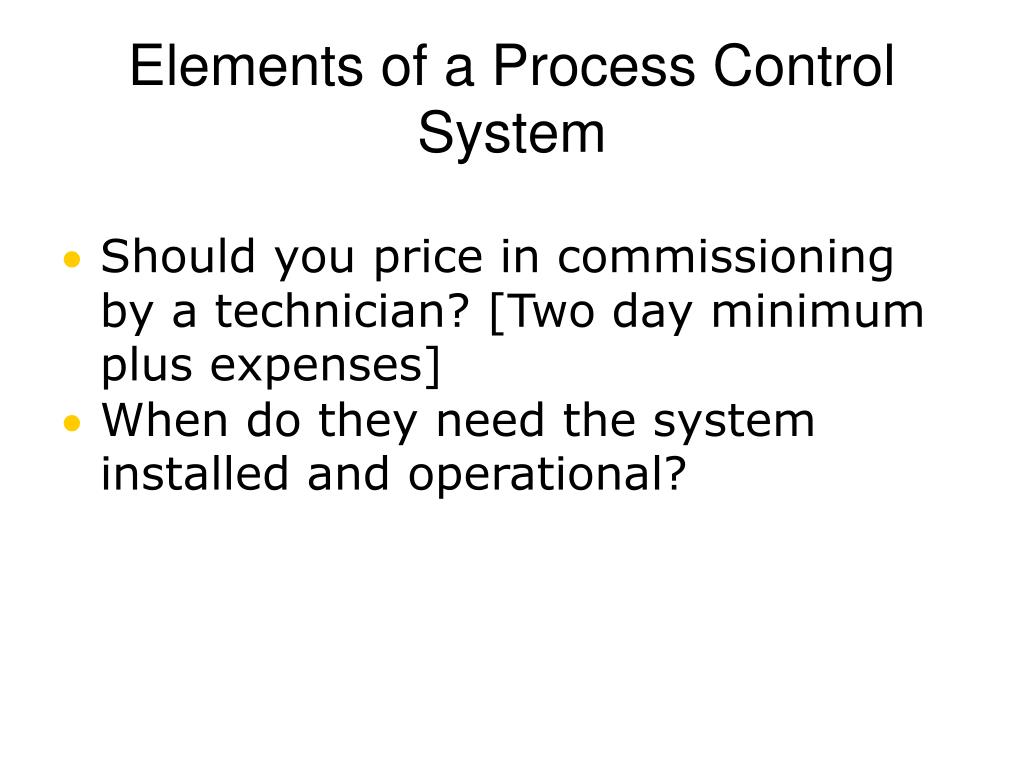

  • Should you price in commissioning by a technician? [Two day minimum plus expenses]
  • When do they need the system installed and operational?
elements of a process control system5
Elements of a Process Control System

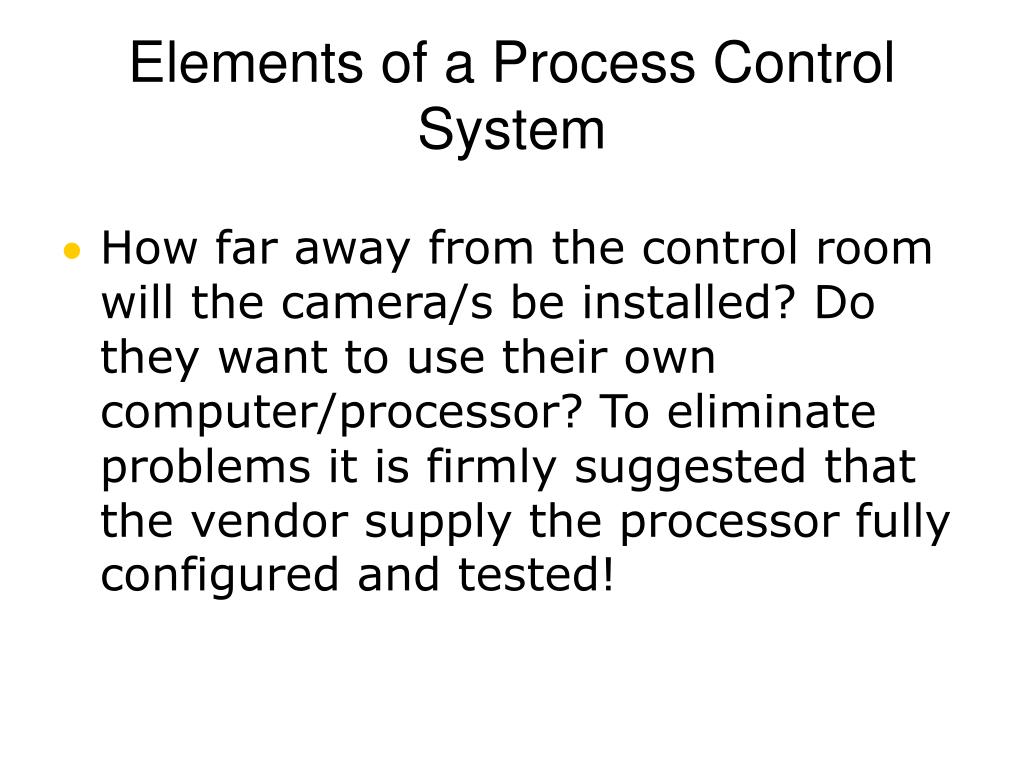

  • How far away from the control room will the camera/s be installed? Do they want to use their own computer/processor? To eliminate problems it is firmly suggested that the vendor supply the processor fully configured and tested!
elements of a process control system6
Elements of a Process Control System
  • How many cameras are necessary for the application? If one target…how much coverage they want will determine the number/s of cameras required!
  • Do they have Ethernet [100/GigE base T] available at the point of camera installation? If not, what do they have? Fiber optics ?
elements of a process control system7
Elements of a Process Control System

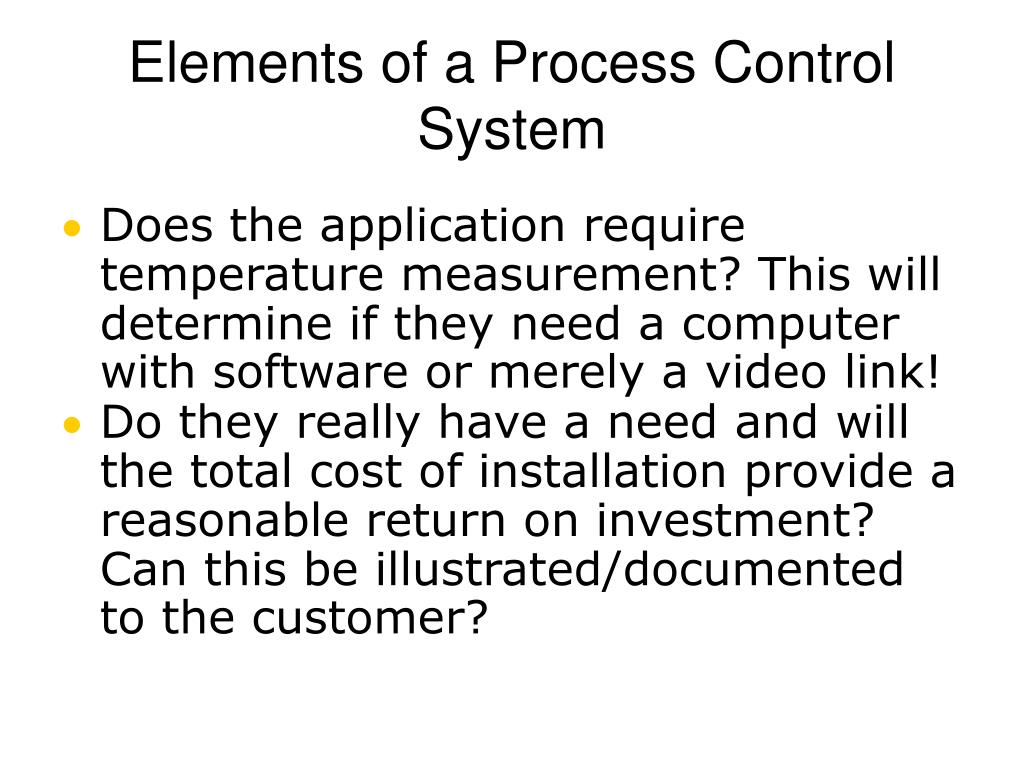

  • Does the application require temperature measurement? This will determine if they need a computer with software or merely a video link!
  • Do they really have a need and will the total cost of installation provide a reasonable return on investment? Can this be illustrated/documented to the customer?
