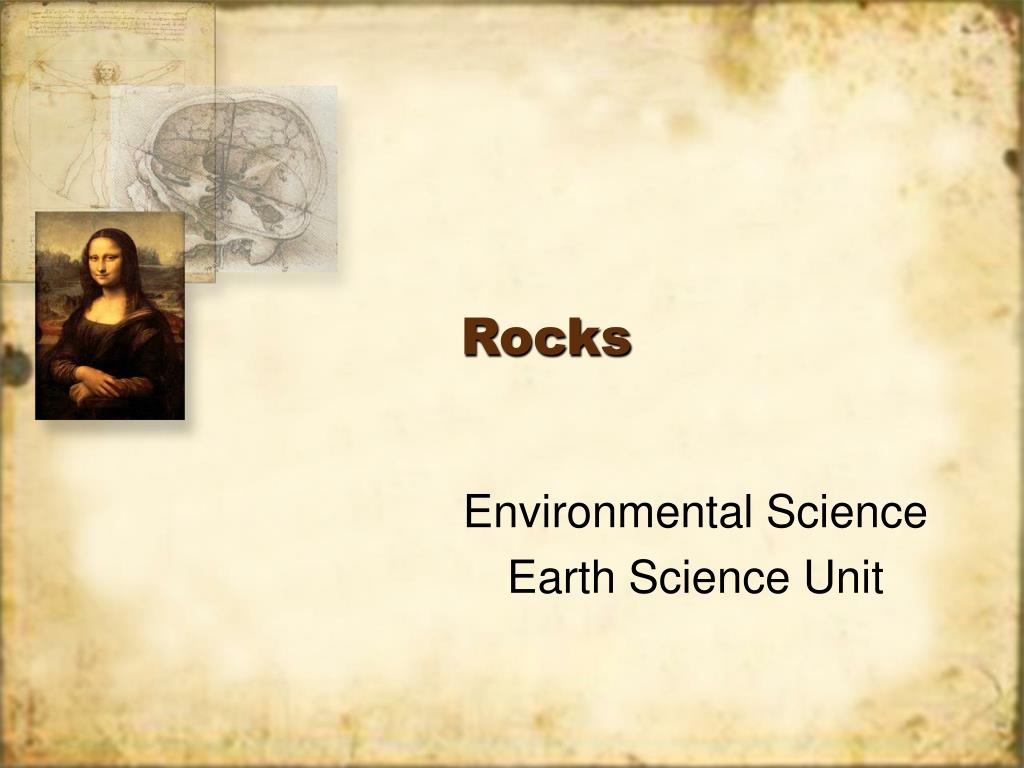

  1. Rocks Environmental Science Earth Science Unit

  2. Questions for Today • What are Rocks? • What are the three types of Rock? • How are Igneous Rocks Classified? • How are Sedimentary Rocks Classified? • How are Metamorphic Rocks classified?

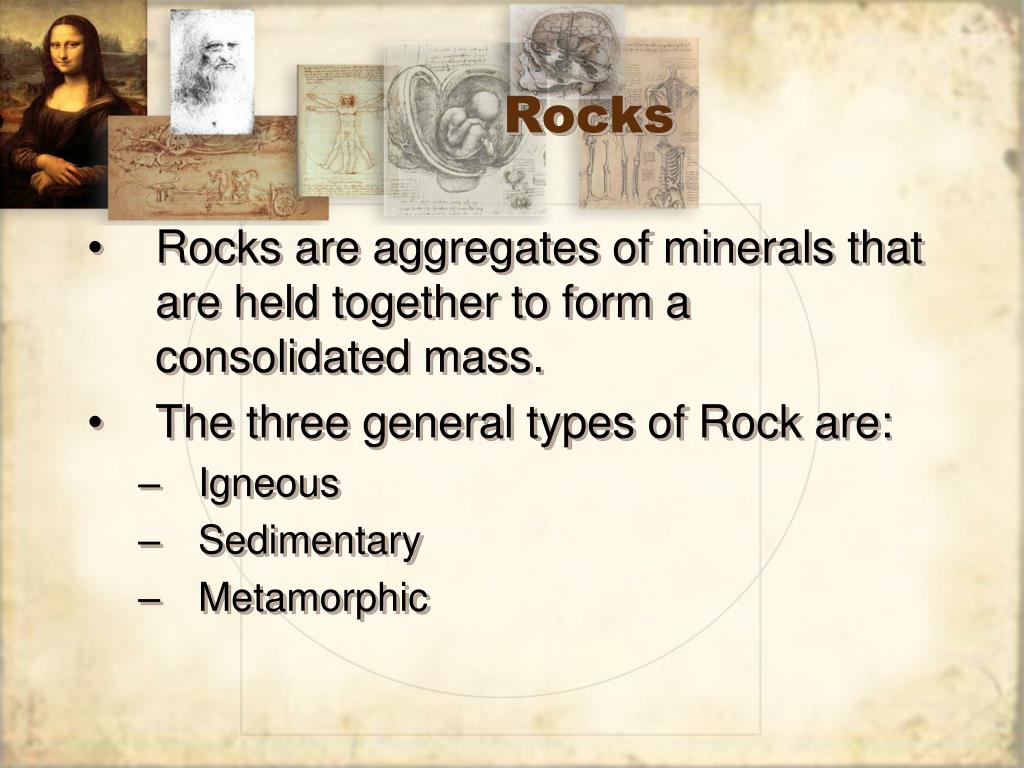

  3. Rocks • Rocks are aggregates of minerals that are held together to form a consolidated mass. • The three general types of Rock are: • Igneous • Sedimentary • Metamorphic

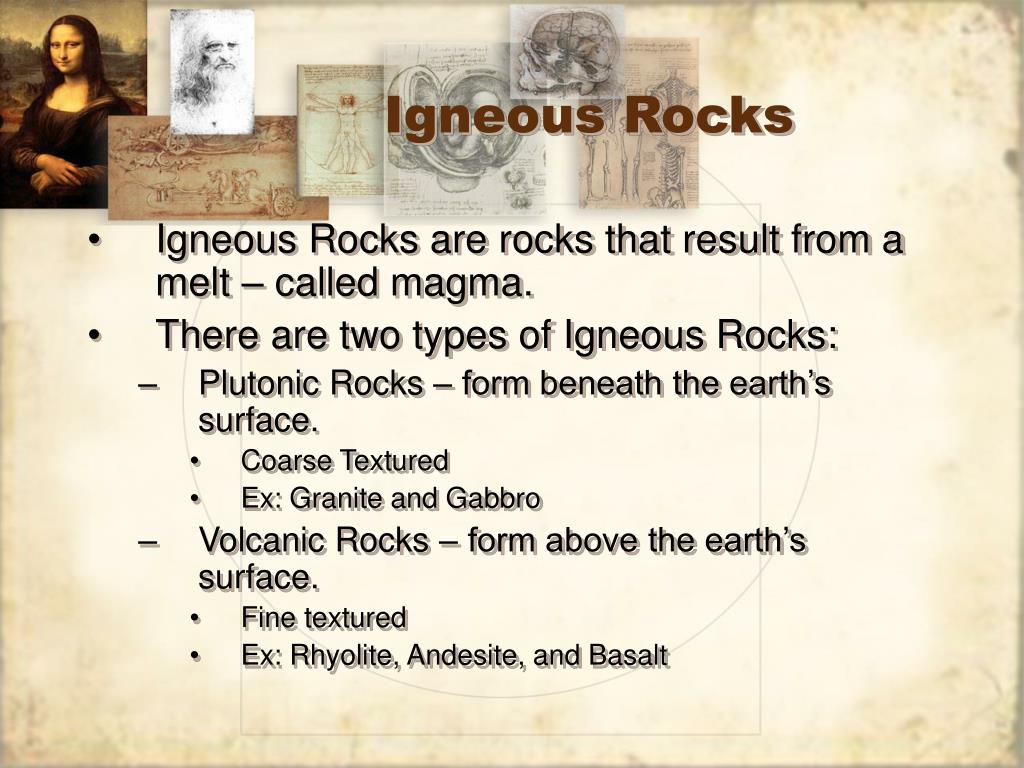

  4. Igneous Rocks • Igneous Rocks are rocks that result from a melt – called magma. • There are two types of Igneous Rocks: • Plutonic Rocks – form beneath the earth’s surface. • Coarse Textured • Ex: Granite and Gabbro • Volcanic Rocks – form above the earth’s surface. • Fine textured • Ex: Rhyolite, Andesite, and Basalt

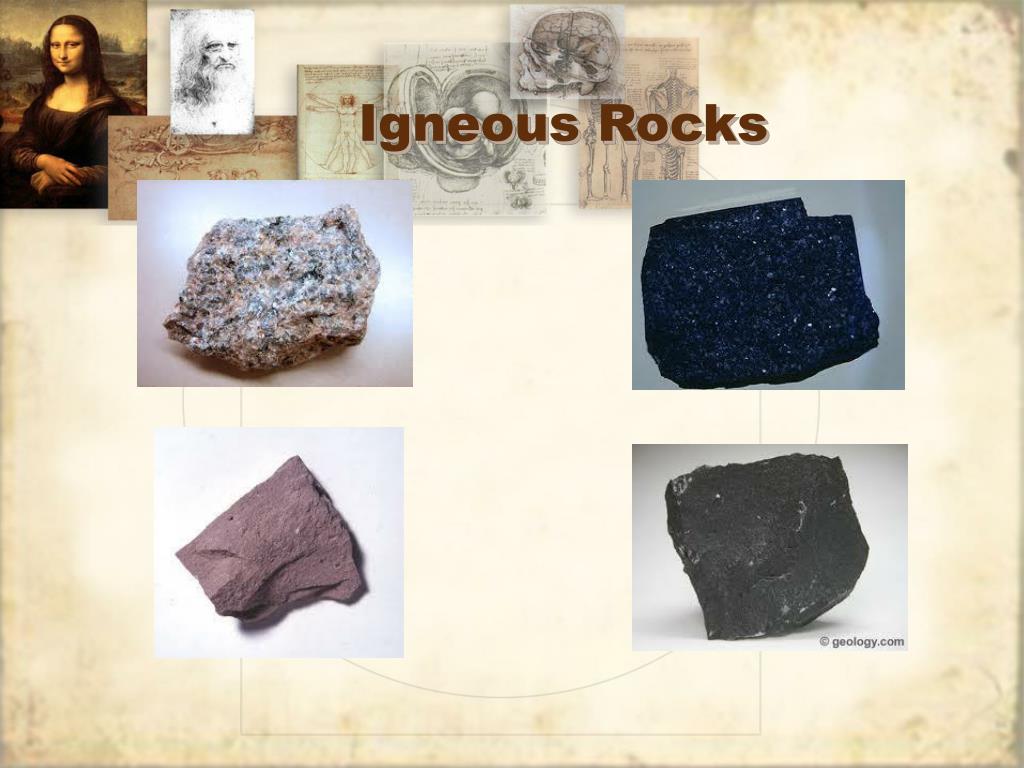

  5. Igneous Rocks

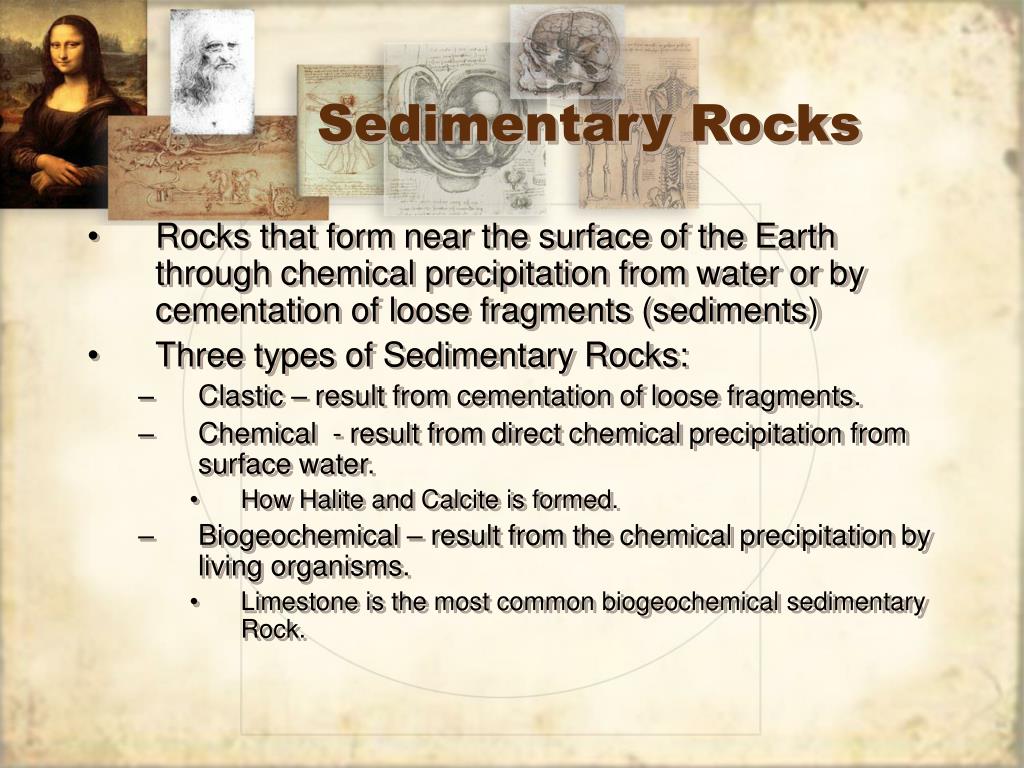

  6. Sedimentary Rocks • Rocks that form near the surface of the Earth through chemical precipitation from water or by cementation of loose fragments (sediments) • Three types of Sedimentary Rocks: • Clastic – result from cementation of loose fragments. • Chemical - result from direct chemical precipitation from surface water. • How Halite and Calcite is formed. • Biogeochemical – result from the chemical precipitation by living organisms. • Limestone is the most common biogeochemical sedimentary Rock.

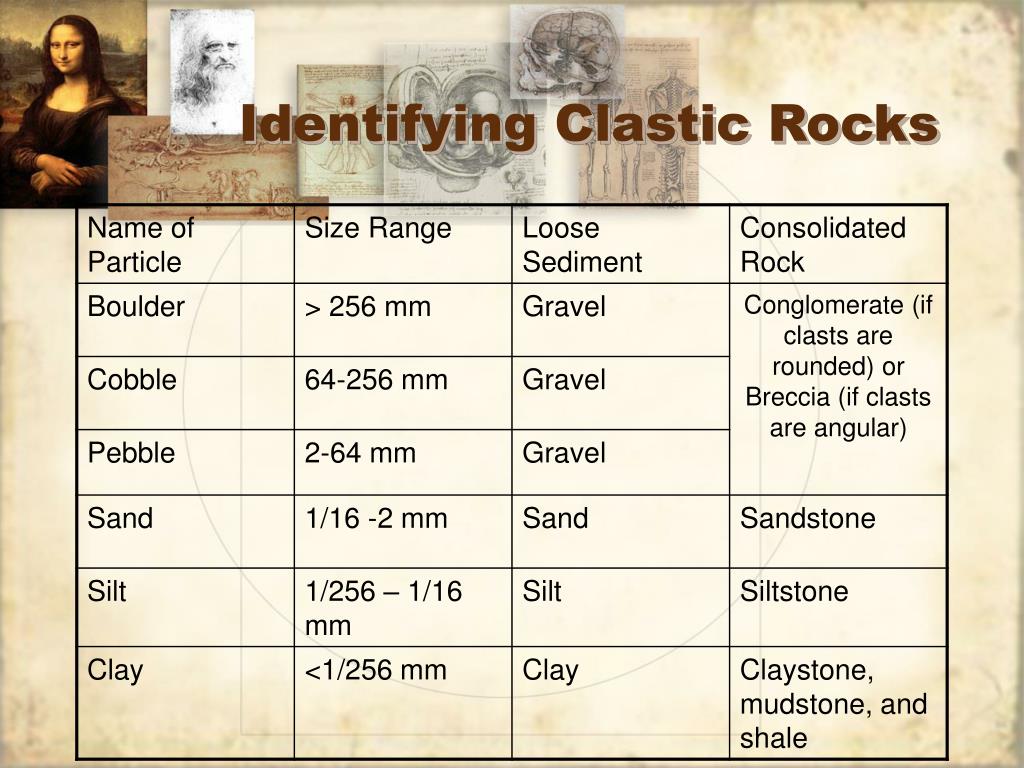

  7. Identifying Clastic Rocks

  8. Sedimentary Rocks

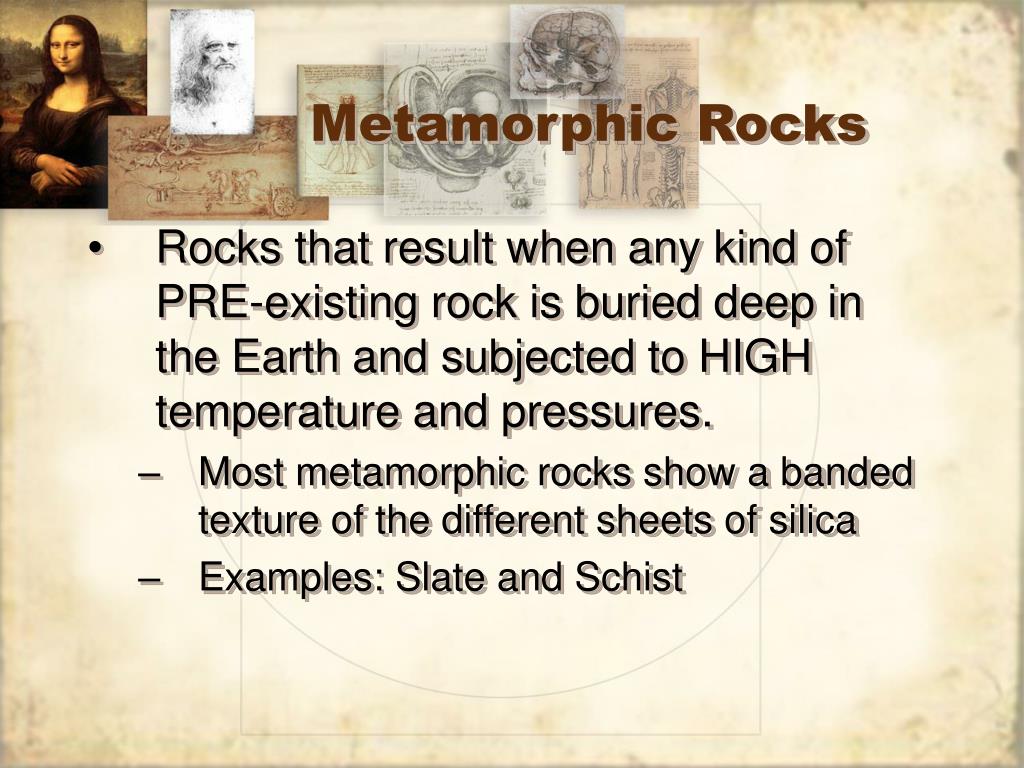

  9. Metamorphic Rocks • Rocks that result when any kind of PRE-existing rock is buried deep in the Earth and subjected to HIGH temperature and pressures. • Most metamorphic rocks show a banded texture of the different sheets of silica • Examples: Slate and Schist

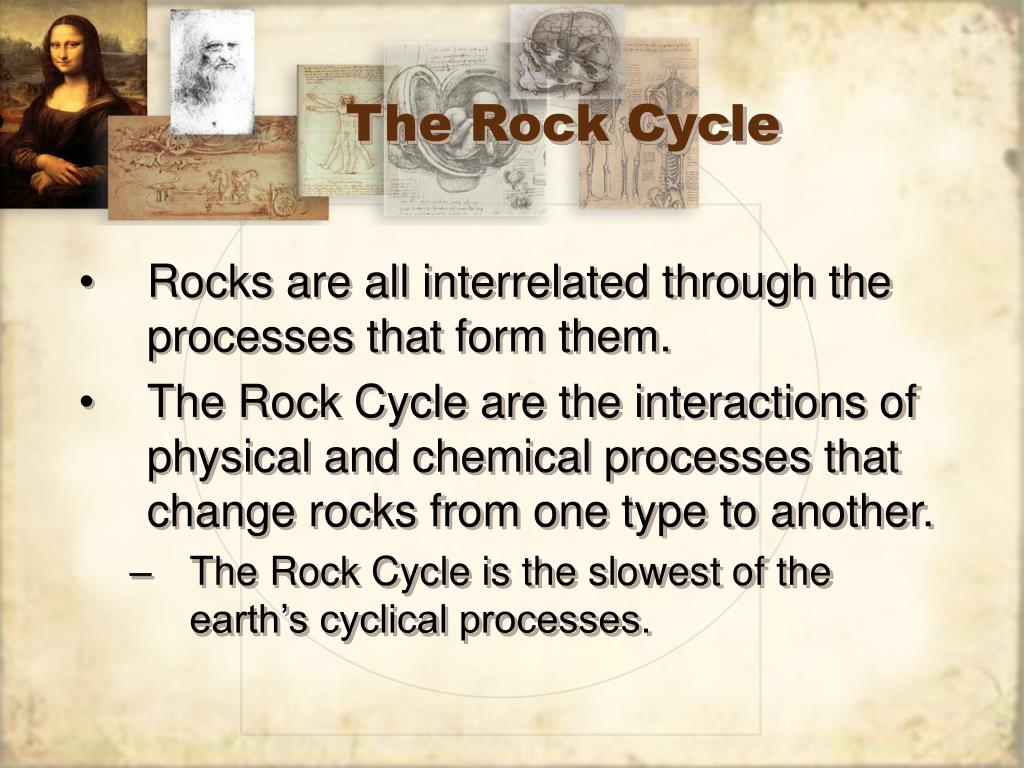

  10. The Rock Cycle • Rocks are all interrelated through the processes that form them. • The Rock Cycle are the interactions of physical and chemical processes that change rocks from one type to another. • The Rock Cycle is the slowest of the earth’s cyclical processes.

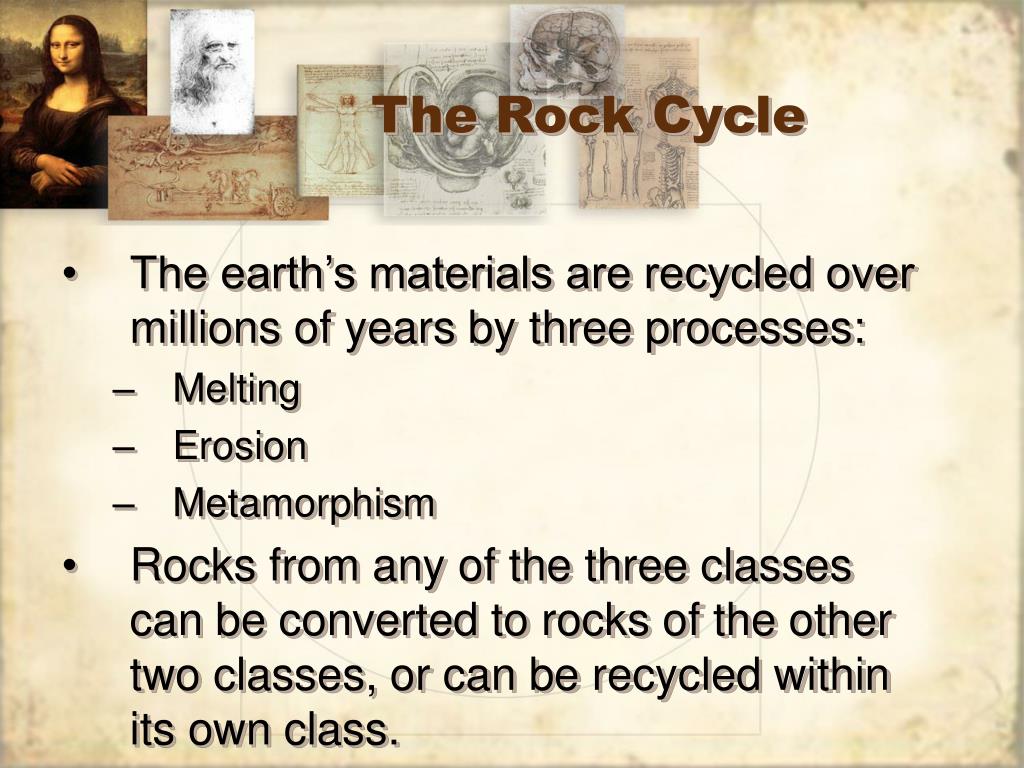

  11. The Rock Cycle • The earth’s materials are recycled over millions of years by three processes: • Melting • Erosion • Metamorphism • Rocks from any of the three classes can be converted to rocks of the other two classes, or can be recycled within its own class.

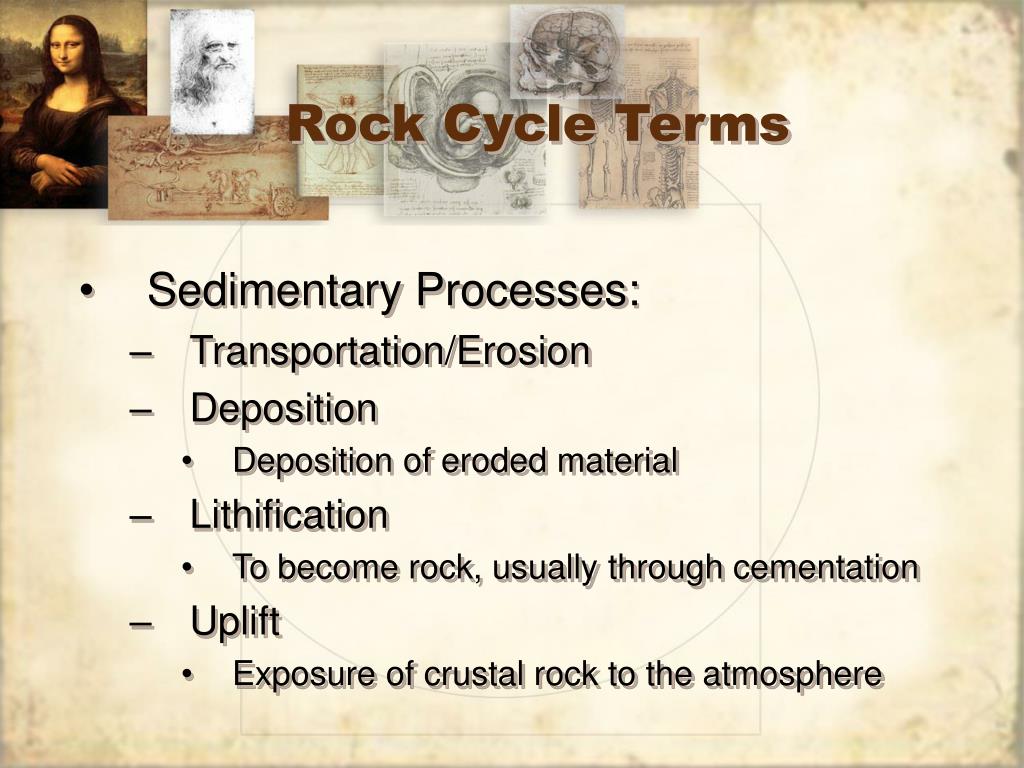

  12. Rock Cycle Terms • Sedimentary Processes: • Transportation/Erosion • Deposition • Deposition of eroded material • Lithification • To become rock, usually through cementation • Uplift • Exposure of crustal rock to the atmosphere

  13. Rock Cycle Animation • Interactive Rock Cycle
