  1. Operation of Energy-Efficient Divided Wall (Petlyuk) Column Speaker : AmbariKhanam Course : Specialization Project-tkp4550 Department of Chemical Engineering Date : December 17th, 2012 Project-Supervisor : SigurdSkogestad

  2. Outline • Introduction to Divided Wall Column (DWC) • Background and description • The project work is related to most likely situations in industrial practice. - The column is designed for optimal operation - Optimal Energy/close to Vmin for the given product specifications - Actual avialable energy less (therefore non-optimal RV) - Effect on product purities in all three streams - Minimize the impurities (the objective function) • Conclusion and further work

  3. Background • DWC (Dividing-Wall column) was introduced by Wright in 1949. • However, lack of reliabledesign methodand concerns about the operation and controlof DWC have prevented the widespread application. • People started to pay much attention to DWC after the Energy Crisis (1980). • In 1985, BASF built the first commercial DWC. • There are now more than 100 columns installed worldwide. • Energy consumption in distillation and greenhouse gas emissions are strongly related • Three products Petlyuk Arrangement can save upto20-30% energy and 30% capital cost.

  4. Divided Wall Column (DWC) (a) Implementation with three separate columns (b) DWC implementation with a side-product Figure. Thermodynamically equivalent implementations of three-product Petlyuk column

  5. Divided Wall Column (DWC) Side-draw section prefractionator

  6. Mode of Operation Fixed specifications

  7. Compositions Profiles at Minimum Energy

  8. List of Tasks List of Tasks

  9. The Composition Profiles for Given energy with Variable RV,RL,L and S

  10. Variable RV Fixed RV

  11. Variable RV and fixed side stream purity Variable RV and fixed Top and side stream purities

  12. The composition profiles for given energy with fixed RV and variable RL,L and S

  13. Compositions Profiles at 80% Energy for Variable RV and Fixed RV Respectively

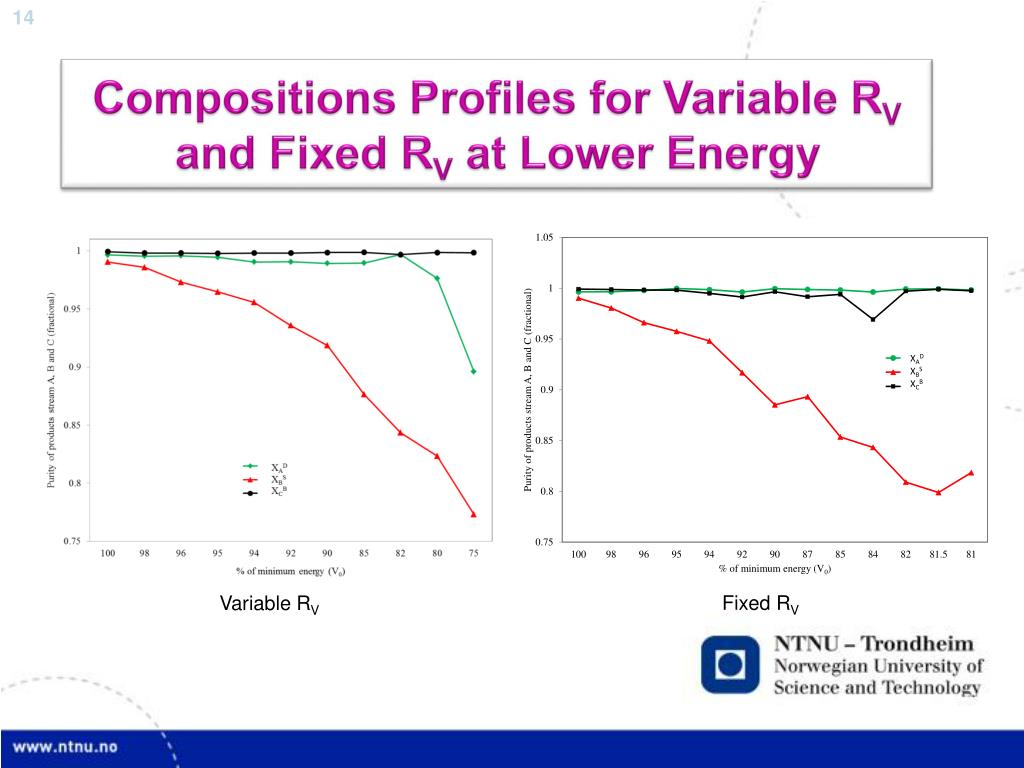

  14. Compositions Profiles for Variable RV and Fixed RV at Lower Energy Fixed RV Variable RV

  15. Compositions Profiles for Variable RV at Lower Energy Variable RV fixed side stream and top purities Variable RV fixed side stream purity

  16. Conclusion • Product specifications can not be maintained at energy lower than optimal because of non-optimal RV. • The optimal in terms of minimizing the impurities sum of all three products tends to increase the impurity in the side stream. • The results obtained are useful when product specifications are not given and one gets paid for the purity in products. • The other case could be that the side stream has no value and one get paid for the purity in both top product and bottom product. • When side stream purity is fixed then bottom product tends to be least pure.

  17. Further Work • The results can be further verified by doing the simulations for following cases: • Change in feed composition • Change in relative volatility of components. • A simple and robust control structure can be designed for operation at lower energy when the product is valuable based upon its purity.

  18. Thanks

  19. Binary Product Column Cost function for Binary Product Column Products purities versus energy for fixed D/F

  20. Binary Product Column Top product purity versus energy for fixed bottom product purity Bottomproduct purity versus energy for fixed top product purity

  21. Conclusion • By operating the column at lower energy than minimum energy we can no longer stick to product specifications • When D/F is fixed then both products tend to be equally impure with decreasing energy. • when one of the products is valuable and the other one has no value then the column can be operated at lower value of energy. and will still get one desired product at specifications.
