how do i measure my laser
How do I Measure MY Laser?
  • Power / Energy (Continuous or Pulsed)
  • Temporal Profile (for pulsed lasers)
  • Beam Profile
  • Beam Variations Over Time
    • Beam Wander
    • Size and Shape
    • Power and Energy
what can we provide you
What Can We Provide You?
  • Ophir-Spiricon Offers Instruments for Measuring
    • Power- from Picowatts to Kilowatts
    • Energy- from Pico Joules to Hundreds of Joules
    • Temporal Profile- from sub µs to ms
    • Wavelength- from 157 nm to 20um
    • Laser Beam Profiling
      • Any laser
      • Any Wavelength ( from soft X-ray to THz)
      • Any power (from sub nW to over 150 kW)
      • Any size beam (from micron to meters)
what s new in power energy for 2009
What’s NEW in Power/Energy for 2009?
  • PULSAR- Multi Channel High Speed USB II Interface
    • Up to 25,000 Hz on ALL Channels Simultaneously
    • Now supports ALL SmartHeads
  • Ideal for Multi-Head Applications
what s new in power energy for 20091
What’s NEW in Power/Energy for 2009?
  • Vega- NEW COLOR Hand-Held Display
    • Bright 320X240 Color TFT Display
      • Optimize your display for various laser glasses
    • ILLUMINATED KEYS
      • Easy to use in dim light
    • New Ergonomic Design
what s new in power energy for 20092
What’s NEW in Power/Energy for 2009?
  • 100 mm Diameter Pyroelectric Head
    • 96 mm Clear Aperture for extra large beams
    • Supplied with removable diffuser for higher powers and energies
    • Comes with broadband coating
what s new in power energy for 20093

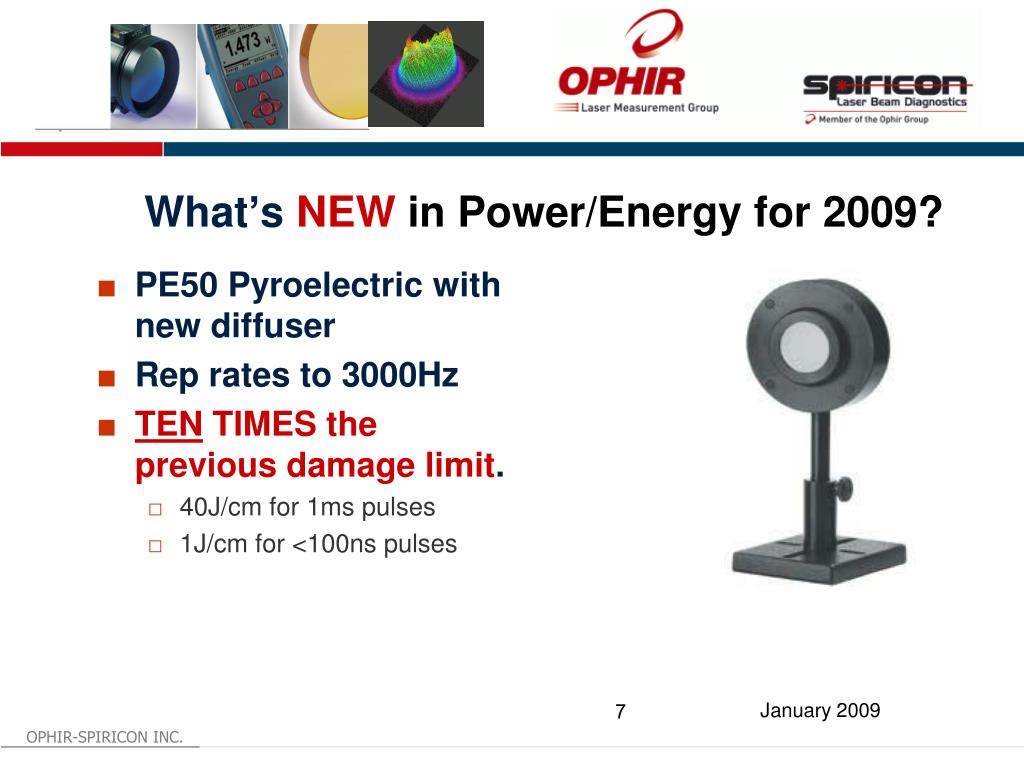

What’s NEW in Power/Energy for 2009?
  • PE50 Pyroelectric with new diffuser
  • Rep rates to 3000Hz
  • TEN TIMES the previous damage limit.
    • 40J/cm for 1ms pulses
    • 1J/cm for <100ns pulses
what s new in power energy for 20094
What’s NEW in Power/Energy for 2009?
  • New High Damage Threshold Coating for Long Pulse Lasers.
  • FIVE TIMES the previous limit.
    • 50 J/cm2 for 2ms pulses
    • 250 J/cm2 for 10ms pulses
what s new in power energy for 20095
What’s NEW in Power/Energy for 2009?
  • Energy Head specially made for IPL applications
    • Can be used with and without gels
    • Easy clean design
what s new in power energy for 20096
What’s NEW in Power/Energy for 2009?
  • 250W Long Pulse Power Head
    • Large (33 mm) Aperture
    • Up to 600J Total Energy
  • High Energy Density
    • >400 J/cm2 for >2ms pulses
what s new in power energy for 20097
What’s NEW in Power/Energy for 2009?
  • 300W Low-Profile Long-Pulse Head
    • ONLY 20 mm Thick
  • High Power Density Coating
    • Up to 150 J/cm2 for 20 ms pulses
what s new in power energy for 20098
What’s NEW in Power/Energy for 2009?
  • 500W FAN-COOLED Head for Long Pulse Lasers
    • 65 mm aperture for larger beams
    • 600J Total Energy
  • High Energy Density
    • 200 J/cm2 for 10 ms pulses
what s new in power energy for 20099
What’s NEW in Power/Energy for 2009?
  • 100/500W Convection-Cooled Head
    • 75W continuous, up to 500W intermittent.
    • 65 mm aperture for large beams
    • Can be used with IPL Sources up to 600 J!
    • 30 J/cm2 for 10ms pulses
what s new in power energy for 200910
What’s NEW in Power/Energy for 2009?
  • 1,500 Watt Long-Pulse RP Head
    • Measures CW Power & PULSE ENERGY
    • Also Measures Temporal Pulse shape!
  • Patented “RP” Technology
beam profiling
BEAM PROFILING
  • The QUANTITATIVE way To Characterize Your Laser
    • NO Guesswork!
    • All characteristics of your beam
    • ISO Beam Widths-No arguments
    • Easy to use
    • No operator error!
laser profiling equipment for lab use
Laser Profiling Equipment for Lab Use
  • Compact
  • USB-II AND FireWire!
  • From 190-1100 nm and 1450-1625 nm
  • Can even measure focused spots!
  • Any Wavelength-all you do is change detector arrays
laser profiling equipment for lab use1
Laser Profiling Equipment for Lab Use
  • PYROCAM III
  • IR to THz Wavelengths
  • Patented Pyroelectric uncooled detector
  • Stable, robust, easy to use
  • FireWire interface
laser profiling equipment for lab use2
Laser Profiling Equipment for Lab Use
  • Accessories
    • Wide range for almost every application
      • Range extenders for UV
      • Beam Expanders and reducers
      • Attenuation kits
what s new in profiling for 2009
What’s NEW in Profiling for 2009?
  • BEAMGAGE
    • A whole NEW way of looking at your beam
  • Totally New Software
    • Supported by Microsoft VISTA
new beamgage profiling software for 2009
NEW BeamGage Profiling Software for 2009
  • New Functionality
  • Ability to Test your Beam Calculations with Theoretical Beams!
  • Better 3D!
what s new in profiling for 20091
What’s NEW in Profiling for 2009?
  • New Beam Creator lets you see how a Theoretical Beam should appear.
  • Can be used to ‘calibrate’ beam widths
  • Will Revolutionize the Science of Spatial Beam Profiling!
what s new in profiling for 20092
What’s NEW in Profiling for 2009?
  • LBS-300 Integrated Focused Spot SYSTEM
    • Measures focused spots as small as 60 um
    • UP to 400 W total power
    • Works with short focal length lenses!
  • Image your FOCUSED SPOT!
what s new in profiling for 20093
What’s NEW in Profiling for 2009?
  • LARGE Format Profiling Camera
    • 24 mm X 36 mm Array
    • 11.2 Mpixels
    • FireWire Interface
    • 190 nm to 1100 nm range
  • Directly Image Large Beams!
what s new in profiling for 20094

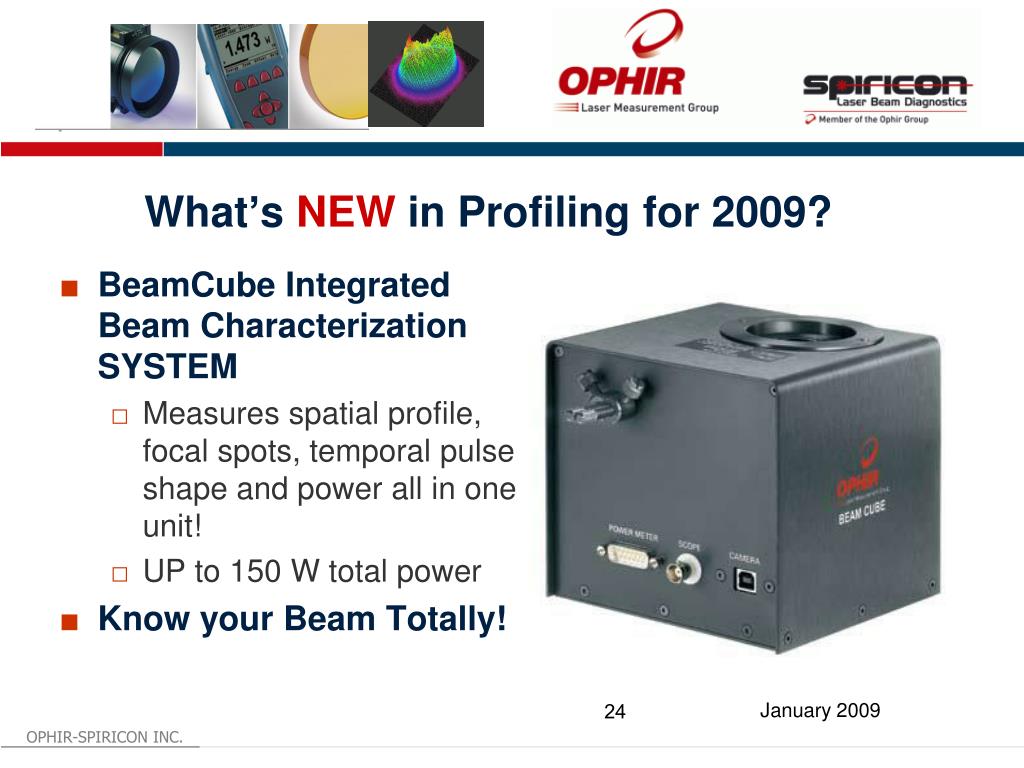

What’s NEW in Profiling for 2009?
  • BeamCube Integrated Beam Characterization SYSTEM
    • Measures spatial profile, focal spots, temporal pulse shape and power all in one unit!
    • UP to 150 W total power
  • Know your Beam Totally!
what s new in profiling for 20095
What’s NEW in Profiling for 2009?
  • M2-200s
  • FAST new Smaller M2 system
  • Industrial design-even for continuous use
  • M2 in as little as 45 seconds!
  • TRUE ISO 11146!
what s new in profiling for 20096
What’s NEW in Profiling for 2009?
  • SP 503/620 USB-II MiniCameras
  • Built-in Pulse Sync operation
  • Small footprint
  • High density Pixels
  • Lower cost
industrial beam profiling equipment
Industrial Beam Profiling Equipment
  • For 400-1100 nm Lasers
  • Power up to 4 kW
  • Integrated systems
    • Some measure power and temporal profile as well as Beam Profile
industrial beam profiling equipment1
Industrial Beam Profiling Equipment
  • Now for high power CO2 as well as Near IR applications
    • Up to 48 mm diameter beams
    • Up to 8 kW continuous power
    • Can be permanently installed for on-line beam monitoring
      • Totally transparent to the process
summary
SUMMARY
  • New Technology Makes Diagnostics Easier
  • Results in:
    • More Reliable Operation
    • Better Beam Quality
    • Less Waste
    • Higher Profits
for more information
For More Information…
  • Contact your local representative
  • Find us on the web:
    • www.ophir-spiricon.com
